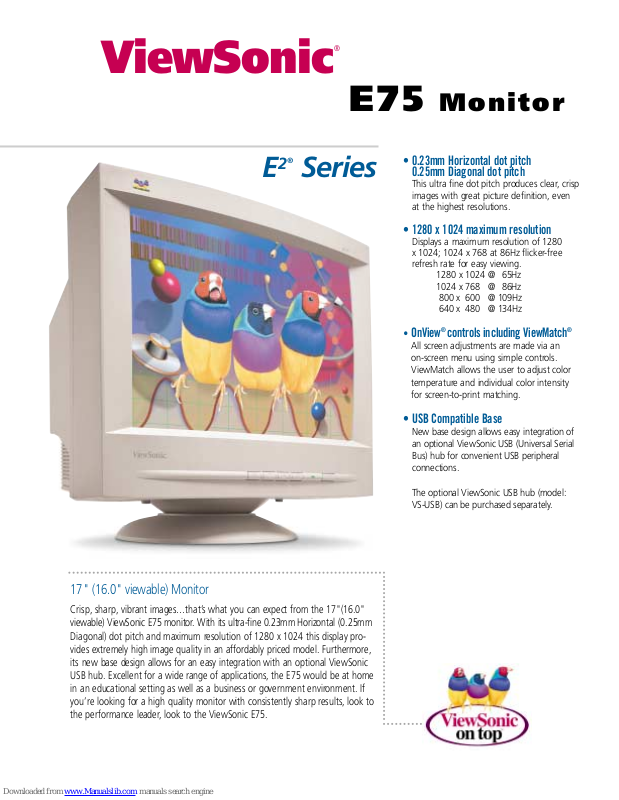

ViewSonic E75 Specifications
®
ViewSonic
E75 Monitor
E
®
2
Series
• 0.23mm Horizontal dot pitch
0.25mm Diagonal dot pitch
This ultra fine dot pitch produces clear, crisp
images with great picture definition, even
at the highest resolutions.
• 1280 x 1024 maximum resolution
Displays a maximum resolution of 1280
x 1024; 1024 x 768 at 86Hz flicker-free
refresh rate for easy viewing.
1280 x 1024 @ 65Hz
1024 x 768 @ 86Hz
,800 x ,600 @ 109Hz
,640 x ,480 @ 134Hz
• OnView
®
controls including ViewMatch
All screen adjustments are made via an
on-screen menu using simple controls.
ViewMatch allows the user to adjust color
temperature and individual color intensity
for screen-to-print matching.
• USB Compatible Base
New base design allows easy integration of
an optional ViewSonic USB (Universal Serial
Bus) hub for convenient USB peripheral
connections.
®
The optional ViewSonic USB hub (model:
VS-USB) can be purchased separately.
17" (16.0" viewable) Monitor
Crisp, sharp, vibrant images…that’s what you can expect from the 17"(16.0"
viewable) ViewSonic E75 monitor. With its ultra-fine 0.23mm Horizontal (0.25mm
Diagonal) dot pitch and maximum resolution of 1280 x 1024 this display provides extremely high image quality in an affordably priced model. Furthermore,
its new base design allows for an easy integration with an optional ViewSonic
USB hub. Excellent for a wide range of applications, the E75 would be at home
in an educational setting as well as a business or government environment. If
you’re looking for a high quality monitor with consistently sharp results, look to
the performance leader, look to the ViewSonic E75.
®
ViewSonic
E75 Monitor
17" (16.0" VIEWABLE) COLOR MONITOR WITH ULTRA FINE DOT PITCH
CRT Type 17" (16.0" viewable) 90° deflection
INPUT SIGNAL Video RGB analog (0.714Vp-p, 75 ohms)
COMPATIBILITY PC PC and compatibles (from VGA up to 1,280 x 1,024
CONNECTOR Signal 15-pin mini D-sub, (attached cable)
POWER Voltage AC 100-240 VAC (auto switch) 50/60 (+/-3)Hz
USER CONTROLS Basic Power on/off, Key–1, Up, Down, Key–2,
• Anti-Static, Anti-Glare screen
This anti-static, anti-glare coating refracts unwanted
light away from the user while maintaining the highest
quality of the displayed image.
• MPR-II and EPA ENERGY STAR®compliant
This monitor surpasses these strict standards for
reduced emissions, power management and efficiency.
•
Fully supports the Microsoft®Windows®auto-installation
standard for easy, trouble-free configuration and set-up.
• PC and Mac®compatible
• Three year limited warranty
• VESA GTF compliant
Maximizes display performance by automatically
aligning images to reduce set-up time.*
VIDEO INPUT Bandwidth 120MHz (typ)
MISCONVERGENCE 0.2mm (max) at center
DISPLAY AREA Factory Setting 300mm(H) x 230mm(V) (Dependent upon
OPERATING Temperature 32°F to 104°F (0°C to 40°C)
CONDITION Humidity 5% to 95% (non condensing)
DIMENSIONS Physical 410mm (W) x 421mm (H) x 444mm (D)
WEIGHT Net 16.5Kg (36.3 lbs.)
OTHER DDC1 & DDC2B, GTF compliant
REGULATIONS UL, CSA, DHHS, MPR-II, TUV ERGO/9241-3, TUV/GS,
POWER MANAGEMENT Meets E
WARRANTY Three year limited warranty on CRT, parts and
®
2
E
Series
Dot Pitch 0.23mm Horizontal, 0.12mm Vertical, 0.25mm Diagonal
Phosphor RGB P22 medium-short persistence
Glass Surface Tint (TM=52%) anti-static, anti-glare screen treatment
Sync H/V Separate (TTL)
Frequency Fh:30-70kHz, Fv:50-160Hz
®
**
Mac
Power 3-pin plug (IEC60320)
Consumption 90W (typ)
OnView
Maximum Scan 320mm(H) x 240mm(V) signal timing used)
non- interlaced)
Power Mac™(up to 1024 x 768)
®
Contrast, Brightness, H/V size, H/V position, Pincushion,
Trapezoid, Pin balance, parallelogram, H/V moire’, Degauss
ViewMatch
position, rotation, recall
0.3mm (max) at corner
(16.1" x 16.6" x 17.5")
DOC, BSMI, E2K, NOM, PSB, C-Tick, NEMKO,
DEMKO, SEMKO
DPMS standards
labor 48 hour Express Exchange
®
color, language select, ViewMeter®, OSD
NERGY STA R
®
,ENERGY 2000, VESA®and
®
service option available
ViewSonic Corporation's QMS\ EMS has been registered to ISO 9001
& ISO 14001 by the British Standards Institution.
*Requires GTF (General Timing Format) compliant video card support. **Free universal Mac cable adapter available.
Copyright © 2000, ViewSonic Corporation. All rights reserved. Corporate names and trademarks stated herein are the property of their respective companies. Specifications subject to change without notice. As an E
mined that this product meets the E
VSE70-5_12/00_web_rev 1
VS-2104
®
NERGY STA R
guidelines for energy efficiency. Microsoft, Windows, Windows NT, and the Windows logos are the registered trademarks of Microsoft Corporation in the United States and other countries.
381 Brea Canyon Road, Walnut, CA 91789
Phone (800) 888-8583 • (909) 869 -7976
Fax (909)468-1202 • Internet: www.ViewSonic.com
®
