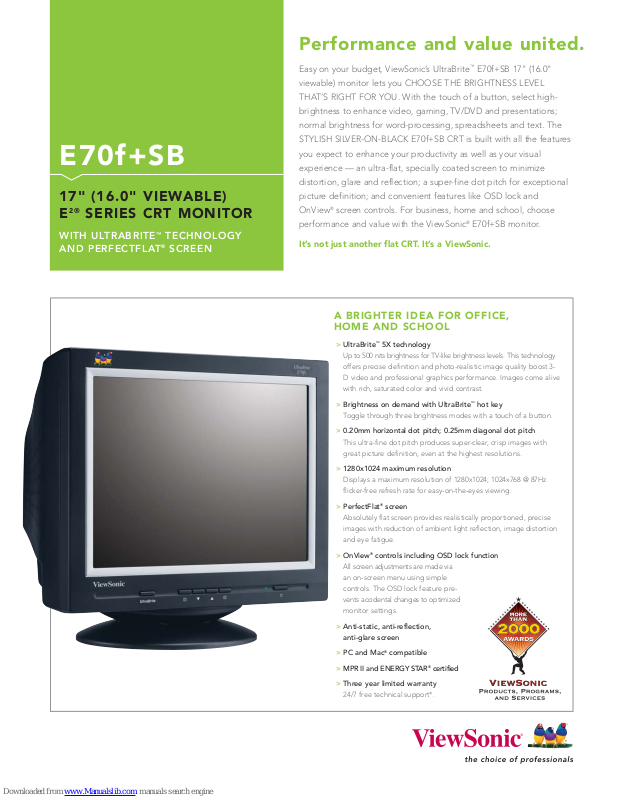

ViewSonic E70fPlus, E70FSB Specifications

E70f+SB

17" (16.0" VIEWABLE)
E2®SERIES CRT MONITOR

WITH ULTRABRITE™TECHNOLOGY
AND PERFECTFLAT

®

SCREEN

Performance and value united.

Easy on your budget, ViewSonic’s UltraBrite™E70f+SB 17" (16.0"

viewable) monitor lets you CHOOSE THE BRIGHTNESS LEVEL

THAT’S RIGHT FOR YOU. With the touch of a button, select high-

brightness to enhance video, gaming, TV/DVD and presentations;

normal brightness for word-processing, spreadsheets and text. The

STYLISH SILVER-ON-BLACK E70f+SB CRT is built with all the features

you expect to enhance your productivity as well as your visual

experience — an ultra-flat, specially coated screen to minimize

distortion, glare and reflection; a super-fine dot pitch for exceptional

picture definition; and convenient features like OSD lock and

®

OnView

performance and value with the ViewSonic

It’s not just another flat CRT. It’s a ViewSonic.

screen controls. For business, home and school, choose

®

E70f+SB monitor.

A BRIGHTER IDEA FOR OFFICE,
HOME AND SCHOOL

> UltraBrite™5X technology

Up to 500 nits brightness for TV-like brightness levels. This technology
offers precise definition and photo-realistic image quality boost 3­D video and professional graphics performance. Images come alive
with rich, saturated color and vivid contrast.

> Brightness on demand with UltraBrite™hot key

Toggle through three brightness modes with a touch of a button.

> 0.20mm horizontal dot pitch; 0.25mm diagonal dot pitch

This ultra-fine dot pitch produces super-clear, crisp images with
great picture definition, even at the highest resolutions.

> 1280x1024 maximum resolution

Displays a maximum resolution of 1280x1024; 1024x768 @ 87Hz
flicker-free refresh rate for easy-on-the-eyes viewing.

> PerfectFlat®screen

Absolutely flat screen provides realistically proportioned, precise
images with reduction of ambient light reflection, image distortion
and eye fatigue.

> OnView®controls including OSD lock function

All screen adjustments are made via
an on-screen menu using simple
controls. The OSD lock feature pre­vents accidental changes to optimized
monitor settings.

> Anti-static, anti-reflection,

anti-glare screen

> PC and Mac

> MPR II and ENERGY STAR

> Three year limited warranty

24/7 free technical support*.

®

compatible

®

certified

E70f+SB

17" (16.0" VIEWABLE) E2®SERIES CRT MONITOR WITH
ULTRABRITE™TECHNOLOGY AND PERFECTFLAT®SCREEN

CRT Type 17" (16.0" viewable) 90º deflection

Dot Pitch 0.20mm (horizontal) x 0.13mm (vertical); 0.25mm diagonal

Phosphor RGB medium-short persistence

Glass Surface Tint: TM~57%, anti-static, anti-reflection, anti-glare screen coating

VIDEO SIGNAL Video RGB analog (75 ohms, 0.7/1.0Vp-p)

Sync H/V separated (TTL)

Frequency Fh: 30~70kHz, Fv: 50~160Hz

COMPATIBILITY PC VGA up to 1280x1024 non-interlaced

Mac®** Power Mac G3/G4/G5 (from 640x480 to 1024x768)

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin plug (IEC320)

POWER Voltage AC 90–132V / 198–240VAC (auto switch), 50/60Hz (+/-3)

Consumption 75W (typ)

CONTROLS Basic Power, 1, up, down, 2, UltraBrite

VIDEO INPUT Bandwidth 120MHz

MISCONVERGENCE 0.25mm (max) at center

DISPLAY AREA Factory Setting 310mm x 230mm

(HORZ. x VERT.) Full Scan 325mm x 244mm (dependent upon timing signal)

OPERATING Temperature 32–104°F (0–40°C)

CONDITIONS Humidity 5–95% (no condensing)

DIMENSIONS Physical (mm) 395mm x 395mm x 420mm

(W x H x D) Physical (in.) 15.6" x 15.6" x 16.5"

WEIGHT Net 30.6 lb. (13.9 kg)

REGULATIONS UL, CSA or cUL, DHHS, FCC-B, ICES-003, CB, MPR II,

POWER MANAGEMENT Meets MPR II and ENERGY STAR®standards

PACKAGE CONTENTS CRT monitor, video cable (attached), power cable,

WARRANTY Three-year limited warranty on CRT, parts and labor

®

OnView

Gross 36.2 lb. (16.4 kg)

Contrast, brightness, degauss, H. size/position, V. size/position,

zoom, pincushion, pinbalance, trapezoid, parallelogram, tilt,

moiré reduction, ViewMatch®(9300K, 6500K, 5000K, user),

language, ViewMeter®, OSD position, zoom, recall

0.35mm (max) at corner

ENERGY STAR®, NOM, TUV/S

Quick Start Guide, ViewSonic Wizard CD

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone]• Fax [phone]• [e-mail] • ViewSonic.com

*Excludes major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved. [12575-00B-08/05] E70f+SB-4
