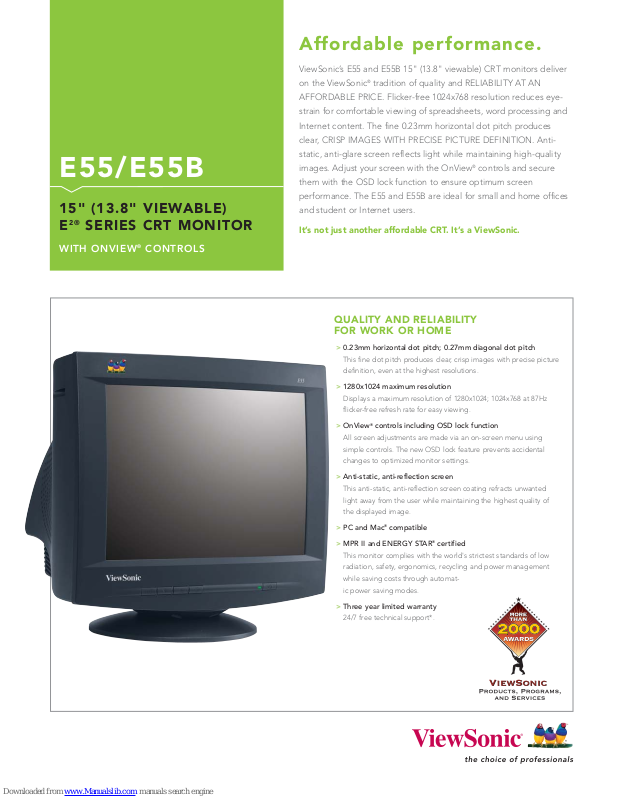

ViewSonic E55, E55-3, E55B Specifications

E55/E55B

15" (13.8" VIEWABLE)
E2®SERIES CRT MONITOR

WITH ONVIEW®CONTROLS

Affordable performance.

ViewSonic’s E55 and E55B 15" (13.8" viewable) CRT monitors deliver

®

on the ViewSonic

AFFORDABLE PRICE. Flicker-free 1024x768 resolution reduces eye-

strain for comfortable viewing of spreadsheets, word processing and

Internet content. The fine 0.23mm horizontal dot pitch produces

clear, CRISP IMAGES WITH PRECISE PICTURE DEFINITION. Anti-

static, anti-glare screen reflects light while maintaining high-quality

images. Adjust your screen with the OnView

them with the OSD lock function to ensure optimum screen

performance. The E55 and E55B are ideal for small and home offices

and student or Internet users.

It’s not just another affordable CRT. It’s a ViewSonic.

QUALITY AND RELIABILITY
FOR WORK OR HOME

> 0.23mm horizontal dot pitch; 0.27mm diagonal dot pitch

> 1280x1024 maximum resolution

> OnView®controls including OSD lock function

> Anti-static, anti-reflection screen

> PC and Mac®compatible

> MPR II and ENERGY STAR

> Three year limited warranty

tradition of quality and RELIABILITY AT AN

®

controls and secure

This fine dot pitch produces clear, crisp images with precise picture

definition, even at the highest resolutions.

Displays a maximum resolution of 1280x1024; 1024x768 at 87Hz

flicker-free refresh rate for easy viewing.

All screen adjustments are made via an on-screen menu using

simple controls. The new OSD lock feature prevents accidental

changes to optimized monitor settings.

This anti-static, anti-reflection screen coating refracts unwanted

light away from the user while maintaining the highest quality of

the displayed image.

®

certified

This monitor complies with the world's strictest standards of low

radiation, safety, ergonomics, recycling and power management

while saving costs through automat-

ic power saving modes.

24/7 free technical support*.

E55/E55B

15" (13.8" VIEWABLE) E2®SERIES CRT MONITOR WITH ONVIEW®CONTROLS

CRT Type 15" (13.8" viewable) 90º deflection

Dot Pitch 0.23mm (horizontal) x 0.13mm (vertical); 0.27mm diagonal

Phosphor RGB medium-short persistence

Glass Surface Tint: TM~57%, anti-static, anti-reflection screen coating

VIDEO SIGNAL Video RGB Analog (75 ohms, 0.7/1.0Vp-p)

Sync H/V separated (TTL), composite

Frequency Fh: 30~70kHz, Fv: 50~160Hz

COMPATIBILITY PC IBM and compatibles (from VGA up to 1280x1024 non-interlaced)

Mac®** Power Mac G3/G4/G5 (from 640x480 to 1024x768)

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin plug (CEE22)

POWER Voltage AC 90–132V / 198–264VAC (auto switch), 50/60Hz (+/-3)

Consumption 70W (typ)

Available colors:

Black (E55B), Beige (E55)

CONTROLS Basic power, 1, left, right, 2

VIDEO INPUT Bandwidth 118MHz

MISCONVERGENCE 0.25mm (max) at center

DISPLAY AREA Factory Setting 270mm x 202mm

(HORZ. x VERT.) Full Scan 280mm x 210mm (dependent upon timing signal)

OPERATING Temperature 32–104°F (0–40°C)

CONDITIONS Humidity 10–90% (no condensing)

DIMENSIONS Physical (mm) 360mm x 362mm x 384mm

(W x H x D) Physical (in.) 14.2" x 14.3" x 15.1"

WEIGHT Net 24.6 lb. (11.2 kg)

REGULATIONS ENERGY STAR®, BSMI, PSB, UL /cUL, FCC-B, DHHS, ICES-B,

POWER MANAGEMENT Meets MPR II and ENERGY STAR®standards

PACKAGE CONTENTS CRT monitor, video cable (attached), power cable,

WARRANTY Three-year limited warranty on CRT, parts and labor

®

OnView

Gross 28.6 lb. (13.0 kg)

Contrast, brightness, degauss, H. size, H. position, V. size,

V. position, pincushion, trapezoid, pinbalance, parallelogram,

tilt , moiré, ViewMatch®color (9300K, 6500K), recall, ViewMeter®,

OSD position, language, zoom

0.35mm (max) at corner

Tuv-S, MPR II

Quick Start Guide, ViewSonic Wizard CD

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone]• Fax [phone]• [e-mail] • ViewSonic.com

*Excludes major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved. [12574-00B-08/05] E55-4/E55B-4
