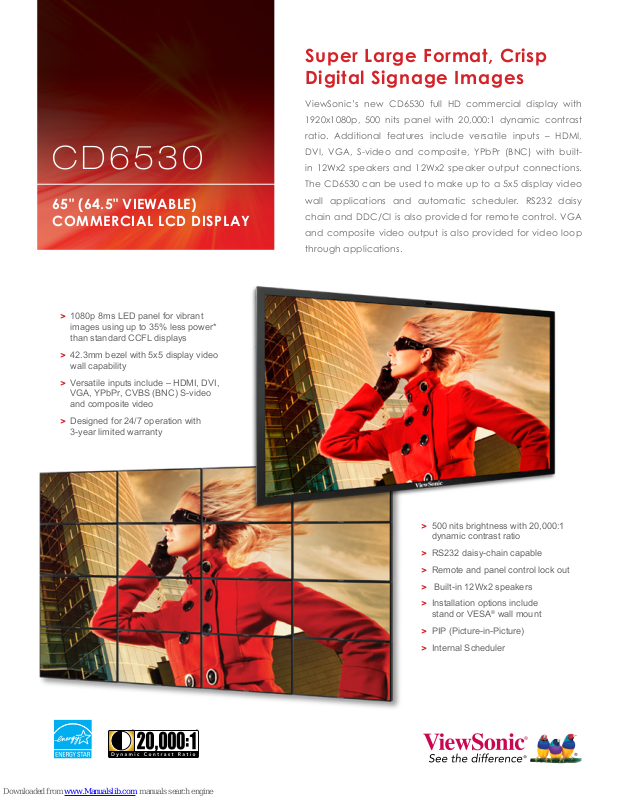

CD6530
65" (64.5" VIEWABLE)
COMMERCIAL LCD DISPLAY
> 1080p 8ms LED panel for vibrant
images using up to 35% less power*
than standard CCFL displays
> 42.3mm bezel with 5x5 display video
wall capability
> Versatile inputs include – HDMI, DVI,
VGA, YPbPr, CVBS (BNC) S-video
and composite video
> Designed for 24/7 operation with
3-year limited warranty
Super Large Format, Crisp
Digital Signage Images
ViewSonic’s new CD6530 full HD commercial display with
1920x1080p, 500 nits panel with 20,000:1 dynamic contrast
ratio. Additional features include versatile inputs – HDMI,
DVI, VGA, S-video and composite, YPbPr (BNC) with built-
in 12Wx2 speakers and 12Wx2 speaker output connections.
The CD6530 can be used to make up to a 5x5 display video
wall applications and automatic scheduler. RS232 daisy
chain and DDC/CI is also provided for remote control. VGA
and composite video output is also provided for video loop
through applications.
> 500 nits brightness with 20,000:1
dynamic contrast ratio
> RS232 daisy-chain capable
> Remote and panel control lock out
> Built-in 12Wx2 speakers
> Installation options include
stand or VESA® wall mount
> PIP (Picture-in-Picture)
> Internal Scheduler
65" (64.5" VIEWABLE)
CD6530
1
2 3
76 8
5
1. Remote Control
Sensor, Ambient
Light Sentor, Power
LED Indicator
2. 42.3mm Slim Bezel
3. 1080p LCD Panel
4. Control Interface
5. Line IN
6. Audio OUT
7. Speakers
8. Audio IN (R/L)
9. HDMI
10. DVI-D
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
4
1412 15 18 212019
13119 10
11. VGA IN
12. VGA OUT
13. RS-232 IN
14. RS-232 OUT
15. Component
16. S-video
17. Video IN
18. Video OUT
19. Main Power Switch
20. AC IN
21. AC OUT
22. Remote Control
1716
COMMERCIAL LCD DISPLAY
LCD Type 65" (64.6" viewable) color TFT active matrix, wide LCD
Display Area 56.2" horizontal x 31.6" vertical; 64.6" diagonal
Optimum Resolution 1920x1080, 600mm dot pitch
Contrast Ratio 5000:1 (typ)
Viewing Angles 178º horizontal, 178º vertical
Response Time 8ms
Light Source Long life, 50,000 hrs. (typ)
Brightness 500 cd/m2 (typ)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard coating (3H)
INPUT Video Input HDMI, DVI, component, VGA, S-video, CVBS (BNC)
Video Output VGA, component, DVI (Loop through)
Control Input/Output RS-232
AUDIO OUTPUT Speakres Internal 12-watt (x2)
Amplier 12-watt / 8 ohm
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI, DVI, S-video YPbPr, CVBS
Power 3-pin plug
POWER Voltage AC 100–240V (universal), 50–60Hz
Consumption 520W (typ)
CONTROLS Panel Power, Exit, +, –, Menu/Enter
Picture Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
VGA Setting Auto adjustment, clock, phase, sharpness,
H. position, V. position
OSD Setting Languages, OSD H. position, OSD V. position, OSD timer
Input VGA, DVI, HDMI, YPbPr
Audio Volume, mute, audio source
Special Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Diagnostic Thermal, back light, ambient, 5V detect, 12 detect
OPERATING Temperature (landscape) 32–1 04ºF (0–40ºC)
CONDITIONS Temperature (portrait) 41–95ºF (5–35ºC)
Humidity 20–90% (non-condensing)
DIMENSIONS Physical 59.3" x 35.4" x 5.3"
(W x H x D) (1500mm x 900mm x 136mm)
WEIGHT Net 154.3 lb. (70.0 kg)
Gross 176.4 lb. (80.0 kg)
WALL MOUNT VESA 200mm x 400mm, 400mm x 400mm
REGULATIONS FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS LCD display, power cable, remote control with batteries,
User Guide CD
OPTIONAL Stand (optional), Wall Mount (WMK-013),
ACCESSORIES Wall Mount with Locking Media Player Cradle (WMK-028)
WARRANTY Three-year limited warranty on parts, labor and backlight
22
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Power savings may vary based on actual usage and other factors. Specications and availability are subject to change
without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete
details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2011
ViewSonic Corporation. All rights reserved. [15695-00B-05/11] CD6530-1
®
, RoHS
RESOLUTIONS 640 x 480 at 60 Hz to 75 Hz
SUPPORTED 800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p
For more product information, visit us on the web at ViewSonic.com
