ViewSonic airsync Display V210 Hardware Manual

ViewSonic

Display V210

®

Hardware Guide

Contents

Introduction

The airsync Display V210 ....................................................... 2

Precautions ............................................................................ 2

airsync Display V210 Features ............................................... 3

Front Control Buttons and Features ................................... 3

Rear Connection Ports & Panels ....................................... 4

Basic Setup

Charging the Battery .............................................................. 5

Using the AC/DC Power Converter ..................................... 5

Setting Up Software ............................................................... 6

Basic Software .................................................................... 6

About the airsync Client Software ....................................... 6

Using the airsync Display V210

The Buttons ............................................................................ 7

Using the Stylus ..................................................................... 8

Moving Windows ................................................................. 9

Calibrating the Touch Screen .............................................. 9

Adjusting the Stylus Double-tap Rate ................................. 9

Battery & Power Properties .................................................... 10

Battery Power Status .......................................................... 11

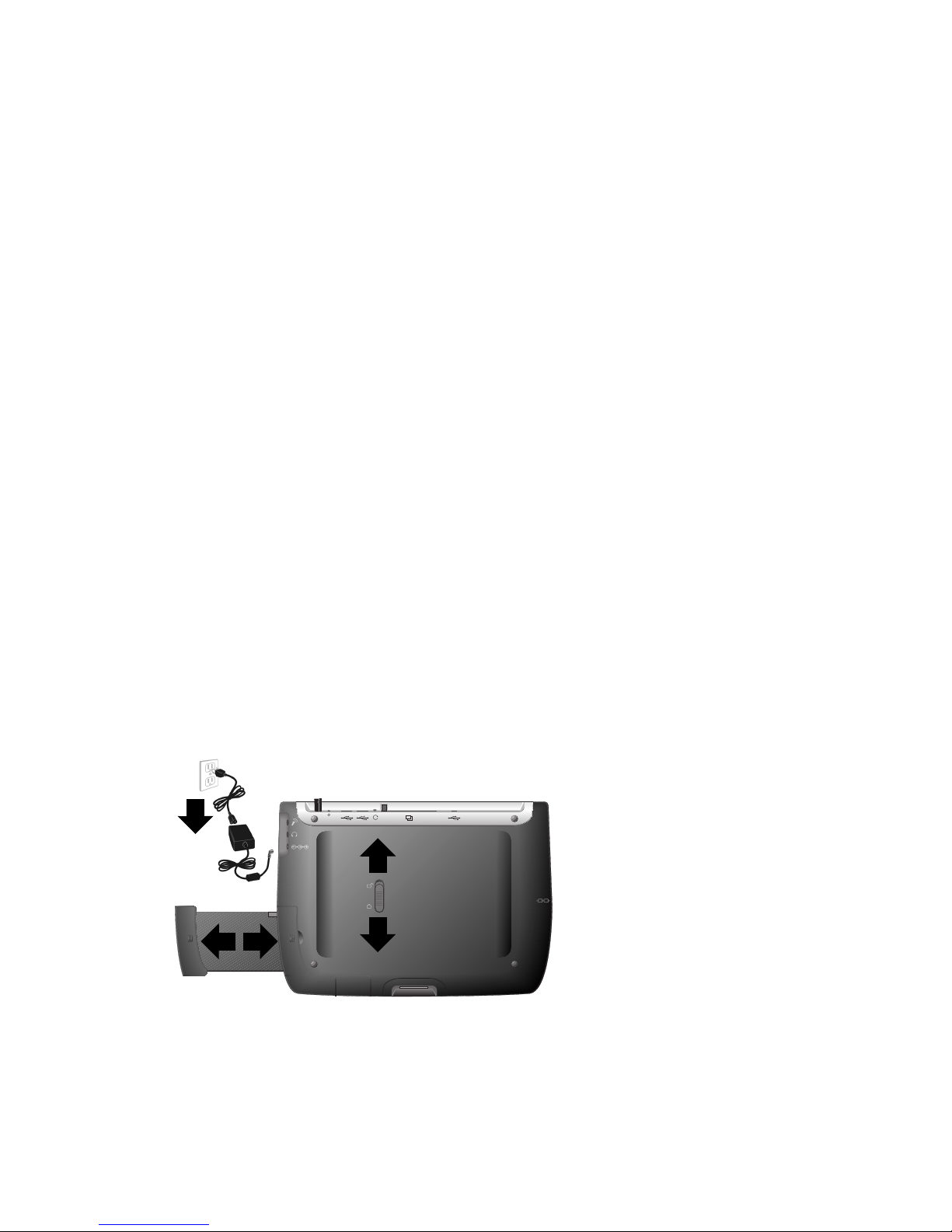

Changing the Battery .........................................................11

Antenna Signal Properties ...................................................... 12

Wireless Connection Signal Status ..................................... 12

Network Settings .................................................................... 13

Make New Connection Settings .......................................... 13

PCI-ISLP21 Settings ........................................................... 14

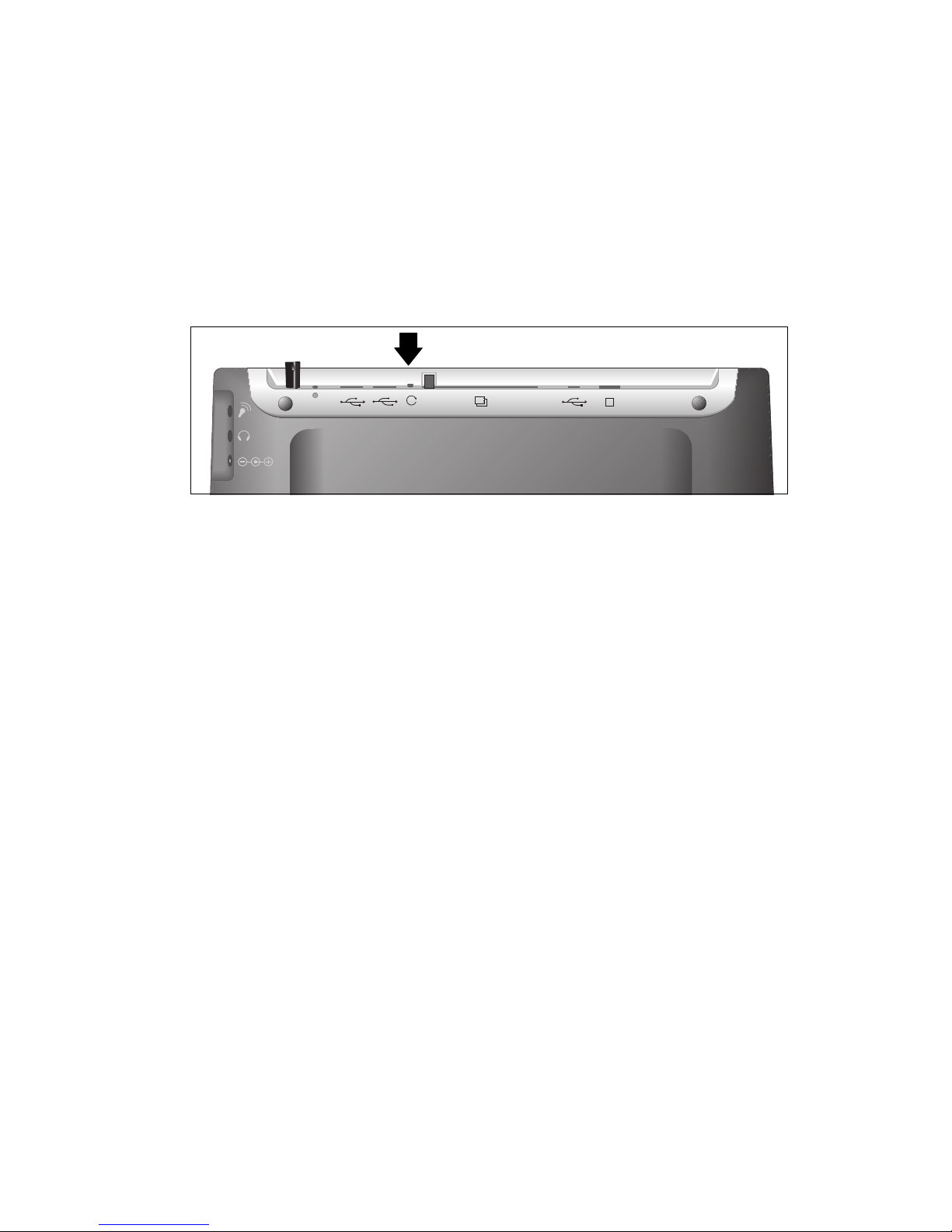

Resetting the airsync V210 .................................................... 16

Soft Reset ........................................................................... 16

Hard Reset .......................................................................... 16

Firmware Image Upgrade ................................................... 16

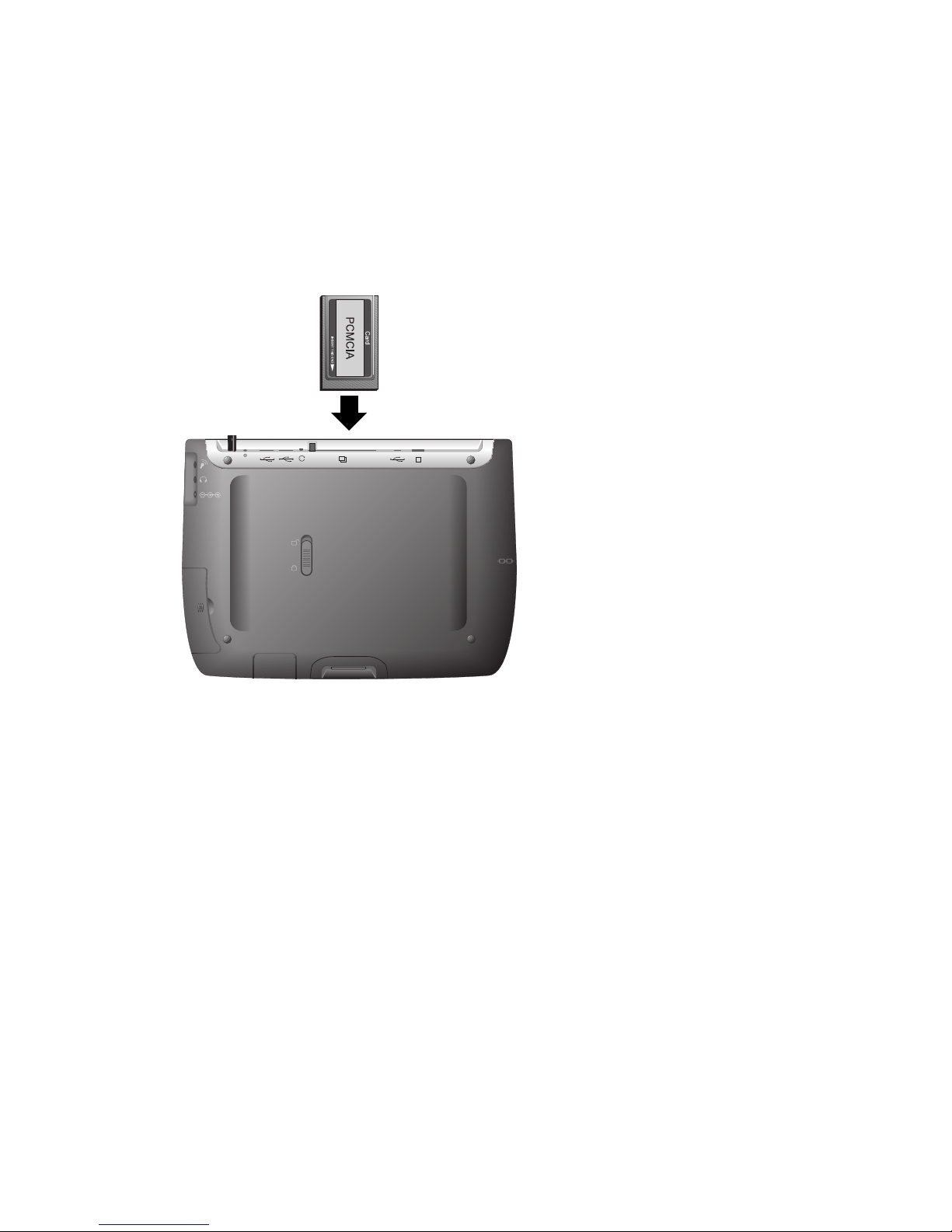

PCMCIA Cards ....................................................................... 17

Using a PCMCIA Card ....................................................... 17

ViewSonic airsync Display V210 i

Optional Accessories

The Docking Station ............................................................... 18

Commercially Available Accessories ..................................... 19

External USB Keyboard ...................................................... 19

External USB Mouse ........................................................... 19

External Headphone Set ..................................................... 19

External Microphone ........................................................... 19

Appendix

airsync Display V210 Specifications ...................................... 20

Cleaning and Maintenance .................................................... 22

Customer Support .................................................................. 22

Limited Warranty .................................................................... 23

Safety Guidelines ................................................................... 24

Compliance and Safety Notices ............................................. 25

Radio Frequency Interference (RFI) Compliance ............... 25

Safety Notices ..................................................................... 27

ii ViewSonic airsync Display V210

Copyright © ViewSonic Corporation, 2003. All rights reserved.

airsync is a trademark of ViewSonic Corporation. ViewSonic, and the three birds logo are registered
trademarks of ViewSonic Corporation.

Microsoft, Windows, Windows CE, Windows CE Inbox, Explorer and Internet Explorer, Pocket
Word, Microsoft Word, ActiveSync, MSN, Excel, Windows RDP, Microsoft Windows CE for Smart
Displays, .NET Compact Framework, and the Windows logo are trademarks of Microsoft
Corporation in the United States and other countries.

Citrix, WindView, and ICA are registered trademarks of Citrix Systems, Inc. MetaFrame

is a

trademark of Citrix Systems, Inc.

Intel and XScale are registered trademarks of Intel Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.

CompactFlash is a trademark of the CompactFlash Association.

NERGY STAR

E

As an E

NERGY STAR

E

Disclaimer: ViewSonic

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

NERGY STAR

®

partner, ViewSonic Corporation has determined that this product meets the

®

guidelines for energy efficiency.

Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com. The airsync Display
V210 Installation
which you may mail or fax to ViewSonic.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.

CD-ROM also provides an opportunity for you to print the registration form,

For Your Records

Product Name:
Model Number:
Document Number:

Serial Number:
Purchase Date:

ViewSonic airsync Display V210
VSMW24668-1W
A-CD-ASV210-UG Rev. 1 9-9-03
_______________
_______________

ViewSonic airsync Display V210 1

Introduction

The airsync Display V210

This hardware guide will help you set-up your airsync Display V210 and
introduce you to its many features.

Important: Save the original box and all packing material for future shipping
needs.

Your airsync Display V210 package contents include:

• The ViewSonic airsync Display V210

• Quick Start Guide

• airsync Display V210 Battery

• AC/DC Power Adapter with Power Cord

• Stylus (2) and Stylus Tether (1)

• USB Mini-B to A Setup Cable (Blue)

• Mini-VGA Cable (Black)

• V210 CD (with the User Guide)

Go to the Help and Support Center on your PC for details on
using Microsoft software. This manual only covers using the
ViewSonic airsync Display V210 hardware.

Precautions

• For best viewing conditions view the screen from a distance
of 15" to 18".

• DON’T TOUCH THE SCREEN WITH YOUR FINGERS.
Oils from the skin are difficult to remove.

• NEVER REMOVE THE REAR COVER. Your airsync
Display V210 contains high voltage parts. You may suffer
serious injury if you touch these parts.

• Avoid exposing the screen to direct sunlight or another heat
source. The screen should be facing away from direct
sunlight to reduce glare.

2 ViewSonic airsync Display V210

• Always handle your airsync Display V210 with care;
dropping your airsync Display V210 could void the
warranty.

• Do not operate your airsync Display V210 outside in a wet,
damp or extremely cold environment.

• Do not place heavy objects on the screen, video cable, or
power cord.

• If smoke, abnormal noise, or strange odor is present,
immediately switch the airsync Display V210 off and call
your dealer or ViewSonic.

• Use only the AC/DC power adapter supplied with your
airsync Display V210.

airsync Display V210 Features

Front Control Buttons and Features

1

2

3

4

10

Figure 1: Front of airsync Display V210

5

6

7

8

9

Features, Lights, and Buttons

1. Antenna Activity Indicator Light

2. Speaker

3. Mouse Button - Right

4. Mouse Button - Left

5. Power On/Off Indicator Light

6. On/Off Switch

7. Input Panel On/Off Switch

8. Web Browser Button - Log On/Off to the Internet

9. Cursor Navigation Button

10. Microphone

ViewSonic airsync Display V210 3

Rear Connection Ports & Panels

5 6

1

2

3

4

7 8 9 10

15

14

11

12

13

Figure 2: Back of airsync Display V210

Ports, Buttons, Slots, Jacks, & Switches

1. Microphone Jack

2. Headphone Jack

3. DC Power Jack

4. Main Battery Port

5. Stylus in Storage Slot

6. Stylus Tether Port

7. USB Type A Ports (Two) - for Keyboard and Mouse

8. Reset Button

9. PCMCIA Eject Button

10. PCMCIA Card Slot

11. USB Mini-B Port (One) - for Setup Cable

12. Mini-VGA Port

13. Security Lock Port (Kensington Compatible)

14. Docking Port

15. Main Battery Latch

4 ViewSonic airsync Display V210

Basic Setup

Your airsync Display V210 features powerful software and hardware allowing
you to connect to your home PC in order to view and edit files, wirelessly
send/receive e-mail, and explore the World Wide Web.

This section explains the ports, cables, connections and hardware used to get
you started. More details and connection options are explained in the next

section, Using the airsync

Go to the Help and Support Center on your PC for details on
using Microsoft software. This manual only covers using the
ViewSonic airsync Display V210 hardware.

Charging the Battery

Using the AC/DC Power Converter

Before using the airsync Display V210 for the first time, charge the battery
for at least 5 hours. You may charge, recharge, and/or operate your airsync
Display V210 with available AC power using the AC/DC power converter.
Use the AC/DC power converter as shown in the figure below.

Display V210.

Caution: Use only the power converter supplied with your airsync Display
V210.

1 Plug the AC/

DC cable into
the airsync.

2 Connect the

power cord to
the AC/DC
adapter.

3 Plug the power

cord into an
AC outlet.

Figure 3: Using the AC/DC Power Converter

ViewSonic airsync Display V210 5

An optional airsync docking station, described later in this manual, may also
be used to charge, recharge, and/or operate your airsync.

For additional information on battery charging and operation, please review
the Battery Power & Properties section of this guide.

Setting Up Software

Basic Software

The following software comes with the airsync Display V210:

®

Windows CE

Internet Explorer

Windows Explorer

Media Player

MS WordPad

Solitaire

Microsoft Inbox

®

Citrix

Client

4.2

Microsoft ActiveSync

Microsoft File Viewers

MS Excel Viewer

MS Image Viewer

MS PDF Viewer

MS PowerPoint Viewer

MS Word Viewer

®

ViewSonic airsync

Client

Your firm’s software development department will have already installed and
set up all software necessary for your airsync Display V210 to perform its
designated function(s) in the field.

About the airsync Client Software

The airsync client software included in the V210 software bundle allows the
device to become airsync-enabled. This permits your V210 to connect with
an airsync Web Service. The capability this software provides permits
optional background multi-device management by your IT administrator. A
typical use for airsync would be to allow your device to automatically check
on-line for V210 software updates at regular preset intervals.

6 ViewSonic airsync Display V210

Using the airsync Display
V210

The Buttons

The buttons on the right and left side of the airsync Display V210 screen give
you quick access to utilities and provide navigational control.

C

D

A

B

Figure 4: The airsync Display V210 Buttons

A. Right-click Button - Simulates the right-click button on a mouse.

B. Left-click Button - Simulates the left-click button on a mouse.

C. Power Button - Cycles the unit between On and Stand-by modes.

D. Input Panel Button - Toggles the on-screen virtual Keyboard On/Off

enabling data input using the stylus.

E

F

E. Web Browser Button - Launches the V210 web browser application.

F. Cursor Control Button - Allows you to move the cursor without having to

use the stylus or a mouse.

ViewSonic airsync Display V210 7
