User manual
Z10TL
10x Zoom IR Laser Night Vision Object Tracking Gimbal Camera
Compatible with DJI M200/M210/M210RTK
Images are for reference only, please subject to the actual product.
Page 2
Contents
Z10TL High-precision Camera
1. Camera introduction..........................................................................................1
2. Camera description............................................................................................1
3. Mechanics@Electronic characteristics.............................................................2
4. Application description.....................................................................................2
5. Specification....................................................................................................9
Page 3
Camera Introduction
Z10TL is a high-precision professional 3-axis gimbal which features high stability,
small size, light weight and low power consumption. The 3-axis gimbal based on
FOC motor control technology, adopts high-precision encoder in each motor. It can
be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it
can fullfill many powerful functions, such as: photos or videos with 10 times optical
zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal
is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast
mode for wide end, which makes the gimbal control sensitive and quick.
Also the one-key to center function will allow the gimbal return to initial position
automatically and rapidly. You can input a degree in APP Payload Setting and get
the gimbal attitude angles exactly.
Camera Description
[1] DJI Skyport
[2] Pan motor
[3] Roll motor
[6] IR laser light
Please make sure that the motor is not stopped by any object during
the rotation, if the gimbal is blocked during rotation, please remove
!
the obstruction immediately.
Gimbal Introduction
[4] Tilt motor
[5] EO camera
1
Page 4
Mechanics@Electronic Characteristics
Input voltage
Dynamic current
Size
3S~ 4S
450mA@12V
131.4*119.8*150.5mm
Idle current
Working
environment temp
Weight
330mA@12V
-40℃ ~ +60℃
554g
Pitch/Tilt: Pitch angle range of action : ±90
Roll: Roll angle range of action : ±85°
Yaw/Pan: Yaw angle range of action : ±360°
Vibration angle: Pitch/Roll: ±0.02°, Yaw: ±0.03°
Application Description
DJI Pilot
After mounting Z10TL on DJI drone and connecting with remote control, you can operate the gimbal
camera via APP DJI Pilot. The gimbal attitude angels (tilt and pan) can be controlled by DJI remote
control. Control method please refer to DJI related user manual.
1. Menu instruction
FOV / Zoom times
GPS co-ordinate
Gimbal attitude
angles
UAV height
Record status
Real-time Data
UAV direction
2
Auto Focus / Manual change IR light spot size
Payload
Settings
Camera
Settings
Picture and
record switch
Zoom times
Shutter button
Return to
1.0x zoom
Page 5

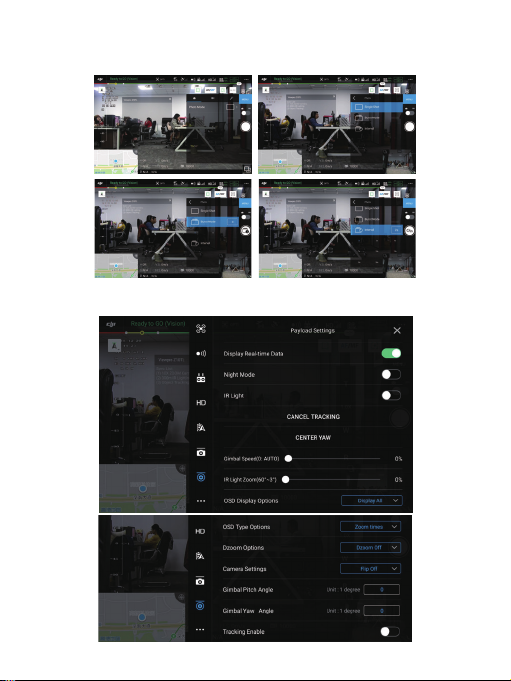

1.1 Camera settings - Photo mode settings:
You can choose single shot, burst mode or interval mode.
1.2 Payload Settings:
3
Page 6

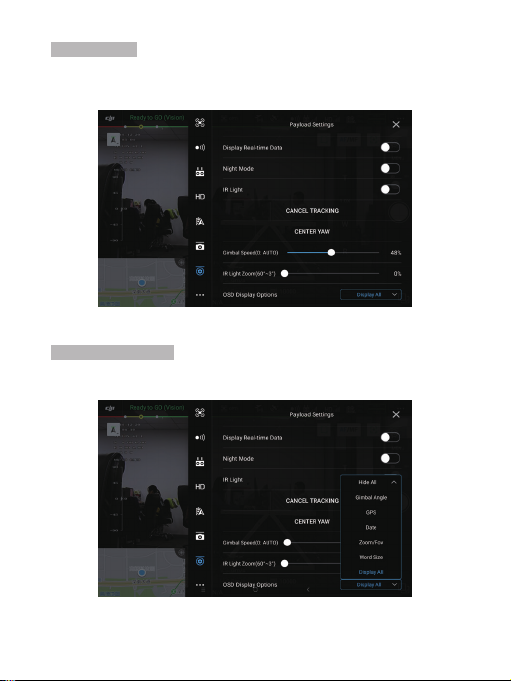

Gimbal Speed:
Gimbal speed is adjustable. When it’s 0%, the speed will be adjust automatically, quick speed
for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be
low even in wide end. The high the percentage is, the quicker the speed will be.
OSD Display Options:
You can DIY you on-screen-display (OSD). Choose Hide All, then you can choose to display
the items you want only.
4
Page 7

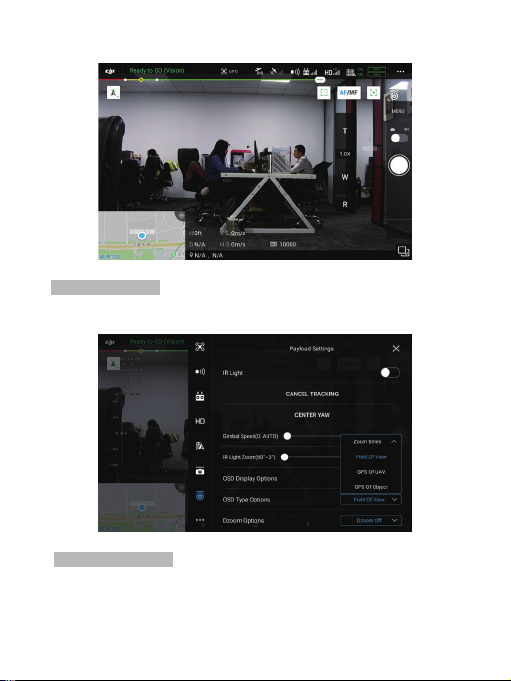

Hide All:
OSD Type Options:
You can choose to display FOV (Field of View) or Zoom times, GPS co-ordinate of UAV or
the object (estimate).

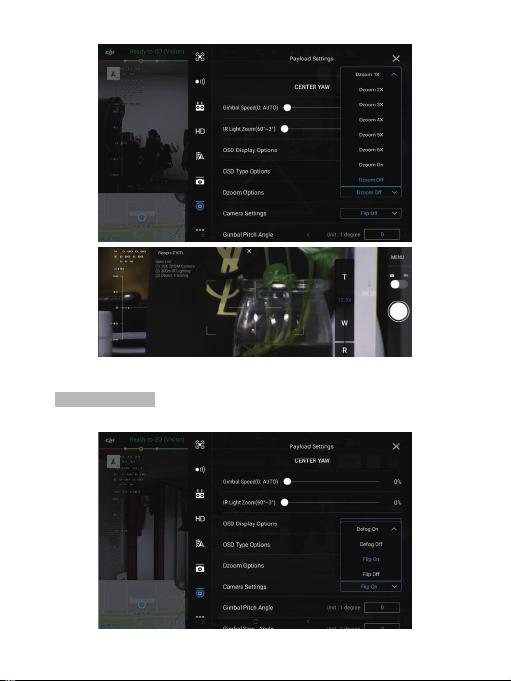

Digital Zoom Options:
The EO camera of Z10TL has 6 times digital zoom. Press T continually will get digital zoom
automatically after 10x full optical zoom. Or choose digital zoom from Payload settings directly.
The zoom times number will become blue when it’s in digital zoom statu.
5
Page 8
Camera Settings:
Choose defog or flip the screen when necessary.
6
Page 9

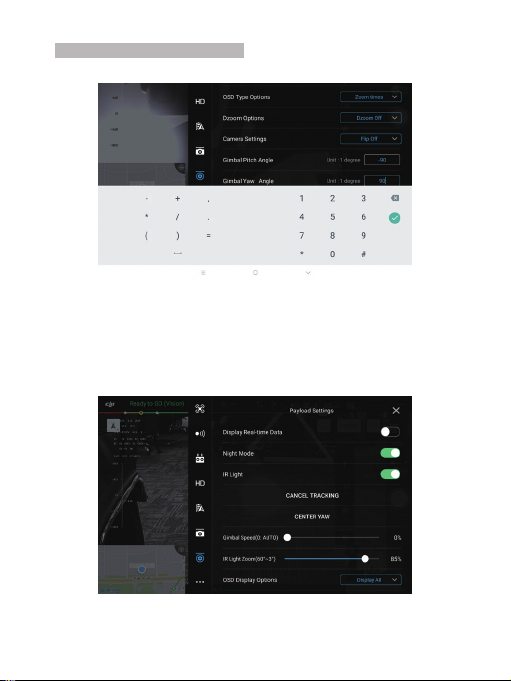

Gimbal Pitch / Yaw Angle Settings:
Input the pitch / yaw angle degrees to get exact attitude angles directly.
2. Main functions instruction

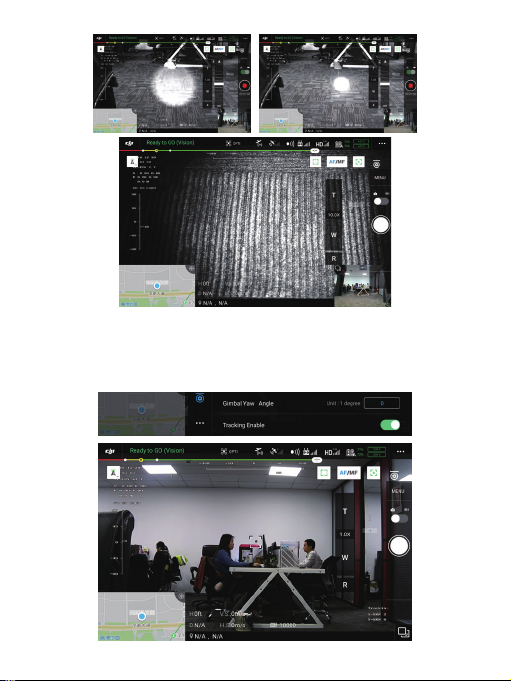

2.1 IR laser light for Night Mode
Z10TL can let you see clearly even in a pitch-dark environment with an invisible light. Switch on IR
light (then Night Mode will be turned on automatically), you will see a laser light spot on the target
directly. The spot size is adjustable. Large size for wide end and small size for tele end automatically.
You can also adjust the spot size manually from Payload Settings or by MF in the main screen, then
zoom to see clearly.
7
Page 10
2.2
Object tracking
Start tracking: Enable tracking function, then single touch on the screen to pick tracking object.
Stop tracking：Payload Settings --CANCEL TRACKING
*Note: the gimbal will follow the object automatically after object is chosen, to control the gimbal
manually please cancel tracking first.
8
Page 11
Specification
Hardware Parameter
Working voltage
Input voltage
Dynamic current
Idle current
Power consumption
Working environment temp.
Output
Local-storage
Control method
Pitch/Tilt
Roll
Yaw/Pan
Vibration angle
One-key to center
Imager Sensor 1/2.8" CMOS
Picture quality
Effective pixel
Lens optical zoom
Digital zoom
Min object distance
View angle
Sync system
S/N ratio
Min illumination
Focus
Gain
White balance
Shutter speed
Image rotation 180°, Horizontal/Vertical mirror image
User presetting bit 20 sets
Defog
OSD
12V
3S ~ 4S
1100mA @ 12V
800mA @ 12V
≤ 13.2W
-40 ~ +60
℃ ℃
Skyport
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
DJI Pilot
Gimbal Spec
±90°
±85°
±360°
Picth/Roll: ±0.02°, Yaw ±0.03°
√
Full HD 1080 (1920*1080)
2.43MP
10x, F=4.7~47mm
12x
1.5m
Vertical: 45°(wide end) ~ 2.4°(tele end)
Focus: 70.9°(wide end) ~ 7.1°(tele end)
Progressive scanning
≥52dB
Color [email protected]
Auto
Auto
Auto / Manual
Auto
Yes
Yes
：
Camera Spec
Horizontal: 58.7°(wide end) ~ 3.2°(tele end)
9
Page 12
Camera Object Tracking
U
pdate rate of deviation pixel
O
M
S
M
M
T
O
T
noise in the object position
Effective r
Illumination angle
N
P
A
utput delay of deviation pixel
inimum object contrast
NR
inimum object size
aximum object size
racking speed
bject memory time
he mean square root values of pulse
ange
.W.
roduct meas.
ccessories
50Hz
<10ms
5%
4
16*16 pixel
160*160 pixel
±32 pixel/frame
100 frames (4s)
< 0.5 pixel
Light Supplement
300meters
power zoom synchronously, 70°~2.0° adjustable
Packing Information
554g
131.4*119.8*150.5mm
1pc gimbal camra device / Hight quality plastic box with foam coushion
