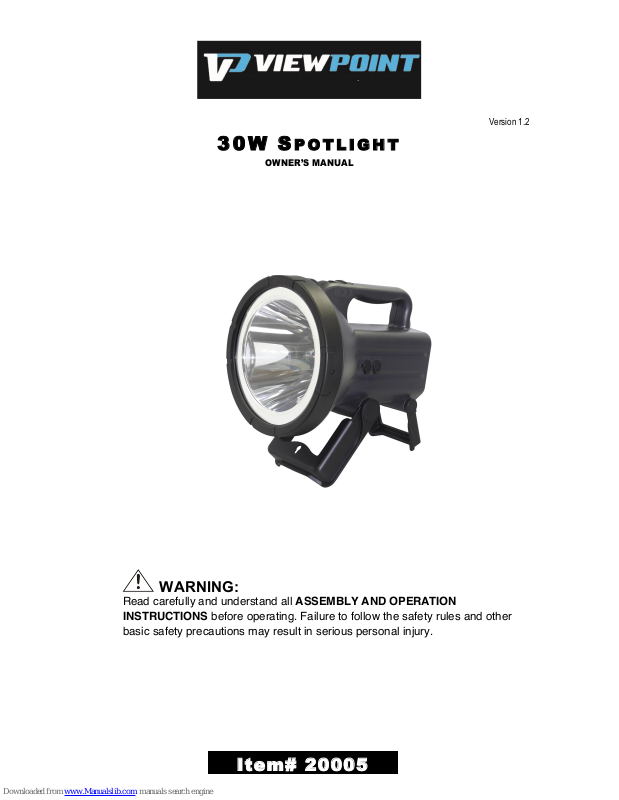

Page 1
Version 1.2
3 0 W S POTLIGHT
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# 20005
Page 2
Page of 4
2
Thank you very much for choosing a Viewpoint product! For future reference, please complete
the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This spotlight is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this spotlight not be modified and/or
used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the spotlight until you have first contacted the
distributor to determine if it can or should be performed on the product.
For technical questions please call 1-800-222-5381.
FEATURES
• Cree LED Bright white Multi-functional long-distance long-range spotlight
• Up to 3 hours of light
• PP Plastic for casing for sturdy weather resistant and shock proof design
• Perfect flashlight for outdoor activities like hiking, camping, hunting, and more
• Ergonomic design
• Light range -Low brightness mode will light 1312 ft. and High brightness mode lights up to
1980 ft.
• Portable weight of 3 lbs.
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Spotlight until they
have read this manual and have developed a thorough understanding of how the spotlight
works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
Page 3
Page of 4
3
IMPORTANT SAFETY CONSIDERATIONS
USE AND CARE
• Do not modify the Spotlight in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the equipment. There are specific applications for which
the Spotlight was designed.
• Always check of damaged or worn out parts before using the Spotlight. Broken parts will
affect the Spotlight operation. Replace or repair damaged or worn parts immediately.
• Store idle Spotlight. When Spotlight is not in use, store it in a secure place out of the reach of
children. Inspect it for good working condition prior to storage and before re-use.
OPERATION
• Push the handle button and turn the handle to upper or lower position. Upper pistol profile is
designed for pinpointing long range objects, lower lantern profile for searching around.
• Charge the battery prior to initial use (see RECHARGING THE BATTERY)
• Turn the lantern ON and OFF by the switch on the main body. ON ----+ standard brightness
----+ high brightness ----+ OFF.
RECHARGING THE BATTERY
• Before recharging the battery, turn the function switch to off position.
• Before using the spotlight for the first time, charge the battery for 12 continuous hours using
the AC or DC battery charger.
• For AC, plug the charger unit into any electrical outlet, and plug the other end of cord
adapter to the DC jack of the spotlight. The Red LED lights on to indicate the charger is
working, When the battery is fully charged, green LED will illuminate, the time required to
fully charge the battery is around 12 hours.
• For DC, plug the car plug charger unit into the cigarette lighter socket on your car, and plug
the other end of cord adapter to the DC jack of the handle of spotlight. The Red LED lights
on to indicate the charger is working, When the battery is fully charged, green LED will
illuminate, the time required to fully charge the battery is around 12 hours.
• It is important to recharge the spotlight as soon as possible after each usage.
• Do not completely discharge battery before recharging. Deep discharge will decrease
battery life.
• To ensure the battery will not be fully exhausted when the lantern is not in use or in storage,
recharge the battery every 3 months.
MAINTENANCE
• Maintain your Spotlight. It is recommended that the general condition of any Spotlight be
examined before it is used. Keep your Spotlight in good repair by adopting a program of
conscientious repair and maintenance. Have necessary repairs made by qualified service
personnel.
• Use only mild soap and damp cloth to clean the Spotlight. Never let any liquid get inside the
Spotlight; never immerse any part of the spotlight into a liquid.
Page 4
Page of 4
4
PARTS LIST
Part#
Description
Qty. 1 Spotlight
1
2
12V DC Adapter
1 3 Rechargeable Battery
1 4 AC/DC Charger
1
For replacement parts and technical questions, please call 1-800-222-5381.
WARRANTY
1 year limited warranty.
