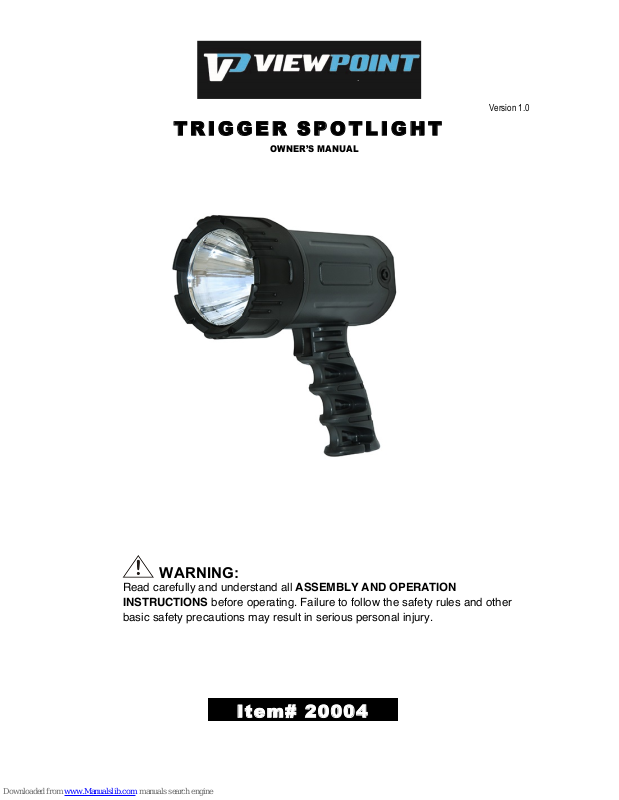

TRIGGER SPOTLIGHT
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# 20004
Page 2
Page of 4
2
Thank you very much for choosing a Viewpoint product! For future reference, please complete
the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This spotlight is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this spotlight not be modified and/or
used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the spotlight until you have first contacted the
distributor to determine if it can or should be performed on the product.
For technical questions please call 1-800-222-5381.
FEATURES
• 3W LED Bright white light
• ABS housing upright type handle reduces arm and wrist fatigue
• Fast action trigger switch allows long or short bursts of light for Morse code and other light
signals
• Heavy duty casing for durable design
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Spotlight until they
have read this manual and have developed a thorough understanding of how the spotlight
works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
Page 3
Page of 4
3
IMPORTANT SAFETY CONSIDERATIONS
USE AND CARE
• Do not modify the Spotlight in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the equipment. There are specific applications for which
the Spotlight was designed.
• Always check of damaged or worn out parts before using the Spotlight. Broken parts will
affect the Spotlight operation. Replace or repair damaged or worn parts immediately.
• Store idle Spotlight. When Spotlight is not in use, store it in a secure place out of the reach of
children. Inspect it for good working condition prior to storage and before re-use.
ASSEMBLY
Install Battery.
1. Remove back cover:
A. Loosen thumbscrew on the rear cap of the lantern by unthreading counterclockwise.
B. Press release buttons on two sides of rear cap.
2. Place 4 “C” size batteries inside; pay attention to the polarity. Batteries must be inserted with
correct polarity direction.
3. Replace rear cap onto lantern. Curved side of the rear cap goes to the bottom of the lantern.
MAINTENANCE
• Maintain your Spotlight. It is recommended that the general condition of any Spotlight be
examined before it is used. Keep your Spotlight in good repair by adopting a program of
conscientious repair and maintenance. Have necessary repairs made by qualified service
personnel.
Page 4
Page of 4
4
PARTS LIST
Part#
Description
Qty. 1 Spotlight
1
For replacement parts and technical questions, please call 1-800-222-5381.
WARRANTY
1 year limited warranty
