Viewpia TB-107 User Manual

Page 1 of 18

User Manual

Congratulations for buying the Viewpia TB-107.

Thank you very much for your trust in our product!

As we constantly update and improve our tablet there may be small differences

between the printed manual and your tablet. Please check our website regularly for

updates to the manual and/or tablet firmware.

Page 2 of 18

Table of Contents

Safety instructions 3

Device overview 4

Description of the buttons 5

Language settings 6

Power monitoring

and charging the batteries 7

Screen lock 7

Connecting with computer and data transfer 7

Functions of the buttons on the

user interface 8

Programme menu 9

System settings 12

Internet 16

Technical Data 18

Page 3 of 18

This user manual contains important safety instructions and
information for proper use of the device. Please follow the
instructions in this manual carefully.

A Please keep the device away from places with high temperatures,
high humidity or dust.

B In particular please avoid leaving the device in the car during
summer if the doors are closed.

C Avoid shocks and do not let the device fall, as otherwise it may
cause damage to the device.

D The Standby Time of the batteries may vary due to different
environmental influences.

E We are not responsible for data losses that are caused by damage
to the product, repairs or any other reasons.

F Do not open the housing of the device. Doing this will void your
warranty claims.

G Do not use alcohol, thinners or petrol to clean the display
– use only a dry cloth.

Page 4 of 18

Device overview

1. Touch Screen

2. Camera Front 7. Micro SD/SDHC Card Slot

3. Power button 8. Volume+ Button

4. Earphone 9. Volume - button

5. USB Port / 10. Speaker

OTG Port: USB external HDD 11. Reset

6. DC-in 12. Microphone

11

12

Page 5 of 18

Description of the buttons

Volume Buttons:
Here you can increase or reduce the volume.

Power Button:
Press the button for two seconds to switch on or switch off the
device. Press the button briefly to activate or end the Standby­Mode.

Reset button: Press the button for seven seconds to restart the
device.

Page 6 of 18

Language setting

This Viewpia TB-107 is delivered with Dutch as a default language.
To change the language setting, please do the following:

- Press on the program menu symbol
on the right side of the screen.

- Select ‘Instellingen’ .

- Scroll to the menu item Taal en invoer.

- Select ‘Taal en invoer ’.

- Select ‘Taal’.

- Type your preferred language.

- Press the ‘Home’ button to return to the home screen.

Page 7 of 18

Power monitoring and charging the batteries

The battery charge symbol in on the status bar indicates the
charging status of the batteries.
If the power goes down, the device shuts itself off automatically.
If less power is shown, use the power adapter to charge the

device.

The charging time for the battery is approximately four hours.

Screen lock

If the device is not used for specified time or the ‘Power’ button
is pressed briefly, the screen is switched off and display lock
is activated.
By pressing the ‘Power’ button briefly the screen will be reactivated.

For locking the screen move the ‘Lock’ button in the specified

direction .

Connecting to the computer and data transfer

This Tablet is equipped with a High-Speed USB2.0 Interface.
After you connect the device to a computer, it appears in the status

display .

Pull the status bar down and press ‘USB Connection’ to activate the
USB Memory. When using the device for data transfer, you cannot
access the Micro SD/TF Card from the Tablet!

Page 8 of 18

Functions of the buttons on the user interface:

Home Button:

To go back to the start screen.

Back Button:

To go back to the previous menu / previous page.

Program Menu Button:

To display the programs and applications.

Change Window Button:

The device has five desktops. You can push your finger on the
touchscreen to the side to navigate between different desktops.

WIFI / WLAN Signal Icon

System instructions:
Pull the status bar down to view messages about new e-mails,
downloaded documents, USB Connection Status or other
information.

Page 9 of 18

Program menu

ApkInstaller:

Program for installing and uninstalling Apps that were not
downloaded from the Android Market.

Android Play Store:
Load Apps (programs) from the Android Play Store. You can
download and install apps, games and other applications. Many are
free.

Explorer:

Open the Explorer to access Micro SD TF Cards, USB sticks and
other storage media. The Explorer is a practical manager for
documents and all types of data.

Internet browser

Page 10 of 18

Front camera

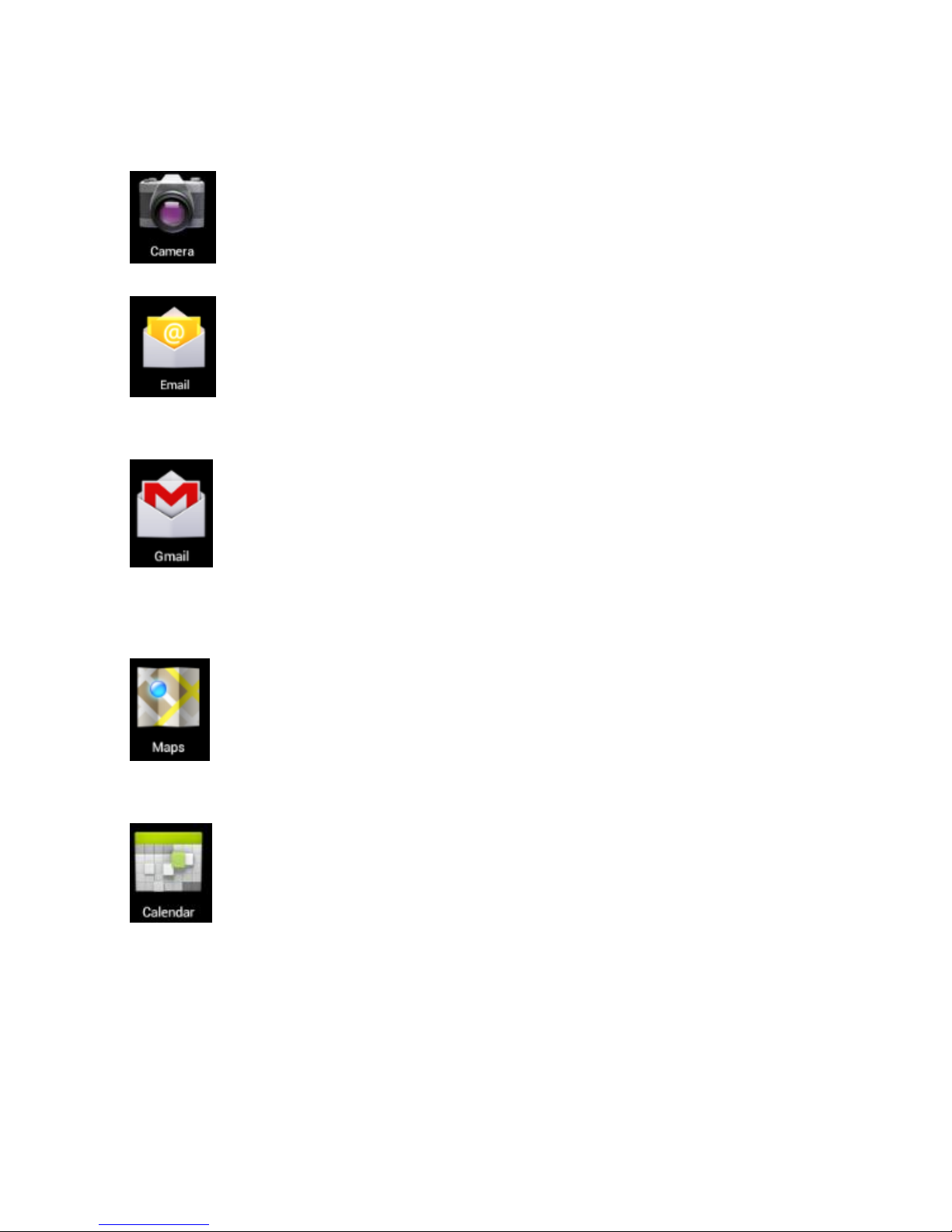

E-mail:

Program for retrieving, processing and sending e-mails.

G-mail:

Program for retrieving, processing and sending e-mails through
Google account.

Google Maps:

Program for the display of maps or satellite images – Route planner.

Calendar:

Managing schedules – can be synchronised automatically with a
Google account.

Page 11 of 18

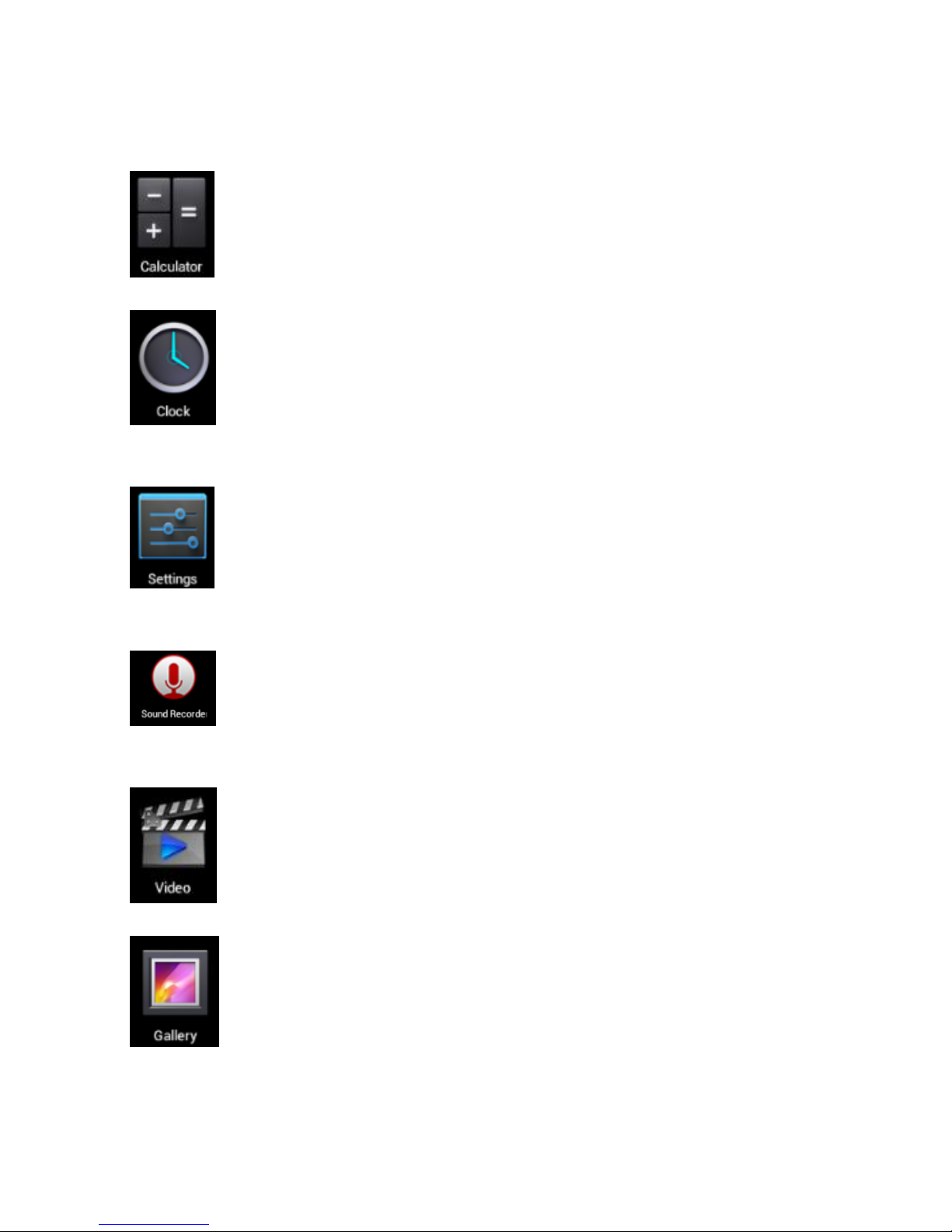

Pocket Calculator

Time / Clock:

Time display and setting alarm functions.

Settings:

Changing the basic settings of the Tablet.

Sound Recorder:

Dictation Device Function.

Video Player

Gallery:

Manage and display images and videos – also enables

Page 12 of 18

synchronisation with Picasa web albums.

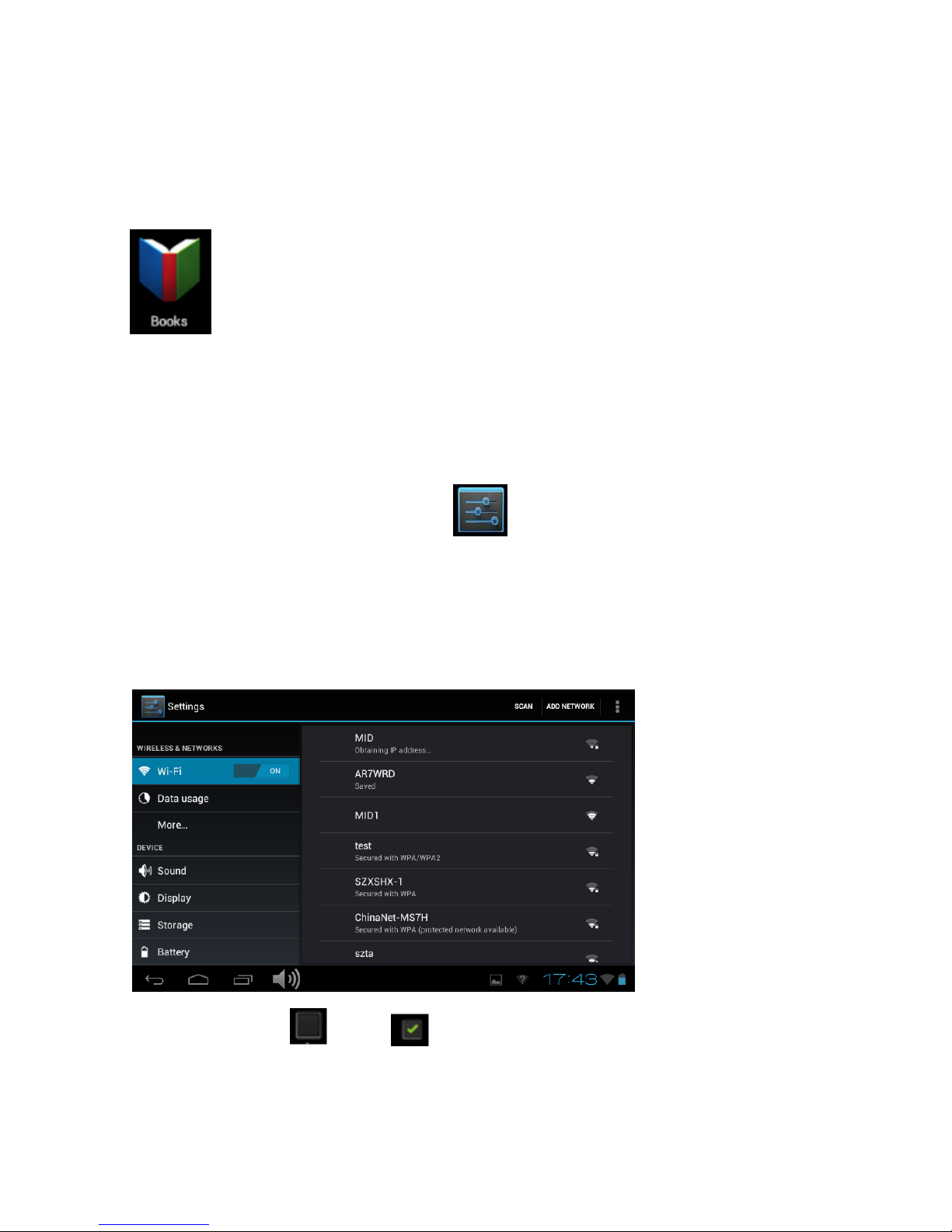

Books:

A program for reading and managing e-books.

System settings

Touch the icon for the settings to open the system settings
menu:

1. Wireless & Networks

Touch ‘Wireless & Networks’.

WLAN: Touch => to switch on the WLAN function.
The device automatically searches for available WLAN networks.

Page 13 of 18

WLAN Settings: Select your network here.
If needed you will be requested to enter your WLAN password:

Advanced WLAN / Wi-Fi settings:

Touch in the menu for WLAN / Wi-Fi Settings, touch
Advanced and the menu for advanced settings will open up
automatically. In the menu for the advanced settings you can view
the current status, the IP address and other device information.

Data usage,

Here you can set mobile data limit

Device

Sound settings

The ‘Sound’ settings contain the volume control, and selection of

notification sounds, system sounds.

Display settings

Includes brightness, automatic
screen rotation (G-sensor),
wallpaper and display timeout time,
Switch off display after：

15 seconds, 30 seconds, 1 minute, 2
minutes, 10 minutes or 30 minutes

are available. For example, if you select 30 seconds, the display will

Page 14 of 18

be switched after 30 seconds of inactivity and screen lock is

activated. Press the ‘Power’ button to reactivate the Display. Push
the ‘Lock’ button up to lift the screen lock.

Storage

Here you can see the current memory usage and available storage

Battery

Here you can view the status of the battery

Apps

Here you can manage your applications

Personal

Accounts & sync

General synchronisation settings:

1. Background data

2. Automatic synchronisation
Account management: Management of user accounts

Location services

Here you can activate the automatic recognition of the location.

Security

Here you can activate or change the screen protection and the
password for access to the tablet.
Further you can determine if you want to download apps from other
sources then the official Android market.

Page 15 of 18

Language & input

Set the system language and input method.

Backup & Reset

Secure my data: Here you can define if different settings
should be stored on Google servers.

Touch ‘Factory data reset’ to reset the device to factory settings.
All settings, self-installed apps and data stored on internal memory
will be deleted.

System

Date & time

If your network does not support automatic setting of time,
you can set the time, time zone and date manually after
deactivating automatic settings.

Accessibility

Here you can set the access to the system, text size, the rotation of
the screen etc.

Page 16 of 18

Developer options

Here are extra tools for developers.

About Tablet

Here you will find information of the tablet like battery use, version
of the software etc.

Main functions

Internet

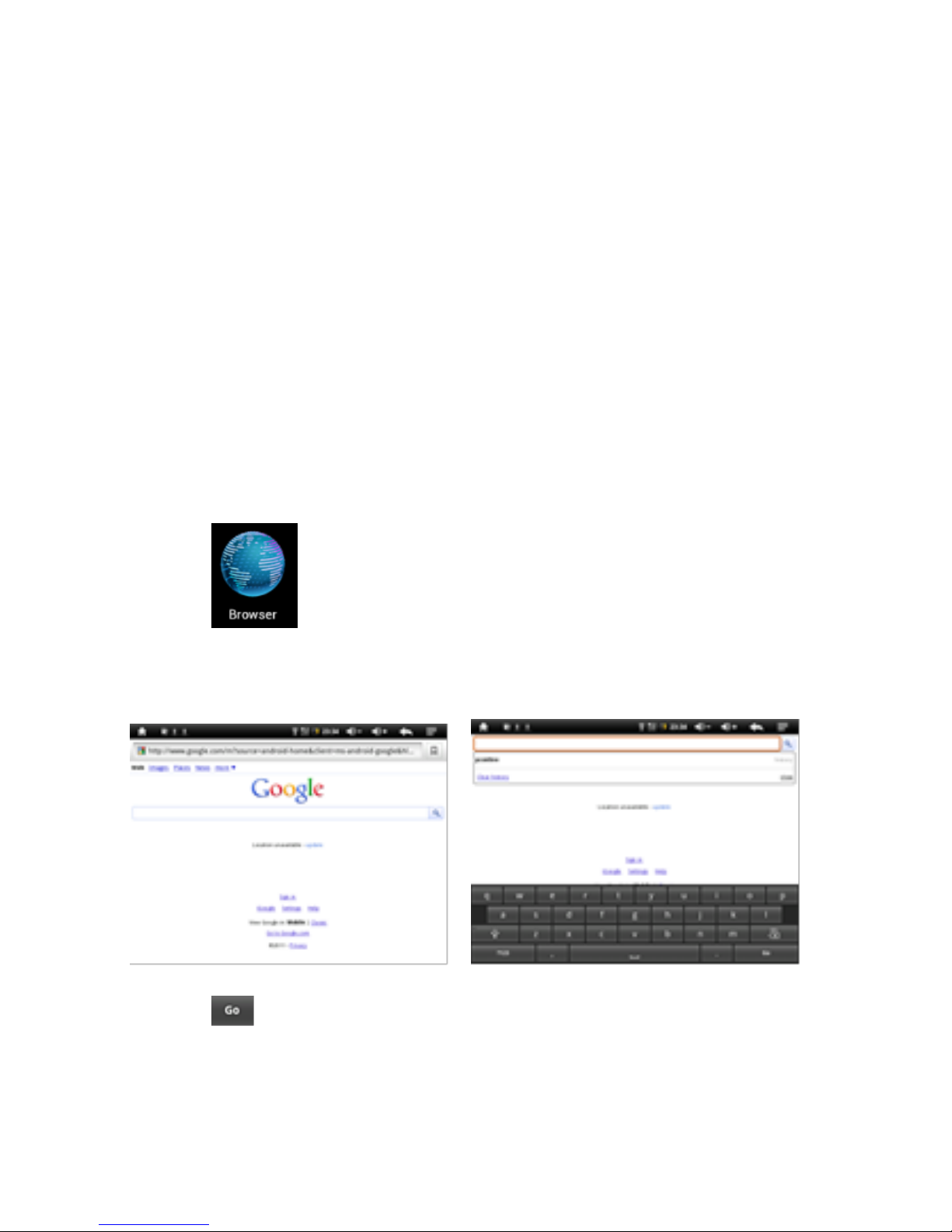

Touch Icon to surf the net.
Google is the default start page.
Touch the input field to display the keyboard:

Touch or  after entering a website address to open the
website.

Page 17 of 18

Note: The Android keyboard has few options for settings such as:
keyboard language, numbers and icons etc.

The Internet browser can open four websites simultaneously;

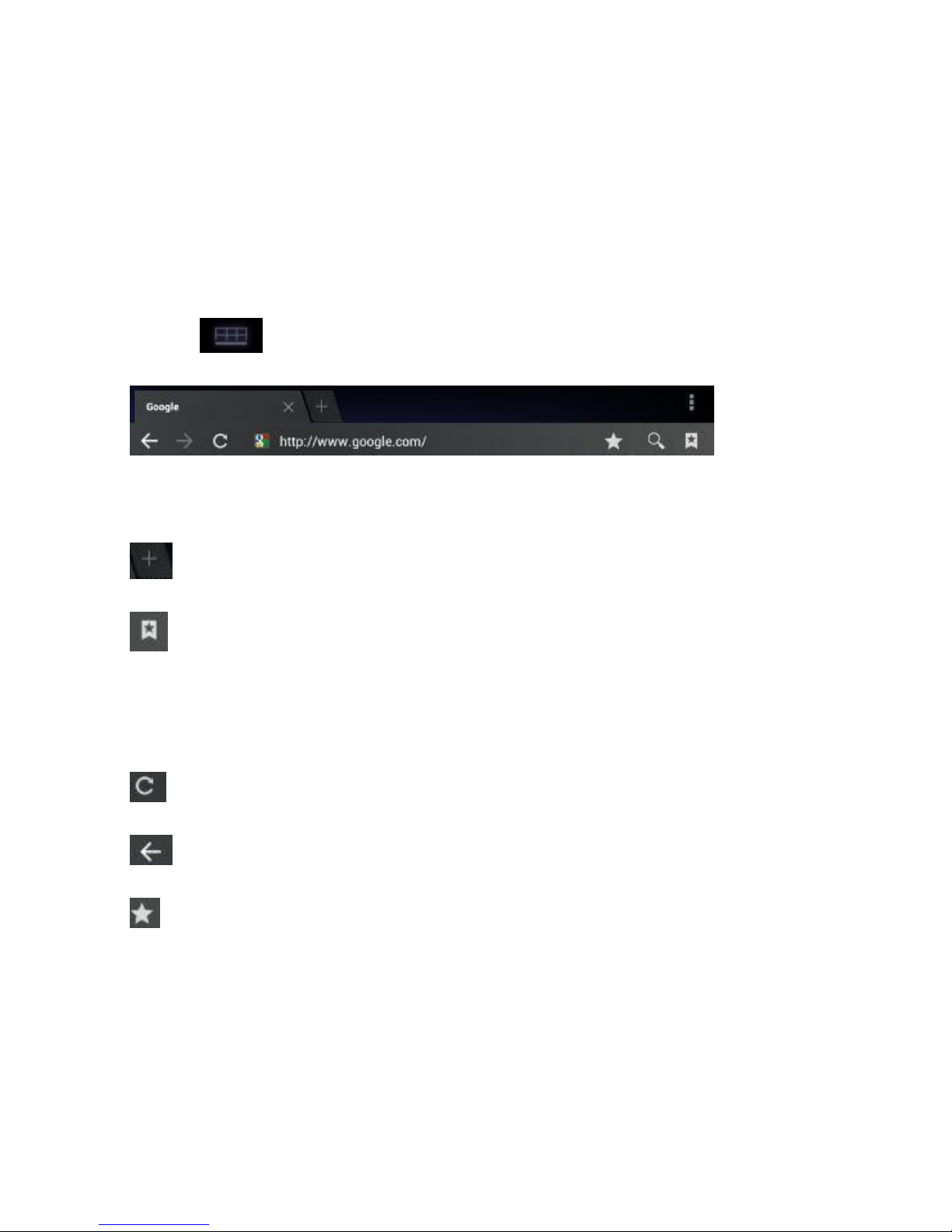

Touch and the menu will be displayed as follows:

Touch ‘New Window’ and a new website will be displayed.

‘Most visited’ and ‘History’ can be found under ‘Bookmarks’.

Click on the tabs to navigate between two open windows.
Four different windows are possible simultaneously.

Touch ‘Refresh’ to refresh the current web page.

A step backwards, opposite of forward Icon.

’Add bookmarks’, ‘Search on the page’, ‘Select text’ ‘Page

information’, ‘Page info’, ‘Forward link’ ‘Downloads’, ‘Settings’.

Page 18 of 18

Technical Data

Viewpia TB-107 7" / 17.78 cm Tablet-PC

CPU Cortex A8 @ 1.2 GHz

Operating System Android 4.0x

RAM 512Mb DDR3

Internal Memory 4 GB NAND Flash

Memory Expansion Micro SD/SDHC (T-Flash) up to 32GB

Display 16:9 capacitive 5-point Multi-Touch-Display

Resolution 800 x 480 Pixel

G-SENSOR Yes, 3 Axes

Camera 0.3MP Front

Battery 3.000 mAh / 3,7V rechargeable Li-ion Battery

MIC Yes

Internet & Skype Phone-Function

WIFI 802.11b/g/n (high sensitivity, 150Mbps)

I/O ports 1x 5V (2A) DC In, 1x headphone, 1x TF Card-Slot,

1x USB 2.0 host & USB OTG

3G Supported via USB with USB Dongle (WCDMA, EVDO,

TD-SCDMA)

Video-Formats AVI, MPG, MKV, RM, RMVB, MP4, MOV, VOB, DAT, FLV, TS,

3GP, WEBM(VP8), YouTube, HTML5, Flash 11.x

Audio-Formats MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP, etc.

Sound Stereo via headphone, mono via built-in Speaker

Office Word / Excel / PDF / PPT, Microsoft Word pad,

The software is not on the device and

must be downloaded by the user.

Images JPG, BMP, PNG, GIF, etc.
