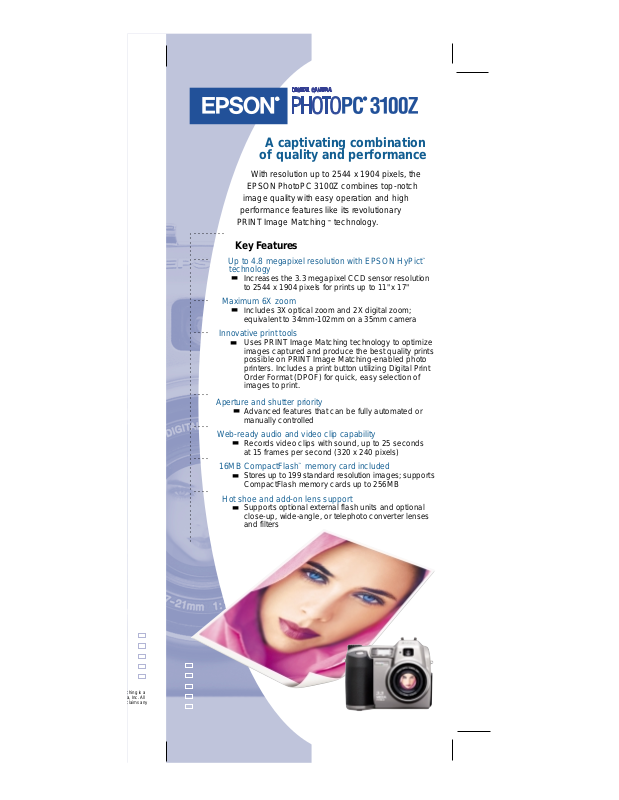

A captivating combination

of quality and performance

With resolution up to 2544 x 1904 pixels, the

EPSON PhotoPC 3100Z combines top-notch

image quality with easy operation and high

performance features like its revolutionary

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • •

• • • •

• • • •

• • • •

• • • •

• • • •

• • • •

• • • •

PRINT Image Matching

Key Features

Up to 4.8 megapixel resolution with EPSON HyPict

technology

■

Increases the 3.3 megapixel CCD sensor resolution
to 2544 x 1904 pixels for prints up to 11" x 17"

Maximum 6X zoom

■

Includes 3X optical zoom and 2X digital zoom;

equivalent to 34mm-102mm on a 35mm camera

Innovative print tools

■

Uses PRINT Image Matching technology to optimize
images captured and produce the best quality prints
possible on PRINT Image Matching-enabled photo
printers. Includes a print button utilizing Digital Print
Order Format (DPOF) for quick, easy selection of
images to print.

Aperture and shutter priority

■

Advanced features that can be fully automated or
manually controlled

Web-ready audio and video clip capability

■

Records video clips with sound, up to 25 seconds
at 15 frames per second (320 x 240 pixels)

16MB CompactFlash™ memory card included

■

Stores up to 199 standard resolution images; supports
CompactFlash memory cards up to 256MB

Hot shoe and add-on lens support

■

Supports optional external flash units and optional
close-up, wide-angle, or telephoto converter lenses
and filters

™

technology.

™

Camera Specifications

CCD Sensor

1/1.8 inch color CCD (3.34 million pixels)

File Format

JPEG (EXIF), TIFF uncompressed, DCF (Design Rule for Camera File System)
and DPOF (Digital Print Order Format) compliant

Resolution Modes

HyPict 2544 x 1904 pixels
Tiff Uncompressed 2048 x 1536 pixels
Super Fine 2048 x 1536 pixels
Fine 1600 x 1200 pixels
Standard 640 x 480 pixels

Color Modes
Lens

Focal length 7 – 21mm
(equivalent to 34mm to 102mm lens on a 35mm film camera)

7 elements in 8 group construction (2 aspherical lenses)
Lens adapter included for optional add on lenses

Auto-Focus Range (Automatic and Manual)

Normal mode 20" to infinity (0.5m – infinity)
Macro mode 2.36" to 20" (0.06m - 0.5m)
User adjustable 3’, 10’, 50’

Capture Modes

Full Auto, program (sports, landscape, portrait, normal), manual, macro,
continuous shoot, interval shooting, stitching, and 2x digital zoom

Built-in Microphone and Speaker

Capable of recording up to 10 second voice message
Listen to the voice message on the camera, through a computer

or television
Audio File format WAV (PC), AIFF (MAC)

Audio and Video Clip

QuickTime Motion JPEG (15 frames/sec)
Max recording time 25 seconds (35 seconds when sound is off)

LCD Monitor

1.8" color LCD monitor
Supports instant preview, playback, delete, and slide show

Picture Storage Capacity

16MB CompactFlash card
Average number of images (standard compression) stored on 16MB:

HyPic 12 images
Super Fine 29 images
Fine 56 images
Standard 199 images
Uncompressed TIFF 1 image (9MB)

Optical Viewfinder

Real-image optical viewfinder and diopter

Shutter Speed (Automatic and Shutter Priority)

Mechanical shutter and electronic control shutter
Flash On 1/30 seconds – 1/1000 seconds
Slow sync and Flash OFF 1/2 seconds – 1/1000 seconds
Manual exposure: 8 seconds – 1/500 seconds

24-bit color and monochrome
