Viega Easytop 2275.10 Instructions For Use Manual

Easytop ball valve with SC-Contur
Instructions for Use
for drinking water and heating installation
Model
2275.10
en_INT
Easytop ball valve with SC-Contur 2 from 21

Table of contents

Table of contents
1.1
1.2
1.3
Target groups 4
Labelling of notes 4
About this translated version 5
2 Product information 6
2.1
2.2
2.2.1
2.2.2
2.3
2.3.1
2.3.2
2.3.3
2.3.4
2.3.5
2.3.6
2.4
2.4.1
2.5
Standards and regulations 6
Intended use 8
Areas of use 9
Media 9
Product description 9
Overview 9
Press connection with SC-Contur 10
Sealing elements 11
Markings on components 11
Compatible components 12
Technical data 12
Information for use 13
Corrosion 13
Optional accessories 13
3 Handling 15
3.1
3.1.1
3.1.2
3.1.3
3.2
3.2.1
3.2.2
3.2.3
3.2.4
3.3
3.4
Easytop ball valve with SC-Contur 3 from 21
Assembly information 15
Permitted exchange of sealing elements 15
Mounting instructions 15

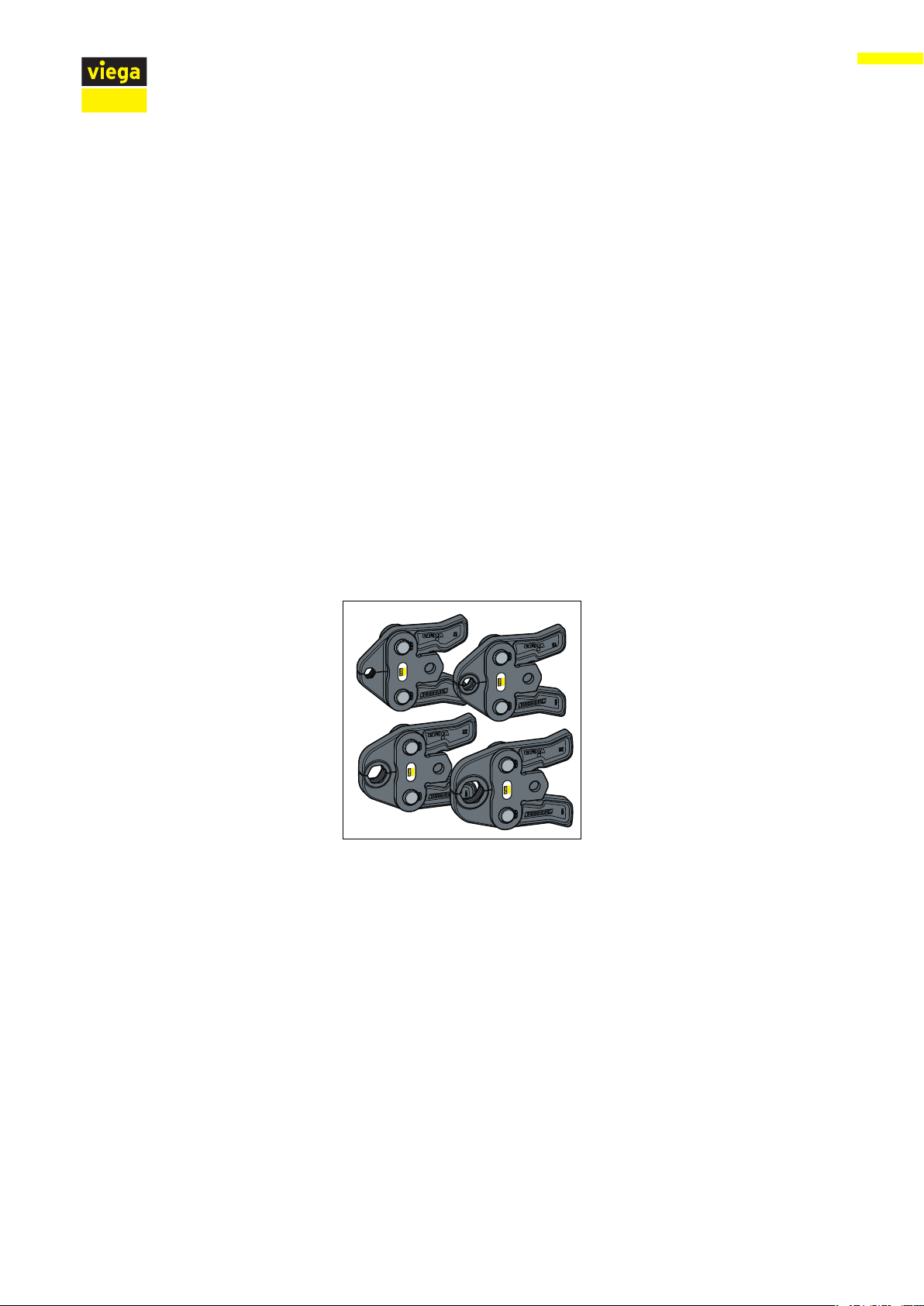

Required tools 16
Assembly 16
Replacing the sealing element 16
Shortening the pipes 17
Pressing the connection 18
Leakage test 20
Maintenance 20
Disposal 21
About these instructions for use

1 About these instructions for use

Trade mark rights exist for this document; for further information, go to viega.com/legal.

1.1 Target groups

The information in this manual is directed at qualified heating and plumbing engineers and trained personnel.
Individuals without the abovementioned training or qualification are not permitted to mount, install and, if required, maintain this product. This restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
1.2
Labelling of notes
Warning and advisory texts are set aside from the remainder of the text and are labelled with the relevant pictographs.
DANGER! This symbol warns of possible life-threatening injury.
WARNING! This symbol warns of possible serious injury.
CAUTION! This symbol warns of possible injury.
NOTICE! This symbol warns of possible damage to property.
This symbol gives additional information and hints.
Easytop ball valve with SC-Contur 4 from 21

1.3 About this translated version

This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. EN) and/or in Germany (e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/ Germany. These should serve as recommendations in the absence of corresponding national regulations. The relevant national laws, stand‐ ards, regulations, directives and other technical provisions take priority over the German/European directives specified in this manual: The information herein is not binding for other countries and regions; as said above, they should be understood as a recommendation.
About these instructions for use
Easytop ball valve with SC-Contur 5 from 21

2 Product information

2.1 Standards and regulations

The following standards and regulations apply to Germany / Europe and are provided as a support feature.
Regulations from section: Fields of application
Scope / Notice Regulations applicable in Ger‐
Product information
many
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
DIN EN 806, part 1
DIN EN 806, part 2
DIN EN 806, part 3
DIN EN 806, part 4
DIN EN 806, part 5
DIN EN 1717
DIN 1988
Planning, execution, operation and maintenance of potable water installations
Planning, execution, operation and maintenance of potable water installations
Regulations from section: Media
Scope / Notice Regulations applicable in Ger‐
Suitability for drinking water Trinkwasserverordnung (TrinkwV)
Suitability for heating water for pump hot water heating systems
Easytop ball valve with SC-Contur 6 from 21
VDI/DVGW 6023
Trinkwasserverordnung (TrinkwV)
many
VDI 2035 Page 1 and page 2
Regulations from section: Product description
Scope / Notice Regulations applicable in Ger‐
Product information
many
Suitability for potable water instal‐ lations
Suitability for potable water instal‐ lations
Requirements in plastic compo‐ nents in potable water installa‐ tions
Regulations from section: Overview
Scope / Notice Regulations applicable in Ger‐
Compliance with the inspection requirements (fittings group I)
Regulations from section: Sealing elements
Scope / Notice Regulations applicable in Ger‐
Area of use of the EPDM sealing element
Trinkwasserverordnung (TrinkwV)
DIN 50930-6
DVGW-Arbeitsblatt W270
many
DIN EN 13828
many
DIN EN 12828
n Heating
Regulations from section: Marking on components
Scope / Notice Regulations applicable in Ger‐
Designation noise class I DIN EN 13828
Regulations from section: Compatible components
Scope / Notice Regulations applicable in Ger‐
Permitted pipe types DVGW-Arbeitsblatt W 534
Permitted copper pipes DVGW-Arbeitsblatt GW 392
Permitted copper pipes DIN EN 1057
Permitted stainless steel pipes DVGW-Arbeitsblatt GW 541
Permitted stainless steel pipes DIN EN 10312
Permitted stainless steel pipes DIN EN 10088
many
many
Easytop ball valve with SC-Contur 7 from 21
Regulations from section: Corrosion
Scope / Notice Regulations applicable in Ger‐
External corrosion protection DIN EN 806-2
External corrosion protection DIN 1988-200
External corrosion protection DKI-Informationsdruck i. 160
Regulations from section: Leakage test
Scope / Notice Regulations applicable in Ger‐
Product information
many
many
Leakage test for potable water installations
Leakage test for potable water installations
Regulations from section: Maintenance
Scope / Notice Regulations applicable in Ger‐
Operation and maintenance of potable water installations

2.2 Intended use

DIN EN 806, part 4
ZVSHK-Merkblatt Dichtheitsprüfungen von Trink‐ wasserinstallationen mit Druckluft, Inertgas oder Wasser
many
DIN EN 806-5
Coordinate the use of the model for areas of use and media other than those described with the Viega Service Center.
A ball valve is a fitting that is able to shut-off and open individual pipe‐ line sections through a 90° movement. The ball valve is not a control fit‐ ting and cannot be used for regulating volume flows. The ball must not be in an intermediate position.
NOTICE! Opening and closing the ball valve quickly can cause pres‐ sure shocks in the system.
– Always open and close the ball valve slowly.
Easytop ball valve with SC-Contur 8 from 21

2.2.1 Areas of use

Product information
Use is possible in the following areas among others:
n Potable water installations n Industrial and heating systems n Compressed air systems n Rainwater systems n Cooling water pipelines (closed circuit) n Systems for technical gases (on request)
The general rules of engineering and the applicable regulations must be observed for planning, execution, operation and maintenance of potable water installations, see Ä „Regulations from section: Fields of applica‐ tion“ on page 6.

2.2.2 Media

2.3 Product description

The model is also suitable for the following media, amongst others:
n Potable water without limitations acc. to the applicable directives,
see Ä „Regulations from section: Media“ on page 6
n maximum chloride concentration 250 mg/l pursuant to applicable
regulations, see Ä „Regulations from section: Media“ on page 6
n Heating water for pump hot water heating systems, see Ä „Regula‐
tions from section: Media“ on page 6
n Compressed air in compliance with the specification of the sealing
elements being used
EPDM at oil concentration < 25 mg/m
According to the applicable regulations, Easytop system fittings can be used for all types of potable water and are DVGW certified, see Ä „Reg‐ ulations from section: Product description“ on page 7. Their plastic components comply with the KTW recommendation and the require‐ ments pursuant to the applicable regulations.
3
2.3.1
Easytop ball valve with SC-Contur 9 from 21
Overview
The Easytop system fittings comply with the test require‐ ments specified in the applicable regulations, see Ä „Regu‐ lations from section: Overview“ on page 7. Sound protection Lap ≤ 20 dB(A)
The model is equipped as follows:
n valve casing made of silicon bronze n dual-sided press connection with SC-Contur
n L-shaped actuating lever made of metal n position indication open/closed n key surface on the casing n maintenance-free selector shaft n sealing elements made of EPDM n ball seal made of Teflon® n stainless steel ball
The model is available in the following dimensions : d 15 / 18 / 22 / 28 / 35 / 42 / 54.

2.3.2 Press connection with SC-Contur

Product information
SC-Contur
Fig. 1: Press connection with a press connector as an example
The press connection has a circumferential bead in which the sealing element lies. The connector is deformed upstream and downstream of the bead and permanently connected to the pipe during pressing. The sealing element is not deformed during pressing.
Fig. 2: SC-Contur
Easytop ball valve with SC-Contur 10 from 21
Viega press connectors are equipped with the SC-Contur. The SC­Contur is a safety technology that is certified by the DVGW and ensures that the connection is guaranteed to leak in an unpressed state. In this way, unpressed connections are noticed immediately during a leakage test.
Viega guarantees that unpressed connections are visible during a leakage test:
n with wet leakage test in the pressure range from 0.1 hPa–0.65 MPa
(1.0 mbar–6.5 bar)
n with dry leakage test in the pressure range from 22 hPa–0.3 MPa
(22 mbar–3.0 bar)

2.3.3 Sealing elements

Area of use of the EPDM sealing element
Product information
NOTICE! Only EPDM sealing elements are approved in potable water installations. The use of other sealing elements is not per‐ mitted.
The model is factory-fitted with EPDM sealing elements.
Area of use Potable water Heating Compressed air Technical gases
Use all pipeline sections Pump hot water
all pipeline sections all pipeline sections
heating system
Operating tempera‐
ture [T
max.
]
Operating pressure
[P
]
max
Comments
110 °C 110 °C 60 °C
1.6 MPa (16 bar) 1.6 MPa (16 bar) 1.6 MPa (16 bar)
see notes
Ä
Chapter 2.2.2
„Media“ on page 9
pursuant to the
applicable regula‐
1)
tions
T
: 105 °C
max
dry, oil content
< 25 mg / m
3
95 °C with radiator
connection
1)
see Ä „Regulations from section: Sealing elements“ on page 7
2)
Consultation with the Viega Service Center required.
2)

2.3.4 Markings on components

The press connections are marked with a coloured dot. This identifies the SC-Contur, where the test medium would escape in the case of an inadvertently unpressed connection.
Easytop ball valve with SC-Contur 11 from 21
The model is marked as follows:
n noise class I pursuant to applicable regulations, see Ä „Regulations
n Dimension n DVGW writing n green dot for potable water n Position indicator on the actuating lever

2.3.5 Compatible components

The model is equipped with press connections and compatible with the Prestabo, Profipress, Sanpress and Sanpress Inox system.
Product information
from section: Marking on components“ on page 7
Pipes

2.3.6 Technical data

The press connections are tested and approved according to the appli‐ cable regulations with the following pipe types:
n Copper pipes
see Ä „Regulations from section: Compatible components“
on page 7
n Stainless steel pipes (material 1.4401 / 1.4521)
see Ä „Regulations from section: Compatible components“
on page 7
Observe the following operating conditions for the installation of the model:
Operating temperature [T
Operating pressure [P
] 110 °C
max
] 1.6 MPa (16 bar)
max
Easytop ball valve with SC-Contur 12 from 21

2.4 Information for use

2.4.1 Corrosion

Product information
Overground pipelines and fittings in rooms do not normally require external corrosion protection.
There are exceptions in the following cases:
n Contact with aggressive building materials such as nitrite or mate‐
rials containing ammonium
n In aggressive surroundings
If external corrosion protection is required, observe the pertinent guide‐ lines, see Ä „Regulations from section: Corrosion“ on page 8.
Easytop fittings made of gunmetal/silicon bronze are suit‐ able for all types of potable water.
The chloride concentration in the medium must not exceed a maximum value of 250 mg/l.

2.5 Optional accessories

This chloride is not a disinfectant, but in fact pertains to the content in sea and table salt (sodium chloride).
The following optional accessories are available:
n actuating lever made of metal n actuating lever made of plastic n Protective caps for the actuating lever made of plastic in red and
green for the identification of the corresponding area of use
n Insulating shells
Fig. 3: Model 2275.91 Easytop plastic actuating lever, T-shape
Easytop ball valve with SC-Contur 13 from 21
Fig. 4: Model 2275.92 Easytop T-shaped actuating lever
Product information
Fig. 5: Model 2275.94 Easytop thermometer
Fig. 6: Model 2275.97 Easytop media marking
Easytop ball valve with SC-Contur 14 from 21

3 Handling

3.1 Assembly information

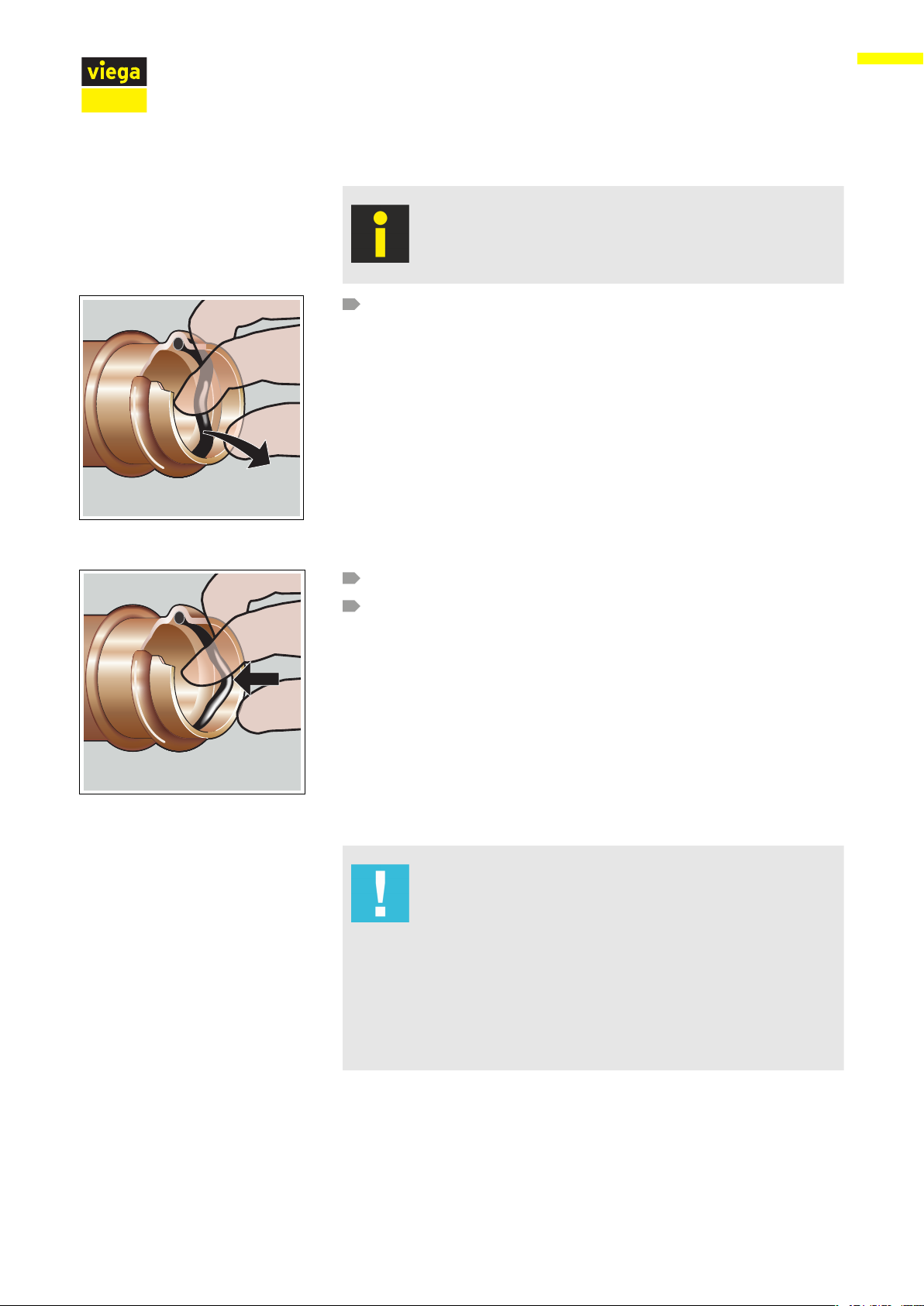

3.1.1 Permitted exchange of sealing elements

Important instruction With their material-specific qualities, sealing elements in
press connectors are adapted for use with the corre‐ sponding media and/or the areas of use of the piping sys‐ tems and are generally only certified for them.
The exchange of a sealing element is generally permitted. The sealing element must be exchanged for a spare part designed for the intended application Ä Chapter 2.3.3 „Sealing elements“ on page 11. The use of other sealing ele‐ ments is not permitted.
Handling

3.1.2 Mounting instructions

Checking system components
During assembly
Do not remove the model from the packaging until immedi‐ ately before use.
System components may, in some cases, become damaged through transportation and storage.
n Check all parts. n Replace damaged components. n Do not repair damaged components. n Contaminated components may not be installed.
Observe the following when mounting:
n Use suitable tools. n Installation is not dependent on the direction of flow.
Choose the place of installation so that the fitting is easily accessible, simple to operate and the insulating shell can be mounted without any problems.
Easytop ball valve with SC-Contur 15 from 21
Laying and fixing pipes
Length expansion

3.1.3 Required tools

Handling
For information, refer to the instructions for use of the Prestabo, Profi‐ press, Sanpress and Sanpress Inox systems.
For information, refer to the instructions for use of the Prestabo, Profi‐ press, Sanpress, and Sanpress Inox systems.
The following tools are required for production of a press connection:
n pipe cutter or a fine-toothed hacksaw n deburrer and coloured pen for marking n press machine with constant pressing force n Press jaw or press ring with corresponding hinged adapter jaw, suit‐
able for the pipe diameter and suitable profile
Fig. 7: Press jaws
Recommended Viega press machines:
n Pressgun 5 n Pressgun 4E / 4B n Type PT3-AH n Type PT3-H / EH n Type 2 (PT2) n Pressgun Picco n Picco

3.2 Assembly

3.2.1 Replacing the sealing element

Removing the sealing element
Easytop ball valve with SC-Contur 16 from 21
Do not use pointed or sharp-edged objects to remove the sealing element. They may damage the sealing element or the bead.
Remove the sealing element from the bead.
Handling
Inserting the sealing element
3.2.2
Shortening the pipes
Insert a new, undamaged sealing element into the bead.
Ensure that the sealing element is completely in the bead.
NOTICE! Leaky press connections due to damaged material!
Press connections can become leaky due to damaged pipes or sealing elements.
Observe the following instructions to avoid damage to pipes and sealing elements:
– Do not use cutting discs (angle grinders) or flame cutters
when cutting to length.
– Do not use grease or oils (e.g. cutting oil).
For information about tools, also see Ä Chapter 3.1.3 „Required tools“ on page 16.
Easytop ball valve with SC-Contur 17 from 21

3.2.3 Pressing the connection

Handling
Cut the pipe properly using a pipe cutter or fine-toothed hacksaw.
Avoid grooves on the pipe surface.
NOTICE! Leaky press connections due to pipes being too short
If two press connectors are to be mounted onto a pipe without an interval, the pipe must not be too short. If the pipe is not inserted up to the prescribed insertion depth in the press connector during pressing, the connection may become leaky.
In the case of pipes with a diameter of d 15–28 mm, the pipe must be at least as long as the total insertion depth of both press connectors.
Easytop ball valve with SC-Contur 18 from 21

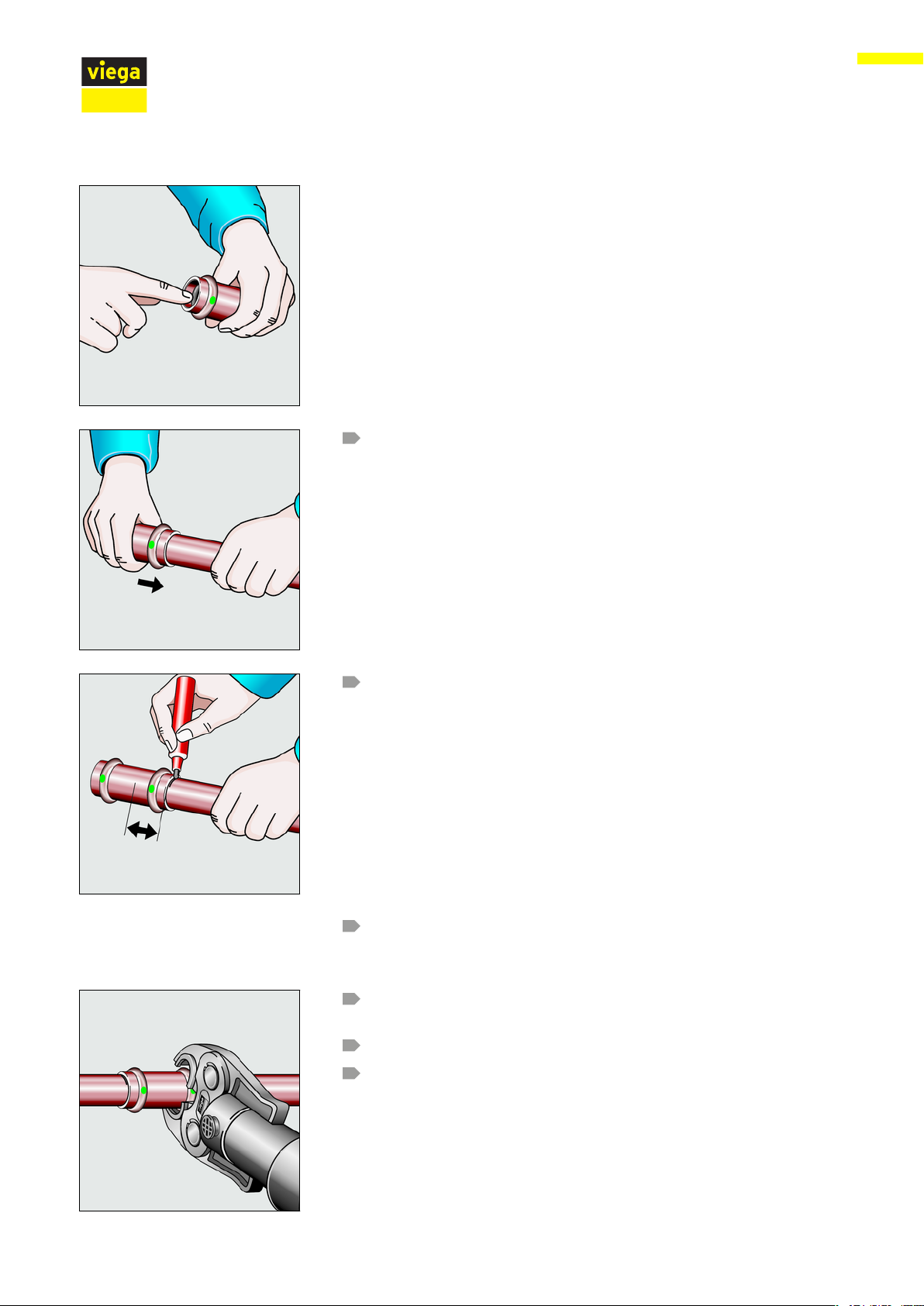

Requirements:
n The pipe end is not bent or damaged. n The pipe is deburred. n The correct sealing element is in the press connector.
EPDM = polished black
n The sealing element is undamaged. n The sealing element is completely in the bead.
Push the press connector onto the pipe as far as it will go.
Handling
Mark the insertion depth.
Place the press jaw on the press machine and push the retaining bolt in until it clicks into place.
INFO! Observe the press tool instruction manual.
Open the press jaw and place on the press connector at right angles.
Check the insertion depth using the marking.
Ensure that the press jaw is placed centrally on the bead of the press connector.
Easytop ball valve with SC-Contur 19 from 21

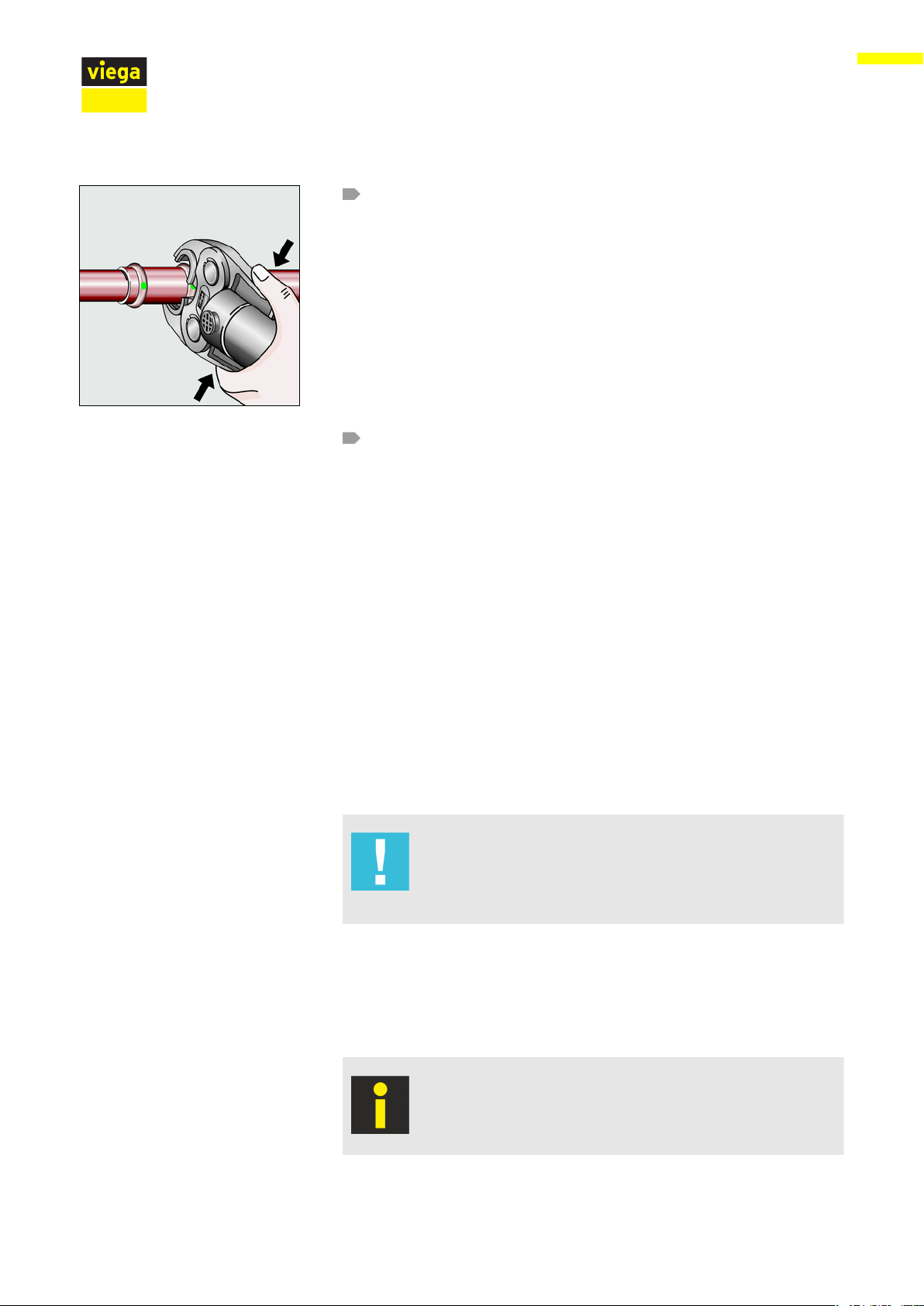

Carry out the pressing process.
Open and remove the press jaw.
Connection is pressed.
ð
Handling

3.2.4 Leakage test

3.3
Maintenance
The installer must perform a leakage test before commissioning.
Carry out this test on a system that is finished but not covered yet.
Comply with the general rules of engineering and the applicable direc‐ tives, see Ä „Regulations from section: Leakage test“ on page 8.
Perform leakage test should in acc. with the general rules of engineering for non-potable water installations.
Document the result.
NOTICE! Inform your customer or the operator of the potable water installation that the system has to be maintained on a reg‐ ular basis.
Observe the applicable regulations for the operation and maintenance of potable water installations, see Ä „Regulations from section: Mainte‐
nance“ on page 8.
Viega recommends actuating the fitting regularly and checking its function.
Easytop ball valve with SC-Contur 20 from 21

3.4 Disposal

Handling
Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
Easytop ball valve with SC-Contur 21 from 21
Loading...
