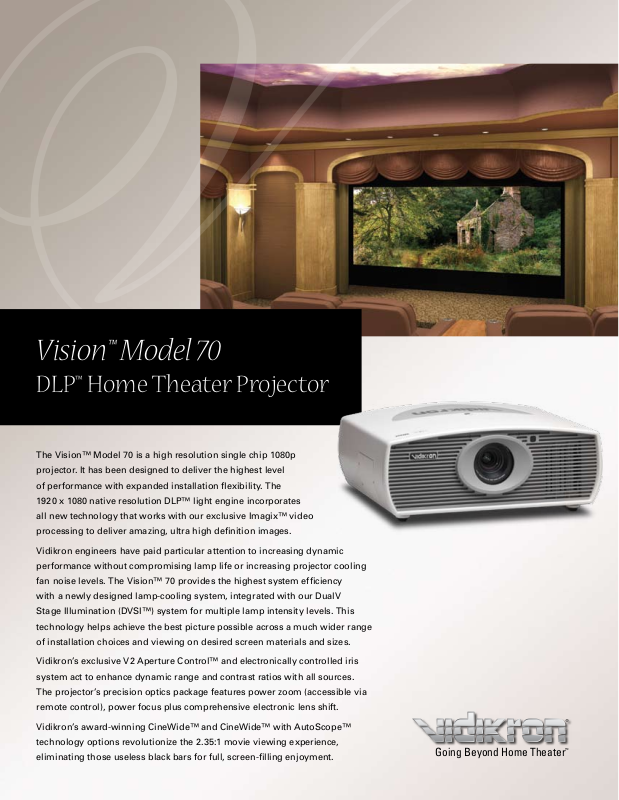

Vidikron Vision 70 Product Sheet
Vision™ Model 70
DLP™ Home Theater Projector
The Vision™ Model 70 is a high resolution single chip 1080p
projector. It has been designed to deliver the highest level
of performance with expanded installation flexibility. The
1920 x 1080 native resolution DLP™ light engine incorporates
all new technology that works with our exclusive Imagix™ video
processing to deliver amazing, ultra high definition images.
Vidikron engineers have paid particular attention to increasing dynamic
performance without compromising lamp life or increasing projector cooling
fan noise levels. The Vision™ 70 provides the highest system efficiency
with a newly designed lamp-cooling system, integrated with our DualV
Stage Illumination (DVSI™) system for multiple lamp intensity levels. This
technology helps achieve the best picture possible across a much wider range
of installation choices and viewing on desired screen materials and sizes.
Vidikron’s exclusive V2 Aperture Control™ and electronically controlled iris
system act to enhance dynamic range and contrast ratios with all sources.
The projector’s precision optics package features power zoom (accessible via
remote control), power focus plus comprehensive electronic lens shift.
Vidikron’s award-winning CineWide™ and CineWide™ with AutoScope™
technology options revolutionize the 2.35:1 movie viewing experience,
eliminating those useless black bars for full, screen-filling enjoyment.
Going Beyond Home Theater
™
Specifications Vision™ Model 70
Projector Type:
Native Resolution:
Aspect Ratio:
Video Standards:
DTV Compatibility:
Picture Size
(16:9 Screen):
Throw Distance
(Factor x Screen Width):
Horizontal and
Vertical Offset:
Light Output:
Contrast Ratio:
Lamp:
Estimated Lamp Life:
Inputs:
12V Output:
Power Requirements:
Operating Environment:
Dimensions (w/o feet):
Regulatory Approvals:
Limited Warranty:
Digital Light Processing™ (DLP™), Single-Chip DMD™
1920 x 1080 (16:9)
4:3, Letterbox, 16:9 Anamorphic, IntelliWide™, Cinema,
Cinema Fill
NTSC, PAL, SECAM, ATSC
480p, 576p, 720p, 1080i, 1080p
Recommended Width: 72 in. (1.83 m) to 96 in. (2.44 m)
Capable of screen widths between 48 in. (1.22 m) and 200
in. (5.08 m)
1.58 to 1.90
(with CineWide 1.85 to 1.90 with 2.35:1 screen)
(with CineWide with AutoScope 1.25 to 1.51 with 2.35:1
screen)
Horizontal: None
Vertical (when projector is inverted):
Up = 40% of screen height above lens center
Down = 50% of screen height below lens center
CSMS* Specifications:
Home Theater Calibration: 451–589 ANSI Lumens;
14.8–21.7 Foot-Lamberts (fL)
1290 ANSI Lumens
CSMS* Contrast Ratio: 200:1–230:1; 1550:1–3250:1
250W
2000 hours
(1) Composite Video, (1) S-Video, (1) RGB/Component Video
(BNC connectors), (1) RCA Component Video, (1) HDMI,
(1) RS-232
Max. 0.25 Amps, active when Cinema or Cinema Fill Aspect
Ratio is selected (Vision 70/CineWide with AutoScope only)
or when projector is turned on; Tip = +12V; Sleeve = Ground
100 to 240 VAC (auto-sensing), 50/60 Hz, 330 W
41° - 95° F, (5° - 35° C), 20%–80% Humidity (non-condensing)
Width: 22.00 in. (558.80 mm)
Depth: 19.00 in. (462.60 mm)
Height: 9.00 in. (228.60 mm)
Weight: 46.50 lbs. (21.09 kg)
Complies with FCC Class B, CE, C-Tick
Projector: Two (2) years parts and labor from the date of
delivery to the end user.
Lamp Warranty: 1000 hours or six (6) months, whichever
comes first.
CineWide™ and CineWide with AutoScope™
Until now, viewing movies presented in the CinemaScope™ 2.35:1 format
has meant the presence of useless black bars on the top and bottom of your
screen. It has also meant a possible loss of resolution because widescreen
digital imaging chips are in the 16:9 widescreen aspect ratio, not nearly as
wide as 2.35:1.
Through the magic of our award winning CineWide and CineWide with
AutoScope technology and the use of an appropriate screen, constant vertical height is maintained, filling the entire screen area. When you transition
from a standard 16:9 (1.78:1) widescreen aspect ratio to 2.35:1 Cinema, the
picture simply gets wider — really wide, just as you would experience in a
quality cinema.
While CineWide provides a fixed anamorphic lens, with the AutoScope option the anamorphic lens in motorized and remote controlled.
Conventional Method
A conventional 2.35:1 image
displayed on a 1.78:1 (16:9) screen.
IMAGE AREA
Black bars = l ost resolution
The video processor anamorphically “stretches” the 2.35:1 image vertically to
completely fill the display’s imaging chip’s. This allows all pixels to be used.
2.35:1 Image on a 16:9 imaging chip
The anamorphic lens then “stretches” the image width to 2.35:1. Correct
geometry is restored, while 100% of the pixels are now used to maintain
full resolution and eliminate black bars.
CineWide and CineWide with AutoScope requires the use of a
2.35:1 or similar aspect ratio superwide screen.
How it works:
STRETCH
CineWide™ Technology
Constant Vertical height and full resolution
are maintained. 100% of pixels are used.
Black bars are eliminated.
16:9 IMAGE AREA
2:35: 1 image a rea
16:9 Image Area
VERTICAL
STRETCH
REMOVES
BLACK
BARS
SQUEEZED
APPEARANCE
Engineered for ISF® calibration.
*Cinema Standards Measurement System. See www.vidikron.com for more details.
Specifications are subject to change without notice. Optional ceiling mount available.
Vidikron, Vision Series, Intelliwide, Imagix, DVSI, V2 Aperature Control, and CSMS are trademarks owned by
Runco, LLC, licensed to Vidikron, a division of Runco International, Inc.
CineWide and AutoScope are trademarks of Runco International, Inc.
© 2007 Runco International, Inc. All Rights reserved.
Digital Light Processing, DLP and DMD are trademarks of Texas Instruments.
ISF is a registered trademark of Imaging Science Foundation.
Theater installation courtesy of Cinema Design Group Intl., Boca Raton, FL
