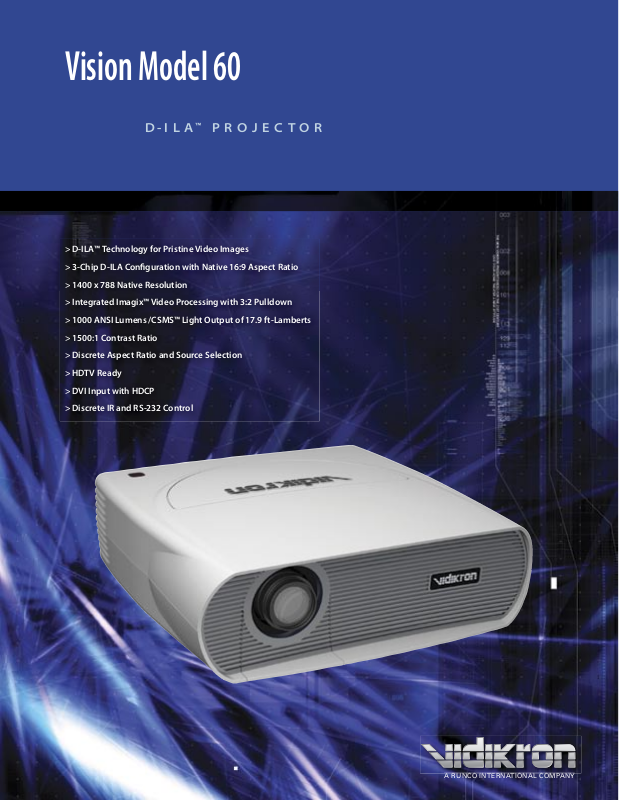

Vidikron Vision 60 Product Sheet
Vision Model 60
D - I L A™ P R O J E C T O R
> D-ILA™ Technology for Pristine Video Images
> 3-Chip D-ILA Confi guration with Native 16:9 Aspect Ratio
> 1400 x 788 Native Resolution
> Integrated Imagix™ Video Processing with 3:2 Pulldown
> 1000 ANSI Lumens /CSMS™ Light Output of 17.9 ft-Lamberts
> 1500:1 Contrast Ratio
> Discrete Aspect Ratio and Source Selection
> HDTV Ready
> DVI Input with HDCP
> Discrete IR and RS-232 Control
A R UNC O I NTE RNATI ONA L C OMPAN Y
Vision Model 60
Vidikron raises the bar again in high quality, home theater video performance with the Vision™
Model 60. Vidikron engineers have designed this product with the implementation of advanced,
D-ILA™ (Direct Drive Image Light Amplifi er) technology. This exciting technology is capable of
producing some of the most natural, smooth images available in digital projection. Tremendous detail,
richly saturated colors and outstanding black level reproduction are hallmarks of the Model 60.
The Model 60’s optical light engine design and Vidikron’s incorporation of three D-ILA chips, rather
than a lower cost one-chip design, result in exceptionally low noise without the fl icker and “rainbow
eff ect” that often plague one-chip digital video display devices. Vidikron engineers have also paid
careful attention to accurate gray scale tracking and true 6500K color reproduction capability.
Together, all of these engineering achievements produce the most pleasing and fi lm-like high
resolution pictures imaginable.
With 1000 ANSI lumens of light output (CSMS™ Light Output of 17.9 ft-Lamberts) and an 1500:1
contrast ratio, the Model 60 off ers state-of-the-art picture quality on screens as large as eight feet
wide. Vidikron’s outstanding Imagix™ video processing with 3:2 fi lm detection circuitry and the
Model 60’s full HDTV compatibility (with outboard tuner/decoder or satellite receiver) make it
versatile enough to handle every video source.
In addition, Vidikron’s discrete multiple aspect ratio control, as well as discrete IR and RS-232 control
make custom installation seamless, while discrete source selection accommodates any automation
control system.
D - I L A™ P R O J E C T O R
Finally, the Vision Model 60 is packaged in stunning, Italian inspired styling and fi nished in your
choice of soft white or graphite to blend seamlessly with any decor.
Specifi cations for Vision Model 60:
Projection Type: D-ILA, 3-Chip, 0.7 in. diagonal
Native Resolution: 1400 x 788 (16:9)
Aspect Ratio: 4:3, Letterbox, 16:9 Anamorphic
Video Standards: NTSC, PAL
DTV Compatibility: 480p, 720p, 1080i
Scan Frequency: Horizontal: 15 –120KHz
Vertical: 50–120Hz
Picture Size: Recommended Width: 72 – 96 in.
(16:9 screen) Maximum Width: 240 in. (16:9 screen)
Light output: CSMS* Specifi cations: Home Theater
Calibration: 487 ANSI Lumens;
17.9 Foot-Lamberts (fL);
1000 ANSI Lumens
Contrast Ratio: 1500:1 ANSI
Lamp: 250 W
Estimated Lamp Life: 2000 hours @ 6500º Kelvin
Inputs: (1) Composite Video, (1) S-video,
(1) RGB/Component (via BNC),
(1) RGB (15-pin mini D-sub),
(1) DVI w/ HDCP, (1) RS-232,
(1) 1/8 in. mini stereo audio
12V Output: Max .100 Amp, active when the
projector is on
Power Requirements: 100 – 240V AC, 340W
Operating Environment: 40° – 95° F, (5° – 35° C)
Dimensions (w/feet): Width: 18 in. (457.2 mm)
Depth: 20 1/8 in. (511.18 mm)
Height: 6 in. (152.4 mm)
Weight: 40 lbs. (18.14 kg)
Regulatory Approvals: FCC, CE, C-Tick
Limited Warranty: Projector: (2) Two year parts and labor
from the date of delivery to the end user
Lamp Warranty: 1000 hours or (6) six
months, which ever comes fi rst.
All specifi cations subject to change without notice. Optional ceiling bracket available.
* Cinema Standards Measurement System. See www.vidikron.com for more details.
A RUN CO INTERN ATIONA L COMPANY
Vidikron
2900 Faber Street, Union City, CA 94587
510-324-5900 Fax 510-324-5905
www.vidikron.com
© 2005 Vidikron, a Runco International Company. All rights reserved. Vision, Imagix,
and CSMS are trademarks of Vidikron.
D-ILA is a registered Trademark of Victor Company of Japan, Limited.
03/05
