Vidikron Vision l100t LightAmp, Vision 100t LightAmp Specifications

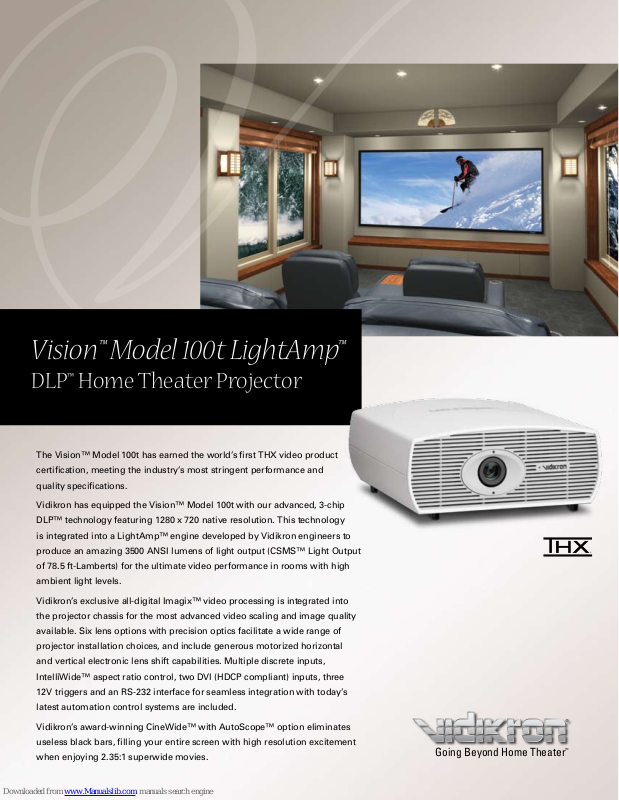

Vision™ Model 100t LightAmp™

DLP™ Home Theater Projector

The Vision™ Model 100t has earned the world’s first THX video product

certification, meeting the industry’s most stringent performance and

quality specifications.

Vidikron has equipped the Vision™ Model 100t with our advanced, 3-chip

DLP™ technology featuring 1280 x 720 native resolution. This technology

is integrated into a LightAmp™ engine developed by Vidikron engineers to

produce an amazing 3500 ANSI lumens of light output (CSMS™ Light Output

of 78.5 ft-Lamberts) for the ultimate video performance in rooms with high

ambient light levels.

Vidikron’s exclusive all-digital Imagix™ video processing is integrated into

the projector chassis for the most advanced video scaling and image quality

available. Six lens options with precision optics facilitate a wide range of

projector installation choices, and include generous motorized horizontal

and vertical electronic lens shift capabilities. Multiple discrete inputs,

IntelliWide™ aspect ratio control, two DVI (HDCP compliant) inputs, three

12V triggers and an RS-232 interface for seamless integration with today’s

latest automation control systems are included.

Vidikron’s award-winning CineWide™ with AutoScope™ option eliminates

useless black bars, filling your entire screen with high resolution excitement

when enjoying 2.35:1 superwide movies.

Going Beyond Home Theater

™

Specifications Vision™ Model 100t

Projector Type:

Native Resolution:

Aspect Ratio:

Video Standards:

DTV Compatibility:

Scan Frequency:

Picture Size
(16:9 Screen):

Throw Distance
(Factor x Screen Width):

Horizontal and
Vertical Offset:

Light Output:

Contrast Ratio:

Lamp:

Estimated Lamp Life:

Inputs :

Control Options:

Screen Trigger/Masking
Outputs:

Power Requirements:

Operating Environment:

Dimensions (w/o feet):

Regulatory Approvals:

Limited Warranty:

Digital Light Processing™ (DLP™),
3-chip, 16:9 LightAmp™ DMD’s™

1280 x 720 (16:9)

4:3, Letterbox, 16:9 Anamorphic, IntelliWide™,
IntelliWide™ 2.35, Cinema

NTSC, PAL, ATSC

480p, 720p, 1080i

Horizontal: 15 – 100 KHz
Vertical: 28 – 78 Hz

Recommended Width: 72 – 120 in.
Maximum Width: 250 in.

Lens Option A: Fixed 0.64 x width (for rear screen
applications)

Lens Option B: Zoom 1.24–1.42
Lens Option C: Zoom 1.45–1.73
Lens Option D: Zoom 1.85–2.35

(with CineWide 1.42 to 1.75 with 2.35:1 screen)
Lens Option E: Zoom 2.45–3.55

(with CineWide 1.86 to 2.62 with 2.35:1 screen)
Lens Option F: Zoom 3.65–5.70

(with CineWide 2.77 to 4.24 with 2.35:1 screen)

Horizontal: +/- 10 to 13%
Vertical: 0% to 13% above center of screen;

0% to 80% below center of screen

(Lens options B – F with ceiling mount. Vertical specifications are with
horizontal shift at center. Horizontal specifications are with no vertical shift
used. Amount of available shift varies per lens. Contact Vidikron technical
support for installation details.)

CSMS™* Specifications: Home Theater
Calibration: 2631 ANSI Lumens;

78.5 Foot-Lamberts (fL).
3500 ANSI Lumens

CSMS* Contrast Ratio: 228:1; 2000:1 ANSI

275W UHP

2000 hours

(1) Composite; (2) S-Video; (1) Component;
(2) HD - R (Pr), G (Y), B (Pb), H, V; (2) DVI w/HDCP

Discrete infrared remote, (1) RS-232,
9-pin Connector

(3) 12V DC, 1/8A

100 – 240V AC, 50/60 Hz, 610W

40° – 95° F, (5° – 35° C)
0% – 90% Humidity (non-condensing)

Width: 23 5/8 in. (600.00 mm)
Depth: 26 7/8 in. (682.62 mm)
Height: 9 1/2 in. (241.30 mm)
Weight: 65 lbs. (29.48 kg) (without lens)

Complies with FCC, CE C-Tick

Projector: Two (2) years parts and labor from the date
of delivery to the end user.

Lamp Warranty: 1000 hours or six (6) months,
whichever comes first.

CineWide™ with AutoScope™

Until now, viewing movies presented in the CinemaScope™ 2.35:1 format
has meant the presence of useless black bars on the top and bottom of your
screen. It has also meant a possible loss of resolution because widescreen
digital imaging chips are in the 16:9 widescreen aspect ratio, not nearly as
wide as 2.35:1.

Through the magic of our award winning CineWide with AutoScope
technology and the use of an appropriate screen, constant vertical height
is maintained, filling the entire screen area. When you transition from a
standard 16:9 (1.78:1) widescreen aspect ratio to 2.35:1 Cinema, the picture
simply gets wider — really wide, just as you would experience in a quality
cinema.

Conventional Method

A conventional 2.35:1 image

displayed on a 1.78:1 (16:9) screen.

IMAGE AREA

Black bars = l ost resolution

The video processor anamorphically “stretches” the 2.35:1 image vertically to

completely fill the display’s imaging chip’s. This allows all pixels to be used.

2.35:1 Image on a 16:9 imaging chip

The anamorphic lens then “stretches” the image width to 2.35:1. Correct
geometry is restored, while 100% of the pixels are now used to maintain

full resolution and eliminate black bars.

CineWide with AutoScope requires the use of a 2.35:1 or similar

How it works:

aspect ratio superwide screen.

CineWide™ with AutoScope™

Constant Vertical height and full resolution

are maintained. 100% of pixels are used.

Black bars are eliminated.

16:9 IMAGE AREA

2:35: 1 image a rea

16:9 Image Area

VERTICAL
STRETCH
REMOVES

BLACK

BARS

SQUEEZED

APPEARANCE

STRETCH

Engineered for ISF® calibration.

*Cinema Standards Measurement System. See www.vidikron.com for more details. Specifications are subject to change without notice. Optional ceiling mount available.

Vidikron, Vision Series, LightAmp, Intelliwide, Imagix, and CSMS are trademarks owned by Runco, LLC, licensed to Vidikron, a division of Runco International, Inc.
CineWide and AutoScope are trademarks of Runco International, Inc. © 2007 Runco International, Inc. All Rights reserved.
Digital Light Processing, DLP and DMD are trademarks of Texas Instruments. ISF is a registered trademark of Imaging Science Foundation.
THX is a trademark of THX Ltd. which may be registered in some jurisdictions. All rights reserved.
Theater installation courtesy of Cinema Design Group Intl., Boca Raton, FL

Going Beyond Home Theater

Vidikron

2900 Faber Street
Union City, CA 94587
510-324-5900

™

Fax [phone]
www.vidikron.com

02/07
