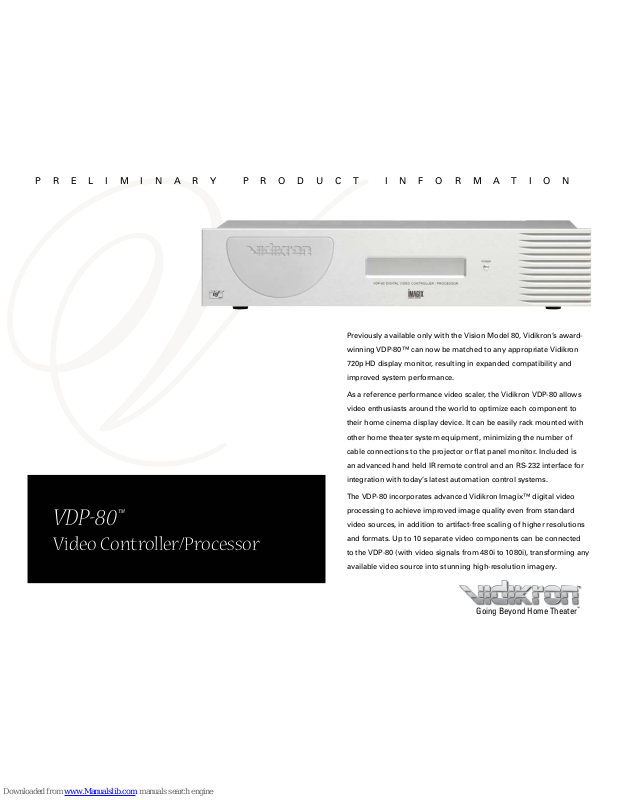

Page 1
VDP-80™
Video Controller/Processor
Going Beyond Home Theater
™
Previously available only with the Vision Model 80, Vidikron’s award-
winning VDP-80™ can now be matched to any appropriate Vidikron
720p HD display monitor, resulting in expanded compatibility and
improved system performance.
As a reference performance video scaler, the Vidikron VDP-80 allows
video enthusiasts around the world to optimize each component to
their home cinema display device. It can be easily rack mounted with
other home theater system equipment, minimizing the number of
cable connections to the projector or flat panel monitor. Included is
an advanced hand held IR remote control and an RS-232 interface for
integration with today’s latest automation control systems.
The VDP-80 incorporates advanced Vidikron Imagix™ digital video
processing to achieve improved image quality even from standard
video sources, in addition to artifact-free scaling of higher resolutions
and formats. Up to 10 separate video components can be connected
to the VDP-80 (with video signals from 480i to 1080i), transforming any
available video source into stunning high-resolution imagery.
P R E L I M I N A R Y P R O D U C T I N F O R M A T I O N
Page 2
Vidikron
2900 Faber Street
Union City, CA 94587
510-324-5900
Fax 510-324-5905
www.vidikron.com
Specifications are subject to change without notice.
© 2005 Vidikron, a Runco International Company. All rights reserved.
Vidikron, VDP-80, and Imagix are trademarks of Vidikron.
ISF is a registered trademark of Imaging Science Foundation.
Engineered for ISF® calibration.
09/05
Going Beyond Home Theater
™
VDP-80™
Video Standards:
NTSC, PAL
Output Resolution:
1080p
Outputs:
(1) HD – R (Pr), G (Y), B (Pb), H, V, (1) DVI w/HDCP
Analog Inputs:
Analog inputs can be configured in memory for various combinations.
A typical example would be:
(1) Composite; (1) S-Video;
(2) Component; (2) RGB; (2) SDI
Digital Inputs:
(2) DVI w/HDCP
Control Options:
Discrete infrared remote; (1) RS-232
Power Requirements:
5V DC via supplied 100 – 240 V AC (auto sensing) 50/60 Hz, 30 W AC/DC adapter
Operating Environment:
41 – 95 F, (5 – 35 C)
Dimensions:
Width: 17 7/16 in. (442.92 mm)
Depth: 11 3/8 in. (288.92 mm)
Height: 3 1/2 in. (88.90 mm)
Weight: 15 lbs. (6.8 kg)
Regulatory Approvals:
FCC, CE, C-Tick
Limited Warranty:
(2) years parts and labor from the date of delivery to the end user
