Vidikron 30, 30ET User Manual

OWNER’S OPERATING MANUAL

DLP™ PROJECTORS

Vision Model 30

Vision Model 30ET

Vision Model 30 CineWide™

Vision Model 30ET CineWide™

30

VERSION 2.0

TWO YEAR LIMITED WARRANTY

For Projectors, Video Processors and Controllers

Congratulations on your purchase of a Vidikron video product and welcome to the Vidikron family! With proper installation, setup
and care, you should enjoy many years of unparalleled video performance.

This is a LIMITED WARRANTY as defined in the Magnuson-Moss Warranty Act. Please read it carefully and retain it with your other
important documents.

WHAT IS COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:

SERVICE LABOR: Vidikron will pay for service labor by Vidikron Authorized Service Center when needed as a result of manufacturing
defect for a period of two (2) years from the effective date of delivery to the end user (excluding the lamp).

Y

PARTS (not including the lamp): Vidikron will provide new or rebuilt replacement parts for the parts that fail due to defects in
materials or workmanship for a period of two (2) years from the effective date of delivery to the end user. Such replacement parts
are then subsequently warranted for the remaining portion (if any) of the original warranty period.

PROJECTOR LAMP: Vidikron will pay for service labor by a Vidikron Authorized Service Center when needed as a result of a
manufacturing defect for a period of six (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the
end user. In addition, Vidikron will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or
workmanship for a period of six (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user.
Such replacement lamps are then subsequently warranted for the remaining portion (if any) of the original warranty period.

WHAT IS NOT COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:

IMINAR

This Limited Warranty only covers failure due to defects in materials and workmanship that occur during normal use and does not
cover normal maintenance. This Limited Warranty does not cover cabinets or any appearance items; failure resulting from
accident, misuse, abuse, neglect, mishandling, misapplication, faulty or improper installation or setup adjustments; improper
maintenance, alteration, improper use of any input signal; damage due to lightning or power line surges, spikes and brownouts;
damage that occurs during shipping or transit; or damage that is attributed to acts of God. In the case of remote control units,
damage resulting from leaking, old, damaged or improper batteries is also excluded from coverage under this Limited Warranty.

CAUTION: THIS LIMITED WARRANTY ONLY COVERS VIDIKRON PRODUCTS PURCHASED FROM VIDIKRON AUTHORIZED DEALERS.
ALL OTHER PRODUCTS ARE SPECIFICALLY EXCLUDED FROM COVERAGE UNDER THIS WARRANTY. MOREOVER, DAMAGE
RESULTING DIRECTLY OR INDIRECTLY FROM IMPROPER INSTALLATION OR SETUP IS SPECIFICALLY EXCLUDED FROM COVERAGE
UNDER THIS LIMITED WARRANTY. IT IS IMPERATIVE THAT INSTALLATION AND SETUP WORK BE PERFORMED ONLY BY AN
AUTHORIZED VIDIKRON DEALER TO PROTECT YOUR RIGHTS UNDER THIS WARRANTY. THIS WILL ALSO ENSURE THAT YOU ENJOY
THE FINE PERFORMANCE OF WHICH YOUR VIDIKRON PRODUCT IS CAPABLE WHEN INSTALLED AND CALIBRATED BY VIDIKRON
AUTHORIZED PERSONNEL.

RIGHTS, LIMITS AND EXCLUSIONS:

Vidikron limits its obligations under any implied warranties under state laws to a period not to exceed the warranty period. There
are no express warranties. Vidikron also excludes any obligation on its part for incidental or consequential damages related to the
failure of this product to function properly. Some states do not allow limitations on how long an implied warranty lasts, and some
states do not allow the exclusion or limitation of incidental or consequential damages. So the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

PRE

L

Vidikron Vision 30 Series Owner’s Operating Manual iii

EFFECTIVE WARRANTY DATE:

This warranty begins on the effective date of delivery to the end user. For your convenience, keep the original bill of sale as
evidence of the purchase date.

IMPORTANT -- WARRANTY REGISTRATION:

Please fill out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should
discover a safety problem or product update for which you must be notified.

CONTACT A VIDIKRON AUTHORIZED SERVICE CENTER TO OBTAIN SERVICE:

Y

Repairs made under the terms of this Limited Warranty covering your Vidikron video product will be performed at the location of
the product, during usual working hours, providing location of product is within normal operating distance from a Vidikron
Authorized Service Center. In some instances it may be necessary for the product to be returned to the Vidikron factory for repairs.
If, solely in Vidikron’s judgment, location of product to be repaired is beyond normal operating distance of the closest Vidikron
Authorized Service Center, or the repair requires the unit be returned to the Vidikron factory, it is the owner’s responsibility to
arrange for shipment of the product for repair. These arrangements must be made through the selling Vidikron Dealer. If this is not
possible, contact Vidikron directly for a Return Authorization number and shipping instructions. Vidikron will return product
transportation prepaid in the United States, unless no product defect is discovered. In that instance, shipping costs will be the
responsibility of the owner.

COPYRIGHT AND TRADEMARKS:

© Copyright 2006 Vidikron, a Runco International Company. This document contains proprietary information protected by
copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

Vidikron, Vision, IntelliWide, Imagix, DView and CSMS are trademarks of Runco, LLC. All other trademarks and registered
trademarks used in this document are the property of their respective owners.

Vidikron products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents Pending.

IMINAR

L

PRE

iv Vidikron Vision 30 Series Owner’s Operating Manual

ADDITIONAL INFORMATION:

To locate the name and address of the nearest Vidikron Authorized Service Center, or for additional information about this Limited
Warranty, please call or write:

VIDIKRON

Attn: Customer Service Department

2900 Faber Street

Union City, CA 94587

Ph: [phone]

Fax: [phone]

Toll Free: (888) 4VIDIKRON

VIDIKRON PRODUCT INFORMATION

RETAIN THIS INFORMATION FOR YOUR RECORDS

Y

IMINAR

_________________________________________________________ ________________________________________

L

Model Purchased Date

____________________________________________________________________________________________________________

Serial Number

____________________________________________________________________________________________________________

Vidikron Authorized Dealer Name

____________________________________________________________________________________________________________

PRE

Address

____________________________________________ __________________ ________________________

City State/Province Postal Code

____________________________________________ _______________________________________________________

Phone Fax

Vidikron Vision 30 Series Owner’s Operating Manual v

Safety Precautions

Thank you for your purchase of this quality Vidikron video projector! It has been designed to provide you with the quality of video
that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the
menus and operation.

WAR NING

CAUTION

RISK OFELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this equipment near water, outdoors or otherwise exposed to the elements.

5. Clean only with a dry cloth.

6. Do not block any ventilation openings.

CAUTION:

SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.

Y

IMINAR

L

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.

8. Do not defeat the safety feature of the polarized or grounding type plug. A polarized type plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

9. The 12V trigger only outputs DC 12V signal for triggering. Do not connect to any other power input or output. This could cause
damage to this unit.

10. Only use accessories specified by Vidikron.

11. Keep the packing material in case the equipment should ever need to be shipped.

12. Unplug this projector during lightning storms or when it will not be used for an extended period of time.

13. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to
removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps
beyond rated life could cause them to explode in rare occasions.

14. Refer all servicing to qualified service personnel. Servicing is required when the projector has been damaged in any way,
objects have fallen or spilled into the projector, the projector has been exposed to rain or moisture, does not operate normally,
or has been dropped.

PRE

vi Vidikron Vision 30 Series Owner’s Operating Manual

1Table of Contents

TWO YEAR LIMITED WARRANTY ............................................................................................. iii

Safety Precautions ................................................................................................................... vi

1. Introduction ........................................................................................................................ 1

About This Manual ............................................................................................................................................ 1

Target Audience......................................................................................................................................... 1

If You Have Comments About This Manual... .................................................................................. 1

Textual and Graphic Conventions ....................................................................................................... 1

Using This Manual ............................................................................................................................................. 2

Description, Features and Benefits ............................................................................................................. 3

Key Features and Benefits....................................................................................................................... 4

Parts List ........................................................................................................................................................ 4

2. Controls and Functions ...................................................................................................... 5

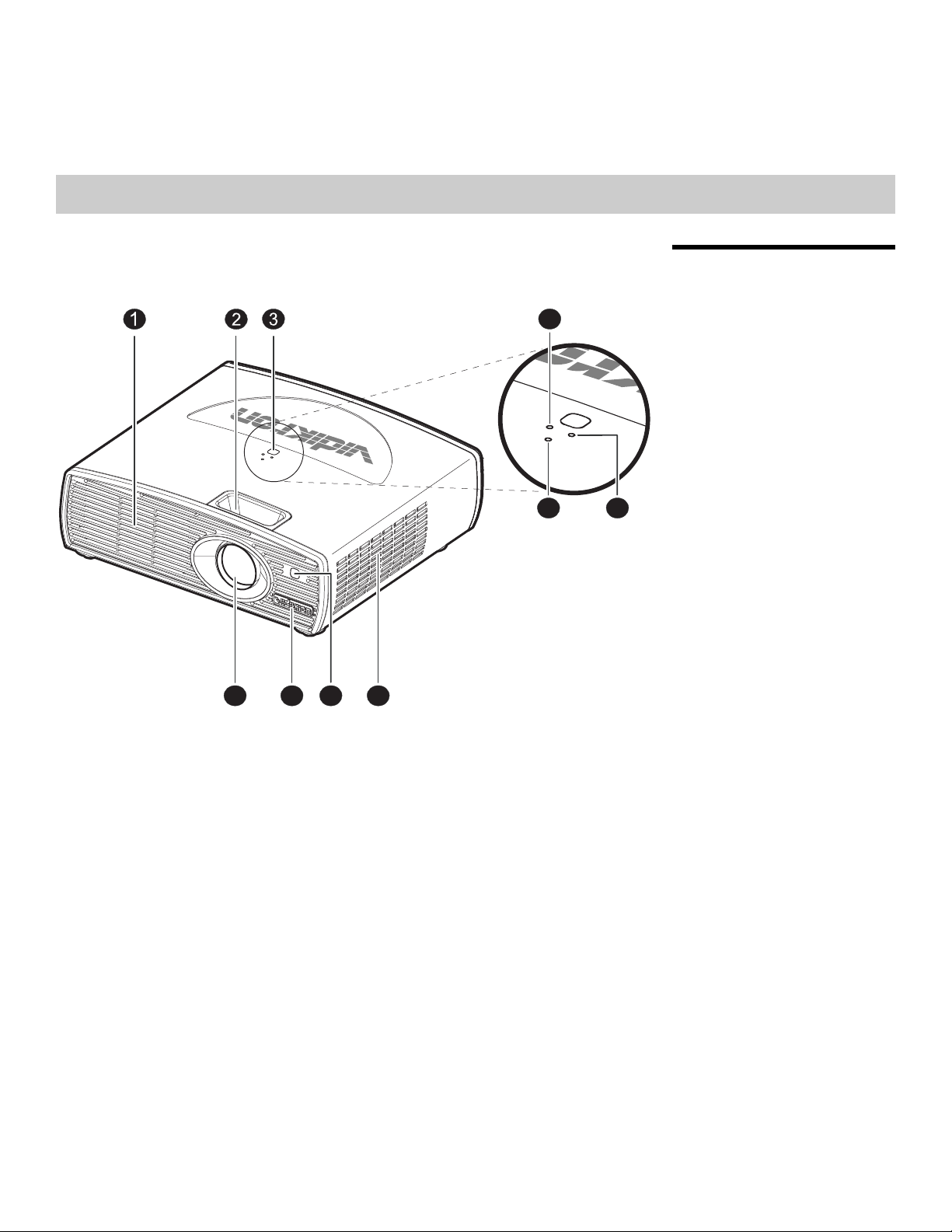

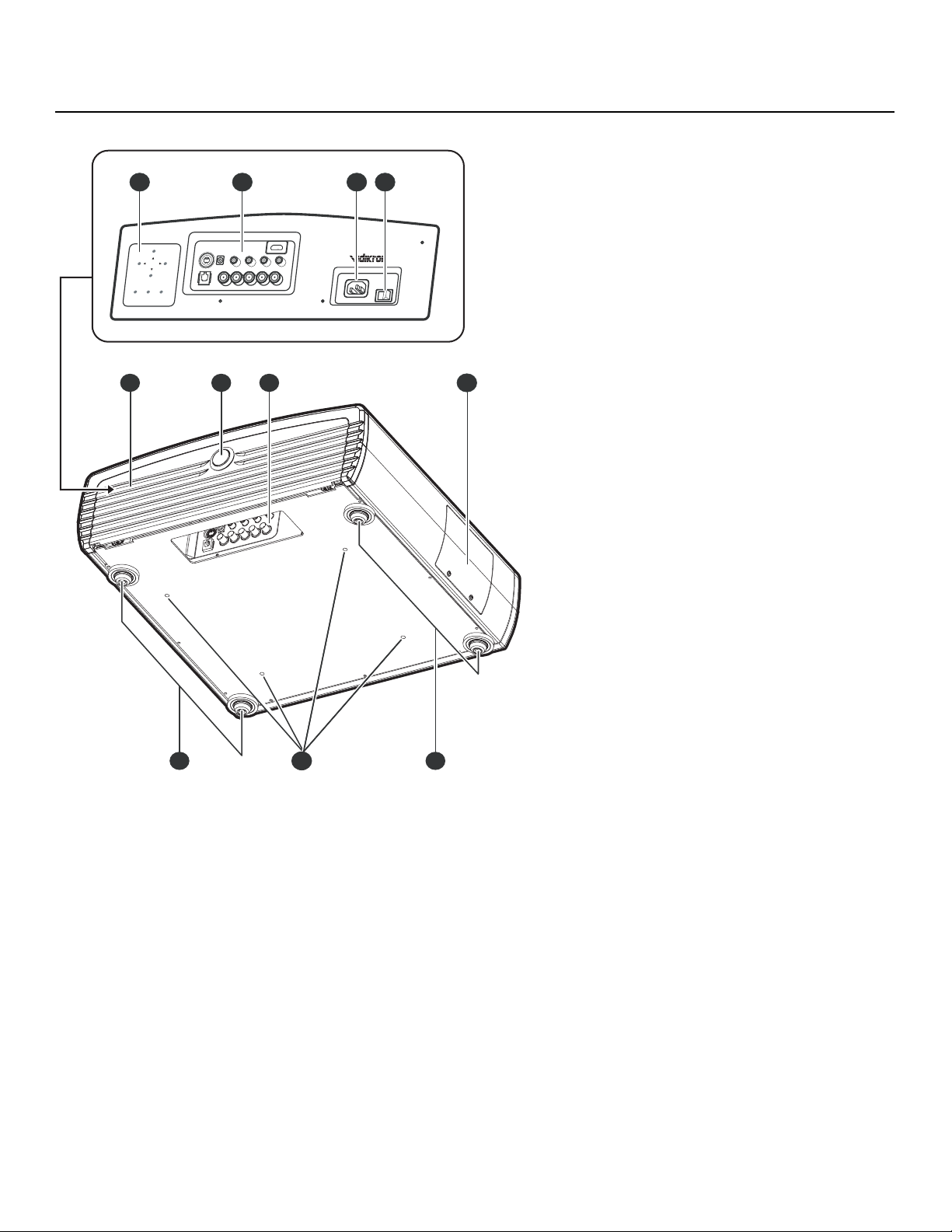

Vision 30 at a Glance ........................................................................................................................................ 5

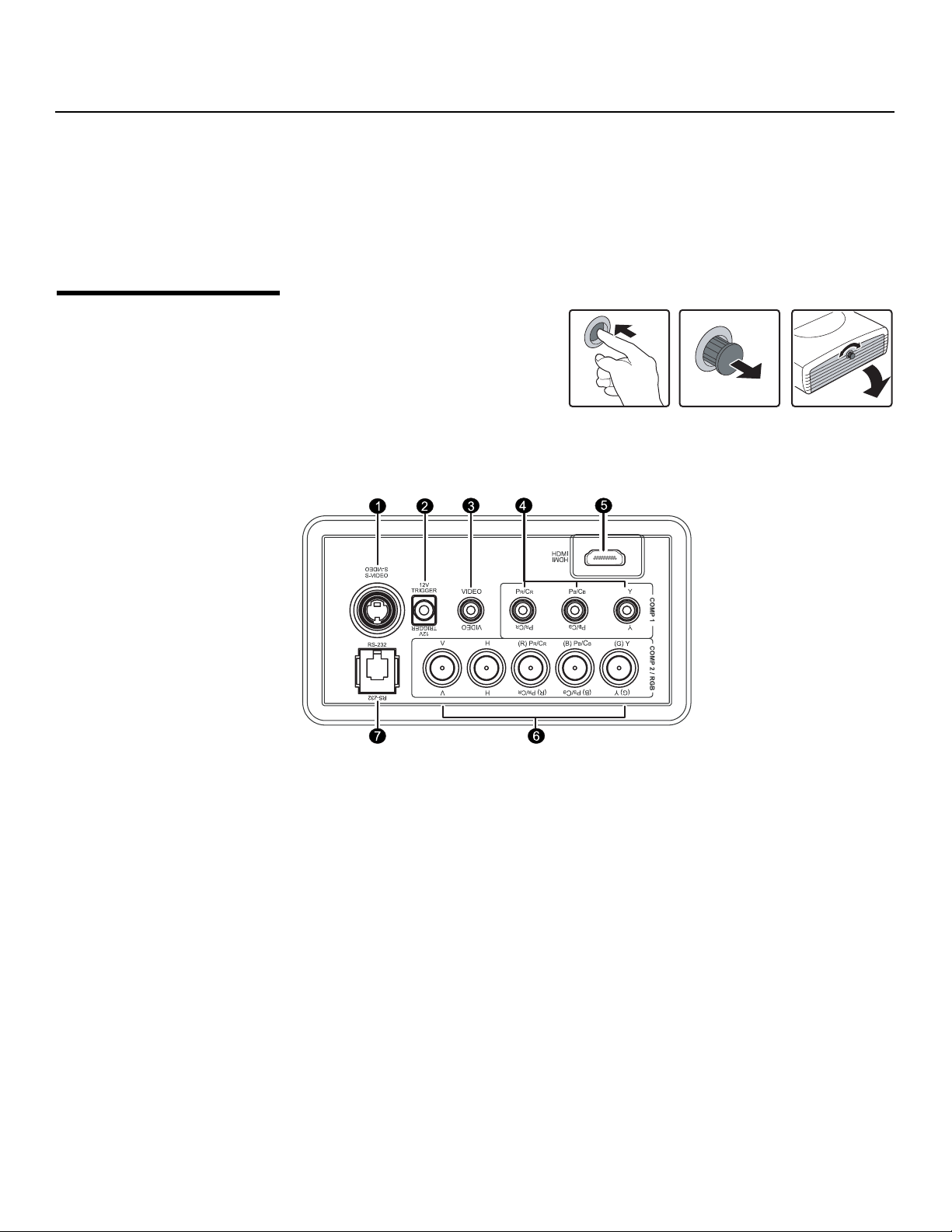

Vision 30 Connector Panel ............................................................................................................................. 8

Built-In Keypad ................................................................................................................................................... 9

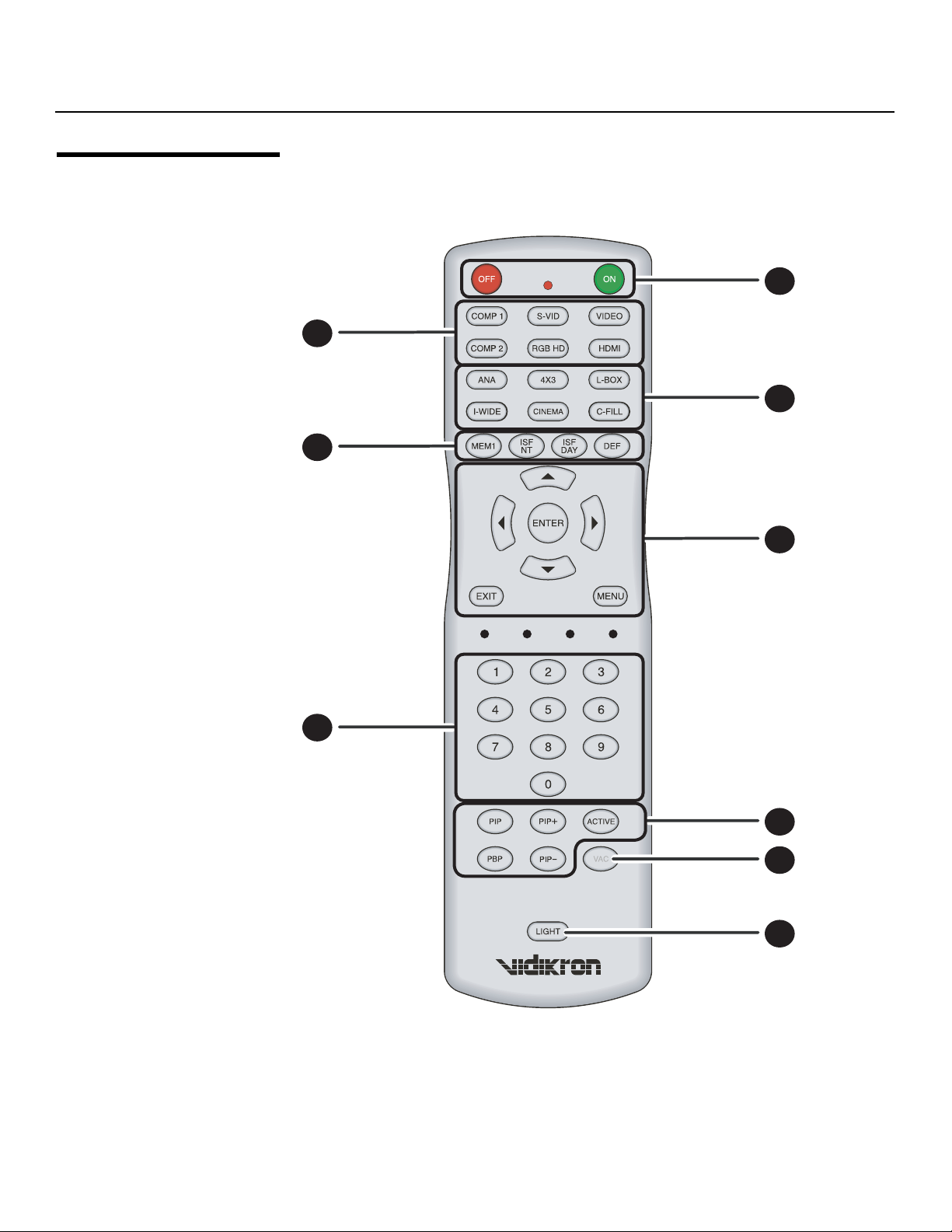

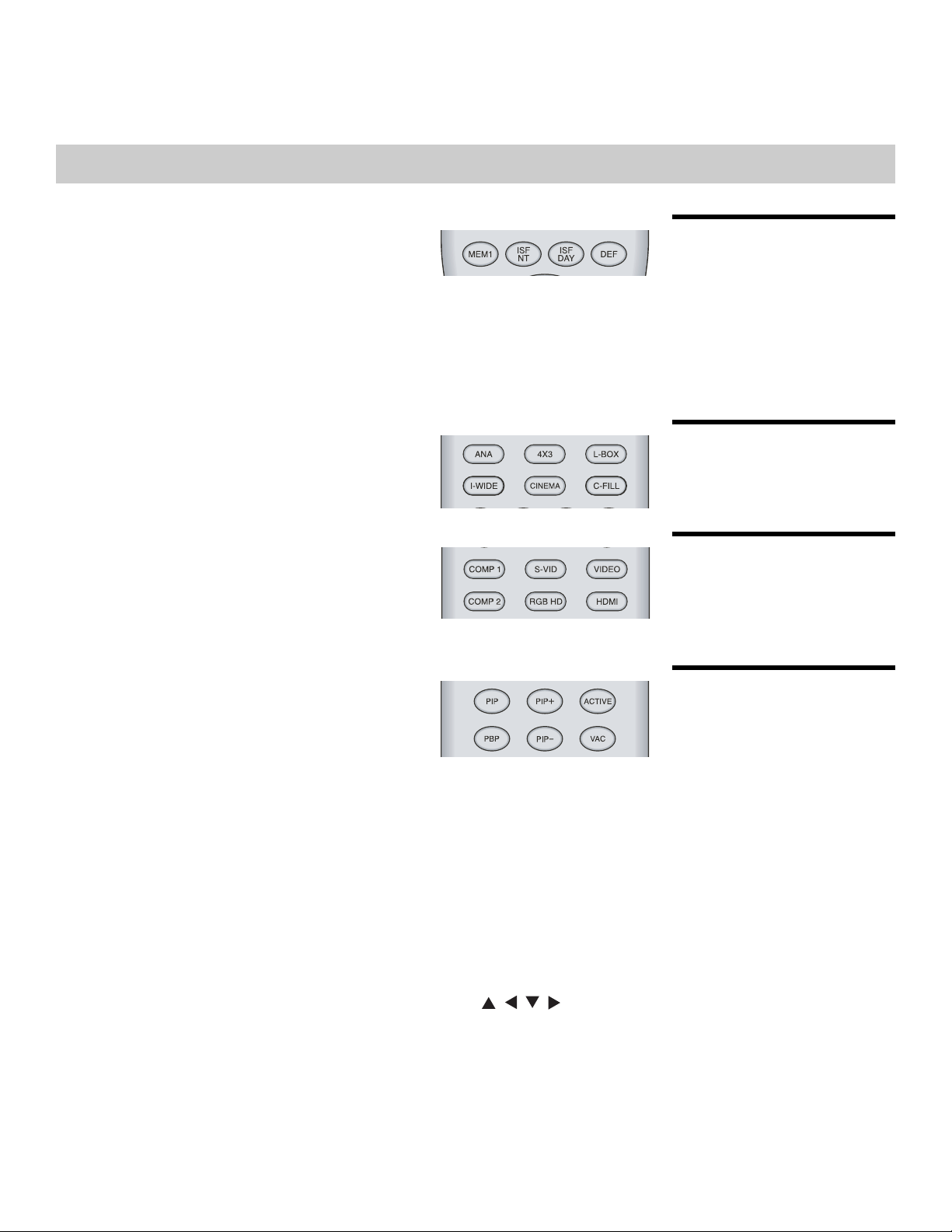

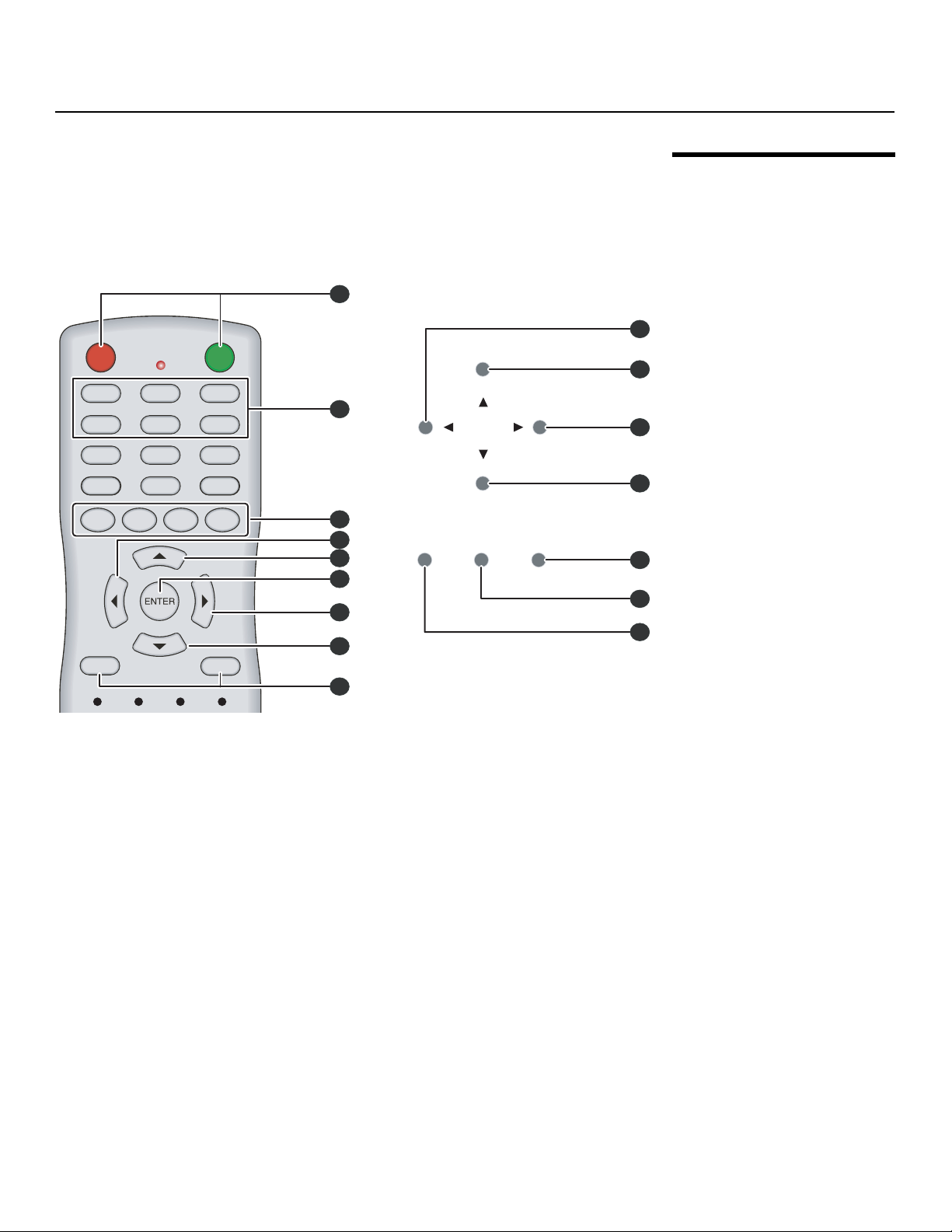

Vision 30 Remote Control ............................................................................................................................. 10

Remote Control/Built-In Keypad Functional Comparison ................................................................ 13

IMINAR

L

Y

3. Installation ........................................................................................................................ 15

Remote Control ................................................................................................................................................ 15

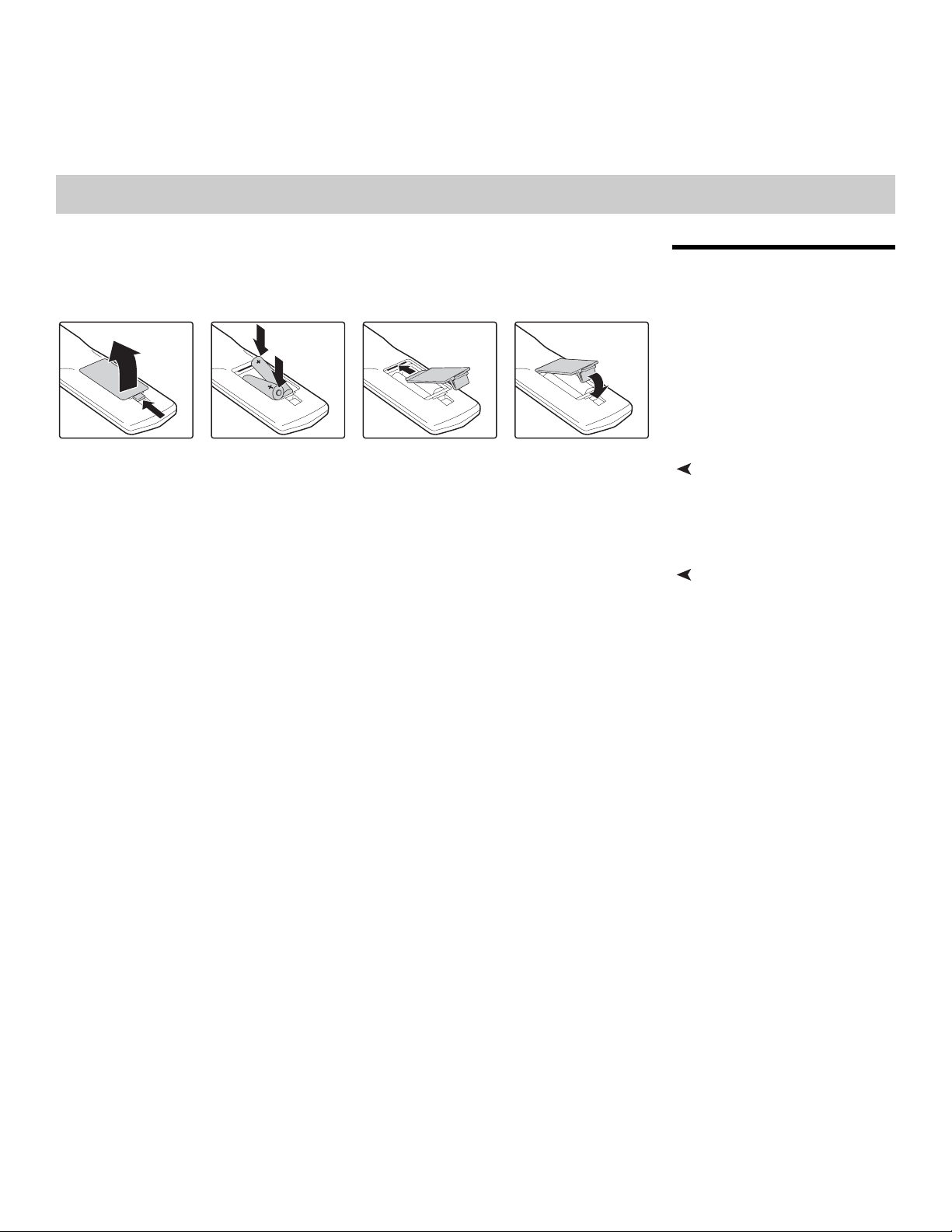

Notes on Batteries ...................................................................................................................................15

PRE

Notes on Remote Control Operation................................................................................................15

Quick Setup ....................................................................................................................................................... 16

Installation Considerations ..........................................................................................................................17

Installation Type.......................................................................................................................................17

Ambient Light ...........................................................................................................................................17

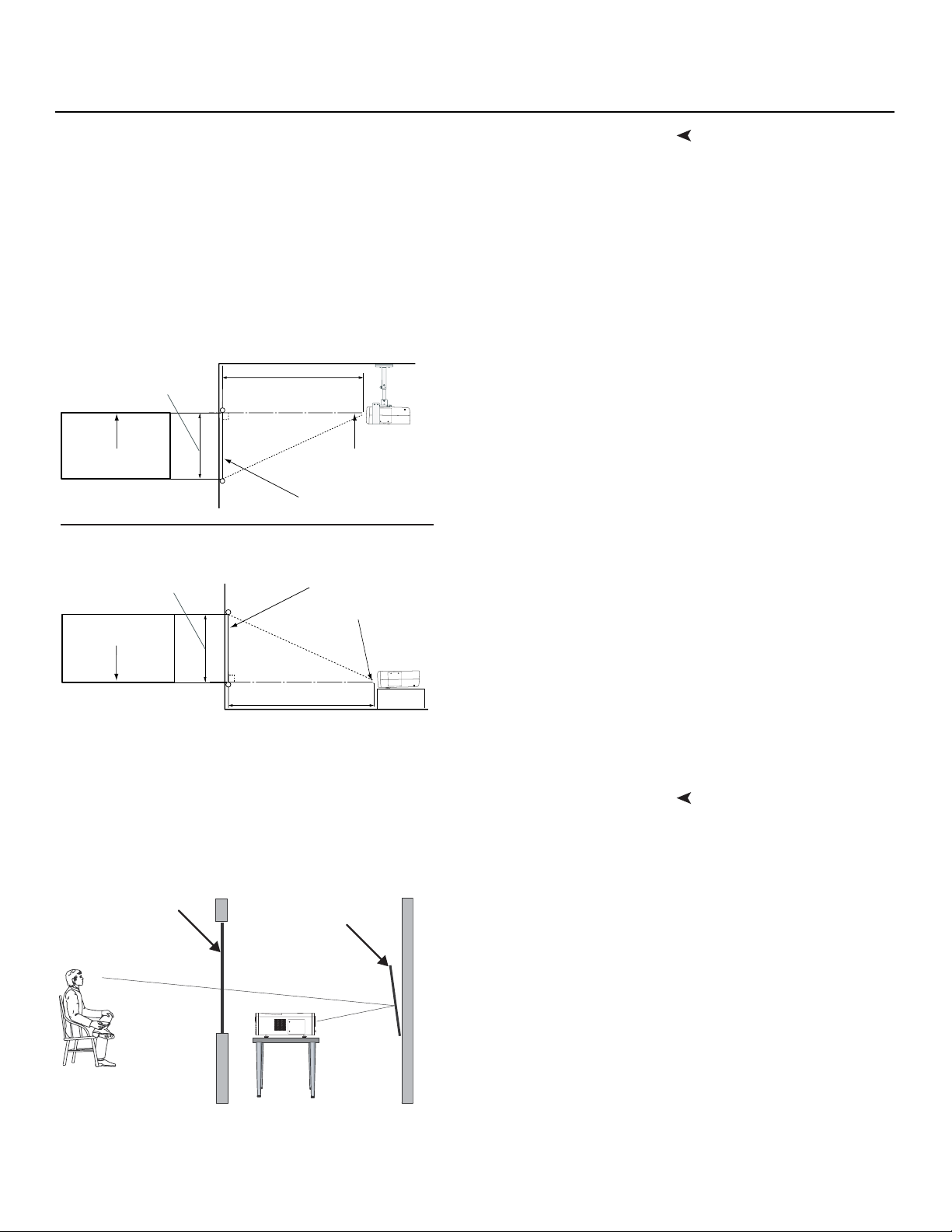

Throw Distance.........................................................................................................................................18

Vertical and Horizontal Position ......................................................................................................... 19

Folded Optics ............................................................................................................................................19

Other Considerations ............................................................................................................................. 20

Mounting the Vision 30 .................................................................................................................................20

Floor Mounting (Upright) ..................................................................................................................... 20

Ceiling Mounting (Inverted) ................................................................................................................ 20

Adjusting the Projector Height or Projection Angle................................................................... 20

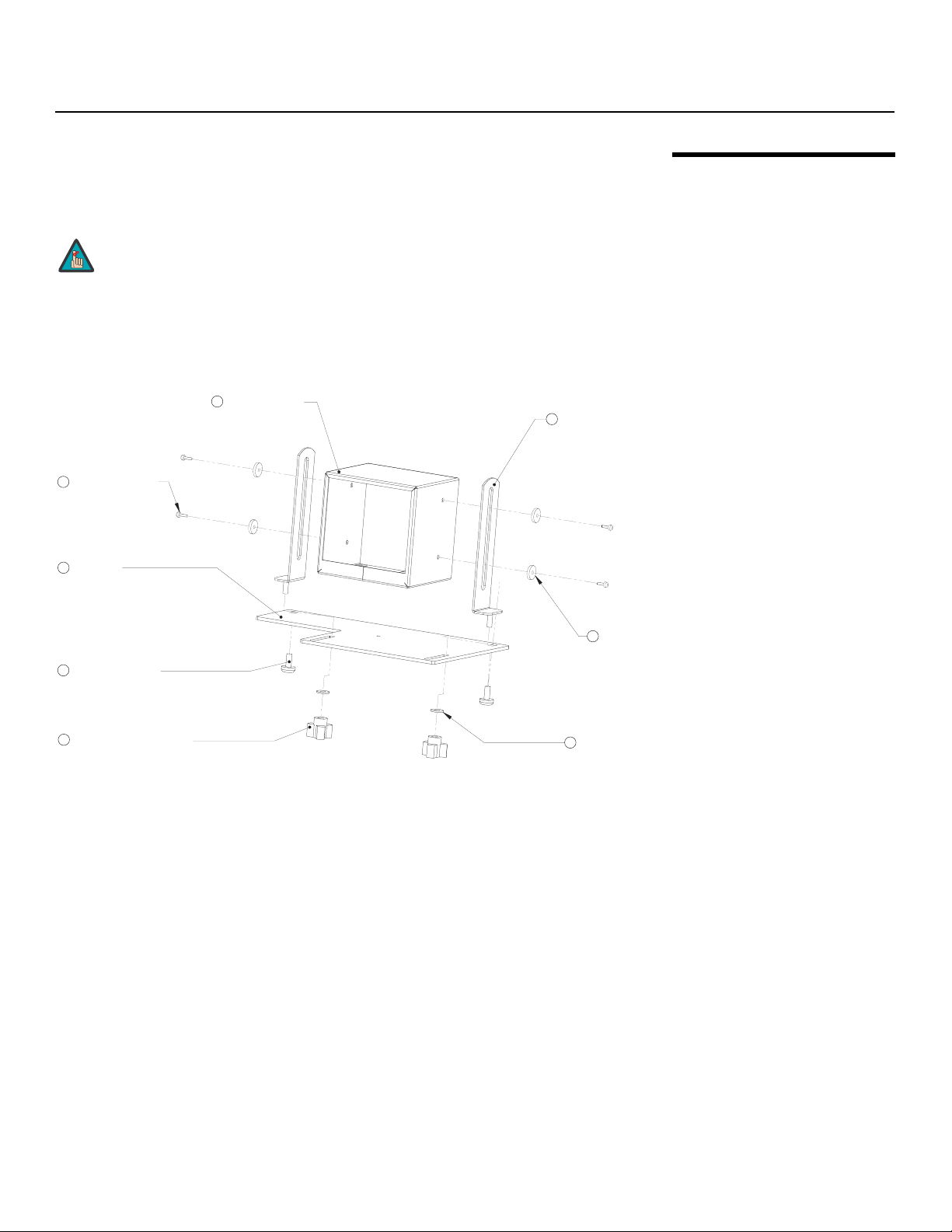

Installing the Optional CineWide Lens Mount ......................................................................................21

Vidikron Vision 30 Series Owner’s Operating Manual vii

Table of Contents

Connections to the Vision 30 ...................................................................................................................... 22

Connector Panel Access ........................................................................................................................22

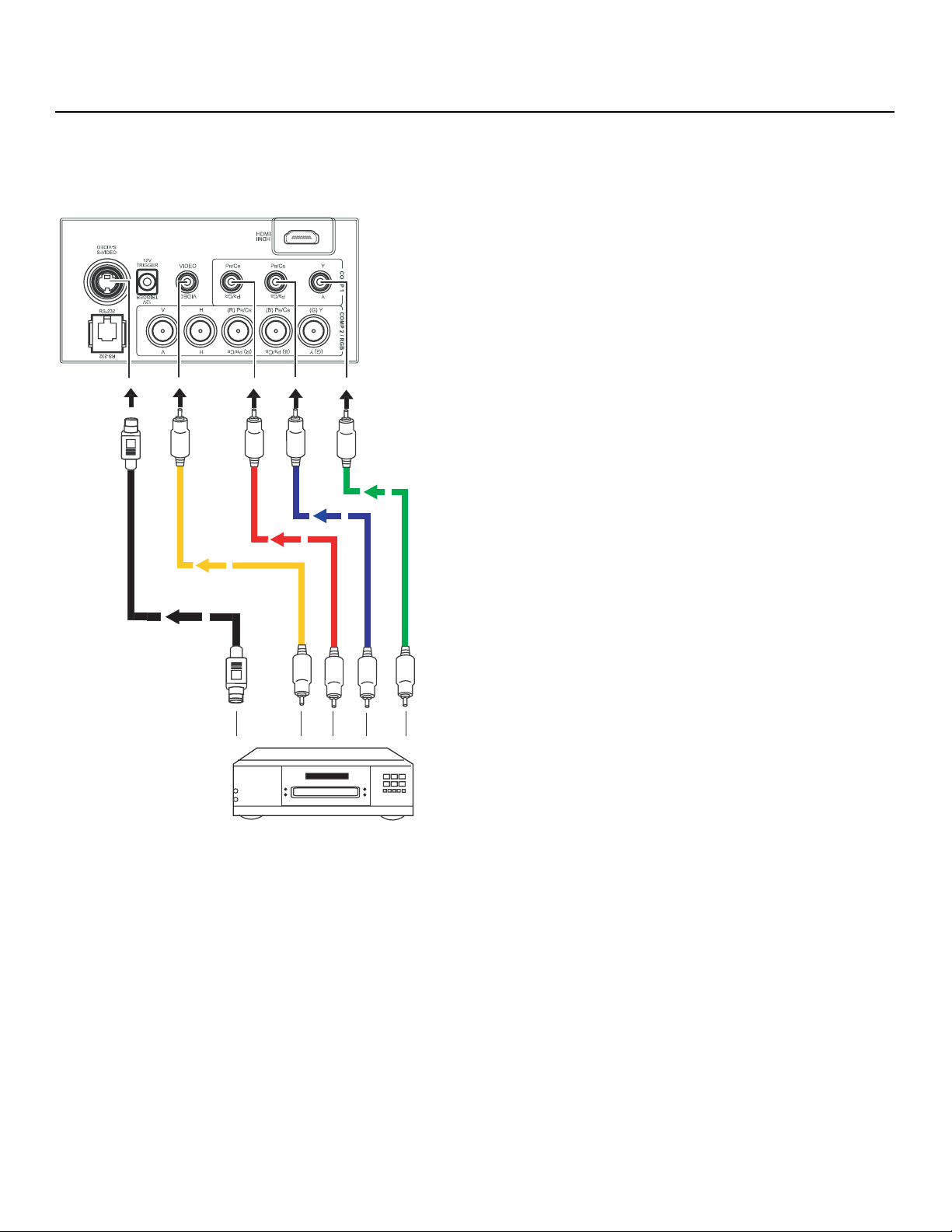

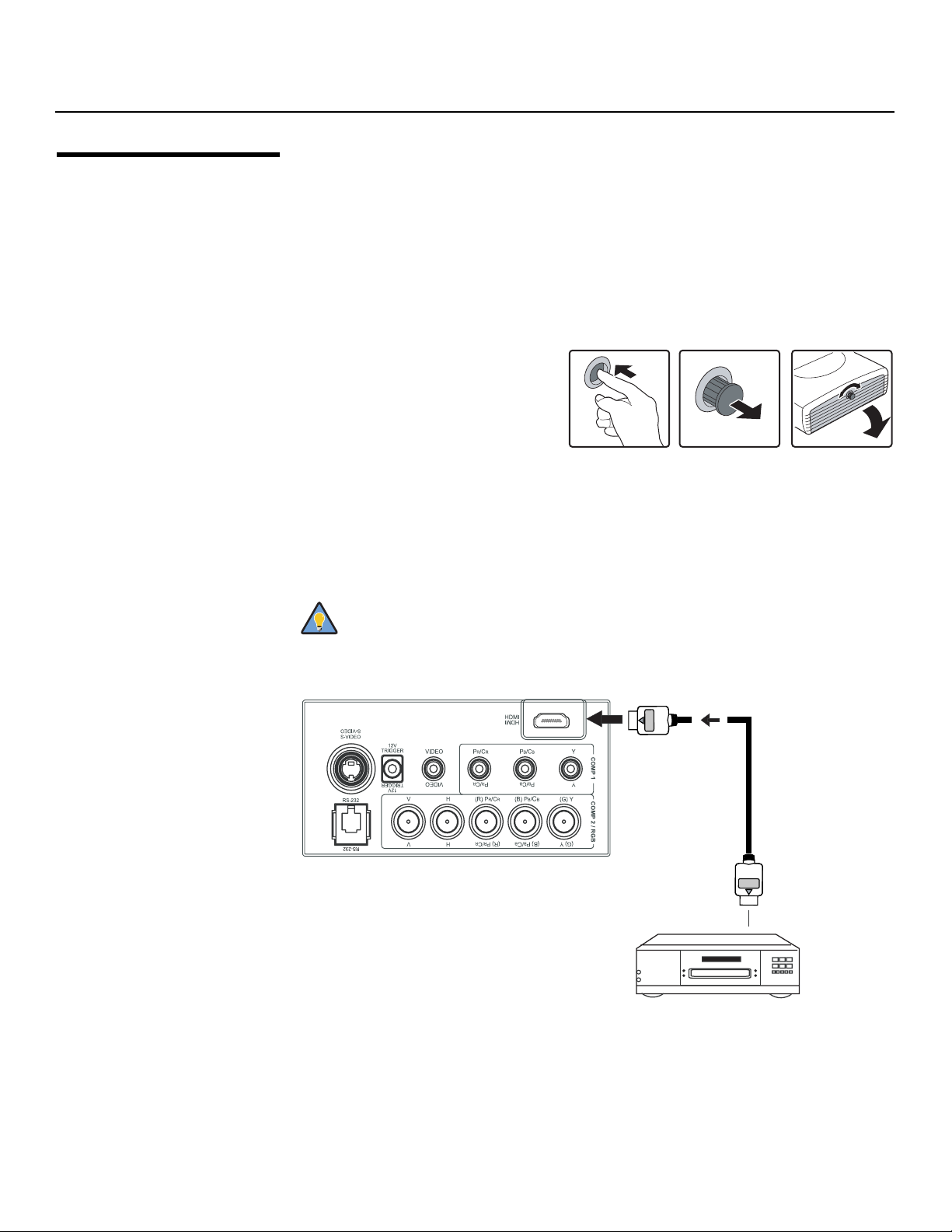

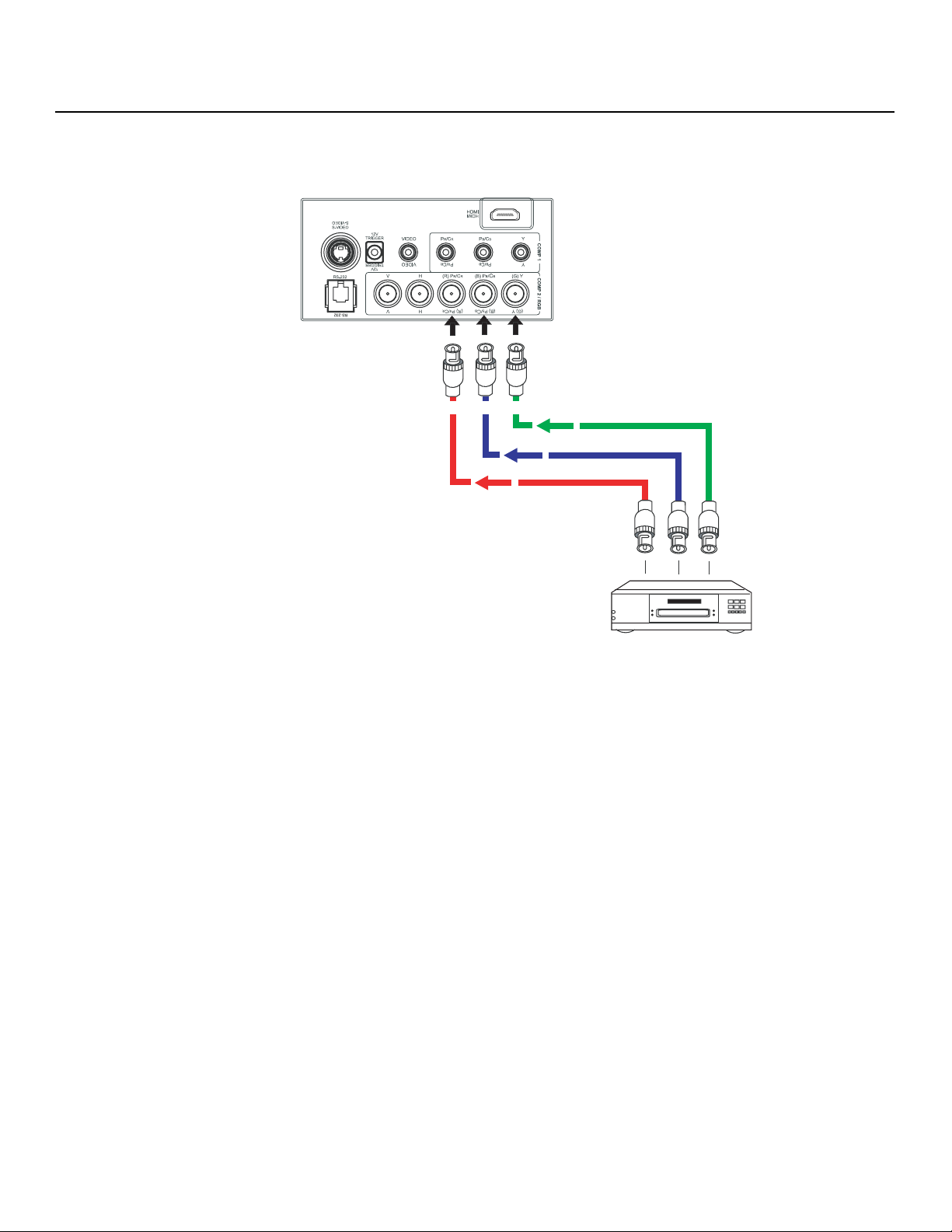

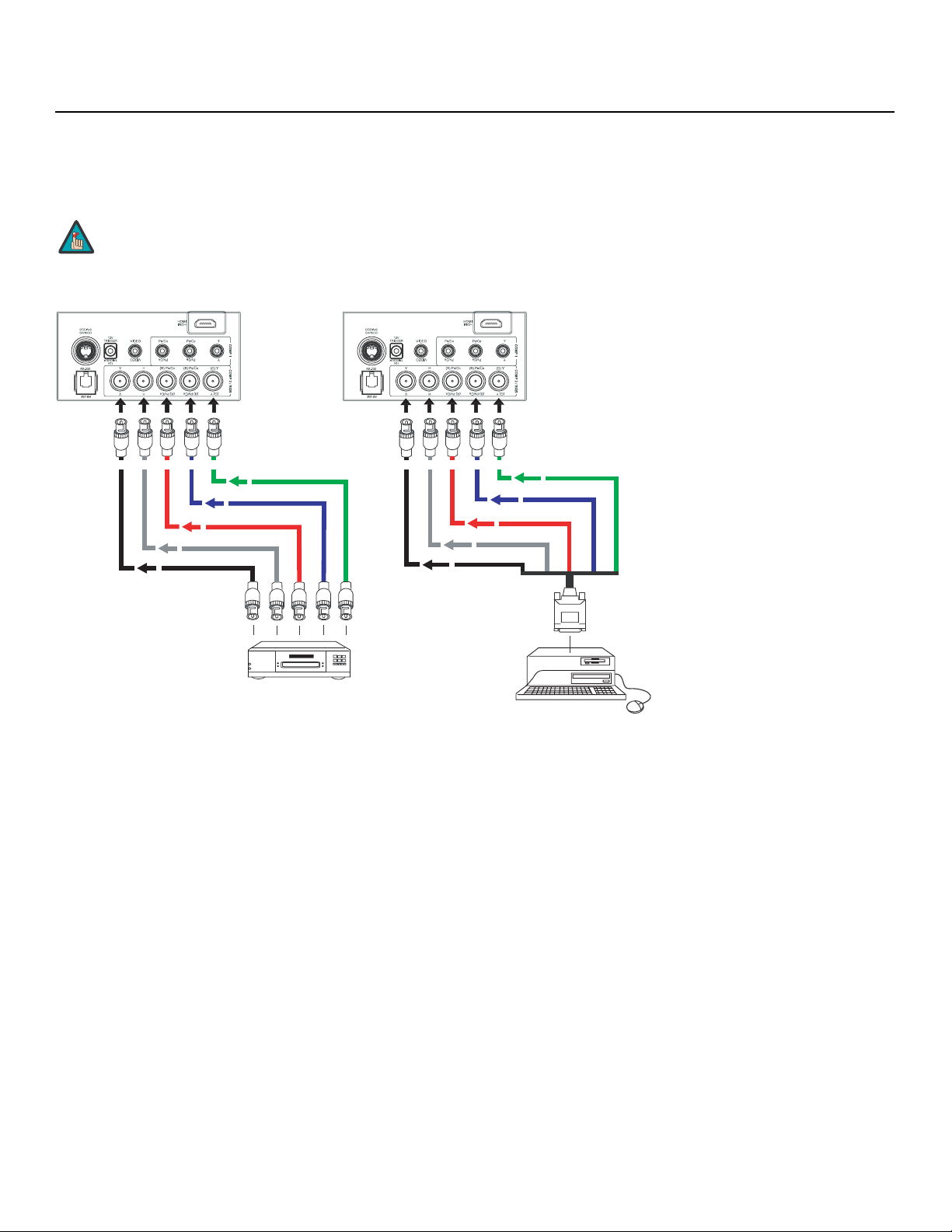

Connecting Source Components to the Vision 30 ...................................................................... 22

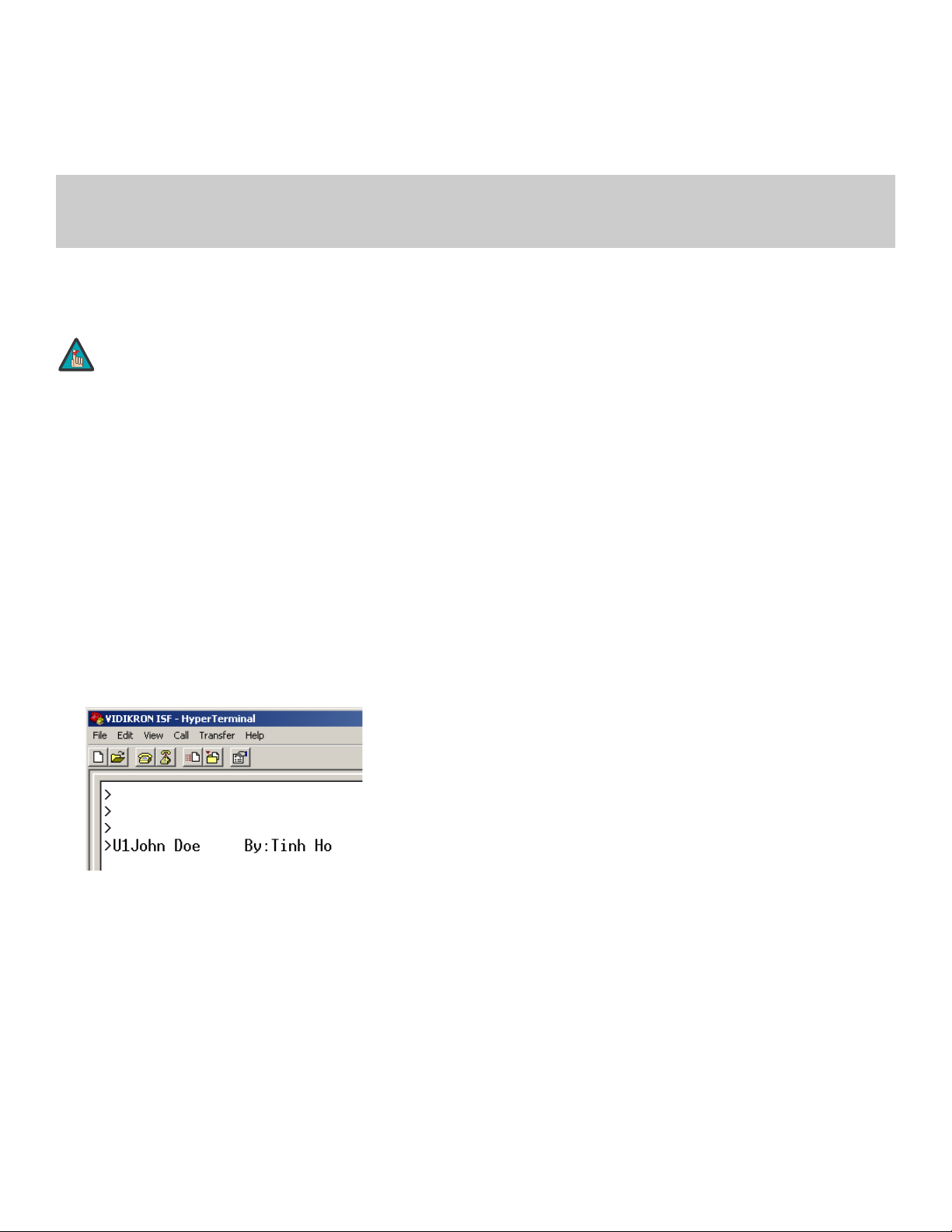

RS-232 Controller Connection ............................................................................................................26

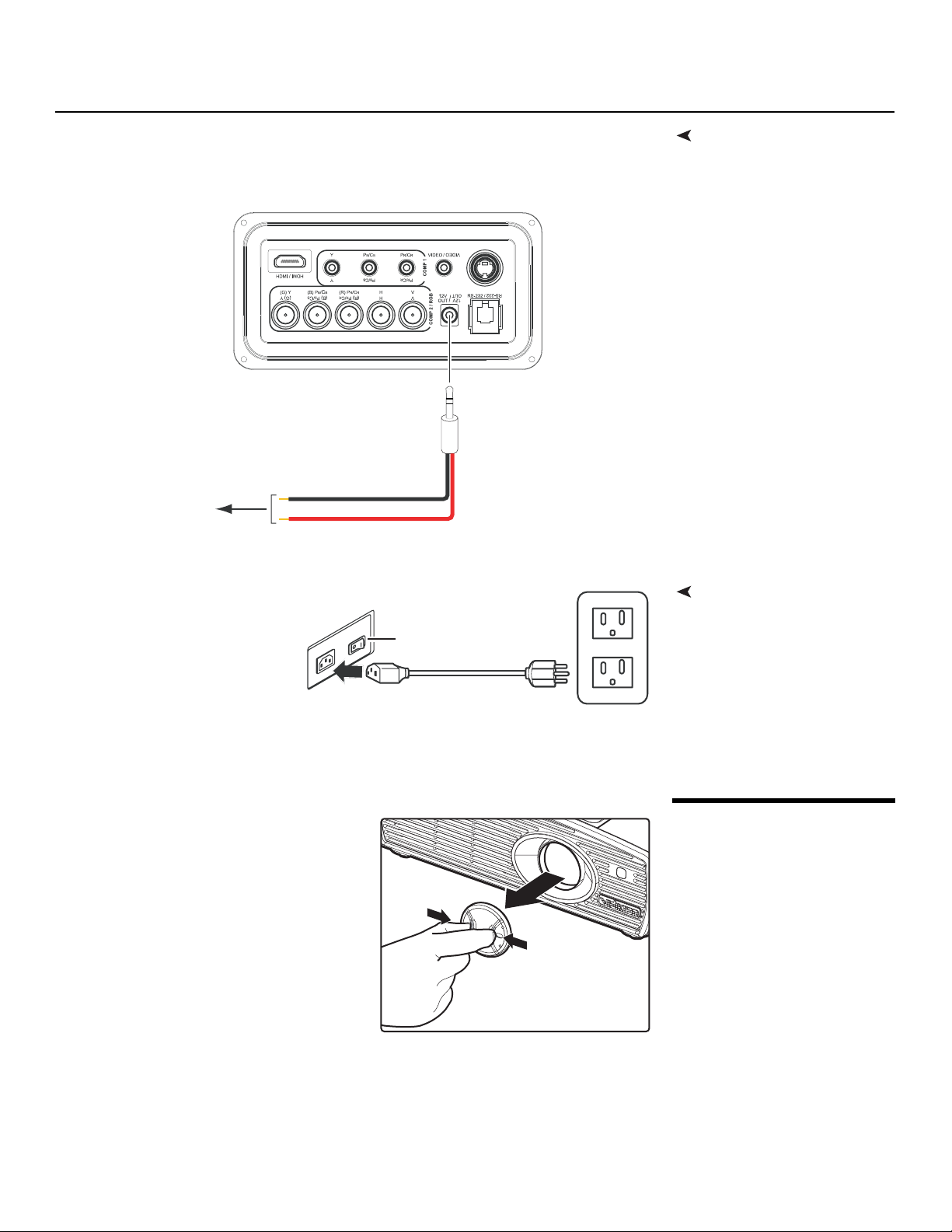

Connecting 12-volt Trigger Output to External Theater Equipment....................................27

Connecting to AC Power....................................................................................................................... 27

Removing the Lens Cap ................................................................................................................................27

Turning On the Power ...................................................................................................................................28

Changing the OSD Language ..................................................................................................................... 28

Adjusting the Picture Orientation .............................................................................................................28

Zoom and Focus Adjustments ....................................................................................................................28

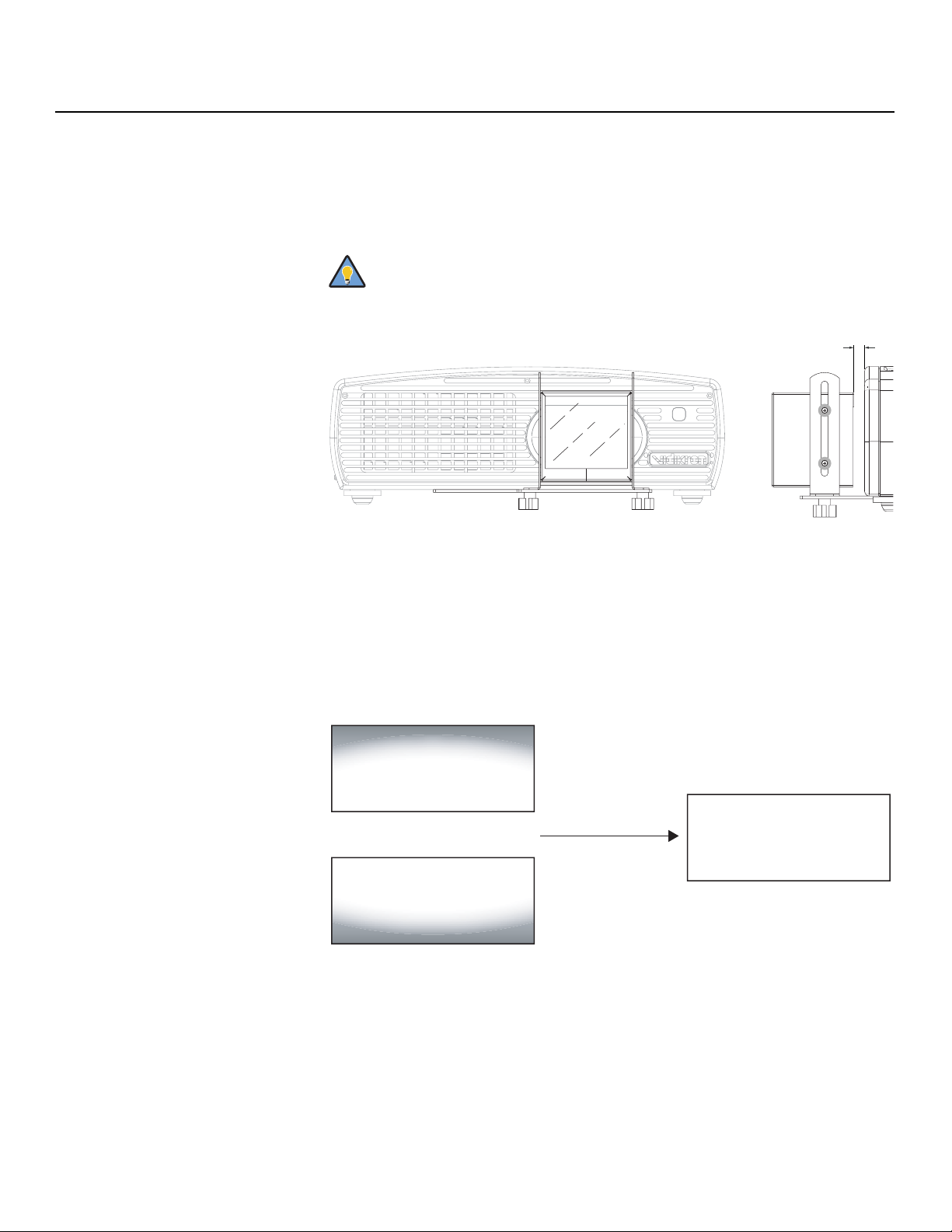

Installing and Adjusting the CineWide Anamorphic Lens ................................................................29

Installing the Anamorphic Lens.......................................................................................................... 30

Adjusting the Anamorphic Lens.........................................................................................................30

4. Operation .......................................................................................................................... 33

Y

Selecting Video Memory ............................................................................................................................... 33

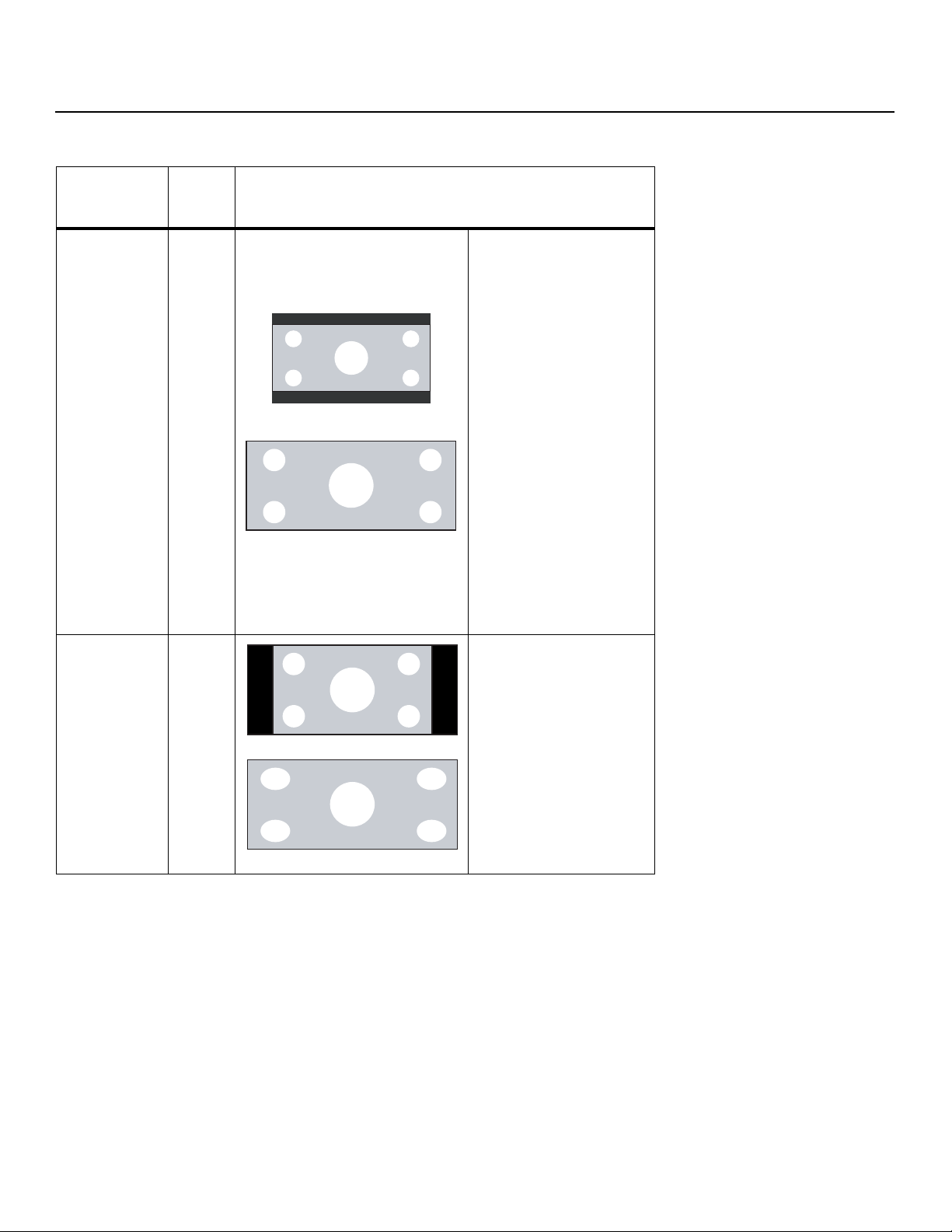

Selecting an Aspect Ratio .............................................................................................................................33

Selecting An Input Source ............................................................................................................................33

Using Picture-In-Picture and Picture-By-Picture (PIP/PBP) ...............................................................33

Turning Off the Power ...................................................................................................................................34

Using the On-Screen Menus ........................................................................................................................34

Main Menu .................................................................................................................................................36

Picture Adjust ...........................................................................................................................................36

Image Option ............................................................................................................................................41

Projector Status ........................................................................................................................................ 44

PRE

5. Maintenance and Troubleshooting ................................................................................53

6. Serial Communications .................................................................................................... 57

Installation..................................................................................................................................................45

Service..........................................................................................................................................................46

ISF Calibration ...........................................................................................................................................50

Lamp Replacement .........................................................................................................................................53

Troubleshooting Tips .....................................................................................................................................54

RS-232 Connection and Port Configuration ..........................................................................................57

Serial Command Syntax ................................................................................................................................57

IMINAR

L

7. Specifications .................................................................................................................... 61

Vision 30 Specifications .................................................................................................................................61

Vision 30 Dimensions .....................................................................................................................................63

APPENDIX A. Personalizing the ISF Splash Screen on the Vision 30 ................................ A-1

viii Vidikron Vision 30 Series Owner’s Operating Manual

1List of Figures

2-1. Vision 30 Front/Side/Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2-2. Vision 30 Rear/Bottom/Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2-3. Vision 30 Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2-4. Vision 30 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2-5. Remote Control/Built-In Keypad Functional Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3-1. Estimating Throw Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3-2. Projector Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3-3. Folded Optics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3-4. Vision 30/CineWide with Anamorphic Lens Base Plate and

Ceiling Mounting Plate - Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3-5. HDMI/DVI Source Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3-6. RGB Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3-7. Progressive Component Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3-8. Composite, S-Video and Component Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3-9. RS-232 Control System Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3-10. Connecting the 12-Volt Trigger Output to Other Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3-11. Anamorphic Lens Mounting Assembly - Exploded View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4-1. Vision 30 OSD Menu Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

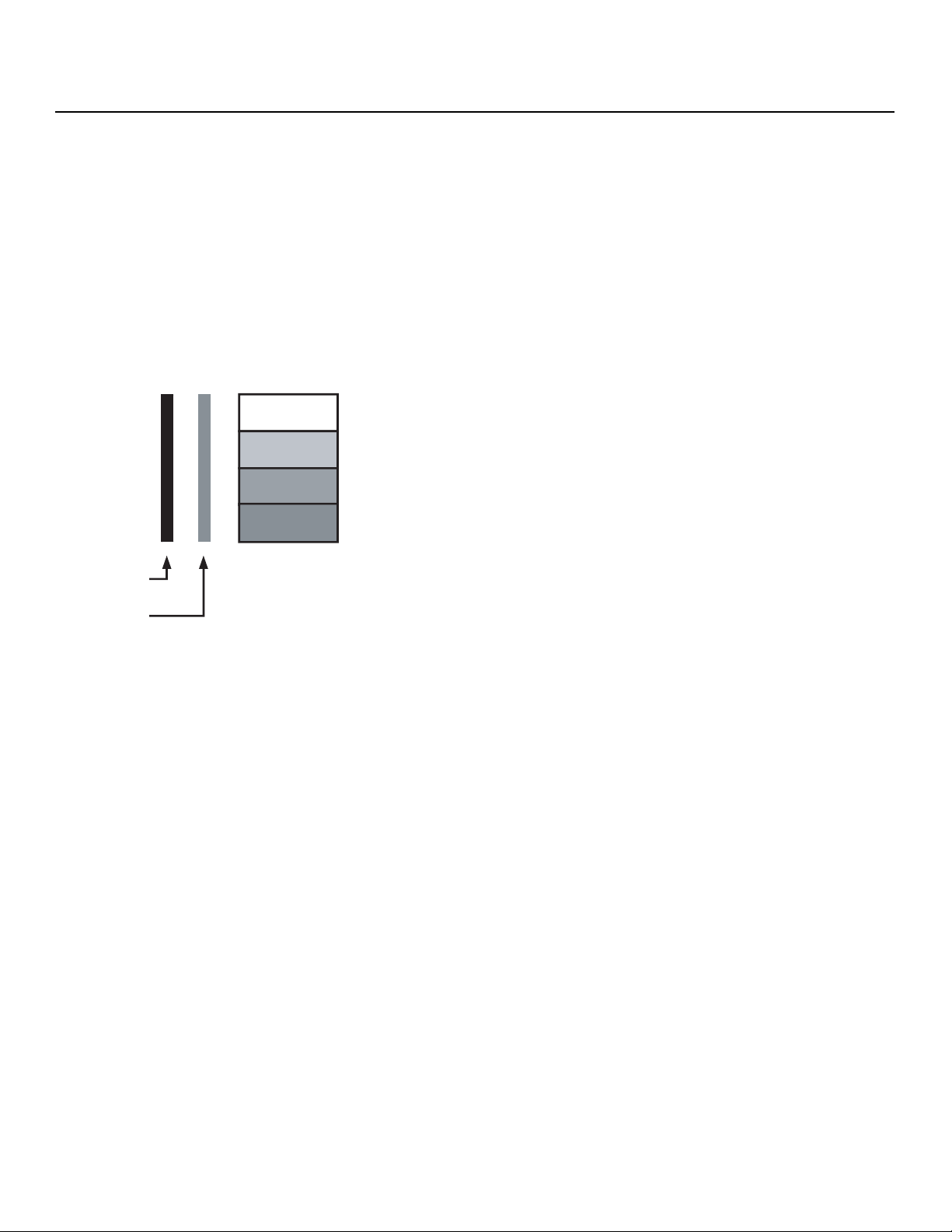

4-2. Typical PLUGE Pattern for Adjusting Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

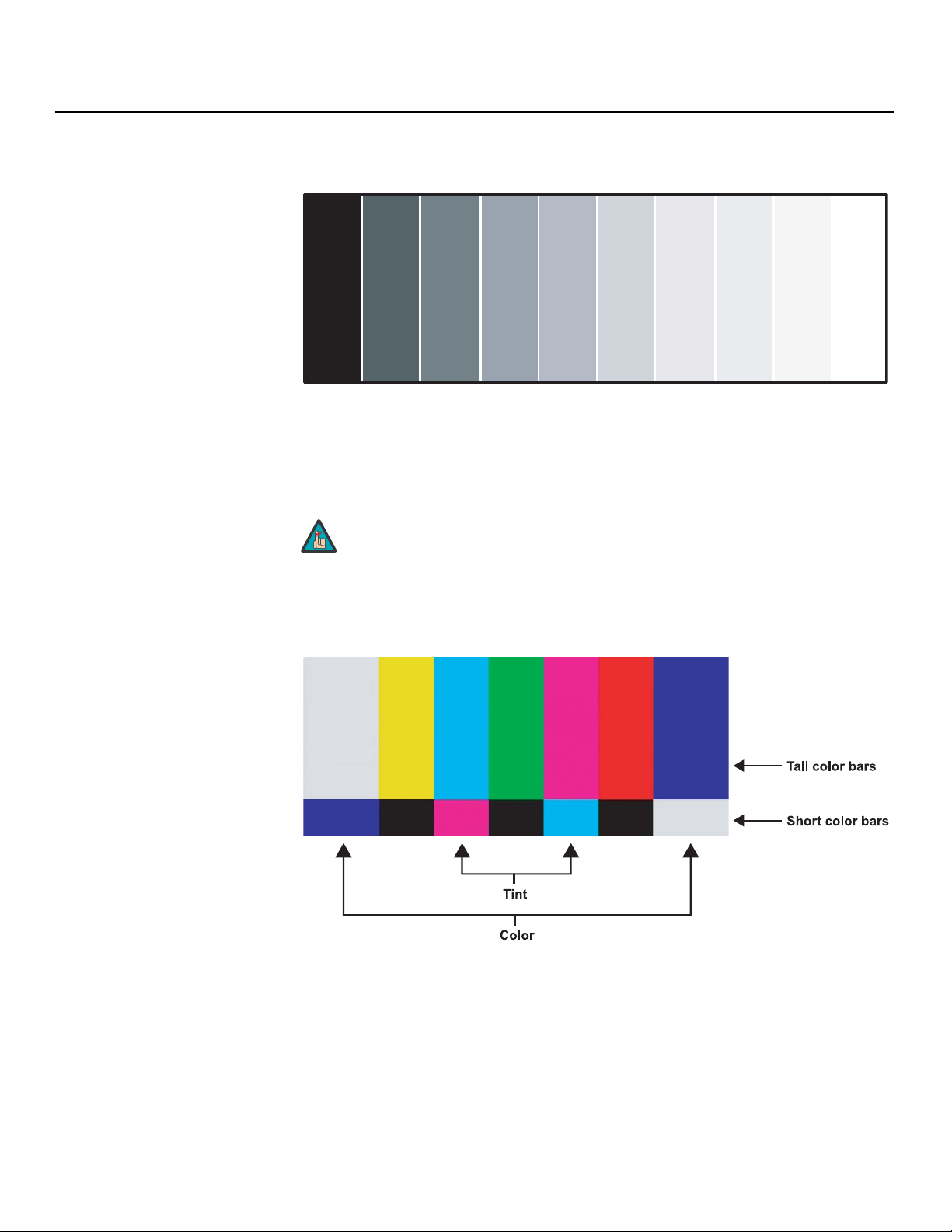

4-3. Typical Gray Bar Pattern for Adjusting Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

PRE

4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint . . . . . . . . . . . . . . . . . . . . . . . . 38

4-5. Typical Test Pattern for Adjusting Sharpness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

IMINAR

L

Y

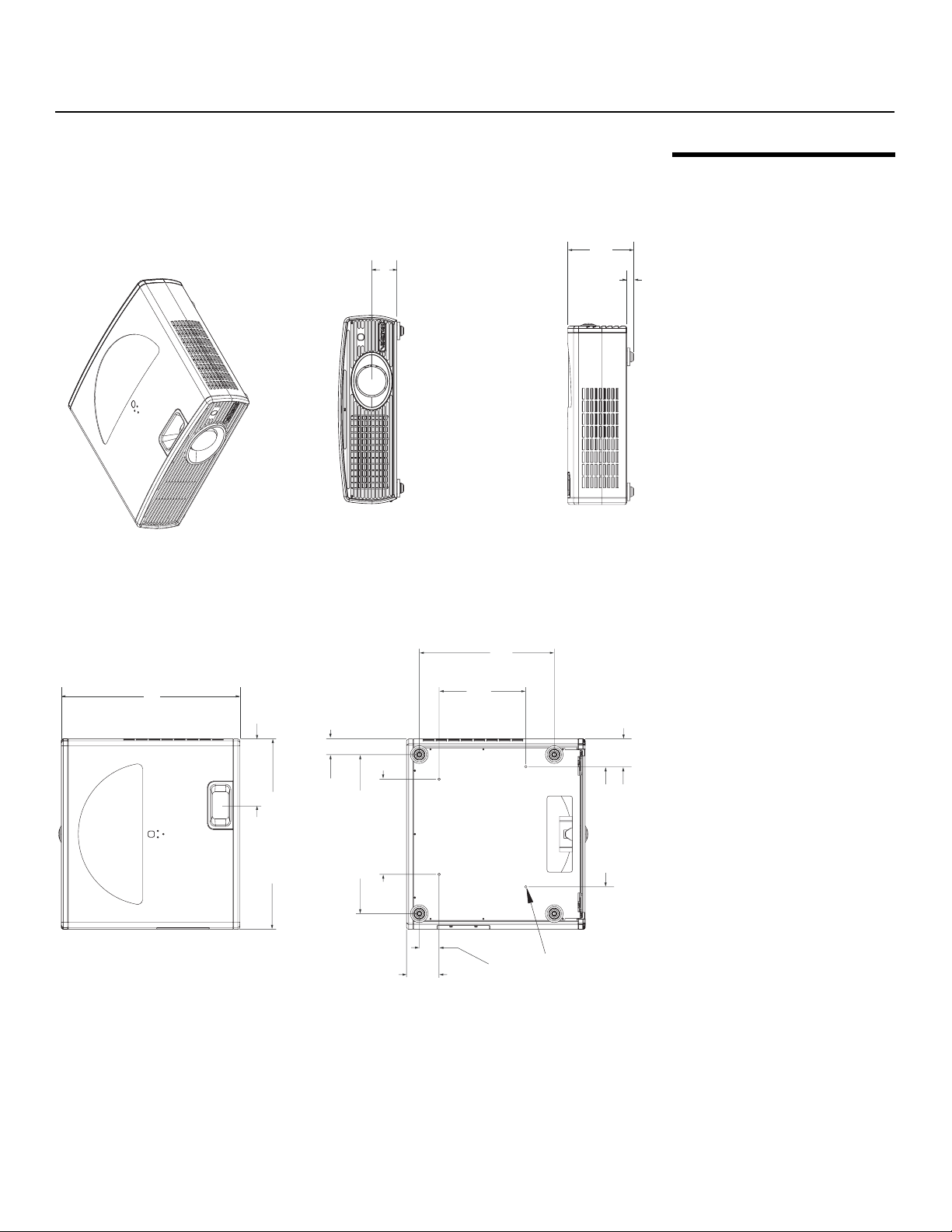

7-1. Vision 30 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Vidikron Vision 30 Series Owner’s Operating Manual ix

List of Figures

Notes:

Y

IMINAR

L

PRE

x Vidikron Vision 30 Series Owner’s Operating Manual

1Introduction

This Owner’s Manual describes how to install, set up and operate the Vidikron Vision
Model

30 family of Digital Light Processing™ Projectors:

• Vision 30

• Vision 30ET (Extended Throw)

• Vision 30 CineWide™

• Vision 30ET CineWide™

Throughout this manual, all four projector models are referred to collectively as the “Vision

30.” Except where noted, the features and functions described in this manual are common to

all versions of this product.

most out of the Vision 30.

Vidikron has made every effort to ensure that this manual is accurate as of the date it was
printed. However, because of ongoing product improvements and customer feedback, it
may require updating from time to time. You can always find the latest version of this and
other Vidikron product manuals on-line, at www.Vidikron.com.

Y

IMINAR

Vidikron welcomes your comments about this manual. Send them to [e-mail].

L

Text Conventions: The following conventions are used in this manual, in order to clarify the
information and instructions provided:

• Remote and built-in keypad button identifiers are set in upper-case bold type; for

example, “Press EXIT to return to the previous menu.”

• Computer input (commands you type) and output (responses that appear on-screen) is

shown in monospace (fixed-width) type; for example: “To change the aspect ratio to
Letterbox, type x063x <Enter>.”

• All keys with functional names are initial-capped, set in bold type and enclosed in angle

brackets. These keys are the following: <Enter>, <Spacebar>, <Control>,
<Esc> and <Tab>.

• <Enter> indicates that you may press either the RETURN or ENTER key on your keyboard

if it has both keys.

PRE

1.1 About This Manual

Target AudienceVidikron has prepared this manual to help home theater installers and end users get the

If You Have Comments About This Manual...

Textual and Graphic Conventions

In addition to these conventions, underlining, boldface and/or italics are occasionally used to
highlight important information, as in this example:

Note

Vidikron Vision 30 Series Owner’s Operating Manual 1

A carriage return must be used after each command or string.

Introduction

Graphic Conventions: These symbols appear in numerous places throughout the manual,
to emphasize points that you must keep in mind to avoid problems with your equipment or
injury:

1.2

Using This Manual

Tip

Note

Caution

TIPS highlight time-saving short cuts and helpful guidelines for using
certain features.

NOTES emphasize text with unusual importance or special significance.
They also provide supplemental information.

CAUTIONS alert users that a given action or omitted action can degrade
performance or cause a malfunction.

Y

WARNING

DANGER!

Use the following table to locate the specific information you need in this manual.

WARNINGS appear when a given action or omitted action can result in
damage to the equipment, or possible non-fatal injury to the user.

DANGER appears when a given action can cause severe injury or death.

IMINAR

If you need... ... Turn to page:

Information about obtaining service iv

L

General information about the Vision 30 Series DLP
Projectors

Installation instructions 15

First-time configuration instructions 28

PRE

Advanced configuration instructions 46

Troubleshooting tips 54

Specifications for the Vision 30 Series DLP
Projectors

3

61

2 Vidikron Vision 30 Series Owner’s Operating Manual

Introduction

The Vision 30 Series DLP Projectors offer the astounding picture quality and versatility
heretofore associated with more expensive projectors. Their 1280 x 720 native resolution
DLP light engine incorporates all-new technology for bright, pristine high-definition images.

With throw distances of 1.38 – 1.80:1 on the Vision Model 30 and 1.88 – 2.45:1 on the
longer-throw Model 30ET, both units offer the performance and installation flexibility
custom home theater enthusiasts have come to expect from Vidikron — all at a superb price
and packaged with outstanding build quality.

Advanced Vidikron Imagix™ digital video processing is engineered into these all-new
projection systems to achieve improved image quality even from standard video sources, in
addition to artifact-free scaling of higher resolution formats.

The Vision 30's illumination system incorporates Vidikron's exclusive DualV Stage
Illumination™ (DVSI™), which provides two light intensity levels to allow maximum flexibility
for screen size, ambient light conditions, brightness and contrast balance, and lamp life
preservation. It also has a newly-refined cooling system, which increases efficiency and
reduces noise levels.

The Vision 30 has been engineered to comply with Imaging Science Foundation™ (ISF)
standards for maximum home theater image quality. Vidikron's sophisticated parameters for
white balance and color gamut control have also been implemented for precise balance of
gray scale and color.

For uncompromising widescreen reproduction of movies originally filmed in the “scope”
(2.35:1) format, the Vision 30 can be equipped with Vidikron’s patent-pending CineWide™
technology, a combination of software, electronics and high-quality anamorphic optics.
CineWide maintains constant vertical height on the screen just as in a movie theater. When a
viewer transitions from 1.78:1 (16:9) program material to 2.35:1, the image simply gets wider
while full height is maintained.

IMINAR

L

Y

1.3 Description, Features and Benefits

Note

Discrete IR and RS-232 control make custom installation seamless, while discrete source and
aspect ratio selection accommodate any automation control system.

CineWide requires the use of a 2.35:1 or similar aspect ratio superwide format
screen.

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 3

Introduction

Key Features and Benefits The Vision 30 offers these key features and benefits:

Parts List Your Vision 30 is shipped with the following items. If any items are missing or damaged,

➤

• Native Resolution: 1280 x 720 (16:9 Native Aspect Ratio)

• DLP system using high-performance Digital Micromirror Device (DMD)

• 6-segment, 5x color wheel produces wide dynamic range and rich grayscale

• Picture in Picture / Picture by Picture functions allow you to display two inputs on the
screen at the same time

• HDMI Input with High-bandwidth Digital Content Protection (HDCP)

•HDTV Compatible

➤

please contact your Vidikron dealer or Vidikron Customer Service at (888) 4VIDIKRON.

• Vision 30 DLP Projector

•Remote Control Unit and two (2), AAA-size batteries

• AC Power Cords (North America, Europe, Asia)

• Source Connection Cables:

• Composite Video

•S-Video

• Component Video

• RGB (DB15HD-to-5 x BNC)

•HDMI to HDMI

•HDMI to DVI

• Warranty information and registration card

• Vidikron Vision 30 Series Owner’s Operating Manual (this document)

IMINAR

L

Y

Optional Accessories:

• CineWide™ technology (secondary anamorphic lens and motorized mount)

• Ceiling mount kit

PRE

4 Vidikron Vision 30 Series Owner’s Operating Manual

2. Controls and Functions

Figure 2-1 and Figure 2-2 show the key Vision 30 components.

IMINAR

L

78910

2.1 Vision 30 at a Glance

4

Y

5 6

Figure 2-1. Vision 30 Front/Side/Top View

1. EXHAUST VENT

2. FOCUS AND ZOOM RING ACCESS

3. TOP IR SENSOR

4. LAMP LED
Indicates lamp status as follows:

• Off during normal operation

• Red when the lamp has exceeded its usage life or developed a problem.

• Flashes red when the fans are not working or the lamp cover is open

5. POWER/STANDBY LED
Indicates power status as follows:

• Orange when the projector is in standby mode

• Flashes orange for 45 seconds after the projector is turned on to indicate that the lamp
is warming up

• Green during normal operation

• Flashes green for 110 seconds after the projector is turned off to indicate that the lamp
is cooling down

Vidikron Vision 30 Series Owner’s Operating Manual 5

PRE

Controls and Functions

6. TEMP LED
Indicates fan status and internal temperature as follows:

• Off during normal operation

• Red when internal temperature is too high

• Flashes red when the fans are not working or the lamp cover is open

7. INTAKE VENT

8. FRONT IR SENSOR

9. VIDIKRON LOGO
The logo can be rotated to match the projector
orientation: inverted (ceiling-mounted) or upright.

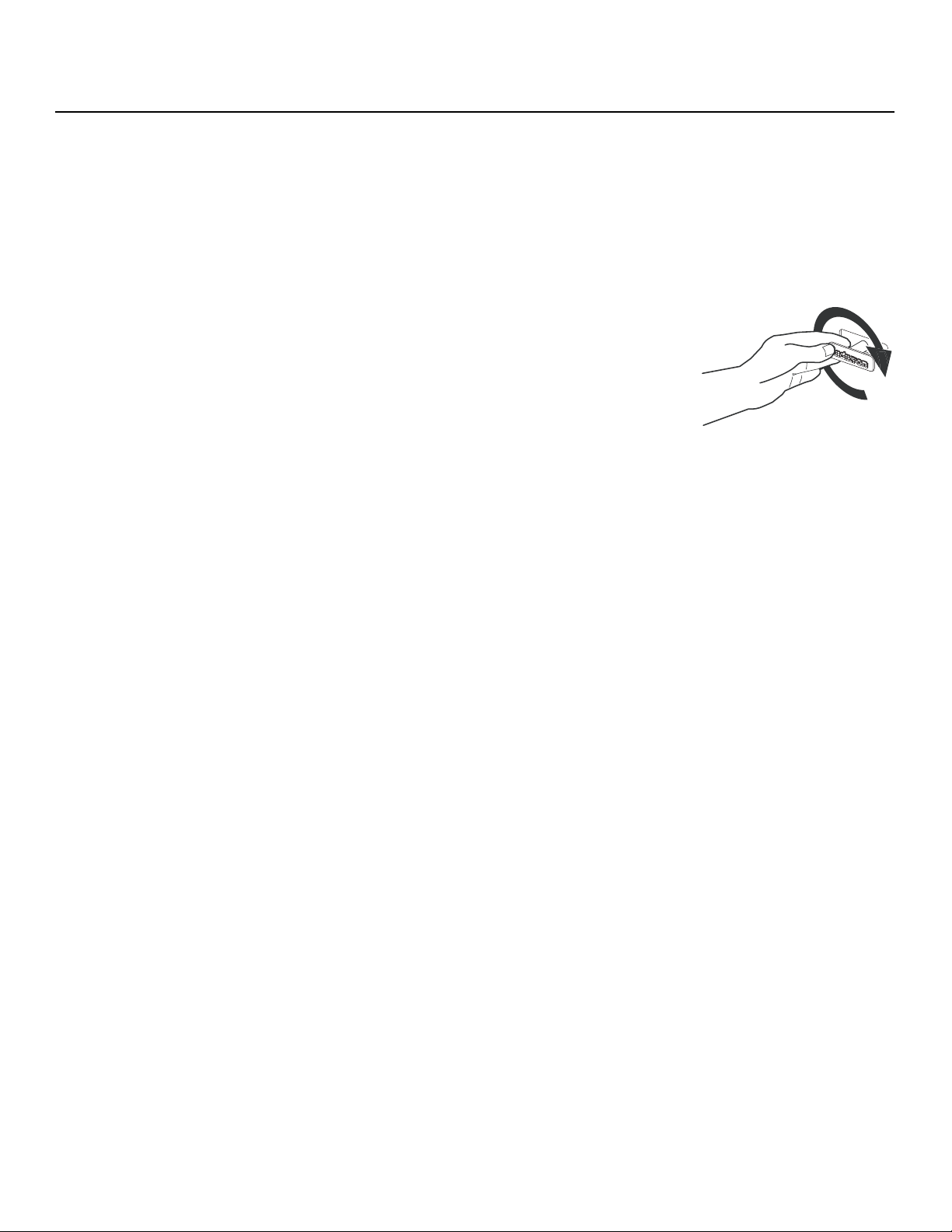

To rotate the logo, grip it at the sides, pull it away
from the projector and rotate it 180 degrees.

10. PROJECTION LENS

Y

IMINAR

L

PRE

6 Vidikron Vision 30 Series Owner’s Operating Manual

1 2 3 4

MEMORY

MEMORY

AUTO

AUTO

MENU

SOURCE

POWER

/EXIT

/ENTER

POWER

/EXIT

/ENTER

MENU

SOURCE

Controls and Functions

9 10 9

PRE

Figure 2-2. Vision 30 Rear/Bottom/Side View

8765

Y

IMINAR

L

1. CONNECTOR PANEL
Refer to Vision 30 Connector Panel, below.

2. POWER INPUT (100 to 240 VAC)
Connect the Vision 30 to power here.

3. MAIN POWER SWITCH
Disconnects or applies power to the Vision 30.

4. BUILT-IN KEYPAD
Refer to Built-In Keypad on page 9.

5. CABLE ACCESS DOOR
Open to access connectors.

6. DOOR RELEASE BUTTON

7. CABLE OPENING
Pass cables through this opening.

Vidikron Vision 30 Series Owner’s Operating Manual 7

Controls and Functions

8. LAMP MODULE COVER
Remove this cover to access the lamp compartment.

9. FRONT/REAR ADJUSTERS
Use these to adjust the projector height or projection angle.

10. CEILING MOUNT HOLES
Use these to attach the ceiling bracket to the projector.

2.2 Vision 30 Connector Panel

To access the connector panel, press
the door release button so it pops out.
Turn the knob clockwise or
counter-clockwise and pull gently on it
to open the door.

Figure 2-3 shows the Vision 30 connector panel.

IMINAR

L

Y

PRE

Figure 2-3. Vision 30 Connector Panel

1. S-VIDEO
A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS
(S-VHS) VCR.

2. 12-VOLT (250 mA) TRIGGER OUTPUT (3.5-mm, mini phono jack)
Connect this to a a retractable screen, screen mask or other 12-volt trigger-activated
equipment.

3. COMPOSITE VIDEO INPUT
Standard composite video input for connecting a VCR, laser disc player or other
composite video source.

4. COMP 1 (RCA connectors)
Standard Definition (480i/576i) Component (YPrPb) input. This is the input for
component video from sources such as DVD players.

8 Vidikron Vision 30 Series Owner’s Operating Manual

Controls and Functions

Tip

5. HDMI (Digital)
HDCP-compliant digital video input for connecting a DVD player or HD tuner with a DVI
or HDMI output.

6. COMP 2 / RGB
Five, BNC connectors for connecting either RGB or component (YPbPr) high-definition
television signals. (The Vision 30 automatically detects the signal format.)

7. RS-232 CONTROL PORT
A female, RJ-11 connector for interfacing with a PC or home theater automation/control
system.

To control the projector when signals from a remote
control cannot reach it, use the built-in keypad next to
the connector panel.

Because the built-in keypad has fewer keys than the
remote keypad, certain projector functions are
accessible only through the menu system rather than via
a direct key.

For best results, do not run your DVD player in progressive mode.

MEMORY

MEMORY

AUTO

Y

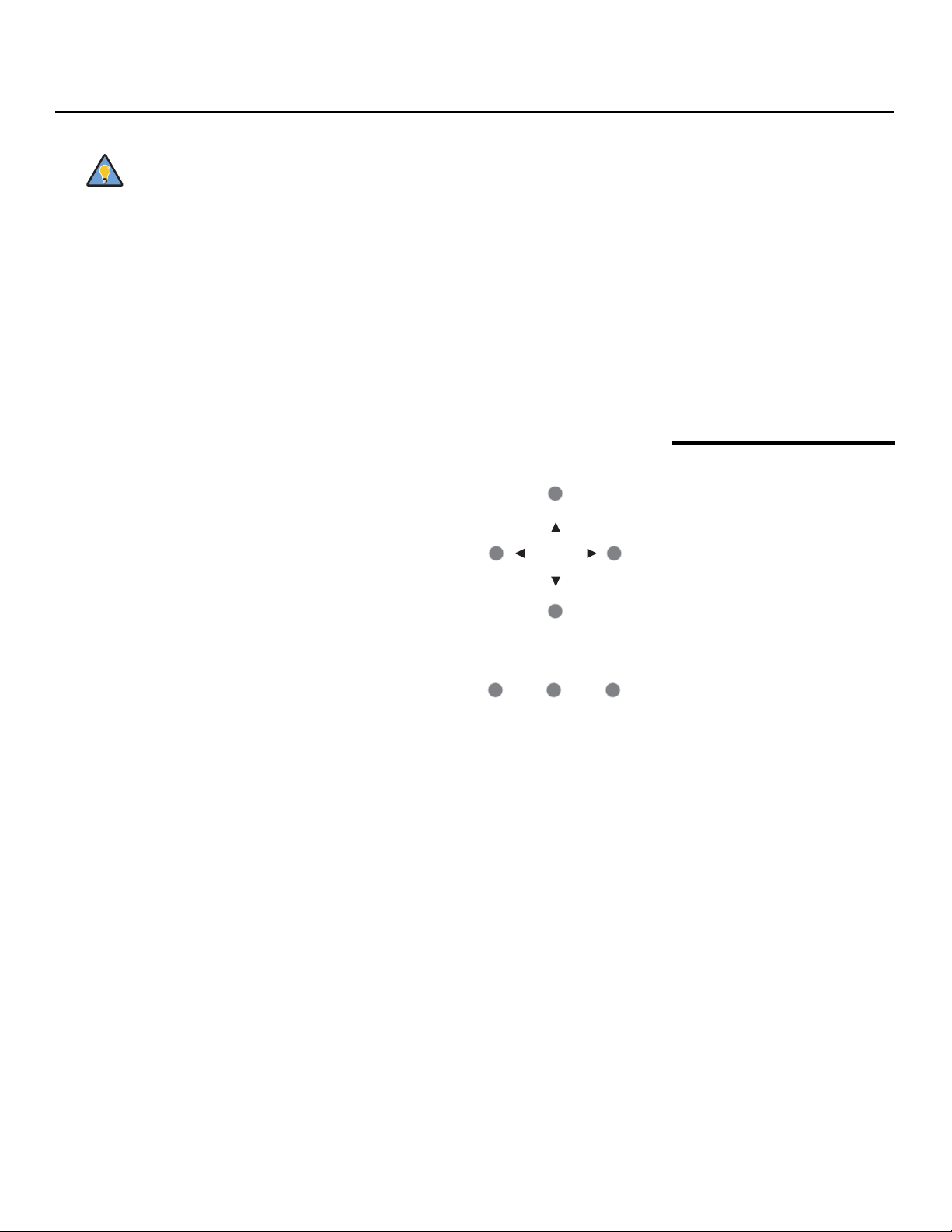

2.3 Built-In Keypad

IMINAR

L

PRE

POWER

MENU

/EXIT

POWER

AUTO

SOURCE

/ENTER

/EXIT

MENU

/ENTER

SOURCE

Vidikron Vision 30 Series Owner’s Operating Manual 9

Controls and Functions

2.4

Vision 30 Remote Control

Figure 2-4 shows the Vision 30 remote control, and the paragraphs that follow describe its
functionality.

1

2

Y

4

3

5

IMINAR

L

6

PRE

Figure 2-4. Vision 30 Remote Control

7

8

9

10 Vidikron Vision 30 Series Owner’s Operating Manual

1. ON / OFF
Use these buttons to turn the projector on or off.

2. Source Selection Buttons:

COMP 1 (SD Component)

Press to select Component 1 (SD 480i/576i) video input as the source.

S-VID (S-Video)

Press to select the S-Video input as the source.

VIDEO

Press to select Composite video input as the source.

COMP 2 (HD Component)

Press to select Component 2 (HD 480p/576p/720p/1080i) video input as the source.

RGB HD

Press to select the Component 2 RGB input.

HDMI

Press to select the HDMI input.

Controls and Functions

Y

3. Aspect Ratio Selection Buttons
Use these buttons to select an aspect ratio directly, as follows:

ANA (Anamorphic)

For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.

4X3 (Standard 4:3)

Scales the input signal to fit 4:3 display mode in the center of the screen.

L-BOX (Letterbox)

For viewing LaserDisc movies or non-anamorphic DVDs on a 4:3 screen.

I-WIDE (IntelliWide)

Enlarges a 4:3 image horizontally in a NON-linear fashion to fit 16:9 full screen display.

CINEMA
For viewing 2.35:1 source material.

C-FILL (Vision 30/CineWide and Vision 30ET/CineWide only)

Selects the Cinema Fill aspect ratio, used for viewing 16:9 source material on a 2.35:1
screen.

PRE

IMINAR

L

Vidikron Vision 30 Series Owner’s Operating Manual 11

Controls and Functions

4. Memory Preset Buttons:

MEM1

Press to recall settings for the current input from the “Custom 1” memory preset.

ISF NT

Press to recall settings for the current input from the “ISF Night” memory preset.

ISF DAY

Press to recall settings for the current input from the “ISF Day” memory preset.

DEF

Press to recall the factory-default settings for the current input.

5. Cursor Keys ( , , , )
Use these buttons to select items or settings, adjust settings or switch display patterns.

EXIT

Press to save menu item setting(s), exit the current menu and return to the previous one.

ENTER

Press to select a highlighted menu item or confirm a changed setting.

MENU

Press this button to show or hide the on-screen display (OSD) controls.

Y

6. 0 - 9
Use these keys to enter menu passcodes.

7. Picture-In-Picture (PIP) / Picture-By-Picture (PBP) Controls:

PIP

Press to activate PIP mode.

PIP+

Press to enlarge the PIP window.

PRE

ACTIVE

Press to switch to the active window in PIP or PBP mode.

PBP

Press to activate PBP mode.

PIP-

Press to shrink the size of the PIP window.

8. VAC
Not applicable to this model.

9. LIGHT
Press to illuminate the buttons.

IMINAR

L

12 Vidikron Vision 30 Series Owner’s Operating Manual

Controls and Functions

Figure 2-5 shows remote control buttons that are duplicated on the built-in keypad.

Some functions such as power ON/OFF are combined in one button on the built-in keypad;
however, the function is the same. This user manual describes the functions based on the
remote control.

7

ISF

DAY

ON

VIDEO

HDMI

L-BOX

C-FILL

DEF

MEMORY

Y

5

AUTO

2
1

POWER

MENU

/EXIT

SOURCE

/ENTER

OFF

COMP 1

COMP 2

ANA

I-WIDE

MEM1

ISF
NT

S-VID

RGB HD

4X3

CINEMA

2
5

3

IMINAR

4

EXIT

MENU

L

6

2.5 Remote Control/Built-In Keypad Functional Comparison

1

2

3

4

5

6

7

Figure 2-5. Remote Control/Built-In Keypad Functional Cross-Reference

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 13

Controls and Functions

Notes:

Y

IMINAR

L

PRE

14 Vidikron Vision 30 Series Owner’s Operating Manual

3Installation

To install batteries in the remote control, push the battery cover and slide it off. Install the
two AAA batteries with the correct polarity and then replace the cover.

Y

• Do not mix an old battery with a new one or different types of batteries.

• If you will not use the remote control for a long time, remove the batteries to avoid
damage from battery leakage.

• Make sure that there is nothing obstructing the infrared beam between the remote
control and the IR receiver on the projector.

• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.

• The remote control may fail to operate if the infrared remote sensor is exposed to bright
sunlight or fluorescent lighting.

• Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the projector, and repeat the operation.

• The Ø icon appears on the screen when you press a button for an unavailable function.

IMINAR

L

3.1 Remote Control

Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.

Notes on Remote Control Operation

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 15

Installation

3.2

Quick Setup

Table 3-1 gives a quick overview of the Vision 30 installation process. The sections following
this one provide detailed instructions.

Note

Table 3-1. Installation Overview

Step Procedure

Choose a location for the projector 17

1

Mount the projector 20

2

Install CineWide anamorphic lens base plate

3

(Vision 30/CineWide and Vision 30ET/CineWide only)

Connect signal sources to the Vision 30 22

4

Connect external controller to RS-232 port (optional) 26

5

Connect 12-volt trigger output to retractable screen or other,

6

+12-volt trigger-activated equipment (optional)

Installation should be performed by a qualified custom video installation
specialist.

For Details, Refer to

Y

21

27

page...

IMINAR

Apply power to the projector 27

7

L

Change the OSD Language (optional) 28

8

For rear-screen and/or ceiling-mount installations, select the

9

proper picture orientation

Primary lens adjustments: projected image size (zoom) and

10

PRE

focus

Install CineWide anamorphic lens

11

(Vision 30/CineWide and Vision 30ET/CineWide only)

CineWide lens adjustments: position, angle, geometry and

12

focus

Projector calibration: adjust the following for each input; save
settings when finished:

• Aspect ratio

• Brightness

13

• Contrast

• Color level

• Tint

• Input position

28

28

29

30

41 through 47

16 Vidikron Vision 30 Series Owner’s Operating Manual

Installation

Proper installation of your projector will ensure the quality of your display. Whether you are
installing a projector temporarily or permanently, you should take the following into account
to ensure your projector performs optimally.

inverted mount.

Table 3-2. Projector Installation Options

• Easy to set up

• Can be moved or changed quickly

• Easy to access

• Does not take up audience space

• Projector is unobtrusive

• Projector cannot be accidentally moved

• Projector is completely hidden

• Projector is easily accessed

• Usually good ambient light rejection

Table 3-2 compares these various installation methods.

Advantages Considerations

Front Screen, Floor Mount Installation

• Shares floor space with audience

Front Screen, Inverted Mount (ceiling) Installation

• Installation is more permanent

• Projector access is more difficult

Rear Screen, Floor Mount Installation

• Requires separate room

• Installation cost is usually higher

IMINAR

Rear Screen, Inverted Mount (ceiling) Installation

L

Y

3.3 Installation Considerations

Installation TypeChoose the installation type that best suits your needs: front or rear screen, floor mount or

• Projector is completely hidden

• Usually good ambient light rejection

Rear Screen, Floor Mount with Mirror

• Projector is completely hidden

• Usually good ambient light rejection

• Requires less space behind screen than other
rear screen installations

images will be noticeably reduced if light directly strikes the screen, such as when a shaft of
light from a window or floodlight falls on the image. Images may then appear washed out
and less vibrant.

PRE

• Requires separate room

• Installation cost is usually higher

• Requires separate room

• Installation cost is usually higher

Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your

Vidikron Vision 30 Series Owner’s Operating Manual 17

Installation

Throw Distance Throw distance is the distance measured from the front of the projector to the screen. This is

➤

an important calculation in any projector installation as it determines whether or not you
have enough room to install your projector with a desired screen size and if your image will
be the right size for your screen.

You can quickly estimate the throw distance by taking the width of the screen and
multiplying it by the lens throw ratio; see
roughly how far back the projector should be positioned from the screen in order to project a
focused image large enough to fill the screen.

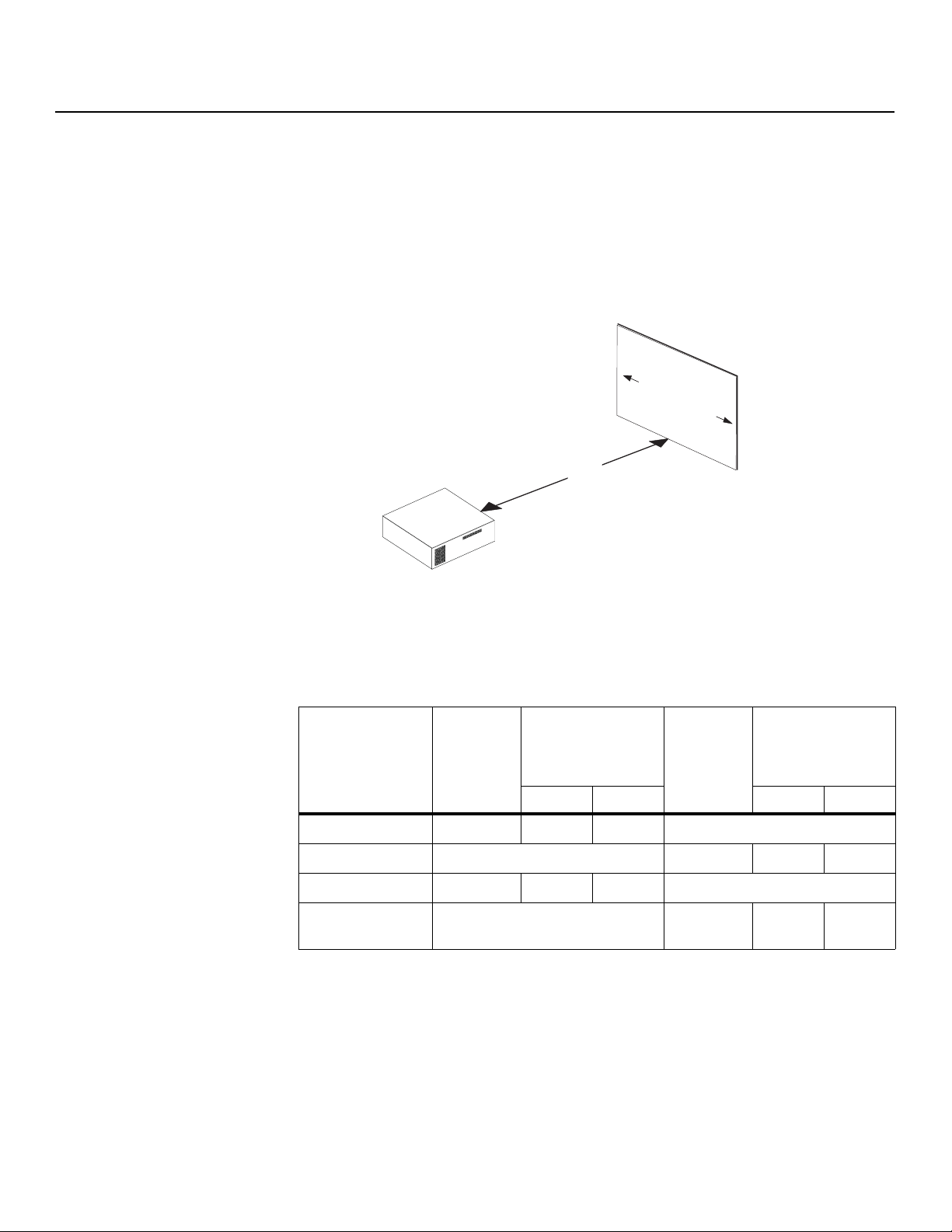

Estimating Throw Distance

Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio

Figure 3-1. The result of this calculation tells you

Screen width (w)

Y

TD

Figure 3-1. Estimating Throw Distance

IMINAR

Table 3-3 lists the available lens options for the Vision 30 and their associated throw ratios.

L

Table 3-3. Throw Ratios for the Vision 30 Series

Projector Model

PRE

Vision 30

Vision 30/CineWide

Vision 30ET

Vision 30ET/
CineWide

Throw Range in

Throw Ratio

with Primary

Lens Only

1.38 - 1.80 100.19 130.68 (n/a)

1.88 - 2.45 136.49 177.87 (n/a)

inches, with

72.6x40.8-inch
(1.78:1) Screen

Minimum Maximum Minimum Maximum

(n/a) 1.58 - 1.80 151.68 172.80

(n/a) 1.88 - 2.45 180.48 235.20

Throw Ratio

with Primary

Lens and

Anamorphic

Lens

96x40.8-inch (2.35:1)

Throw Range in

inches, with

Screen

18 Vidikron Vision 30 Series Owner’s Operating Manual

Installation

Proper placement of the projector relative to the screen will yield a rectangular,
perfectly-centered image that completely fills the screen.

Ideally, the projector should be positioned perpendicular to the screen and in such a way
that the lens center is aligned with either the top or bottom edge of the screen area, and
centered horizontally.

The top of the projected image is even with the lens center when the projector is inverted
(ceiling-mounted). Likewise, the bottom of the projected image is aligned with the lens
center when the projector is upright (as in a floor installation). See

Ceiling Installation

Height

x

Lens Center

Floor Installation

Height

Projection Distance

Screen

Screen

Ceiling

Lens Center

Figure 3-2.

Vertical and Horizontal Position

Y

Lens Center

IMINAR

Lens Center

L

x

Figure 3-2. Projector Placement

Projection Distance

Floor

PRE

to fold the optical path, as shown in
be accurately set. If you are considering this type of installation, contact your dealer for
assistance.

Screen

Figure 3-3. The position of the projector and mirror must

Mirror

Folded OpticsIn rear-screen applications where space behind the projector is limited, a mirror may be used

Figure 3-3. Folded Optics

Vidikron Vision 30 Series Owner’s Operating Manual 19

Installation

Other Considerations Other considerations and tips that can help improve your installation:

3.4

Mounting the Vision 30

➤

• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector away
from heating and/or air conditioning vents. Changes in temperature may cause drifts in
the projector circuitry, which may affect performance.

• Keep the projector away from devices that radiate electromagnetic energy such as motors
and transformers. Common sources of these include slide projectors, speakers, power
amplifiers and elevators.

There are several methods for mounting the projector. Depending on your chosen
installation, one method may be more suitable than another.

Y

Floor Mounting (Upright) In typical front and rear screen installations, the projector can be placed upright on a secure

Ceiling Mounting (Inverted) For fixed installations, and for those that want the projector out of sight or have a limited

➤

and level surface such as a table or cart. Carts are useful when moving a projector during a
presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it
from being moved during a presentation.

➤

space for projector and audience, you can invert the Vision 30 and suspend it from the ceiling
using a specially-designed ceiling mount fixture.

Caution

L

Note

Use only the Vidikron-approved ceiling mount kit designed for your
projector. Install the mount kit according to the instructions provided
with it.

IMINAR

If you are mounting a Vision 30/CineWide on a ceiling, refer to the next
section,

Installing the Optional CineWide Lens Mount.

PRE

Adjusting the Projector

Height or Projection Angle

The projector can also be inverted and placed in an enclosure above and behind the viewing
area. Install four feet on the inside bottom surface of the enclosure on which the projector
can rest. A variety of materials can be used for this purpose (for example, rubber crutch tips
or turntable feet).

If the screen is significantly higher or lower than the projector, you can also tilt the projector

➤

at a slight angle. In a ceiling installation, you do this by adjusting the ceiling mount.

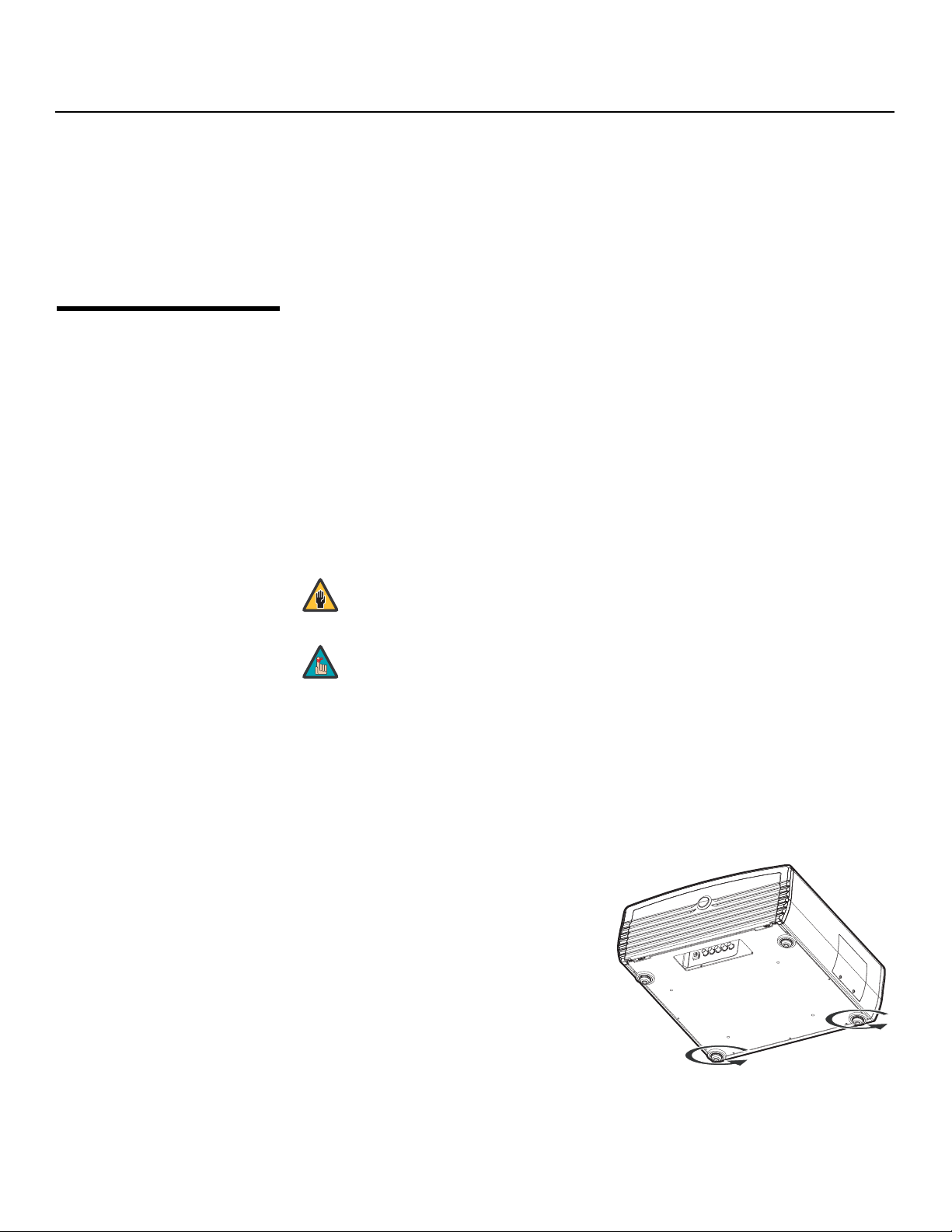

For a floor installation, turn the four adjustable
feet on the bottom of the projector to adjust
the projector height and/or projection angle.

If you do this, you may need to make keystone
adjustments or vertically shift the image using
the on-screen display (OSD) controls, to
compensate. For detailed instructions, refer to
Using the On-Screen Menus on page 34.

20 Vidikron Vision 30 Series Owner’s Operating Manual

Installation

If you are installing a Vision 30/CineWide, proceed as follows to install the CineWide
anamorphic lens base plate.

Note

To install the fixed CineWide base plate on a Vision 30/CineWide:

1. Place the projector upside down on a blanket or other soft surface.

2. If you are mounting the Vision 30/CineWide on a ceiling:

a Line up the four holes on the projector ceiling mounting plate (included with the

projector ceiling mount kit) with those on the bottom of the projector.

b Line up the two mounting holes on the CineWide base plate with those at the front of

the ceiling mounting plate.

3. Secure the CineWide base plate (and ceiling mounting plate, if needed) to the projector
with the required number of M6 x 1.0mm x 16mm screws: two for the lens base plate
only, or four for the base plate and ceiling mounting plate. See

SCREWS SECURELY, BUT DO NOT OVER-TIGHTEN THEM.

4. If you are mounting the Vision 30/CineWide on a ceiling: Complete the ceiling mount
installation procedure given in the instructions provided with the ceiling mount kit.

1. Do not install the CineWide lens yet, only the fixed CineWide base
plate. You will install the CineWide lens after you install the projector
and adjust the primary lens.

2. Some components shipped with your projector may differ slightly
from what is shown in these instructions.

Y

Figure 3-4. TIGHTEN THE

IMINAR

3.5 Installing the Optional CineWide Lens Mount

L

Vision 30/CineWide with Ceiling Mounting

Plate

Vision 30/CineWide with Ceiling Mounting

Plate and Lens Base Plate

PRE

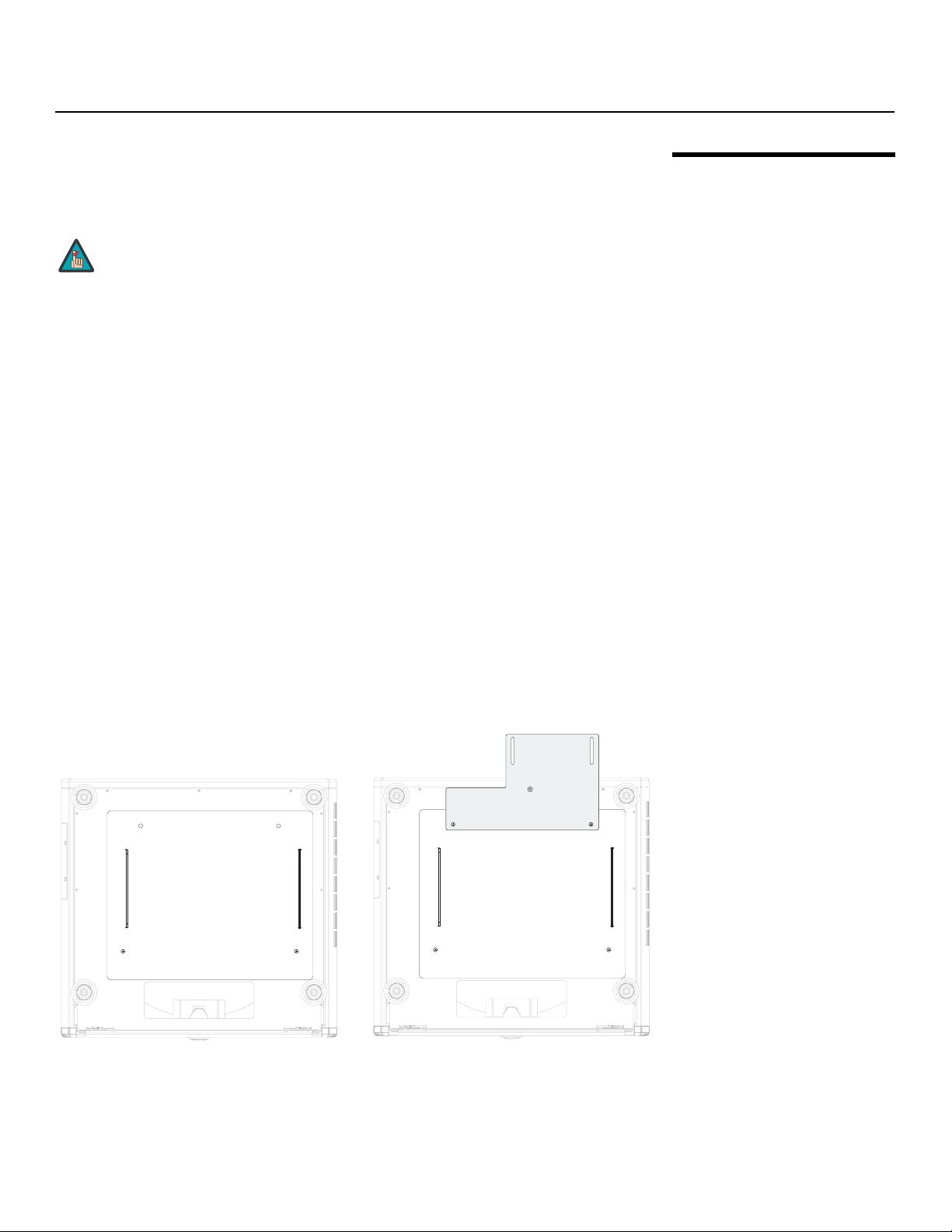

Figure 3-4. Vision 30/CineWide with Anamorphic Lens Base Plate and Ceiling Mounting Plate - Bottom View

Vidikron Vision 30 Series Owner’s Operating Manual 21

Installation

3.6 Connections to the Vision 30

Connector Panel Access To access the connector panel, press

Connecting Source

Components to the Vision 30

Proceed as follows to connect the Vision 30 to your video sources, external controller(s) – if
present – and AC power.

When connecting your equipment:

• Turn off all equipment before making any connections.

• Use the correct signal cables for each source.

• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors
that have them.

➤

the door release button so it pops out.
Turn the knob clockwise or
counter-clockwise and pull gently on it
to open the door.

Connect your video sources to the Vision 30 as shown and described in the sections that

➤

follow.

HDMI/DVI Connections: See Figure 3-5. With an HDMI source, use the included
HDMI-to-HDMI cable; with a DVI source, use the included DVI-to-HDMI cable.

Tip

Use the HDMI input whenever possible. This ensures the highest video
quality because the signal is carried in the digital domain throughout the

IMINAR

entire signal path, from source component output into the projector.

L

Y

PRE

Figure 3-5. HDMI/DVI Source Connections

HDMI or DVI Source

(DVD Player or HD Set Top Box)

22 Vidikron Vision 30 Series Owner’s Operating Manual

RGB Connections: Connect your personal computer or other RGB source (DVD player or HD
set top box) to the COMP 2/RGB input; see
DB15HD-to-5 x BNC cable if your RGB source has a 15-pin, VGA-type connector.

Figure 3-6. You can use the included

Installation

Note

Vert Horiz Red Blue Green

DVD Player or

HD Set Top Box

The Vision 30 supports the following computer resolutions: 1024x768,
800x600 and 640x480.

Y

Vert Horiz Red Blue Green

IMINAR

L

Personal

Computer

Figure 3-6. RGB Connections

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 23

Installation

Progressive Component Video Connections: Connect your progressive component
source (DVD player or HD set top box) to the COMP 2/RGB input as shown in

Figure 3-7.

IMINAR

Figure 3-7. Progressive Component Video Connections

L

PRE

Pr Pb Y

DTV or Progressive

Component (YPbPr)

Y

Source

24 Vidikron Vision 30 Series Owner’s Operating Manual

Composite/S-Video/Component Video Connections: Use the included cables to connect
your composite, S-Video and SD (480i) component video sources to the Vision 30 as shown in
Figure 3-8.

Y

Installation

IMINAR

L

DTV Source,
DVD Player, VCR,
Satellite Receiver

Figure 3-8. Composite, S-Video and Component Video Connections

PRE

etc.

Vidikron Vision 30 Series Owner’s Operating Manual 25

Installation

RS-232 Controller

Connection

Connect a PC or home theater control/automation system (if present) to the RS-232 port on

➤

the Vision 30; see
straight-through.

For more information about using this connection, refer to Serial Communications on
page 57.

Figure 3-9. Use a standard, 4-wire RJ-11 telephone cable, wired

Y

RJ-11 to

D-Sub 9-pin Adapter

(not included)

RJ-11 Male

Ye ll ow

Green

Yell ow

Green

1
2
3
4

IMINAR

L

D-Sub 9-pin female 4-pin RJ-11 Function

2 2 Transmit Data

3 3 Receive Data

PRE

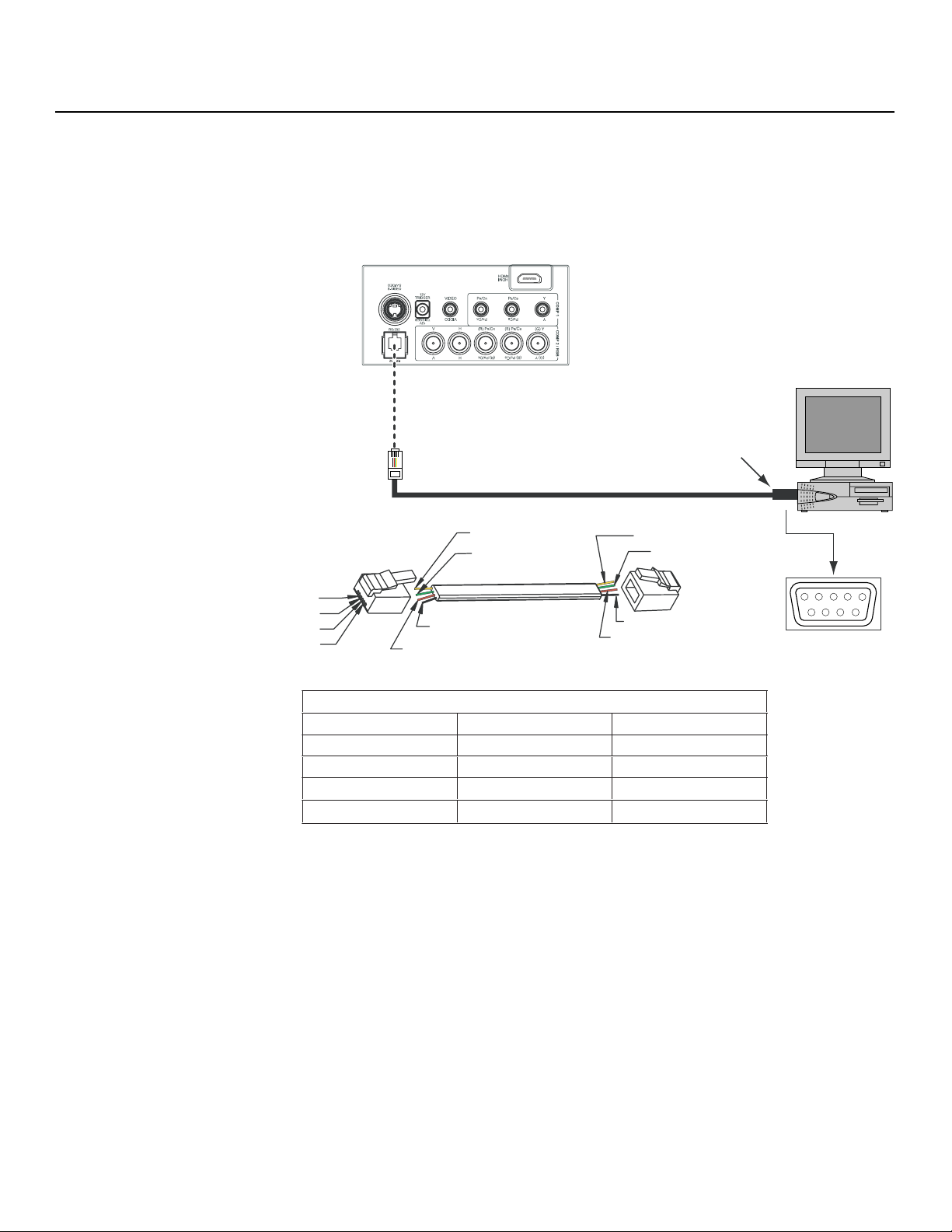

Figure 3-9. RS-232 Control System Connection

5 1, 4 Ground

1, 4, 6, 7, 8, 9 -- Not Connected

Red

Black

RS-232 Adapter Wiring

Red

Black

12345

7896

D-Sub 9-pin female

26 Vidikron Vision 30 Series Owner’s Operating Manual

Installation

If your home theater contains a retractable screen, screen mask or other 12-volt
trigger-activated equipment, use the cable supplied with the Vision 30 to connect it to the
12-volt trigger output as shown in

to other,

12-volt

trigger-activated equipment

(screen, screen mask etc.)

Figure 3-10. Connecting the 12-Volt Trigger Output to Other Equipment

Figure 3-10.

Black = Ground (Sleeve)

Red = +12V (Tip)

S-VID

S-VID /

3.5-mm
mini plug

Connecting 12-volt Trigger Output to External Theater Equipment

Y

types of AC power cords. Choose the
one that is appropriate to your
locale.

Plug the female end of the power
cord into the AC receptacle on the
rear of the projector (AC 100V ~
240V). Then, connect the other end
to your AC power source.

PRE

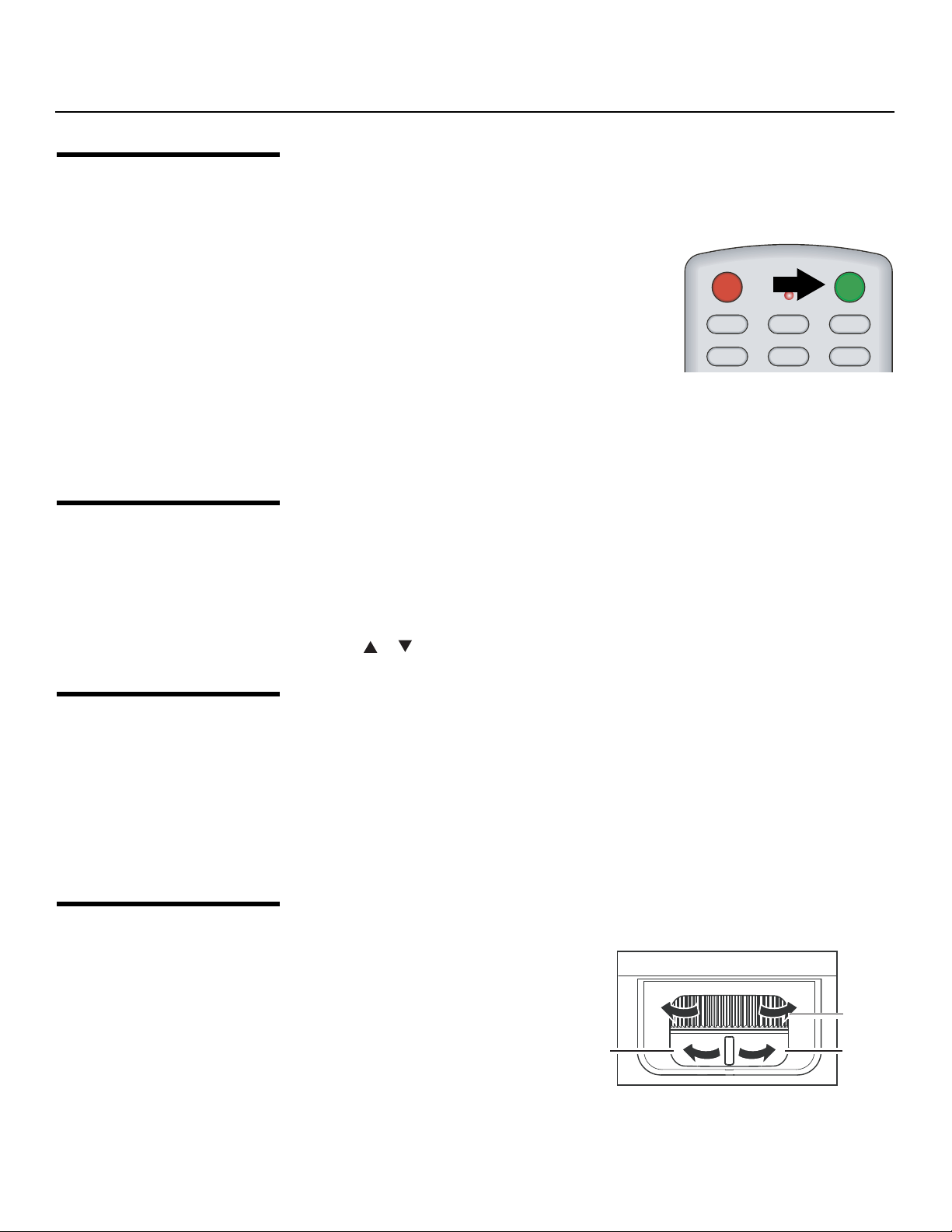

Press the lens latches together to remove the
lens cap. To replace the cap, push it squarely
over the lens until it snaps on.

IMINAR

Power
switch

L

Connecting to AC PowerThe Vision 30 ships with various

3.7 Removing the Lens Cap

Vidikron Vision 30 Series Owner’s Operating Manual 27

Installation

3.8 Turning On the Power

3.9 Changing the OSD Language

1. Turn on your source components.

2. Turn on the main power switch at the rear of the projector. The POWER LED lights
orange. The LAMP and TEMP LEDs light red briefly, then go out.

3. Press the ON button on the remote control to turn
on the Vision 30. The POWER LED flashes orange to
indicate that it is warming up.

4. When the projector is ready for use, the POWER LED
lights green.

5. “Searching...” appears on the screen before the
Vision 30 identifies the input signal and remains
there until a valid signal is detected.

6. If an incompatible input signal exceeds the range of the projector, a “No signal
supported” message appears on the screen. This message remains on the screen until
you change the input signal.

The Vision 30 OSD language is initially set to English, but can also display the menus in
French, Spanish, Italian or German. To change the OSD language:

1. Press MENU.

2. Select Installation from the Main Menu and press ENTER.

3. Select Language from the Installation Menu and press ENTER.

4. Press or to highlight the desired language. (The change takes effect immediately.)

IMINAR

Y

OFF

COMP 1

COMP 2

S-VID

RGB HD

ON

VIDEO

HDMI

L

3.10 Adjusting the Picture Orientation

3.11 Zoom and Focus Adjustments

By default, the Vision 30 is configured for a “floor/front” installation, in which the projector is
installed upright and in front of the screen. If it is installed behind the screen and/or mounted
on a ceiling, you must change the picture orientation. To do this:

PRE

1. Press MENU on the remote control.

2. Select Installation from the Main Menu and press ENTER.

3. Select Picture Orientation from the Installation Menu and press ENTER.

4. Choose Floor Rear, Ceiling Front or Ceiling Rear to match the installation method.

The Vision 30 gives you a great deal of control over the picture size and focus.

Adjust the projected image size with
the zoom ring on the lens. To focus
the image, rotate the focus ring on
the lens.

Zoom out

Focus

Zoom in

28 Vidikron Vision 30 Series Owner’s Operating Manual

Installation

If you are installing a CineWide-equipped projector, proceed as follows to install and adjust
the anamorphic lens.

Note

The Anamorphic lens mount kit consists of everything shown in Figure 3-11. If any items are
missing or damaged, please contact your Vidikron dealer or Vidikron Customer Service at
(888) 4VIDIKRON.

7 Pitch/Y-Adjustment
Screw, 4-40 x 5/16"
(4x)

1 Base Plate

8 Base Plate Mounting

Screw, Phillips,
M6 x 1.0 x 16mm (2x)

It is extremely important that the primary lens is properly adjusted
before you install the anamorphic lens. Ensure that the image from
the primary lens is perfectly centered on the screen.

3 Anamorphic Lens

2 Mounting Bracket (2x)

IMINAR

Y

6 Fender
Washer (4x)

L

3.12 Installing and Adjusting the CineWide Anamorphic Lens

4 Yaw/Z-Adjustment Knob (2x)

Figure 3-11. Anamorphic Lens Mounting Assembly - Exploded View

Vidikron Vision 30 Series Owner’s Operating Manual 29

PRE

5 Fiber Washer (2x)

Installation

Installing the Anamorphic

Lens

Adjusting the Anamorphic

Lens

1. Use the Pitch/Y-Adjustment Screws (item #7) and Fender Washers (item #6) to attach the

➤

Mounting Brackets (item #2) to the Anamorphic Lens (item #3). (Do not fully tighten the
screws yet.)

2. Use the two Yaw/Z-Adjustment Knobs (item #4) and Fiber Washers (item #5) to attach
the Anamorphic Lens assembly to the Base Plate (item #1).

Tip

To avoid clipping the corners of the image, position the anamorphic lens
as close as possible (ALWAYS within 0.25 inch or closer) to the primary lens.

Y

Height (Y) Adjustment:

➤

1. Project a white field on the screen.

0.25¨ max.

2. Ensure that the four Pitch/Y-Adjustment Screws are loose enough to allow movement of
the lens assembly.

3. Slowly move the anamorphic lens into place so that there are no shadows on the top or
bottom of the screen:

IMINAR

L

PRE

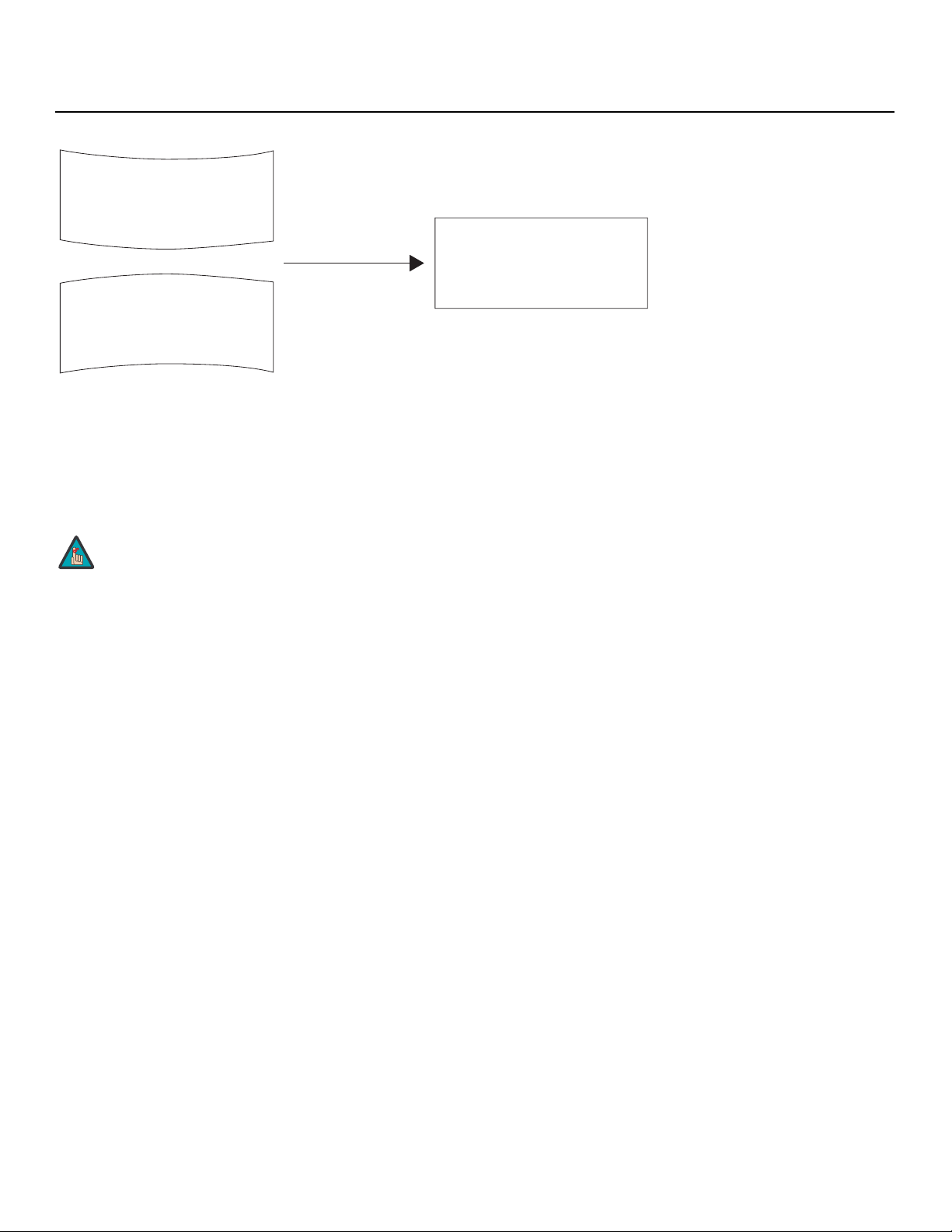

Too Low

Too High

4. When the height is properly set, tighten the top two Pitch/Y-Adjustment Screws to
secure the lens in place.

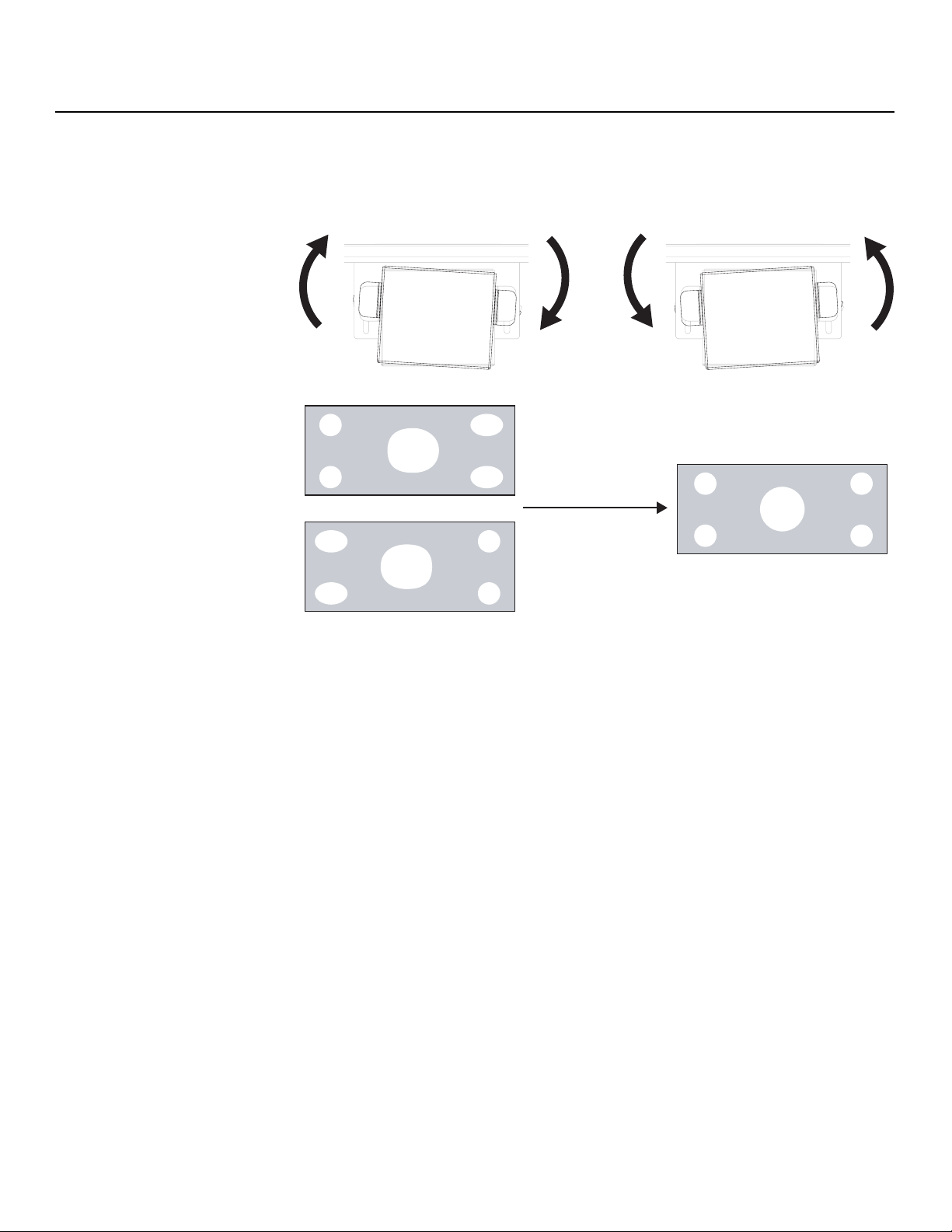

Adjusting the Pitch (Angle): Next, angle the lens to even out any top-to-bottom pincushion
distortion. To do this, loosen the bottom two Pitch/Y-Adjustment Screws on either side of the
lens to allow it to pivot freely. Then, adjust the anamorphic lens angle so that the projected
image is rectangular:

Correct position

30 Vidikron Vision 30 Series Owner’s Operating Manual

Correct Lens Angle

Installation

Incorrect Lens Angle

The anamorphic lens will almost always be angled with respect to the projector; this is
normal.

Once the proper lens angle has been set, firmly tighten the bottom two Pitch/Y-Adjustment
Screws to secure the lens in place.

Note

There may be some pincushion distortion even after the lens is properly
adjusted, especially at shorter throw distances. If this is the case, Vidikron
recommends that you slightly over-scan the image into the screen frame
area to mask the distortion.

Y

IMINAR

L

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 31

Installation

Adjusting the Yaw: Loosen the Yaw/Z-Adjustment Knobs to allow the lens to pivot freely
from side to side. Then, angle the lens to even out any left-right pincushion distortion:

Anamorphic Lens (Top View)

Y

IMINAR

Wrong Position

L

Once the proper lens angle has been set, firmly tighten the Yaw/Z-Adjustment Knobs to
secure the lens in place.

PRE

Correct Position

32 Vidikron Vision 30 Series Owner’s Operating Manual

4Operation

• Press the MEM1 button on the remote control to
recall settings for the current input from the
“Custom 1” memory preset.

• Press ISF NT (Night) to recall settings for the current input from the “ISF Night” memory
preset.

• Press ISF DAY to recall settings for the current input from the “ISF Day” memory preset.

• Press DEF to recall the factory-default settings for the current input. An on-screen
confirmation message appears. Press DEF again to confirm.

Use these buttons to select the appropriate aspect ratio
for the type of program material being viewed. For
more information on aspect ratios, refer to Table 4-1.

When you turn on the Vision 30, it switches to the last
selected input and looks for a valid signal.

Use these buttons on the remote control to select an
input source directly.

IMINAR

Y

L

For PIP and PBP purposes, there are two groups of
inputs separated by their display modes:

• Video (SD) group: Video, S-Video and
Component

• Graphic (HD) group: HDMI and Component 2/RGB inputs.

1 inputs.

PRE

PIP and PBP show one input from the Graphic group within or beside one input from the
Video group respectively.

• Press PBP to enable the PBP function. Press PBP again to switch the screens left to right.
Press PBP again to turn PBP off.

• Press ACTIVE to switch to the active window. (You can only switch inputs in the active
window.)

• Press PIP to enable the PIP function. Press PIP again to switch the main window. Press PIP
again to turn PIP off.

• To adjust the size of the PIP window, press PIP+ or PIP-.

• Adjust the position of the PIP window with the arrow buttons ( , , , ).

4.1 Selecting Video Memory

4.2 Selecting an Aspect Ratio

4.3 Selecting An Input Source

4.4 Using Picture-In-Picture and Picture-By-Picture (PIP/PBP)

Vidikron Vision 30 Series Owner’s Operating Manual 33

Operation

4.5

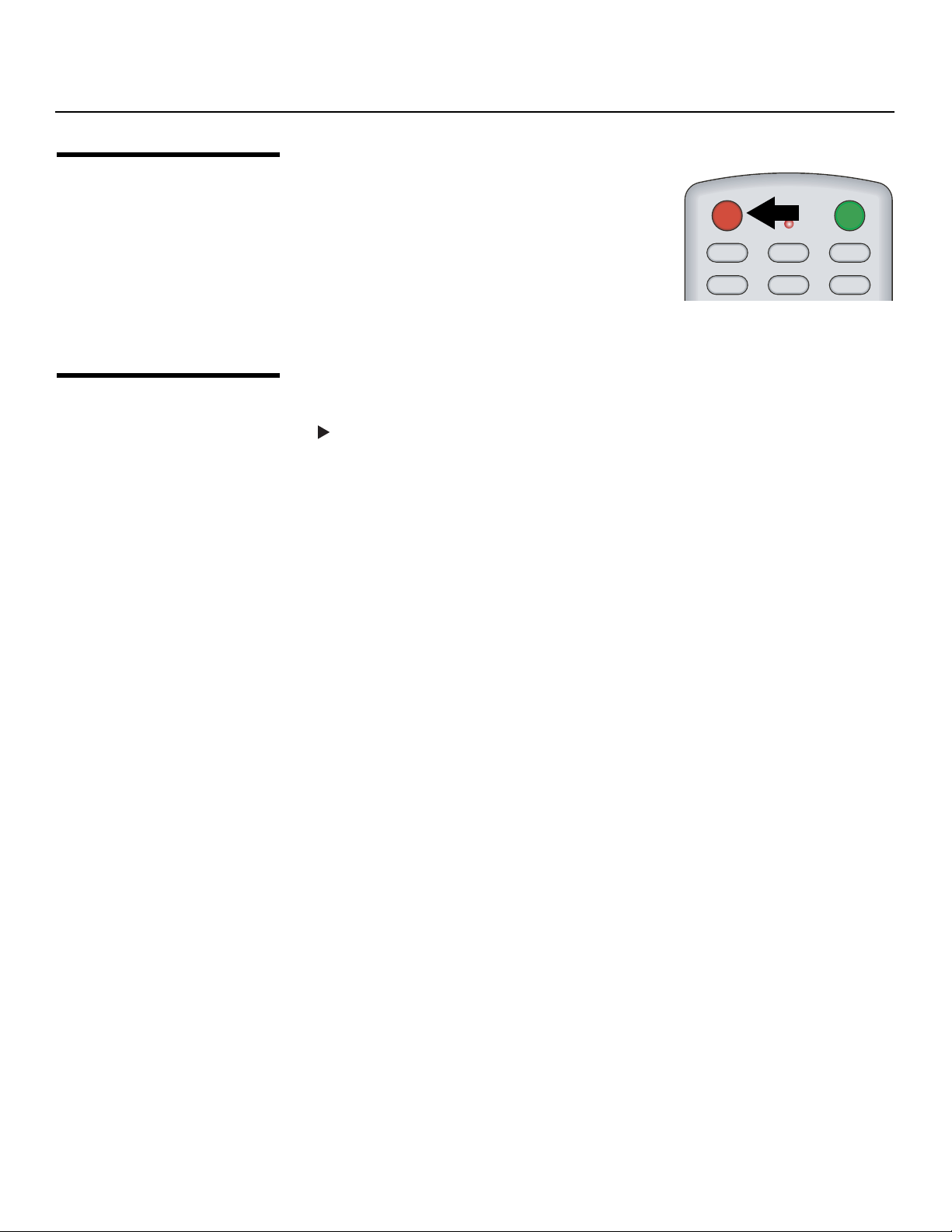

Turning Off the Power

4.6

Using the On-Screen Menus

1. Press the OFF button to turn off the projector.

2. The POWER LED blinks green and the fans will speed
up for a quick cool-down. The projector will not
accept any commands during the cool-down period.

3. After approximately three minutes, the fans will stop
running and the POWER LED lights solid orange.

4. You can turn the projector back on after
approximately two minutes.

• Press the MENU button on the remote control to display the Main Menu. To select a menu

item, use the UP and DOWN buttons on the remote control to highlight it. Press ENTER or

to confirm your selection.

• Use the arrow buttons to select menu items or change settings.

• Press EXIT to return to the previous menu.

• Press MENU to turn off the OSD menu. (When the Main Menu is displayed, pressing EXIT

also turns off the menu.)

The Vision 30 OSD menus are arranged hierarchically, as shown in Figure 4-1. Depending on
the selected input source and signal characteristics, some menu options may not be
available.

Y

OFF

COMP 1

COMP 2

S-VID

RGB HD

ON

VIDEO

HDMI

IMINAR

L

PRE

34 Vidikron Vision 30 Series Owner’s Operating Manual

Operation

Adjust

Option

Projector
Status

Installation

Brightness 0 ... 60

Contrast 0 ... 32

Color 0 ... 64

Tint 0 ... 30

Sharpness -14 ... 0 ... +25

Color Temp.

Color Select

Input Select

Aspect Ratio

SD Enhance

Video Filter 0, 1, 2 or 3

HD/RGB Adjust
(480p and higher-res.
signals only)

Blue Enable On / Off

Save Settings Custom 1

Load Saved Settings

Default

Sleep Timer 0, 10, 20, 30 ... 180 minutes

Lamp Power 250W or 200W

Lamp Hours (read-only)

Language

Picture Configuration

Keystone -14, -13 ... 0 ... +13, +14

OSD Position Horizontal/Vertical

OSD Timer 0, 3, 6, 9 ... 60 seconds

PIP/PBP Setup

Background Color Grey, Blue or White

0, 1 (5400 K), 2 (6500K), 3
(8500 K), 4 or 5 (Custom)

Standard, NTSC, HDTV or
PAL

Video, S-Video,
Component 1,
Component 2, RGB-HD or
HDMI

Anamorphic (16:9)

Standard (4:3)

Letterbox

IntelliWide

Cinema

Cinema Fill
(Vision 30/CineWide and
Vision 30ET/CineWide only)

H Enhance

C (Chroma) Enhance

H Threshold

C (Chroma) Threshold

Auto Adj.

Frequency 0, +1, +2, +3 ... +17

Phase 0, +1, +2, +3 ... +31

H. Position

V. Position

Custom 1, ISF Night or
ISF Day

English, Français, Español,
Deutsch or Italiano

Floor Front, Floor Rear,
Ceiling Front or Ceiling Rear

PRE

PIP/PBP Enable On / Off

PIP Set Up

PBP Set Up

White Balance

Gamma Selection

ICC Adjust NTSC / HDTV / PAL

Image Over Scan

Video Black Level 0 IRE or 7.5 IRE

Service

0, 1, 2, 3 ... 127V Enhance

10, 11, 12, 13 ... 127V Threshold

-30, -29 ... 0 ... +29,
+30

-28, -27 ... 0 ... +29,
+30

IMINAR

ISF
Calibration

L

0/0 (lower left) ...
20/20 (upper right)

PIP Off

Graphic in Video

Video in Graphic

PBP Off

Graphic by Video

Video by Graphic

Image Shift

Amplitude

Horizontal Masking 0, +1, +2, +3 ... +100

Fan Control

Lamp Reset Timer Yes / No

RS-232 Baud Rate 9600, 38400 or 115200

Remote Control

Return to User OSD

Picture Adjust

White Balance Gamma, Gain, Offset etc. (see above)

Gamma Selection

Blue Enable On / Off

Save ISF Settings ISF Night or ISF Day

Splash Screen Timer 5, 6, 7 ... 60 seconds

ISF Enable On / Off

Return to User OSD

Y

Gain

Gamma

Save Color Temp. 4

Save Color Temp. 5

2.8, 2.5, 2.2, 1.0, 2.1, 2.15 or

2.7

Total 0, +1, +2, +3 ... +15

Horizontal

Vertical

Horizontal

Vertical

Horizontal

Vertical

Mode

Fan Speed (Manual Mode)

Primary

Secondary

Brightness, Contrast, Color
etc.

2.8, 2.5, 2.2, 1.0, 2.1, 2.15
or 2.7

Red / Green / BlueOffset

R / G / B / Y / C / M
Intensity / Sat. / Hue

-30, -29, ... 0 ... +29,
+30

-60, -59 ... 0 ... +59,
+60

(Vision 30/CineWide
and Vision
30ET/CineWide only)

Auto Normal,
Auto Hi. Altitude or
Manual

(see above)

Figure 4-1. Vision 30 OSD Menu Structure

Vidikron Vision 30 Series Owner’s Operating Manual 35

Operation

Main Menu The Main Menu is the starting point for accessing all projector functions.

Vision Model 50

Picture Adjust

Image Option

Projector Status

Installation

Service

ISF Calibration

Picture Adjust Select Picture Adjust from the Main Menu to calibrate your Vision 30 for optimum picture

Picture Adjust

Brightness 30

Contrast 15

Color 31

Tint 15

Sharpness 2

Color Temp. 2

Color Select NTSC

➤

(The Service and ISF Calibration menus are hidden and not accessible until you enter a
passcode.)

➤

quality.

To adjust a setting, use the or button to highlight it and use the or button to
change the setting. When finished, press EXIT.

The Vision 30 has been designed to incorporate setup and calibration standards established
by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted,
industry-recognized standards for optimal video performance and has implemented a
training program for technicians and installers to use these standards to obtain optimal
picture quality from Vidikron video display devices. Accordingly, Vidikron recommends that
setup and calibration be performed by an ISF certified installation technician.

Y

All signal types require separate processing. Therefore, you need to calibrate each input
separately.

IMINAR

L

Note

PRE

When you change a picture quality setting, save the change to a preset
afterwards. Otherwise, the change will be lost when a different input is
selected. (Picture quality settings are saved for each input and resolution
separately.) For information about saving settings, refer to

Settings on page 44.

Save

36 Vidikron Vision 30 Series Owner’s Operating Manual

Although it may be possible to obtain satisfactory picture quality using the naked eye and

A

regular program material, Vidikron recommends using the following calibration tools for
best results:

• External test pattern source – Ovation Multimedia, Digital Video Essentials or AVIA test
DVD or equivalent.

• A blue filter (provided with many test DVDs), for color level and tint adjustments.

Connect your test pattern source to the input that you are calibrating and proceed as follows.

Perform the adjustments in the order listed here.

Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an

acronym for “Picture Line-Up Generation Equipment.”)
pattern.

Figure 4-2 shows a typical PLUGE

Y

Operation

Below Black

bove Black

Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness

PLUGE patterns vary but generally consist of some combination of black, white and gray
areas against a black background. The example above includes two vertical bars and four
shaded boxes.

Select Brightness from the Picture Adjust menu and press ENTER. Adjust the brightness so
that:

• The darkest black bars disappear into the background.

• The dark gray areas are barely visible.

• The lighter gray areas are clearly visible.

• The white areas are a comfortable level of true white.

• The image contains only black, gray and white (no color).

PRE

IMINAR

L

Vidikron Vision 30 Series Owner’s Operating Manual 37

Operation

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in

Figure 4-3.

Y

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

Select Contrast from the Picture Adjust menu and press ENTER. Adjust the contrast to a point
just below which the white rectangle starts to increase in size.

Note

Color Saturation: On your external test pattern source, select a color bar pattern like the one
shown in

Figure 4-4.

IMINAR

L

gray

PRE

Brightness and contrast controls are interactive. A change to one may
require a subtle change to the other in order to achieve the optimum
setting.

yellow

cyan

green

red

magenta

blue

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

38 Vidikron Vision 30 Series Owner’s Operating Manual

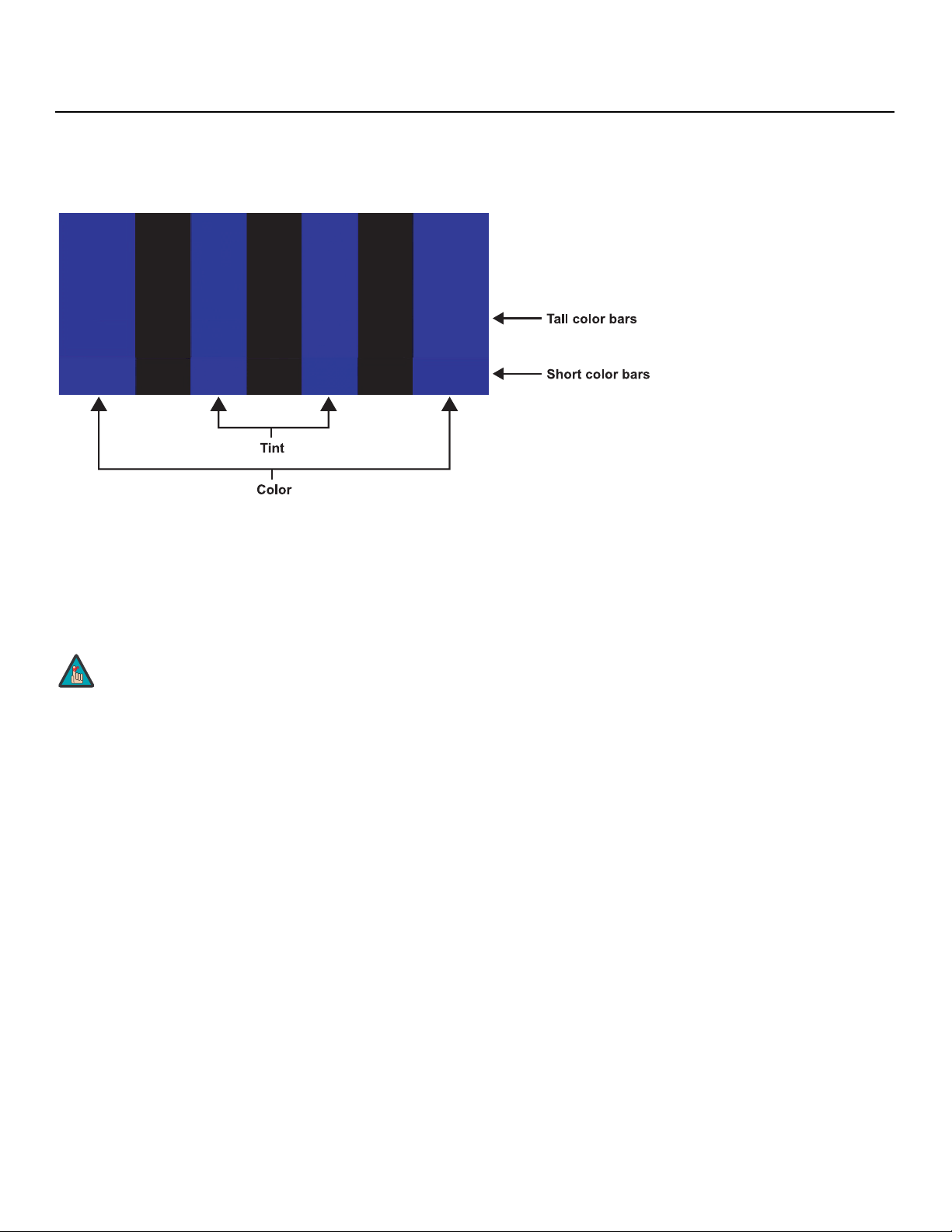

Select Color from the Picture Adjust menu and press ENTER. While looking at the color bar
pattern through a blue filter, adjust the color saturation level until the outermost (gray and
blue) color bars appear to be a single shade of blue:

Operation

gray

yellow

cyan

green

red

magenta

blue

Y

Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image.
When tint is decreased, the image appears redder; when it is increased the image appears
greener. To set the tint, select
looking at the color bar pattern through a blue filter, adjust the tint level until the cyan and
magenta color bars (on either side of the green bar) appear to be a single shade of blue.

Tint from the Picture Adjust menu and press ENTER. While

IMINAR

Note

Like the brightness and contrast controls, the color and tint controls are
interactive. A change to one may require a subtle change to the other in
order to achieve the optimum setting.

L

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 39

Operation

Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust
sharpness, select Sharpness from the Picture Adjust menu and press ENTER. On your
external test pattern source, select a pattern like the one shown in Figure 4-5. Adjust as
needed, looking for white edges around the transitions from black to gray and
differently-sized lines in the “sweep” patterns at the top and bottom. Lower the
setting to eliminate them.

Sharpness

Y

IMINAR

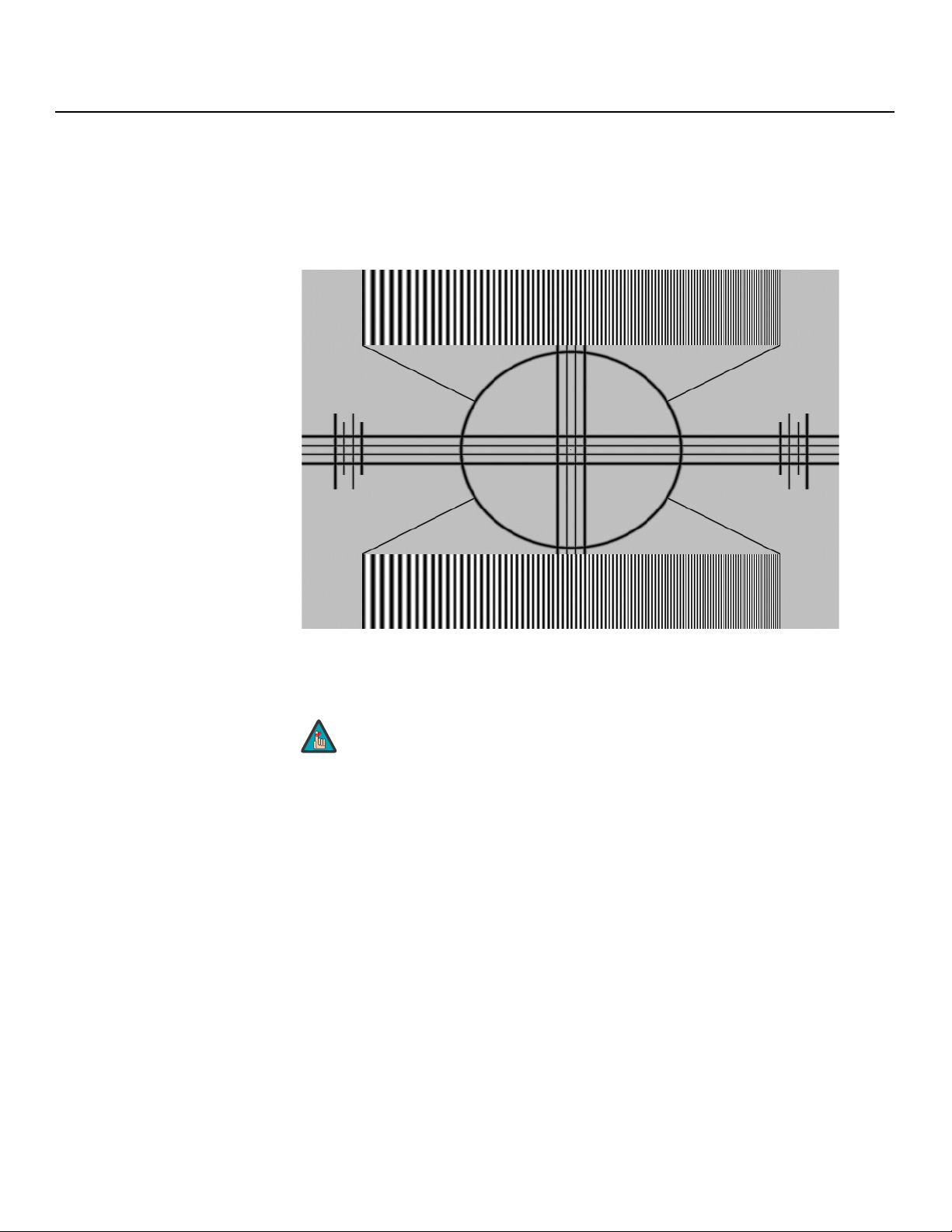

Figure 4-5. Typical Test Pattern for Adjusting Sharpness

PRE

Color Temp.: The Vision 30 has six memory settings for Color Temperature. Four of these
settings are factory set to default as follows:

• 0 -- Original lamp color temperature

• 1 -- 5400 kelvins

• 2 -- 6500 kelvins

• 3 -- 8500 kelvins

• 4 -- Custom

• 5 -- Custom

Custom 4 and 5 memory are installer-adjustable and can be used to create custom settings.
There are nine adjustable “white balance” parameters available for the Custom 4 and 5
settings (three each for red, green and blue). These are described later in this section; refer to
Service on page 46.

L

Note

The Sharpness setting has no effect if the Video Filter (described on
page 44) is set to 0.

40 Vidikron Vision 30 Series Owner’s Operating Manual

Operation

Note

Color Select: Use the Color Select menu to select the color space that is appropriate for the
source signal, to achieve optimal color balance.

If you select NTSC, HDTV or PAL, you can make further adjustments to individual color space
characteristics in the
this section. (The Standard color space is factory-set and not adjustable.)

S-Video, Component 1, Component 2, RGB-HD or HDMI. Then, press ENTER to confirm.

You must enter a passcode in order to enter the Service menu.

ICC Adjust sub-menu under the ISF Calibration menu, described later in

Y

Aspect Ratio: To change the aspect ratio (size and shape) of the projected image, select
Aspect Ratio from the Main Menu and press ENTER. Select the appropriate aspect ratio for
your screen size and the type of program material being viewed; refer to

Note

When you change the aspect ratio, save the change to a preset
afterwards. Otherwise, the change will be lost when a different input is
selected. (The aspect ratio is saved for each input and resolution
separately.)

IMINAR

Table 4-1.

L

Image OptionInput Select: To select a source signal, highlight Input Select, press ENTER and select Video,

Image Option

Input Select

Aspect Ratio

SD Enhance

Video Filter

HD/RGB Adjust

Blue Enable

Save Settings

Load Saved Settings

Aspect Ratio

Anamorphic (16:9)

Standard (4:3)

Letterbox

IntelliWide

Cinema

Cinema Fill

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 41

Operation

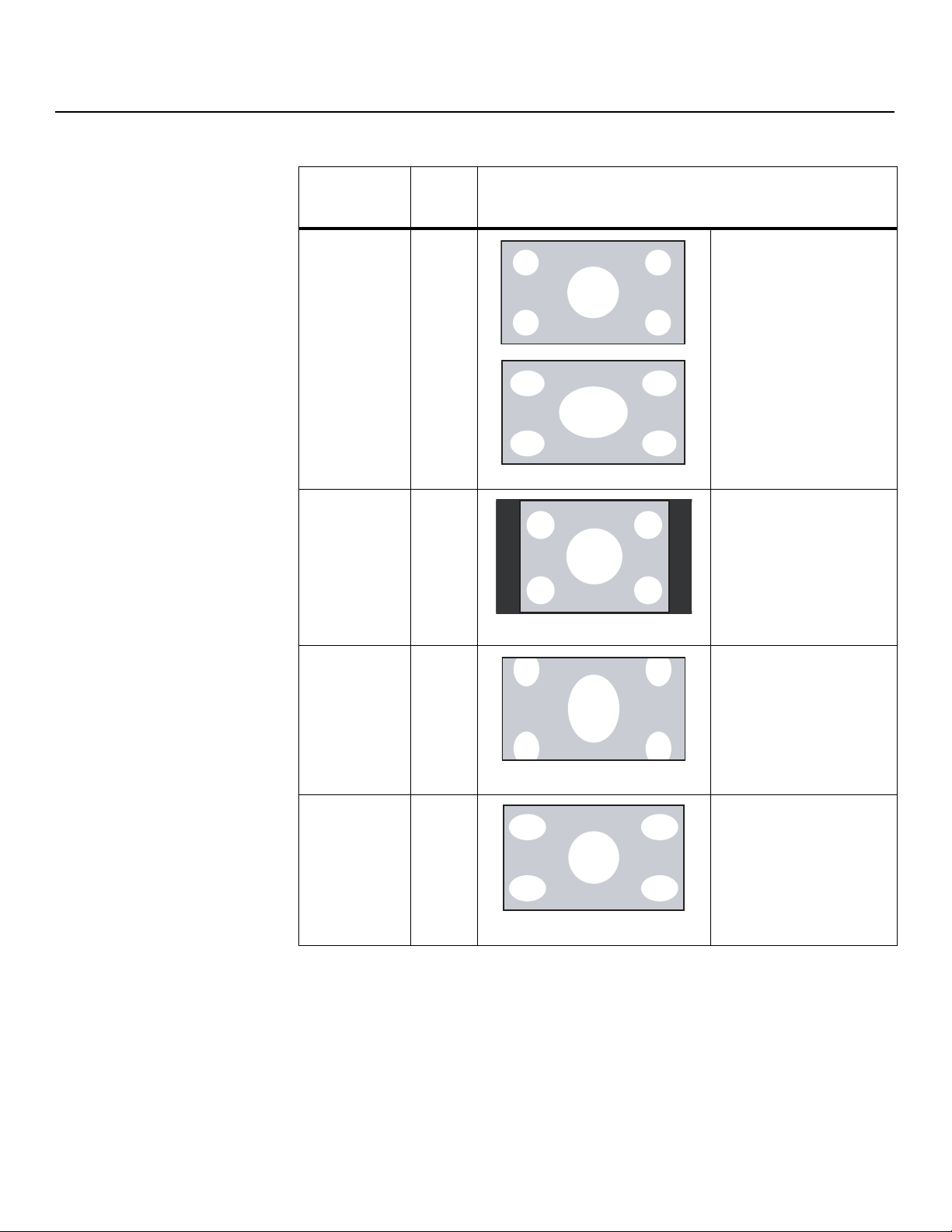

Table 4-1. Aspect Ratio Settings

Remote

Aspect Ratio

Anamorphic ANA Select Anamorphic to view

Control

Key

16:9 Image on

16:9 Screen

Description

16:9 DVDs and HDTV
programs in their native
aspect ratio. 4:3 images are
stretched horizontally to fit a
16:9 screen.

Standard 4:3 4X3 Standard 4:3 scales the input

IMINAR

Letterbox LBOX In Letterbox mode, the

L

PRE

IntelliWide I-WIDE A 4:3 image is scaled

4:3 Image on

16:9 Screen

Active Image

Area (4:3)

Letterbox Image on

16:9 Screen

Y

signal to fit in the center of
the 16:9 screen. 4:3 is the
aspect ratio used by
computer monitors,
standard television
programming and most VHS
video cassettes.

image is stretched vertically;
the top and bottom portions
are “blanked off.” Letterbox
is best suited for viewing
LaserDisc movies or
non-anamorphic DVDs on a
4:3 screen.

NON-linearly (more on the
sides than in the center) to
fit a 16x9 screen.

42 Vidikron Vision 30 Series Owner’s Operating Manual

Table 4-1. Aspect Ratio Settings (continued)

Remote

Aspect Ratio

Control

Key

Operation

Description

Cinema CINEMA

2.35:1 Image on
16:9 Screen

(without CineWide)

2.35:1 Image on

2.35:1 Screen

(with CineWide)

IMINAR

Cinema Fill C-FILL A 16:9 image is scaled

L

16:9 Image on

16:9 Image on

2.35:1 Screen

2.35:1 Screen

Select Cinema to view 2.35
source material in its native
aspect ratio.

With a 16:9 screen and a
non-CineWide projector (no
anamorphic lens), the upper
and lower portions of the
screen are masked, but the
geometry of the active
image area is unchanged.

With a 2.35:1 screen and a
CineWide-equipped
projector, the projector
enlarges the 2.35:1 image so
that the active image area
fills the 16:9 chip surface,
eliminating the black bars.
The secondary anamorphic
lens then vertically
compresses the image to fit
a 2.35:1 screen.

NON-linearly (more on the
sides than in the center) to
fit a 2.35:1 screen.

Y

Cinema Fill is available only

PRE

SD Enhance: The SD Enhance menu gives you options for improving the quality of
standard-definition, 480i images. (For 480p and higher-definition images, the controls in this
menu are disabled.) Keep in mind that these controls add frequencies that are not present in
the original signal, and may make images appear “noisy” if misused.

• H Enhance/V Enhance: These controls can improve the apparent horizontal and/or
vertical resolution of the image.

• Chroma Enhance: This control adds chroma (color information) to the input signal and
can make colors appear more vibrant and saturated.

• H Threshold/V Threshold/Chroma Threshold: Set these to +11 or higher to activate the
enhancement controls described above. Generally, the higher the threshold, the more
noticeable the enhancements you make will be.

Vidikron Vision 30 Series Owner’s Operating Manual 43

16:9 Image on

2.35:1 Screen with
Cinema Fill

on the Vision 30/CineWide
and Vision 30ET/CineWide.

Operation

Video Filter: The Video Filter setting controls the behavior of the Sharpness control. The
available settings depend on the vertical resolution of the input signal, as follows:

• With a 480i signal, you can apply the sharpness control to either the input signal (1), the
output signal (2), both (3) or neither (0).

• With a 480p or higher-resolution signal, the sharpness control is applied only to the
output signal and only when you set the

HD/RGB Adjust: Use the settings in the HD/RGB Adjust menu to fine-tune 480p and
higher-resolution signals for optimum picture quality.

•Auto: Adjusts the phase, frequency and position automatically.

•Freq. Adjusts the frequency of the signal.

•Phase: Adjust the phase if the image (usually from an RGB source) shows shimmer or

“noise.” Pixel phase adjusts the phase of the pixel sampling clock relative to the incoming
signal. The effect of this control is similar to that of a tracking control on a VCR.

For best results, use a good test pattern such as a smooth gray consisting of a clear pattern
of black and white pixels, or a similar “half on, half off” graphic image. (You may find that
you can stabilize the image at more than one point. Use either setting in this case.)

• H. Pos.: Adjusts the horizontal position of the image.

•V. Pos.: Adjusts the vertical position of the image.

Video Filter to “on” (1).

Y

Projector Status To load default settings, configure the sleep timer or adjust the lamp, select Projector Status

Projector Status

Default Load

Sleep Timer 30 Minutes

Lamp Power 200 W

Lamp Hours +8 Hours

0 Minutes

Note

IMINAR

Blue Enable: Press the or button to turn the Blue Enable Off or On. This feature
removes all red and green color information from the image (simulating a blue filter), and is
useful for color-calibrating the projector or other video components.

Save Settings: When you have finished making your adjustments, select Save Settings to
store the settings for the current input in the “Custom 1” memory location.

Load Saved Settings: To recall stored custom image quality settings, select Load Saved

PRE

Settings and choose “Custom 1,” “ISF Night” or “ISF Day.”

➤

from the Main Menu and press ENTER.

Default: To restore the default image settings for the current input source ONLY, press the
or button to highlight “Load,” then press ENTER.

Sleep Timer: The Sleep Timer automatically puts the projector into standby mode after the

amount of time you specify here. (A warning appears on-screen one minute before this is to
occur.)

Use the or button to set the timer for anywhere from 10 to 180 minutes (three hours), in
10-minute increments. To disable the Sleep Timer, set it to 0.

L

To adjust the image position with a 480i source, use the Image Shift
controls in the Service menu (see page 47).

Lamp Power: Select Lamp Power from the Projector Status Menu to adjust the lamp output
level. You can choose to run the lamp as bright as possible (250W; this is the default setting)
or you can choose the lower (200W) setting. Generally, lower lamp output can prolong the
life of the lamp, but decreases brightness.

44 Vidikron Vision 30 Series Owner’s Operating Manual

Lamp Hours: Lamp Hours indicates how long the currently-installed lamp has been in
service. (This part of the menu is read-only.)

highlight Installation and press ENTER. The Installation sub-menu, shown at left, appears.
Press EXIT to return to the previous menu or press MENU to close all menus.

Note

Language: Press the or button to select from the available OSD languages (English,
French, Spanish, German and Italian).

Picture Configuration: Press the or button to change the orientation of the projected
image. The Vision 30 can be installed on a ceiling or in a rear-screen configuration with one
or more mirrors. There are four settings: Floor Front, Ceiling Front, Floor Rear and Ceiling
Rear.

Keystone: To correct distortion resulting from the angle of projection, select Keystone and
use the or button to make the image rectangular.

When you change a setting in the Installation menu, the change takes
effect immediately; you do not need to press ENTER afterwards. (Press
EXIT to return to the previous menu or MENU to exit.)

Y

Operation

InstallationTo access the Installation adjustments, press MENU, then press the or button to

Installation

Language

Picture Configuration

Keystone

OSD Position

OSD Timer

PIP/PBP Setup

Background Color

Tip

Vidikron recommends that the keystone feature not be used unless
absolutely necessary, as it may cause artifacts in the image.

IMINAR

OSD Position: To adjust the horizontal and vertical position of the OSD, select OSD Position
and press ENTER. Then, press the

or button to adjust.

OSD Timer: Use the or button to set the OSD Timer. This timer controls how long the
menus remain on-screen after selecting them. Select from 0 to 60 seconds, in 3-second
increments. When you set the
them by pressing MENU.

PIP/PBP Setup: Select PIP/PBP Setup from the Installation menu to change the PIP/PBP
settings.

• PIP/PBP Enable: Press the or button to select PIP/PBP Enable, then press ENTER.
Press the or button to select Off or On, then press ENTER.

•PIP Set Up: Press the or button to select PIP Set Up, then press ENTER. Press the
or button to select PIP Off, Graphic in Video or Video in Graphic, then press ENTER.

•PBP Set Up: Press the or button arrows to select PBP Set Up, then press ENTER.
Press the or button to select PBP Off, Graphic by Video or Video by Graphic, then
press ENTER.

Background Color: Press the or button to select the image Background Color (grey,
blue or white). The Background Color appears when no incoming signal is present.

PRE

or button to select Horizontal or Vertical and use the

OSD Timer to 0, the menus remain on-screen until you hide

L

Vidikron Vision 30 Series Owner’s Operating Manual 45

Operation

Service To access advanced projector settings, use the up- or down-arrow keys to select Service from

Service

White Balance

Gamma Selection

ICC Adjust

Image Over Scan

Video Black Level

Image Shift

Amplitude

Horizontal Masking

Fan Control

Lamp Reset Timer

RS-232 Baud Rate

Remote Control

Return to User OSD

➤

the Main Menu and press ENTER. Use the number buttons on the remote to enter the Service
menu passcode when prompted and press ENTER again. Then, press MENU on the remote
control.

Note

White Balance: To remove any trace of color from the white areas of the projected image,
choose White Balance from the

•Gamma: “Gamma” is a global setting that determines how gray shades are displayed
between minimum input (black) and maximum input (white) for all signals. A good
gamma setting helps to optimize blacks and whites while ensuring smooth transitions for
the “in-between” values utilized in other grays. Unlike “Brightness” and “Contrast”
controls, the overall tone of your images can be lightened or darkened without changing
the extremes and all images will be more vibrant while still showing good detail in dark
areas.

In all but the most unusual situations, the appropriate “Gamma Selection” (see below) will
produce accurate colors and a satisfying contrast level. However, it is sometimes
necessary to adjust the red, blue and green gamma curves individually. To do this, select
Gamma from the White Balance sub-menu and use the left- and right-arrow buttons to
manipulate the on-screen slidebars.

•Gain: Use the Gain controls to correct color imbalances in the bright areas of the image. A
good way to do this is to use a test pattern consisting mostly of solid white areas, such as
an 80 IRE “window” pattern. If the white areas contain traces of red, green or blue,
decrease the Gain for that color.

• Offset: Use the Offset controls in the White Balance sub-menu to correct color imbalances
in the dark areas of the image. A good way to do this is to use a test pattern consisting
mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain
traces of red, green or blue, decrease the Offset for that color.

• Store Color Temp.4/Store Color Temp.5: When you are finished adjusting the Gamma,

PRE

Gain and Offset, select Store Color Temp.4 or Store Color Temp.5 to store your settings. To
recall them, set the Color Temperature to +4 or +5 in the Image Adjustment menu (refer
to

Picture Adjust on page 36).

IMINAR

L

You only need to enter the Service menu passcode the first time you select
that menu after turning on the projector.

Service menu and press ENTER.

Y

Gamma Selection: For almost all signals and conditions, the appropriate setting is 2.2 or 2.5.
If excess ambient light washes out the image and it becomes difficult or impossible to see
details in dark areas, lower the gamma setting to compensate. This will improve contrast
while maintaining good details for blacks. Conversely, if the image is washed out and
unnatural, with excessive detail in black areas, increase the setting. Again, good gamma
improves contrast while maintaining good details for blacks and whites.

46 Vidikron Vision 30 Series Owner’s Operating Manual

ICC Adjust: Use the ICC Adjust controls to customize the stored NTSC, HDTV and/or PAL
color space characteristics. To do this, select the color space to modify. Then, select a
component color (Red, Green, Blue, Yellow, Cyan or Magenta).

For each component color, you can adjust the following:

•Intensity: This slidebar adjusts the intensity – also known as luminance – of a given color.

•Sat. This slidebar adjusts the color saturation level -- the amount of that color in a video

image. Lower settings produce less saturated colors; a setting of “0” removes that color
from the image entirely. If the saturation is too high, that color will be overpowering and
unrealistic.

•Hue: This slidebar adjusts the red/green color hue for true color reproduction of video
signals. For best results, adjust tint while displaying an external color bars test pattern (see
Figure 4-4). Otherwise, it is recommended that Hue remain at its default setting.

When you have finished customizing the color space, select Store Setting and press ENTER.

Image Over Scan: Image Over Scan pushes the outside edge of the active picture area of the
video signal out beyond the edge of the display area.

Some television programs are produced based on the assumption that older television sets
may not display the outer edges of the broadcast picture area. Over scan effectively trims
away these inactive, outer edges and enlarges the remaining portion of the image to fill the
display area.

Y

Operation

Use the on-screen slidebar to select the desired amount of over scan.

For HDTV, DVDs and other video sources, Image Over Scan is generally not necessary or
desirable.

Video Black Level: This control compensates for incoming elevated black levels present in
certain video signals, and ensures that blacks in the display are neither “crushed” (where dark
grays appear black) nor excessively elevated (where blacks appear dark gray). By default, the
projector automatically determines the best setting according to the type of incoming video
signal:

•0 IRE: Used for DVD output with “enhanced black,” SECAM, most PAL standards and
Japanese NTSC.

•7.5 IRE: Used for most NTSC video signals.

For some types of video, you may want to override the setting. Generally, if black appears
crushed when brightness = 30, choose “0 IRE.” If black appears excessively elevated, use
“7.5

IRE.”

Image Shift: The Image Shift menu allows you to precisely center the image on the screen.
(These controls are available only with a 480i source signal.)

• Horizontal: This control moves the image right or left within the area of available pixels.

• Vertical: This option moves the image up or down within the area of available pixels.

Note

PRE

1. To adjust the image position with a 480p or higher-resolution source,
use the
page 44.

HD/RGB Adjust controls in the Option menu, described on

IMINAR

L

2. The values shown represent where the approximate center of the
image lies in relation to the total number of pixels available
horizontally or vertically. This varies widely according to the signal;
watch the image while adjusting.

Vidikron Vision 30 Series Owner’s Operating Manual 47

Operation

Amplitude: The Amplitude menu allows you to fine-tune the currently-selected image
aspect ratio by stretching it horizontally or vertically, in small increments. This can be useful if
your projector is equipped with an anamorphic lens.

The Horizontal control adjusts the image width while keeping the height constant. Similarly,
the Vertical control adjusts the image height while keeping the width constant.

Horizontal Masking (Vision 30/CineWide and Vision 30ET/CineWide only): To achieve
the proper image geometry with the secondary anamorphic lens, select
from the Service menu. Then, use the or button to change the native aspect ratio of the
display, in small increments.

Fan Control: Select Fan Control from the Service Menu to control the operation of the
projector’s cooling fan.

•Mode: In most cases, the default Fan Control Mode (Auto Normal) will maintain the
correct operating temperature. If the lamp frequently turns off due to overheating, or in
certain high-altitude operating environments, you may need to change this setting to
Auto Hi. Altitude or Manual.

• Fan Speed: If you set the Fan Mode to Manual, select Fan Speed and use the on-screen
slidebar to adjust the speed.

Y

Horizontal Masking

After changing either of these settings, press EXIT to return to the previous menu.

Lamp Reset Timer: When you replace the projector lamp (refer to Lamp Replacement on
page 53), you should also reset the lamp timer. To do this, select Lamp Reset Timer from the
Service menu. Press the right-arrow key on the remote to highlight “Yes,” then press ENTER
to confirm the reset.

IMINAR

L

Note

WARNING

PRE

RS-232 Baud Rate: To change the data rate of the projector’s RS-232 input, select RS-232
Baud Rate from the Service menu. Set it to either 9600, 38400 or 115200, to match the data
rate of the computer or control system connected to the projector.

Reset the Lamp Timer ONLY after you replace the lamp. Otherwise, the
reported “Lamp Hours” will be inaccurate.

Do not exceed the recommended lamp life of 2000 hours. An old lamp
becomes increasingly fragile and prone to sudden failure.

48 Vidikron Vision 30 Series Owner’s Operating Manual

Remote Control: The Remote Control menu shows you the primary and secondary infrared
(IR) codes to which the Vision 30 will respond. The Primary IR code is permanently set to +20.
The secondary IR code is also +20.

You can change the secondary IR code if either:

• Another device in the theater (a DVD player, for example) is responding to commands
from the Vision 30 remote control in ways that are unpredictable or undesirable.

• You have multiple Vision 30 projectors and want to control them independently, as
opposed to broadcasting commands from a single remote to all of them. In this scenario,
you can use multiple remotes programmed to use different IR codes. Or, you can use a
single remote and change the IR code as needed to address a specific projector.

When you change the secondary IR code, the remote sends that code instead of the primary
IR code.

Note

The Remote Control menu is read-only and need not be visible in order to
change the secondary IR code.

Y

Operation

To simultaneously change the secondary IR code and synchronize that remote with a
projector, point the remote at the projector, then press and hold
five seconds. The Remote Control edit window, shown at left, appears. Type a new, two-digit
code.

The procedure for changing the secondary IR code on the remote only is the same, except
that you point the remote away from the projector.

Return to User OSD: To exit the Service menu, use the up- or down-arrow keys to highlight
Return to User OSD and press ENTER.

To return to the Service menu, select it from the Main Menu, press ENTER twice, then press
MENU on the remote control. (You do not need to re-enter the passcode.)

IMINAR

L

and simultaneously for

PRE

Remote Control

Secondary 20

Vidikron Vision 30 Series Owner’s Operating Manual 49

Operation

ISF Calibration To access the ISF Calibration menu, select ISF Calibration from the Main Menu and press

ISF Calibration

Picture Adjust

White Balance

Gamma Selection

Blue Enable

Save ISF Settings

Splash Screen Timer

ISF Enable

Return to User OSD

➤

ENTER. Use the number buttons on the remote control to enter the ISF Calibration menu
passcode when prompted and press ENTER again. Then, press MENU on the remote control.

This menu should be used by ISF-certified technicians only.

Note

Picture Adjust: These settings are described in the Picture Adjust section (page 36).

White Balance / Gamma Selection: These settings are described in the previous section,

Service.

Blue Enable: This setting is described in the Image Option section (refer to page 44).

Y

Save ISF Settings: For each input, the Vision 30 lets you store image quality settings as
presets that you can recall at a later time. You can create up to three presets per input and
resolution.

Note

To store image quality settings to a preset:

When you change a setting, save the change to a preset afterwards.
Otherwise, the change will be lost when a different input is selected.
(Most settings are saved for each input and resolution separately.)

1. Select Picture Adjust from the ISF Calibration menu.

2. Select Color Temp. from the Picture Adjust menu.

3. Use the or button to set the color temperature to “4” or “5.” Make a note of your

selection.

4. Press EXIT.

5. Adjust brightness and contrast as described in the Picture Adjust section (page 36). Exit
the Picture Adjust menu when finished.

6. Select White Balance from the ISF Calibration menu. Adjust the grayscale as required

PRE

(refer to

7. From the White Balance menu, select “Save Color Temp. 4” or “Save Color Temp. 5”
(depending on your selection in Step 3) and press ENTER.

8. From the ISF Calibration menu, select Save ISF Settings and choose “Save ISF Night” to
store your settings.

9. Repeat Steps 1 through 8 for the “Save ISF Day” preset.

Tip

To recall stored custom image quality settings, select Load Saved Settings from the Image
Option menu (refer to Image Option on page 41) and choose “Custom 1,” “ISF Night” or
“ISF Day.” Or, simply use the corresponding buttons on the remote control.

IMINAR

L

White Balance on page 46).

The first time you perform this procedure, store the current white balance
settings in both color temperatures (4 and 5). This will give you a
convenient starting point for color temperature 5, should you wish to use it
for the other preset.

50 Vidikron Vision 30 Series Owner’s Operating Manual

Splash Screen Timer: Use the or button to set the Splash Screen Timer. This timer
controls how long the startup (ISF and Vidikron logo) image stays on-screen after you turn on
the projector. Select from 5 to 60 seconds, in one-second increments. When finished, press

EXIT.

ISF Enable: Select ISF Enable from the ISF Calibration menu to control the display of the ISF

logo on the Vision 30 splash screen upon power-up.

You can personalize the Vision 30 splash screen with the projector owner’s name and/or the
installer’s name. For instructions, refer to

Return to User OSD: To exit the ISF Calibration menu, use the up- or down-arrow keys to
highlight

To return to the ISF Calibration menu, select it from the Main Menu, press ENTER twice, then
press MENU on the remote control. (You do not need to re-enter the passcode.)

Return to User OSD and press ENTER.

Appendix A.

Y

Operation

IMINAR

L

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 51

Operation

Notes:

Y

IMINAR

L

PRE

52 Vidikron Vision 30 Series Owner’s Operating Manual

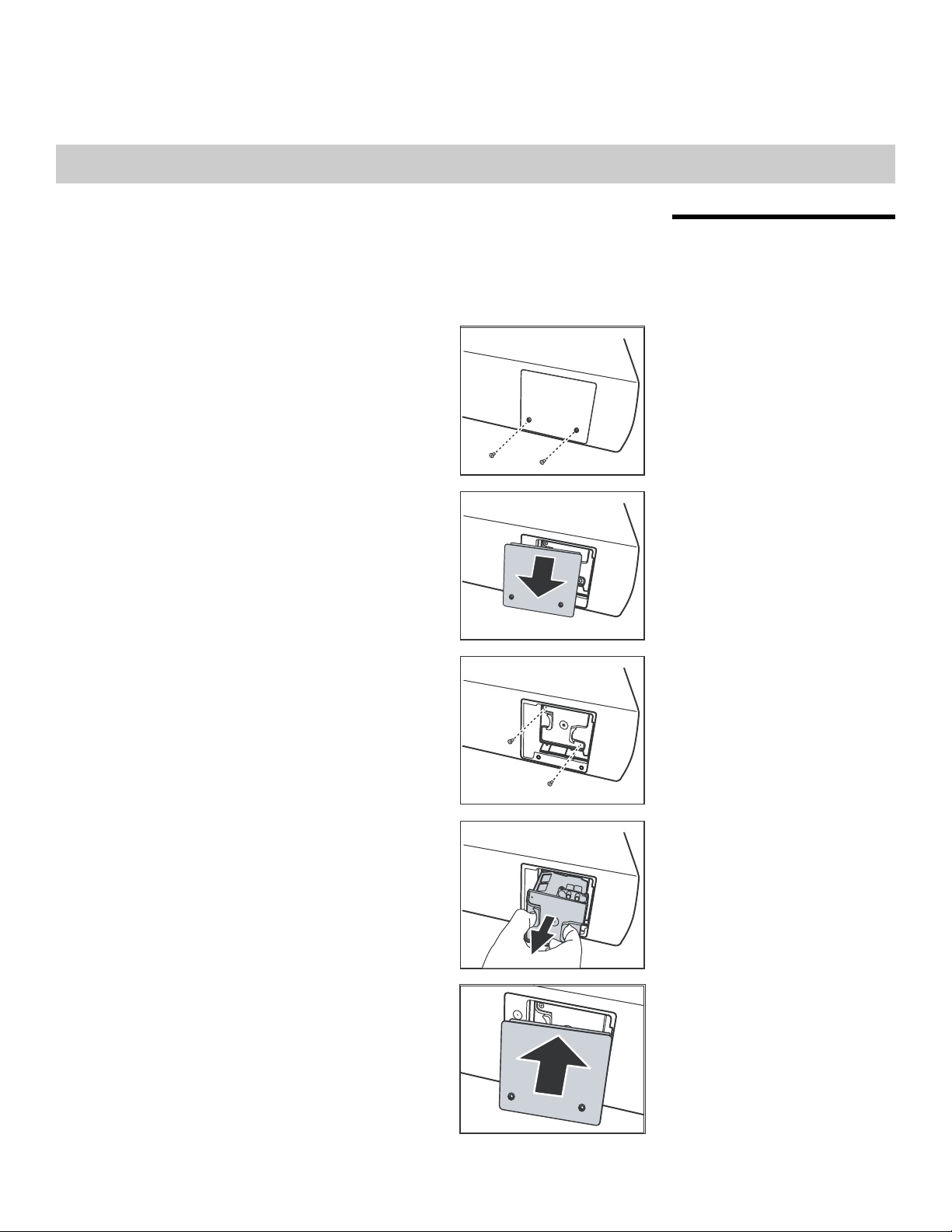

5Maintenance and Troubleshooting

The lamp should be replaced when it reaches the end of its life (typically 2000 hours), or
sooner if a noticeable degradation in brightness occurs. Contact your Vidikron dealer to
obtain a replacement lamp.

1. Turn off the projector and unplug the power cord.

Allow the projector to cool down for
approximately 45 minutes prior to removing the
lamp assembly for replacement.

2. Remove the two screws from the lamp cover.

3. Remove the lamp cover.

4. Remove the two lamp assembly mounting screws.

PRE

IMINAR

L

5.1 Lamp Replacement

Y

5. Grasp the lamp assembly handle and pull gently,
removing the lamp module from the projector
housing.

6. Install the new lamp module and replace the two
screws you removed in Step 4.

7. Replace the lamp cover at the top first and secure it
with the two screws you removed in

8. Turn on the power and select Lamp Reset Timer from
the Service menu to reset the lamp timer (refer to
Lamp Reset Timer on page 48).

Vidikron Vision 30 Series Owner’s Operating Manual 53

Step 2.

Maintenance and Troubleshooting

5.2

Troubleshooting Tips

Table 5-1 provides some general guidelines for troubleshooting problems you may
encounter with the Vision 30. If the suggested solutions fail to resolve the problem or if you
encounter an issue not described here, please contact Vidikron Technical Support.

Table 5-1. Troubleshooting Chart

Symptom Possible Cause(s) Solution

The projector does not turn on. • The Vision 30 is not

plugged in or the AC outlet
is not active.

• The main power switch (at
the rear of the projector) is
off.

• Lamp cover is not securely
attached.

The projector does not turn
back on after it was powered
off.

The remote control does not
work correctly.

The projector is on and OSD
menus appear, but there is no
video image on-screen.

IMINAR

L

• The projector will not turn
on for two minutes after
power-off, to protect the
lamp.

• The batteries have run out. • Replace the batteries.

• Incorrect source selection.

• Source component is not
turned on.

• Source component is
connected incorrectly or
not at all.

Y

• Ensure that the Vision 30 is
plugged in and that the AC
outlet is active.

• Turn on the power switch.

• Securely attach the lamp
cover.

• Wait until the Vision 30
completes its cool-down
(POWER LED lights solid
orange).

• Select the correct source.

• Turn on the source.

• Check cable connection
from source component to
projector.

A projected image from a DVD
is split or otherwise scrambled.

PRE

Image is blurred. • The lens is not correctly

Image is too bright and/or
lacks definition in the bright
areas of the image.

Image appears “washed out”
and/or dark areas appear too
bright.

Colors in the image are
swapped; for example, reds
appear blue or vice versa.

TEMP and LAMP LEDs are both
flashing red.

• DVD player is connected to
the Component input and
set to progressive scan
mode.

focused.

• Contrast is set too high. • Lower the contrast setting.

• Brightness is set too high. • Lower the brightness

• The Red/Pr, Green/Y or
Blue/Pb outputs from the
source are connected to the
wrong inputs on the Vision

30.

• The lamp cover is open.

•Fans are not working
properly.

• Turn off progressive scan
on the DVD player.

• Adjust the focus by turning
the focus ring.

setting.

• Ensure that the source
outputs are connected to
the correct Vision 30 input.

• Close the lamp cover.

• Please contact your
Vidikron dealer for
assistance.

54 Vidikron Vision 30 Series Owner’s Operating Manual

Table 5-1. Troubleshooting Chart (continued)

Symptom Possible Cause(s) Solution

Maintenance and Troubleshooting

LAMP LED lights solid red. • The lamp has failed or

exceeded its usage life.

TEMP LED lights solid red. • Vision 30 internal

temperature is too high.

• Replace the lamp with a
new one.

• Power off the Vision 30 and
allow it to cool down.
Ensure that the intake and
exhaust vents are not
blocked. Turn the projector
back on. If the problem
persists, please contact
your Vidikron dealer for
assistance.

Y

IMINAR

L

PRE

Vidikron Vision 30 Series Owner’s Operating Manual 55

Maintenance and Troubleshooting

Notes:

Y

IMINAR

L

PRE

56 Vidikron Vision 30 Series Owner’s Operating Manual

6Serial Communications

To interface the Vision 30 with a home theater automation/control system or a PC running
terminal emulation software:

1. Connect it to your control system or PC as shown in Figure 3-9.

2. Start a terminal session on your PC using a terminal-emulation program, such as
HyperTerminal.

3. Configure the RS-232 controller or PC serial port as follows: no parity, eight data bits, one
stop bit and no flow control. Set the baud rate to match that of the projector (115200,
38400 or 9600).

4. Press <Enter>. You should see a command prompt (>) in the terminal window.

5. Type a command from among those listed in Table 6-1 and press <Enter>. For
example, to change the aspect ratio to Letterbox, type x063x <Enter>.

Serial commands to the Vision 30 take the following form:

• Commands are in ASCII format.

• Commands are not case-sensitive; X001X and x001x are equivalent.

• A carriage return MUST follow each command.

Y

IMINAR

Note

The Vision 30 will not accept serial commands for 30 seconds after it is
turned on or off.

L

6.1 RS-232 Connection and Port Configuration

6.2 Serial Command Syntax

Table 6-1. Serial Commands

Code Function

x001x Power On

x002x Power Off

x003x Menu

x004x Enter

x005x Exit

x006x Up (arrow key)

x007x Down (arrow key)

x008x Left (arrow key)

x009x Right (arrow key)

x011x Show active source and aspect ratio information

x021x Keypad 1

Vidikron Vision 30 Series Owner’s Operating Manual 57

PRE

Serial Communications

Table 6-1. Serial Commands (continued)

Code Function

x022x Keypad 2

x023x Keypad 3

x024x Keypad 4

x025x Keypad 5

x026x Keypad 6

x027x Keypad 7

x028x Keypad 8

x029x Keypad 9

x030x Keypad 0

x031x Store image settings to Custom 1

x032x Store image settings to ISF Night

Y

x033x Store image settings to ISF Day

x046x Restore image settings from Custom 1

x047x Restore image settings from ISF Night

x048x Restore image settings from ISF Day

x049x Load default of current source

x051x Single source, full-screen

x052x PIP - graphics on video

x053x PIP - video on graphics

x054x PBP - graphics by video

PRE

x055x PBP - video by graphics

x056x PIP - increase sub-window size

x057x PIP - decrease sub-window size

x058x Set PIP/PBP active window

x061x Anamorphic (16:9) aspect ratio

x062x Standard (4:3) aspect ratio

x063x Letterbox aspect ratio

IMINAR

L

x064x IntelliWide aspect ratio

x065x Cinema aspect ratio

x066x Cinema Fill aspect ratio

x071x RS-232 baud rate = 9600

x072x RS-232 baud rate = 38400

58 Vidikron Vision 30 Series Owner’s Operating Manual

Table 6-1. Serial Commands (continued)

Code Function

x073x RS-232 baud rate = 115200

x081x Image orientation = floor front

x082x Image orientation = ceiling front

x083x Image orientation = floor rear

x084x Image orientation = ceiling rear

x091x Lamp Power = 200W

x092x Lamp Power = 250W

x121x OSD Language = English

x122x OSD Language = French

x123x OSD Language = Spanish

x124x OSD Language = German

Serial Communications

Y

x125x OSD Language = Italian

x131x Switch to Composite input

x132x Switch to S-Video input

x133x Switch to RGB-HD input

x134x Switch to DVI input (HDMI)

x135x Switch to Component 1 input

x136x Switch to Component 2 input

x156x Background Color = Grey

x157x Background Color = Blue

x158x Background Color = White

x161x Un-freeze Image

x162x Freeze Image

x181x Toggle Blue Image on/off

PRE

IMINAR

L

Vidikron Vision 30 Series Owner’s Operating Manual 59

Serial Communications

Notes:

Y

IMINAR

L

PRE

60 Vidikron Vision 30 Series Owner’s Operating Manual

7Specifications

Table 7-1 lists the Vision 30 specifications.

Table 7-1. Vision 30 Specifications

Projector Type: Digital Light Processing (DLP), Single-Chip DMD

Native Resolution: 1280 x 720 (16:9)

Aspect Ratios: 4:3, Letterbox, 16:9 Anamorphic, IntelliWide, Cinema, Cinema Fill

Video Standards: NTSC, PAL, SECAM

DTV Compatibility: 480p, 576p, 720p, 1080i

Scan Frequency: Horizontal: 15 - 80 kHz

Vertical: 50 - 100 Hz

Picture Size (16:9 Screen): Recommended Width: 72 in. (1.83 m) to 96 in. (2.44 m)

Capable of screen widths between 48 in. (1.22 m) and 200 in.
(5.08 m)

Throw Distance
(Factor x Screen Width):

Horizontal and Vertical Lens
Shift:

Video Inputs: (1) Composite Video, (1) S-Video, (1) RGB/Component Video

Refer to Table 3-3

None; electronic image shift via OSD controls

IMINAR

L

(BNC connectors), (1) RCA Component Video, (1) HDMI

7.1 Vision 30 Specifications

Y

Control Options: - Discrete IR remote

-Built-in keypad

- Serial commands via RS-232

RS-232 Communication
Parameters:

12V Output: Max. 0.25 Amps, active when projector is turned on; Tip = +12V;

9600, 38400 or 115200 bps, no parity, 8 data bits, 1 stop bit, no

PRE

flow control

Sleeve = Ground

Vidikron Vision 30 Series Owner’s Operating Manual 61

Specifications

Table 7-1. Vision 30 Specifications (continued)

Brightness and Contrast: Cinema Standards Measurement System (CSMS)

Specifications

- Brightness: 12.5 to 19.0 foot-Lamberts (fL)

- Contrast Ratio: 188:1 to 203:1

These measurements are taken from the projector in a controlled, home
theater environment. All measurements are made to ANSI/NAPM
IT7.228-1997 specifications using the Photo Research PR-650
SpectraColorimeter and Minolta LS-100 Luminance Meter, Video
Essentials test DVD and a 1.3 gain, 72-inch wide screen. The projector is
calibrated to a color temperature of 6,500K and has a minimum of 150
hours of usage.
The foot-Lambert (fL) is the unit of measurement used in commercial
movie theaters to express image brightness at the screen surface. The
Society of Motion Picture and Television Engineers (SMPTE) specifies
16

fL as the target image brightness for film-based projectors using an
open gate (without film in the projector). More importantly, today
SMPTE specifies 12 fL as the target image brightness in Digital Cinema
theaters. The foot-Lambert measurement is dependent on screen size,
screen gain and projector light output.

Home Theater Calibration Specifications

- Light Output: 400 to 525 ANSI Lumens

- Contrast Ratio: 188:1 to 203:1

These specifications are obtained by calibrating the projector as
described above for CSMS measurements.

Industry-Standard Specifications

- Light Output: 1100 ANSI Lumens

- Contrast Ratio: 1350:1 to 2150:1

IMINAR

L

These are typical projector brightness and contrast specifications found
in most companies’ sales literature. Vidikron includes these
measurements in its literature to allow for direct comparison with other
manufacturers’ projectors. These measurements are typically taken at
9,000K to 13,000K to get expected performance data when the projector
is used in professional, commercial and industrial displays.

Y

Lamp: 250 Watts

Estimated Lamp Life: 2000 hours

PRE

Power Requirements: 100 to 240 VAC (auto-sensing), 50/60 Hz, 310 Watts

Operating Environment: 41°F to 95°F (5°C to 35°C), 20% to 80% humidity

Dimensions: See Figure 7-1

Weight (without lens): 31.5 lbs. (14.29 kg)

Regulatory Approvals: Complies with FCC, CE C-Tick

Limited Warranty: Projector: Two (2) years parts and labor from the date of delivery

Specifications are subject to change without notice.

(non-condensing)

to the end user.
Lamp: 1000 hours or six (6) months, whichever comes first.

62 Vidikron Vision 30 Series Owner’s Operating Manual

Specifications

Figure 7-1 shows the Vision 30 dimensions.

7.2 Vision 30 Dimensions

6.230 in.
(158.24 mm)

2.362 in. (59.99 mm)

0.65 in. (16.51 mm)

Y

IMINAR

16.614 in. (422.00 mm)

PRE

6.181 in.

(157.00 mm)

Figure 7-1. Vision 30 Dimensions

1.457 in. (37.01 mm)

17.717 in. (451.38 mm)

L

8.877 in. (225.48 mm)

14.803 in. (376.00 mm)

3.024 in.
(76.81 mm)

12.565 in.

8.076 in
(205.13 mm)

1.843 in.

(319.15 mm)

(46.81 mm)

M6 x 1.00 x 16mm

(4x)

2.579 in. (65.51 mm)

11.181 in. (284.00 mm)

Vidikron Vision 30 Series Owner’s Operating Manual 63

Specifications

Notes:

Y

IMINAR

L

PRE

64 Vidikron Vision 30 Series Owner’s Operating Manual

A Personalizing the ISF Splash Screen on

This Appendix describes how to personalize the ISF splash screen on the Vidikron Vision 30
Series DLP Projectors.

the Vision 30

Note

1. Connect a PC to the Vision 30 RS-232 port and establish a serial connection; refer to
RS-232 Connection and Port Configuration on page 57 if you need instructions.

2. Press MENU on the projector remote control. Use the up- or down-arrow keys to
highlight ISF Calibration and press ENTER. Use the number buttons on the remote
control to enter the ISF Calibration menu passcode, then press ENTER again.

3. Press MENU on the projector remote control. Then, select Splash Screen Timer from
the ISF Calibration menu.

4. Use the left- or right-arrow buttons to set the Splash Screen Timer. This timer controls
how long the startup (Vidikron/ISF logo) image stays on-screen after you turn on the
projector. The range is from 5 to 60 seconds in 1-second increments. For this procedure,
set it to 30 seconds and press EXIT.

5. In the HyperTerminal window, at the command prompt (>), type U1 followed by the
customer name, four or five spaces and the ISF calibrator name:

Only ISF-trained and -certified technicians should attempt this
procedure!

IMINAR

L

PRE

Y

6. Press <Enter>.

7. Press MENU on the projector remote control. Then, select ISF Calibration from the Main
menu.

8. Select ISF Enable from the ISF Calibration menu and set it to On.

Vidikron Vision 30 Series Owner’s Operating Manual A-1

Personalizing the ISF Splash Screen on the Vision 30

9. Power-cycle the projector to see the change:

CALIBRATED FOR:

John Doe By: Tinh Ho

CUSTOM BUILT BY:

Y

IMINAR

L

PRE

A-2 Vidikron Vision 30 Series Owner’s Operating Manual
