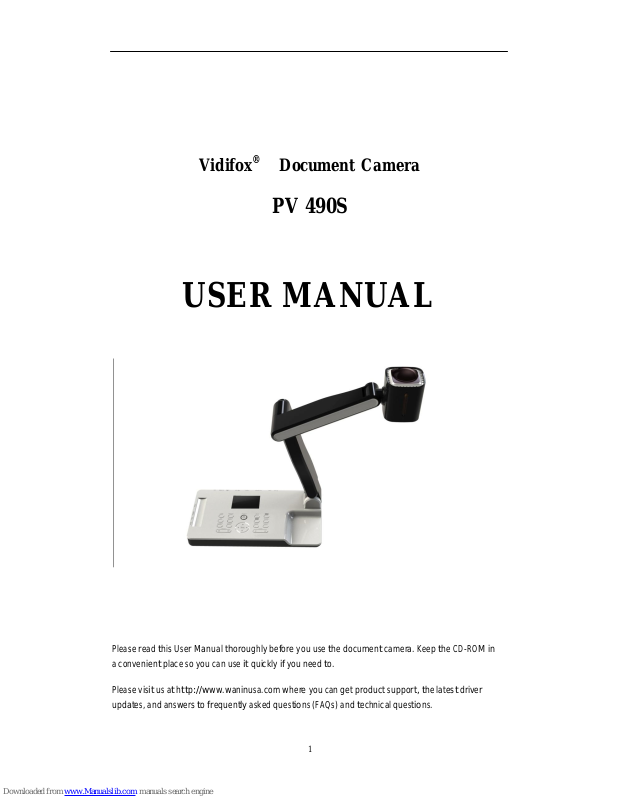

Page 1
Vidifox
®
Document Camera
PV 490S
USER MANUAL
Please r
ead this User Manual thoroughly before you use the document camera. Keep the CD-ROM in
a convenient place so you can use it quickly if you need to.
Please visit us at http://www.waninusa.com where you can
get product suppo
rt, the latest driver
updates, and answers to frequently as
ked ques
tions (
FAQs) and t
echnical ques
tions.
1
Page 2
PRECAUTIONS
NOTICES: PLEASE READ CAREFULLY BEFORE USE
Use the document camera under the rated electric conditions.
Do not place the docum ent cam er a on any unstable surfac e. It m ay fall and caus e injur ies or
damages.
Do not place this device directly under sunlight or near heaters.
Do not place this device near water.
Keep the camera away from acid or alkali gas.
Do not place this document camera in humid, dusty, windy or vibrant locations.
The recommended operating environment is:
Temperature: 32ºF-113ºF (0ºC--45ºC)
Humidity: less than 75%
Always unplug BEFORE cleaning the device. Use a damp soft-cloth for cleaning. Do not
use volatile solvent.
When this equipment functions abnormally, such as smoke, smell, noise, immediately
unplug and call for professional assistance.
Unplug the docum ent camera or shut off the power when not in use.
Legal Notice
FCC Part 15
This device complies with Part 15 o f the FCC Rules. Operation of this product is subject to the
following two conditions: (1) this device may not cause h armful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Compilation and Publication Notice
This manual has been compiled and published to cover the latest product’s descriptions and
specifications. The contents of this manual and the specifications of this product are subject to
change without notice.
Wanin USA reserves the right to make changes without notice in the specifications and materials
contained herein and shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors relating
to the publication.
© 2010 Wanin USA Inc. All Rights Reserved.
2
Page 3
Table of Contents
1
. PARTS IDENTIFICATION.................................................................5
2. CONTROL PANEL ..............................................................................6
3. INPUTS AND OUTPUTS ....................................................................8
4. REMOTE CONTROL .........................................................................9
5. CONNECTIONS.................................................................................12
5.1. COMPUTER CONNECTION .........................................................................................12
5.2. USB-A CON N EC TI ON .................................................. ........ .... ...... ......... .... ........ ..........13
5.3. VGA OUT PUT C ONNECTI ON........................................ ............ ............... .......... .........14
5.4. C-VIDEO OUTPUT CONNECTION..............................................................................14
5.5. S-VIDEO OUTPUT CONNECTION ..............................................................................15
5.6. DVI OUTPUT CONN ECTION .......................................................................................15
6. COMMUNICATE WITH COMPUTER ..........................................16
6.1. COMPUTER REQUIREMENTS ....................................................................................16
6.2. CONTROL VIA RS232 ...................................................................................................16
6.3. USB FUNCTION........................................ .... ........ ....... .... ........ ...... ..... ........ ........ .. .........22
6.3.1. USB-A............................................... ......... .... ........ ....... .... ........ ...... ..... ........ ........ .22
6.3.2. USB-B ................................................................ ...... ..... ........ ........ .. ......... ........ .....22
6.3.2.1. COMPUTER REQUIREMENTS ..............................................................20
6.3.2.2. PREPARATION FOR INST ALLATION ........................... ...... ......... ........ .20
6.3.2.3. SOFTWARE INSTALLATION .......................................... .... ....... ........ ....24
6.3.2.4. START T HE SOFTWAR E ............................................... .... ....... ........ ... 28
6.3.2.5. IMAGE CONTROL...................................................................................29
6.3.2.6. IMAGE CAPTUR E A ND VIDEO RECO RDING.....................................31
6.3.2.7. SETTING .................................................................................... ......... .... ..32
6.3.2.8. IMAGE MODIFY .....................................................................................33
7. FEATURES .........................................................................................40
LIGHT.....................................................................................................................................40
ZOOM IN AND ZOOM OUT ................................................................................................40
POSITIVE/NEGATIVE CONVERSION ....................... .. ......... ........ .... ....... ........ .... ...... ........40
FOCUS ADJUSTME NT ............. .............................................. ..............................................40
BRIGHTNESS ADJUST MENT ............... .............................................. ................................41
WHITE BALANCE ADJUSTMENT .................................................... .................................41
IMAGE FREEZE ....................................................................................................................41
IMAGE ROTATE....................................................................... .... ........ ....... .... ........ ...... ..... ...41
SPLIT SCREEN............................................. ............ ...... ............. .......... ......... ............ ...........41
TITLE FUNCTION ................................................................................................................41
PICTURE IN PICTURE FUNCTION ....................................................................................41
IMAGE SAVE....................................................................................... ....... ........ .... ...... .........41
3
Page 4
IMAGE RECALL ...................................................................... ........ ...... ..... ........ ........ .. ........41
RGB INPUT SWITCH ...........................................................................................................42
OUTPUT SWITCH............................... ................... ................... .............. ..................... .........42
USB IMAGE CAPTURE AND VIDEO RECORDI NG.........................................................42
RS232 CONTROL ..................................................................................................................42
8. SPECIFICATION ...............................................................................42
9. TROUBLE-SHOOTING....................................................................43
10. PACKING LIST................................................................................44
1 1. TECHNICAL SUPPOR T .................................................................45
4
Page 5
1.
PARTS IDENTIFICATION
1. Remote control IR receiver
2. Camera
3. LED light box
4. Upper mechanical arm
5. Main mechanical arm
6. Side panel
7. Back panel
8. LCD
9. Base unit
10. Control p anel
5
Page 6
2. CONTROL PANEL
1. POWER: Tur n on/off the power .
2. MENU ENTER: a. Activate the on screen menu.
b. Display the selected image in Image Recall mode.
3. PC | CAM USB_ :
a. Press this button for shorter than 2 seconds to toggle between the image from the Camera and
the VGA input.
b. Press and hold it for longer than 2 seconds to activate the USB Mode selection menu on screen.
Use Up and Down arrows to select a desired USB mode, press MENU ENTER key to confirm.
4. OUTPUT: Press this key to activate the Output Port selection menu on screen. Use Up and
Down arrows to select a desired output port, press MENU ENTER key to confirm. If you select
VGA & DVI-A port, you can press the S/W/XGA button to select an output format.
5. SPLIT: Split screen, enable the comparison between the frozen image and live image.
6. TITLE: Enable the title function.
7. ROTATE LAMP: Press and hold for longer than 2 seconds to turn the LED light on or off;
Press briefly to rotate the displayed image by 90°, 180°, and 270°.
8. AUTO DEL : a. Carry out automatic adjustment for focus, color and white balance.
b. When in Image Recall mode, press this button to delete a selecte d i mage.
9. BRIGHT+/-: Image brightness adjustment.
10. SAVE: Capture the current image. If a USB drive is connected to the document camera, the
image will be saved to the USB drive; otherwise, the image will be saved to internal memory.
11. RECALL:
a. In Camera Mode, press this button to enter the Image Recall mode.
(1) When no USB drive is connected to the document camera, thumbnails of images in the
6
Page 7
internal memory will be displayed. Use PAGE+/- keys to navigate between pages; Use
arrow keys to select a thumbnail; Press MENU ENTER button to display the selected
image.
(2) When a USB drive is connected to the document camera, contents of the USB drive
will be displayed on screen. Use up and down arrows to select a folder or image file;
Press MENU ENTER button to enter the selected folder or display the selected image.
b. In Image Recall mode, press this button to go back to an upper level.
12. Page +/-: Navigate pages of image thumbnails in Image Recall mode.
FREEZE :
13.
S/W/XGA
14.
rF eeze the displayed image in Camera mode.
: Switch the output format between SXGA , WXGA, and XGA in Camera mode.
15. FOCUS+/-: Adjust focus manually, focus far and focus near.
16. ZOOM+/-: Image zoom in and zoom out control.
17. Arrow Keys:
a. In Image Recall Mode, use arrow keys to navigate the thumbnail images;
b. In On-Screen Menu mode, use arrow keys to select menu items (see details below).
18. MENU ENTER
a. In Camera mode, press and hold MENU ENTER key to enter the On-Screen Menu mode,
then
1. Use left and right arrows to navigate the menu bar;
2. Press MENU ENTER button briefly to enter the submenu;
3. Use up and down arrows to select a function;
4. Use left and right arrows to change parameters of the selected function.
5. Press and hold MENU ENTER key at anytime to exit the On-Screen Menu mode.
b. In Image Recall mode, press MENU ENTER key to display a selected image.
7
Page 8
3. INPUTS AND OUTPUTS
1. DC 12V: Power input.
2. RS 232: Serial port, to control the document camera from a computer via this port.
3. DVI: DVI-A signal output.
4. AUDIO OUT: Audio output.
5. VGA OUT: VGA (RGB) signal outp ut ( 15 pi n D-SUB).
6. CVBS: Com posit e Video out put.
7. S-VIDEO: S-Video output.
8. VGA IN: VGA (RGB) signal input (15 pin D-SUB).
9. AUDIO IN: Audio input.
10. USB-A: Communicate with a USB device, such as a USB mouse or USB drive stick.
11. USB-B:
a. In USB Video Mode, capture images or record video into a connected
computer via provided software;
b. In USB Disc Mode, download saved images to a connected computer.
8
Page 9
4. REMOTE CONTROL
1. : Turn the document camera on or off.
2. PC/CAM: Press this button to toggle the output image between the document camera and
VGA-IN.
9
Page 10
3. Output Port: Press this button to activate the Output Port selection menu on screen. Use Up
and Down arrows to select a desired output port, press MENU ENTER button to confirm.
4. Output Format: Press this button to activate the Output Format selection menu on screen. Use
Up and Down arrows to select a desired output format, press MENU ENTER button to
confirm.
5. Arrow Buttons:
a. In Image Recall Mode, use arrow buttons to navigate the thumbnail images;
b. In On-Screen Menu mode, use arrow buttons to select menu items (see details below).
6. MENU ENTER
a. In Camera mode, press and hold the MENU ENTER button to enter the On-Screen Menu
mode, then
1. Use left and right arrow buttons to navigate the menu bar;
2. Press MENU ENTER button briefly to enter the submenu;
3. Use up and down arrows to select a function;
4. Use left and right arrows to change parameters of the selected function.
5. Press and hold MENU ENTER button at anytime to exit the On-Screen Menu mode.
b. In Image Recall mode, press MENU ENTER button to display a selected image.
7. : Turn the LED light on or off.
8. : Activate the USB Mode selection menu on screen. Use Up and Down arrows to select
USB Disc, USB Video, or Exit, press MENU ENTER button to confirm.
9. Save: Capture the current image. If a USB drive is connected to the document
camera, the image will be saved to the USB drive; otherwise, the image will be saved to internal
memory.
10. RECALL:
a. In Camera Mode, press this button to enter the Image Recall mode.
(1) When no USB drive is connected to the document camera, thumbnails of images in the
internal memory will be displayed. Use PAGE+/- keys to navigate between pages; Use
arrow keys to select a thumbnail; Press MENU ENTER button to display the selecte d
image.
(2) When a USB drive is connected to the document camera, contents of the USB drive
will be displayed on screen. Use up and down arrows to select a folder or image file;
Press MENU ENTER button to enter the selected folder or display the selected image.
b. In Image Recall mode, press this button to go back to an upper level.
11. Page +/-: in Image Recall mode, navigate between pages of thum bnail images.
12. AUTO DEL:
a. In Camera mode, carry out automatic adjustment for focus, color and white balance.
b. In Image Recall mode, press th is button to delete a selected image.
13. TITLE: Enable the title function.
10
Page 11
14. Zoom+/-: Image zoom in and zoom out control.
15. Split: Split screen, enable the comparison between the frozen image and live image.
16. Bri+/-: Image brightness adjustment.
17. Frz: Freeze/unfreeze the image
18. Fc+/-: A djust focus manuall y, focus far and focus near.
19. : Rotate the image by 90o, 180o, 270o.
20. Sharp+/-: Adjust sharpness of the image.
21. Neg: Switch the image between positive and negative colors.
22. PIP: Active the Picture in Picture function.
a. Press Recall button, then use arrow buttons to select a saved image, press PIP to choose
it for PIP image.
b. Press Recall to exit the Image Recall mode, then press PIP again, there a small window
will appear on the lower right corner, showing the selected image.
23. T/P: Switch the output image between the text mode and picture mode
.
11
Page 12
5. CONNECTIONS
5.1. COMPUTER CONNECTION
RS232 cable
To RS232
USB
Audio Cable
To Audio Output
To RGB Output
12
Page 13
5.2. USB-A CONNECTION
13
Page 14
5.3. VGA OUTPUT CONNECTION
5.4. C-
VIDEO OUTPUT CONNECTION
Audio Cable
To Audio Input
To Video Input
Video Cable
14
Page 15

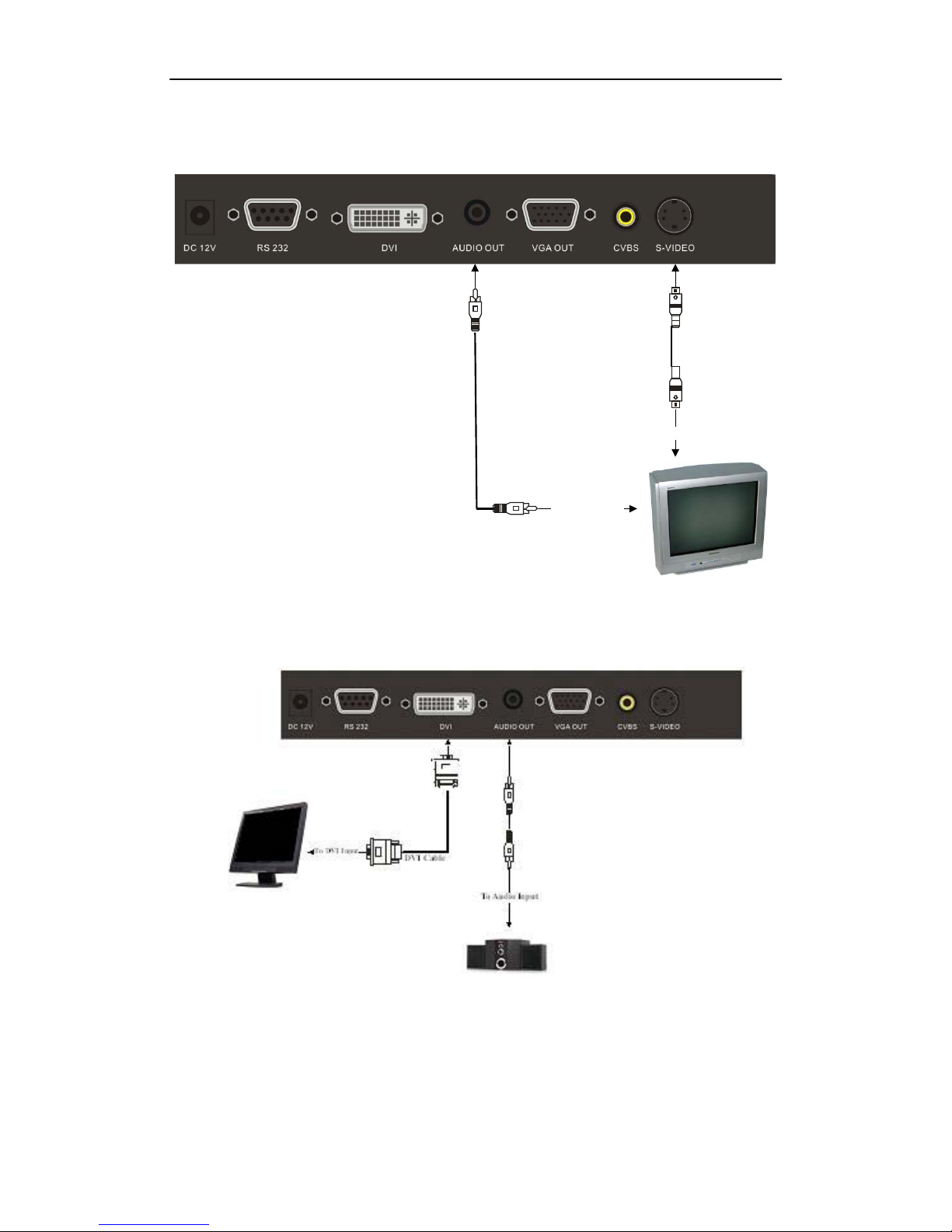

5.5. S-VIDEO OUTPUT CONNECTION
S-Vide Cable
Audio Calbe
5.6. DVI OUTPUT CONNECTION
To Audio input
To S-Video in
15
Page 16
6. COMMUNICATE WITH COMPUTER
6.1. COMPUTER REQUIREMENTS
The PC's hardware and software configurations shall not be less than the following requirements：
Operating system: Windows XP
CPU: 1.8 GHz
Physical memory: 512M
Video memory: 64M
6.2. CONTROL VIA RS232
PV 490S can be controlled from a computer via RS232.
1. Double click the RS232 software in provided CD to run the install shield wizard.
Then you will see the software setup window:

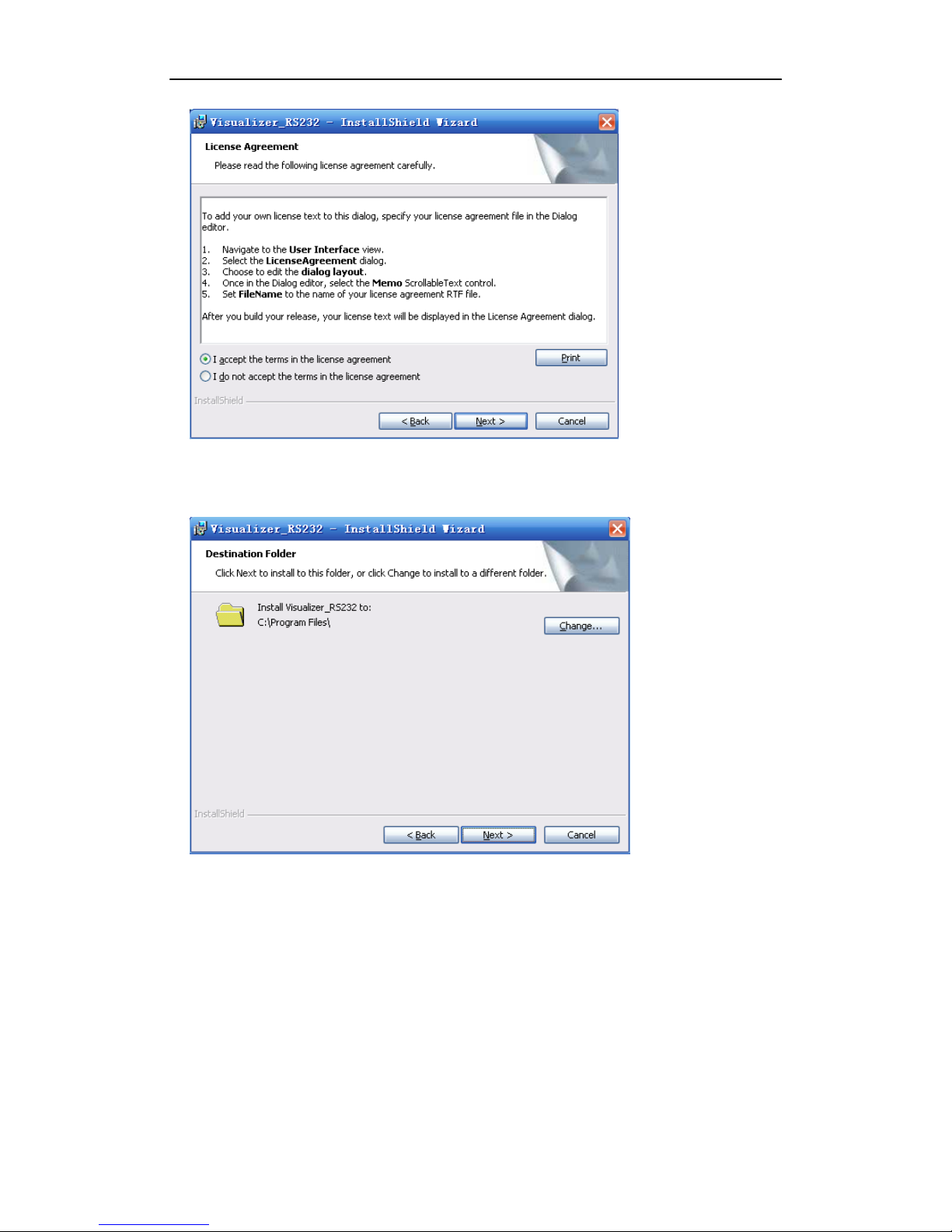

Read terms, select "I accept the terms in the license agreement" Click Next:
16
Page 17
Click Change to change the installation directory if needed, then click Next:

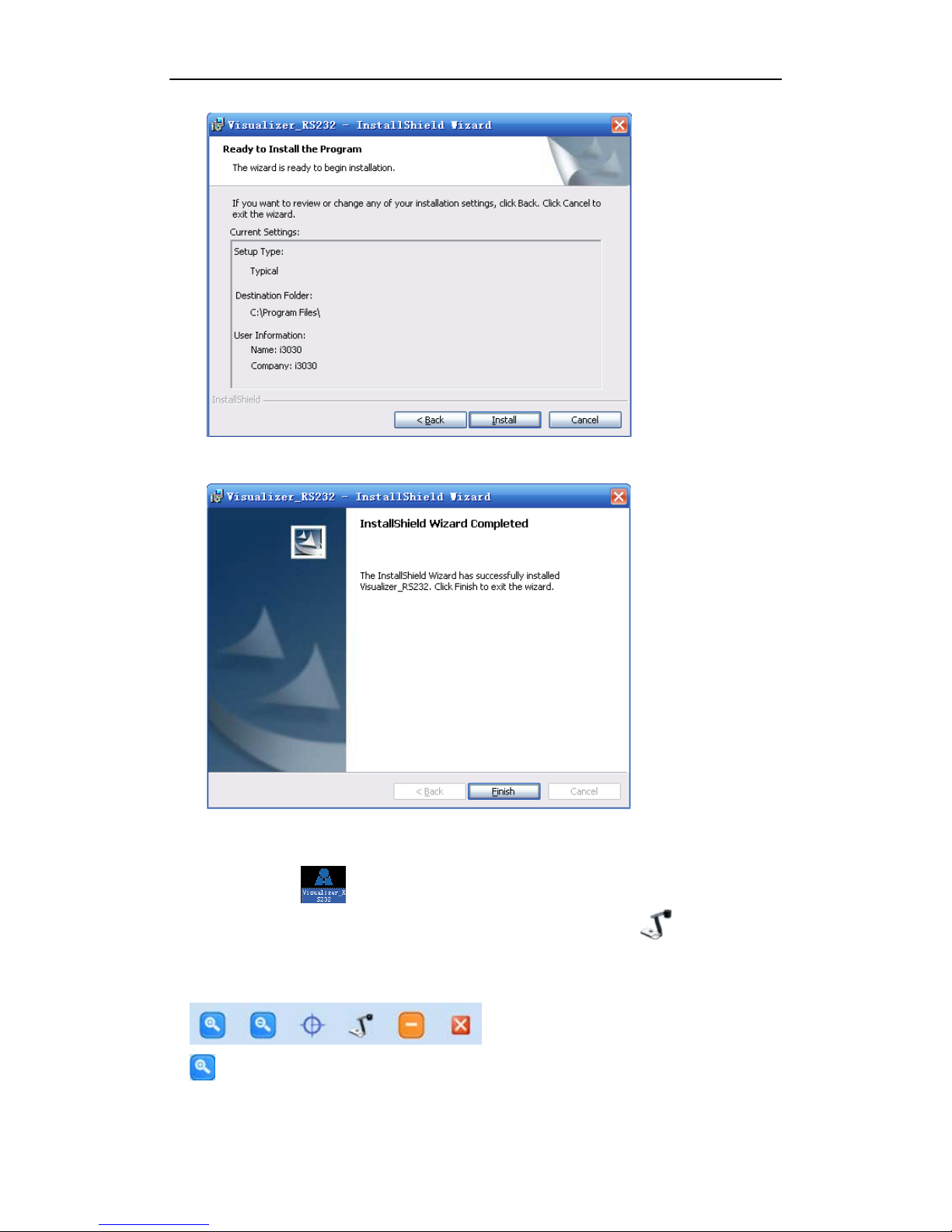

Click Install to install the software to the computer:
17
Page 18
Click Finish, the software installation is complete:
2. Connect the computer to the PV 490S with a RS232 cable, turn on the power of PV 490S.
3. Double click on
or click start->All Programs->Visualizer_RS232->
Visualizer_RS232.exe to run the RS232 softwar e, you w ill see t he icon
on the task bar and
the control interface on the top right of the screen:
: Zoom+
18
Page 19
: Zoom-
: Auto
: Display all functi o ns
: Minimize
: Close

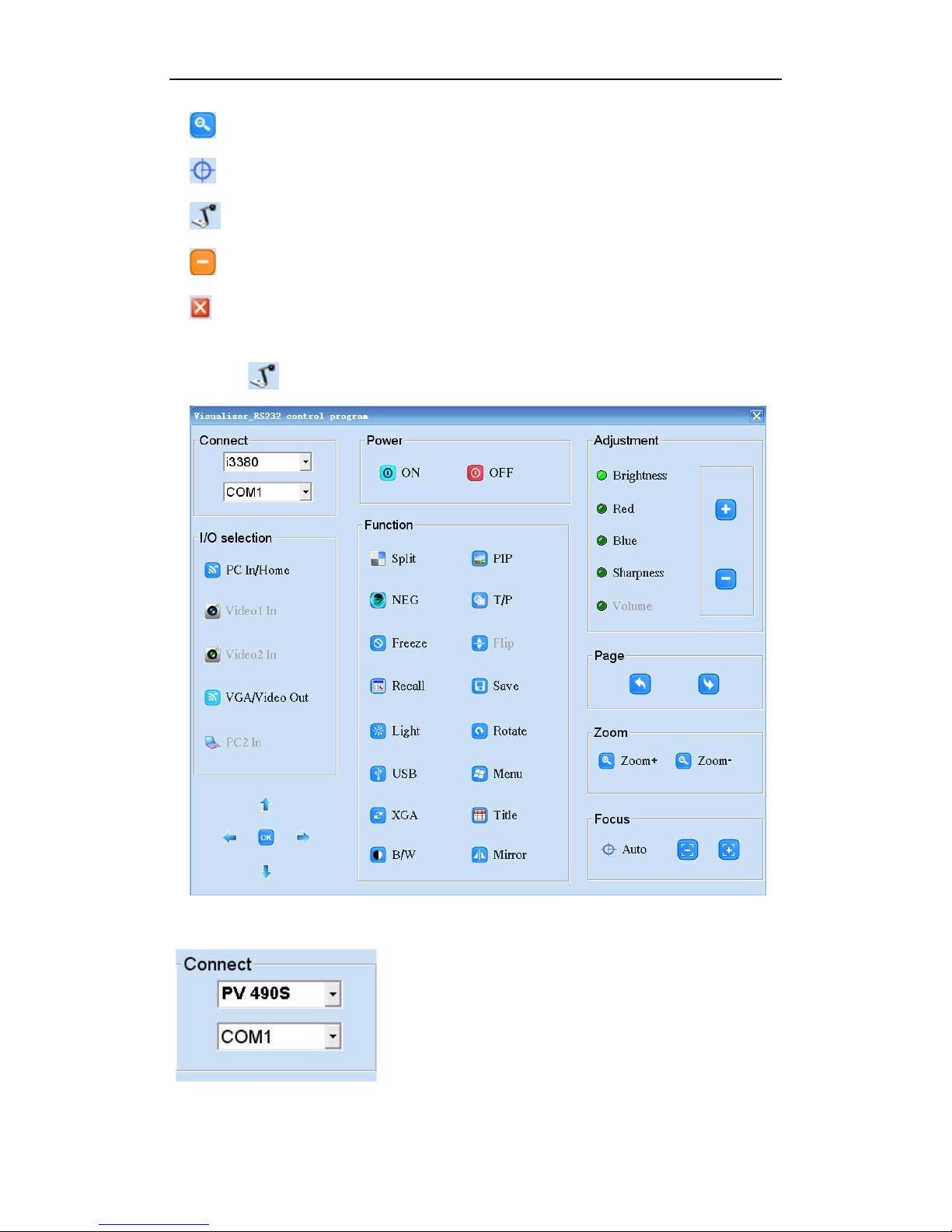

4. Click on , you will see the following control panel.
5. Properly set the software.
Select the corresponding model number
Select the right COM port
19
Page 20
Note:
* If the selected model does not have certain functions, the corresponding buttons in the software
interface are displayed in light gray and are not clickable.
* All models require 15 seconds start-up time to start the software.
6. Button instruction
F
L
Button
Function
Power On
Power on the unit
Power Off
Stand b
y
PC In
/Home
Switch between PC and Visualizer
inputs
VGA /Video Out
Switch between VGA and Video
outputs
reeze
Image Freeze
ight
T
oggle between arm light and no light
B
rightness+
Increase the brightness
B
rightness-
Decrease the
brightness
F
ocus+
F
ocus far
F
ocus-
F
ocus near
Zoom+
Zoom in
Zoom-
Zoom out
Page+
Page up
Page-
Page down
Red+
Increase the red hue
R
ed-
Decrease the red hue
20
Page 21
S
S
A
S
S
M
P
E
U
D
L
B
lue+
Increase the b
lue hu
e
B
lue-
Decrease the blue hue
harpness+
Increase the sharpness
harpness-
Decrease the
sharpness
uto
Auto focus,
brightness and color
ave
Save image
Recall
Recall saved images
NEG
Switch between nega
tive
and pos
itive
m
odes
B/W
Switch between color and black/white modes
plit
Split screen
irror
Mirror image
T/P
Switch between text and image m
odes
Rotate
Rotation
IP
Picture in picture
XGA
Switch between SXGA, XGA, and WXGA
output modes
nter
Enter
p
Up
own
Down
eft
Left
R
ight
R
ight
21
Page 22
U
T
M
SB
USB function
selec
tio
n
itle
Title freeze
enu
Menu
6.3. USB FUNCTION
6.3.1. USB-A
USB-A connect or can be used to comm unicate wit h a USB m ouse, a USB dri ve, or ot her USB slav e
device.
1. USB Mouse
The USB mouse will be automatically activated when pluged into the USB-A connector of PV
490S, you can use it to annotate on the image.
2. USB Drive
Connect a USB drive to PV 490S, then press Recall button to access the USB drive.
Use the left and right arrows to exit or enter a folder.
Use the up and down arrows to select an image.
Press Menu Enter to display the selected image.
Press Recall button to exit.
6.3.2. USB-B
6.3.2.1. COMPUTER REQUIREMENTS
Visual izer_US B Cam era softw are is an appli cation that allows users to captur e im ages, prev iew and
record video under the Windows operating systems.
Visualizer_USB Camera software runs on MS Windows XP, Windows 7, and Vista operating
systems. The minimal requirements for the computer hardware are:
Operating system: Windows XP
CPU: 1.8 GHz
Physical memory: 512M
Video memory: 64M
22
Page 23
6.3.2.2. PREPARAT ION FOR INSTALLATION
To install and uninstall, please login in as system administrator, otherwise, the install/uninstall
will fail.
Please connect the unit to the PC before starting installation.
Please select the right software to install: Visualizer_USB(x32):
Windows XP, 32bit. Visualize r_USB( Windows7 x64): Windows
7, 64bit.
Visualizer_USB(Vista x64): Windows Vista, 64bit.
For Vista system, please do not choose “Use User Account Control (UAC) to help protect your
computer”, follow the step to complete the setting:

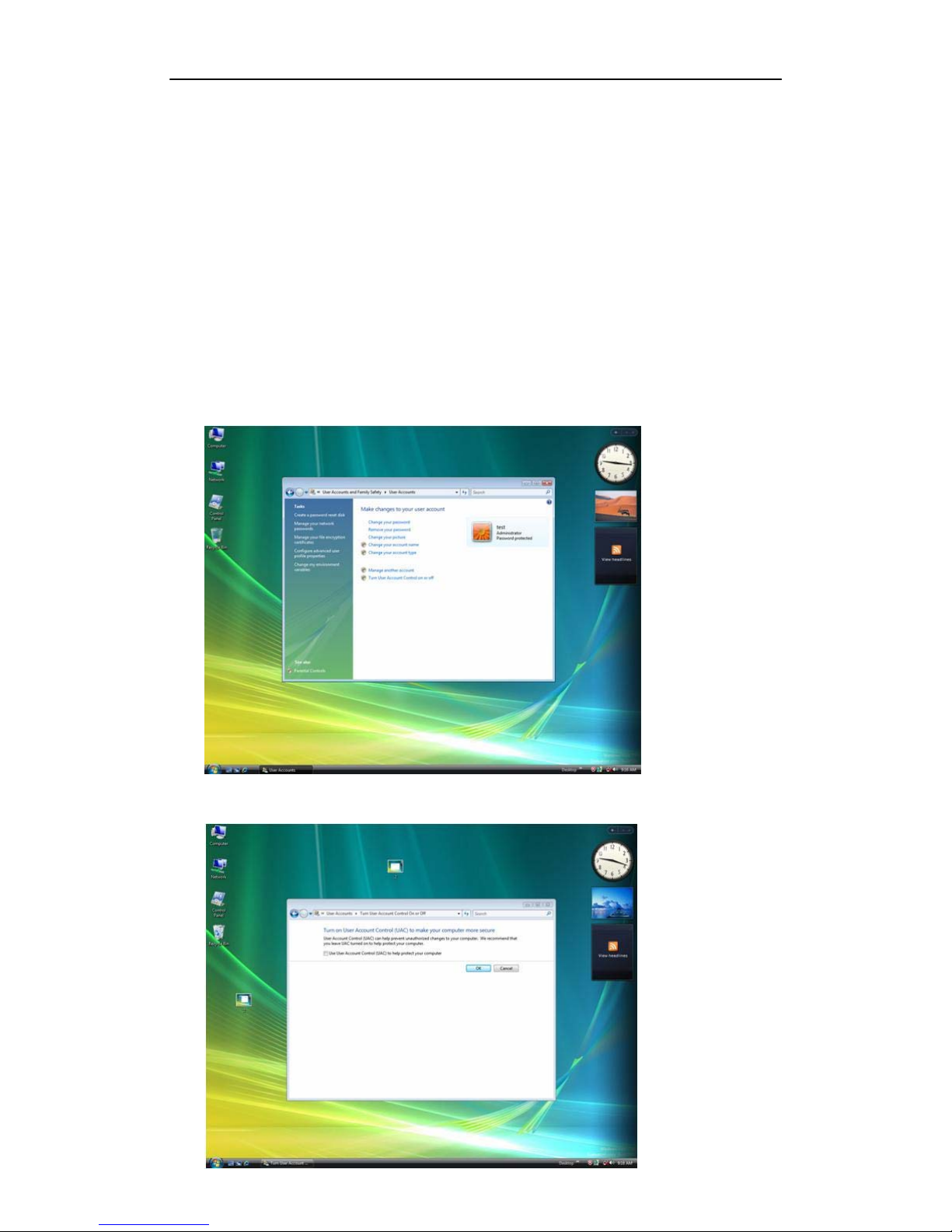

1. Open the control panel, then click User accounts:
2. Click on “Turn User Account Control on or off”, you will see:
23
Page 24

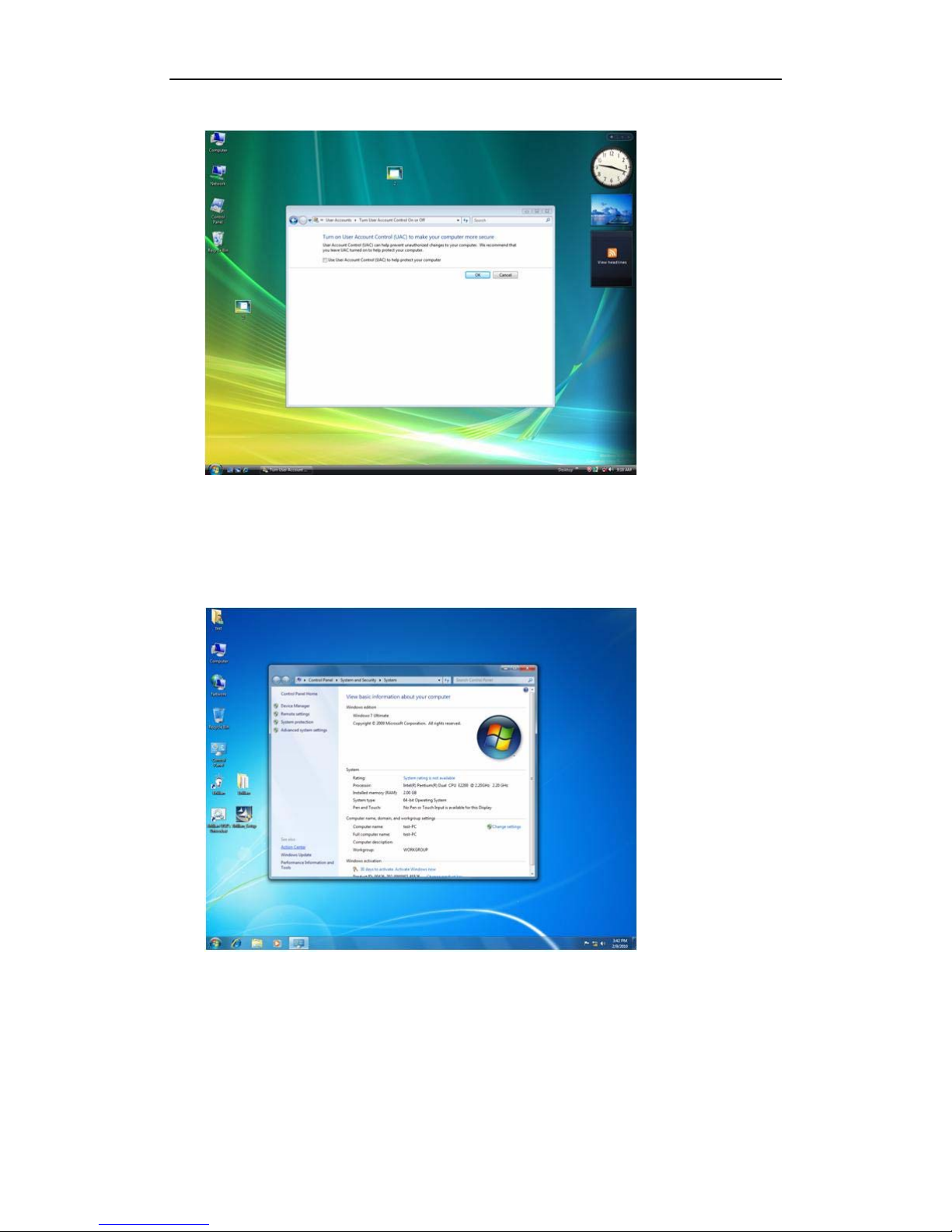

3. Do not tick the option “Use User Account Control (UAC) to help protect your computer”:
For Windows 7, please change the User account control setting to Never Notify. Follow the step
to complete the setting:
1. Click on the right key of the mouse, choose properties:
24
Page 25
2. Click on Action center:
3. Click on Change User Account Control Setting, then choose Never notify.
25
Page 26
6.3.2.3. SOFTWARE INSTALLATION

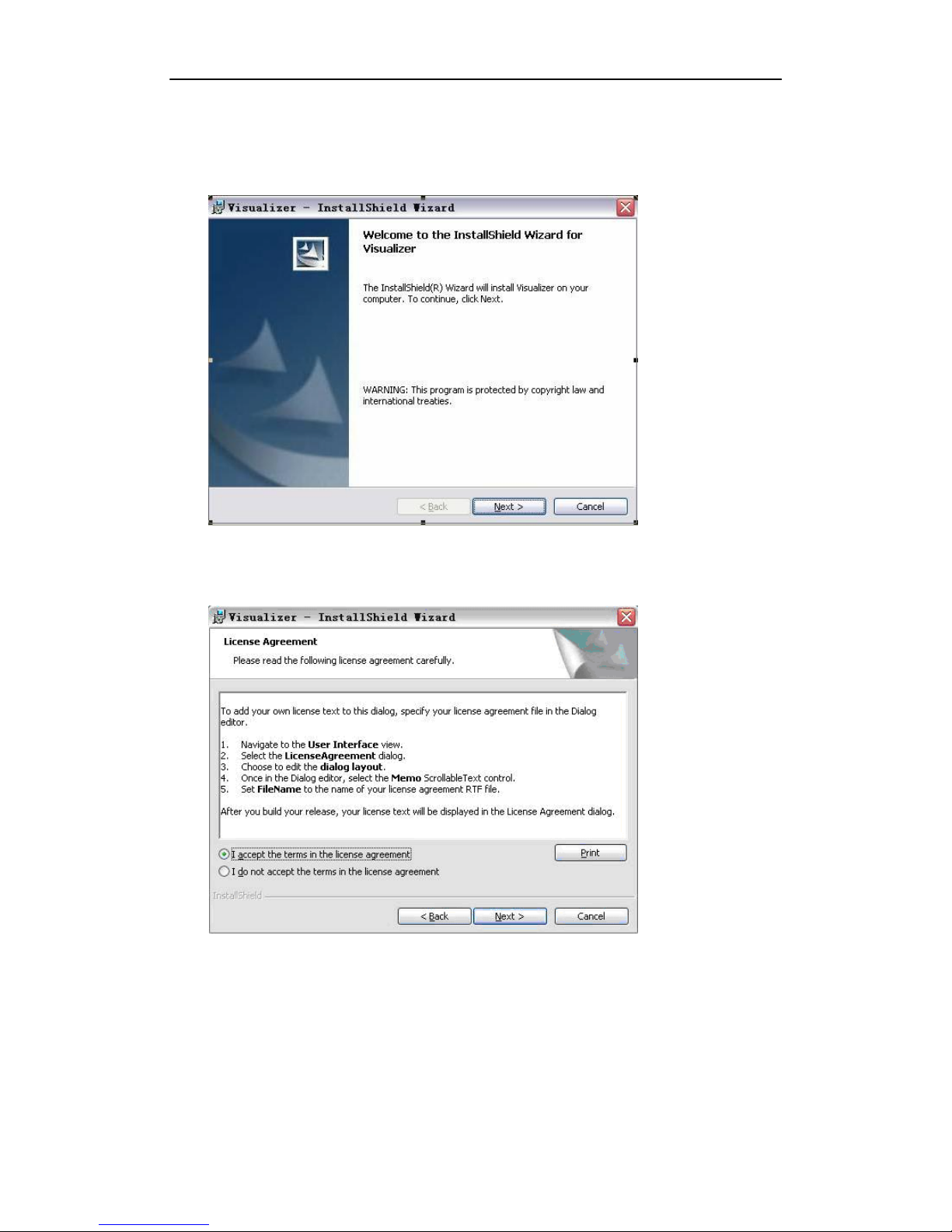

Double click to run the software installation package, the following dialogue appears, click "Next":
Read the terms, select "I accept the terms in the license agreement." Click "Next", as the following
figure.
26
Page 27
The following dialogue box appears, click "Next":
The default install at ion directory is Program Files, C: \ Program Files \, you can select a different
installation directory, as shown:
27
Page 28
Click on "Change" to change the directory, as shown:
Click on "OK", the following figure appears. Click "Next".
28
Page 29

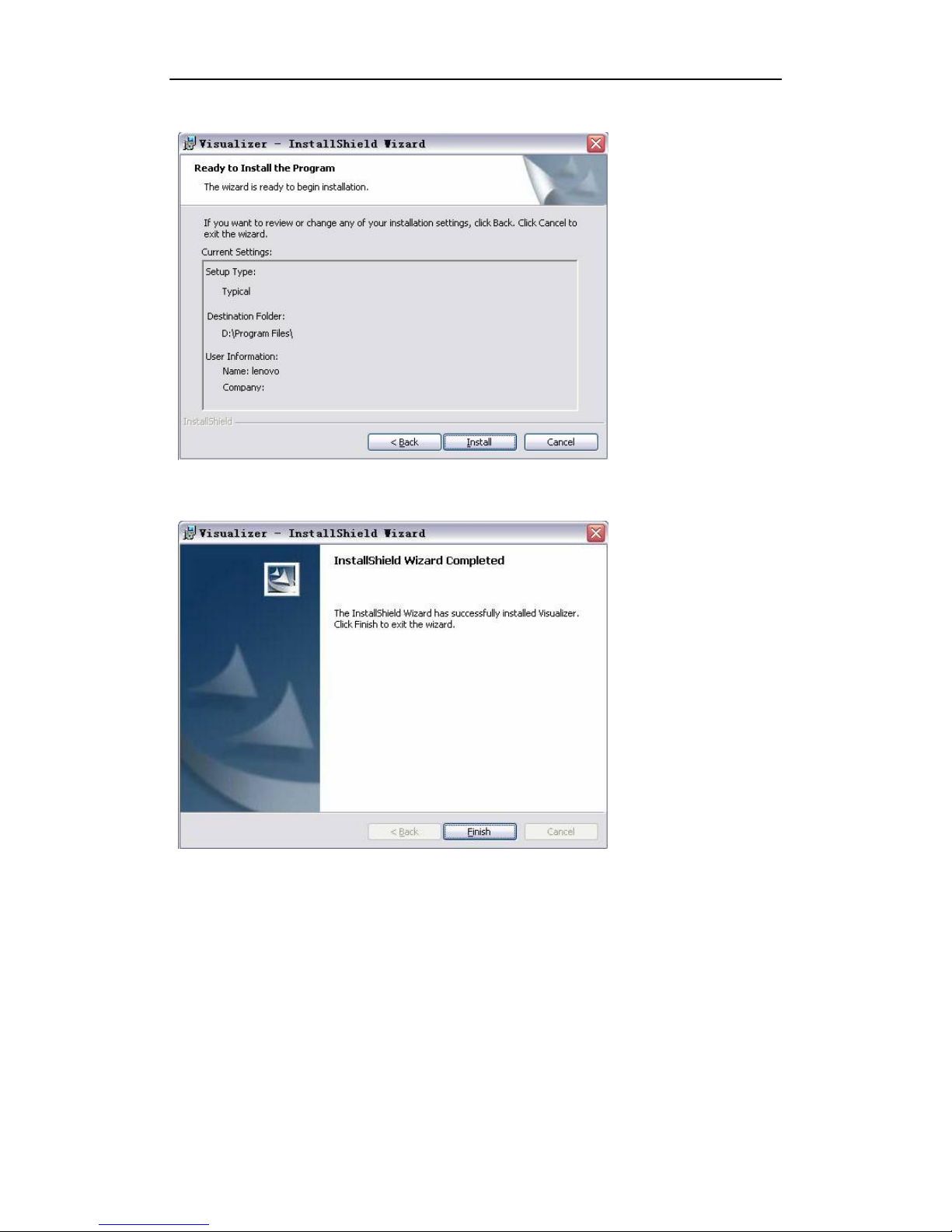

Click on "Install" to complete installation, as shown:
Click on "Finish” to complete the installation, as shown:
29
Page 30
Then you will see the follow ing inter face, w hich is a n inst allation package for 2005 env ironm ent. If
your PC already has this installed, click on "No" to exit, otherwise, click on "Yes" to install it.
6.3.2.4. START THE SOFTWARE
Note: To use the software, the document camera’s USB mode has to be set to USB Video mode.
Please follow the instruction below:
A. Make sure the USB cable is disconnected from the unit.
B. Press the USB button o n t he rem ote, a dial og box appears on the screen, under which you
will see USB disk or USB video, use the arrow keys on the remote or control panel to
select the USB video mode.
The remote and the front panel are inactive while the software is in use.
Double click on the short cut on the desktop, then cli ck on Device, select the right
model number, see below:
30
Page 31
Then click on , or select Video->Play, you will see the interface:
6.3.2.5 IMAGE CONTROL
Zoom in and Zoom out
Zoom In （Ctrl+I）: Left-click the Zoom In command button to enlarge the image.
Zoom Out（Ctrl+O）: Left-click the Zoom Out command button to shrink the imag e.
31
Page 32
F
Focus adjustment
ocus Far（Ctrl+R）: Left click the Focus Far command button to focus far.
Focus Near（Ctrl+N）: Left click the Focus Near command button focus near.
Image Brightness adjustment
Bright More （Ctrl+B）: Left click the Bright More button to increase the brightness.
Bright Less （Ctrl+L）: Left click the Bright Less button to reduce the brightness.
Sharpness adjustment
Sharp More: Left click the Sharp Mor e bu tton to inc rease the sharpness.
Sharp Less: Left click the Sharp Less button to reduce the sharpness.
Auto focus
Auto （Ctrl+U）: Left click the Auto button to auto adjust the focus.
Mirror adjustment
Mirror（Ctrl+M）: Left click the Mirror button to adjust image to normal
mirror, horizontal mirror, vertical mirror, and horizontal /vertical mirror.
Image red hue adjustment
Red More: Left click the Red More button to increase the red hue.
Red Less: Left click the Red Less button to reduce the red hue.
Image blue hue adjustment
Blue More: Left click the Blue More button to increase the blue hue. Blue
Less: Left click the Blue Less button to reduce the blue hue.
32
Page 33
Image black and white/ color adjustment
Mono/Color（Ctrl+K） : Left click the Mono/color button to toggle
between the
black-white and color modes.
Positive and negative film images
Neg（Ctrl+G） : Left click the Neg button to toggle between the positive and negative
modes.
6.3.2.6. IMAGE CAPTURE AND VIDEO RECORDING
Left click on to capture images . Th e ca ptured i m ages w ill be automatically saved into the
default destination folder. The path and file name are displayed in software status bar on the bottom
of the window. Shown below:
Left click on to start recording. The setting button will changes to and does
not work.
The detailed information is displayed on the software status bar in the bottom of the
window. The video is automatically saved in the default folder or pre-set folder.
33
Page 34

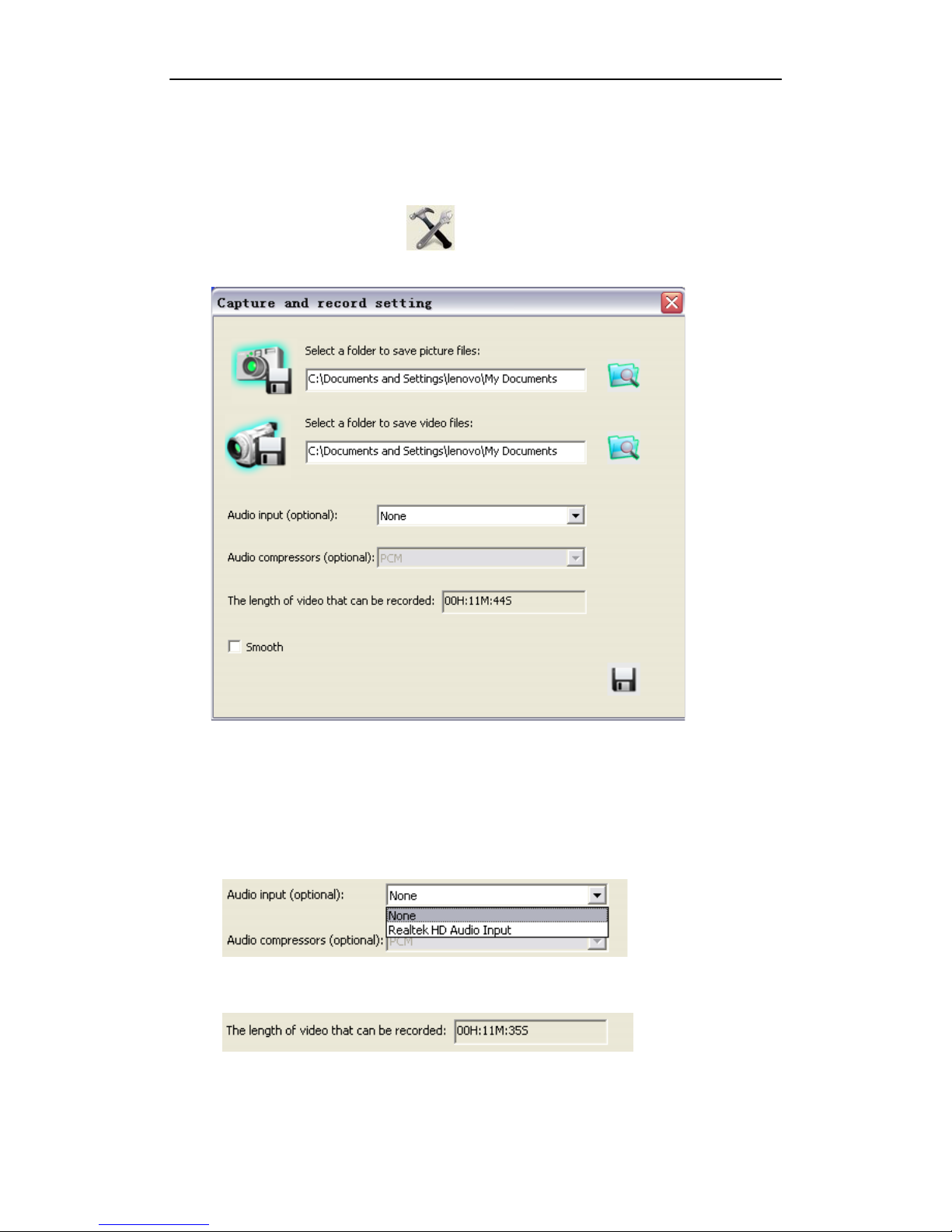

6.3.2.7. SETTING
The captured images and recorded videos will be saved i nto the f old ers of Images and Videos
respectively, which are created by the system automatically. To set a differ ent path to which the
image/video is be to saved, click on on the left side of the wi nd ow, a pop up dialog box
appears below.
Save the captured images into a different folder
Click on the button next to the "select a folder to save picture files" text box to set the path for
captured images .
Save the recorded video into a different folder and set up parameters for videos
Click on the butto n next to th e "Select a folder to sav e video f iles:" text box to set the p ath f or videos .
Y ou can also change the video settings. The Audio input (optional) drop down box offers the options
of recording video with or without sound. Shown below:
The length of video that can be recorded box displays the longest recording time for videos to be
saved in the preset path. Shown below:
Click on Save to complete.
34
Page 35
6.3.2.8. IMAGE MODIFY
Click on , you will see the interface:
Grapic selection and move
Click on to choose a line, circle, rectangle or curve that placed in the image,
then move to another place.
Line

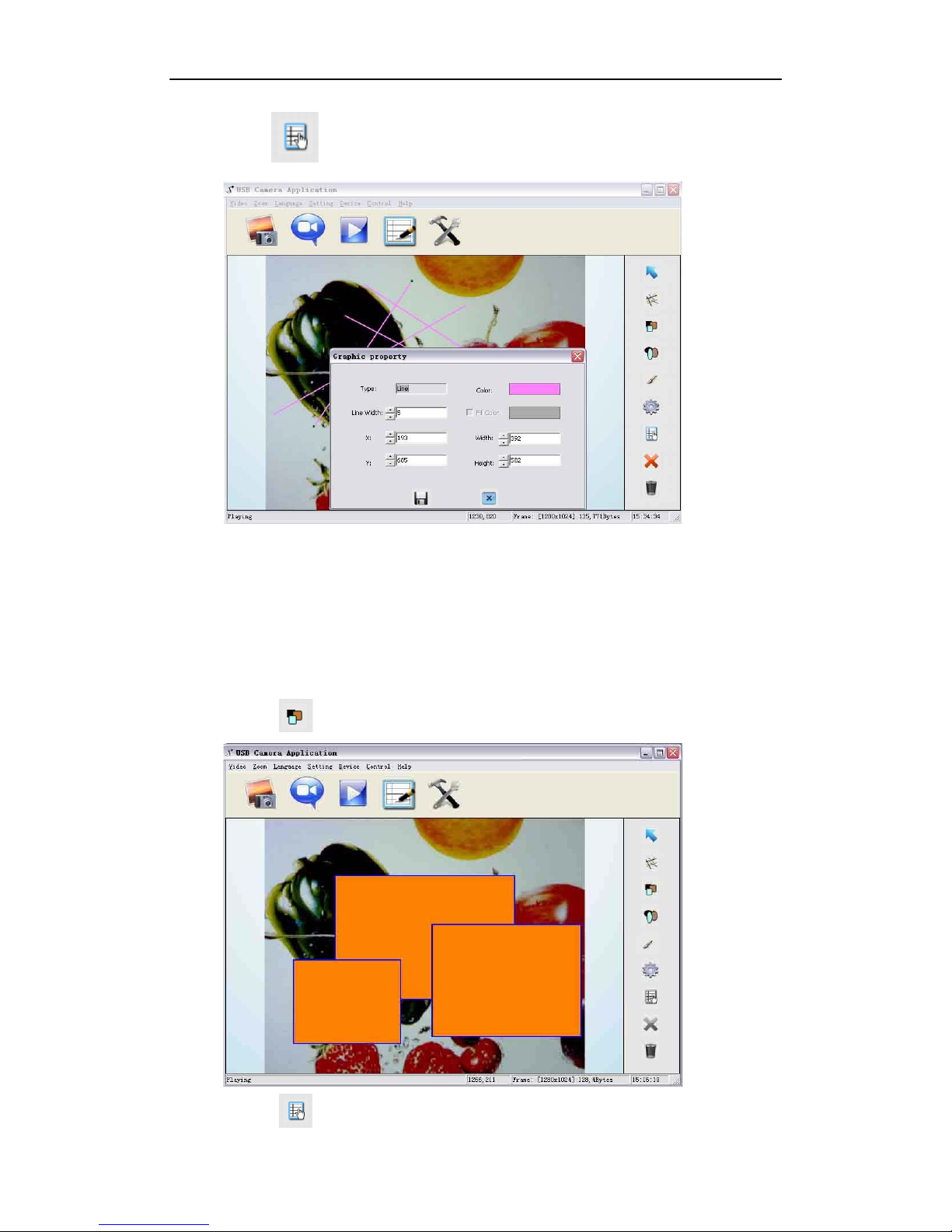

Click on to place a beeline in the image, shown as below:
35
Page 36

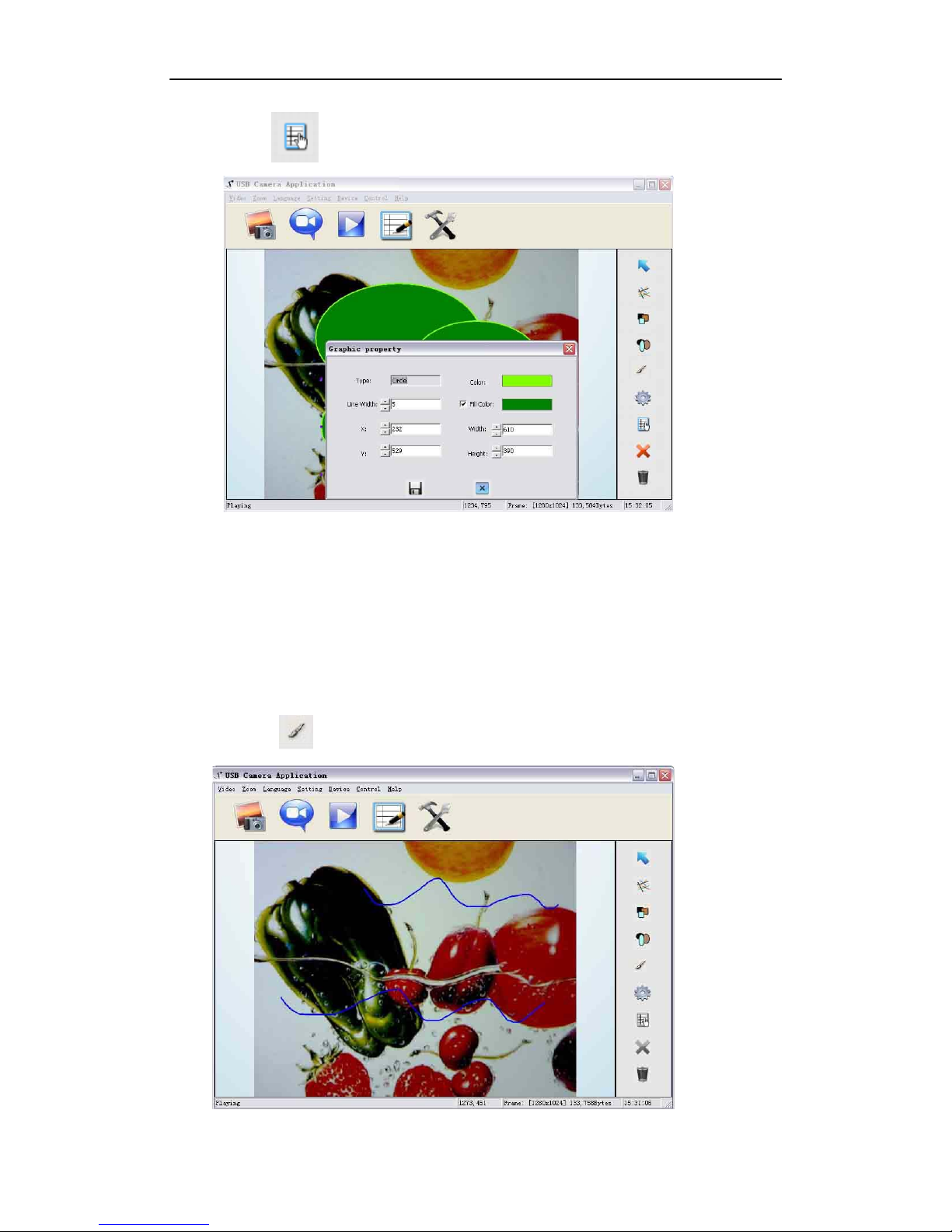

Click on to change the setting of the chosen line:
Line width: change the width of the line.
X, Y: change the position of t he l i ne .
Color: change the color of the line.
Width, Height: Change the angle of the line.
Rectangle
Click on to place a rectangle in the image, shown as below:
Click on to change the setting of the chosen rectangle:
36
Page 37
Line width: change the line width of the rectangle.
X, Y: change the position of the rect angl e .
Color: change the line color of the rectangle.
Fill Color: Tick it to fill color in the rectangle.
Width, He ight : Chan ge t he sha pe of t he rec tangl e by changi ng the angle of tw o adjacent li nes
of the rectangle.
Circle
Click on to place a circle in the image, shown as below:
37
Page 38
Click on to change the setting of the chosen circle:
Line width: change the line width of the circle.
X, Y: change the position of the cir cl e.
Color: change the line color of the circle.
Fill Color: Tick it to fill color in the circle.
Width, Height: change the size of the circle.
Curve
Click on to place a curve in the image, shown as below:
38
Page 39
Click on to change the setting of the chosen curve:
Line width: change the line width of the curve.
X, Y: change the position of the curve.
Color: change the line color of the curve.
Graphic default setting
Click on to change the setting of the graphic:
Graphic delete
Click on to delete the chosen graphic.
39
Page 40
Delete all graphics
Click on to delete all graphics placed in the image.
7. FEATURES
LIGHT
Press “LAMP” to turn on or turn off the light.
ZOOM IN AND ZOOM OUT
Press "ZOOM+"or "ZOOM-"
POSITIVE/NEGATIVE CONVERSION
Press the Neg button on the remote control, the output image will be converted to negative color.
Press it again, the output image will be converted back to original color.
FOCUS ADJUSTMENT
When the PV 490S is turned on the focus automatically adjusts to the stage, it is
usually not necessary to re-adjust the focus if you are only working with flat materials
(text, photos, etc.).
40
Page 41
Only 3D objects require a focus adjustment. Press the “AUTO” button to auto fo cus. Press the
"FOCUS+" or "FOCUS-" button to focus manually.
BRIGHTNESS ADJUSTMENT
If the image effect is not satisfactory, you can adjust the brightness to get a better image effect.
Use the “BRIGHT+” or “BRIGHT-” button to adjust the brig htness.
WHITE BALANCE ADJUSTMENT
Each time the lighting condition changes, the user should adjust the white balance of the image.
Press the “AUTO” button to adjust the white balance automatically.
IMAGE FREEZE
The freeze function allows you to discretely prepare the next image without interrupting current
presentation. Press "Freeze" on remote control to freeze and unfreeze the image.
IMAGE ROTATE
Press “Rotate” on the control panel to rotate the image by 90o, 180o, 270o.
SPLIT SCREEN
Press “SPLIT” to compare two images or compare two different views of one object side by side.
TITLE FUNCTION
Press “TITLE” to enable the title function.
PICTURE IN PICTURE FUNCTION
Press “PIP” on remote control to active the picture in picture function.
IMAGE SAVE
The PV 490S offers the opportunity of storing 400 images on board. You can recall them b y just
pressing one of the numerical buttons on the front panel or remote control.
Press"SAVE" to capture the image displayed.
IMAGE RECALL
By pressing “RECALL”, all saved images are displayed in the thumbnail index mode for easy
41
Page 42
selection.
RGB INPUT SWITCH
Press the “PC | CAM” to select the VGA input signal instead of the signal from camera.
OUTPUT SWITCH
Use “OUTPUT” t o select D VI signal s output instead of VGA signal.
USB IMAGE CAPTURE AND VIDEO RECORDING
The USB port can be used to capture still images from the PV 490S into a computer. In this way,
the PV 490S can be used as a 3-D scanner for your computer.
RS232 CONTROL
The RS232 terminal allows you to integrate the PV 490S into any sophisticated central
control system. RS232 also enable you to control the PV 490S via computer.
8. SPECIFICATION
Model PV 490S
Sensor 1/3" CMOS
Pixels
2
Zoom
8x optical, 12x digital
Frame rat e
15
Shooting area Max: 13.5" x 10.6" /34.3 cm x 26.9 cm
Min: 0.1" x 0.1"/0.3 cm x 0.3 cm
Focus Auto/manual
Output resolution
XGA，SXGA, WXGA
Resolution(Horizontal)
≥
7
50 TV lines
White balance Auto/manual
Color adjustment Yes
Brightness adjustment Yes
Negative&Positive conversion Yes
Image capture Yes, 400 NON-volatile images
Video r ec or di ng Yes(via USB)
42
Page 43
Image rotation Yes
Image split Yes
Image freeze Yes
Picture in picture Yes
Title Yes
OSD Yes
Menu Yes
Inputs VGA ×1, AUDI O ×1
Outputs DVIV×1,GA ×1, C-VIDEO ×1, S-VIDEO ×1, AUDIO ×1
USB2.0 Slave×1(USB camera), Host×1
RS232 x1(computer controllable)
Remote control Yes(360°controllable)
Light source LED light box
Kensington lock Yes
Operating temperature 32°F ~113°F
Dimensions Folded:12.6"×6.6"×3.7", Setup:19.7"×6.6"×19.3"
Power supply 12V DC power adapter
Weight(net) 5.5lbs/2.5kg
9. TROUBLE-SHOOTING:
Symptoms
Possible causes/counter-measures
No image
1. Power cord is not proper l y connected.
2. Cables are not properly connected.
3. Power switch is not tur ned on.
4. Change the output resolution.
Image bending
1. Camera not in right position, adjust the camera.
2. Distortion of LCD display, press the “Auto adjust” of the
LCD.
Out of focus or blurring
1. The object is too close to the lens.
2. Focus is on the top point of zoom, press ZOOM-.
3. Auto-focus is not on : press AUTO again.
4. Fog on the lens in damp climate. It will disappear
gradually when the equipment warms up.
43
Page 44
If the problem still remains after checking the above, consult your dealer or authorized service
personnel.
10. PACKING LIST
Item
Quantit
y
Power cord 1
Power adaptor(12V/2A) 1
VGA cable 1
S-Video cable 1
Video cabl e 1
Mini jack audio cable 1
Switch cable
1
USB cable(2.0) 1
Remote control 1
User manual(CD) 1
44
Page 45
11. TECHNICAL SUPPORT
Wanin USA is committe d to providing highest possible stand of customer service. We can be
reached:
By Phone
Call us at 1-877-369-3130. Our technical support staff provides t echnical assistance from 9:00AM
through 5:00PM Pacific Standard Time, Monday through Friday. Please gather the following
information before calling :
- Product model name(s) and numbers
- Product serial number (s)
- Detailed questions or problem descriptions.
Online
T echni ca l support is also available online at Wanin USA’s web sit e at www.waninusa.com.
You can enter your questions and concerns through our online form, email us at
W
anin USA Inc.
12961 Ram
ona Blvd.,
Irwin
dale, CA 91706
Toll Free: 1-877-369-3130 Fax: 626-609-3380
E-mail: info@w
aninusa.com Web: www.waninusa.com
©2010 Wanin USA In c. All Rights Reserved.
45
Loading...
