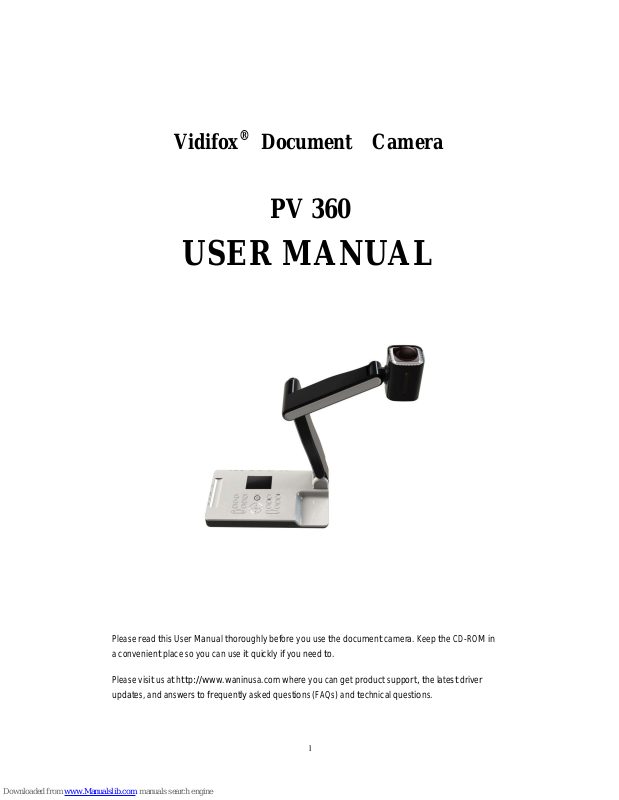

Vidifox PV 360 User Manual

Vidifox

®

Document Camera

PV 360

USER MANUAL

Please r

ead this User Manual thoroughly before you use the document camera. Keep the CD-ROM in

a convenient place so you can use it quickly if you need to.

Please visit us at http://www.waninusa.com where you can

get product suppo

rt, the latest driver

updates, and answers to frequently as

ked ques

tions (

FAQs) and t

echnical ques

tions.

1

PRECAUTIONS

NOTICES: PLEASE READ CAREFULLY BEFORE USE

 Use the document camera under the rated electric conditions.
 Do not place the document camera on any unstable surface. It may fall and cause injuries

or damages.

 Do not place this device directly under sunlight or near heaters.
 Do not place this device near water.
 Keep the camera away from acid or alkali gas.
 Do not place this document camera in humid, dusty, windy or vibrant locations.
 The recommended operating environment is:

Temperature: 0ºC--45ºC (32ºF-113ºF)

Humidity: less than 75%

 Always unplug BEFORE cleaning the device. Use a damp soft-cloth for cleaning. Do not

use volatile solvent.

 When this equipment functions abnormally, such as smoke, smell, noise,

immediately unplug and call for professional assistance.

 Unplug the document camera or shut off the power when not in use.

Legal Notice

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

Compilation and Publication N otice

This manual has been compiled and published to cover the latest product’s descriptions and

specifications. The contents of this manual and the specifications of this product are subject to

change without notice.

Wanin USA reserves the right to make changes without notice in the specifications and materials

contained herein and shall not be responsible for any damages (including consequential) caused by

reliance on the materials presented, including but not limited to typographical and other errors relating

to the publication.

© 2010 Wanin USA Inc.

2

TABLE OF CONTENTS

1

. PARTS IDENTIFICATION.................................................................4

2. CONTROL PANEL ..............................................................................5

3. INPUTS AND OUTPUTS ....................................................................6

4. REMOTE CONTROL .........................................................................7

5. CONNECTIONS...................................................................................8

5.1. USB CONNECTION .........................................................................................................8

5.2. VGA OUTPUT CONNECTION........................................................................................9

6. USB CAMERA ………………………………………………………10

7. FEATURES ..........................................................................................23

LIGHT.....................................................................................................................................23

ZOOM IN AND ZOOM OUT ................................................................................................23

FOCUS ADJUSTMENT .........................................................................................................23

BRIGHTNESS ADJUSTMENT .............................................................................................23

WHITE BALANCE ADJUSTMENT .....................................................................................23

IMAGE FREEZE ....................................................................................................................23

IMAGE ROTATE....................................................................................................................24

SPLIT SCREEN......................................................................................................................24

IMAGE SAVE.........................................................................................................................24

IMAGE RECALL ...................................................................................................................24

USB IMAGE CAPTURE AND VIDEO RECORDING.........................................................24

8. SPECIFICATION ...............................................................................25

9. TROUBLE-SHOOTING: ..................................................................26

10. PACKING LIST................................................................................26

1 1. TECHNICAL SUPPORT .................................................................27

By Phone .................................................................................................................................27

Online......................................................................................................................................27

3

1.

PARTS IDENTIFICATION

1. Remote control IR receiver

2. Camera

3. LED light box

4. Upper mechanical arm

5. Main mechanical arm

6. Side panel

7. Back panel

8. Base unit

9. Control panel

4

2. CONTROL PANEL

1. POWER: Turn on/off the power.

2. AUTO: Carry out auto focus, color adjustment and white balance.

3. SPLIT: Split screen, enable the comparison between the frozen image and live image.

4. FREEZE: Freeze/unfreeze the image.

5. LAMP: Switch the input source.

6. ROTATE: Rotate the image by 180

o

.

7. MIRROR: Output right-and-left mirror image.

8. FLIP: Output up-and-down mirror image.

9. BRIGHT+/-: Image brightness control.

10. SAVE: Capture and save the current image.

11. RECALL: Image Recall mode enabled, display the saved images.

Back to an upper level of the menu in Image Recall mode.

12. PAGE +/-: Page up and page down in Image Recall mode.

13. FOCUS+/-: Adjust focus manually, focus far and focus near.

14. ZOOM+/-: Image zoom in and zoom out control.

In Image Recall mode:

1: Display the first image.
2: Display the second image.
3: Display the third image.
4: Display the fourth image.

5

3. INPUTS AND OUTPUTS

1. DC 12V: Power input.

2. VGA OUT: VGA (RGB) signal output (15 pin D-SUB).

3. USB: Capture image into a connected computer via the software provided.

6

4. REMOTE CONTROL

1. Lamp: Turn on/off the LED light.

2. Neg: Switch the image mode between positive and negative.

3. Split: Split screen, enable the comparison between the frozen image and live image.

4. Freeze: Freeze/unfreeze the image.

7

5. B/W: Switch the output image between color and monochrome.

6. Mirror: Output right-and-left mirror image.

7. FLIP: Output up-and-down mirror image.

8. ROTATE: Rotate the image by180

o

.

9. Sharp+/-: Image sharpness control.

10. Page +/-: Page up and page down in image recall mode.

11. Save: Capture the image in display.

12. Auto: Carry out auto focus, color adjustment and white balance.

13. Red+/-: Image color adjustment (red).

14. Blue+/-: Image color adjustment (blue).

15. Recall: Image Recall mode enabled, display the saved images.

17. Zoom+/-: Image zoom in and zoom out control.

18. Focus+/-: Adjust focus manually, focus far and focus near.

19. Bright+/-: Image brightness control.

In Image Recall mode:

1: Display the first image.
2: Display the second image.
3: Display the third image.
4: Display the fourth image.

5. CONNECTIONS

5.1. USB CONNECTION

To USB

8

5.2. VGA OUTPUT CONNECTION

9
