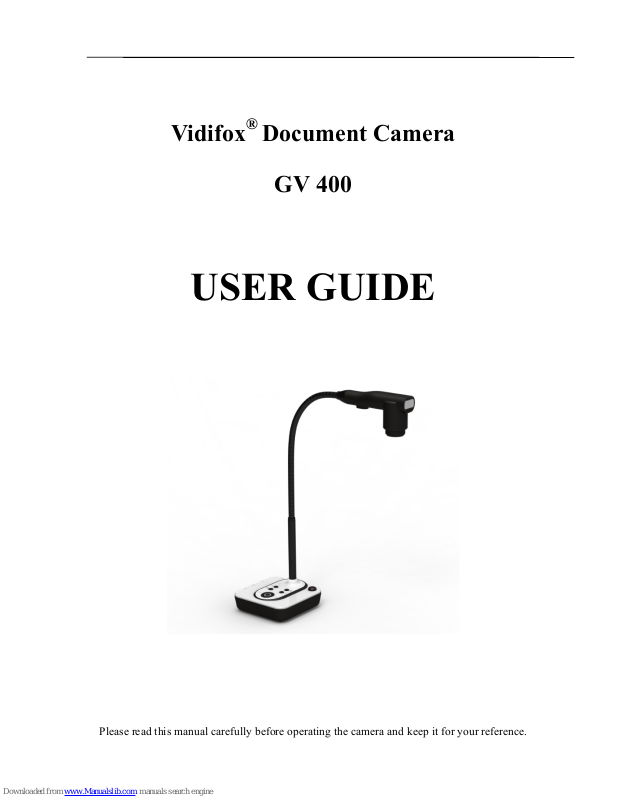

Vidifox GV 400 User Manual

Vidifox® Document Camera

GV 400

USER GUIDE

Please read this manual carefully before operating the camera and keep it for your reference.

1

PLEASE READ CAREFULLY BEFORE USE

! Please be aware of the required power supply environment is 100-240V, 50/60Hz, 2A

Max.

! Do not place the equipment under sunlight, near heaters, near water, or on any

unstable surface.

! Keep the equipment away from acid or alkali gas.
! The recommended operating environment is:

Temperature: 0ºC--45ºC(32ºF-113ºF)

Humidity: less than 75%

! Always unplug BEFORE cleaning the equipment. Do not use volatile solvent when

cleaning.

! Unplug the power cable if camera is not in use for a long period.
! Consult the dealer for professional assistance when there is any problem with the

equipment.

2

CONTENTS

'

!"

#$%&'($)*(+,)-&./)

("""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(!(

0".)#,&'($)*(/,&#,&'(""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(0(

1"(-234526(#7386(""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(

1(

9"%:;/&:(-/)&%/<

("""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(9

(

="$))/&$&./)

("""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(>(

>";,<&.;:*.$('?'&:;("""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(@(

A"'/+&B$%:(""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(

!9(

@"'#:-.+.-$&./)'

(""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(!@(

C"&%/,D<:E'F//&.)G

(""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""(0H(

!H"(#$-I.)G(<.'&($)*($--:''/%.:'

("""""""""""""""""""""""""""""""""""""""""""""""""""""(0!(

1

1. PARTS AND FUNCTIONS

1. Camera

2. LED light box

3. Goose neck

4. Remote control IR receiver

5. Side panel

6. Control panel

2

2.INPUTS AND OUTPUTS

1.VGA IN: VGA(RGB) signal input(15 pin D-SUB).

2.VGA OUT: VGA(RGB) signal output(15 pin D-SUB).

3.HDMI:HDMI signal output

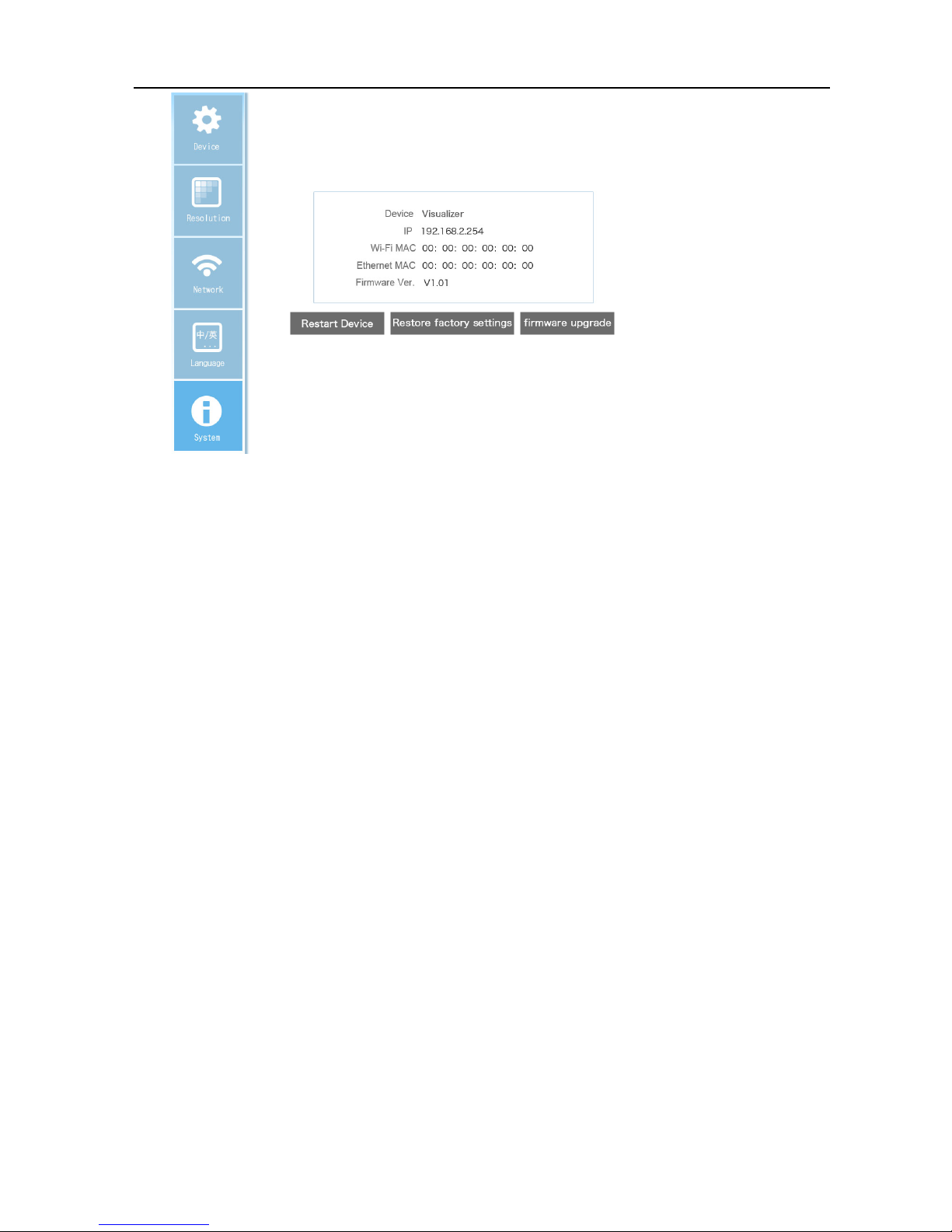

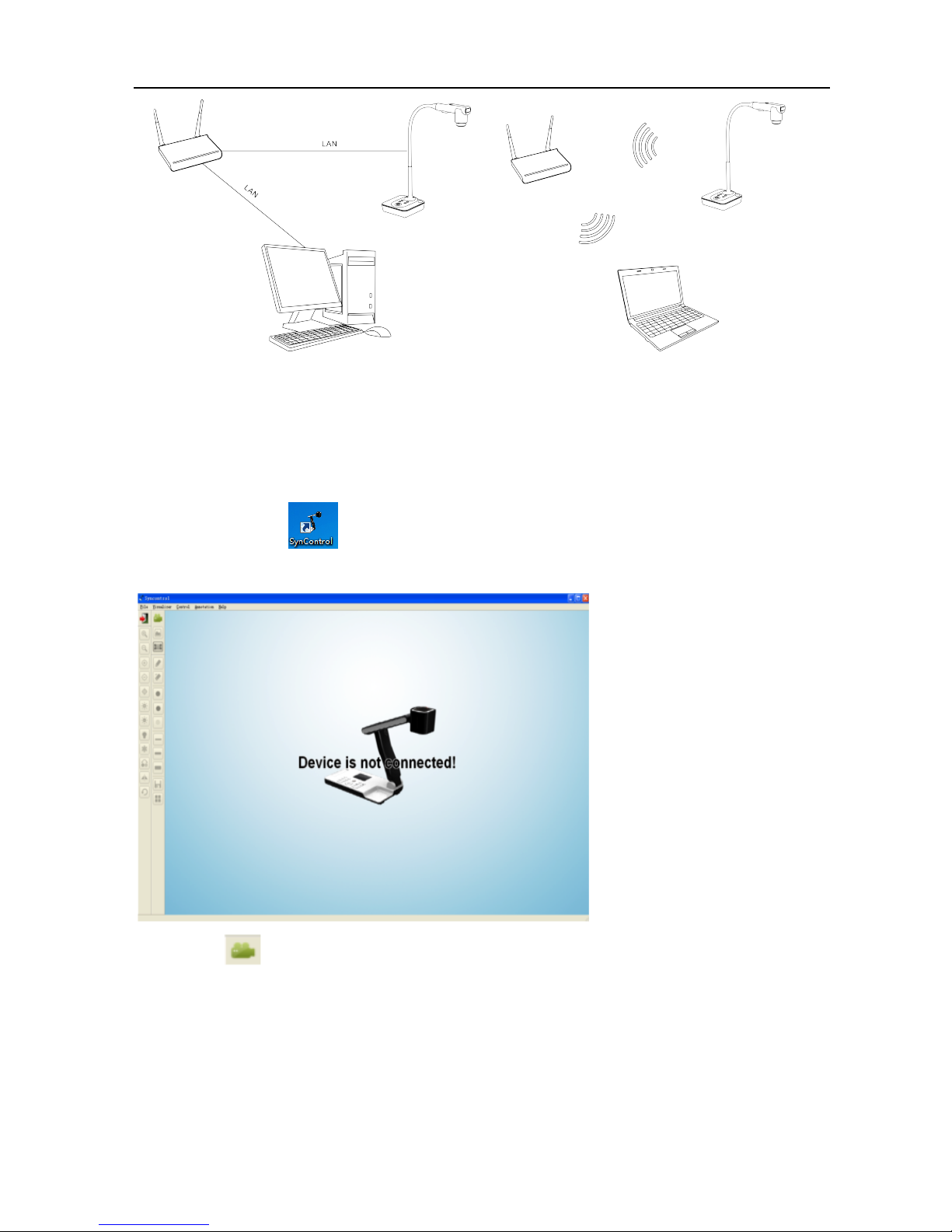

4.LAN: Network connection

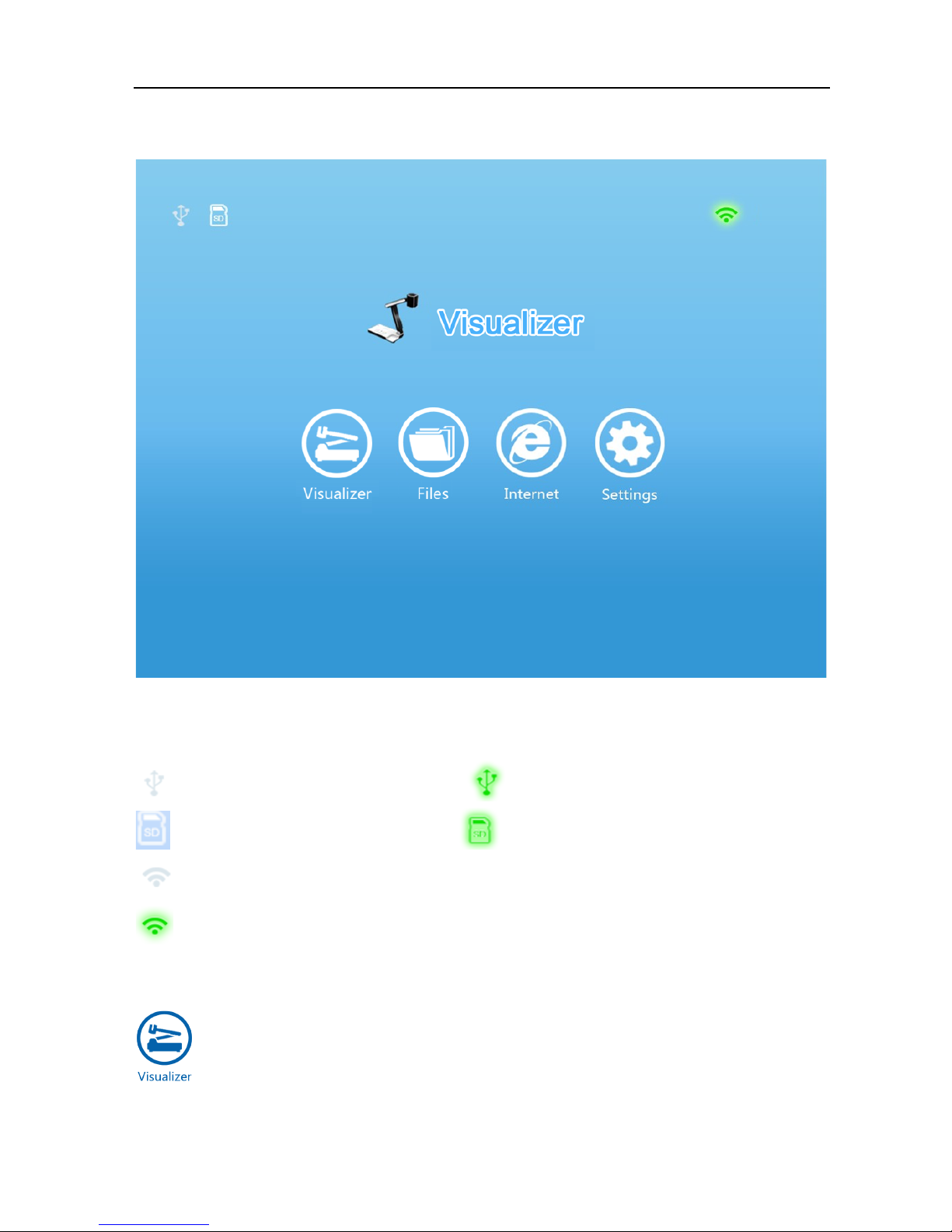

5.USB-B: USB slave, used to connect with PC

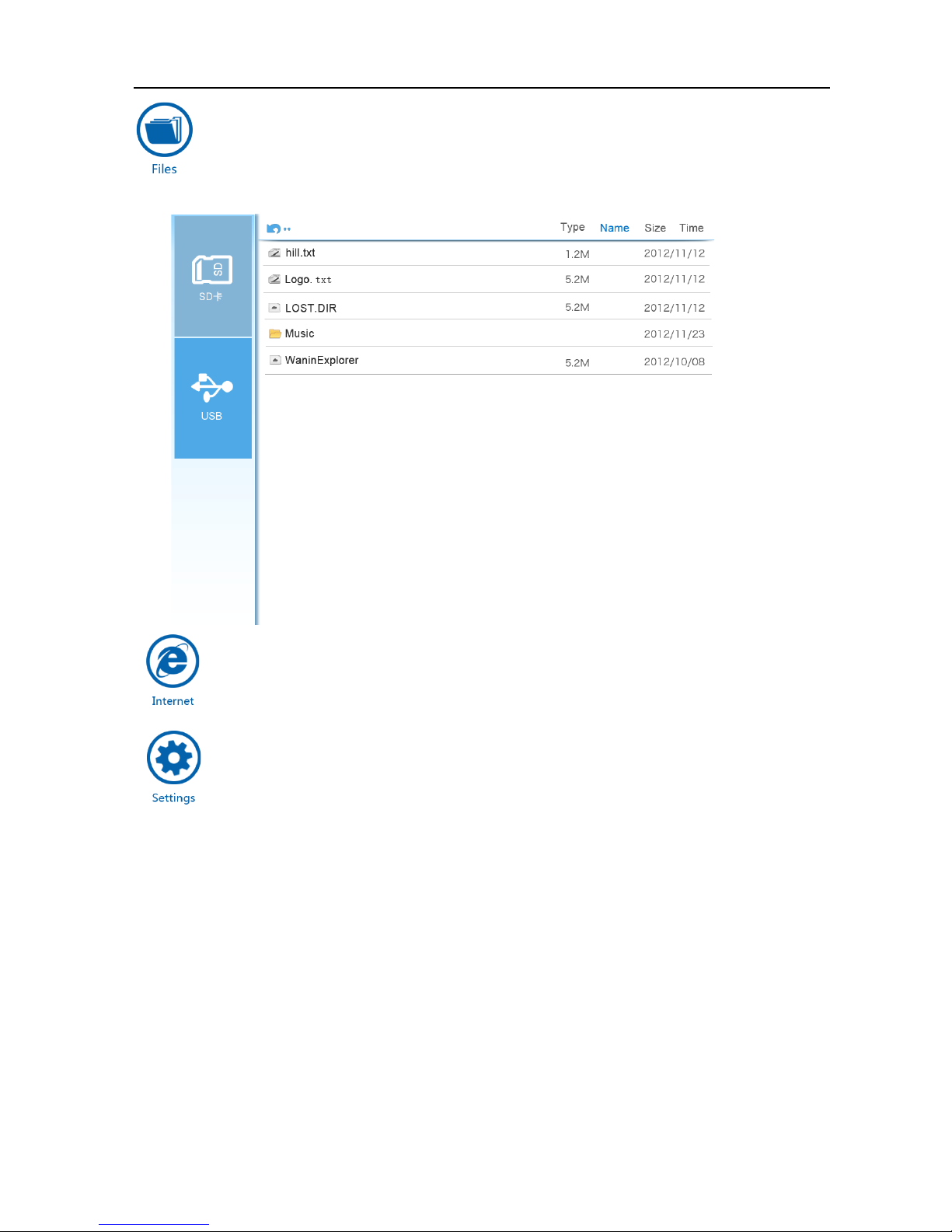

6.USB1/USB2: USB host, used to connect with USB mouse or USB memory stick.

7.SD CARD: SD card slot.

Note: VGA signal and HDMI signal can not be outputted at the same time, please switch needed

output signal type.

Note: Visualizer is based on HDMI 1.3,display device based on HDMI 1.3 and above is

recommended. There may cause compatibility problems when working with display device

below HDMI 1.3.

3

3.Control Panel

1.PC/CAM: Switch between the camera signal and PC signal.

2.AUTO: Adjust white balance and focus automatically.

3.FOCUS+/-: Adjust focus manually, focus far and focus near.

4.BRIGHT+/-: Image brightness control.

5.ZOOM+/-: Image zoom in and zoom out.

6. : Power on/off. When turn off the power, the PC signal can pass through the visualizer

via VGA in and VGA out.

4

4.REMOTE CONTROL

!

1.Record: Start/stop video recording, the video slip will be automatically saved to memory

stick, SD card, or built-in memory. GV 400 can detect when there is an external

storage media and automatically switch to the last detected storage. If there is no

external storage connected, all video slip will be saved in the built-in memory.

2.Computer: Switch to the PC signal.

3.VGA/HDMI: Switch the output signal between VGA and HDMI.

4.Home: a. Switch back to the camera signal.

b. Display the selected image in image recall mode.

5.Auto: Adjust white balance and focus automatically.

5

6.Mir: Flip the camera image.

7.Save: Capture and save the image to Memory stick, SD card, or built-in memory. GV 400 can

detect when there is an external storage media and automatically switch to the last

detected storage. If there is no external storage connected, all captured image will be

saved in the built-in memory.

8.RECALL: Image recall mode enabled, display the saved images and video clips.

9.B/W: Switch the image mode between black&white and color.

10.T/P: Switch the image mode between text and picture.

11.P/N: Switch the image mode between positive and negative.

12.Split: Split screen.

13.Zoom+/-: Image zoom in and zoom out.

14.Frz: Image freeze.

15.Bright+/-: Image brightness control.

16.Rotate: Rotate image (90°,180°,270°).

17.Focus+/-: Adjust focus manually, focus far and focus near.

18.Sharp+/-: Image sharpness control.

19.Blue+/-: Image chroma control (blue).

20.Red+/-: Image chroma control (red).
