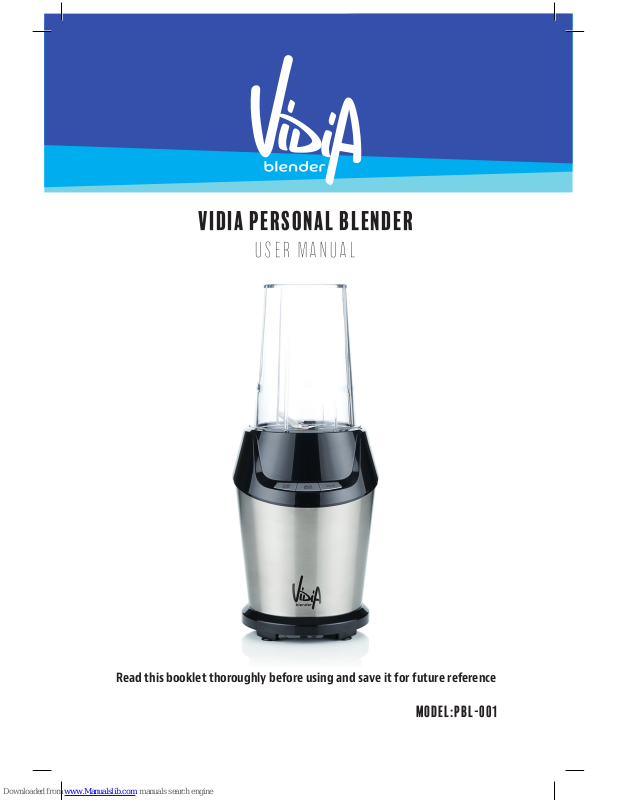

Vidia PBL-001 User Manual

User Manual

Read this booklet thoroughly before using and save it for future reference

Model:PBL-001

ViDiA Personal Blender

3

When using the electrical appliance, the following basic
safety precautions must be followed:

1. Read all instructions.

2. Before using check that the voltage power corresponds to the
one shown on the appliance nameplate.

3. Do not let the cord hang over edge of table or counter.

4. Do not place on or near a hot gas or electric burner, or in a heated
oven.

5. Do not operate any appliance with a damaged cord or plug or
after the appliance has malfunctioned or has been damageded in
any manner. Return the appliance to the nearest authorized service
facility for examination, repair or adjustment.

6. If the power cord is damaged it must be replaced by the manu­facturer or its service agent or a similarly qualified person in order
to avoid a hazard.

7. Don‘t touch any moving parts.

8. Do not leave foreign objects, such as spoons, forks, knives or the
measuring cup, in the jug as this will damage the blades and other
components when starting the machine and may cause injury.

9. The blades are sharp, so handle carefully.

10. The use of any attachment, including jug or jug lid, not re­commended or sold by manufacturer may cause fire, electric shock
or injury.

11. When making nut butters or oil-based foods, do not process
for more than one minute. Over-processing can cause dangerous
overheating.

12. When blending hot liquids or ingredients, use caution: spray or
escaping steam may cause scalding and burns. Do not fill container

important safeguards

4

to the maximum capacity. Always begin processing on the lowest
speed setting. Keep hands and other exposed skin away from the
lid opening to prevent possible burns.

13. Turn all controls to OFF and unplug the blender when it is not in
use, before putting on or taking off parts, and before cleaning.

14. Never leave the appliance unattended while it is running.

15. To protect against risk of electrical shock do not put motor unit
or power cord in water or other liquid.

16. Keep hands and utensils out of jug while blending. Failure to do
this can cause severe injury to persons or damage to the blender.

17. If scraping is necessary, turn the power OFF, unplug from the
electrical outlet, and use a rubber spatula only.

18. Always operate blender with lid in place.

19. Never put non-food items into the jug to blend.

20. Do not open the lid until the blade has completely stopped.

21. Do not put hands or other objects into jug during working.

22. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa­bilities or lack of experience and knowledge only if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Cleaning and user
maintenance shall not be made by children unless they are older
than 8 and supervised.

23. Children should be supervised to ensure that they do not play
with the appliance.

24. Do not use outdoors.

25. Save these instructions.

important safeguards

5

Household use only

Know your blender

Product name:
Model:
Warranty:
Weight:
Dimensions:
Power:

Vidia Personal Blender

PBL-001

2 years

2,5kg

approx. (cm) 37 x 14,5 x 15

230V~ 50Hz 1000W

Technical information

6

Important:

Place the motor base on a clean, dry, and level surface such as a counter or

table top.

1. Insert the plug into the power supply socket.

2. Pack the food material into the cup.

NOTE: Do not overfill! To avoid spilling,do not add ingredients past the
“MAX” fill line.

3. Place the blade assembly onto the cup and twist it on tightly until you have a
good seal.(Fig.1)

Assembly Use Removal

assembly instructions

7

CAUTION: The blade is very sharp, please handle carefully.

4. Turn the cup upside down and place it onto the motor unit, aligning the tabs
on the cup with the motor unit . Turn it clockwise until you feel it click into
place.(Fig.2)

NOTE: The appliance will not work if the jar is not assembled onto the
motor unit properly.

5. Press one of the buttons to activate.(Fig.3)

6. To remove the cup, ensure that the motor has stopped running. Then turn
cup counter clockwise (Fig.4) and pull straight up to remove.(Fig.5)

7. Turn the cup upright and remove the blade assembly by twisting the blade
assembly counter clockwise. Be sure to store the blade assembly attached
to an empty cup when not in use.

8. Twist the sip&seal lid onto the cup to enjoy your drink on the go. Press flip
top cap firmly into the opening to get the best seal and prevent leaking. The
flip top cap locks open when pressed backward.

9. Make sure that the motor base is unplugged when not in use.

Assembly instructions

8

Start/stop

Press once to start continuous operation. Press again to stop. Automatic stop

after 60 seconds.

Auto Blend

Blends fresh or softer ingredients into a smooth consistency. Auto blend

consists of a 3-second pulse followed by a 1-second break – this cycle is repea-

ted 10 times. This works great for smoothies, and can be followed by high-speed

(start/stop or pulse) blending if desired.

Pulse

Hold down the Pulse button for short bursts of blending. It is good for breaking

up harder or bigger ingredients.

Operating instructions

9

Blending carrots

1. Place the appliance on a flat horizontal surface and make sure it is unplug­ged.

2. Cut the carrots into 15mm*15mm*15mm cubes. Put the carrot cubes along
with purified water into the jug. The proportion of the carrot to water is 2:3.
The total amount of the water mixture should not exceed the max level as
indicated on the jug. Place the blade assembly onto the cup and twist it on
tightly until you have a good seal.

3. Plug in the blender. Press the “Start/Stop” button.

4. Automatic stop after 60 seconds.

NOTE: The maximum cycle time of the blender is 60 seconds. The blender
needs to rest between cycles, and after 10 cycles it must be allowed to
cool down for a minimum of 10 minutes.

Crushing ice

1. Place the appliance on a flat horizontal surface and make sure it is unplug­ged.

2. Place a maximum of 10 ice cubes not exceeding 15 mm on any one side into
the 700 ml cup. Place the blade assembly onto the cup and twist it on tightly
until you have a good seal.

3. Plug in the blender. Press the “Start/Stop” button.

4. Allow at least 30 seconds for the ice to crush properly.

NOTE: The maximum cycle time of the blender is 60 seconds. The blender
needs to rest between cycles, and after 10 cycles it must be allowed to
cool down for a minimum of 10 minutes.

ADDITIONAL Functions

10

Grinding coffee

1. Place the appliance on a flat horizontal surface and make sure it is unplug­ged.
Place 100g roasted coee beans into the jug and close it tightly.

2. Note: Do not exceed 100g of coee beans.

3. Plug in the blender. Press the “Start/Stop” button.

4. Allow at least 30 seconds for the best coee consistency.

NOTE: The maximum cycle time of the blender is 60 seconds. The blender
needs to rest between cycles, and after 10 cycles it must be allowed to
cool down for a minimum of 10 minutes.

ADDITIONAL Functions

11

Running the blender for 30 seconds with clear water can help to clean

the blender and blade assembly easily and rapidly in complete safety.

1. After use, remove the jar from the motor unit and rinse the jar under running
water.

2. Wipe the outer surface of the motor unit with a damp cloth. Do not use
abrasive cleanser.Never immerse in water or other liquid for cleaning.

3. All parts except the motor unit and jar base are dishwasher-safe. You can
also wash those parts, except the motor unit and jar base, in warm, soapy
water.

4. Dry all parts and then reassemble them. Store the appliance with the jug lid
not completely closed to allow air to circulate and prevent odor.

5. If any problem has been encountered during use, never disassemble the
motor unit by yourself. There are no user-serviceable parts inside. Contact
only an authorized service facility for examination and repair.

NOTE: The jar base is not dishwasher-safe.

WARNING: The blade is very sharp. Handle carefully when cleaning. Do
not use abrasive cleaners. Never immerse the motor unit in water for

cleaning.

Cleaning and maintenance

Please remember to follow local recycling laws
and dispose of any elecctrical appliance in an
environmentally-sensitive manner.

Cleaning and maintenance

12

Cleaning and maintenanceWarranty and service

EUJUICERS.COM Ltd.
Rudolfovska 11
370 01 Ceske Budejovice
CZECH REPUBLIC
Phone: [phone]
email: [email protected]
www.eujuicers.com

products

The Vidia PBL-001 personal blender is covered by the manufacturer’s
warranty for a period of 2 years from the date of purchase. This warranty
covers normal household use only. Damage or malfunctions caused by
using the product in any way other than that specified in this manual are
not covered by the warranty.

In case of problems with the Vidia PBL-001 personal blender during the
warranty period, contact the retailer or an authorized service center.
There are no user-serviceable parts on this blender and any attempt to
service it may be hazardous.

This product meets all the basic EU regulation requirements
that relate to it. Changes to the text, design and technical
specifications may occur without prior notice and we reserve the
right to make these changes.

13

healthy recipes

The citric acid in green grapes speeds
up the metabolism. Cucumbers
are hydrating and cooling and
help prevent fluid buildup and
bloating. has diuretic eect and
it prevents edema and controls
blood pressure. The enzymes
found in pineapple help digestion.

The antioxidants in tangerines
provide an immunity boost to keep
you healthier. Bell peppers are loaded
with lycopene, a powerful antioxidant
to keep you looking younger.

1/2 Bunch

1/2
1/8
1/8

1 spoon

To Taste

3 pieces

1/2

Green Grapes
Cucumber
Pineapple
Melon
Lemon Juice
Ice

Tangerines
Red Bell Pepper

Hydrating smoothie

Fountain of Youth

Ingredients

Ingredients

14
