VIDEOTRACK VT-STD370 Installation Manuals

Do not connect cables when power is on!

DC12V/1A

Uncovered cable should be less than 5mm

Please use repeater when exceeding 80m

TCP/IP

① ②

③

④ ⑤

PC

Microphone
Audio input

Detective

Alarm input

Loudspeaker

Audio input

Alarm output

Warning lamp Remote device

R 485S

Chapter 1: Diagram for IP camera video surveillance

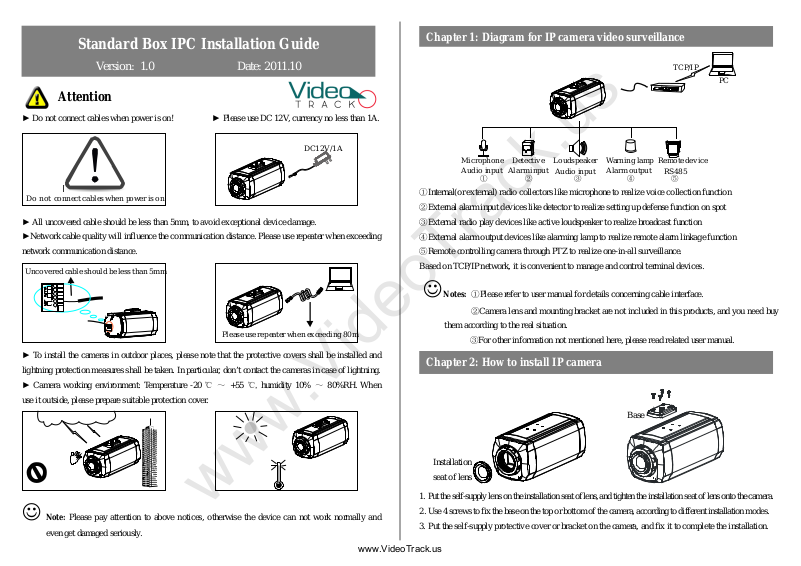

Standard Box IPC Installation Guide

Version: 1.0 Date: 2011.10

Installation
seat of lens

www.VideoTrack.us

www.VideoTrack.us

Attention

► Do not connect cables when power is on! ► Please use DC 12V, currency no less than 1A.

► All uncovered cable should be less than 5mm, to avoid exceptional device damage.
►Network cable quality will influence the communication distance. Please use repeater when exceeding

network communication distance.

► To install the cameras in outdoor places, please note that the protective covers shall be installed and
lightning protection measures shall be taken. In particular, don’t contact the cameras in case of lightning.
► Camera working environment: Temperature -20 ℃ ～ +55 ℃, humidity 10% ～ 80%RH. When
use it outside, please prepare suitable protection cover.

①Internal(or external) radio collectors like microphone to realize voice collection function
②External alarm input devices like detector to realize setting up defense function on spot
③External radio play devices like active loudspeaker to realize broadcast function
④External alarm output devices like alarming lamp to realize remote alarm linkage function
⑤Remote controlling camera through PTZ to realize one-in-all surveillance.

Based on TCP/IP network, it is convenient to manage and control terminal devices.

 Notes: ①Please refer to user manual for details concerning cable interface.

②Camera lens and mounting bracket are not included in this products, and you need buy

them according to the real situation.

③For other information not mentioned here, please read related user manual.

Chapter 2: How to install IP camera

Base

 Note: Please pay attention to above notices, otherwise the device can not work normally and

even get damaged seriously.

1. Put the self-supply lens on the installation seat of lens, and tighten the installation s eat of lens onto the camera.

2. Use 4 screws to fix the base on the top or bottom of the camera, according to different installation modes.

3. Put the self-supply protective cover or bracket on the camera, and fix it to complete the installation.

STATE

PWR

RESET

AIN AOUT

SD CARD

LAN

DC 12V

ALARM 485

COM NO INGND

+ -

ALARM

485

COM NO INGND

+

-

Chapter 4: Network connection

Chapter 3: Introduction on cable interface

www.VideoTrack.us

www.VideoTrack.us

1. Power Interface( DC 12V ): Connect with power adaptor.

2. Network Interface( LAN ): Ethernet port for 10/100M. Through this port, you can connect the
camera with other network devices like switcher, hub, router, etc.

3. Reset Button (RESET): Long press this button for more than 30 seconds when power on, the camera will
recover to default configuration. Default IP address is 192.168.1.88, user name “admin” and password “admin”.

4. Alarm Interface (COM, NO, IN, GND): connect with external alarm input & output devices. See
below detailed information.

For the first network connection, please follow the following steps to configure your network.

1. Use cable to connect camera with computer.

2. When connecting with 10M network, the orange indicator will be on, when connecting with 100M
network, the green indicator will also be on.

3. If your computer IP address is in different gateway with that of camera, please change your computer
IP address in the same gateway as camera, for example, 192.168.1.87.

4. In the IE browser, please input camera IP address (default IP “192.168.1.88”) and enter, then below
dialog table will come out.

Picture 1 Picture 2

5. After input the user name and password (default user name “admin” and password “admin”), below
activeX controls will show in the screen. This is a prerequisite activeX and controls for this application,
without any danger information. Please run it according to above picture 2.

6. After finish the activeX and controls installation, please refresh the web page and below picture will
come out.

5. RS485 Interface: Supports standard 485 PTZ protocols, for connecting with PTZ. Please see above pictu re.

6. Audio input (AIN) : connects with external voice collectors like microphone to realize voice
collection function.

7. Audio output (AOUT): connects with external play devices like act louds peaker to realize broadcast function.

8. SD card slot: Supports SD card local storage for video recording and snap, up to 64G(Optional).

9. Indicator (PWR, STATE): When the camera is in power on, PWR light will go on. When insert SD
card, STATE light will go on.

7. If you want to change the camera IP address, please refer to the user manual.

 Note: Please adjust the IP address well first and then install the camera.
