Projector
User’s Manual

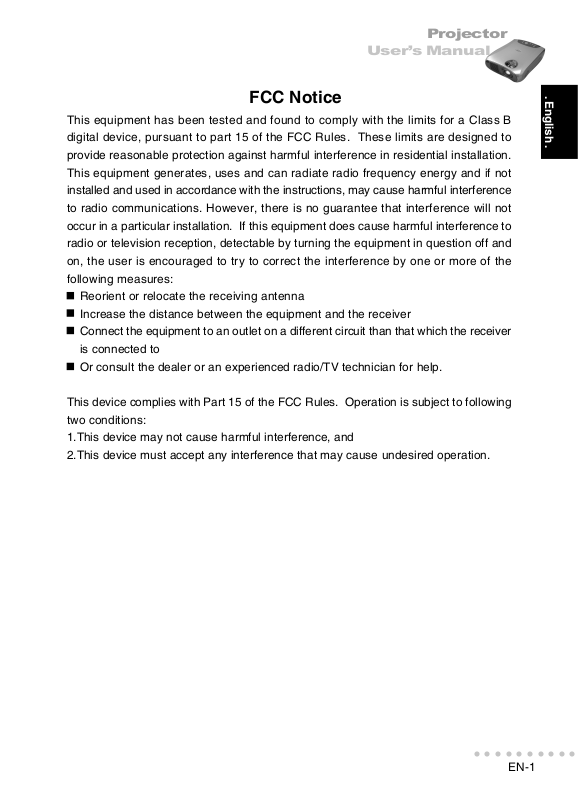

FCC Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, detectable by turning the equipment in question off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to an outlet on a different circuit than that which the receiver
is connected to
Or consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to following
two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference that may cause undesired operation.
. English .
○○○○○○○○○○
EN-1
Page 2
Projector
User’s Manual
Precautions
Safety Instructions
1. Check that the operating voltage of your unit is identical with the voltage of your
local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it
checked by the qualified personnel before operating it further.
3. Do not place the projector on an unstable stand or table.
4. Unplug the unit from the wall socket if it is not to be used for several days.To
disconnect the cord, pull it out by the plug. Never pull the cord itself.
5. The wall socket should be near the unit and easily accessible.
6. Do not place the projector where the cord can be stepped on as this may result in
fraying or damage to the lead or the plug. Be alert to tripping hazards.
7. Never look into the projector lens when the lamp is switched on as the bright light
can damage your eyes. Never let children look into the lens when it is on.
8. Do not place your hand or objects near the ventilation holes. The air coming out is
hot.
9. Never open any covers on the projector except the lamp cover. Dangerous electrical
voltages inside the projector can cause severe injury. Except as specifically directed
in this Instruction Manual, do not attempt to service this product yourself. Refer all
servicing to qualified service personnel.
10. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
11. Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by suffocation.
Be particularly careful around the small children.
○○○○○○○○○○
EN-2
Page 3
Projector
User’s Manual
Cautions
The projector is equipped with ventilation holes (intake) and ventilation holes
(exhaust). Do not block or place anything near these slots, or internal heat build-
up may occur, causing picture degradation or damage to the projector.
When you replace the projector lamp, never touch the new bulb with your bare
hands. The invisible residue left by the oil on your hands may be shorten the bulb
life. Use lint-free gloves or finger cots are recommended.
Preventing Internal Heat Build-Up
After you turn off the power with the Power button, do not disconnect the unit from the
wall outlet while the cooling fan is still running.
Repacking
Save the original shipping carton and packing material; they will come in handy if you
ever to ship your unit. For maximum protection, repack your unit as it was originally
packed at the factory.
. English .
○○○○○○○○○○
EN-3
Page 4
Projector
User’s Manual
CONTENTS
6
6
7
8
8
9
9
9
9
10
10
11
12
13
14
14
14
15
15
Projector Features and Controls
Projector
Control Panel
Remote Controller
Button Function
Getting the Most Out of Your Projector
Remote Controller
Auto Off Mode
Control Panel
Setup
Unpacking the Projector
Setting Up the Projector
Connecting to a Computer
Connecting to a Video Source
Using the Projector
Turning the Audio/Visual(A/V) Equipment On and Off
Turning the Projector On and Off
Focusing and Positioning the Screen Image
Operational Indicator(LED)
16
16
18
19
19
21
○○○○○○○○○○
EN-4
Projector Control Menus
Changing a Menu Setting
Menu Options
Input Menu
Picture Menu
Color Menu
Page 5
Projector
User’s Manual
. English .
22
23
24
26
26
27
27
27
28
29
30
30
30
31
32
33
34
34
35
Audio Menu
MISC Menu
Option Menu
Language Menu
Reset Menu
Other Related OSD Menus
Video Input Signal
Video Menu
Other OSD Menus
No Input Signal
Maintenance
Cleaning the Lens
Cleaning the Projector Housing
Cleaning the Air Filter
Replacing the Lamp
Technical Specifications
Appendix A
Preset Signals
HDTV Preset Signals
○○○○○○○○○○
EN-5
Page 6
Projector
User’s Manual
PROJECTOR FEATURES AND CONTROLS

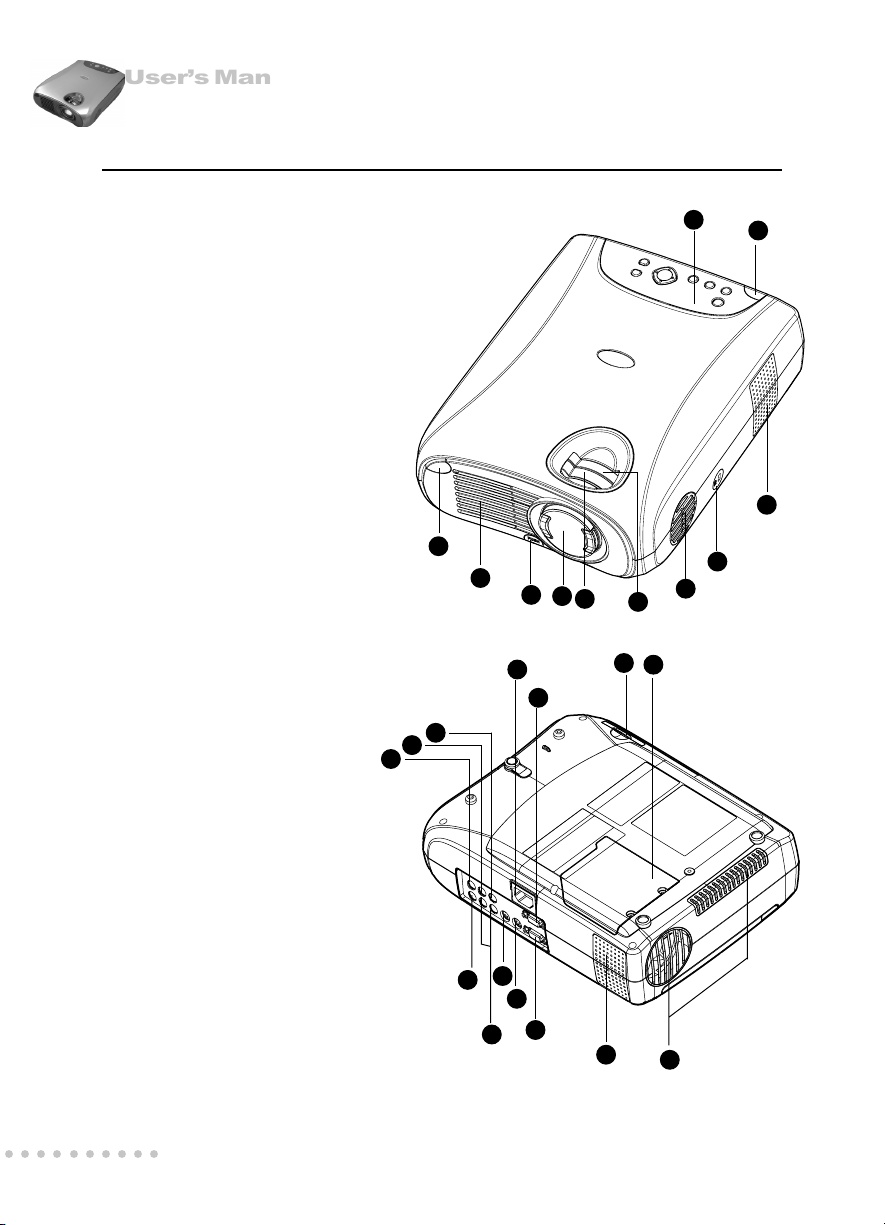

PROJECTOR
1. Zoom ring
2. Focus ring
3. Lens
4. Ventilation holes (intake)
5. Ventilation holes (exhaust)
6. Adjuster button
7. Front IR remote controller sensor
8. Speakers
9. Control Panel including
Power button
10. AC power socket
17
18
19
7
4
10
326
23
14
11. Rear IR remote controller sensor
12. Security lock receptacle
13. Control port
14. Computer IN(D-SUB) connector
15. Monitor OUT
16. S-video input
17. Y connector
18. Cb connector
19. Cr connector
20. Audio input jacks (L & R)
21. Composite Video input jack
22. Lamp cover
23. Air filter
9
11
8
12
4
1
22
○○○○○○○○○○
EN-6
21
20
16
13
15
8
5
Page 7
Projector
User’s Manual
CONTROL PANEL
LED
POWER Power LED indicator – indicates power to projector.
LAMP Lamp LED indicator – indicates lamp power.
Button Function
Turns the projector and lamp ON and OFF.
INPUT Manually selects an input source.
AUTO Automatically adjusts frequency and phase.
MENU Displays (or hides) the on-screen control menus.
(+) Increases the volume of the projector’s speakers.
(-) Decreases the volume of the projector’s speakers.
Cursor Controller It can be used as a navigation controller to navigate
cc
dd
ee
(
c/
cc
or confirms a menu selection.
ff
d/
e/
f) the projector menus.
dd
ee
ff
cc
c-Scrolls up through the menu choices.
cc
dd
d-Scrolls down through the menu choices.
dd
ff
f-Increases the value setting on the selected sub-menus,
ff
ee
e-Decreases the value setting on the selected sub-menus.
ee
. English .
○○○○○○○○○○
EN-7
Page 8
Projector
User’s Manual

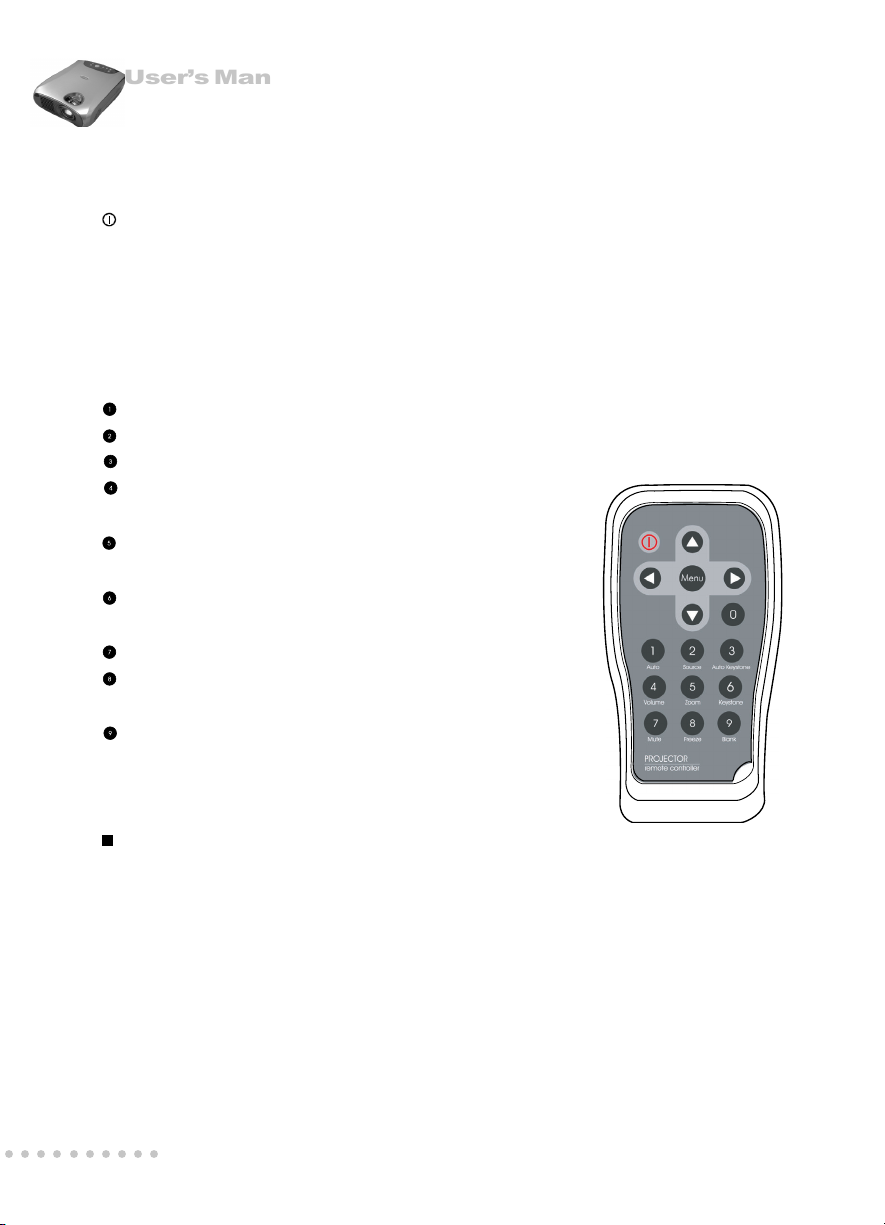

REMOTE CONTROLLER
Button Function
Power Turns the projector and lamp ON and OFF.
Menu Displays (or hides) the on-screen display menus.
cc
c Scrolls up through the menu choices.
cc
dd
d Scrolls down through the menu choices.
dd
ff
f Increases the value setting on the selected sub-menus, or
ff
confirms a menu selection.
ee
e Decreases the value setting on the selected sub-menus.
ee
Auto Automatically adjusts frequency and phase.
Source Manually selects an input source.
Auto Keystone Automatically adjusts vertical trapezoidal distortion.
Volume Adjusts the volume of the projector’s
speakers.
Zoom Digitally zooms the current image
window.
Keystone Selects vertical trapezoidal
distortion.
Mute Cuts off the sound temporarily.
Freeze Freezes the current graphics and video
image on the screen.
Blank Cuts off the screen temporarily.
Note:
Press the KEYSTONE button to select the trapezoidal distortion. To adjust the
trapezoidal distortion of the projection, press the
○○○○○○○○○○
EN-8
ee
e
ee
or
ff
f
button.
ff
Page 9
Projector
User’s Manual
GETTING THE MOST OUT OF YOUR PROJECTOR
The projector has a full set of features that allow you to control the settings for video,
audio, power management, display parameters, and much more.
To derive the greatest utility from your projector, read this section for a quick summary
of the important features.
Remote Controller
The buttons on the Remote Controller allow direct and immediate control of the most
commonly used features including source selection, keystone adjustment, volume
control, image freeze-frame, zoom, screen blanking, audio muting and power control.
Remote Controller buttons can also be used for advanced functions and to access the
projector’s menu system.
Auto Off Mode
The auto off mode conserves electricity by automatically turning off the lamp if the
projector does not receive input signal for a specified period (30 minutes). In the auto
off mode, the lamp is turned off, conserving electricity, cooling the projector and
extending the life of the lamp. Use the Power button on either the Remote Controller or
the Projector Control Panel to turn the projector on again if it has powered off.
. English .
Control Panel
The control panel buttons on the top of projector offer access to advanced functions,
such as adjusting the brightness and contrast for computer images.
○○○○○○○○○○
EN-9
Page 10
Projector
User’s Manual
SETUP
This section tells you how to unpack and set up your projector and connect it to other
equipment. The projector must be connected to a computer or a video source such as
a video tape deck, camcorder, digital camera or laser disk player in order to make a
projection.
You may want to connect the projector to both your computer and a video source, or
set up the projector for providing audio source. The audio source can be the computer,
video source, or another device such as a stereo.
Unpacking the Projector
When you unpack the projector, make sure you have all these components:
Projector
Remote Controller (IR)
Power cord
Computer cable (D-SUB cable)
S Video cable
A/V composite cable (RCA type for composite video & audio)
Lens cap
Instruction manual
The following cables are optional accessories:
Projector carrying case
Audio cable
YPbPr/HDTV to D-SUB(When using YPbPr/HDTV as input signal)
Component Video cable
Monitor OUT cable (D-SUB cable)
Many of the above optional items may not be required for your particular installation.
Retain packaging materials in case you need to move or ship the projector in the
future. It should always be transported in its original protective packaging.
○○○○○○○○○○
EN-10
Page 11
Projector
User’s Manual
Setting Up the Projector
1.Place the projector on a sturdy, level surface within five feet of the computer or video
source.
Caution:
Do not hold the projector by the lens. This can damage the lens.

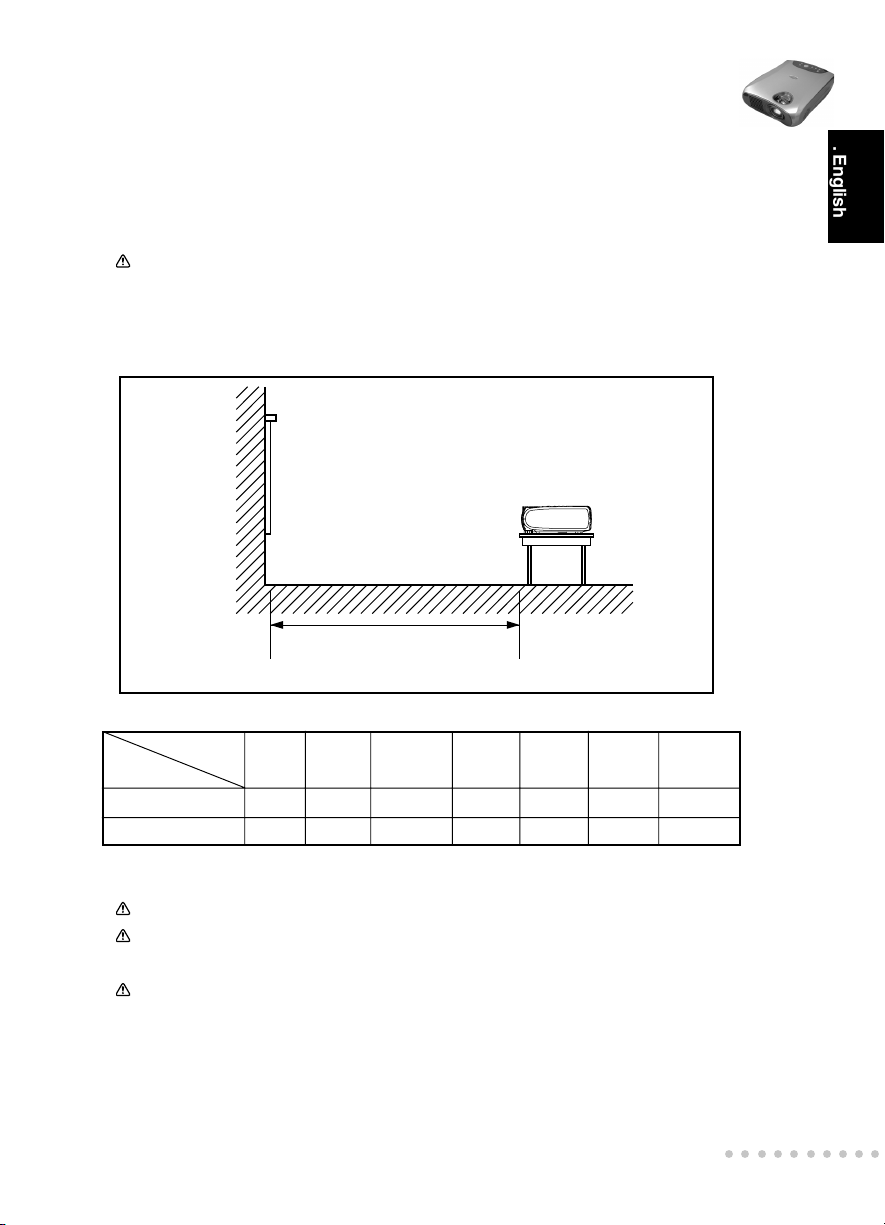

2.Place the projector at the correct distance from the screen. The distance between
the projector and the screen determines the actual image size. Use the general
guidelines below to determine the correct distance.
Distance between the
screen and the center of the lens
. English .
Projection
Size(Diagonal)
WIDE 34.3” 68.8” 83.8” 137.2” 167.6” 274.4” 331.4”
TELE 25.9” 51.8” 63.5” 103.6” 125.6” 207.2” 251.2”
Projector
1 Meter 2 Meters 2.5 Meters 4 Meters 5 Meters 8 Meters 10 Meters
Distance
3.When replacing batteries on the Remote Controller, take the following precautions:
Do not recharge used batteries or expose batteries to fire or water.
Replace batteries as soon as they run down. If the batteries leak, wipe away the
fluid with a soft cloth. If battery fluid gets on your hands, wash them immediately.
Remove the batteries if you will not be using the remote controller for a long
period of time.
○○○○○○○○○○
EN-11
Page 12
Projector
User’s Manual

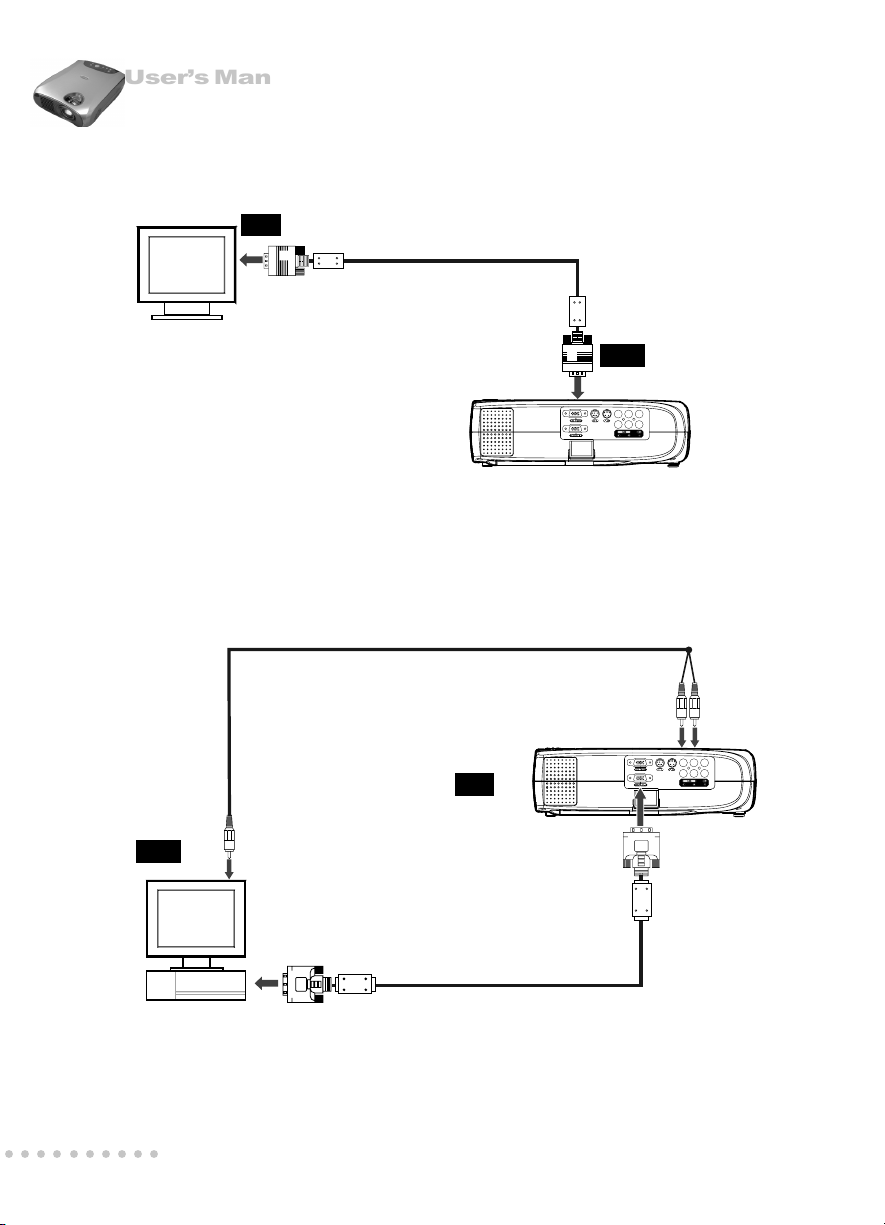

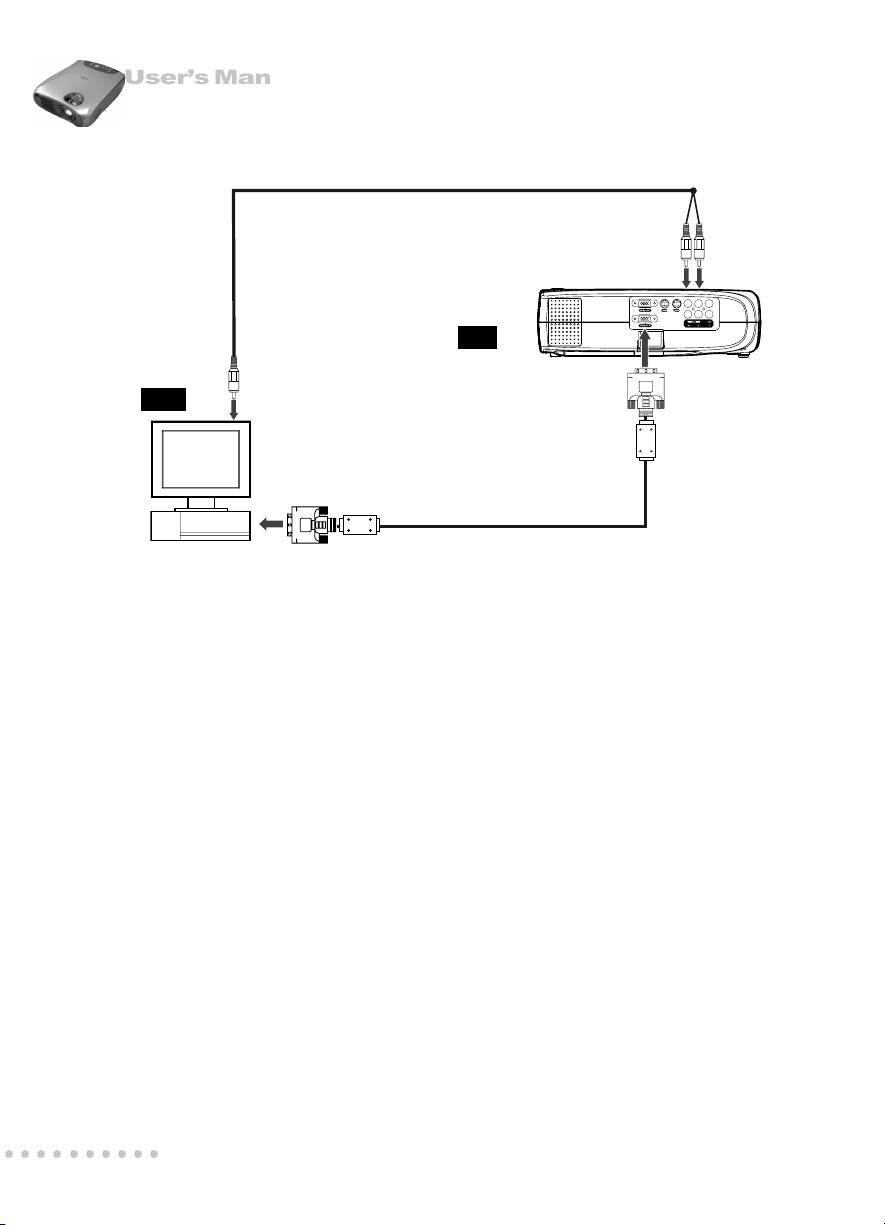

Connecting to a Computer
Audio Cable
Projector
IN
Computer
OUT
VGA OUT
The projector will always project at XGA (1024 x 768) resolution. (XGA is the native
resolution of the projector.) However, you can connect the projector to a computer
source capable of displaying VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768)
or SXGA (1280 x 1024) resolutions. The projector will resize VGA, SVGA, and SXGA
inputs for XGA projection. The types of computers supported by this projector include
IBM, Macintosh and Apple compatible laptop or desktop PCs (PC compatibles).
Note:
If the input source is Computer, it can produce MONITOR OUT function.
Computer Cable
○○○○○○○○○○
EN-12
Page 13
Projector
User’s Manual

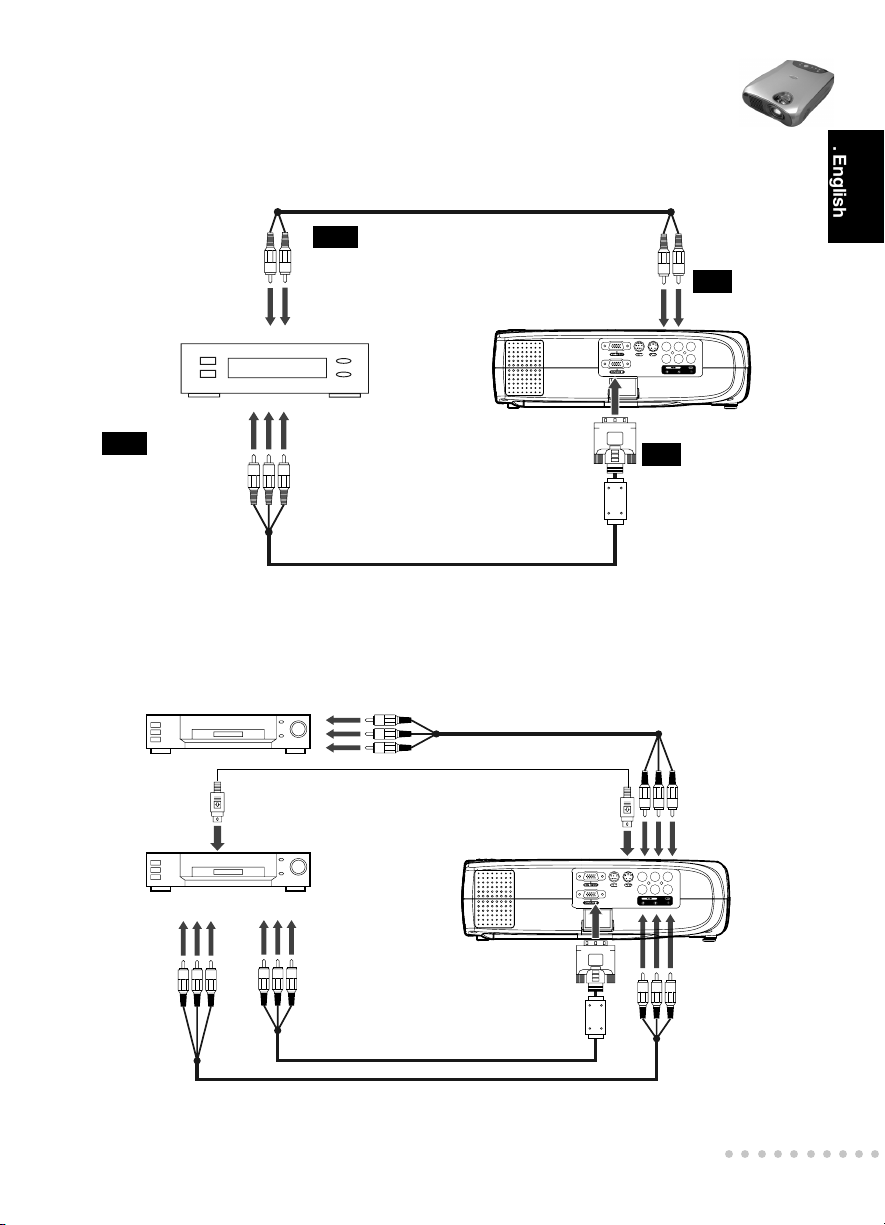

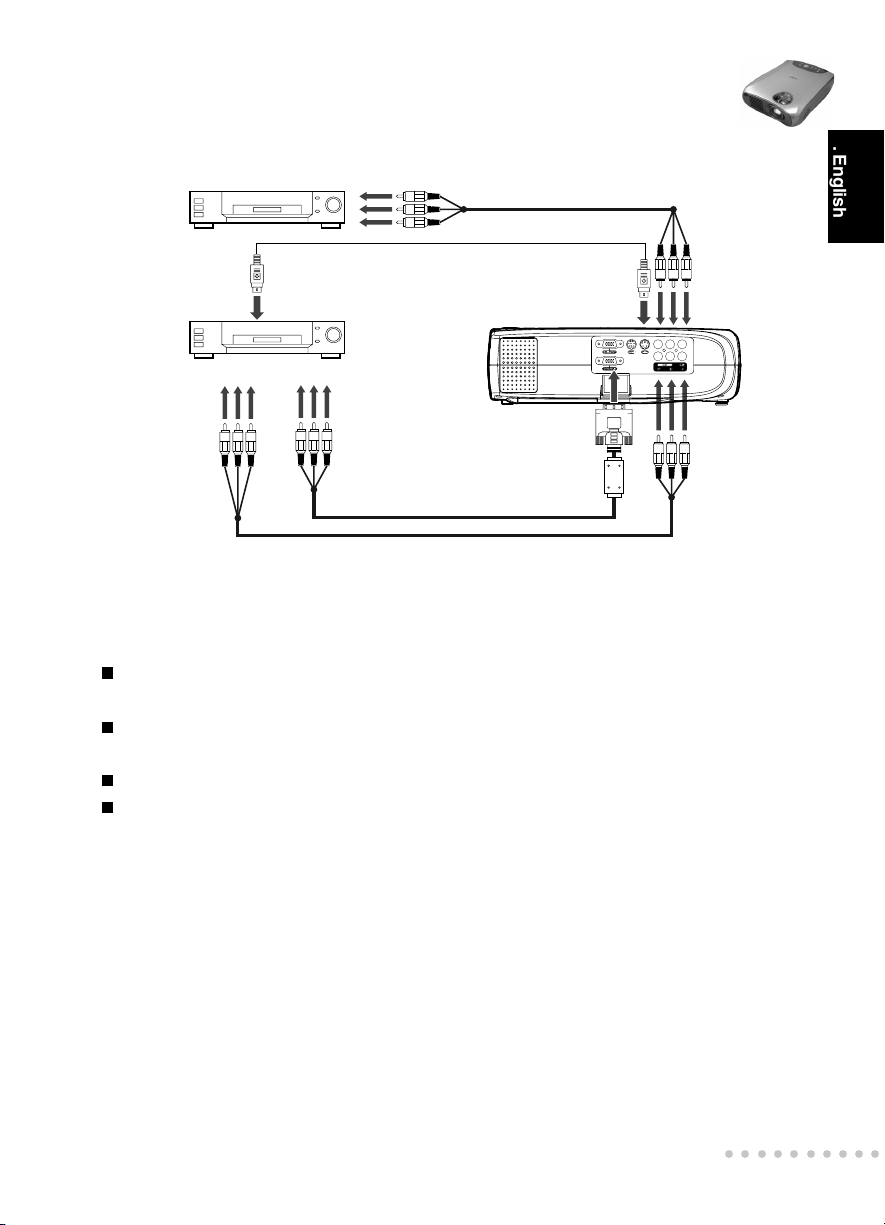

Connecting to a Video Source
Video out VCR
S-Video Cable
DVD Player
YPbPr (HDTV to D-SUB Cable)
Y Cb Cr(Component Video Cable)
You can connect the projector to almost any common video source - VHS player, DVD
player, camcorder, laser disc player or any other compatible video image source.
The projector can accept composite, component, or S-Video signals:
Composite video is characterized by a single-pin “RCA-type” video jack, usually
colored yellow.
Component video (YCbCr) is less common and features three “RCA-type” video
jacks, typically colored green, blue and red.
S-Video is readily identified by a single connector with four small pins.
Component video ( YPbPr) is characterized by D-SUB plug to " RCA-type" video
jacks, typically colored green blue and red.
AV Composite Cable
W/R Y
. English .
You can connect the projector simultaneously to composite, component, S-Video and
YPbPr/HDTV sources. You can select which video source to project using the control
panel or remote controller. If the Auto Search feature is ON (see later sections of this
manual), the projector will automatically detect and select a source. The projector
supports NTSC, PAL and SECAM video formats. The projector will automatically
detect and identify the video format. Note, however, whereas the projector can accept
multiple simultaneous sources it can only accept one video format at a time.
Note:
The projector is not compatible with a cable TV-style coaxial “F” connector.
○○○○○○○○○○
EN-13
Page 14
Projector
User’s Manual
Using the Projector
This section describes projector operations:
Turning the projector and A/V equipment on and off
Adjusting the projected image
Projector controls
Checking the projector status
Turning the Audio/Visual (A/V) Equipment On and
Off
Always turn on the projector and related A/V equipment in the following order.
1.Projector
2.Computer
3.Video source
4.Audio source
Turning the Projector On and Off
1.Connect the power cord to the projector.
2.Insert the power plug into a wall outlet.
3.Remove the projector lens cap.
4.Press the Power button (on either the Remote Controller or the Projector Control
Panel) to turn on the projector. When the lamp LED indicator lights in green, the
projecting image gets full illumination.
Warning:
Never look into the lens when the lamp is on. This can damage your eyes.
It is especially important that children are not allowed to look into the lens.
○○○○○○○○○○
EN-14
Page 15
Projector
User’s Manual
5.To turn off the projector, press the Power button. A message will appear on the
screen for about 10 seconds:
6.Press the Power button once again(to turn off the power) while the message is still
showing on the screen.
Note:
Please wait until the fan motor and the Lamp LED turn off before removing the
power cord from the projector.
Focusing and Positioning the Screen Image

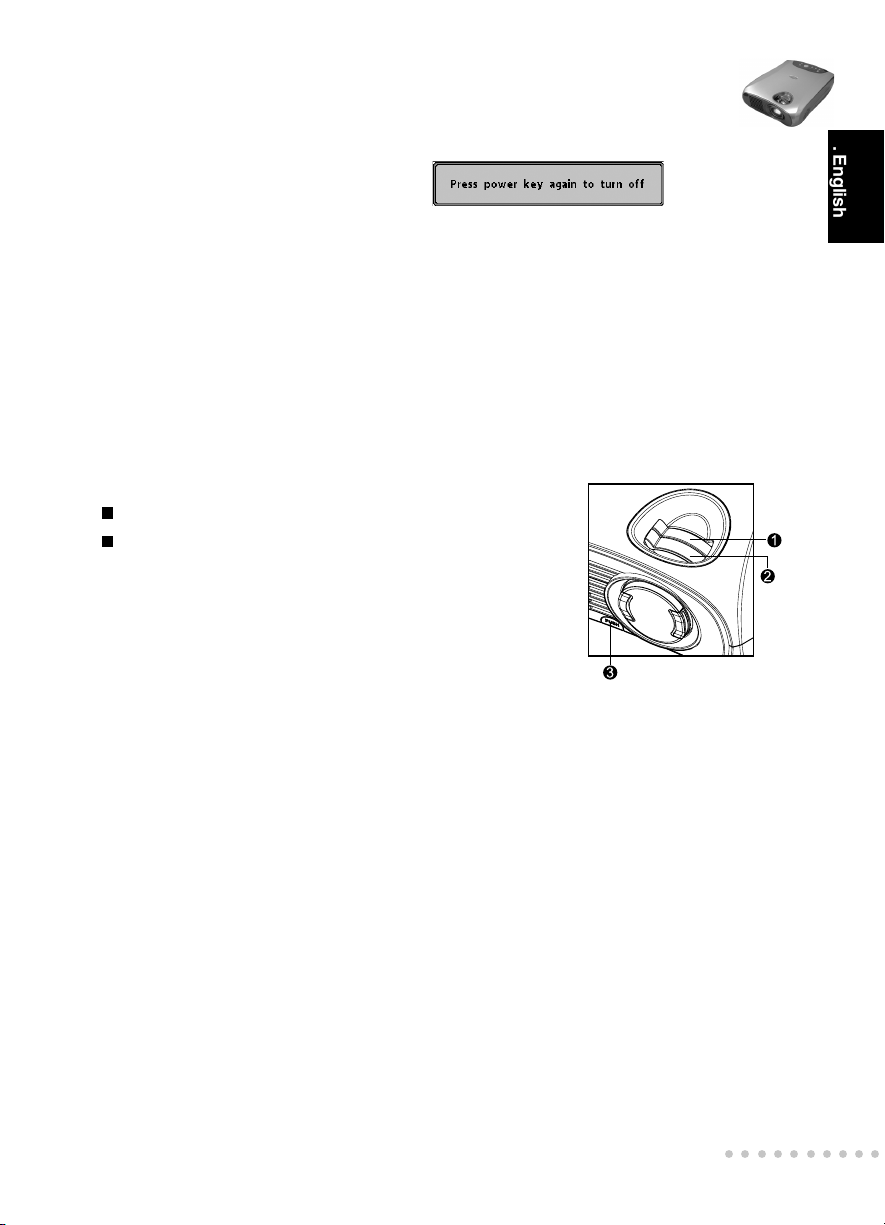

After an image appears on the screen, check to see if it is in focus and whether it fits
properly on the screen.
To adjust the focus of the image, rotate the focus ring.
To adjust the size of the image, rotate the zoom ring.
Zooming in to make the image larger or zooming out
make it smaller on the screen.
nn
n Zoom Ring
nn
Note:
Push the adjuster button to adjust the projected image position. Hold down the adjuster
button to pull the height adjustment. Release the adjuster button and the height
adjustment position will be locked.
oo
o Focus Ring
oo
pp
p Adjuster Button
pp
. English .
Operational Indicator (LED)
There are two LEDs on the top of the projector, the Power LED and the Lamp LED.
They provide valuable information about the projector.
○○○○○○○○○○
EN-15
Page 16
Projector
User’s Manual
LED TYPE COLOR STATUS MEANING
Power LED Green Solid The projector is powered and ready.
Power LED Red Solid The projector system has some problems with its fan, so
the projector cannot start up.
Lamp LED Green Solid The lamp is in good condition and is projecting at
maximum brightness.
Lamp LED Red Solid The lamp has reached its end of life and must be
changed soon. The lamp will continue to operate until
it fails. Change the lamp and reset the lamp time
counter. If the lamp is off, then the ballast will become
malfunction.
Lamp LED Amber Flashing The projector is shutting down. The fan motor is cooling
the lamp for shutdown. Do not unplug the power cable
or turn the power switch off before the Lamp LED turns off.
The fan motor will turn off when the lamp has cooled.
Lamp LED Red Flashing Temperature is too high. The lamp will turn off.
PROJECTOR CONTROL MENUS
This section describes how to make various adjustments and settings using the menus.
Changing a Menu Setting
The projector menus can be accessed using either the Projector Control Panel or the
Remote Controller.
1.Changing the menu display:
Press the MENU button either on the Remote Controller or the Projector Control
Panel.

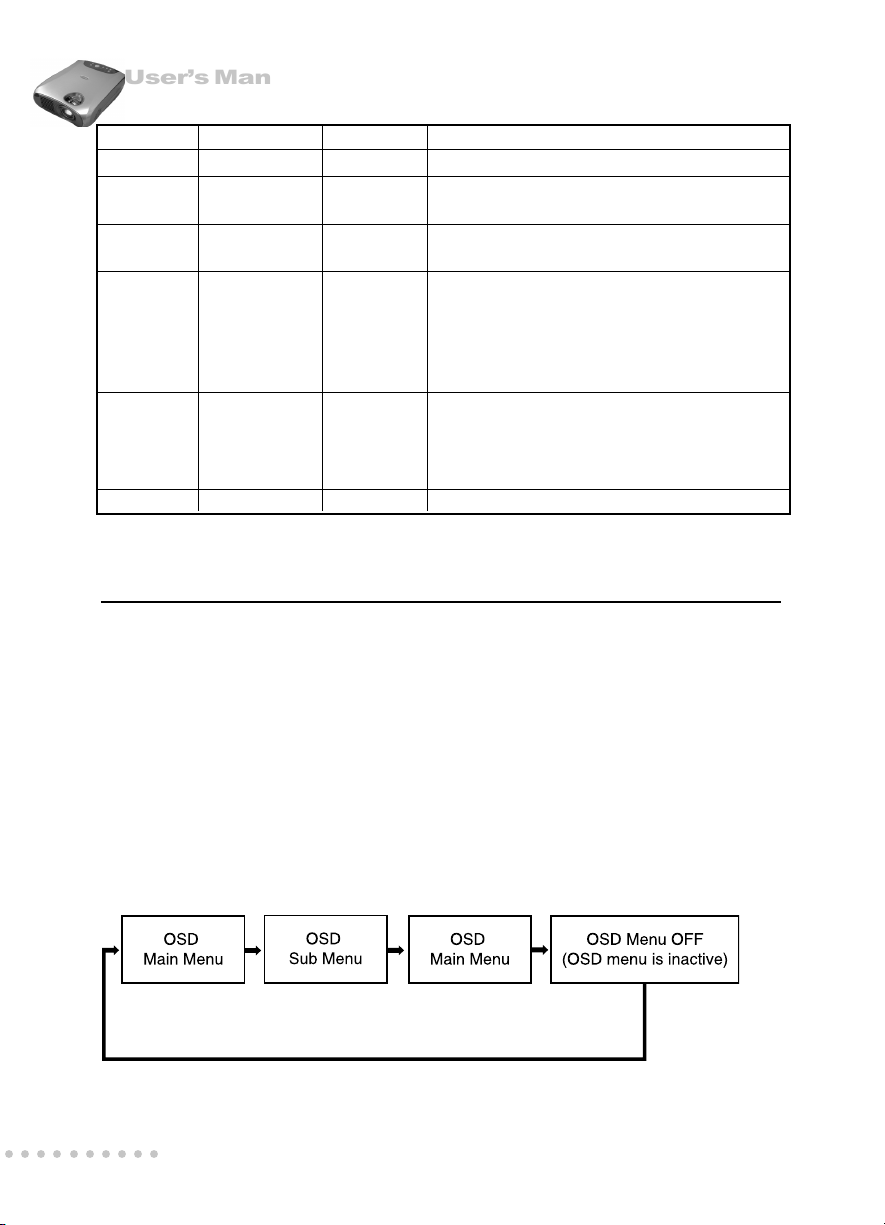

Each press of the MENU button switches the display format as follows:
○○○○○○○○○○
EN-16
Page 17
Projector
User’s Manual
2.Selecting the desired menu or sub-menu(to scroll through the menu choices):
cc
On the Projector Control Panel: press the
On the Remote Controller: press the
cc
c or
cc
dd
c or
d button.
cc
dd
dd
d button.
dd
Note:
To scroll up: press the c button.
To scroll down: press the d button.
3. Adjusting the value setting:
ee
On the Projector Control Panel: press the
On the Remote Controller: press the
ee
e or
ee
ff
e or
f button.
ee
ff
ff
f button.
ff
Note:
To increase value: press the f button.
To decrease value: press the e button.
To confirm the selection on the INPUT, LANGUAGE and RESET Menus, press the
f button.
. English .
○○○○○○○○○○
EN-17
Page 18
Projector
User’s Manual
Menu Options
The projector is equipped with three types of on-screen display(OSD) menus.
Each OSD menu interface you will see on the screen is depending on the type of input
signal.
* The illustrations in this manual are for the purpose of explanation and may differ
from the actual setting of your projector.

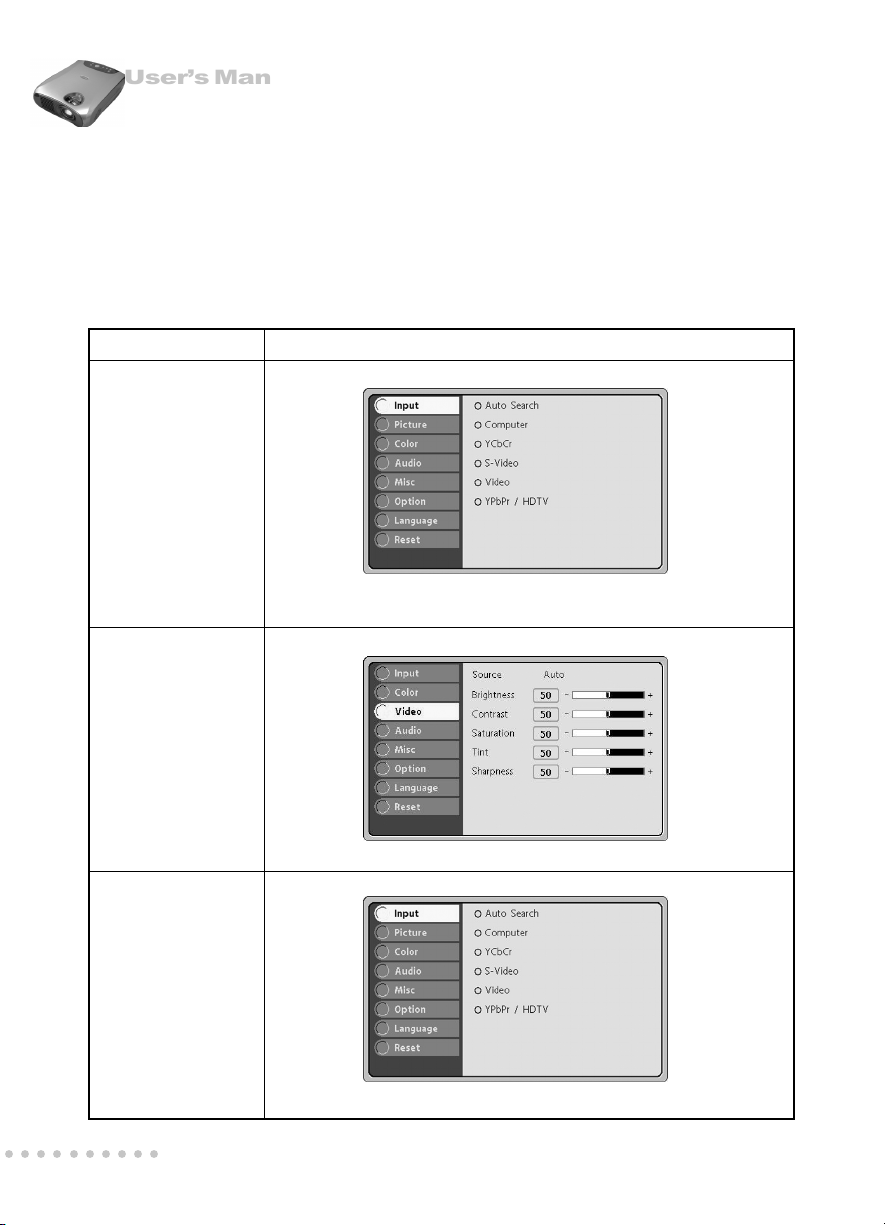

Input Signal Type Menu Interface
Computer
YPbPr/ HDTV
Input, Picture, Color, Audio, Misc, Option, Language,Reset
S-Video
Video
YCbCr
None
○○○○○○○○○○
EN-18
Input, Color, Video,Audio, Misc, Option,Language, Reset
Input, Option, Language,Reset
Page 19
Projector
User’s Manual

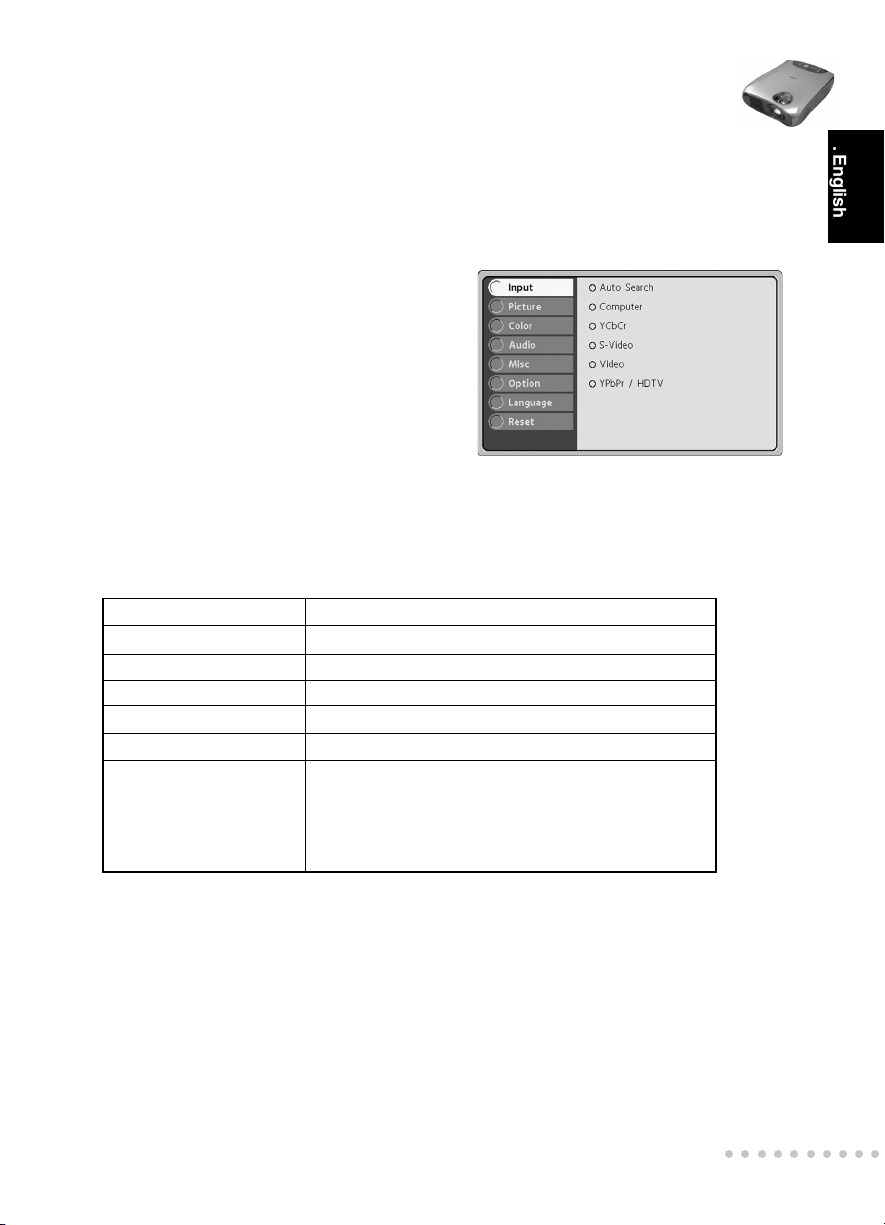

Input Menu
This menu allows to specify the signal source that you wish to project. This is particularly
useful if you have several sources (video and/or computer) connected to your projector.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1. Press the MENU button to display OSD
menu.
cc
2. Press the
INPUT menu.
3. To enter the sub-menu setting, press the
ff
f button or the MENU button.
ff
4. Press the
desired input source.
5. Press the
6. To exit from the current menu, toggle the MENU button.
The following table provides detail of the available sub-menu choices:
Option Description
Auto Search Automatically scans the input source.
Computer Signal from computer. (desktop or notebook)
YCbCr Component video signal.
S-Video S-video signal.
Video Composite video signal.
YPbPr/ HDTV Signal from YPbPr/HDTV.
dd
c or
d button to select
cc
dd
cc
dd
c or
d button to select the
cc
dd
ff
f button to confirm the input selection.
ff
(High Definition TV - a high-resolution TV
standard, which is part of the group of digital
TV standards introduced in USA in late 1998).
. English .

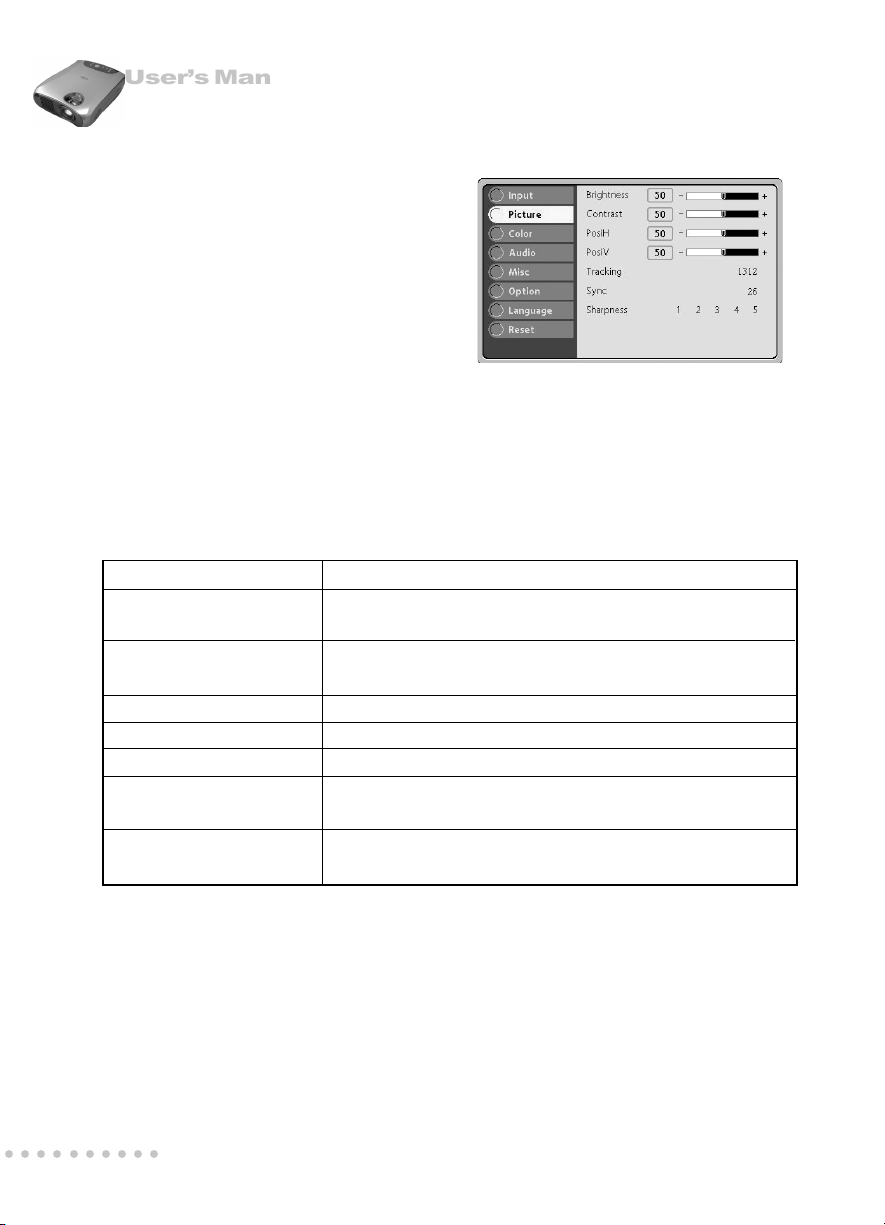

Picture Menu
This menu provides precise control of the projected image including:
Brightness, contrast, horizontal position, vertical position, tracking, sync and sharpness
(just for computer signal).
○○○○○○○○○○
EN-19
Page 20
Projector
User’s Manual
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD
menu.
cc
2.Press the
PICTURE menu.
3.To enter the sub-menu setting, press the
ff
fbutton or the MENU button.
ff
4.Press the
sub-menu item.
5.Press the
6.After you have done with the adjustment of a sub-menu item:
a.To resume changing another sub-menu item: press the
b.To exit from the current menu: toggle the MENU button.
The following table provides detail of the available sub-menu choices:
Sub-Menu Description
Brightness The higher the setting, the brighter the image.
Contrast The higher the setting, the greater the contrast.
PosiH Adjusts the horizontal position.
PosiV Adjusts the vertical position.
Tracking Adjusts the horizontal pixel of the image.
Sync Adjusts the dot phase of the input signal.
Sharpness The higher the setting, the sharper the image.
dd
c or
d button to select
cc
dd
cc
dd
c or
d button to select the
cc
dd
ee
ff
e or
f button to adjust the value of desired sub-menu item.
ee
ff
The lower the setting, the darker the image.
The lower the setting, the lower the contrast.
Adjusts the picture to where it looks best.
The lower the setting, the softer the image.
cc
c or
cc
dd
d button.
dd
○○○○○○○○○○
EN-20
Page 21
Projector
User’s Manual

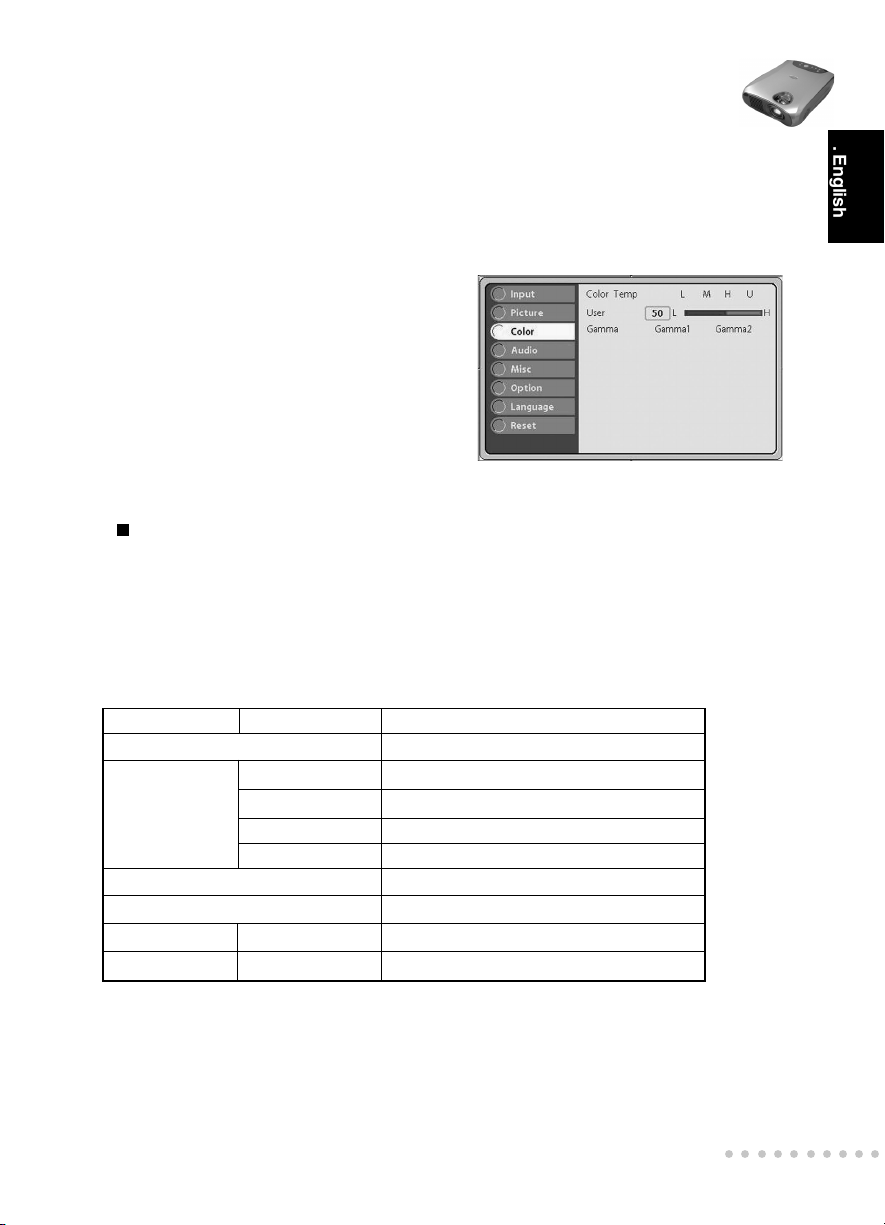

Color Menu
This menu provides precise control of the color settings including:
color temperature (preset & user define) and gamma.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD
menu.
cc
2.Press the
COLOR menu.
3.To enter the sub-menu setting, press the
ff
fbutton or the MENU button.
ff
4.Press the
sub-menu item.
5.Press the
On the Color Temp and Gamma sub-menus, press the
the desired setting.
6.After you have done with the adjustment of a sub-menu item:
a.To resume changing another sub-menu item: press the
b.To exit from the current menu: toggle the MENU button.
The following table provides detail of the available sub-menu choices:
Sub-Menu Option Description
Color Temp Adjusts the whiteness of the screen.
User Manually adjusts color temperature.
Gamma Selects a gamma correction curve.
dd
c or
d button to select
cc
dd
cc
dd
c or
d button to select the
cc
dd
ee
ff
e or
f button to adjust the value of desired sub-menu item.
ee
ff
ee
e or
ee
cc
c or
cc
L(Low) Gives the white colors a red tint.
M(Middle) Gives the white colors a neutral tint.
H(High) Gives the white colors a blue tint.
U(User) Selects customized color temperature.
Gamma1 Improves computer’s image mode.
Gamma2 Improves video’s image mode.
ff
f button to select
ff
dd
d button.
dd
. English .
Note:
The color adjustment on the User setting can only be made if the Color Temp selection
is "User".
○○○○○○○○○○
EN-21
Page 22
Projector
User’s Manual

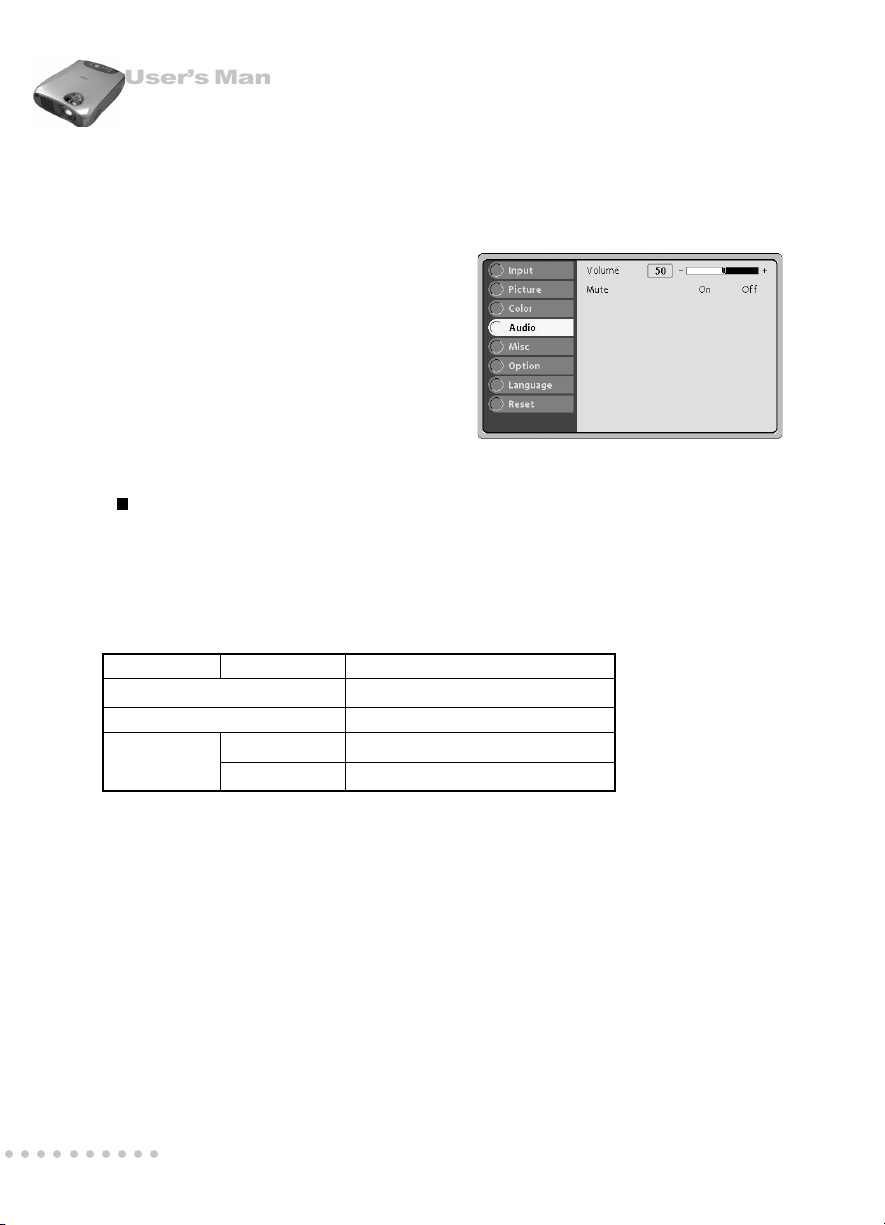

Audio Menu
This menu allows you to control volume and mute(On/Off) the audio.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD
menu.
cc
2.Press the
AUDIO menu.
3.To enter the sub-menu setting, press
ff
the
f button or the MENU button.
ff
4.Press the
sub-menu item.
5.Press the
On the Mute sub-menu, press the
6.After you have done with the adjustment of a sub-menu item:
a.To resume changing another sub-menu item: press the
b.To exit from the current menu: toggle the MENU button.
dd
c or
d button to select
cc
dd
cc
dd
c or
d button to select the
cc
dd
ee
ff
e or
f button to adjust the value of desired sub-menu item.
ee
ff
ee
ff
e or
f button to select the desired setting.
ee
ff
cc
c or
cc
dd
d button.
dd
The following table provides detail of the available sub-menu choices:
Sub-Menu Option Description
Volume Adjusts the volume.
Mute Cuts off the sound temporarily.
○○○○○○○○○○
EN-22
On Mute function is active.
Off Mute function is inactive.
Page 23
Projector
User’s Manual
MISC Menu

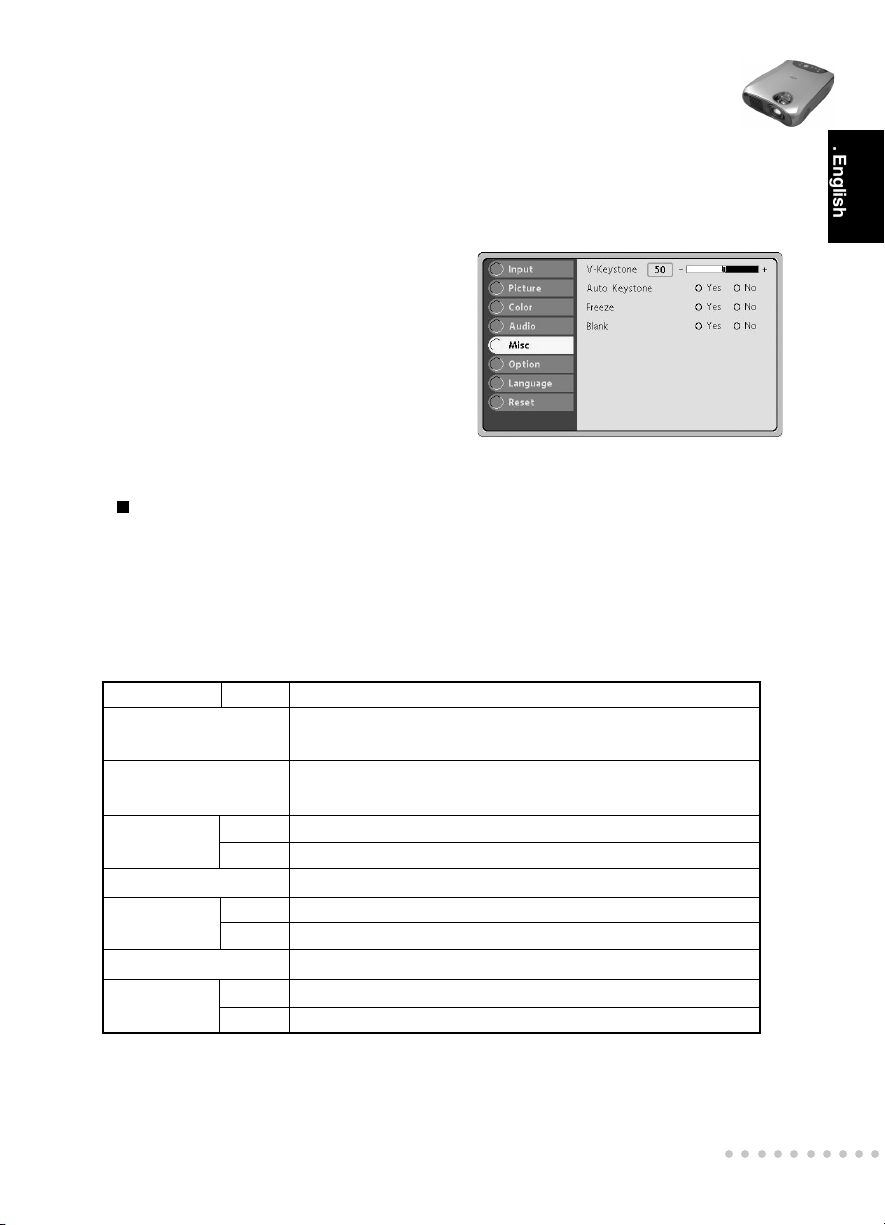

This menu includes projector utilities for vertical keystone, freeze (yes/no) and blank
(yes/no) mode settings.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD
menu.
cc
2.Press the
menu.
3.To enter the sub-menu setting, press the
ff
f button or the MENU button.
ff
4.Press the
5.Press the
On the Auto Keystone, Freeze and Blank sub-menus, press the
select the desired setting.
6.After you have done with the adjustment of a sub-menu item:
a.To resume changing another sub-menu item: press the
b.To exit from the current menu: toggle the MENU button.
The following table provides detail of the available sub-menu choices:
Sub-Menu Option Description
V-Keystone Adjusts trapezoidal distortion (vertically) of the picture
Auto Keystone Adjusts trapezoidal distortion (automatically) of the picture
Freeze Freezes the screen.
Blank Blanks the screen temporarily.
dd
c or
d button to select MISC
cc
dd
cc
dd
c or
d button to select the sub-menu item.
cc
dd
ee
ff
e or
f button to adjust the value of desired sub-menu item.
ee
ff
that may occur depending the projection angle.
that may occur depending the projection angle.
Yes Auto Keystone function is active.
No Auto Keystone function is inactive.
Yes Freeze function is active.
No Freeze function is inactive.
Yes Blank function is active.
No Blank function is inactive.
cc
c or
cc
ee
e or
f button to
ee
dd
d button.
dd
ff
ff
. English .
○○○○○○○○○○
EN-23
Page 24
Projector
User’s Manual
Option Menu

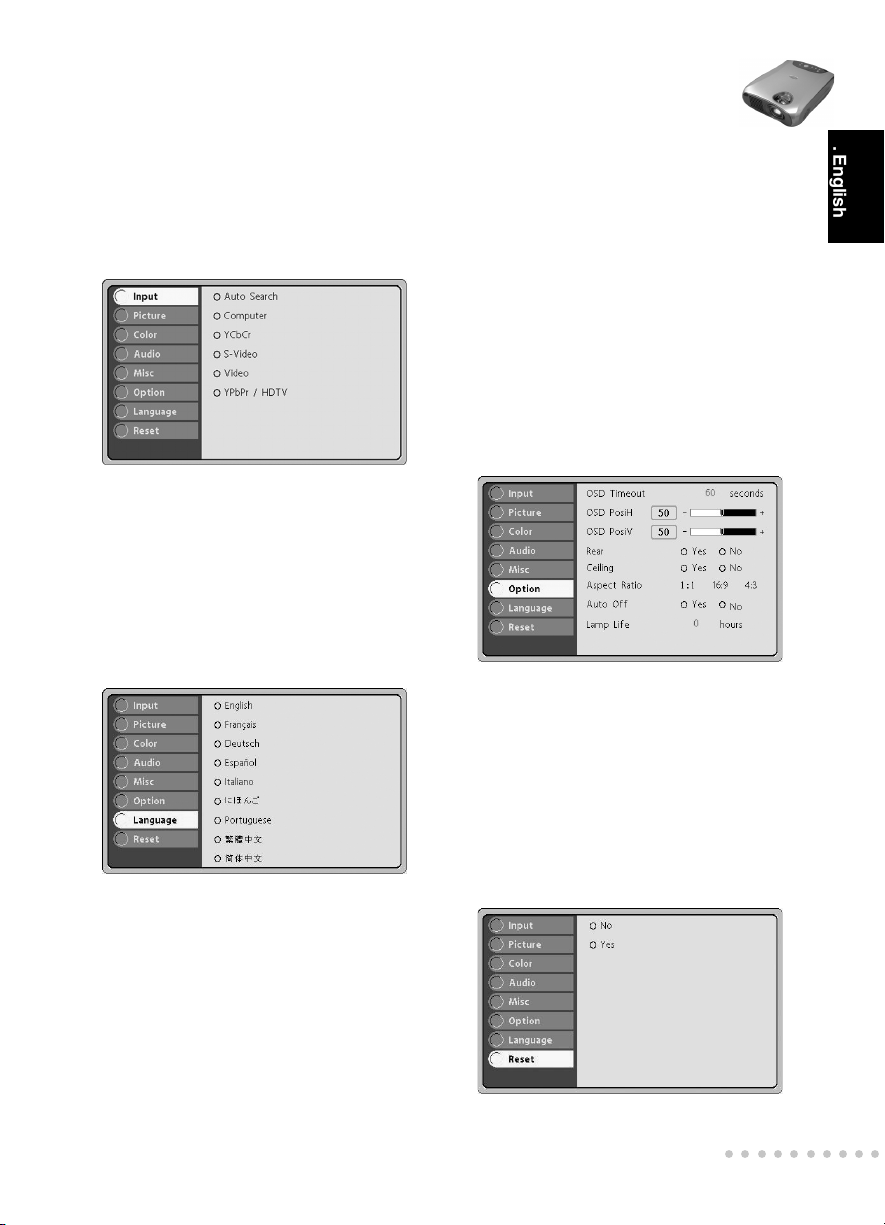

This menu includes projector utilities for OSD timeout, OSD horizontal position, OSD
vertical position, rear mode, ceiling mode, aspect ratio, auto off and lamp life indication.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD menu.
cc
2.Press the
3.To enter the sub-menu setting, press the
4.Press the
5.Press the
value of desired sub-menu item.
On the Rear, Ceiling, Aspect Ratio and
Auto Off sub-menus, press the
button to select the desired setting.
On the Lamp Life sub-menu, the
lamp’s lifetime counter is calculated by
the projector system.
6.After you have done with the adjustment of a sub-menu item:
a.To resume changing another sub-menu item: press the
b.To exit from the current menu: toggle the MENU button.
dd
c or
d button to select OPTION menu.
cc
dd
cc
dd
c or
d button to select the sub-menu item.
cc
dd
ee
ff
e or
f button to adjust the
ee
ff
ee
ff
e or
f
ee
ff
ff
fbutton or the MENU button.
ff
cc
dd
c or
d button.
cc
dd
○○○○○○○○○○
EN-24
Page 25
Projector
User’s Manual
The following table provides detail of the available sub-menu choices:
Sub-Menu Option Description
OSD Timeout Duration OSD menu stays active (at idle state).
OSD PosiH Adjusts OSD menu display position (horizontally -
left & right) on the screen.
OSD PosiV Adjusts OSD menu display position (vertically - up
& down) on the screen.
Rear The image is reversed horizontally.
Yes Rear projection is active.
No Rear projection is inactive.
Ceiling The image is inverted vertically.
Yes Ceiling projection is active.
No Ceiling projection is inactive.
Aspect Ratio HDTV and video display selection.
1:1 Selects 1:1 aspect ratio.
16:9 Selects 16:9 aspect ratio.
4:3 Selects 4:3 aspect ratio.
Auto Off Automatically turns off the lamp if the projector does
not detect an input signal for specified time period
(30 minutes).
Yes Auto Off is active.
No Auto Off is inactive.
Lamp Life Displays lamp’s lifetime counter (by hour).
. English .
Note:
Lamp life counter is displayed in read-only format, and this setting cannot be manually
adjusted.
○○○○○○○○○○
EN-25
Page 26
Projector
User’s Manual

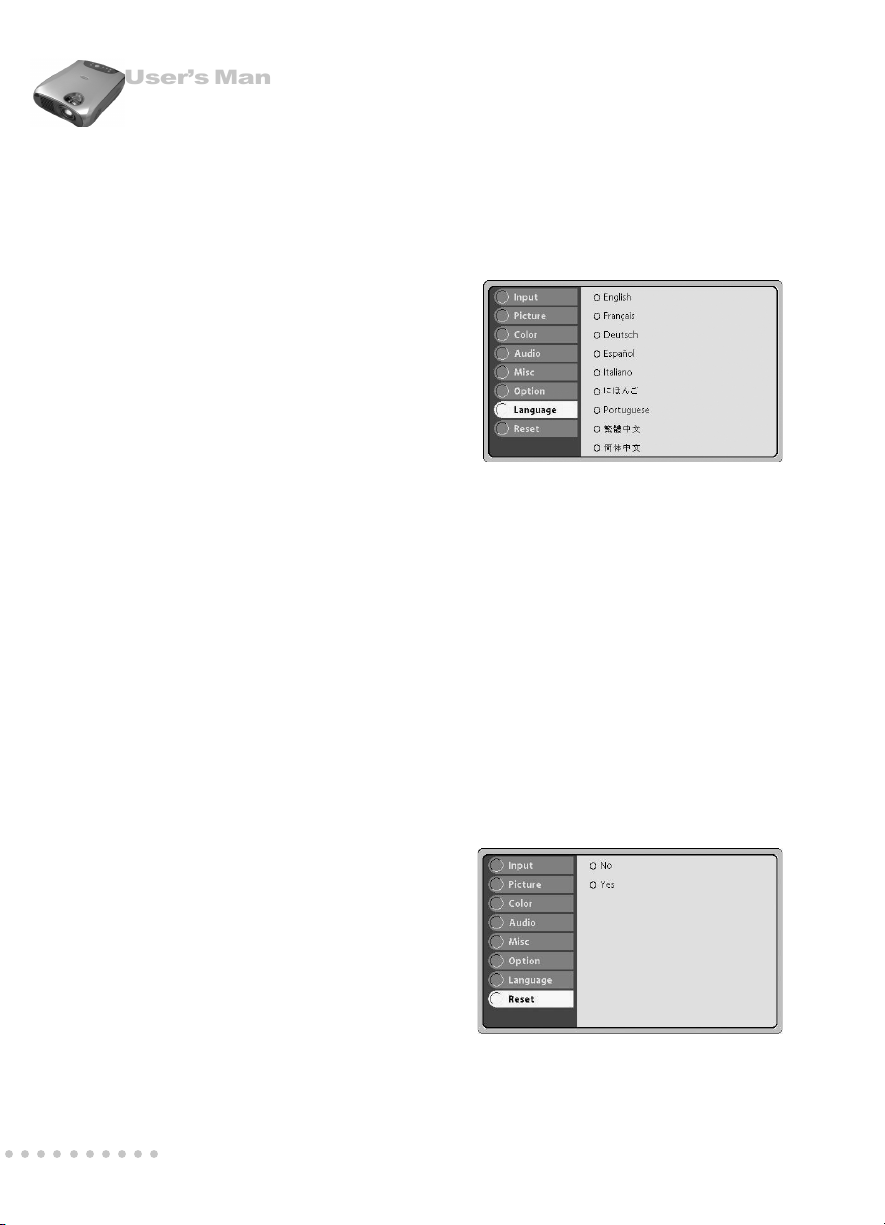

Language Menu
This menu enables you to select the language used in the OSD (on-screen display)
menus.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1.Press the MENU button to display OSD
menu.
cc
2. Press the
menu.
3.To enter the sub-menu setting, press the
ff
fbutton or the MENU button.
ff
4. Press the
OSD language.
5.Press the
6.To exit from the current menu, toggle the MENU button.
Note:
This projector supports multilanguage.
dd
c or
d button to select LANGUAGE
cc
dd
cc
dd
c or
d button to select the desired
cc
dd
ff
fbutton to confirm the OSD language selection.
ff
Reset Menu
This menu allows you to restore all projector settings and adjustments back to the
factory defaults.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1. Press the MENU button to display OSD menu.
2.Press the
menu.
3.To enter the sub-menu setting, press the
ff
fbutton or the MENU button.
ff
4. Press the
restore all projector settings to the factory
defaults.
5.Press the
6.To exit from the current menu, toggle the MENU button.
○○○○○○○○○○
EN-26
cc
dd
c or
d button to select RESET
cc
dd
cc
dd
c or
d to select YES if you want to
cc
dd
ff
f button to confirm the selection.
ff
Page 27
Projector
User’s Manual
Other Related OSD Menus
Following are the descriptions on the on-screen display menus with video input sources
and without input source attached to your projector.
Video Input Signal
If the input signal comes from S-video, composite video or component video (YCbCr),
you may see VIDEO menu interface.

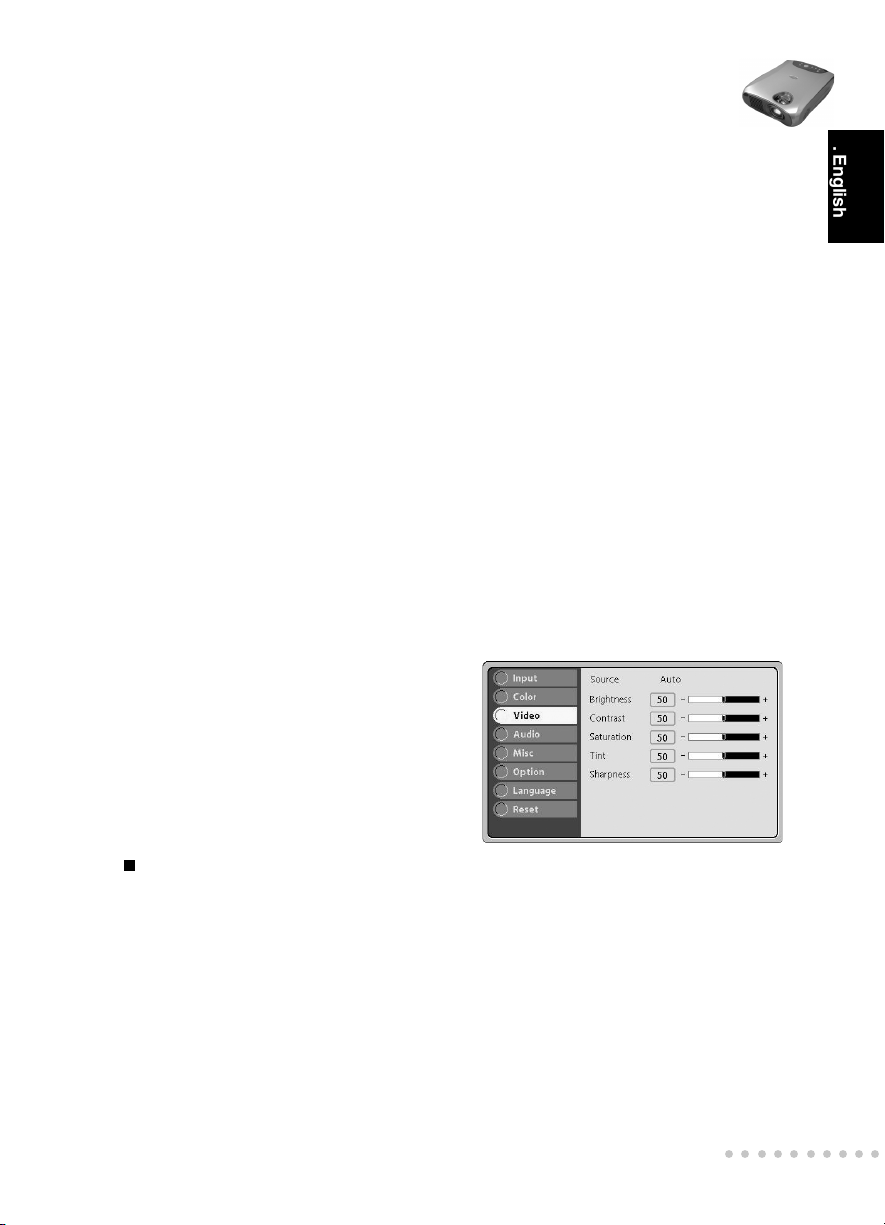

Video Menu
This menu enables you to adjust the video format settings, brightness, contrast,
saturation, tint and sharpness.
Changing settings procedure (using either the Projector Control Panel or the Remote
Controller):
1. Press the MENU button to display OSD
menu.
cc
2. Press the
menu.
3. To enter the sub-menu setting, press the
button or the MENU button.
4. Press the
menu item.
5. Press the
of desired sub-menu item.
On the Source sub-menu, press the
6. After you have done with the adjustment of a sub-menu item:
a. To resume changing another sub-menu item: press the
b. To exit from the current menu: toggle the MENU button.
dd
c or
d button to select VIDEO
cc
dd
cc
dd
c or
d button to select the sub-
cc
dd
ee
ff
eor
f button to adjust the value
ee
ff
ff
f
ff
ee
ff
eor
f button to select the desired setting.
ee
ff
cc
dd
c or
d button.
cc
dd
. English .
○○○○○○○○○○
EN-27
Page 28
Projector
User’s Manual
The following table provides detail of the available sub-menu choices:
Sub-Menu Option Description
Source Video format selection.
Auto Automatically scans video format.
PAL 4.43 Sets video format as PAL 4.43.
NTSC 4.43 Sets video format as NTSC 4.43.
PAL N Sets video format as PAL N.
NTSC 3.58 Sets video format as NTSC 3.58.
SECAM Sets video format as SECAM.
Brightness The higher the setting, the brighter the image.
The lower the setting, the darker the image.
Contrast The higher the setting, the greater the contrast.
The lower the setting, the lower the contrast.
Saturation The strength of a color especially the degree to which
it lacks its complimentary color.
The higher the setting, the stronger color strength.
The lower the setting, the weaker color strength.
Tint Adjusts the projection between red and green color.
Sharpness The higher the setting, the sharper the image.
The lower the setting, the softer the image.
Other OSD Menus
Other OSD menus operation and description are the same as the previous page.
Input Menu: refer to page 19.
Color Menu: refer to page 21.
Audio Menu: refer to page 22.
MISC Menu: refer to page 23.
Option Menu: refer to page 24.
Language Menu: refer to page 26.
Reset Menu: refer to page 26.
○○○○○○○○○○
EN-28
Page 29
Projector
User’s Manual
No Input Signal
If there is no input signal attached with your projector, you press the MENU button (on
either the Projector Control Panel or the Remote Controller), one of the following on-
screen display menus will appear on the screen.
Input Menu
(refer to page 19)
Option Menu
(refer to page 24)
. English .
Reset Menu
(refer to page 26)
Language Menu
(refer to page 26)
○○○○○○○○○○
EN-29
Page 30
Projector
User’s Manual
MAINTENANCE
The projector needs little maintenance. You should keep the lens clean as dust, dirt or
spots will project on the screen and diminish image quality.
You will also need to clean the air filter located at the bottom of the projector periodically.
It is important to keep the air filter clean because a clogged air filter prevents proper
ventilation which is necessary to cool the projector and prevent it from overheating.
The only part you should replace yourself are the lamp and the air filter.
If any other parts need replacing, contact your dealer or qualified service personnel.
When cleaning any part of the projector, always switch off and unplug the projector
first.
Warning:
Never open any of the covers on the projector except the lamp and air filter
covers. Dangerous electrical voltages inside the projector can cause severe
injury. Except as specifically indicated in this Instruction Manual, do not attempt
to service this product yourself. Refer all servicing to qualified service
personnel.
Cleaning the Lens
Clean the lens whenever you notice dirt or dust on the surface. Wipe the lens surface
gently with a soft, dry, lint-free cloth.
To remove dirt or stains on the lens, moisten a soft cloth with water and a neutral
detergent and gently wipe the lens surface.
Cleaning the Projector Housing
To clean the projector housing, first unplug the power cable. To remove dirt or dust,
wipe the housing with a soft, dry, lint-free cloth. To remove stubborn dirt or stains,
moisten a soft cloth with water and a neutral detergent. Then wipe the housing. Do not
use alcohol, benzene, thinners or other chemical detergents as these can cause
damage to the housing.
○○○○○○○○○○
EN-30
Page 31
Projector
User’s Manual
Cleaning the Air Filter
The air filter, which is located at the bottom of the projector, should be cleaned after
every 100 hours of use. If it is not cleaned periodically, it can become clogged with
dust and prevent the projector from being ventilated properly. This can cause
overheating and damage the projector.
To clean the air filter:
1.Switch the projector off and unplug the power cable from the wall socket.
2.Place a protective sheet (cloth) beneath the projector. Turn the projector over so you
can see its underside.
3.Remove the air filter by pulling the filter tab.
4.Clean the air filter.
Caution:
To clean the filter, you are advised to use a small vacuum cleaner designed
for computers and other office equipment.
If the dirt is difficult to remove or if the filter is torn, replace it.
5. Replace the filter.
6. Plug the power back into the projector.
Note:

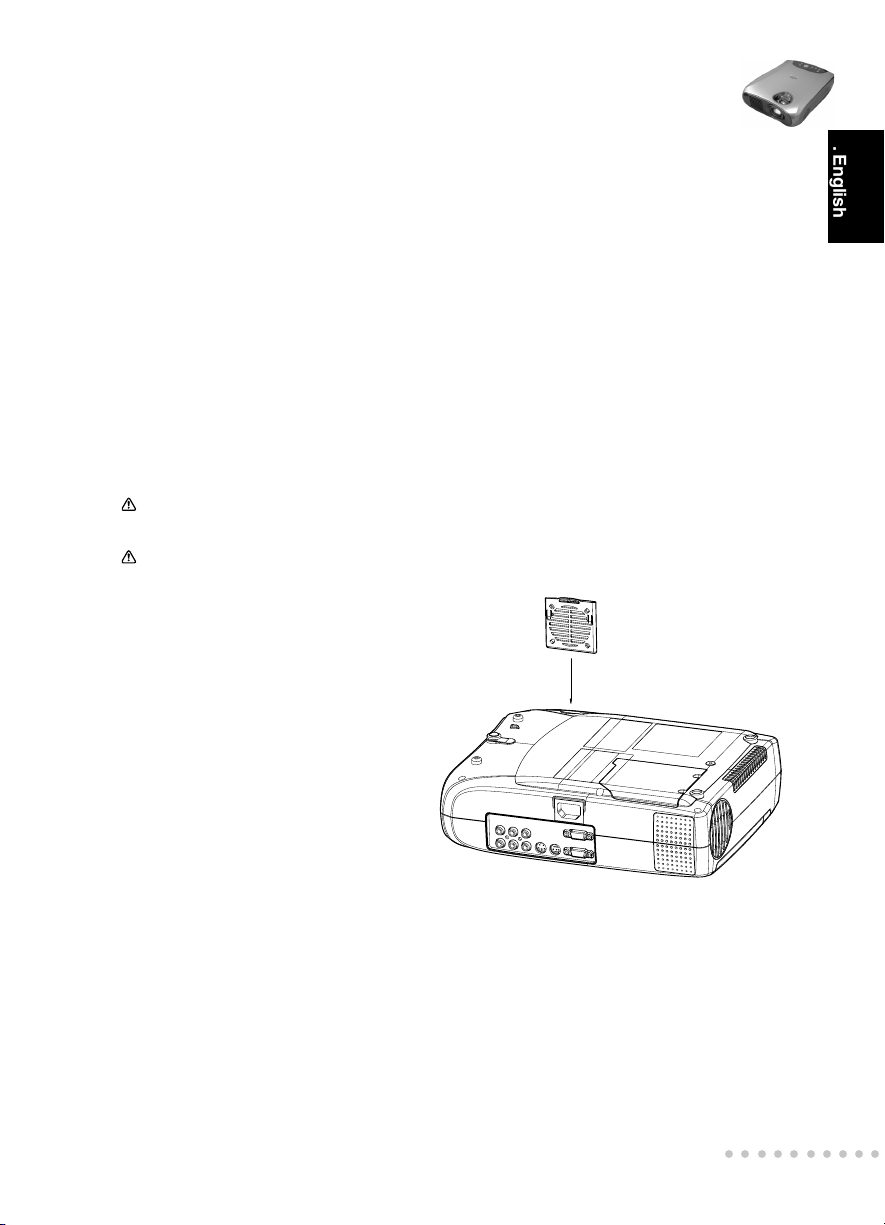

Be sure that the projector is stable
after turning it over. When replacing
the filter, make sure it is inserted in the
correct direction as shown illustration.
. English .
○○○○○○○○○○
EN-31
Page 32
Projector
User’s Manual
Replacing the Lamp
The projector lamp used for the light source has a certain life. It is time to replace them
lamp when:
When lamp dims, the projected image gets darker or starts to deteriorate.
The projector lamp LED indicator turns to red (See page 15).
Caution:
The lamp becomes high temperature after turning off the projector with the
power button. If you touch the lamp, you may scald your finger. When you
replace the lamp, wait for at least an hour for the lamp to cool. Be sure to turn off
the projector and unplug the power cord before replacing the lamp.
1. Turn off the projector and unplug the power cable.
2. Turn the projector over so you can access the lamp cover.
3. Remove the access panel screws and open the panel.
4. Remove the screws on the bottom of the lamp assembly.

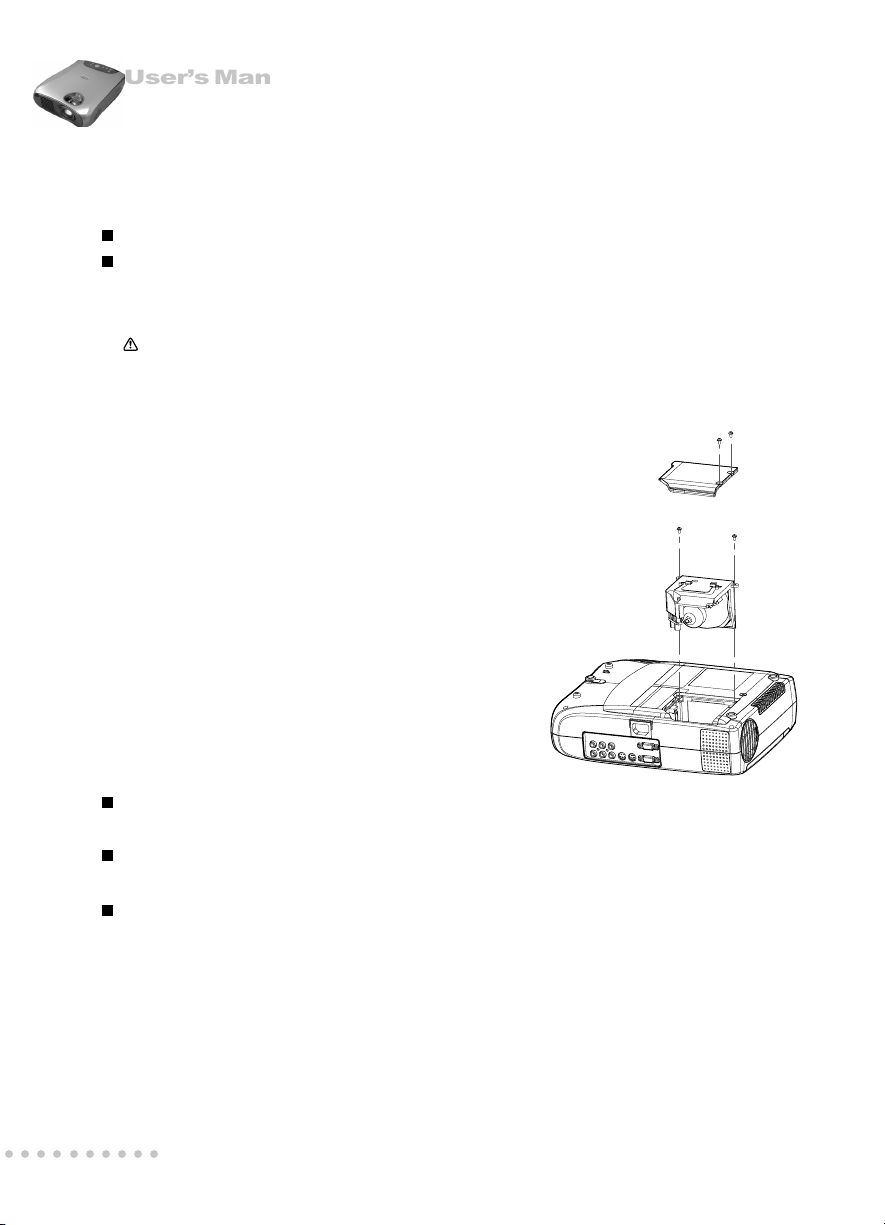

5. Grasp the lamp handle and pull the lamp assembly
directly out of the projector.
6. Replace with the new lamp.
7. Place back the screws on the bottom of lamp assembly.
8. Place the panel and screw back the screws
on the lamp cover.
Note:
Be sure not to touch the optical surfaces with your fingers.
Lint-free gloves or finger cots are recommended.
Do not put your hands into the lamp replacement spot,
or not fall any liquid or object into it to avoid electrical shock or fire.
Be sure to turn off the projector and unplug the power cord before replacing the
lamp.
○○○○○○○○○○
EN-32
Page 33
Projector
User’s Manual
TECHNICAL SPECIFICATIONS
Projection System 3 panel 0.7” LCD projector
Native Resolution 1024 x 768 (786, 432 dot x 3)
Image Brightness 1600 ANSI Lumens (TYP)
Uniformity 85%
Lens Manual Zoom (1.3X)
Focal Length 21.5~28mm
Contrast Ratio 500:1(B/W)
Aspect Ratio 4:3, supports 16:9
Screen Size 30’’~300’’
Lamp 180W NUP
Projection Type Front, Rear, Ceiling, Rear+Ceiling
Video Input PAL, NTSC, SECAM
Input Source Computer, YPbPr/ HDTV, YCbCr, S-Video, Video
Scanning Frequency
Horizontal Freq. 15~79KHz
Vertical Freq. 50~85Hz
Pixel Rate 12~135MHz
Digital Keystone Correction ±15 degrees (digital)
Analog RGB (input signal) D-SUB connector
HDTV Display (YPbPr) 480p(60Hz), 720p(60Hz), 1080i(30Hz),
576p(50Hz)
Integrated Speaker 1W x 2
Audible Noise 35dB
Remote Control Multifunctional
OSD Language Multilanguage
Operational Ambient Temperature: 5~35°C
Humidity: 35~85%
Certification UL, CE, FCC Class B, VCCI, C-Tick, CCC
Power Supply AC 100~240V, 50~60Hz
Power Consumption 240 Watts
Dimension (W x D x H) 225 x 280 x 80 mm (8.86" x 11" x 3.15")
Weight 3.0 kg/6.6 lb
Design and Specifications are subject to change without prior notice.
. English .
○○○○○○○○○○
EN-33
Page 34
Projector
User’s Manual
APPENDIX A
Preset Signals
Preset signal fH (kHz) fV (Hz) Sync Size
Video 60 Hz 15.734 59.940
Video 50 Hz 15.625 50.000
Component 60 Hz 15.734 59.940 S on G/Y or
Composite Sync
Component 50 Hz 15.625 50.000 S on G/Y or
Composite Sync
640 x 350 VGA mode 1 31.469 70.086 H(+), V(-) 800
VGA VESA 85 Hz 37.861 85.080 H(+), V(-) 832
640 x 400 VGA 85Hz 37.861 85.080 H(-), V(+) 832
720 x 400 VGA mode 2 31.500 70.087 H(-), V(+) 900
VGA VESA 85 Hz 37.927 85.038 H(-), V(+) 936
640 x 480 VGA mode 3 31.469 59.940 H(-), V(-) 800
VGA VESA 72 Hz 37.861 72.809 H(-), V(-) 832
VGA VESA 75 Hz 37.500 75.000 H(-), V(-) 840
VGA VESA 85 Hz 43.269 85.008 H(-), V(-) 832
800 x 600 SVGA VESA 56 Hz 35.156 56.250 H(+), V(+) 1024
SVGA VESA 60 Hz 37.879 60.317 H(+), V(+) 1056
SVGA VESA 72 Hz 48.077 72.188 H(+), V(+) 1040
SVGA VESA 75 Hz 46.875 75.000 H(+), V(+) 1056
SVGA VESA 85 Hz 53.674 85.061 H(+), V(+) 1048
1024 x 768 XGA VESA 60 Hz 48.363 60.004 H(-), V(-) 1344
XGA VESA 70 Hz 56.476 70.069 H(-), V(-) 1328
XGA VESA 75 Hz 60.023 75.029 H(+), V(+) 1312
XGA VESA 85 Hz 68.677 84.997 H(+), V(+) 1376
1152 x 864 SXGA VESA 70 Hz 63.995 70.016 H(+), V(+) 1472
SXGA VESA 75 Hz 67.500 75.000 H(+), V(+) 1600
SXGA VESA 85 Hz 77.487 85.057 H(+), V(+) 1568
1280 x 960 SXGA VESA 60 Hz 60.000 60.000 H(+), V(+) 1800
SXGA VESA 75 Hz 75.000 75.000 H(+), V(+) 1680
1280 x 1024 SXGA VESA 60 Hz 63.981 60.020 H(+), V(+) 1688
○○○○○○○○○○
EN-34
Page 35
Projector
User’s Manual
HDTV Preset Signals
Preset Signals Horizontal Vertical Active fH(kHz) fV(Hz)
Active Pixel Pixel
480p 720 480 31.469 59.940
720p 1280 720 45.000 60.000
1080i 1920 1080 33.716 29.970
576p 720 576 31.250 50.000
. English .
○○○○○○○○○○
EN-35
Page 36
Projector
User’s Manual
Monitor OUT cable (for data)
Display Set
IN
Monitor OUT Cable
Monitor IN
Connecting the Computer (data)
Audio Cable
OUT
Projector
IN
Computer
OUT
○○○○○○○○○○
EN-36
Computer Cable
VGA OUT
Page 37
Projector
User’s Manual
Connecting the HDTV (data)
AV Composite Cable
OUT
Audio OUT
Digital Tunner
OUT
Green,Blue,Red
HDTV (HDTV to D-SUB Cable)
Connecting to a Video Source
(S-Video, Component, Composite)
Video out VCR
. English .
IN
Audio IN
IN
HDTV IN
AV Composite Cable
W/R Y
DVD Player
YPbPr (HDTV to D-SUB Cable)
Y Cb Cr(Component Video Cable)
S-Video Cable
○○○○○○○○○○
EN-37
Loading...
