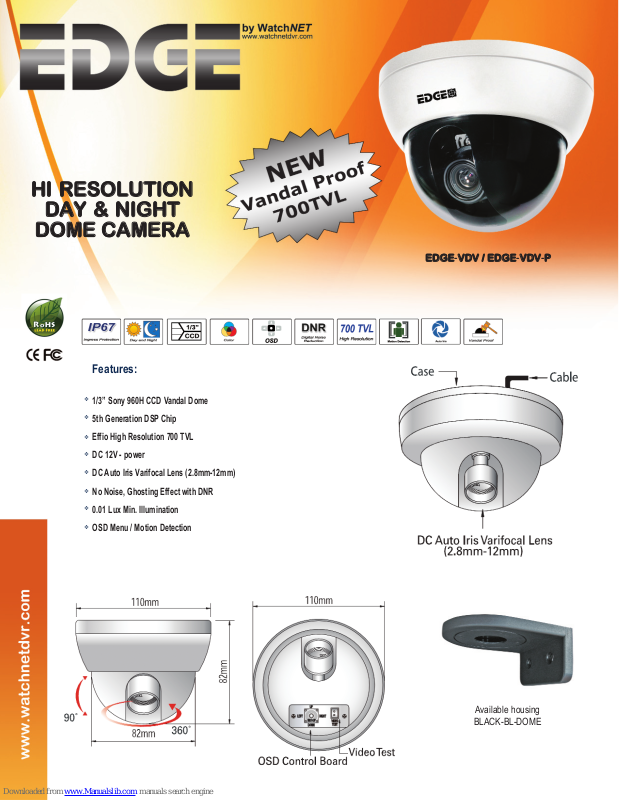

Videon EDGE-VDV, EDGE-VDV-P Specifications
Features:
1/3” Sony 960H CCD Vandal Dome
5th Generation DSP Chip
Effio High Resolution 700 TVL
DC 12V - power
DC Auto Iris Varifocal Lens (2.8mm-12mm)
No Noise, Ghosting Effect with DNR
0.01 Lux Min. Illumination
OSD Menu / Motion Detection
EDGE-VVDV / EDGE-VVDV-PP
HI RESOLUTION
DAY & NIGHT
DOME CAMERA
Available housing
BLACK-BL-DOME
info@watchnetdvr.com
www.watchnetdvr.com
CANADA:
351 Ferrier Street, Unit 5
Markham, ON L3R 5Z2
Toll Free: 1-866-843-6865
Tel: 416-410-6865
Fax: 1-866-331-3341
USA:
700 Ensminger Rd. Suite 104
Tonawanda, NY 14150 USA
Toll Free: 1-866-843-6865
Local: 1-717-517-8687
Fax: 1-866-331-3341
INDIA:
C-48, DDA Shed, Ground Floor
Okhla Industrial Area, Phase I
New Delhi-110020
Tell: +91 11 26816005
Fax: +91 11 26816006
UAE:
P O Box No 126312
Dubai, UAE
Tel: + 971 4 3584458
Fax: + 971 4 3584458
Mobile : + 971 50 5869290
All product specifications on this brochure are subject to change without notice.
SPECIFICATIONS EDGE-VDV(NTSC) / EDGE-VDV-P(PAL)
Image Pick-Up Device 1/3'' SONY 960H CCD
Total Pixels NTSC=1020(H) x 508(V) / PAL=1020(H) x 596(V)
Effective Pixels NTSC=976(H) x 494(V) / PAL=976(H) x 582(V)
Scanning System 2:1 Interlace
Synchronization Internal
O.S.D. Available
BLC / HLC OFF / ON
Resolution 700 TV Lines
S/N (Y signal) 52dB (AGC off,Weight On)
Min. Illumination 0.01Lux
Lens DC Auto Iris Varifocal Lens(2.8mm-12mm)
White Balance ATW(1,800K ~ 10,500K) / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK
Gain Control X0.25 / X0.50 / X0.75 / X1.00 Selectable
DNR Y/C LEVEL Adjustable
ATR LUMINANCE : LOW / MID / HIGH, CONTRAST : LOW / MID / HIGH
Motion Detection / Privacy On/ Off (4 Zone)
Flip Horizontal
Sharpness Level Adjustable
OSD one-push
detection and compensation
Auto: 64 Points
Power Supply DC 12V
Power Consumption 120mA
Operating Temp./Humid. -350C ~ +500C / -310F ~ +122F, RH 95% Max.
Dimension 110mm(W) x 82mm(H) x 110mm(D) / 4.3”(W) x 3.2”(H) x 4.3”(D)
Weight 700g / 1.54lb
