Videology 45M26 User Manual

NUAL LCD MONITOR USER MA

45M26 26” TFT

Information may change without notice.

This document provides technical information for the user. Videology reserves the right to
modify the information in this document as necessary. The customer should make sure that
they have the most recent manual version. Videology holds no responsibility for any errors
that may appear in this document.

Videology Imaging Solutions, Inc. USA

37M Lark Industrial Parkway
Greenville, RI 02828
Tel: [phone]
Fax: [phone]

Videology Imaging Solutions, B.V. Europe

Liessentstraat 2B

NL-5405 AG Uden, The Netherlands

Tel: [phone]

Fax: [phone]

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 1 of 16

Table Of Contents

Warning ........................................................................................................... 3

1.

2. Precautions ...................................................................................................... 3

2.1. Safety ....................................................................................................... 3

2.2. Installation ................................................................................................ 3

2.3. Cleaning.................................................................................................... 3

3. Federal Communications Commission (FCC) Statement........................................... 4

4. Features .......................................................................................................... 5

5. Operating Instructions ....................................................................................... 6

5.1. Control...................................................................................................... 6

6. Connectors ....................................................................................................... 7

6.1. Monitor Back Panel...................................................................................... 7

7. OSD Architecture............................................................................................... 8

7.1. Video Function ........................................................................................... 8

8. Video Function (PC Mode Only)............................................................................ 9

8.1. Audio Function (All Models) ........................................................................ 10

9. LCD Monitor Mounting Guide............................................................................. 11

9.1. Desktop Mount ......................................................................................... 11

9.2. Wall / VESA mount.................................................................................... 11

10. Device Connectors ....................................................................................... 12

11. Specifications .............................................................................................. 13

12. Appendixes ................................................................................................. 14

12.1. Troubleshooting .................................................................................... 14

12.2. Package Contents .................................................................................. 14

13. Remote Control............................................................................................ 15

14. Contact ...................................................................................................... 16

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 2 of 16

1. Warning

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK:
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION:

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of non-insulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.

2. Precautions

2.1. Safety

Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by
the qualified personnel before operating it any further. Unplug the unit from the wall outlet
if it is not going to be used for several days or more. To disconnect the cord, pull it out by
the plug. Never pull the cord itself. Allow adequate air circulation to prevent internal heat
built-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation holes.

2.2. Installation

Do not install the unit in an extremely hot or humid place or in a place subject to excessive
dust or mechanical vibration. The unit is not designed to be waterproof. Exposure to rain or
water may damage the unit.

2.3. Cleaning

Clean the unit with a slightly damp soft cloth. Use a mild household detergent. Never use
strong solvents such as thinner or benzine as they might damage the finish of the unit.

Retain the original carton and packing materials for safe transport of this unit in the future.

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 3 of 16

3. Federal Communications Commission (FCC) Statement

This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by that party
responsible for compliance could void your authority to operate the equipment.

This device complies with Part 15 FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference
that may cause undesired performance.

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 4 of 16

4. Features

• Compatible with VGA (640 x 480), SVGA (800 x 600) WXGA

• Support vertical refresh rate up to 75 Hz for VGA, SVGA, WXGA

• Automatic or manual detection of separate synchronize and composite synchronize of

VGA signal

• 26-inch LCD monitor with multiple video inputs (composite, Y/C and D-sub)

• High brightness of 500 cd/m

• With 3D comb filter

• High contrast 800: 1

• High quality Horizontal and vertical scaling with 3D De-interlacing for display

• Wide viewing angle of 176

• Fast LCD response time of 20ms

• Luminance Transient Improvement (LTI), Chrominance Transient Improvement (CTI)

• Video input support NTSC / PAL standard

• Built-in high precision Y/C Input signal

• Video out support auto termination (75 Ohms)

• Audio live-out function with stereo phone jack output

• Built-in 2W+2W speaker

• Support IR remote controller

• VESA standard (100mm x 100mm) bracket

• Wall mountable capability

2

0

, vertical and horizontal

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 5 of 16

T

R

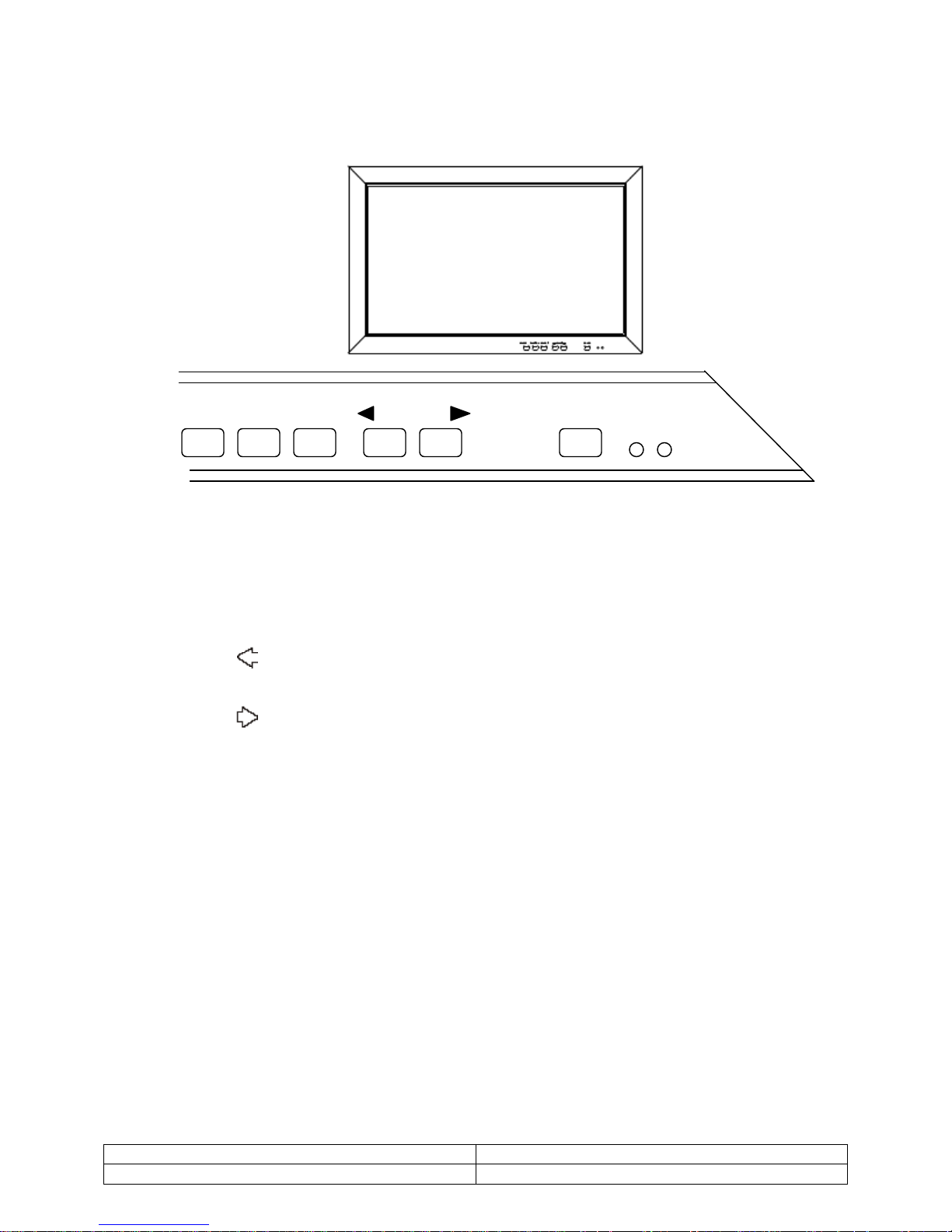

5. Operating Instructions

5.1. Control

SOURCE FUNCTION SELECT ADJUS

1. Power

Monitor power ON / OFF. At OFF mode, monitor will be at standby status
Green Light -- Power On
Red Light -- Standby mode

2. Adjust

Increase the value on the OSD menu or turn ON / OFF function

3. Adjust

Decrease the value on the OSD menu or turn ON / OFF function

4. Select

Chose sub menu from Audio / Video / Image
Press again to enter selected option
PIP/ POP/ function selection

5. Function

OSD menu ON / OFF control

6. Source

Select input signal from AV1, AV2, S-Video or PC

POWE

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 6 of 16

6. Connectors

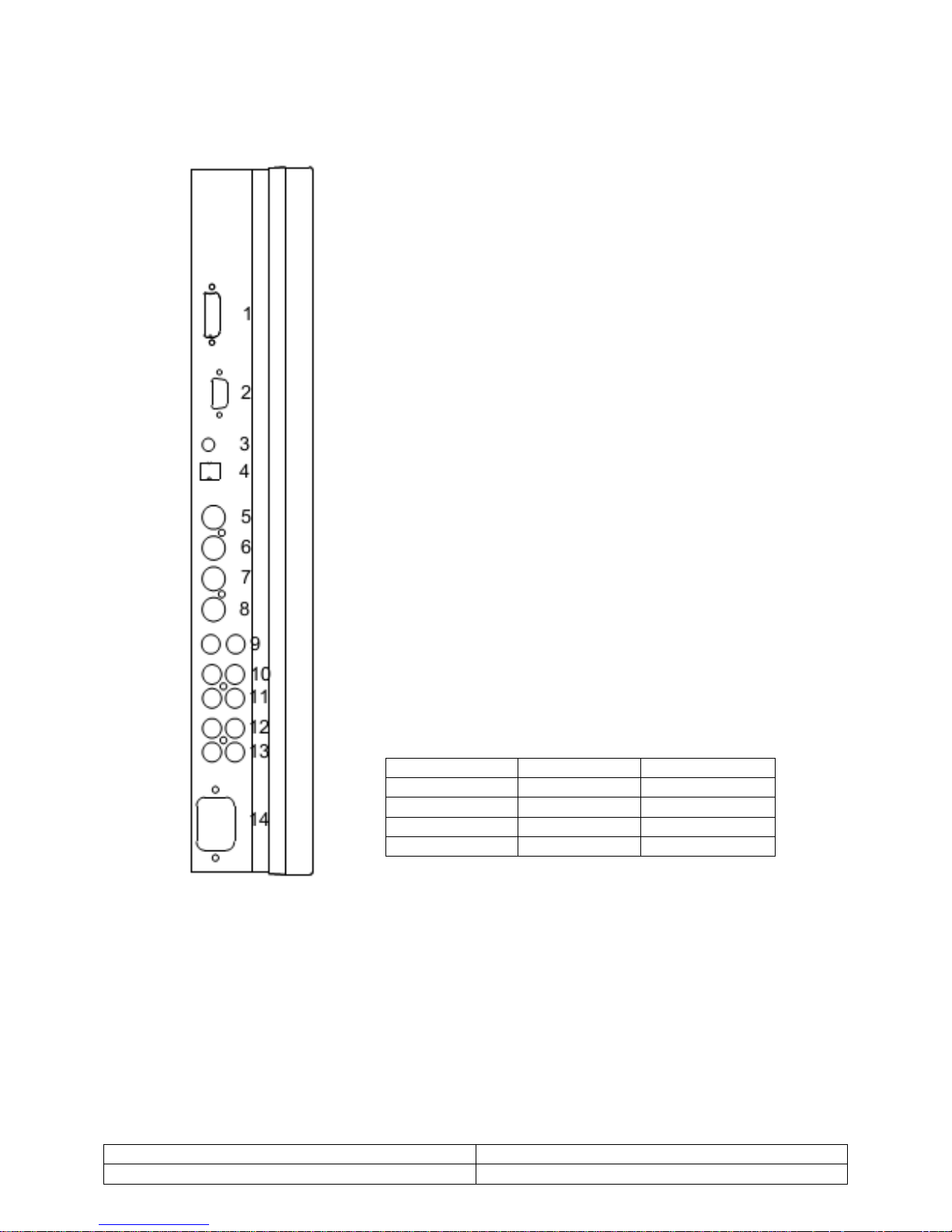

6.1. Monitor Back Panel

1 PC DVI- IN (Option)
2 PC VGA-IN
3 AUDIO LIVE OUT (Stereo)
4 DC12V/ 1A OUT (Option)
5 VIDEO 1 IN

Composite signal Input for VIDEO 1

6 VIDEO 1 OUT

Video looping output for VIDEO 1

7 VIDEO 2 IN

Composite signal Input for VIDEO 2

8 VIDEO 2 OUT

Video looping output for VIDEO 2

9 Y/C IN (S-Video)

Y/C separated signal Input

10 AUDIO 1 IN (L, R)

Audio signal input, this input is for Av1

11 AUDIO 1 OUT (L, R)

Audio Looping output, for AUDIO 1

12 AUDIO2 IN (L, R)

Stereo Audio Signal Input, this input is for Av2, PC

or Y/C (refer to Note below)

13 AUDIO 2 OUT (L, R)

Audio Looping output, for AUDIO 1

AC IN

14

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 7 of 16

Note: Audio out is muted until video is present

Audio Connections
Audio 1 Audio 2
PC √
AV1 √ √
AV2 √
S-Video √

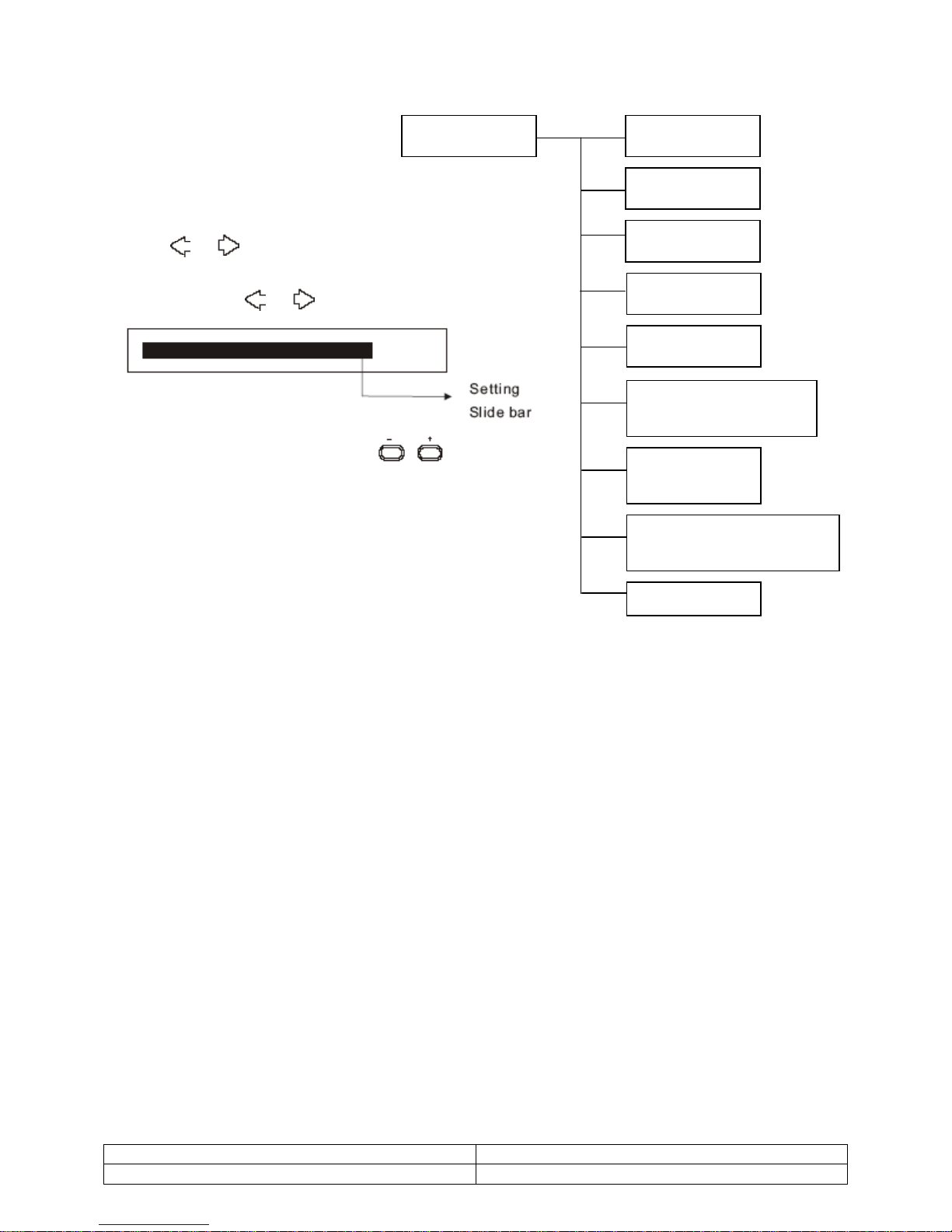

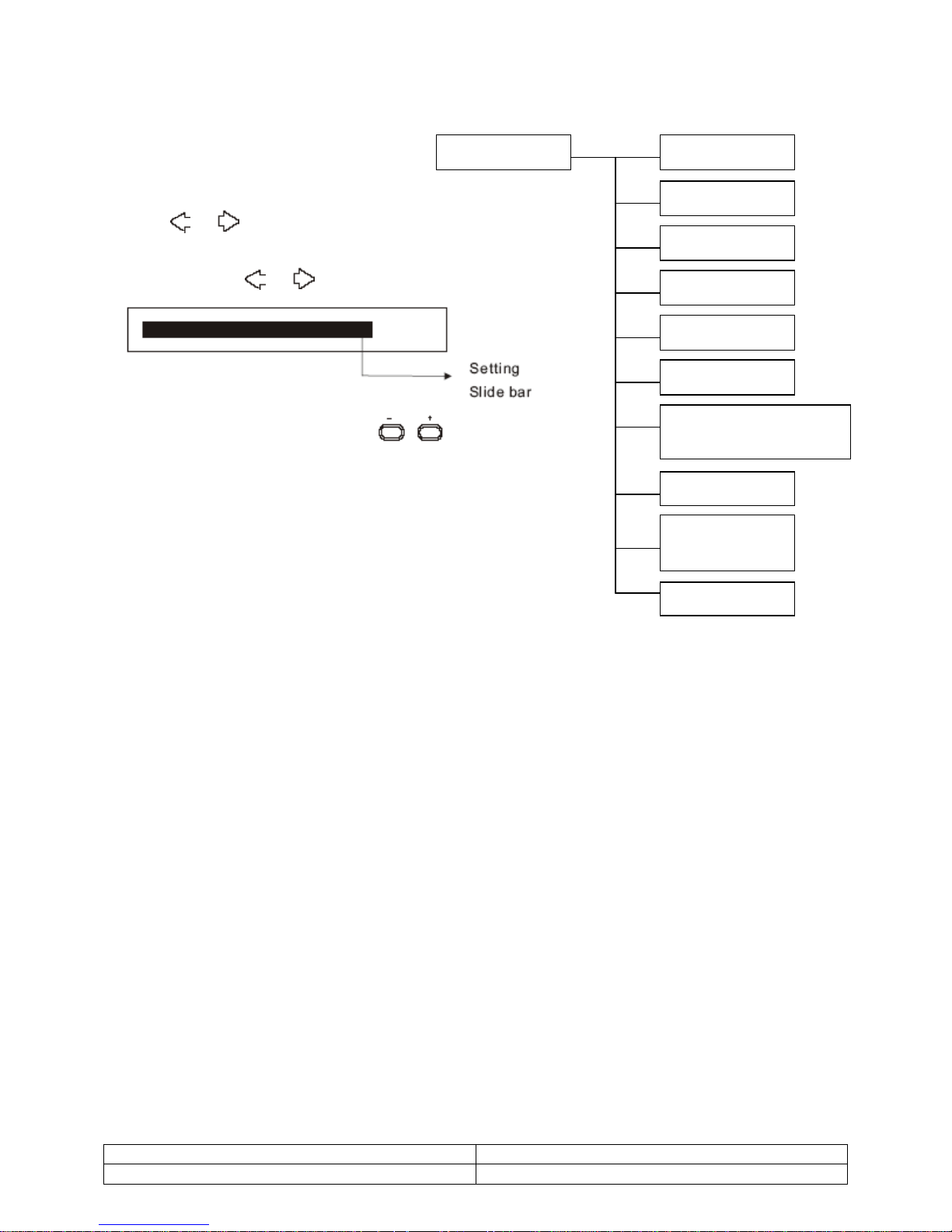

7. OSD Architecture

Menu

7.1. Video Function

Press SOURCE to select a video input:

Press the FUNCTION button to bring up the OSD Menu.
Press again to select FUNCTION, then press
SELECT twice to enter submenu.

As shown, press keys to adjust selection.

Note: In remote control, press key to adjust.

(After adjustment, the monitor will store new settings)

Contrast

Permits adjustment for contrast between light or dark
areas of the picture.

Brightness

Adjusts the overall picture shade and brightness.
Tip: Use the Brightness to make details in the dark
areas of the picture to be just visible, and contrast to
brighten the picture without causing video noise and foreheads to turn white.

Hue

Adjust all the colors on the screen, but is most noticeable to the eye in reds and yellows,
and is also usually set for pleasing face tones.

Note: Appears in NTSC mode only.

Saturation

Adds coloring to the black and white picture content (of a color signal), and is usually set for
viewer's preference in color saturation.

Sharpness

Sets the desired sharpening enhancement to the picture.

Color Temp

Adjust the screen color temperature 9300/ 6500/ 5800.

Display Ratio

Select between 16x9 or 4x3.

Video Scan

Adjust the screen size to Normal/ Over/Under scan.

Volume

Control built-in speakers' output Volume.

Video

Sub-Menu

Contrast

Brightness

Hue

Saturation

Sharpness

Color Temp
(9300/ 6500/ 5800)

Display Ratio
(16x9/ 4x3)

Video Scan
(Normal/ Over/ Under)

Volume

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 8 of 16

8. Video Function (PC Mode Only)

Press SOURCE to select a image input:

Press the FUNCTION button to bring up
the OSD Menu.

Press again to select IMAGE, then press
SELECT twice to enter submenu.

As shown, press keys to adjust selection.

Note: In remote control, press key to adjust.

(After adjustment, the monitor will store new settings)

Contrast

Permits adjustment for contrast between light and dark areas
of the picture.

Brightness

Adjusts the overall picture shade and brightness.
Tip: Use the Brightness to make details in the dark areas of
the picture to be just visible, and Contrast to brighten the
picture without causing video noise and foreheads to turn white.

Clock

Is used to adjust to the best picture quality. It adjusts the number of the clock pixels across
one timeline. Therefore it can affect the picture’s position and size.

Note: Improper adjustment will caused image failure.

Phase

Is used to adjust to the best picture quality. It adjusts the sampling phase across one pixel
at a time. When the phase is not adjusted properly, the picture will be unclear. Therefore

this value should be carefully adjusted.

Note: Improper adjustment will caused image failure.

H-Position

Allows adjustment for the horizontal position.

V-Position

Allows adjustment for the vertical position.

Color Temp

Adjust the screen color temperature 9300/ 6500/ 5800.

Auto Adjust

Auto detect screen detail data, such as clock and phase.

Display Ratio

Select between 16x9 or 4x3.
Doc # INS-45M26 Issue Date: 12/05/07

Revision:A Page 9 of 16

Menu


Sub-Menu

Contrast

Brightness

Clock

Phase

H-Position

V-Position

Color Temp
(9300/ 6500/ 5800)

Auto Adjust

Display Ratio

(16x9/ 4x3)

Volume

T

Volume

Control built-in speakers' output volume.

9. Audio Function

Menu

Audio Volume

Press the MENU button to bring up the OSD Menu.
Press again to select AUDIO, then press ITEM twice to enter submenu.

As shown, press keys to adjust selection.

Figure 1. Example

Note: In remote control, press key to adjust.

(After adjustment, the monitor will store new settings)

Volume

Controls built-in as well as external speakers output volume.

Note: Volume control can also be adjusted by hot key. (Remote Operation)

Balance (Not available on 10.4” Monitor)

Controls built-in speakers output volume.

Treble

Audio treble adjustment.

Bass

Audio bass adjustment. Will not affect internal speakers. Bass adjustment is dependant on
external speaker response.

Note: Audio is muted without accompanying video input.

Sub-Menu

Balance

reble

Bass

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 10 of 16

10. LCD Monitor Mounting Guide

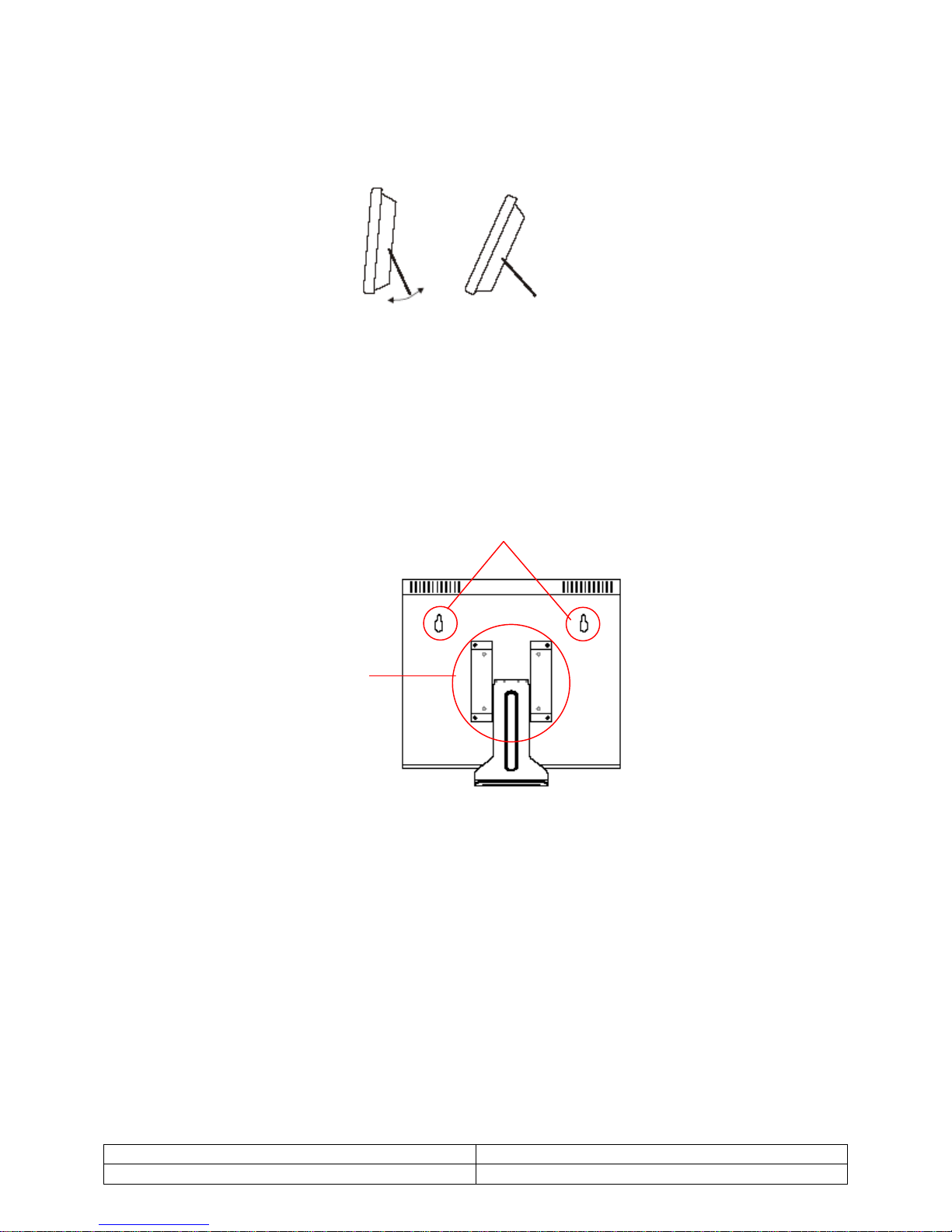

10.1. Desktop Mount

Adjust the viewing angle of LCD to fit the most comfortable monitoring status.

Figure 2.

10.2. Wall / VESA mount

Please follow the fix-hole size on back panel to install the LCD to the wall directly, or use a
VESA mount.

VESA Mount

Figure 3.

Wall Mounts

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 11 of 16

11. Device Connectors

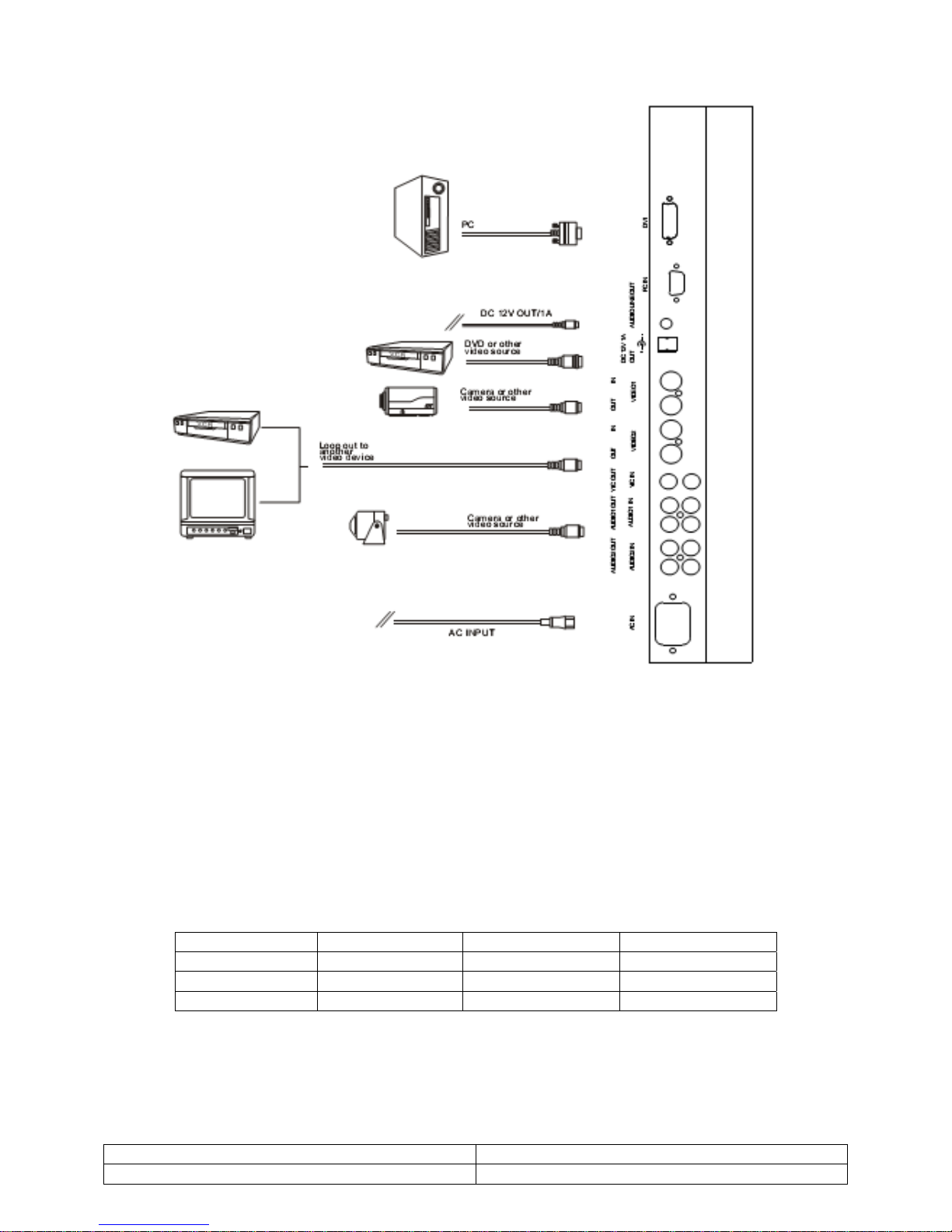

Figure 4. LCD Connectors

a) Connect PC to Monitor through VGA connector as shown in the above picture

b) Connect External device such as DVD or Game Player to Monitor as shown in the

above picture

c) Connect CCD Camera 1 and 2 to Monitor through Video Input 1 and 2 (BNC Connect)

as showing in the above picture

Note: Please refer to Specification for auto detection after changing resolution
setting.

Table 1. Support Resolutions

640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1366 x 768 60Hz
640 x 480 72Hz 800 x 600 70Hz 1024 x 768 70Hz
640 x 480 75Hz 800 x 600 72Hz 1024 x 768 75Hz
800 x 600 75Hz

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 12 of 16

p

ght,

p

12. Specifications

Electrical

LCD Panel 26" wide screen
Display Pixels 1366 x 768
Active Area 575.769mm x 323.712mm
LCD Profile Ratio 16:9
Display Colors 16.2M
Brightness 500 cd/m2
Contrast Ratio 800:1
Viewing Angle Up 880, Down 880, Left 880, Right 880
Response Time 15 Tr/ 5 Tf ms
Input
Signal

Video: Composite video, 1Vp-p @75ohm
S-Video: Y: 1Vp-p w /Neg. SYNC. C: 0.285Vp-p
PC: Analog RGB (XGA/ SVGA/ VGA/ WXGA)

Audio: Right, Left, 50~100mVp­In/Out Impedance 75 ohms/ Auto Termination
Operation System NTSC/ PAL
Output

Signal

Video: Composite video, 1Vp-p @75ohm

S-Video: Y: 1Vp-p w /Neg. SYNC. C: 0.285Vp-p

Audio: Ri
3D Comb Filter/
De-Interlace
PIP & POP Optional
Power Source 90~260VAC 60Hz/ 50Hz
Power Consumption 5A/ 105W

Environmental

Ambient Operating

-10° C ~ 60° C (14°F ~ 140°F)
Temperature
Operating Humidity 20% - 80%

Mechanical

Dimensions WxHxD 668mm x 415mm x 85.5mm (26.29” x 16.33” x 3.36”)
Weight 9.5 kg (20.94 lbs)

Accessories included Power supply

Bracket: VESA 100 standard

Connectors Video:

45M26

Left, 50~100mVp-

YES

Power cord

15 pin D-sub

Audio cable

4 - 2CH BNC input / output

Audio:

S-Video:

8 - 2CH RCA R. L. input / output

PC:

1 - 15-pin D-sub connector
4 - 4-pin min-din

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 13 of 16

13. Appendixes

13.1. Troubleshooting

Problem:

1. No power

2. No video or audio

3. Bad video or audio

4. Image not stable

5. Abnormal line

6. Ghost image

7. Desired video disappears

Checking:

Power not connected, or not engaged

Change to correct input channel?

Check signal cable?

Any interference from other devices?

Adjust video control on OSD?

Adjust video

13.2. Package Contents

A. LCD monitor
B. Power cord
C. Accessory kit

a. DB15 – DB15 VGA cable

b. 1/8” male to 1/8” male mini stereo plug cable
D. User manual
E. 12V Power Adapter
F. Remote Control

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 14 of 16

5 3 6

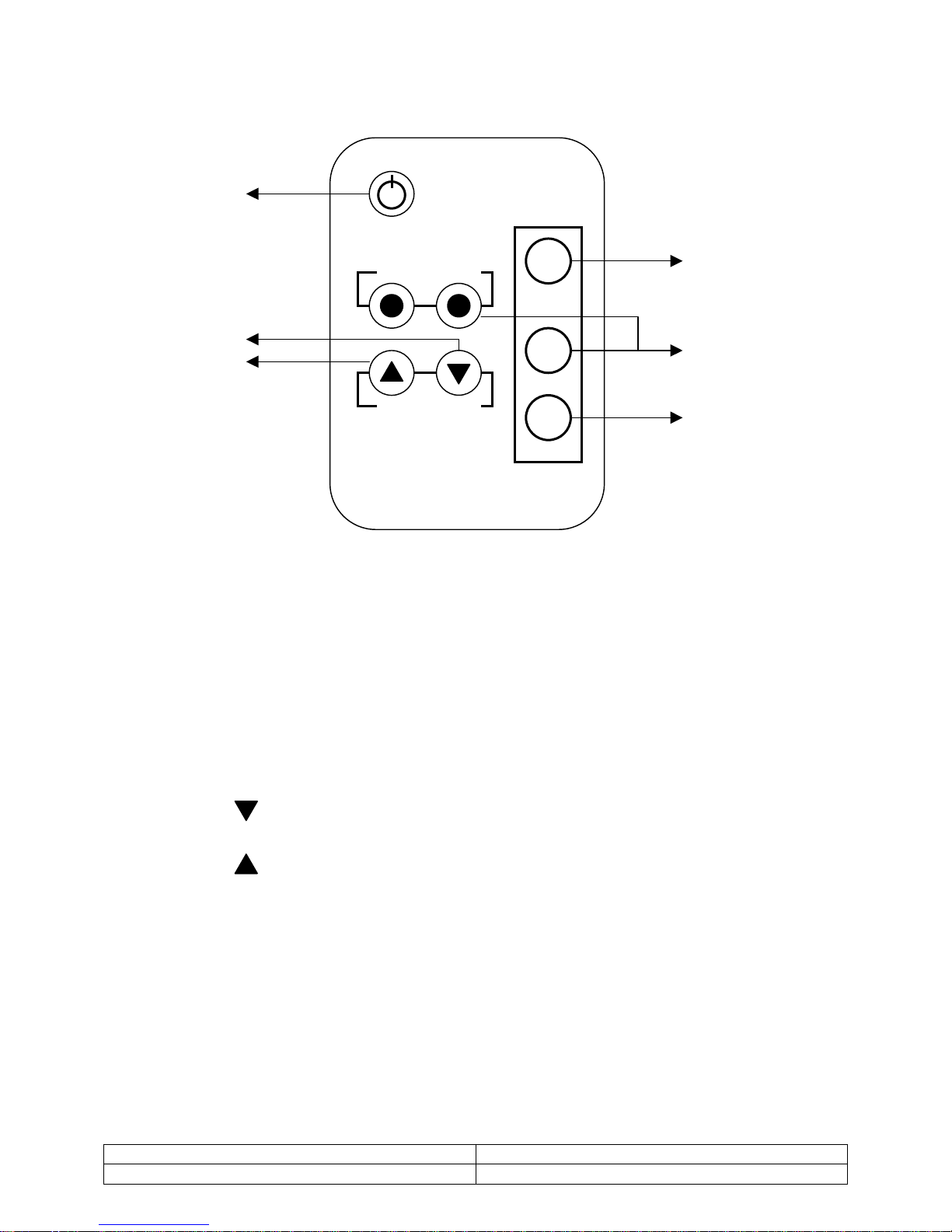

14. Remote Control

1. Power

Monitor power ON / OFF. At OFF mode, monitor will be on standby status
LED - Green Light -- Power On
Red Light -- Standby mode

2. Adjust

Decrease the value on the OSD menu or turn ON / OFF function

3. Adjust

Increase the value on the OSD menu or turn ON / OFF function

4. Item

Chose sub menu from Audio / Video / Image
Press again to enter selected option

5. Menu

OSD menu ON / OFF control

6. Source

Select input signal from AV1, AV2, S-Video or PC

1

2

Video Audio

Up Down

4

Item

Menu

Source

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 15 of 16

15. Contact

To contact Videology Imaging Solutions:

USA:

Videology Imaging Solutions Inc.
37M Lark Industrial Parkway
Greenville, RI 02828
USA
Tel: [phone]
Fax: [phone]

Europe:

Videology Imaging Solutions Europe
Liessentstraat 2-B
NL-5405 AG Uden
The Netherlands
Tel: [phone]
Fax: [phone]

Please also visit our WEB-site at:

http://www.videologyinc.com/

Please note that data in this application note is subject to change wi thout noti fication!

Videology Imaging Solutions Inc. is an ISO 9001 registered video camera developer and
manufacturer serving security, industrial and machine vision, biometric and specialty OEM
markets. The main facility is based in Greenville, Rhode Island, USA and Videology Imaging
Solutions BV is located in Uden The Netherlands. The company designs, develops,
manufactures and distributes video, image acquisition and display products.

Doc # INS-45M26 Issue Date: 12/05/07
Revision:A Page 16 of 16
