XTO / XTO-IP ALARM PANEL SERIES

INSTALLATION MANUAL

DOC. - REF. 230-XTO-IP

MODIF. DATE :

SEPTEMBER

2018

FIRMWARE VERSION : XLP.04.04.00.XXX AND

LATER

Page 2

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

scription

The XTO / XTO-iP is a fully wireless alarm system. It is powered by standalone Lithium batteries. This panel has been designed for outdoor installations, with its weatherproof casing and extended operating temperature range.

With the Motion Viewers™ and Videofied® range of products, the XTO-iP panel provides video verification in case of intrusion.

Technology

The XTO-iP alarm panel, like all Videofied devices, uses the S2View® patented technology. Which is an interactive wireless and AES encrypted technology ensuring signal integrity and optimal security.

The reliability of the signal is guaranteed thanks to the two-way radio frequency transmissions with all the peripherals of the Videofied® product line.

The integrated antennas allow the system to be totally wireless, thus preventing from the system beeing inelegant and cumbersome, and eliminating the installation problems.

INTRODUCTION

The jamming detection feature identifies any intentional jamming from a third party. On the other hand, the supervision feature consists of transmitting signals between every device of the system and the alarm panel XTO-iP. Through the supervision, the detectors transmit every 8 minutes a presence signal.

The entire RSI VIDEO TECHNOLOGIES team wishes you a successful installation.

Page 3

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

SUMMARY

Introduction............................................................................................................2

Summar y..................................................................................................................3

Panel setup.........................................................................................................................4

1.1 SIM card installation..........................................................................................................................4

1.2 Panel bracket mounting.......................................................................................................................4

1.4 Powering and initialization...................................................................................................................5

1.5 Pairing the keypad...............................................................................................................................6

1.6 Cover locking.......................................................................................................................................6

2. XTENDER Mode................................................................................................................................................................7

Panel programming...................................................................................................................................8

ETHERNET parameters conf iguration.........................................................................................................................................12

XTENDER mode conf iguration...............................................................................................................................................14

4. XTO-iP features guide....................................................................................................................16

4.1 Get to access level 4......................................................................................................................16

4.2 How to Arm/Disarm the system.........................................................................................................16

4.3 Arming and Siren Mode Configuration.............................................................................................17

4.4 Manage badges and access codes...................................................................................................18

4.5 Delete the keypad or any other device............................................................................................20

4.6 Read the event log.............................................................................................................................21

4.7 Programmable inputs and outputs.....................................................................................................21

4.8 Golden rules........................................................................................................................................22

5. Transmitted events list....................................................................................................................23

3G4G error codes......................................................................................................................24

7. Technical specification and security notes...............................................................................25

Page 4

INSTALLATION MANUAL

1. PANEL SETUP

XTO / XTO-IP Alarm panel

1.1 SIM card installation

Before removing the front cover from its box, Put the SIM card on the plastic base (Take care to respect the right direction).

DO NOT insert or remove the SIM card while the panel is powered.

1.2 Panel bracket mounting

The four screwholes here opposite are intended to mount the bracket, the latter beeing used to attach the panel to the wall or a pole.

Mounting the panel is not required for programming.

Screwholes

Page 5

INSTALLATION MANUAL

1. PANEL SETUP

XTO / XTO-IP Alarm panel

1.3 Powering and initialization

• The panel is powered either with 4 LSH20 Lithium batteries or mains powered with 4 alkaline backup batteries.

• Always replace all 4 batteries at once. Mixing new and used batteries can severely damage the panel (risk of explosion).

• Press and hold the PROGRAMMING BUTTON for 10 seconds, until the indicator LED blinks twice.

• The panel is now reset, a CMA, XMA or XMB has to be enrolled to configure the panel.

Programming button

Lithium batteries

Do not use Lithium batteries when the panel is mains powered

When using Ethernet, only power yor panel with the mains power supply.

Mains Power Supply

Page 6

INSTALLATION MANUAL

1. PANEL SETUP

XTO / XTO-IP Alarm panel

1.4 Pairing the remote keypad

• Press the XTO programming button and release for the enrollment of a programming keypad.

• Insert all LS14500 Lithium batteries into the keypad.

• Do not mount the keypad. It will display one of the following screens:

videoed.com

• Press on both

LED on the keypad will blink rapidly. Wait for the keypad to pair.

• If the keypad doesn’t pair up with the panel and shows «XX», it certainly means that it is still paired to another system and needs to be reset. Take the batteries out, and press repeatedly on the keypad tamper switch. Then proceed to the above steps.

CLR

and

ESC NO

keys at the same time and release. The indicator

<=========XX=========>

1.5 Cover locking

Place and screw the cover on its support.

Screw locking

Page 7

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

The panel can be used as standard standalone alarm system but it can also be connected to an existing alarm system capable of latching a 9-12Vcc* voltage used for its arming/disarming.

2. XTENDER MODE

2.1 Standalone Mode

In this functioning mode, the XTO-iP panel works as a standard hybrid alarm system with 25 wireless peripherals and 3 programmable inputs. It is a totally standalone alarm system.

2.2 XTENDER Mode (From the host)

Existing Host

panel

Arming O/P 2

Arming O/P 1

When the panel is used in XTENDER mode, the system will only be able to arm and disarm by latching 9-12Vcc to its arming inputs Arming Input 1 and/or Arming Input 2.

When the voltage switches to 0V, the panel will disarm automatically.

On a programmed panel, you can choose between standalone and XTENDER modes from the menu :

CONFIGURATION (LVL 4) > GENERAL PARAMETERS > XTENDER

*When using an X TO-iP i n XTENDER mode, the panel has to be powered by the mains power supply.

Page 8

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

Keypad Display Actions and comments

KE Y PAD 1

RECORDED

OK or YES

The system can also be programmed in : french, italian,

< - LANGUAGE : - >

ENGLISH (UK)

for language selection

OK or YES

RADIO RANGE TEST?

OK or YES

german, dutch, spanish, swedish, portuguese, danish, czech and polish.

The language can be changed at any time once the panel is programmed in the MAINTENANCE menu.

RF TEST

x/9

Please wait

RF TEST

9/9

OK or YES

RADIO RANGE TEST?

ESC

INSTALLER CODE

4 TO 6 DIGITS

THEN OK/YES

INSTALLER CODE :

OK or YES

The Radio Range test must be run during the device learning process in order to ensure proper pairing with the control panel. This test measures the strength of communication between the device and the control panel. The keypad will display a real time radio range value on a scale of 9.

To receive the most accurate results you must run the radio range test for at least 30 seconds.

Result must be 8 out of 9 or better for reliable transmission.

Using the Alphanumeric Keypad, enter the Installer Code of your choice.

The Installer Code will be used for all future maintenance and conﬁguration.

This code is important to keep track of.

There is no back door or Default codes to the system

CONFIRM CODE

OK or YES

Please refer to the restriction rules for codes (Chapter 4.5). Some codes are already used by default and therefore cannot be used.

Page 9

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

Keypad display Actions and comments

You may name the installer code using the Alphanumeric

CODE NAME :

Keypad.

If using automatic setting (called installer default list), enter

OK or YES

the name of the list.

Warning : If the wrong installers list name is used it cannot be set later, the system must be defaulted.

ACCESS 1

REGISTERED

Please wait

Leaving the name blank by pressing named ‘ACCESS 1’ by default.

ADJUSTING DATE

AND TIME

DAT E ( YE AR):

12/ /

ESC NO

, it will be

To set the year

OK or YES

DATE (MONTH):

13/01/

To set the month

OK or YES

You may proceed in the same way for:

Day, Hour and Minutes.

13/10/14 10:47

ENTRY COMPLETE !

CONNECTED TO

MONITOR. STATION?

OK or YES

ESC

OK or YES

ACCOUNT NUMBER :

567001

Use the Alphanumeric Keypad to enter in a 4-8 digit account number provided by the Central Station.

Page 10

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

Keypad display Actions and comments

PERIODIC TEST

PERIODIC TEST :

TEST (minutes) :

MODIFICATION?

24 HOURS

To select periodicity

OK or YES

TEST (hour) :

04:

OK or YES

04:15

OK or YES

CODE /STATE

Test Periodicity: 1 hour, 12 hours, 24 hours, 48 hours, 7 days or no tests.

We suggest a 24 hours periodic test call.

ESC

SERVER

ADDRESSES ?

OK or YES

CODE /STATE

MODIFICATION

Wait

ESC

Events list

The CODE/STATE MODIF. menu is to conﬁgure the transmitted events to the monitoring station, use the arrow keys to toggle between events and mo dif y.

ALARM: event transmitted upon occurrence.

ALARM/END: event is transmitted on occurrence and on event restoral.

NOT TRANSMITTED: event is not transmitted, however it will appear on the keypad.

Please liaise with your Monitoring Station to ensure that the requested events to transmit are correctly set.

OK or YES

Page 11

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

IP1 ADDRESS

0.0.0.0

ESC

SERVER

ADDRESSES ?

ESC

ST R ATEGY:

ETH+2G3G4G

OK or YES

2G3G4G

PARAMETERS ?

OK or YES

DOMAIN NAME 1

PORT 1

888

The IP1 address, Domain name 1 and/or Port 1 are provided by the monitoring station.

Leave Port details at 888 unless otherwise instructed.

Press

YES

to enter/modify the parameter then OK or

YES

for validation.

WARNING : You will use either an IP address or a Domain name but not both, leave the Domain name blank if an IP address has already been entered.

Press on the right arrow to conﬁgure IP/Domain name 2 and PORT2 (for the back-up server), and IP/Domain name TMT and PORT TMT (to conﬁgure remote maintenance server).

How the alarms and videos are transmitted to the monitoring station ?

ETH+2G3G4G : Ethernet transmission with GPRS backup. 2G3G4G : GPRS transmission only (if the Ethernet connection is not used).

H : Ethernet transmission only (only if GPRS is not used).

Warning : the transmission mode “Ethernet only” is not recommended.

APN CODE

internet-entrepr

ESC

2G3G4G

PARAMETERS ?

ESC

2G3G4G LEVEL ?

OK or YES

TEST IN PROGRESS

END = OK/YES

2G3G4G LEVEL

5/5

OK or YES

USER NAME

orange

The APN Code (Access Point Name), User Name an

PASSWORD

orange

d Password are supplied by the

mobile operator. Please make sure you have entered the code exactly as indicated by your local SIM card operator.

Press

YES

to enter/modify the parameter then OK or

YES

for validation.

Note: When entering your SIM card settings, both APN codes, username and password ﬁelds are case sensitive! It makes a diﬀerence between UPPER and lower case letters.

To switch between UPPER and lower case, use the M/m key from CMA keypad or hold a digit key (0-9) for XMA/XMB.

Once the 2G3G4G test completed, the keypad will display one of the following results :

- A level between 0/5 and 5/5.

- A GPRS Error code (please see Chapter 7 : 2G3G4G errors codes and contact your technical support).

If the screens shuts down, press any key to light it up except OK or

YES, ESC NO

CLR

2G3G4G LEVEL ?

ESC

The 2G3G4G level test can last several minutes. Do not interrupt the test or remove the SIM card during the test.

PORTANT : Videoﬁed will require a 3/5 grade or better for reliable transmission

of Video alarms.

Page 12

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

ETHERNET parameters configuration

PARAMETERS ?

OK or YES

DHCP :

ENABLED

By setting the DHCP as ENAB LED, a new IP address will be assigned dynamically to the panel every time it connects to the network. Network parameters will not be asked.

OK or YES

DHCP :

DISABLED

If the router forces a static IP address for the panel, there will then be a need to deﬁne DHCP as DISABLED. You will then need to ﬁll in the following network parameters ﬁelds : Panel IP, IP

Mask, Primary DNS, Gateway and Secondary DNS.

Warning: Verify that the IP address selected is available on the Network and accepted by the router.

OK or YES

PANEL IP

IP MASK

PRIMARY

DNS

GATEWAY

SECONDARY

DNS

ESC

PARAMETERS ?

ESC

During this test, the panel tries to connect to the local Ethernet Network. The result of this test can be:

• If the connection is successful: the local IP of the panel will be displayed (you can display other Ethernet parameters with the arrows ).

• ETHERNET OFF NO STATUS : the Ethernet module is switched off. Please verify that the Ethernet cable is connected and try again.

• NETWORK/CABLE MISSING : the panel doesn’t detect Ethernet Cable or Network.

ETH. STATUS?

OK or YES

TEST IN PROGRESS

END = OK/YES

PANEL IP

XXX.XXX.XXX.XXX

ESC

ETH. STATUS?

ESC

Page 13

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

COMPATIBILITY

EN 50131 NORMS ?

OK or YES

ESC

AREAS CONFIGURATION

OK or YES

AREA 1 NAME :

OK or YES

ARMING PROFILE :

STANDALONE

ARMING PROFILE :

FROM THE HOST

For full compatibility with EN50131, press OK or

Otherwise, press

Press

ESC NO

Enter the name of the area 1 and

ESC NO.

to default the area names.

YES

Repeat the procedure for areas 2,3 and 4.

For further details, please refer to chapter 4.3.

Your choice will depend on how you are arming the system :

Standalone : Will make the XTO-iP a completely independant system controlled by arming and disarming using Videofied peripheral devices(keyfobs, keypads, badge,readers).

From the host : Will make the XTO-iP panel a piggyback/xtender system that will only arm and disarm off the latching of 9-12V on the arming inputs 1 & 2.

OK or YES

EXIT DELAY :

45 sec

For the selection

OK or YES

ENTRY DELAY :

15 sec

For the selection

Please go to page 15 if you chose

STANDALONE

Please go to page 14 if you chose

FROM THE HOST

Other values are available: 2 min, 1 min, 45 sec.

Other values are available: 2 minutes, 1 minutes, 45 seconds,30 seconds or 15 seconds.

Page 14

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

XTENDER mode configuration

ARMING PROFILE :

FROM THE HOST

OK or YES

ARMING MODE

MODE :

SLOW

OK or YES

MODE SLOW : The panel will arm each device one at a time saving battery life. We recommend this mode.

MODE FAST : The panel will arm all devices at the

MODE :

FAST

same time. This mode increases signiﬁcantly the battery consumption.

YES

to choose the parameter.

ENTRY DELAY

VALUE (0-255) :

(000) : _

OK or YES

TRANSMISSION DELAY

VALUE (0-600) :

(000) : _

OK or YES

ARMING CONFIRMATION

VALUE (0-240) :

(0) : _

Enter the value for your Entry Delay up to 255 seconds

and press

Note : In From the Host mode, the entry/exit delay are dealt by the master system.

The transmission delay value sets the delay between the detection of an event and its transmission to the monitoring center.

Except when speciﬁcally required, please enter 0.

Enter the value you would like for the Transmission Delay and press

Arming Confirmation is the number of seconds the system will wait to arm after voltage is latched on the arming input. This feature can be used as an exit delay, we suggest you to enter the same value as your master system exit delay.

Enter the value you would like for the Arming Confirmation and press

YES.

OK or YES.

For further information about the programmable inputs and outputs, please consult the following

application notes available on our support website:

240-XT - APP NOTE - XTENDER CONFIGURATION MODE

Page 15

INSTALLATION MANUAL

3. XTO-IP PANEL PROGRAMMING

XTO-IP Alarm panel

RECORDING

DEVICES

PRESS PROGRAM

BUTTON OF DEVICE

ENTERING A NEW DEVICE ?

ESC

BADGE ENTERED ?

OK or YES

ESC

END OF

CONFIGURATION

RECORDING A

NEW BADGE ?

ESC

Each device has a unique programming button or a specific manipulation. Please refer to the Installation Sheet for the device you would like to program.

Please check the radio level of each device on its final location. The result must be 8 out of 9 as a minimum (Please refer to the Radio Range section, page 8 for further details).

Each system can embrace a maximum of 25 devices,

programming keypad included.

Press

OK or YES

move to the next step.

Aer initial programming has been completed, the system cannot be armed or disarmed until a user code or badge is entered (the installer code cannot arm or disarm the system).

Press

OK or YES

ESC NO

If you wish to use an user code, please skip this step and when initial programming is completed go to the BADGES/ACCESS CODES menu (please refer to chapter

4.4 for further details).

Badges and codes are limited to 19 for user (level 2 or 3) + 1 installer code.

if you’re not using any badges.

to enter a new device or

to register one or more badges.

ESC NO

OPERATION

COMPLETED ?

OK or YES

SYSTEM CHECK

IN PROGRESS

INSTALLATION SUCCESSFUL !

Before completing programming make sure that no device is tampered. Each device must be closed and its LED indicator shall be turned oﬀ.

Aer initial programming has been completed, make use of the menu overview document (available on our technical support website), to see full programming options.

Page 16

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

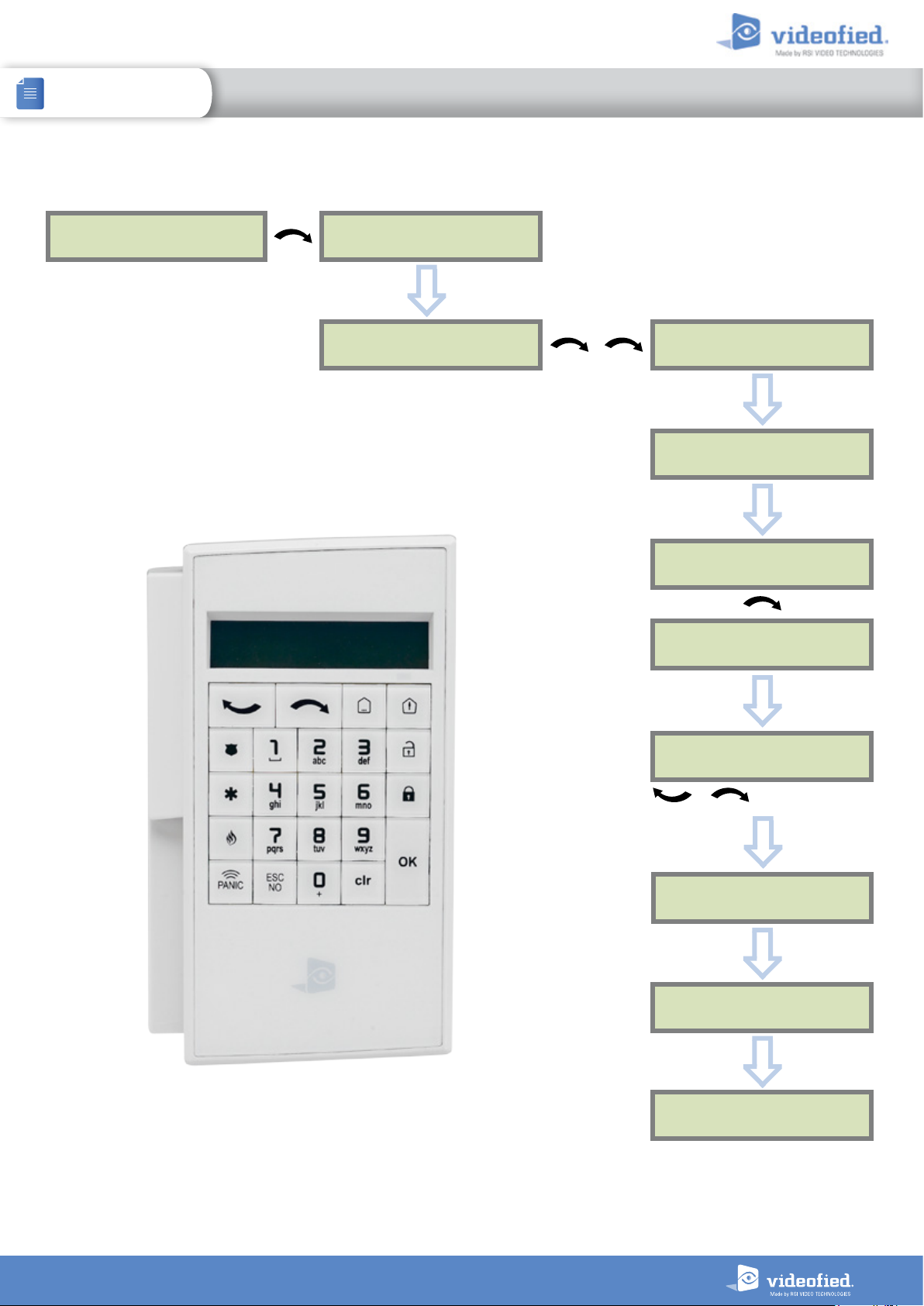

4.1 Get to Access level 4

Tue 29/10 11:23 DISARMED LVL:1

To unlock and get access to the installer level 4, you need to successively enter TWO codes (in any order) :

• INSTALLER CODE (entered during intial programming).

• USER CODE (Level3): the user must authorize the installer to get access to the conﬁguration of his panel.

ACCESS LEVEL

OK or YES

4.2 How to Arm/Disarm the System

When in standby mode, the system can be armed with the remote keypad, the remote keyfob and/or the remote badge reader.

ACCESS LEVEL

LEVEL : 1

ACCESS LEVEL

LEVEL : 4

OK or YES

BADGE OR CODE

OK or YES

With remote

keypad

With remote

badge reader

BR250

With remote

keyfob

Full arming with

user code

Enter your user code

and press

OK or YES

N/A

N/A N/A

Full arming with badge Special Arming 1 Special Arming 2

Present your badge on

the keypad

( XMB model only)

Present your badge on

the badge reader

Press /

enter your user code

and press

Press Press

OK or YES

N/A N/A

Press /

press

OK or YES

your user code

and enter

Page 17

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

4.3 Arming and Siren Mode Configuration

• Use the to go to menu :

CONFIGURATION (LEVEL 4) > SPECIAL ARMING MODES > FULL ARM, SP1 or SP2 use direction arrows to select the arming mode you

want to modify and

OK / YES

• There are 3 diﬀerent arming modes :

FULL ARM : Arming of all areas and all devices. Use a badge or a user code and press

YES

key on the CMA keypad.

SP1 : Partial Arming (1) is enabled by entering the user code and pressing on the XMA/XMB keypad, the key on the CMA

keypad or on the remote keyfob RC.

SP2 : Partial Arming (2) is enabled by pressing the key on a XMA/XMB keypad, on a CMA keypad, or on the remote

keyfob RC.

For each arming mode, it is possible to specify how each of the 4 areas will be armed and how the system will behave during an alarm.

Areas : 1 2 3 4 Each time you press the corresponding number, the system will toggle the arming

State : A A A A Press

A Armed

D Disarmed

state for the respective area.

OK / YES

will be in eﬀect for this special proﬁle. Select the siren mode using the direction arrows then press

OK / YES

aer this conﬁguration step. The system will then display what siren mode

Siren Immediate triggering of all sirens

Delay Beeps Entry/Exit delay beeps, then triggering of all sirens

/ on the XMA/XMB keypad or the

(by default : all opening contacts*)

* You can set your dev ices as : Extern al, Perimeter, ou Extern al +Perimeter. Please go to the menu:

CONFI GURATION (LVL 4) -> AREAS AN D DEVICES -> DEV ICES -> DEVICE S CONFIGUR ATION -> DE VICE TYPE

When in the ‘Arm From Host’ mode, the Videoﬁed system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videoﬁed Keypad display will show ‘SYSTEM ARMED. When only one arming input is supplied voltage the Videoﬁed Keypad display will show ‘PART LVL #’

• Arming Input 1 will arm/disarm Areas 1 & 2 – Area 1 is delayed by default

• Arming Input 2 will arm/disarm Areas 3 & 4– Area 3 is delayed by default

(by default : all opening contact s

Perimeter

External

with external access*)

Silent No Sirens, No Beeps

Without Siren Beeps on the keypad only

Page 18

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

4.4 Manage badges and access codes

Access Level

Access Level Deﬁnition & Rights

LVL 1 Standby Level

LVL 2

LVL 3

LVL 4

Codes and badges get rights access to one of the 4 available levels of access.

Restricted USER level, where it is only possible to arm/disarm the system.

USER level, where it is possible to arm/disarm the system, check the event log, test the devices.

Modiﬁcations of the settings are not possible at this level.

User Level 3 can create Level 2 or Level 3 access codes or badges.

INSTALLER level, where it is possible to modify the setup of the panel. .

To access Level 4, the approval of a Level 3 oe Level 2 user is required.

Installer Level 4 can create the ﬁrst Level 3 access code only.

How to return to the LVL1?

• Aer 1 min of no use of the keypad and no tests running, the display returns to the standby display and LVL1.

• When standby display, if the

ESC NO

key is held during 5s, the level is changed to LVL1.

Page 19

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

Enter a new end user Badge/Code Delete an end user Badge/Code

BADGES

ACCESS CODES

OK or YES

ENTER A

BADGE/CODE

OK or YES OK or YES

BADGE OR CODE

Enter a 4-6 digit user code and

OK or YES

or present a badge in front of the reader until

you hear the registration beep.

CONFIRM THE

CODE

OK or YES

ENTER A

BADGE/CODE

Press twice on the right arrow

DELETING

BADGES/CODES

Badges/codes list

Select badge/code then

OK or YES

DELETING CODE

ACCESS 5

OK or YES

CODE NAME :

OK or YES

ACCESS 2

ENTRY COMPLETE

Reserved Codes

Up to 19 codes (or badges) can be registered into the panel with the engineer code.

A code has 4 to 6 digits (0 to 9).

The table presents the reserved code possibilities that cannot be used.

Those codes are used for maintenance or as panic/duress codes.

A total of 186 codes are forbidden.

Reserved Codes

000000

From 9998 to 9999

From 99998 to 99999

From 999898 to 999999

From 314157 to 314159

All user codes +1

All user codes +2

All user codes -1

All user codes -2

CODE

DELETED

When a code is created (1000 for example), the 2 next codes and previous codes (0998, 0999, 1001 and 1002) will be automatically reserved.

The +1 code (1001) is used for disarming under duress.

The +2 code (1002) is used for panic.

The -1 and -2 codes (0998 et 0999) are reserved to prevent conﬂicts when creating a new user code.

Page 20

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

4.5 Delete the keypad or any other device

ACCESS LEVEL

CONFIGURATION

OK or YES

GENERAL

PARAMETERS

AREAS AND

DEVICES

OK or YES

DEVICES

OK or YES

ADD A NEW

DEVICE

CONFIGURATION

OK or YES

Devices list

to select the device and press

OK or YES

A1 : KEYPAD

KE Y PAD 1

OK or YES

DELETE

OK or YES

< = = = = XX = = = = >

You can now remove the batteries from

the device

Page 21

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

4.6 Read the event log

EVENT

LOG

When user disarms the system, the keypad indicates the last event.

In case of the user needs to read the full log ﬁle, use the keypad to go in EVENT LOG,

YES

press

on SELECT LAST EVENTS

and use arrow to list the events.

15/10/13 11:29

OK or YES

SELECT LAST

EVENTS

OK or YES

MO DIFIED PAR A M ET

Press OK or

15/10/13 11:10

YES

for more info rmation about an event

SYSTEM DISARMED

4.7 Programmable inputs and outputs

The XTO-iP control panel has 3 programmable inputs and 2 programmable outputs. Please note that we advise to connect the panels to a power supply when using programmable inputs. These functions allow the linking of Videoﬁed® security systems to auxiliary equipment such as panic buttons, pepper spray, smoke generator, hard-wired door contact, light curtain, etc.

PROGRAMMABLE INPUT 1, PROGRAMMABLE INPUT 2 and PROGRAMMABLE INPUT 3 are triggered by voltage between 9V and 15V and an current between 1,5mA (@9V) and 3mA (@15V). If a dry contact is used to trigger the programmable inputs, the REF+output can be used to supply this dry contact.

PROGRAMMABLE OUTPUT 1 and PROGRAMMABLE OUTPUT 2 can be triggered either by a panel event, by a peripheral device or by an external event such as a programmable input or a arming input.

The XTO-iP control panel also offer a mapping feature. Mapping option allows the input to generate a video-clip via a MotionViewer when a programmable input is triggered and/or when an event occurs.

Prog. Out . COM Prog. Output2 Prog. Output1 Ref GND Prog. Input3 Prog. Input2 Prog. Input1 Ref+ Ref GND Arming Input2 Arming Input1 Ref+ PWR AC2/DCPWR AC1/DC+

For further information about the programmable inputs and outputs, please consult the following application notes available on our support website:

240-XV-XT - PROG INPUTS - APP NOTE

240-XV-XT - PROG OUTPUTS - APP NOTE

Page 22

INSTALLATION MANUAL

4. FEA

TURES GUIDE

XTO-IP Alarm panel

4.8 Golden rules

Area 1 is always delayed.When you register a keypad or a badge

reader into an area, that area will automatically be delayed.

Never position a panel next to a high voltage electrical cabinet .

Press CLR to erase a typing mistake.

Never register the same device twice (delete from the system ﬁrst).

Registration of up to 25 devices (including the keypad).

Respect indoor infrared devices installation height (2m10 to 2m30).

Outdoor cameras have to be installed at 2m60 to 3 meters

height. Those devices needs to to protect an access and not a zone.

Do not ﬁx the keypad at the beginning of the installation as it will

need to be portable during programming.

Always clean the lens of the cameras aer the installation (Use a clean, dry cloth, taking care not to exert pressure on the lens).

To switch between UPPER and lower case, use the M/m

key from the CMA keypad or hold a digit key (0 to 9) for

XMA/XMB.

Internal components are fragile, be careful opening or

closing the panel.

LCD screen goes dark aer 30 seconds of inactivity, press an

arrow or numeric key to light it up.

Use only batteries provided by Videoﬁed (siren : Alkaline

batteries).

Infrared detectors should never be installed in stairs or close

to stairs (false alarm risks).

A colon display [:] means that the parameter can be

changed.

Page 23

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

5. TRANSMITTED EVENTS LIST

The XTO-iP pane l can be conﬁgured to enable or disabl e the transmission of events like alarms or defaults.

The installer can modify the default sending settings for those events, although it will end the EN50131 standard compliance.

These are the default transmitted events :

DEVICE (intrusions) ALERT (Panic Buttons) PANEL LOW BATT. TAMPER DEVICE LOW BATT. PERIODIC TEST DURESS CODE FIRE MEDICAL ASSIST. ETHERNET CABLE AC POWER LOSS (AC Power supply)

ALARM : event transmitted upon occurrence

ALARM/END : event is transmitted on occurrence and on event restoral

NOT TRANSMITTED : event is not transmitted, however it will appear on the keypad.

Example :

If the monitoring station system is set to receive arms and disarms, the ARM / DISARM parameter must be changed from NOT TRANSMITTED to ALARM / END.

The following events are not sent by default :

PANEL RESET

PHONELINE FAULT

RADIO JAMMING

SUPERVISION

5 WRONG CODES

ALARM CANCEL

ARM/DISARM (On/Oﬀ)

ZONE BYPASS (bypass function enabling/dsiabling)

SWINGER SHUTDOWN

There are 3 diﬀerent transmission states :

How to modify the transmission state

• At initial programming, right aer the PERIODIC TEST CALL step:

CODE /STATE

MODIFICATION

Press

OK or YES

to access EVENT TRANS. MODIFICATION menu.

• Aer initial programming, using a remote keypad :

Use the arrows to access :

CONFIGURATION (level 4) > CONFIGURATION MONITOR. STATION > MONITORING PARAMETERS > EVENT TRANS. MODIFICATION

Then use the arrows to determine the event to modify. Press

OK or YES

to edit.

Page 24

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

6. 2G3G4G ERROR CODES

IMPORTANT: The PIN of the SIM card has to be deactivated or 00000.

The following is a list of error codes that can appear after the 2G3G4G test.

2G3G4G

LEVEL :

ERROR XXX

Codes Errors

03 ou 04LP

003

010

011

012

013

014

015

No network coverage or no SIM card

inserted

SIM card not detected/not inserted

SIM not inserted

PIN code necessary

-> PIN code must be deactivated

PUK code necessary, SIM card blocked

Default SIM card

SIM card busy

Error on SIM

In case of 2G3G4G (GPRS) errors during initial programming, we strongly suggest to continue with the installation and perform the 2G3G4G (GPRS) level test again once achieved.

This error checklist is provided for information purposes only.

This is not a comprehensive list, but it is representative of most cases. Some events or codes are subject to change by SIM card operators.

However, the GPRS level test errors results in the majority of cases have the following causes :

• SIM Card activation Delay:

Some operators require an additional delay up to 48 hours to activate automatic data transmission. Please check with your operator prior to installation.

• APN CODE, USERNAME and PASSWORD :

The GPRS (2G3G4G) settings are supplied by the operator. Please make sure you have entered the code exactly as indicated by your local SIM card operator.

030, 043,

057, 102,

132, ...

• No network coverage

• Typographical error in the APN Code,

username, password

• SIM card not activated

Note: When entering your SIM card settings, both APN codes, username and password ﬁelds are case sensitive! (It makes a diﬀe

rence be

To switch between UPPER and lower case, use the M/m key from CMA keypad or hold a digit key (0-9) for XMA/XMB.

• Insuﬃcient GPRS Network:

When the panel is unable to ﬁnd any signal, proceed to GPRS level test in another location on site. You can also ﬁnd the network state or condition of use by directly contacting your local operator.

tween UPPER and lower case letters).

Page 25

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

7. TECHNICAL SPECIFICATIONS AND SECURITY NOTES

FCC Regulatory Information for USA and CANADA

FCC Part 15.21 Changes or modiﬁcations made to this equipment not expressly approved by RSI Video Technologies may void the FCC

authorization to operate this equipment.

FCC Part 15.105 Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment oﬀ and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.

Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

1 L’appareil ne doit pas produire de brouillage, et

2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre

le fonctionnement.

Security notes / (FR) Notes de sécurité / (DE) Hinweise zur Sicherheit

• Remove battery before any

English

maintenance !

• WARNING, there is a risk of explosion if a battery is replaced by an incorrect type!

• Observe polarity when setting up the batteries!

• Do not throw used batteries! Bring them to your installer or a collection point.

• Retirez les piles avant toute opération

Français

de maintenance !

• Attention ! Il y a un risque d'explosion si l'une des piles utilisées est remplacée par une pile de type incorrect !

• Respectez la polarité lors de la mise en place des piles !

• Ne jetez pas les piles usagées ! Ramenez-les à votre installateur ou à un point de collecte spécialisé.

• Batterien vor jeglichen Wartungsarbeiten entfernen!

• Vorsicht, es besteht Explosionsgefahr, wenn eine Batterie durch eine Batterie falschen Typs ersetzt wird!

• Achten Sie beim Einsetzen der Batterien auf die Polung!

• Entsorgen Sie Batterien nicht im normalen Haushaltsmüll! Bringen Sie Ihre verbrauchten Batterien zu den öffentlichen Sammelstellen.

Deutsch

Page 26

XTO /

XTO-IP Alarm panel

INSTALLATION MANUAL

7. TECHNICAL SPECIFICATIONS AND SECURITY NOTES

ELECTRICAL DATA

Power requirements (option 1)

Power supply Type B 9-12 V / 1.2 A

Low voltage limit 5.15 V

Backup 6V with 4 x 1,5 V D Alkaline batteries /LR20

Low battery limit 4.2 V

Battery life (average) 1 year

Average current

consumption (over 1h)

Max current 1.2 A

Power requirements (option 2, not available for Ethernet)

Power supply type C

Low battery level

Average battery life

RF Wiselink® technology

Radio type

Operating frequency

868MHz - XTO-iP210 (Europe, South Africa, Asia) 865-867MHz - XTO-iP310 (India) 902/928MHz - FHSS – XTO640 (USA, Canada, South America) 915/928MHz - FHSS – XTO-iP 730 (Australia, South America) 902/907.5MHz & 915/928MHz – FHSS – XTO-iP 830 (Brazil)

Transmission security

Radio jam detection

Supervision

Radio antenna

External radio antenna

Tamper Detection

Tamper

14.4V with 4 x 3.6 V Lithium batteries /LSH20

AES encryption algorithm

Option with MMCX connector

Wall and cover tamper detection

450µA

4 years

Bidirectional RF

Integrated

BOX

Physical and Environmental Data

Operating temperature

Maximum relative humidity

International Protection Marking

Material

Installation / Mounting

Control panel / Base

95%, without condensing

4 screws to close the cover

4 screws on panel base for brackets mounting

-25°/70°C

IP54 / IK06

ABS—ULV0

12 V

Yes

TRANSMISSION

Communicator

Communicator type

2G frequencies

800/850(B5), AWS1700(B4), 1900(B2) (XTO-iP 630)

3G frequencies

4G frequencies

LTE : 1900(B2), 1700(B4), 850(B5), 700(B12), 700(B13)

Security protocol

IP stack Video transmission

By Frontel protocol to central monitoring station or App servers

2G3G4G Antenna

External 2G3G4G antenna

Programmable wired inputs

Number

«Dry» contact

Input voltage

Programmable wired outputs

Number

Max switching voltage

Max switching current

Max switching power

Video

Video Format

Images per second

Image size

Video length

Miscellaneous

Programming

Max number of devices

Max number of codes/badges

Arming modes

Areas

Event log

2G & LAN Ethernet (XTO-iP 210) 3G & LAN Ethernet (XTO-iP 730 830)

4G (XTO640)

850 / 900 / 1800 / 1900 MHz

800/850(B5), 900(B8), 2100(B1) (XTO-iP 730)

800/850(B5), 900(B8), 2100(B1) (XTO-iP 830)

UMTS : 850(B2), 900(B5)

Frontel

TCP/IP

Integrated

Option with MMCX connector

Yes

12 VDC (15VDC max)

24VDC /30VAC

30 W

WMV or MPEG

320x240 pixels

4 to 12 seconds

Keypad

4000 events stored on ﬂash memory

Dimensions

Panel

272 mm x 276 mm x 96mm

Page 27

INSTALLATION MANUAL

7. TECHNICAL SPECIFICATIONS AND SECURITY NOTES

STANDARDS AND CERTIFICATIONS

XTO-iP 210 868 MHz

XTO-iP 733 915/928 MHz - FHSS

Europe

XTO-iP 310 865/867 MHz

India Certiﬁcation in process

XTO-iP 630 902/928 MHz - FHSS

Argentina Certiﬁcation number C-17498

Canada

Columbia Certiﬁcation number : 2016866829

Costa Rica SUTEL 10029-2017

Mexico IFT Certiﬁcation number RCPSISI17-0298

Panama Certiﬁcation number : 1709

«En Perú, este equipo diseñado para la banda de 902-928MHz,

Peru

«En Perú, este equipo diseñado para la banda de 902-928MHz,

debe ser conﬁgurado para operar solo en la banda 915-928MHz

debe ser conﬁgurado para operar solo en la banda 915-928MHz con una PIRE de hasta 1W (30dBm) y sujeto a las Condiciones de

con una PIRE de hasta 1W (30dBm) y sujeto a las Condiciones de

con una PIRE de hasta 1W (30dBm) y sujeto a las Condiciones de Operación que establezca el MTC.»

Operación que establezca el MTC.»

Compliant with Directive 2014/53/EU for RED

Radio Equipment Directive

RSS-132, Issue 3, RSS-133, Issue 6,

RSS-139, Issue 3, RSS-247, Issue 1

Certiﬁcation number TRRFM38411

Id: 8816A-XT06

Australia C-Tick

XTO-iP 830 902/907.5 MHz & 915/928 MHz

Certiﬁcation Number

006231-16-10210

Brazil

Este equipamento opera em caráter secundário, isto é, não

tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.

USA

XTO640

USA

Canada

FCC Part 15C, FCC Part 22H, 24E, 27

902/928 MHz - FHSS

FCC Part 15C, FCC Part 22H, 24E, 27

RSS-132, Issue 3, RSS-133, Issue 6,

RSS-139, Issue 3, RSS-247, Issue 1

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. It must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health. The recycling of materials will help to conserve natural resources. For more information about recycling of this product, please contact your local municipality, your waste disposal service or the company that installed the product.

Id: X46XT06

Id: X46XT07

Id: 8816A-XT07

www.videoﬁed.com

The EC declaration of conformity of this product is available by ﬂashing this QR code.
