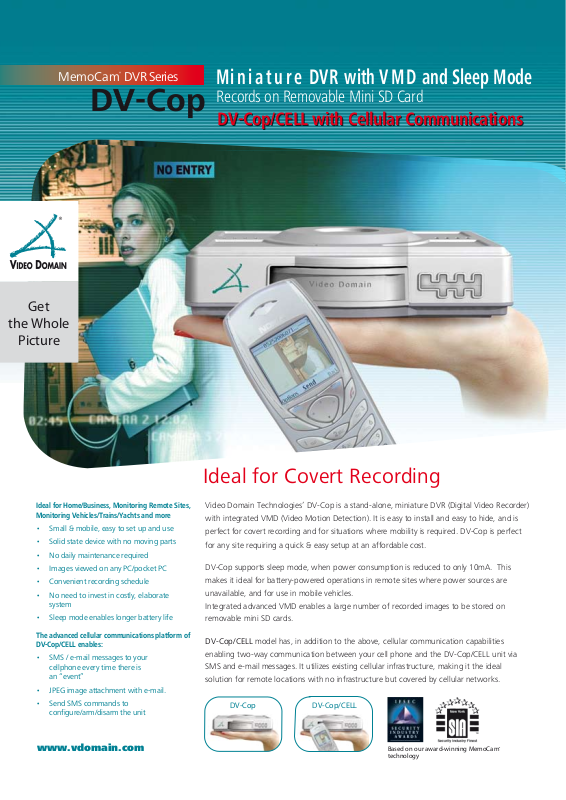

Video Domain DV-Cop Specsheet

MemoCam® DVR Series

DV-Cop/CELL with Cellular Communications

Mi n i a t u r e DVR with V M D and Sleep Mode

Get

the Whole


DV-Cop

Records on Removable Mini SD Card

DV-Cop/CELL with Cellular Communications

Ideal for Home/Business, Monitoring Remote Sites,
Monitoring Vehicles/Trains/Yachts and more

• Small & mobile, easy to set up and use

• Solid state device with no moving parts

• No daily maintenance required

• Images viewed on any PC/pocket PC

• Convenient recording schedule

• No need to invest in costly, elaborate
system

• Sleep mode enables longer battery life

The advanced cellular communications platform of
DV-Cop/CELL enables:

• SMS / e-mail messages to your
cellphone every time there is
an “event”

• JPEG image attachment with e-mail.

• Send SMS commands to
configure/arm/disarm the unit

www.vdomain.com

Ideal for

Video Domain Technologies’ DV-Cop is a stand-alone, miniature DVR (Digital Video Recorder)

with integrated VMD (Video Motion Detection). It is easy to install and easy to hide, and is

perfect for covert recording and for situations where mobility is required. DV-Cop is perfect
for any site requiring a quick & easy setup at an affordable cost.

DV-Cop supports sleep mode, when power consumption is reduced to only 10mA. This

makes it ideal for battery-powered operations in remote sites where power sources are

unavailable, and for use in mobile vehicles.

Integrated advanced VMD enables a large number of recorded images to be stored on

removable mini SD cards.

DV-Cop/CELL model has, in addition to the above, cellular communication capabilities

enabling two-way communication between your cell phone and the DV-Cop/CELL unit via

SMS and e-mail messages. It utilizes existing cellular infrastructure, making it the ideal

solution for remote locations with no infrastructure but covered by cellular networks.

DV-Cop DV-Cop/CELL

Covert Recording

Based on our award-winning MemoCam®
technology

MemoCam® DVR Series

DV-Cop

Miniature DVR with VMD & Sleep Mode

DV-Cop/CELL with Cellular Communications

VMD lets you define the areas for movement detection.

Simply Plug in – and Ready for Action!

EXCELLENT RECORDING QUALITY

• Color or B/W recording

• Resolution quality 640x480 (VGA) or 320x240 (CIF)

• Records up to 10 FPS

COMMUNICATION & CONNECTIVITY

• Communication ports (RS-485)

• Cellular communication in DV-Cop/CELL model

• Connect monitor to Video Out

QUICK & EASY OPERATION

• Easy to install and integrate into existing CCTV system
infrastructure

• IR remote control with panic button included

• Automatic scheduled activation

• Export to PC image editor, in JPEG or AVI format

• Playback of recorded images at multiple speeds, frame by
frame or as continuous slide show

• Search for images using a detailed list or thumbnails

• Fast search by time or event

SET YOUR OWN PARAMETERS

• Define relevant areas for Video Motion Detection

• Choose recording quality – up to 5 levels

• Define trigger: VMD or external trigger

• Set Arm/Disarm schedule

• Define post-alarm recording ... and more

SAFE & SECURE

• Password protected

• Automatic recovery after power failutre

• Images dated and timed

• Solid-state device with no moving parts

• Does not require day-to-day user intervention or maintenance

• Images watermarked for integrity (user selectable)

EXTENDED OPERATION TIME

• Low-power sleep mode draws only 10mA power

• Suitable for battery operations (battery not included)

• On wake-up, unit powers up camera

CELLULAR COMMUNICATIONS (DV-Cop/CELL model)

• Advanced GSM/GPRS class 12 cellular platform

• Transmission rate upload: 32 - 48 kbit/s

• Image encryption for secure transmission of information
(user selectable)

• Covers 900/1800/1900 frequencies, enabling flexibility &
worldwide usage

SUPPLIED WITH:

• Power adaptor with 15ft (4.5m) cable

• IR remote control with panic button functionality

• mini SD card

Ordering Information

MemoCam DV-Cop P/N 11780640
MemoCam DV-Cop/CELL P/N 11780660

Recording Capacity: maximum no. of images / recording time in hours

Based on recording rate of 1 FPS and VMD activation 20% of the time

At 640 x 480 Resolution (VGA)

Recording Quality Memory Card Size
1G 2G

Excellent (150K) 6,400 / 8h 12,800 / 16h
Very Good (90K) 11,200 / 16h 22,400 / 32h
Good (60K) 16,000 / 24h 32,000 / 48h
Standard (40K) 25,600 / 32h 51,200 / 64h

At 320 x 240 Resolution (CIF)

Recording Quality Memory Card Size
1G 2G

Excellent (150K) 25,600 / 32h 51,200 / 64h
Very Good (90K) 46,400 / 64h 92,800 / 128h
Good (60K) 67,200 / 96h 134,400 / 192h
Standard (40K) 102,400 / 128h 204,800 / 384h

Technical Specifications

DV-Cop DV-Cop/CELL

Video Format NTSC/EIA and PAL/CCIR – Color or B/W
Video Input 1 channel – composite 1 Vpp. High Z or 75 Ohm (BNC)
Video Output 1 channel – composite 1 Vpp (BNC)
Video Resolution 640 x 480 (VGA) or 640 x (240 x 2) or 320 x 240 (CIF)
Recording Quality 5 levels
Video Compression JPEG
Recording Rate From 10 images / sec to 1 image / 5 min
Image Size From 10K to 150K bytes
Storage Type Removable mini SD card in sizes: 512MB, 1GB & 2GB
Cellular Connectivity N/A GSM/GPRS Class 12
Recording Modes Fixed – records events until mini SD card is full
Cyclic – records events continuously overwriting old data when the mini SD card is full
Start Recording Modes Video Motion Detection (inactive in sleep mode)
Dry contact input
Panic button using the IR remote control
Pre-Alarm Recording Yes
Image Protection (Integrity) Each image is differentially signed and can be authenticated
Titles Time / Date / Unit-name
Scheduler Daily and weekly
Alarm Input / Arm/Disarm Input 2 inputs
Alarm Output N/O or N/C, Dry contact up to 28VDC, 0.1A
Protected with 20 Ohm resistor
External Camera Power Up Powers camera and/or IR illuminator
Max. Illuminator Output current 300mA 200mA
(using 0.5A power adaptor)
IR Remote Control Used for:
Arming / Disarming the unit
Emergencies via panic button
Security Password protected
Power Source 7-20 VDC (nominal 15 VDC)
Power Consumption @15VDC
Sleep mode: 10mA 18mAA
Wake up mode: 160mA 170mA
During GPRS transmission: – 250mA
Recovery Automatic recovery after source power failure
Audio Indicator Buzzer
Operation Status LEDs Six status color LEDs and a one power ON LED indicator
RS-232 port Yes No
RS-485 port Yes Yes
Software Upgradeable Yes
External Dimensions 6 x 5 x 2 inch / 155 x 130 x 48 mm
Weight 12 oz / 340 gm
Operating Temperature 32 - 122 ˚F / 0 - 50 ˚C

In accordance with its policy of continuing product and system improvement, Video Domain Technologies Ltd. reserves the right to alter
designs or specifications without obligation or further notice.
