VIDEOCON V1602

User Manual

Contents

Legal Information .......................................... 1

Section 1: Introduction .................................. 2

Important Safety Precautions ..................... 2

Section 2: Getting Started .............................. 4

Inside the Box ............................................ 4

Installing and Removing the Battery ....... 4

Inserting and Removing SIM Card ........... 5

Inserting the Memory Card ..................... 5

Charging the Device ................................ 6

Section 3: Know your device .......................... 7

Phone Layout ............................................. 7

Screen Icons .............................................. 9

Section 4: Basic Operations .......................... 11

Make a Call .............................................. 11

Making a Call Using Call history ................ 11

Answering a Call ...................................... 11

Section 5: Using the Phone........................... 12

Managing the Phonebook ......................... 12

Phonebook Settings .............................. 12

Viewing Call history.................................. 13

User Profiles ............................................ 14

Multimedia ............................................... 14

Camera................................................. 14

Video recorder ...................................... 14

Video player ......................................... 15

Audio player ......................................... 15

Image Viewer ....................................... 15

FM radio ............................................... 16

Messages ................................................. 16

Text message ....................................... 16

MMS ..................................................... 17

Games ..................................................... 17

Staying Organized .................................... 17

Services ................................................... 18

SIM applicator / STK............................. 18

WAP ..................................................... 18

Data account ........................................ 19

Section 6: Settings ....................................... 20

Setting Date/Time .................................... 20

Power on/off ........................................... 20

Securing your phone ................................ 20

SIM1/2 PIN code .................................. 20

Phone lock............................................ 20

SIM lock ............................................... 20

Auto keypad lock .................................. 21

Mobile Tracker ...................................... 21

Long distance control............................ 21

Legal Information

All rights reserved. Reproduction, transfer,
distribution or storage of part or all of the contents
in this document in any form without the prior
written permission of VIDEOCON is prohibited.

VIDEOCON operates on a policy of continuous
development. VIDEOCON reserves the right to make
changes and improvements to any of the products
described in this document without prior notice.

Under no circumstances shall VIDEOCON be
responsible for any loss of data or income or any
special, incidental, consequential or indirect
damages howsoever caused.

The contents of this document are provided "as it
is". Except as required by applicable law, no
warranties of any kind, either expressed or implied,
including, but not limited to, the implied warranties
of merchantability and fitness for a particular
purpose, are made in relation to the accuracy,
reliability or contents of this document. VIDEOCON
reserves the right to revise this document or
withdraw it at any time without prior notice.

The availability of particular products may vary by
region. Please check with VIDEOCON Executive.

1

Section 1: Introduction

Important Safety Precautions

Please comply with these precautions / measures to
avoid dangerous or illegal situation and ensure peak
performance of your phone.

Road safety

The use of a mobile phone while driving is illegal and
should be avoided at all costs. If you need to make
or receive an urgent call, move your vehicle to the
side of the road and allow it to come to a complete
stop before using your phone.

Switch off in potentially hazardous
environments

Switch your phone off while boarding an aircraft.
Signal from your phone can affect aircraft system.
You are legally obliged to comply with this
recommendation.

Switch your phone off when entering any explosive
area. Observe any provided guidelines or
regulations.

Emergency Calls

In case of an accident or an emergency, dial 100
(Police), 101 (Fire) or 102 (Ambulance) from your
phone. Being emergency numbers, these are toll
free and can be reached even from areas where the
network signal strength is very poor.

2

Battery Use

First time charging must be done using the regular
charger and not using the USB cable.

During the first 3-4 charge sessions, charge the
battery until it has been fully charged according to
the battery level indicator. This ensures higher
battery backup and extends the battery life.

Avoid partial charging. Wait for the battery to
discharge completely before charging it again.

Charging through the USB Cable should be reserved
during an emergency.

Special Regulation: Follow any special regulations
in force in any area and always switch off your
device whenever it is forbidden to use it, or when it
may cause interference to the surrounding.

Radio Interference: All mobile phones cause radio
interference within the specified Limits of GSM
standards.

Qualified service: Only qualified service personnel
must repair the equipment. Use only approved
accessories and batteries.

Emergency calls: Ensure that the phone is
switched on and in service. Enter the emergency
number (102 or another official emergency number)
and press the "Dial" key.

Use only approved accessories: The use of any
other power accessory will violate warranty
conditions that apply to the phone.

3

Section 2: Getting Started

Inside the Box

The standard packing contents are as follows:

Base Trans-receiver
Battery
Charger
Hands free Kit
User Manual
Service Guide

Installing and Removing the Battery

To install the battery:

1. Locate the groove at the top of the phone, and
pull the battery cover out to open.

2. Push the battery in the battery compartment in
such a way that the connectors of the phone
are aligned with the connectors on the battery.

To remove the battery:

1. Turn off the phone and unplug other external
power sources.

2. Locate the groove at the top of the phone, and
pull the battery cover out to open.

3. Pull out the battery from the battery
compartment as shown in the image.

4

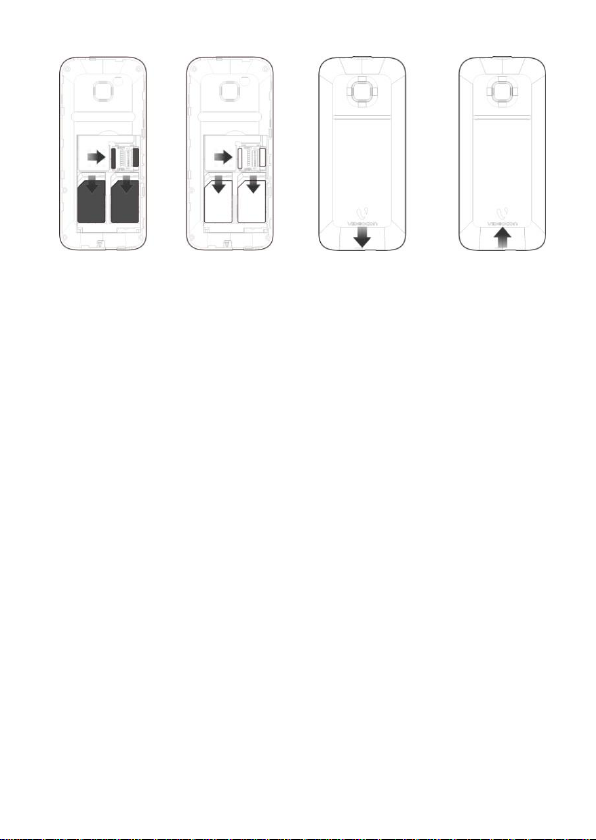

Inserting and Removing SIM Card

1. Remove the battery back cover and the
battery.

2. Remove the battery from the battery
compartment.

3. Slide the SIM card in the slots (with metal
connectors) facing down as shown in the
image.

Note: Please do not touch the metal area to avoid
losing and breaking the information in SIM card.
Avoid SIM from putting it nearby.

Inserting the Memory Card

1. Remove the battery back cover and the
battery.

2. Unlock and lift the memory card cover.

3. Place the memory card with metal connectors
facing down.

4. Lock the memory card cover.

5

Charging the Device

Insert the Plug of your charger to the charging port
at the base of your phone.

When you begin to charge the battery, the stripe of
Signal Strength on the right corner of the screen
starts to roll. When battery gets fully charged, the
stripe becomes stable and stops rolling.

Note: Using the phone while charging may extend
the charging time.

6

Section 3: Know your device

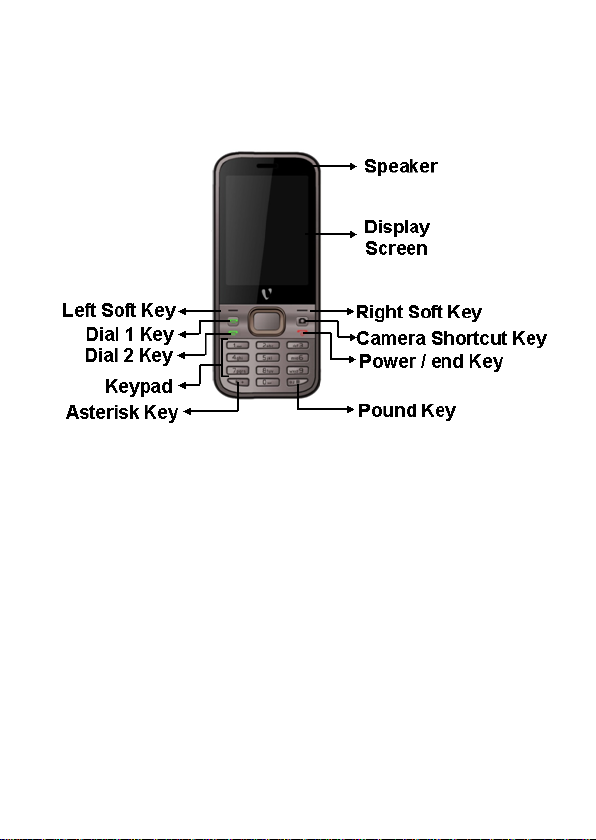

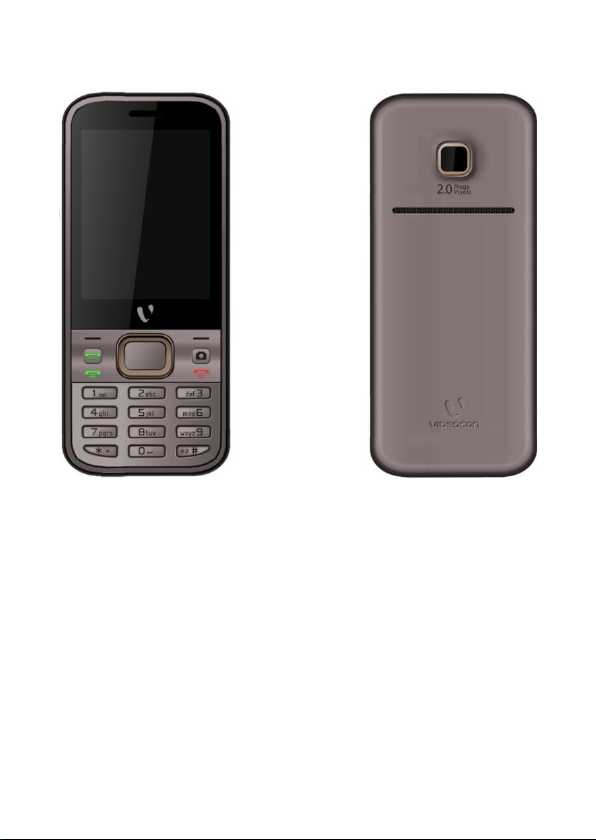

Phone Layout

Left Soft Key

Use to perform functions that display in the lower
left of the display.

Right Soft Key

Use to perform functions that display in the lower
right of the display.

Dial Key

Receive or make calls, and while in idle mode, click
to view call history.

End Key

7

End or reject calls; Press and hold this key to turn
phone on/off; cancel function and return to the idle
screen.

Up and Down Direction Keys

Scroll to select options
In the idle screen, use up and down direction

keys to open shortcut applications.

While creating a message, use up and down

direction keys to select a word from the
dictionary

In function menu, scroll to open desired

function.

Left and Right Direction Keys

In the idle screen, press to open shortcut

applications

In edit message status, press to select the

required word.

Camera Key

In standby mode press to enter Camera

function.

Press to clear the numbers when input

numbers to dial.

In edit message status, press to clear the

words.

0-9 Keys

In standby mode, press number keys to input dialing
number. In standby mode, press and hold 1 key to
enter Voicemail server, press and hold 2-9 key to
directly call the number set before in the speed dial

8

list. In edit status, press to input numbers,

Network signal strength

SIM1 inserted

SIM2 inserted

Battery Strength

Phone is in ring mode

Ring and Vibrate mode are active

First ring then vibrate

Alarm is active

Headset connected

characters and phonetic notation. In edit mode,
except input number, press 0 key to input space. In
functional menu, press numbers to speed select
submenu items.

* & # Key

Functions vary in different situations or function
menus: On Input Screen, press "*" for symbols. In
standby and dial mode, press and hold "*" to input
+ for an international call. On Input Screen, press
"#" to switch among different inputting methods. In
standby mode, press and hold # key to switch
between silent mode and previous mode. Press Left
soft key and hold * key to lock/unlock the keypad.

Screen Icons

Indicator icons provide information such as battery
level, network signal strength, current date & time
and so forth.

9

Note: Depending on your country or service
provider, the icons shown on the display may vary.

10

Section 4: Basic Operations

Make a Call

To make a call, unlock the keypad, if locked, enter
the desired phone number and press the Dial key.

Note: Your service provider programs one or more
emergency phone numbers, such as 102, 100, that
you can call under any circumstance, even when
your phone is locked or the SIM card is not inserted.
Check with your service provider, as emergency
numbers vary by country. Your phone may not work
in all locations, and sometimes an emergency call
cannot be placed due to network, environmental or
interference issues.

Making a Call Using Call history

All dialed and incoming numbers are saved in call
history and categorized into Missed calls, Dialled
calls and Received calls. To check the history, please
follow these steps:

In standby mode, press the Dial key to view All
calls. Use the up/down direction keys to scroll
among Missed calls, Dialled calls and Received calls.

Answering a Call

To receive an incoming call, press the Options key
and select „Answer‟ or receive it directly by pressing
the Dial key.

If headset is available, user can choose headset key
to answer the call.

11

Section 5: Using the Phone

Managing the Phonebook

The Phonebook is a location in your phone‟s internal

memory on which you can store numbers of your
contacts. The SIM card also allows you to store
phone numbers, though the permissible limit may
vary from provider to provider. Even though, the

SIM card and the phone‟s internal memory are

physically separate, they are used as a single entity
known as the Phonebook on the phone.

Phonebook Settings

Press MenuPhonebook options  Phonebook
Settings. The available settings are:

Memory Status: Enable to check out the

memory status individually for both the SIM
and phone respectively.

Preferred storage: The memory type you

want to use for storing contacts. The options
available are SIM1, SIM2, and Phone.

Fields: Enable to set the different fields

which are to be entered during addition of a
contact.

My vCard: Store your personal contact

information as a vCard to allow quick
sharing of your details with contacts. Once
you have entered your contact information,
use the Send my vCard option to send your

12

vCard via SMS, MMS, or through file transfer
over Bluetooth.

Viewing Call history

Use this menu to view the dialed, received or missed
calls. On the Idle screen, press Menu Call
history. The Call History sub-menu comprises the
following:

Missed Calls: List of the last 50 calls you

were unable to answer.

Dialled Calls: List of the last 50 numbers you

have dialled.

Received Calls: List of last 50 incoming calls.
Delete call logs: Delete Missed calls, Dialled

calls, Received calls and Delete all on the
SIM card.

Call timers: View Last call time, Dialled calls,

Received calls and Reset all time of the SIM
card.

Call cost: View Last call cost and Total cost

of the SIM card. You can also Reset cost and
set the Maximum cost and the Price per unit
of the SIM1 card. It requires network
support.

Text message counter: View and reset the

numbers of short messages sent and
received on the SIM card.

GPRS counter: View the volume of GPRS last

sent, last received, all sent and all received

13

on the SIM card. You can also reset the
counter on the SIM card.

User Profiles

This menu allows you to set the ring tone, alert
type, ring volume, answer mode and backlight, etc
when you receive an incoming call or a new
message so that you can adapt the use of your
phone to different types of call environments. The
available profiles are, General, Meeting, Outdoor,
Indoor, Silent, Headset, and Bluetooth.

Multimedia

Camera

Your Videocon V1602 is equipped with a 2.0
Megapixel camera on the back of the device that can
be used to take still photographs or record videos.

Select t Menu  Multiedia  Camera to launch
the camera application.

Taking and Saving a Photo

Once the camera application is enabled, press the
OK button to capture the image. All pictures that
you chick are automatically saved to a Photos
folder.

Video recorder

Select Menu  Multiedia  Camera  Switch to
Video recorder to enable the video mode for the

camera.

Recording Videos

14

Choose Menu  Multiedia  Video recorder to
start the video recording. After setting the view,
start to record a video by pressing the [OK] key. If
you want to view the recorded file, you can access it
via the Video player menu.

Video player

Use Video player to watch videos.

Audio player

Your phone provides you a friendly audio player
device for entertainment purpose. You may enter
the music player via main menu. You may also
download the music content via USB or other
connection. Music tracks must be saved in Audio
folder in [File manager] in order to be
automatically detected and added into the default
play list. You may listen to the music through the
headset or loudspeaker. The user-friendly interface
is specially designed to allow easy access to
common functions such as play, pause, and stop.

Playing Audio Tracks

In the Music Player menu, you may select List to
access the following setting. If you are a first-time
user, select Play List to add music tracks from your
memory card. Your music player will automatically
detect and add all the music tracks into the default
play list.

Image Viewer

You can see your photos in your phone by choosing
[Image viewer] menu in [Multimedia] menu. It will

15

display the photos with image name, image size and
date.

FM radio

The FM radio application turns the mobile phone into
a portable FM radio device. It primarily provides
users the interface to a single-chip electronically
turned FM stereo radio for listening to live-broadcast
stations. You must connect the earphone to your
phone as it works as an antenna.

To listen to the radio

Connect the earphone to your phone. When entering
the main screen, a default frequency is selected and
it‟s power off for the first time of entrance.

Messages

In Messaging, you can send and receive text and
multimedia messages. To launch messaging, on the
idle screen, select Menu  Messages to view the
available functions. Message functions are available
depending on network services that your service
provider supports.

Text message

Write message: Create and send a message.
Inbox: Messages and data received using

SMS or MMS are stored in the Inbox folder.

Sentbox: Messages that have been sent are

moved to the Sentbox folder.

Drafts: Messages that you have been writing

are stored in the Drafts folder.

16

MMS

Your phone also supports Multimedia Messaging
Service (MMS). It enables you to send images,
sound and text files. To send a multimedia message,
you need to edit the following fields:

To: Insert the main recipient number to

whom you want to send the message.

Cc: Enter carbon copy recipient.
Bcc: Enter blind carbon copy recipient.
Subject: Enter and edit subject.
Content: Edit contents of the multimedia

message.

Games

Select Menu  Fun & Games, to access the Games
menu. Game interface offers option to select a
game, user can select the following game from the
interface

Copter
UFO

Staying Organized

Use this menu to keep track of your schedule. You
can also use convenient features, such as Calendar,
To do list, Alarm, World clock. To access this menu,
press [Menu] in Idle mode and select [Tools]. The
available options are:

Calendar: You can keep track of your

monthly schedule.

17

To do list: You can use your phone to keep

track of all your Date, Call and Anniversary.

Alarm: Set the alarm to ring at a specific

time.

World clock: Set your local time zone and

find out the current time in another part of
the world.

Calculator: Your phone comes with a built-in

conversion application.

EBook reader: With the function, you may

read any file in TXT format saved in the
memory card.

Unit converter: Using Converter, you can

perform Length, Weight, Volume, Surface,
Temperature and Velocity.

Currency converter: You can use your phone

for converting currency. You have to select
the amount and currency rate to convert.

Services

SIM applicator / STK

STK (SIM Tool Kit) is shown only if it is provided by
your SIM card. For further details, please contact
your network operator.

WAP

WAP function enables you to use the phone to surf
the Internet

18

Data account

This function enables to set the account information.

19

Section 6: Settings

For more information on configuring phone settings,
refer to the following chapter.

Setting Date/Time

This option enables you to set the time, time zone,
time format, date and the date format.

Power on/off

This option enables you to set the auto power on/off
and the auto power on/off status.

Securing your phone

SIM1/2 PIN code

This option enables you to set a Personal
Identification Number (PIN) for your phone that is
required each time you switch on your phone. You
can also change your PIN from this option.

Phone lock

This option enables you to set a lock for your phone
that is required each time you change the SIM card
of the phone.

SIM lock

This option enables you to set a lock for your SIM
card that is required each time you switch on your
phone.

20

Auto keypad lock

Function

Command

Power off phone

0000POWEROFF

Phone lock

0000LOCK

Call divert to a
particular
number (e.g.
divert all
incoming calls of
the illegal user to
the particular
number

0000CALLDIVERTTO12345

67890

This option enables you to set the auto lock time for
the keypad.

Mobile Tracker

This function enables you to track your phone in
case it gets lost. The default password for the mobile
tracker is “0000”. If someone inserts another SIM
card in your mobile, you will receive an SMS to the
assigned number from the new SIM card to know
who is using your mobile

Long distance control

Remote Control Commands

If you set the remote control password as 0000, the
commands for the remote control functions will be
as follows.

21

1234567890)

SMS divert to a
particular
number (e.g.
divert all
incoming
messages of the
illegal user to the
particular
number

1234567890)

0000NEWMESSAGESDIVER

TTO1234567890

Fetch
Phonebook.

0000ALLNUMBERSDIVERT

TO1234567890

Fetch SMS.

0000ALLMESSAGESDIVER

TTO1234567890

Fetch one
contact NAME.
(e.g. for copying
one particular
contact NAME
from the lost
phone)

0000CONTACTNAMEDIVE

RTTO1234567890

Format

0000FORMAT

Cancel Call divert

0000CANCELDIVERTING

Cancel SMS
divert

0000CANCELDIVERTINGNE

WMESSAGES

22

Note: 1234567890 is the number to which the call
or messages that you want to divert.

23
