Concept Pro VHSD-810EXT

Speed Dome System

User Manual

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning Precaution

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any other adapter could cause ﬁre, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or ﬁre.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

5. When installing the camera, fasten it securely and ﬁrmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers ﬁlled with water on top of the camera. Doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.

Concept Pro VHSD-810 EXT

Speed Dome System

User Manual

Ver. 1 . 1 / 2009.10

2 3

10. When cleaning, disconnect the power rst do not spray water directly onto parts of the product. Doing so may cause ﬁre or electric shock.

11. Adequate protection against lightning strikes and power surges must be installed to prevent damage to the speed dome.

Precautions Contents

Operating

Before using, make sure power supply and others are properly connected. While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and then contact your Special dealer.

Handling

Do not disassemble or tamper with parts inside the camera. Do not drop or subject the camera to shock and vibration as this can damage camera. Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your quality of camera.

Installation and Storage

Do not install the camera in areas of extreme temperature, which exceed the allowable range. Avoid installing in humid or dusty places. Avoid installing in places where radiation is present. Avoid installing in places where there are strong magnetic elds and electric signals. Avoid installing in places where the camera would be subject to strong vibrations. Never expose the camera to rain and water.

1. Introduction

2. Installation

3. OSD Menu

4 Precautions

67Product & Accessories

Parts Name & Functions

DIP Switch Setup

Installation Using Surface Mount Bracket

Installation Using Flush Mount Ring Bracket(Option)

Installation Using Ceiling Mount Bracket(Option)

Installation Using Wall Mount Bracket(Option)

Cabling the 5P Terminal Block

Cabling the 7P Terminal Block

Check Points before Operation

Main Functions

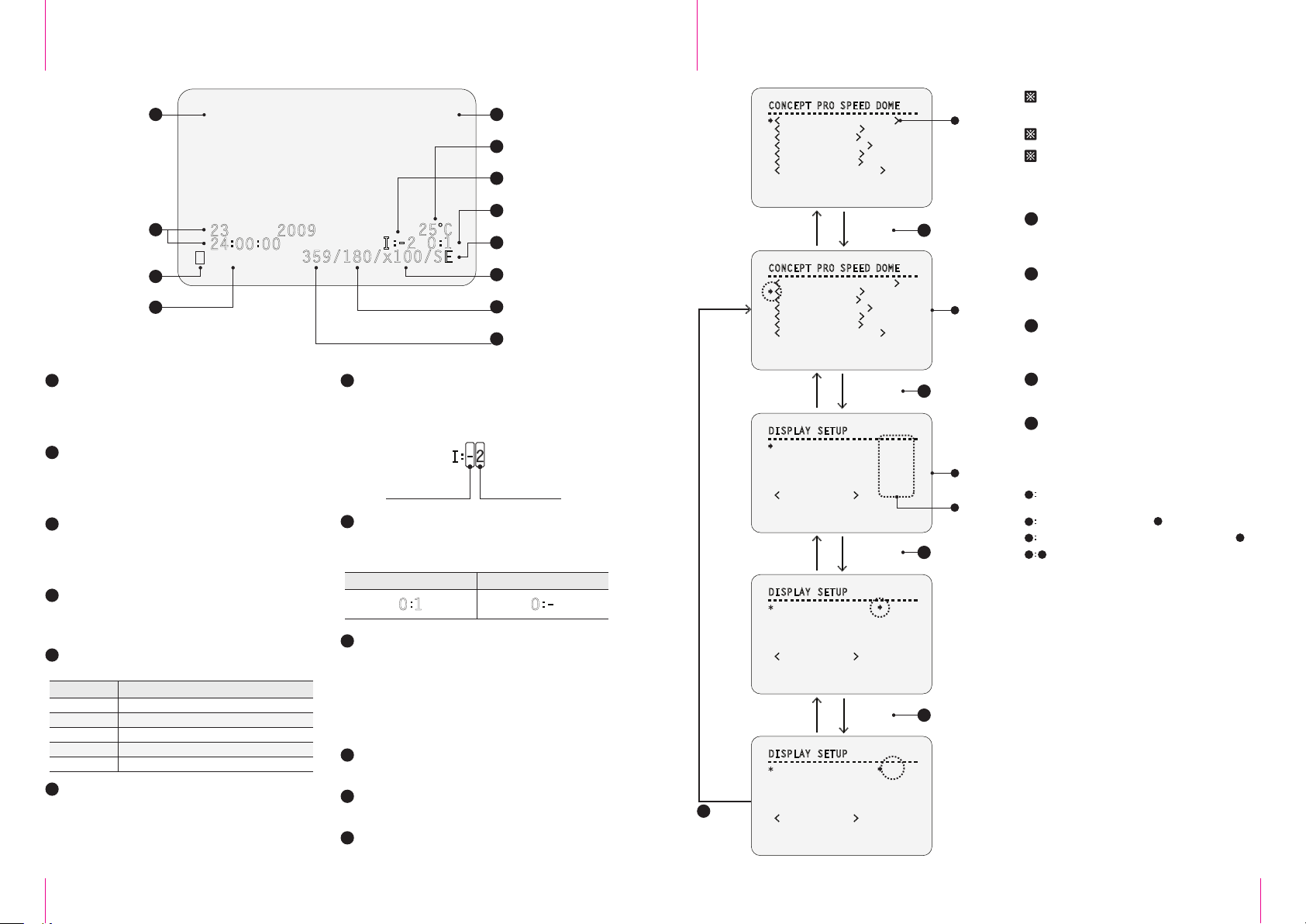

OSD Information

General Rules of Menu Operation

OSD Menu Contents

OSD -

CONCEPT PRO SPEED DOME & SYSTEM INFORMATION

OSD -

DISPLAY SETUP

OSD -

MOTION SETUP

OSD -

FUNCTION SETUP>PRESET SETUP

OSD -

FUNCTION SETUP>VST SETUP

OSD -

FUNCTION SETUP>PATTERN SETUP

OSD -

FUNCTION SETUP>GROUP SETUP

OSD -

FUNCTION SETUP>SCHEDULE SETUP

OSD -

CAMRA SETUP>WB SETUP

OSD -

CAMRA SETUP>AE SETUP

OSD -

SYSTEM SETUP

OSD -

SYSTEM INITIALISE

Dimensions

4. Specification

4 5

Dimensions of Option Brackets

Specifications

Product & Accessories Parts Name & Functions

Please check if all the camera and accessories are included in the package.

Dome Cover

Main Body

Camera module, screws, terminal block slot and DIP switches are included.

Surface Mount Bracket

- It is used when installing the camera right on to the ceiling.

- To install the camera with the surface mount bracket, the bracket needs to be separated from the main body, then needs to be re-assembled the bracket and the main body according to the order.

Screw & Plastic Anchor

- Screws are used to fix the surface mount bracket to the ceiling.

- Plastic anchors are used to tighten the screws to the hole by inserting them into the holes in advance.

Terminal Block

Power, video, communication and alarm input cables are connected through the terminal blocks.

Torx Screw Driver

It is used to screw/unscrew the fixed screws on the main body.

Manual

Please read the manual carefully before installing.

Main Body + Surface Mount Bracket

Screw & Plastic Anchor-4pcs

Main Body

Bottom of Main Body

Lockup Screw

7P Terminal Block Slot

DIP Switch

5P Terminal Block Slot

Mounting Hole

Dome Cover

- Protects the camera module from outside environment.

- Do not detach protection vinyl from the dome cover before finishing all installation processes to protect dome cover from scratches or dust.

Lockup Screw

Fixes main body to the surface mount bracket.

7P Terminal Block Slot

- Power, keyboard controller/DVR video device are connected to this terminal block.

- Refer page 15 for details.

DIP Switch

- Adjusts camera ID and protocols.

- Refer page 8, 9 for details.

5P Terminal Block Slot

- Alarm input and relay out cables are connected to this terminal block.

- Refer page 14 for details.

Mounting Hole

This is used to attach the surface mount bracket to the ceiling.

¾” Pipe Mounting Hole

- This is used to pass the cables to the cameras.

- When water protection is needed, connect the ¾” pipe through this hole, then pass the cables through the pipe.

¾” Pipe Mounting Hole

Terminal Block x2: 5P+7P

User’s Manual

Manual

6 7

Torx Screw Driver

Surface Mount Bracket

DIP Switch Setup DIP Switch Setup

Before installing the camera, you should set the DIP switch to configure the camera ID, communication protocol.

Pin On/Off

If the pin is located ‘ON’ side of the printed label, it means on. In reverse, means off.

Pin On

Pin Off

1. DIP Switch for Communication

- It is consist of communication protocol, baud rate and RS-485 termination setup pins.

- If you change the camera protocol by changing the DIP switch, the change will be eective after rebooting the camera.

2. Communication Protocol Setup

- If you want to control using DVR or keyboard controller, their protocol must be identical to the camera’s protocol. Otherwise, you cannot control the camera.

- The factory default is PELCO-D protocol.

Auto Protocol

- If you set the protocol as auto protocol the camera will automatically recognize the kind of protocol. (within the available protocols opposite)

21 3 4 5 6 7 8

DIP Switch for

Communication

21 3 4 5 6 7 8

Bottom of Main Body

DIP Switch for

Camera ID Setup

21 3 4 5 6 7 8

Communication

Protocol Setup Pin Baud Rate Setup Pin

Choose the appropriate communication protocol by setting the DIP switch.

Auto Protocol

21 3 4 5 6 7 8

PELCO-P

21 3 4 5 6 7 8

RS-485 Termination Setup Pin

PELCO-D

21 3 4 5 6 7 8

SAMSUNG

21 3 4 5 6 7 8

AD(American Dynamics)

21 3 4 5 6 7 8

Choose the appropriate baud rate protocol by setting the DIP switch

2400 BPS

21 3 4 5 6 7 8

9600 BPS

21 3 4 5 6 7 8

38400 BPS

4800 BPS

21 3 4 5 6 7 8

19200 BPS

21 3 4 5 6 7 8

Choose the termination resistor on/off to notify the last camera.

Normal

21 3 4 5 6 7 8

Last Camera

21 3 4 5 6 7 8

2. Communication Protocol Setup

3. Baud Rate Setup

- Select the appropriate baud rate with DIP switch combination.

- The factory default is 2400BPS.

4. RS-485 Termination Setup

- Pin 8 is use for on/off of RS-485 termination. Normally, it must be off state.

Especially, when you have trouble with long daisy

chain style connection, turn on this termination switch of the last camera.

Panasonic

21 3 4 5 6 7 8

If there is other combination of pins from above, it will be recognize as auto protocol.

8 9

GE(Kalatel)

21 3 4 5 6 7 8

Camera ID Setup

- ID number of camera is set using binary number. The example is shown below.

Pin 1 2 3 4 5 6 7 8

ex) ID=5 on off on off off off off off

1 2 4 8 16 32 64 128ID Value

off on off on off off off offex) ID=10

5. DIP Switch for Camera ID Setup

- If you want to control a certain camera, you must match the camera ID with ‘CAM ID’, setting of DVR or keyboard controller.

ID number of the camera is set using binary number.

The range of ID is 0~255.

camera ID is 1.

- Camera ID will be effective without rebooting the camera.

Factory default of

Installation Using Surface Mount Bracket Installation Using Flush Mount Ring Bracket (Option)

Drilling the Hole on the Ceiling

To pass cables through the ceiling, drill a hole (30mm diameter) on the ceiling panel.

Fix the Surface Mount Bracket

Pass the cables to the ¾” pipe hole, and screw the surface mount bracket to the ceiling.

Connect the Cables

- Connect wire cables to the terminal blocks.

- Refer page 14, 15 for details.

Connect the Terminal Blocks

Connect the terminal blocks to the main body.

Drilling the Hole on the Ceiling

Fix the Surface Mount Bracket

Drilling the Hole on the Ceiling

Separate the Lock-up Screws from the Main Body

Wire the Cables and Terminal Blocks

Drilling the Hole on the Ceiling

To pass cables through the ceiling, drill a hole(70mm diameter) on the ceiling.

Separate the Lock-up Screws from the Main Body

Separate the 4 lock-up screws from the main body in advance.

Fix the Flush Mount Ring Bracket to the Main Body

Fix the flush mount ring bracket to the main body using torx screws.

Connect Wire the Cables and Terminal Blocks

Connect wire cables to the terminal blocks. Refer page 14, 15 for details.

Fix the Main Body

Fix the Flush Mount Ring Bracket to the

Connect the Cables

Connect the Terminal Blocks

Fix the Main Body

Screw the main body to the surface mount bracket by screwing 4 lock-up screws.

Detach the Protection Vinyl

Detach the protection vinyl from the dome cover.

10 11

Detach the Protection Vinyl

Main Body

Fix the Main Body

Screw the main body with the surface mount bracket to the ceiling using the screws on the surface mount bracket.

Detach the Protection Vinyl

Detach the protection vinyl from the dome cover.

Installation Using Ceiling Mount Bracket (Option) Installation Using Wall Mount Bracket (Option)

1. Installing on the Concrete Ceiling 1. Installing on the Concrete Wall

Drill the Ceiling and Fix the Anchor Bolts

On the ceiling, drill a hole (6mm diameter/ 50mm depth), and fix the anchor bolts.

Fix the Ceiling Mount Bracket

1. Drill a hole (20mm diameter) on the pipe of the bracket to pass the cables.

2. On the fixed anchor bolts, attach the rubber gasket and screw the ceiling mount bracket.

2. Installing on the Wooden Ceiling

Drill the Ceiling

To pass cables to upside of ceiling, drill a hole (30mm diameter) on the ceiling.

Fix the Ceiling Mount Bracket

Pass the cables into the ceiling mount bracket, and screw the ceiling mount bracket to the ceiling.

Fix the Surface Mount Bracket

Pass the cables through the hole of the surface mount bracket, screw the surface mount bracket to the ceiling mount bracket.

Wire Cables

Wire the cables to the terminal block. Refer page 14, 15.

Connect the Terminal Blocks

Connect terminal block to the main body. Refer page 10.

Fix the Main Body

Screw the main body to the surface mount bracket. (Screws are included in the main body.)

Rubber Gasket

Drill the Ceiling and Fix the Anchor Bolts

Fix the Ceiling Mount Bracket

Fix the Surface Mount Bracket

Fix the Wall Mount Bracket

Drill the Wall and Fix the Anchor Bolts

Wire Cables

Connect the Terminal Blocks

Fix the Main Body

Detach the Protection Vinyl

Drill the Wall and Fix the Anchor Bolts

On the wall, drill a hole (6mm diameter/50mm depth), and fix the anchor bolts.

Fix the Wall Mount Bracket

1. Drill a hole (20mm diameter) on the pipe of the bracket to pass the cables.

2. On the fixed anchor bolts, attach the rubber gasket and fix the wall mount bracket with nuts and screws.

2. Installing on the Wooden Wall

Drill the Wall

To pass cables to the wall, make a hole about 30 mm on the wall.

Fix the Wall Mount Bracket

Pass the cables into the wall mount bracket, and screw the wall mount bracket to the wall.

Wire Cables

Wire the cables to the terminal block. Refer page 14, 15.

Connect the Terminal Blocks

Connect terminal block to the main body. Refer page 10.

Fix the Main Body

Screw the main body to the surface mount bracket. (Screw are included in the main body.)

Detach the Protection Vinyl

Detach the protection vinyl from the dome cover.

Detach the Protection Vinyl

Detach the protection vinyl from the dome cover.

Wire Cables

Connect the Terminal Blocks

Fix the Main Body

Detach the Protection Vinyl

12 13

Cabling the 5P Terminal Block Cabling the 7P Terminal Block

Relay Out

5P Terminal Block

5p terminal block connects the sensor/alarm input and the relay out device to the camer’s main body. (Refer ‘Installation Using Surface Mount Bracket’ of page 10 for the connection of the terminal block.)

Relay Out Input Slot Sensor/Alarm Input Slot

Relay Out

- It connects to the alarm lights, siren or lamps, and it is activated according to the OSD menu setting.

- If you want to use relay out, the types of sensor must be selected in OSD menu (CONCEPT PRO SPEED DOME> SYSTEM SETUP>RELAY TYPE). The sensor types are normal open and normal close.

Normal Open

(N.O)

Normal Close

(N.C)

Output voltage is high state when sensor is activated.

Output voltage is high state when sensor is not activated.

Out Out

Sensor/Alarm Input

- It connects to IR sensor, IrDA sensor or door switch. If the sensor is activated, it can activate to move camera to the specific angle and to connect the alarm device.

- A cable of the sensor should connect to input 1 or 2, and the other should be connected to ‘COM’ slot.

- If you want to use alarm input, the types of sensor must be selected in OSD menu (CONCEPT PRO SPEED DOME> MOTION SETUP>ALARM INPUT SETUP). The sensor types are normal open and normal close.

Normal Open

(N.O)

Normal Close

(N.C)

Output voltage is high state when sensor is activated.

Output voltage is high state when sensor is not activated.

Activation

In 2

N.O

In 2

COM

N.C

COM

In 2

COM

BNC Video

Monitor

Keyboard Controller/DVR

7P Terminal Block

7p terminal block connects the power, keyboard controller/ DVR or video device and etc to the camera’s main body. (Refer ‘Installation Using Surface Mount Bracket’ of page 10 for the connection of the terminal block.)

Power Input Slot

RS-485 Communication Input Slot

Monitor

Connects to video output device such as monitor using the BNC coaxial cable.

Video Input Slot

Power

Keyboard Controller/DVR

Controls PTZ by connecting with keyboard controller or DVR using RS-485 communication standards.

Keyboard Controller/DVR

Camera 1 Camera 2 Camera n

Power

- Please check the correct rated power.

- The rated power is marked on the bottom of the camera.

Power Power ConsumptionRange

DC 12V 7.8WDC 11V ~ 15V

14 15

Check Points before Operation

Main Functions

Check Points before Operation

1. Before power is applied, please check the cables carefully.

2. The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switch of the camera.

3. If your controller supports multi-protocols, the protocol must be changed to match to that of the camera.

4. If you changed camera protocol by changing DIP switch, the change will be eective after you reboot the camera.

5. Since the operation method can be dierent for each controller available, refer to the manual for your controller if camera cannot be controlled properly.

Preset and Pattern Function Pre-check

- Check how to operate preset and pattern function with keyboard controller/DVR in advance to operate camera function fully when using keyboard controller/DVR.

- If keyboard controller/DVR has no pattern key or function, use shortcut keys with preset numbers. For more information, refer to ‘Reserved Preset’ below.

Reserved Preset

Some preset numbers are reserved to special functions.

Preset key + 95: Enters into OSD menu Preset key + 131~134: Runs pattern function 1 ~ 4 Preset key + 141~148: Runs scan function 1 ~ 8 Preset key + 151~158: Runs group function 1 ~ 8 Preset key + 161: Sets relay output to OFF Preset key + 161: Sets relay output to ON Preset key + 165: Sets auto calibration to ON Preset key + 166: Sets auto calibration to OFF Preset key + 167: Zoom proportional jog ON Preset key + 167: Zoom proportional jog OFF Preset key + 170: Sets camera BLC mode to OFF Preset key + 171: Sets camera BLC mode to HIGH Preset key + 174: Sets camera focus mode to AUTO Preset key + 175: Sets camera focus mode to MANUAL Preset key + 176: Sets camera focus mode to SEMI-AUTO Preset key + 177: Sets day & night mode to AUTO1 Preset key + 178: Sets day & night mode to NIGHT Preset key + 179: Sets day & night mode to DAY Preset key + 190: Sets OSD display mode to AUTO

(Except privacy mask) Preset key + 191: Sets OSD display mode to OFF

(Except privacy mask) Preset key + 192: Sets OSD display mode to ON

(Except privacy mask)

Preset key + 193: Sets all privacy mask display to OFF Preset key + 194: Sets all privacy mask display to ON Preset key + 195: Sets fan/heater to ON

(Turning o after 5 min, turn to auto mode) Preset key + 196: Sets fan/heater to OFF

(After turning o, turn to manual mode)

Preset key + 197: Preset key + 198: Fan OFF(After turning o, turn to manual mode) Preset key + 200: Sets digital zoom to ON Preset key + 201: Sets digital zoom to OFF

Fan ON(Turning o after 5 min, turn to auto mode)

Auto Calibration

- If the camera is exposed the high temperature(over 50°) for a long time, the camera can lose focus. As a result, you will get a blurry image. In this case, enter ‘Preset key + 165’ to enable auto calibration.

If auto calibration is enabled, the camera will be re-focused

once every 6 hours. If you want to disable this function, enter ‘Preset key + 165’.

Preset

- Max. 127 positions can be stored as preset positions. The preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu.

- Refer page 26 - ‘CONCEPT PRO SPEED DOME>FUNCTION SETUP>PRESET SETUP’ for more detailed information.

1. Set Preset

Method 1) Use keyboard controller: Refer to keyboard controller manual.

Method 2) Use OSD menu.

2. Run Preset

Method 1) Use keyboard controller: Preset key + Number key(1~128)

3. Delete Preset

To delete pattern, use OSD menu.

VST

- By using VST function, you can make the camera move between 2 preset positions repeatedly.

- Refer page 28 - ‘CONCEPT PRO SPEED DOME>FUNCTION SETUP>VST SETUP’ for more detailed information.

1. Set VST

To set VST, use OSD menu.

2. Run VST

Method 1) If there is VST key on the keyboard controller: VST key + VST number(1~8) + Enter key Ex) Run VST 2 = VST key + [2] + Enter key

Method 2) If there is no VST key on the keyboard controller: Preset key + [VST number(1~8) + 140] Ex) Run VST 2 = Preset key + [142]

3. Delete VST

To delete VST, use OSD menu.

Pattern

Group

- The group function allows running sequence of presets, pattern and/or VSTs.

- Refer page 30 - ‘CONCEPT PRO SPEED DOME>FUNCTION SETUP>GROUP SETUP’ for more detailed information.

1. Set Group

To set group, use OSD menu.

2. Run Group

Method 1) If there is group key on the keyboard controller: Group key + Group number(1~8) + Enter key Ex) Run group 2 = Group button + [2] + Enter key

Method 2) If there is no group key on the keyboard controller: Preset key + [Group number(1~8) + 150] Ex) Run group 2 = Preset key + [152]

3. Delete Group

To delete group, use OSD menu.

Schedule

- The schedule function allows running an appropriate function like preset, VST, group, pattern, home move at the designated day and time.

- Refer Page 32 - ‘CONCEPT PRO SPEED DOME>FUNCTION SETUP>SCHEDULE

SETUP’ for more detailed information.

- Pattern function is that a camera memorizes the path (mostly curve path) by joystick of controller for assigned time and revives the path exactly as it memorized.

- Refer page 29 - ‘CONCEPT PRO SPEED DOME>FUNCTION SETUP>PATTERN SETUP’ for more detailed information.

1. Set Pattern

To set pattern, use OSD menu.

2. Run Pattern

Method 1) If there is pattern key on the keyboard controller: Pattern key + Pattern number(1~4) + Enter key Ex) Run pattern 2 = Pattern key + [2] + Enter key

Method 2) If there is no pattern key on the keyboard controller: Preset key + [Pattern number(1~4) + 130] Ex) Run pattern 2 = Preset key + [132]

3. Delete Pattern

To delete pattern, use OSD menu.

16 17

OSD Information

General Rules of Menu Operation

Preset Label

Date / Time

23/MAR/2009 24 00 00

CAM 1

Image Flip

Camera ID

Preset Label

- The label stored for specific preset.

- Refer page 27 for setting preset label. (CONCEPT PRO SPEED DOME>FUNCTION SETUP>PRESET SETUP>LABEL)

Date / Time

- Shows the current date/time.

- Refer page 36 for setting date/time. (CONCEPT PRO SPEED DOME>SYSTEM SETUP>DATE/TIME SETUP)

Image Flip

- Shows that images are currently reversed by auto flip function.

- Refer page 34 for setting image flip. (CONCEPT PRO SPEED DOME>CAMERA SETUP>IMAGE FLIP)

Camera ID

- The current camera ID.

- The camera ID is identical with the address of ‘CONCEPT PRO SPEED DOME>SYSTEM INFORMATION’.

Action Title

Shows the current action titles of the camera.

Action Title

SET PRESET 123

PRESET 123 PATTERN 9 VST 1/PRESET 123 UNDEFINED

Temperature

- Current temperature: Boxed ‘C’ and ‘F’ means celsius and fahrenheit respectively.

- Refer page 23 for setting temperature unit. (CONCEPT PRO SPEED DOME>DISPLAY SETUP> TEMPERATURE)

Means to store preset 123.

Means it reached preset 123. Means the camera is running pattern 9. Means the camera is running VST 1. Means the action received is not defined.

359/180/x100/SE

PATTERN1PRESET LABEL

25 C

I - 2 O 1

Alarm Input Information

This information shows current state of alarm Input. If an input is on state it will show the number of input. If an input is off state, ' - ' will be displayed.

Action Title

Temperature

Alarm Input Information

Relay Out Information

Compass Direction

Zoom Magnification

Tilt Angle in Degree

Pan Angle in Degree

I - 2

Alarm 1 Slot of the

Terminal Block

Relay Out Information

This information shows the current state of relay out. If the output is on state it will show the number of output. If an output is off state, ' - ' will be displayed.

Relay Out On Relay Out Off

O 1

Compass Direction

- Shows the current compass direction of the camera.

- The direction is shown as N(North), S(South), E(East), W(West), NE(Northeast), NW(Northwest), SE(Southeast), SW(Southwest).

- Refer page 37 for setting compass direction. (CONCEPT PRO SPEED DOME>SYSTEM SETUP>SET NORTH DIRECTION)

Zoom Magnification

Shows the current zoom magnification.

Tilt Angle in Degree

Shows the current tilt(0-180) angle.

Pan Angle in Degree

Shows the current fan(0-359) angle.

Alarm 2 Slot of the Terminal Block

O -

Move to

the Previous Screen

CONCEPT PRO SPEED DOME

- - - - - - - - - - - - - - - - - - - - - - - - - - -

EXIT

Joystick Down

Press Near/Enter

Key

Press Near/Enter Key

Joystick Down

Joystick

CONCEPT PRO SPEED DOME

- - - - - - - - - - - - - - - - - - - - - - - - - - -

EXIT

Press Far Key

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID PTZ INFORMATION ACTION TITLE PRESET LABEL ALARM I/O DATE/TIME

PRIVACY ZONE>

< TEMPERATURE OFF BACK EXIT

Press Far Key

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID PTZ INFORMATION ACTION TITLE PRESET LABEL ALARM I/O DATE/TIME

PRIVACY ZONE>

< TEMPERATURE OFF BACK EXIT

Joystick

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID PTZ INFORMATION ACTION TITLE PRESET LABEL ALARM I/O DATE/TIME

PRIVACY ZONE>

< TEMPERATURE OFF BACK EXIT

ON AUTO AUTO AUTO AUTO ON

OFF AUTO AUTO AUTO AUTO ON

Move the Cursor Up/Down to

Choose Menu

Shift to the Sub Menu of the

Chosen Menu

Choose the

Value

Change the

Value

This page explains how to operate the OSD menu using keyboard controller.

Read the manual of the keyboard controller.

If there are no keys or functions described below, refer the manual of the keyboard controller.

Move the Cursor Up/Down to Choose Menu

To move from items to item in the menu, move the joystick Up/Down.

Shift to the Sub Menu of the Chosen Menu

For all menu level, to go into sub menu, press near/enter key.

Choose the Value

To change the value, press near/enter key to move the cursor to the value.

Change the Value

Move the joystick Up/Down to change the value.

Move to the Previous Screen

Press near key to save values and press far key to cancel values, then go to the previous screen.

The menu items surrounded with < > always have its sub menu. To move to the sub menu, press near/enter key.

This screen is the main menu of the (DISPLAY SETUP).

This screen is the sub menu of ‘DISPLAY SETUP’ on the screen .

is the value of the each content.

d d

18 19

OSD Menu Contents

CONCEPT PRO SPEED DOME

The 1st screen The 2nd screen The 3rd screen The 4th screen Value

FIRMWARE VER

COLOUR SYSTEM

PROTOCOL

BAUD RATE

ADDRESS

CAMERA ID

PTZ INFORMATION

ACTION TITLE

PRESET LABEL

ALARM I/O

DATE/TIME

TEMPERATURE

PRESET LOCK

PWR UP ACTION

AUTO FLIP

JOG MAX SPEED

JOG DIRECTION

FRZ IN PRESET

ZONE NO.

DISPLAY

CLEAR ZONE

PARK ENABLE

WAIT TIME

PARK ACTION

ALARM TYPE

ALARM ACTION

PRESET NO.

<LABEL>

CLR PRESET

CAM ADJUST

ALARM OUT

VST NO.

1ST POSITION

2ND POSITION

VST SPEED

CLEAR VST

PATTERN NO.

CLR PATTERN

GROUP NO.

CLEAR GROUP

MASTER ENABLE

Schedule No.

Select the Camera location

Input Label

Select the Camera location

Select the camera action, operation time and option

Select the Zone Size & Colour

1.0

PAL

PELCO-D

2400

ON / OFF

ON / OFF / AUTO

ON / OFF

1(UNDEFINED) ~ 4(UNDEFINED)

ON / OFF

CANCEL / OK

CELSIUS / FAHRENHEIT / OFF

ON / OFF

2/SEC ~ 360/SEC (Default: 140/SEC)

INVERSE / NORMAL

ON / OFF

00:00:05 ~ 04:00:00

HOME / PRESET / VST / PATTERN / GROUP

N.O(Normal Open) / N.C(Normal Close)

NOT USED / HOME / PRESET 1~128

/ VST 1~8 / PATTERN 1~4 / GROUP 1~4

1(UNDEFINED) ~ 128(UNDEFINED)

CANCEL / OK

GENERAL / SPECIAL

- / 1

1(UNDEFINED) ~ 8(UNDEFINED)

PRESET 1 ~ 128

2/SEC ~ 360/SEC (Default: 30/SEC)

CANCEL / OK

1(UNDEFINED) ~ 4(UNDEFINED)

CANCEL / OK

1(UNDEFINED) ~ 8(UNDEFINED)

CANCEL / OK

1(NONE) ~ 20(NONE)

ON / OFF

1(UNDEFINED) ~ 7(UNDEFINED)

CONCEPT PRO SPEED DOME

<SYSTEM INITIALISE> CLEAR ALL DATA

The 1st screen The 2nd screen Value

FOCUS MODE

DIGITAL ZOOM

IMAGE FLIP

LANGUAGE

CLR DISPLAY SET

CLR CAMERA SET

CLR MOTION SET

CLR FUNCTION SET

REBOOT CAMERA

REBOOT SYSTEM

AUTO / MANUAL / SEMIAUTO

ON / OFF

WB MODE

RED ADJUST

BLUE ADJUST

BACK LIGHT

DAY/NIGHT

BRIGHTNESS

IRIS

SHUTTER

AGC

SSNR

DSS

DATE

TIME

RELAY 1

Input Password

Select the Camera location

AUTO / MANUAL

10 ~ 60

OFF / LOW / MIDDLE / HIGH

AUTO1 / AUTO2 / DAY / NIGHT

0~100 (Default: 25)

AUTO / MANUAL (0~100)

ESC / A.FLICKER / MANUAL(×128~1/120000 sec)

OFF / NORMAL / HIGH

OFF / LOW / MIDDLE / HIGH

AUTO(2~128) / OFF

dd / mm / yyyy

hh : mm : ss

N.O(Normal Open) / N.C(Normal Close)

ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / РУССКИЙ / PORTUGUÊS

NO / YES

The bold characters of the value are the default value of the system. (Refer page 38 – ‘SYSTEM INITIALISE’)

20 21

OSD - CONCEPT PRO SPEED DOME & SYSTEM INFORMATION

OSD - DISPLAY SETUP

CONCEPT PRO SPEED DOME

- - - - - - - - - - - - - - - - - - - - - - - - - - -

EXIT

CONCEPT PRO SPEED DOME

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FIRMWARE VER COLOUR SYSTEM PROTOCOL BAUD RATE ADDRESS

BACK EXIT

1.0 PAL PELCO-D 2400 1

CONCEPT PRO SPEED DOME

To enter this screen, enter ‘Preset key + 95’.

Shows information and current configuration.

Enable/Disable of OSD display on main screen.

Setup for motion related settings.

Setup for various functions such as preset, VST, pattern, group and schedule.

Configure camera related functions and data.

Configure for basic system setup.

Initialises system configuration and sets all data to factory default configuration.

EXIT

To escape from the OSD setting, go to exit.

SYSTEM INFORMATION

Shows basic information and current configuration of the system.

FIRMWARE VER

Shows the current firmware version.

COLOUR SYSTEM

Shows the current analog video system.

PROTOCOL

Shows the current PTZ control protocol.

BAUD RATE

Shows the current baud rate of the PTZ control.

ADDRESS

Shows the current camera ID of the PTZ control.

DISPLAY SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CAMERA ID PTZ INFORMATION ACTION TITLE PRESET LABEL ALARM I/O DATE/TIME

PRIVACY ZONE>

< TEMPERATURE OFF BACK EXIT

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ZONE NO.

DISPLAY CLEAR ZONE <

EDIT ZONE>

BACK EXIT

EDIT ZONE 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL]

EDIT ZONE 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ZOOM : COLOUR CHANGE] [ ADJUST ZONE WIDTH] [ ADJUST ZONE HEIGTH] [NEAR:SELECT/FAR:CANCEL]

PRIVACY ZONE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ZONE NO.

DISPLAY CLEAR ZONE <

EDIT ZONE>

BACK EXIT

ON AUTO AUTO AUTO AUTO ON

Press Near/Enter Key

> > >>

1 UNDEFINED OFF CANCEL

Select <EDIT ZONE>, Press Near/Enter Key

0/0/x1/E

Move Camera to Area to Mask, Press Near/Enter Key

Press Near Key to Save

ON CANCEL

DISPLAY SETUP

This menu defines to enable/disable of OSD display on main screen.

CAMERA ID

PTZ INFORMATION

If an item is set to be ‘AUTO’, the item is displayed only when the value of it is changed.

ACTION TITLE

PRESET LABEL

ALARM I/O

DATE/TIME

Moves to the privacy zone setup.

TEMPERATURE

PRIVACY ZONE

ON / OFF ON / OFF / AUTO

ON / OFF / AUTO ON / OFF / AUTO ON / OFF / AUTO ON / OFF

CELSIUS / FAHRENHEIT / OFF

- Selects area in image to mask. It selects the area to mask, and setup various function of the zone.

ZONE NO.

Select zone number. If the selected zone has data already, camera moves as it was set. Otherwise, ‘UNDEFINED’ will be displayed under ‘ZONE NO.’.

DISPLAY

Sets if the camera makes mask shows or not on images.

CLEAR ZONE

Deletes data in the selected zone no.

Moves to setup the zone no.

EDIT ZONE - Select Zone Location

1 ~ 4

ON / OFF

CANCEL / OK

1. Move camera to area to mask.

2. Adjust the zone size. Use the zoom key to adjust the image size.

3. Press near key to complete the location.

EDIT ZONE - Select Zone Colour and Size

1. Choose the zone colour using zoom key.

(The current colour is 50% transparent. When the zone setting is completed, the zone area is masked by 100% opaque colour.)

2. Move joystick Left/Right to adjust the width.

3. Move joystick Up/Down to adjust the height.

4. Press near key to complete the setting.

5. If press far key, it returns to the previous setting without

storing the setting.

ZONE SETTING - Completion Screen

- Run the zone no. marked on the screen.

- The value of ‘DISPLAY’ is set to ‘ON’ automatically.

- Can set zone 2 ~ 4 continuously.

The objects behind the zone can be shown when the camera is moving in a short period.

It is recommended that the size of the zone must be 20% bigger than the original target size so as to mask the objects during high speed pan/tilt.

OSD - MOTION SETUP

MOTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET LOCK PWR UP ACTION AUTO FLIP JOG MAX SPEED JOG DIRECTION FRZ IN PRESET <

PARKING ACTION SETUP>

<ALARM INPUT SETUP> BACK EXIT

PARKING ACTOIN SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PARK ENABLE WAIT TIME PARK ACTION

BACK EXIT

Press Near/Enter

Key

OFF 00:10:00 HOME

OFF ON ON 140/SEC NORMAL OFF

MOTION SETUP

Setup the general functions of pan/tilt motions.

PRESET LOCK

If motion lock is set to on, it is impossible to set up and delete preset, VST, pattern and group. It is possible only to run those functions. To set up and delete those functions, enter into OSD menu.

PWR UP ACTION

This function enables to resume the last action executed before power down. Most of actions such as preset, pattern, VST and group are available for this function but jog actions are not available to resume.

AUTO FLIP

In case that tilt angle arrives at the top of tilt orbit (90°), zoom module camera keep moving to opposite tilt direction (180°) to keep tracing targets. As soon as zoom module camera passes through the top of tilt direction(90°), images should be reversed automatically and ‘ in screen. If this function is set to ‘OFF’, tilt movement range is 0° ~ 90°

JOG MAX SPEED

Sets maximum jog speed. Jog speed is inversely proportional to zoom magnification. As zoom magnification goes up, pan/tilt speed goes down.

JOG DIRECTION

If you set this to ‘INVERSE’, the view in the screen is moving same direction with jog tilting. If ‘NORMAL’ is selected, the view in the screen is moving reversely.

FRZ IN PRESET

At start point of preset movement, camera starts freezing the image of start point. Camera keeps displaying the image of start point during preset movement and does not display the images which camera gets during preset movement. As soon as camera stops at preset end point, camera starts displaying live images which it gets at preset end point. This function availability should be different by models.

Moves to ‘PARKING ACTION SETUP’ screen.

Moves to ‘ALARM INPUT ACTION’ screen.

PARKING ACTION SETUP

ON / OFF

F ’ appears

2/SEC ~ 360/SEC

INVERSE / NORMAL

ON / OFF

If ‘PARK ENABLE’ is set to ‘ON’, camera runs assigned function automatically if there is no PTZ command during assigned ‘WAIT TIME’.

PARK ENABLE

Enables/Disables ‘PARKING ACTION’.

WAIT TIME

The time is displayed with "hh:mm:ss" format and you can change this by 1 sec unit.

1. To place the cursor on the time marked as below, press near key.

2. Move joystick Left/Right to adjust hours, minutes and seconds.

3. Move joystick Up/Down to select the digit.

4. By pressing near key, save current setting.

PARKING ACTION

Select the action of parking. Move joystick Up/Down to choose the appropriate action.

ON / OFF

00:00:05 ~ 04:00:00

00:10:00

HOME / PRESET 1~128 / VST 1~8 / PATTERN 1~4 / GROUP 1~8

MOTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET LOCK PWR UP ACTION AUTO FLIP JOG MAX SPEED JOG DIRECTION FRZ IN PRESET <

PARKING ACTION SETUP>

<ALARM INPUT SETUP> BACK EXIT

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O ALARM 2 N.O

BACK EXIT

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O ALARM 2 N.O

BACK EXIT

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O ALARM 2 N.O

BACK EXIT

ALARM INPUT SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

ALARM 1 N.O ALARM 2 N.O

BACK EXIT

Press Near/Enter

Key

NOT USED NOT USED

Press Near/Enter Key

> >

NOT USED NOT USED

Joystick Right

NOT USED

Joystick Down

PRESET 1

NOT USED

OFF ON ON 140/SEC NORMAL OFF

ALARM INPUT SETUP

If an external sensor is activated, camera will move to corresponding action.

Alarm Type:

- Sets sensor input type.

- Refer page 14 for more detailed information.

Alarm Action

Assign counter-action to each alarm input. Among 149 actions, choose the action as explained below.

ALARM INPUT SETUP - Type Setup

N.O(Normal Open) / N.C(Normal Close)

NOT USED / HOME / PRESET 1~128 / VST 1~8 / PATTERN 1~4 / GROUP 1~8

1. Move joystick Up/Down to set alarm type.

2. Move joystick Left/Right to set alarm action.

4 5

ALARM INPUT SETUP - Alarm Action Setup

1. Move joystick Up/Down to set the action(HOME, PRESET, VST,

PATTERN, GROUP) and no.

2. On screen 5, move joystick Left/Right to move the focus to set

alarm type, function name and function no.

3. By pressing near key, save the current setting.

OSD - FUNCTION SETUP > PRESET SETUP

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

EDIT SCENE>

BACK EXIT

EDIT SCENE -PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL]

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

EDIT SCENE>

<LABEL> CLR PRESET CAM ADJUST ALARM OUT

BACK EXIT

Press Near/Enter Key

> > >

1 UNDEFINED

Select <EDIT SCENE>, Press Near/Enter Key

0/0/x1/E

Press Near/Enter Key

CANCEL GENERAL

FUNCTION SETUP

Configure 5 special functions with this menu.

Moves to ‘PRESET SETUP’ screen.

Moves to ‘VST SETUP’ screen. Refer page 28.

Moves to ‘PATTERN SETUP’ screen. Refer page 29.

Moves to ‘GROUP SETUP’ screen. Refer page 30.

Moves to ‘SCHEDULE SETUP’ screen. Refer page 32.

PRESET SETUP - Undefined Screen

127 presets from the number 1 to 128 can be assigned excluding preset 95 reserved for menu.

PRESET NO.

If a selected preset is already defined, camera moves to pre-defined position and preset characteristics such as label and relay outputs show on monitor. (Refer screen 4) If a selected preset is not defined, “UNDEFINED” shows on monitor.

Moves to ‘EDIT SCENE’ setup screen.

EDIT SCENE

1 ~ 128 (Excluding 95)

1. Using joystick, move camera to desired position.

2. Using zoom key, move camera to desired screen size.

3. By pressing near key, the save current PTZ data

PRESET SETUP

If the preset is defined, the information will be shown on the OSD menu with the setting, and the alarm device (if defined) will be activated.

PRESET NO.

<LABEL>

Edits Label to show on monitor when preset runs. If the preset is not defined, this is not shown. Refer following page to setup label.

CLR PRESET

Deletes current preset data. If the preset is not defined, this is not shown.

CAM ADJUST

CAM ADJUST_GENERAL: The general mode means that WB or AE defined ‘CONCEPT PRO SPEED DOME>CAMERA SETUP’ will be applied to this preset.

- CAM ADJUST_SPECIAL: The Special mode means that WB or AE can be set up independently or separately for each preset in each preset setup menu.

- Special WB/AE value should activate only when the camera arrives at each preset location. During jog operation, general WB/AE value should be applied.

- Refer following page to set special WB/AE.

ALARM OUT

Relay output can be linked with preset run. ‘ - ‘means off, ‘1’ means on.

1 ~ 128 (Excluding 95)

CANCEL / OK

GENERAL / SPECIAL

- / 1

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

EDIT SCENE>

<LABEL> CLR PRESET CAM ADJUST ALARM OUT

BACK EXIT

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d

e f g h i j k l m n o p q r s t u v w x y z

< >

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

SKY

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d

e f g h i j k l m n o p q r s t u v w x y z

< >

PRESET SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PRESET NO.

EDIT SCENE>

<LABEL> CLR PRESET CAM ADJUST ALARM OUT

BACK EXIT

CAM ADJUST -PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

- / : .

CANCEL GENERAL

Press Near/Enter Key

OK CANCEL

Press Near/Enter Key

OK CANCEL

CANCEL

SPECIAL>

Press Near/Enter Key

LABEL

- Edits label to show on monitor when preset runs.

- Max. 10 alphabets are allowed(Including space).

LABEL PRESET1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d

e f g h i j k l m n o p q r s t u v w x y z

- / : .

< >

Preset NO. for Label

Input Cursor: The character which cursor is located will be input or edited.

Cursor Selecting Alphabet: Using Left/Right/Up/Down of joystick, move to an appropriate character from the character set.

Space: If you want to use blank, choose space character (" ").

Back-Space: character (’ ‘).

LABEL – Alphabet Input

If you want to delete a character before, use back space

OK CANCEL

- If you complete the label editing, move cursor to ‘OK’ and press near key to save completed label. To abort current change, move cursor to ‘CANCEL’ and press near key.

CAM ADJUST

Sets WB/AE for the preset when ‘CAM ADJUST’ value is ‘SPECIAL’.

Moves to ‘WHITE BALANCE SETUP’ screen. Refer page 34.

Moves to ‘AUTO EXPOSURE SETUP’ screen. Refer page 35.

OSD - FUNCTION SETUP>VST SETUP

OSD - FUNCTION SETUP>PATTERN SETUP

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

VST SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

VST NO. 1ST POS. 2ST POS.

VST SPEED CLEAR VST

BACK EXIT

Press Near/Enter Key

1 NOT USED NOT USED

/SEC

CANCEL

VST SETUP

- Up to 8 VST are available, which makes the camera to move slowly between two preset positions.

When VST function runs, the camera moves from the preset

assigned

as the 1st pos. to the preset assigned as the 2nd pos. in CW(Clockwise) direction. Then camera moves from the preset assigned as the 2nd pos. to the preset assigned as the 1st pos. in CCW(Counterclockwise) direction. Then, it continues to move from the 1st pos. to the 2nd pos. back and forth.

If the 1st POS. = the2nd POS.

In case that the preset assigned as the 1st pos. is same as the preset assigned as the 2nd pos., camera turns on its axis by 360 in CW direction and then it turns on its axis by 360° in CCW direction.

If one preset is not defined between the 1st POS. and the 2nd POS.

If case that a position assigned is ‘NOT USED’, camera turns on its axis by 360 ‘NOT USED’ and then it turns on its axis by 360

VST NO.

Select VST number to edit. If a selected VST is defined, 2 presets will be displayed in the 1st position and the 2nd position.

1ST POS.

Set up the 1st position for scan function. If a selected preset is not defined, ‘UNDEFINED’ will be displayed as shown below.

Undefined preset cannot be assigned as position. If you press near key when the selected preset is ‘UNDEFINED’, the preset will returned to previous position(Available preset or ‘NOT USED’).

2ST POS.

Same as the 1st pos. setup.

VST SPEED

Sets the VST speed.

CLEAR VST

Deletes the data in current VST.

° in CW direction from the preset which is

2st POS.

2. CCW direction

1. CW direction

1 ~ 8

PRESET 1 ~ 128, NOT USED

VST SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

VST NO. 1ST POS. 2ST POS.

SCAN SPEED

1 PRESET 1 NOT USED

UNDEFINED

PRESET 1 ~ 128, NOT USED

1/SEC ~ 180/SEC

CANCEL / OK

° in CCW direction.

1st POS.

/SEC

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

Press Near/Enter

> > > >

Key

PATTERN SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

PATTERN NO.

CLR PATTERN <

EDIT PATTERN>

BACK EXIT

EDIT PATTERN 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO START POSITION [NEAR:START/ FAR:CANCEL]

EDIT PATTERN 1

[NEAR:SAVE / FAR:DELETE]

EDIT PATTERN 1

[NEAR:SAVE / FAR:DELETE]

1 UNDEFINED CANCEL

Select <EDIT PATTERN>, Press Near/Enter Key

0/0/x1/E

Move Camera to Area, Press Near/Enter Key

0/0/x1/E

Record the Path of the Pattern by Camera Control

0/0/x1/E

PATTERN SETUP

It records the free path of camera by joystic control.

PATTERN NO.

Select pattern number to edit. If a selected pattern number is not defined, ‘UNDEFINED’ will be displayed under selected pattern number.

CLR PATTERN

Deletes data in the current pattern.

Moves to edit the pattern assigned.

EDIT PATTERN - Select the Position

1 ~ 4

CANCEL / OK

1. By using joystick, move to start position.

2. By using joystick, move to the appropriate zoom.

3. To start pattern recording, press near key.

EDIT PATTERN -

Records the Path

1. Move camera with joystick of controller or run preset function to memorize the path (mostly curve path) in a selected pattern.

2. The total memory size and the rest memory size is displayed in the form of bar. (Refer screen 5)

If bar is full as below, the camera does not record any more paths.

EDIT PATTERN 1

TIME LIMITE...

The pattern path includes the zoom magnification.

3. To save data and exit, press near key. To cancel recording and delete the recorded data, press far key.

When pattern is edited or ok, pan/tilt will turn to ‘AUTO FLIP> OFF’ temporarily.

OSD - FUNCTION SETUP>GROUP SETUP

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

Press Near/Enter Key

> >

GROUP SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

GROUP NO.

CLEAR GROUP <

EDIT GROUP>

BACK EXIT

3 8

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

NONE 2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL [NEAR:EDIT]

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

NONE 2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

NONE 2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL

1 UNDEFINED CANCEL

Select <EDIT GROUP>, Press Near/Enter Key

Press Near/Enter Key

> >

[NEAR:EDIT ACT] [FAR :EDIT END]

Press Near/Enter Key

[ :

MOVE CURSOR

[ : CHANGE VAL.]

]

GROUP SETUP SCREEN

The group function allows running sequence of presets, pattern and/or VSTs. Max. 8 group can be stored. Each group can have max. 20 action entities which can be preset, pattern or scan.

Dwell Time

Preset

GROUP NO.

Selects group number to edit. If a selected group number is not defined, ‘UNDEFINED’ will be displayed under the selected group number.

CLEAR GROUP

Deletes data in the current group.

Moves to edit the group assigned.

EDIT GROUP - Initial Screen

Pattern5

1 Times

Pattern5

n Times

Max. 20 Entities

1 ~ 8

CANCEL / OK

VST3

Preset

120

To edit group, press near key to move screen 4. At the current screen, if moves joystick Down, the cursor will move to ‘SAVE’ menu.

NO.

Means the sequence of the function in a group. The functions will be run from lower no. to higher no. by sequence.

ACTION NO.

Select the function. Select the function no. separately.

DWELL TIME

Sets dwell time between function by moving joystick Up/Down. If the ‘OPT’ of pattern/group is set to repeat more than twice, it means the repeat interval.

OPT

It should be preset speed when preset is set in ‘ACTION’. It should be the number of repeat when pattern or VST is selected in ‘ACTION’.

EDIT GROUP – Select Function Sequence

1 ~ 20

NONE / PRESET 1~128(Excluding 95) / PATTERN 1~4 / VST 1~4

00:03 ~ 04:00 (min:sec)

PRESET: 2~360 / PATTERN & VST: 1~255

Note that max. 20 functions are allowed in a group. Move cursor Up/Down to rotate among 20 functions.

EDIT GROUP - Assign Function

Move cursor to the ‘NO.’ to assign the function, press near key to set up. Select the function by moving joystick Up/Down.

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

PATTERN 1 00:0

2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1 2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

1 2 NONE 3 NONE 4 NONE 5 NONE

- - - - - - - - - - - - - - - - - - - - - - - - - -

SAVE CANCEL

[ : [ : CHANGE VAL.]

PATTERN 1 00:0

[NEAR:EDIT ACT] [FAR :EDIT END]

PATTERN 1 00:0

3 1

MOVE CURSOR

Press Near/Enter Key

> >

3 1

Press Far Key

3 1

EDIT GROUP - Assign Function

Move cursor Left/Right to select items and move cursor Up/Down to change each value.

EDIT GROUP - Select Function Sequence

]

The function undefined cannot be set as action.

e.g.)

If ‘PATTERN 1’ is not defined at ‘CONCEPT PRO SPEED DOME

>FUNCTIONSETUP>PATTERN SETUP’, then the ‘ACTION 1’

will beautomatically changed to ‘NONE’.

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

PATTERN 1 00:0

2 NONE

EDIT GROUP 1

- - - - - - - - - - - - - - - - - - - - - - - - - - -

NO. ACTION NO. DWELL OPT

- - - - - - - - - - - - - - - - - - - - - - - - - -

NONE

2 NONE

EDIT GROUP- Saves the Setting

Press Near Key

3 1

After finishing setting up all actions, place cursor on ‘SAVE’ . Then, press near key to save data.

OSD - FUNCTION SETUP>SCHEDULE SETUP OSD - FUNCTION SETUP>SCHEDULE SETUP

FUNCTION SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACK EXIT

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

UNDEFINED

1 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED BACK

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

UNDEFINED

1 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED BACK

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

ALL 00:00 HOM OFF

1 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED BACK

Press Near/Enter Key

> > > >

Joystick Down, Press Near Key

Joystick Down

SCHEDULE SETUP SCREEN

- The schedule function allows running the appropriate function like preset, VST, group, pattern, home move at designated day and time.

e.g.) if you setup a rule ‘Tuesday at 9:00AM’ and ‘Preset 1 (say main gate)’, the camera will move to main gate every Tuesday at 9:00AM.

- It is noted that due to the real time clock (CONCEPT PRO SPEED DOME>SYSTEM SETUP>DATE/TIME SETUP), the time data will be kept regardless of blackout. The initial time and day setup is essential to proper schedule function.

- Max. 7 schedules are allowed.

MASTER ENABLE

Decide whether schedule function is active or not.

DAY

Set the day for scheduling.

- Undefined: Inactivate

- All: Applies to every day

- WKD: Applies to every day except Sunday

- SUN-MON: Applies to designated day only

TIME

Set the time.

ACT NO

Set the function and no.

Unlike the group, the undefined function can be assigned in schedule. However, no action is taken at the schedule.

Decide to make this rule effective or not.

4 5

SCHEDULE SETUP - Assign Value

ON / OFF

UNDEFINED / ALL / WKD / SUN ~ MON

00:00 ~ 23:59 (hour:min)

HOM(HOME) / PRS(Preset) 1~128(Excluding 95) / VST 1~8 / PTN(Pattern) 1~8 / GRO(Group) 1~8

ON /OFF

Each field (DAY, TIME, ACT, NO., ON) can be selected by Left/Right keys and the values in the field are changed using Up/Down keys.

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

ALL 12:00 PRS 128 ON

1 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED BACK

SCHEDULE SETUP - Save Edited Setting

To save data and exit, press near key.

If there are rules conflicts to each other, the higher number is, the higher priority has.

e.g.) The camera will move to ‘Preset 127’ at 12:00 on every Wednesday although ‘Preset 128 and 127’ were set at 12:00 on every Wednesday.

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

ALL 12:00 PRS 128 ON

1 2 WED 1 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED

2:00 PRS 127 ON

SCHEDULE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MASTER ENABLE OFF DAY TIME ACT NO ON

ALL 12:00 PRS 128 ON

1 2 UNDEFINED 3 UNDEFINED 4 UNDEFINED 5 UNDEFINED 6 UNDEFINED 7 UNDEFINED BACK

Assign Value

3332

OSD - CAMERA SETUP>WB SETUP

OSD - CAMERA SETUP>AE SETUP

CAMERA SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FOCUS MODE DIGITAL ZOOM IMAGE FLIP <

WHITE BALANCE SETUP>

BACK EXIT

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

WB MODE

- RED ADJUST

- BLUE ADJUST

BACK EXIT

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

WB MODE

- RED ADJUST

- BLUE ADJUST

BACK EXIT

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

WB MODE

- RED ADJUST

- BLUE ADJUST

BACK EXIT

SEMIAUTO ON OFF

Press Near/Enter Key

> > > >

AUTO

- - -

Press Near Key, Joystic Down

MANUAL 3 0 4 0

Press Near/Enter Key

MANUAL 3 0 4 0

CAMERA SETUP

Setup the general functions of zoom camera module. Setup the video related function of zoom camera module.

FOCUS MODE

Sets camera focus mode.

- SEMIAUTO: This mode exchanges focus mode automatically between manual focus mode and auto focus mode. Manual focus mode activates

in preset operation and auto focus mode activates when jog operation starts.

- MANUAL: With manual mode at presets, focus data is memorized in

each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset.

DIGITAL ZOOM

Sets digital zoom function to ‘ON’ or ‘OFF’. If this is set to ‘OFF’, optical zoom function runs but zoom function stops at the end of optical zoom magnification.

IMAGE FLIP

Sets if the image should be reversed or not.

Move to ‘WHITE BALACE SETUP’ screen.

Move to ‘AUTO EXPOSURE SETUP’ screen.

WB SETUP

WB MODE

Red and blue level can be set up manually only in manual mode.

RED ADJUST

Adjust the red color value. It can be set only in manual mode.

BLUE ADJUST

Adjust the blue color value. It can be set only in manual mode.

WB SETUP - Set WB Mode to Manual

AUTO / MANUAL / SEMIAUTO

ON / OFF

AUTO / MANUAL

10 ~ 60

If WB mode changes to ‘MANUAL’, the value of ‘RED ADJUST’ and ‘BLUE ADJUST’ shows on the screen.

4 5

WB SETUP - Change WB Colour Value

If WB mode changes to ‘MANUAL’, the colour value of ‘RED ADJUST’

and ‘BLUE ADJUST’ can be set up manually.

- To save data and exit, press near key.

CAMERA SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

FOCUS MODE DIGITAL ZOOM IMAGE FLIP <

WHITE BALANCE SETUP>

BACK EXIT

AE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

BACKLIGHT DAY/NIGHT BRIGHTNESS IRIS SHUTTER AGC SSNR DSS BACK EXIT

MANUAL IRIS

- - - - - - - - - - - - - - - - - - - - - - - - - - -

IRIS LEVEL

EXIT

MANUAL SHUTTER

- - - - - - - - - - - - - - - - - - - - - - - - - - -

SHUTTER SPD

EXIT

SEMIAUTO ON OFF

Press Near/Enter Key

OFF AUTO 1 2

AUTO ESC NORMAL MIDDLE OFF

AE SETUP

BACKLIGHT

Sets the backlight compensation.

DAY/NIGHT

‘AUTO1’ exchanges day/night mode faster than ‘AUTO2’.

BRIHGTNESS

Adjusts the brightness of images.

IRIS

- If iris is set to ‘AUTO’, iris should have highest priority in adjusting AE and shutter speed should be fixed.

- If iris is set to ‘MANUAL’, iris should be fixed and iris has lower priority in adjusting AE, in comparison with others.

SHUTTER

- If iris is set to ‘MANUAL’ and shutter speed is set to ‘ESC’, shutter speed should have highest priority.

- Shutter speed is set to ‘A. FLICKER’, to remove flicker, shutter speed should be set to 1/100 sec. for NTSC and 1/120 for PAL.

AGC

Enhances the image brightness automatically in case that luminance level of image signal is too low.

SSNR

Enhances the images by deducting noises when gain level of images is too high.

DSS

- Activates the slow shutter function when luminance of image (signal) is too dark.

- It is possible to set up the maximum number of frames piled up one on another by Slow Shutter function.

MANUAL IRIS SCREEN

IRIS LEVEL

MANUAL SHUTTER SCREEN

SHUTTER SPD

AUTO DSS SCREEN

DSS LIMIT

OFF / LOW / MIDDLE / HIGH

AUTO1 / AUTO2 / DAY / NIGHT

0 ~ 100

AUTO / MANUAL

ESC / A.FLICKER / MANUAL

OFF / NORMAL / HIGH

OFF / LOW / MIDDLE / HIGH

AUTO / OFF

0 ~ 100

x128 ~ 1/120000

x2 ~ x128

WB SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

WB MODE

- RED ADJUST

- BLUE ADJUST

BACK EXIT

Joystic Down

MANUAL 3 0 4 0

AUTO DSS

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DSS LIMIT

EXIT

OSD - SYSTEM SETUP

SYSTEM SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

<DATE/TIME SETUP> <RELAY TYPE> <PASSWORD> <SET HOME POSITION> <SET NORTH DIRECTION> LANGUAGE

BACK EXIT

DATE/TIME SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

DATE TIME

BACK EXIT

RELAY TYPE SETUP

- - - - - - - - - - - - - - - - - - - - - - - - - - -

RELAY1

BACK EXIT

01/JAN/2008(TUE) 00:00:01(H/M/S)

NORMAL OPEN

ENGLISH

Press Near/Enter Key

SYSTEM SETUP

Moves to ‘DATE/TIME SETUP’ screen. Refer screen 2 below.

Moves to ‘RELAY TYPE’ setup screen. Refer screen 3 below.

Moves to ‘PASSWORD’ setup screen. Refer screen 4 below.

Moves to ‘SET HOME POSITION’ screen. Refer screen 5 on page 37.

Moves to ‘SET NORTH DIRECTION’ screen. Refer screen 6 on page 37.

LANGUAGE

Select a preferred language among English, Spanish, French, German, Italian, Russian and Portuguese.

DATE/TIME SETUP

DATE

Date is displayed in dd/mm/yy format.

1. If you press the near key, the focus will be placed on ‘dd’.

2. Sets date moving joystick Up/Down.

3. Moves joystick Left/Right to move to date-month-year.

4. The values in the field are changed using Up/Down keys.

The day is automatically calculated when you set the day.

TIME

Time is displayed in HH:MM:SS format. Sets time same as setting date.

ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / РУССКИЙ / PORTUGUÊS

01 / JAN / 2000 ~ 31 / DEC / 2037

SET HOME POSOTION

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL]

SET NORTH DIRECTION

- - - - - - - - - - - - - - - - - - - - - - - - - - -

MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL]

0/0/x1/E

0/0/x1/N

SET HOME POSITION

- Home position means the origin of pan angle calculation. The value of pan angle displayed on the screen is based on this home position.

- By using joystick, move the camera to the desired position and press near key.

- Home is not effective to tilt angle.

- If you change the location of the home position, all horizontal location of functions such as preset, VST, pattern, group and privacy zone will be shifted based on the changed home position.

Set Home Position? When you replace the camera block or the orientation of camera is changed due to maintenance operations, it is very difficult to maintain the same pan orientation. Therefore, all function data depending on pan orientation such as preset, VST, pattern, group and privacy zone are not useful any more accordingly. However, even in this case, you can reuse the data if you redefine set home position on the previous home position.

For setup, refer ‘EDIT SCENE’ on page 26.

SET NORTH DIRECTION

The direction will be displayed on the right-bottom of the screen, pan is ‘0’ and direction is ‘N’.

[NEAR:SELECT/FAR:CANCEL]

0/0/x1/N

EDIT PASSWORD

- - - - - - - - - - - - - - - - - - - - - - - - - - -

[ ]

- - - - - - - - - -

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d

e f g h i j k l m n o p q r s t u v w x y z

- / : .

< >

OK CANCEL

DISABLE

RELAY TYPE SETUP

RELAY1

- Contacts type of relay out are defined.

- Refer page 14 for the detailed information.

EDIT PASSWORD

NORMAL OPEN(N.O) / NORMAL CLOSE(N.C)

- Sets the 4 characters long password. If this function is set to ‘ENABLE’, the password is required whenever you enter OSD menu. The master password is ‘4321’.

To input password, refer ‘LABEL’ on page 27.

3 4

OSD - SYSTEM INITIALISE

Dimensions

SYSTEM INITIALISE

- - - - - - - - - - - - - - - - - - - - - - - - - - -

CLEAR ALL DATA CLR DISPLAY SET CLR CAMERA SET CLR MOTIOM SET CLR FUNCTION SET REBOOT CAMERA REBOOT SYSTEM

BACK EXIT

NO NO NO NO NO NO NO

SYSTEM INITIALISE

Initialises to the camera setting.

CLEAR ALL DATA

Deletes all configuration data such as display, camera, motion setup and so on.

CLR DISPLAY SET

Initialises display configuration. Reset display including privacy zones.

CLR CAMERA SET

Initialises camera configuration.

CLR MOTION SET

Initialises motion configuration. Resets all motion and schedules.

CLR FUNCTION SET

Deletes preset data, VST data, pattern data, group data and schedule data.

REBOOT CAMERA

Reboots zoom camera module.

REBOOT SYSTEM

Reboots entire speed dome system.

OSD menu contents on page 20, 21, default values of each content are marked in bold.

ON / OFF

Unit: mm

157.5

36.5

57.0

” NPT

115

54-

165

” NPT

83.5

38 9

Dimensions of Option Brackets

1. Flush Mount Ring Bracket 2. Sun Shield Mount Bracket 3. Wall Mount Bracket 2. Ceiling Mount Bracket

374.6

212

57.5

185

204

112

71.6

115

199.3

Unit: mmUnit: mm Unit: mmUnit: mm

266

106

230

191

112.6

112.6 4- 7

355.5

105

6- 2.5

161

140 164.6

4- 10

100

124.6

141.5

83.5

Specifications

Signal Format NTSC PAL

Image Device

Total Pixel

Eective Pixel

H. Resolution

S/N Ratio

Zoom

Focal Length

Min. Illuminance

Camera

Pan/Tilt

General

Day & Night

Focus

Iris

Shutter Speed

AGC

White Balance

BLC

Flickerless

Other Functions

Range

Pan/Tilt Speed

Preset

Pattern

VST

Group

Schedule

Other Functions

Communication

Protocol

Privacy Zone

Sensor In/Out

OSD

Power

Demension

Weight

Operating Temp.

1/4” Interline Transfer CCD

410K pixels [811 (H) x 508 (V)]

380K pixels [768 (H) x 494 (V)]

Color: 500 TV Lines B/W: 570 TV Lines

50dB (AGC O)

x10 Optical Zoom & x10 Digital Zoom

F 1.8, f=3.8 ~ 38mm

Color: 0.7 Lux (50 IRE) B/W: 0.02 Lux

Auto / Day / Night (IR Cut Filter)

Auto / Manual / Semi-Auto

Auto / Manual

x128~ 1/120000 sec, Anti Flickerless

Normal / High / O

Auto / Manual (Red & Blue Gain Adjustable)

Low / Middle / High / O

Selectable

Low / Middle / High / OSSNR

Frame Freeze Function, System Image Flip by Installation Type

Pan: 360° (Endless)

Tilt: 0° ~ 180° (Auto-Flip On), 0° ~ 90° (Auto-Flip O)

Preset: 360°/sec

Manual: 0.05° ~ 360°/sec (Zoom Proportional)

Scan: 1° ~ 180°/sec

127 Presets with Labels / Independent Camera Setup

4 Patterns (Approx. 5 Minutes for Each Pattern)

8 VST, Speed adjustable

8 Groups (Max. 20 Enters for Each Group)

7 Rules (Condition: Day, Time Action: Preset, VST, Group, Pattern)

Image Auto Flip, Auto Parking, Power-up Action & etc.

RS-485

Auto, Pelco-D, Pelco-P, Samsung, Panasonic, GE(

4 Zones

Built-in 2 Input / 1 Relay Output

Temperature, Day and Date & Time Display, Support 7 Languages: (ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / РУССКИЙ / PORTUGUÊS)

DC 12V(7.8W) Dual Voltage Model: AC 24V / DC 12V (7.8W)

Dome: Ø115 mm

Housing : Ø165 x 101.5(H) mm

Approx. 2.4 Kg (5.3Lbs)

-10°C ~ 50°C (14°F ~ 122°F)

470K pixels [795 (H) x 596 (V)]

440K pixels [752 (H) x 582 (V)]

Kalatel

), AD(

American Dynamics

) Selectable

Videcon Concept Pro VHSD-810EXT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
