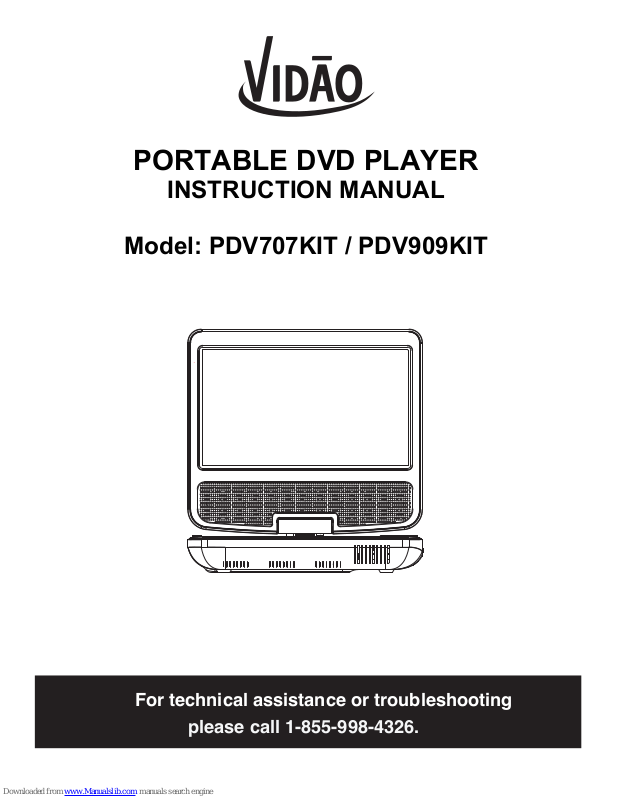

Vidao PDV707KIT, PDV909KIT Instruction Manual

PORTABLE DVD PLAYER

INSTRUCTION MANUAL

Model: PDV707KIT / PDV909KIT

For technical assistance or troubleshooting

please call 1-855-998-4326.

WARNINGS

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

• To reduce the risk of electric shock, do not open the cabinet. No user serviceable parts are inside. Refer servicing to

qualified personnel.

• This appliance uses a Laser System. To prevent direct exposure to the laser beam do not open the cabinet. Visible and invisible laser radiation is present when the cabinet is open. Avoid direct exposure and do not stare into the beam.

• Batteries should not be exposed to excessive heat such as direct sunlight, fire, or other heat sources.

• Caution: Do not expose this appliance to dripping or splashing liquids. Do not put objects filled with liquid, such as

vases on or near the appliance.

• Caution: To turn this appliance off completely, the POWER cord must be unplugged from the wall outlet. The power cord must be easily accessible at all times.

THE LIGHTNING FLASH WITH

ARROWHEAD SYMBOL, WITHIN

AN EQUILATERAL TRIANGLE,

IS INTENDED TO ALERT THE

USER TO THE PRESENCE OF

NON-INSULATED "DANGEROUS

VOLTAGE" WITHIN THE

PRODUCT'S ENCLOSURE THAT

MAY BE OF SUFFICIENT

MAGNITUDE TO CONSTITUTE

A RISK OF ELECTRIC SHOCK

TO PERSONS.

CAUTION

DO NOT OPEN

WARNING: TO REDUCE THE

RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE FRONT OR

REAR COVER. NO USER

SERVICEABLE PARTS ARE

INSIDE. REFER SERVICING TO

QUALIFIED SERVICE

PERSONNEL.

THE EXCLAMATION POINT

WITHIN AN EQUILATERAL

TRIANGLE IS INTENDED TO

ALERT THE USER TO THE

PRESENCE OF IMPORTANT

OPERATING AND MAINTENANCE

(SERVICING) INSTRUCTIONS IN

THE LITERATURE

ACCOMPANYING THE

APPLIANCE.

FCC WARNINGS

WARNING: Changes or modifications to this unit not expressly approved in this manual could void the user’s

authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and/or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the POWER cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as POWER-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. DISC DOOR OPEN Button

2. PLAY / PAUSE Button

3. STOP Button

4. NAVIGATION UP / PREVIOUS Button

5. NAVIGATION DOWN / NEXT Button

6. NAVIGATION LEFT / VOLUME DOWN / F. REV Button

7. NAVIGATION RIGHT / VOLUME UP / F. FWD Button

8. OK Button

9. MENU Button

TOP PANEL CONTROLS

10. SETUP Button

11. DVD / USB / SD Button

12. MODE Button

13. ZOOM Button

14. AUDIO Button

15. REPEAT Button

16. NTSC / PAL Button

17. BATTERY INDICATOR LED*

18. POWER INDICATOR LED*

19. IR RECEIVING LENS*

20. USB Input

21. SD / MMC Card Slot

22. 3.5mm Headphone Input

23. Audio / Video Output

24. Audio / Video Input

25. ON / OFF Switch

26. 9-12V DC Input

SIDE PANEL CONTROLS

20 21

23 24 25 26

VOL-

VOL+









17 18

*For PDV909KIT the DISC DOOR OPEN Button is located on the RIGHT side

* NOTE: NUMBERS 17-19 ARE LOCATED ON THE FRONT OF THE DVD PLAYER

1. POWER Button

2. PLAY / PAUSE Button

3. STOP Button

4. NAVIGATION UP Button

5. NAVIGATION DOWN Button

6. NAVIGATION LEFT Button

7. NAVIGATION RIGHT Button

8. ENTER Button

9. MENU Button

10. NEXT Button

11. PREVIOUS Button

12. F. FWD Button

13. F. REV Button

14. VOLUME UP Button

15. VOLUME DOWN Button

1 30

20 21

16. SETUP Button

17. SUBTITLE Button

18. AUDIO Button

19. ANGLE Button

20. DVD / USB / SD Button

21. MODE Button

22. NUMBER (0 to +10) Buttons

23. SLOW Button

24. REPEAT Button

25. MUTE Button

26. TITLE Button

27. RETURN Button

28. ZOOM Button

29. GOTO Button

30. OSD (On Screen Display) Button

REMOTE CONTROL IDENTIFICATION

CHARGING THE BATTERY

This portable DVD player has a built-in rechargeable lithium-ion battery. The battery can be charged by either the AC 120-240V to DC 9V Power Adapter or the 12V Auto-Boat Adapter.

Before using the DVD player it is recommended to completely charge the battery by following the steps below.

Home Electrical Outlet Use:

1. Plug the supplied AC 120-240V to DC 9V Power Adapter Jack into the 9V DC Input (26).

2. Insert the wall plug of the Power Adapter into an electrical wall outlet.

Auto-Boat Outlet Use:

1. Plug the supplied 12V Auto-Boat Power Adapter Jack into the 12V DC Input (26).

2. Insert the car-boat outlet plug of the Power Adapter into a 12V car-boat outlet.

NOTE: The Battery Indicator LED (17) will show the current status of the battery by which color is shown.

• RED – The battery is charging

• GREEN – The battery is completely charged

PLAY A DVD

1. Turn the DVD player ON by switching the ON / OFF Switch (25) to the ON position.

• The screen will immediately turn ON and display “LOADING”

o If there is no disc in the DVD player the screen display will show

“NO DISC”

o If there is a disc in the DVD player the disc will immediately begin

playing after a few seconds.

2. Press the DISC DOOR OPEN button (1) and the disc door will immediately open.

3. Place the DVD on the player spindle with the label-side of the disc facing UP.

4. Gently close the disc door. DVD playback will automatically begin.

5. When you are finished watching the disc turn the DVD player OFF by switching the ON / OFF Switch (25) to the OFF position.

ADJUSTING THE VOLUME

NOTE: When a DVD is showing the DVD Disc Menu, the VOLUME can only be
