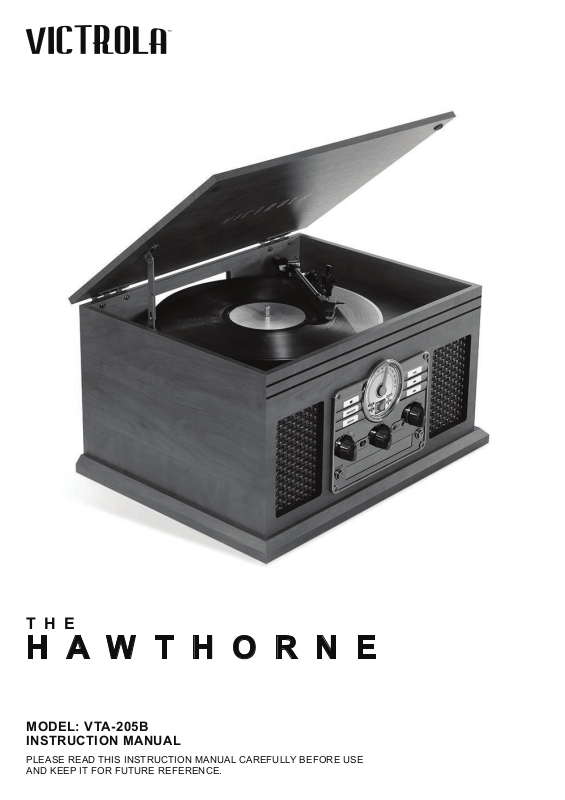

THE

HAWTHORNE

MODEL: VTA-205B

INSTRUCTION MANUAL

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.

Page 2

Important Safety Instructions......................................................................................................................... 3

Product Overview .......................................................................................................................................... 4

Setup / Basic Operation ................................................................................................................................. 7

Listening to a Vinyl Record ............................................................................................................................ 7

Listening to a CD ........................................................................................................................................... 8

Listening to the FM Radio .............................................................................................................................. 9

Listening to an External Audio Device (AUX Mode) ...................................................................................... 9

Listening to an External Audio Device (Bluetooth Mode) ............................................................................ 10

Listening to a Cassette Tape ....................................................................................................................... 10

USB Recording Operation Maint

enance / Proper Han

Specifications .............................................................................................................................................. 12

Troubleshooting Guide ................................................................................................................................ 13

FCC Statement and other warning

........................................................................................................................... 10

dling ...................................................................................................................11

s ............................................................................................................ 15

Page 3

Important Safety Instructions

WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle

or other outlet unless the blades can be fully inserted to prevent blade exposure

WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to laser beam. PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE

1. Read these instructions – All the safety and operating instructions should be read before this product

is operated.

2. Keep these instructions –

3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow all instructions – All operating and use instructions should be followed.

5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for

exa

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades

10. Protect the power cord from being walked on or pinched particularly at the plugs,

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

13. Unplug the apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been

15.

mple, in a wet basement or near a swimming pool, and the like.

(including amplifiers) that produce heat.

with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide

blade or the

consult an electrician for replacement of the obsolete outlet.

convenience receptacles, and at the point where they exit from the apparatus.

manufacturer, or sold with the apparatus. When a cart or rack is used, use

caution when moving the

tip-over.

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

third prong is provided for your safety. If the provided plug does not fit into your outlet,

The safety and operating instructions should be retained for future reference.

cart/apparatus combination to avoid injury from

- This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user serviceable parts inside. Refer servicing to qualified personnel. ‐ The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

Page 4

16.

17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

18. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The

19. Use the eq

This equipment is a Class in such a way that it does not require a safety connection to electrical earth.

apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as

vases, shall not be placed on apparatus.

uipment in a moderate climate.

or double insulated electrical appliance. It has been designed

ACCESSORIES INCLUDED

• RCA LINE

• INSTRUCTION MANUAL

• WARRANTY (BACK OF MANUAL)

• 45

• USB CABLE

• AUDACITY SOFTWARE CD

OUT CABLE

RPM ADAPTER

Front View

Product Overview

1. POWER Push to turn the unit ON or OFF.

2. “PHONO, CD, AUX, FM/ ” SELECTION KNOB Rotate to select your desired function.

“FM”, “ ” SLIDE SWITCH Slide to select either FM or Bluetooth.

4. 3.5mm AUX IN JACK Connects your external source to the AUX IN jack.

5. PLAY INDICATOR Illuminates when CD is playing.

6. ST/BT INDICATOR Blue light flashes when the unit is waiting for pairing. Blue light stays lit when

the external device is connected to the unit. Red l stereo pl

aying mode.

ight illuminates when station is received in

7. PROGRAM INDICATOR Illuminates when the program playback is set.

8. REPEAT INDICATOR Red light stays lit when all tracks repeat. Red light flashes when a single

track is repeating.

(Note: This indicator only works in CD mode.)

Page 5

9. LED DISPLAY

10. TUNING DIAL POINTER

11. STEREO SPEAKERS

12. STOP Press to stop playback or cancel the program setting.

13. PLAY/PAUSE Press to start playback, press again to pause.

(Note: This button only works in CD, Bluetooth mode.)

14. OPEN/CLOSE In CD mode, use to open and close the disc tray

15. DISC TRAY

16. “VOLUME” KNOB Turn to adjust volume. 17/18. NEXT/PREVIOUS TRACK

In CD Mode, press once to skip to the next/

(Note: This button will not work in PHONO, FM, AUX mode)

19. “PROGRAM” Press to set the program playback.

(Note: This indicator only works in CD mode.)

20. “REPEAT” Press to select the repeat mode.

(Note: This indicator only works in CD mode.)

21. RADIO TUNER KNOB In FM mode, turn to tune in a station.

22. 3.5mm EARPHONE JACK

Accepts headphone/earphone plugs.

& FF/REWIND

(

previous track. Press and hold to fast forward/rewind.

)

Right Side View

23. CASSETTE FF & EJECT Press halfway to fast forward, press all the way to end and eject the tape.

Page 6

Rear View

2 FM Wire Antenna .4

While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.

Line Out Jacks .52

For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.

Connect the AC plug into a wall outlet. It is strongly recommended that this product should be operated only fr source indicated on the marking label.

27.

USB Jack Connect the turntable to your computer by using an included USB Cable.

droC rewoP CA .6

om the type of power

Parts of the Turntable

A. Turntable. B. Safety Screw (for transport) Before using the unit, turn the screw clockwise using a coin or

screwdriver.

Important: When you transport the unit, turn the screw counterclockwise to secure the turntable. C. Speed Selector. D. Tone Arm holder. E. Tone Arm.

Before use, completely loosen the twist tie on the tone arm and lift the tone

arm up.

F. STYLUS . G. 45 RPM adaptor. H. Cue Lever.

Page 7

Setup / Basic Operation

etup

. Remove white protective needle cover by gently pulling towards front of unit.

2. Remove any packaging materials from the unit.

3. Connect the AC power cord

to a wall outlet.

Note:

-It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label.

-To prevent interference, avoid bundling audio signal cables together with the AC power cord.

Basic Operation

1. Push the POWER button to turn the unit on.

2. Select the source by turning the selection knob (PHONO/AUX/CD/FM/BT).

3. Rotate the VOLUME knob to adjust to the desired sound level.

Listening through RCA LINE OUT

For amplifier device listening, first reduce the volume level to minimum. Insert the white and red plugs on the RCA cable into the unit, then insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.

Listening through Headphones (not included)

For private listening, first reduce the volume level to minimum. Insert your headphones’ plug into the 3.5mm jack, then adjust the volume up by turning the VOLUME knob.

Note: The speakers will automatically be deactivated while headphones are plugged in.

CONDENSATION WARNING: When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the danger that water vapor in the air may condense on the unit, preventing proper operat unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.

ion. In such cases, leave the

Listening to a Vinyl Record

Page 8

10.

11.

Important:

- Closing the top cover will help prevent dust from settling on the turntable.

- Always relock the tone arm clip before transporting the unit.

- Do not place anything on top of the turntable cover, especially while playing a record.

istening to a CD

1. Select “CD” function.

(Note: When no disc is set, “no” will appear on the display.)

2. Press the OPEN/CLOSE button

(Note: This button only works in CD mode.)

3. Place a disc on the tray with the printed label face up.

4. Press the OPEN/CLOSE button to close the tray.

5. Press the PLAY/PAUSE button ( ) to begin playback.

(Note: The CD playback will start automatically.)

6. To temporarily pause playback, press the PLAY/PAUSE butt

7. To skip tracks forward or

Pressing once will restart the current track. Pressing twice in succession will return. to the beginning of the previous track.

8. To fast forward / rewind within a track, press and hold down the corresponding skip button until

the desired position is reached.

9. To stop playback, press the STOP button

Important:

- Never place more than one disc on the tray.

- The di

- It takes a moment for the unit to load a disc, during which all buttons will be temporarily

sc must be placed in the center of the disc tray. An incorrectly loaded disc can permanently damage the tray door mechanism. Do not push the CD tray – always use the OPEN/CLOSE button.

deactivated.

( )

on ( ). Press again to resume.

backward, press the corresponding skip button ( or ).

Repeat Playback

Each time the REPEAT button is pressed, the repeat mode will cycle through the following options:

REPEAT 1(Repeat one track) The repeat indicator will flash and the current track will be played repeatedly. If you press the ( or ) button to select another track, the track you select will be played repeatedly.

REPEAT ALL (Repeat the entire CD) The repeat indicator will stay lit and the entire CD will be played repeatedly.

Notes:

- Repeat playback works with CD discs only.

Page 9

Programmed Playback

Up to 20 tracks can be programmed to play in the desired order.

Notes:

- Programmed playback works with CD discs only.

1. Select “CD” mode, then load a CD.

2. While the CD is stopped, press the PROGRAM button.

3. “PROGRAM” indicator lights up and “01” blinks on the display.

4. Press ( or ) to select a track number.

5. Press the PROGRAM button again to set the next program track, “02” appears and blinks. Repeat steps 4 thru 5 to program the addi

6. When the selection of track numbers has been finished, press the PLAY button ( ) to start program playback. (Note: When all 20 program tracks are set, you press PROGRAM button and “FI eht no raeppa lliw ” display)

7. To cancel the program mode, press the

To check the programmed order

In the stop mode, press ( or ) repeatedly to show the track numbers which have been programmed.

To add a track to the end of the programmed order: In the stop mode, press the PROGRAM button. Select a track number by pressing ( or ), then press the PROGRAM button. The current track will be added to the end of the program.

tional tracks.

STOP ( ) till the program indicator won’t light.

Listening to the FM Radio

1. Select “FM/ ” mode.

2. Slide the slide switch on “FM”.

3. Tune to the desired station using the Radio Tuner Knob.

Note: In FM Mode, the “ST/BT” indicator lights up red when tuning in the stereo reception station.

Adjusting for Best Reception

FM broadcast: Extend and reposition the FM antenna.

Listening to an External Audio Device (AUX Mode)

In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player, Portable CD Player, etc.)

(not included) into the 3.5mm

Page 10

Listening to an External Audio Device (Bluetooth Mode)

In BT (Bluetooth) mode, this unit can play music from external devices which have a built-in Bluetooth feature.

GETTING CONNECTED USING BLUETOOTH

1. Select “FM/ ” mode.

2. Slide the slide switch on “ ” and the ST/BT indicator will flash blue.

3. Turn ON the Bluetooth function on your external device.

NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft).

4. Wait for to appear on the paired devices list of your external device and press In some instances: a window will ask you a password. Fill in “0000” then press “OK” on your external device.

5. A few seconds later your Bluetooth conne

6. Press the PLAY/PAUSE button ( ) to begin playback.

7. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume.

8. To skip to the previous or next tracks, press the corresponding skip button ( or ) to listen.

NOTE: Stop, fast forward / rewind are only available on your external device.

“Victrola Hawthorne”

“Victrola Hawthorne”.

ction is successful and the blue indicator stays lit.

Listening to a Cassette Tape

1. Load an audio cassette tape into the unit (located on the left side of the unit). Playback will automatically begin.

2. Press button halfway to Fast Forward the tape.

erP ss button lightly and playback will resume.

3. Press button completely down to end playback and eject tape.

NOTE: When loading in a cassette tape, the SELECTION KNOB function will be temporarily overridden until the cassette tape is ejected.

USB Recording Operation

To properly record your vinyl to MP3 via computer, use the included USB Output Cable and Instructional CD Software. Connect one end of the USB cable to the turntable (USB jack on the back of the unit) and the other end into your computer. Then connect the AC power cord to the turntable. To install and use the software on your computer, select the proper Mac or PC install files, then follow the prompts provided on the Instructional CD. For the most up to date manuals, software, instructional details, troubleshooting or other downloadable content, please go to http://audacityteam.org

Page 11

Maintenance / Proper Handling

Compact Disc Handling

• Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded

only on one side)

• To remove a disc from its storage case, press down on the center of the case and lift the disc

upward, holding it carefully by its edges.

• To clean a disc, wipe the surface from the center hole outward towards the outer edge with a soft, dry cloth.

• Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to

irreparably damage the disc’s plastic surface.

• Discs should be returned to their cases after use to protect from dust and scratches.

• Do not expose discs to direct sunlight, high humidity, or high temperature for extended periods of time.

• Printable CD-R and CD-RW discs are not recommended, as the label side may become sticky and damage the

unit.

• Use a soft oil-based felt-tipped pen to write information on the label side. Never use a ball-point or hard-tippe

pen, as doing so may damage the recorded side.

• Do not use irregularly-shaped CDs (octagonal, heart shaped, business card size, etc),

as they will damage the unit.

• Read all precautions supplied with any CD-R or CD-RW disc

• Never handle a disc with dirty fingers.

• Never insert a disc that has a crack on the surface.

Handling Vinyl Records

Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. Touching

•

the record surface will cause your record’s quality to deteriorate. To clean a record, use a soft anti-static cloth to gently wipe the record surface.

•

Keep records in their protective sleeves when not in use.

•

Always store records upright on their edges

•

Avoid placing records in direct sunlight, close to a heat source (radiators, stoves, etc.), or in a location subject

•

to vibration, excessive dust, heat, cold or moisture.

General Care

• When removing the power plug from the wall outlet, always pull directly on the plug.

Never pull the cord. To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.

•

Do not attempt to clean the unit with chemical solvents as this might damage the finish.

•

For cleaning, only use a clean, dry cloth.

•

• In order to shut off the power to this product completely, unplug the power cord from the

wall outlet. Be sure to unplug t of time.

he unit if you do not intend to use it for an extended period

clean discs; they will

How to Replace the Turntable Stylus (Replacement Needle # ITNP-S1)

The stylus should last about 50 hours under normal use. However, it is recommended that the stylus be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus may damage the record. The highest speed of 78 RPM records would wear out the stylus more quickly.

Removing the old stylus:

1. Set a screwdriver at the tip of the stylus and push downward (A).

2. Remove the stylus by pulling i

t simultaneously downward and forward.

Installing a new stylus:

1. Hold the front tip of the stylus and insert its rear edge (B) first.

2. Push the stylus upwards (C) until the tip locks into place.

Caution:

Do not bend the stylus. Do not touch the needle to avoid injury your hand. Turn off the unit’s power before you replace the stylus. Keep out of reach of children.

Page 12

Specifications

GENERAL

Power Requirements Power Consumption Dimensions (W x H x D) Weight

AMPLIFIER

Output Power Frequency Response

SPEAKER SYSTEM

Type Impedance Output Power

FM Radio

Range

CD PLAYER

Frequency Response Signal-to-Noise Ratio

CASSETTE PLAYER

Track System Tape Speed Wow and Flutter Frequency Response

RECORD PLAYER

Motor Drive System Speeds S/N Ratio Cartridge Type Stylus

BLUETOOTH

Bluetooth Version Bluetooth Profiles Bluetooth Frequency range Operating Distance

AC 120 V~ 60 Hz 30W 460 x 255 x 340mm | 18 x 10 x 13.4in (approx.)

. | 16 lbs (approx.)

5 W + 5 W 60 to 20,000 Hz

2-way 8 ohms Max. 6W

88 to 108 MHz

60 to 20,000 Hz +/-4 dB 55 dB (IEC-A)

4 Track, 2 channel stereo

4.8 cm/sec

0.4% (WRMS) 125 to 6300 Hz +/-6 dB

DC servo motor Belt Drive 33-1/3 rpm, 45 rpm and 78 rpm More than 50 dB Ceramic Stereo Cartridge ITNP-S1

Bluetooth V4.1 A2DP, AVRCP

2.402GHz-2.480GHz 10 meters (33 ft.)

Page 13

Troubleshooting Guide

Symptom Possible Cause Solution

• Unit will not power on. • Unit is unplugged. • Connect the unit to the AC

No sound output from

•

speakers.

The volume level is set too low.

•

The input selector does not

•

match the playback source.

•

Noise/Distortion in sound output.

GENERAL

• Unit fails to respond. • It might result from external

•

The unit is too close to a TV set or another interfering device.

factors such as ESD (Electro-static discharge).

•

The tape does not play.•The cassette tape is not

inserted properly.

TAPE

Cannot listen to any

•

station, or signal appears weak.

• The tape has reached the end.

The station is not tuned-in

•

properly.

• A TV set is being used nearby

and is interfering with the radio reception.

• The sound is distorted. • The antenna is not oriented

FM RADIO

• CD stops immediately

after starting, or unit pauses or stops during play.

•

No sound.

• CD playback is noisy,

or playback stops or skips.

CD PLAYER

• CD tray will not open. • AM/FM mode is selected. • Select AUX, PHONO, CD,

• Buttons are not

functioning correctly.

properly.

• The CD is inserted upside

down.

• The CD is dusty or dirty or there

is condensation on the CD.

•

The CD player is paused.

• The CD is scratched, damaged

or warped.

• The disc is very dirty.

• The unit is processing

information (“--- Busy” is displayed)

• Decline in turntable

• The unit needs to be restarted

• The turntable stylus is worn out • Replace the stylus.

audio performance

power supply. Adjust the volume.

•

Select the correct input

•

source.

•

Turn off the TV or other appliance, and relocate the unit.

• Disconnect the power cord

and external audio device. Re-plug the power cord after one minute.

•

Insert the cassette tape correctly.

• Flip the cassette.

Properly tune-in the

•

desired station.

• Turn-off the interfering TV

set.

• Re-orient the antenna until

reception improves.

• Insert the CD with the

printed side right-side up.

• Carefully clean and dry the

CD.

•

Press the PLAY/PAUSE button.

• Replace CD with an

undamaged one.

• Carefully clean the CD.

or TAPE mode.

• Wait until the unit finishes

processing.

• Turn the unit off, then on

again.

PHONO

No sound output with

•

external audio device plugged into rear AUX

AUX

in jack.

Both AUX in jacks (front and

•

rear) are plugged.

Unplug the front AUX in

•

Jack.

Page 14

• No sound • The unit is not switched to

Bluetooth mode Your device’s and/or the unit’s

•

volume is not turn up. Your device is too far from the

•

unit or there’re some obstacle between your device and the unit

• Ensure the unit is switched

to BT mode. Move your Bluetooth

•

device closer to unit Turn up the volume on

•

your portable device and/or the unit.

• Turn OFF your Bluetooth

device and unit. Then

Bluetooth

• Sound has a lot of static • Your device is too far away • Bring your device closer to

power them both back ON

the turntable

•

Unable to pair with a Bluetooth device

•

Your device doesn’t have Bluetooth connectivity.

• The Bluetooth pairing is not

successful

•

Confirm that your device is Bluetooth compatible.

• Re-pair the unit and device

again.

For further assistance with your product, call Victrola at

TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).

Please note: As a result of continual improvements, the design and specifications of this product are subject to change without notice.

Made in China.

Bluetooth is a registered trademark of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.

Page 15

FCC WARNING

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authorit y to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter ference to radio communications. However, there is no guarantee that inter ference will not occur in a particular installation. If this equipment does cause harmful inter ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter ference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/T V technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CALIFORNIA PROP 65 WARNING

WARNING: This product can expose you to chemicals including lead, which is known to the

State of California to cause cancer and bir th defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

IC WARNING

-English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including inter ference that may cause undesired operation of the device.

-Fre nch: Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. L'exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appariel est conforme à FCC et IC l’exposition aux rayonnements limites fixées pour un environnement non contrôlé. Cet appariel doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co -situé ou opérant en liaison avec toute autre antenne ou transmetteur.

Page 16

Victrola is a registered trademark of Innovative Technology Electronics LLC.

Innovative Technology Electronics LLC. Limited Warranty: 90 Days Labor, One Year Parts

Innovative Technology Electronics LLC. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the product if i to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets, headbands, ear-pads, or damage due to line power surges, connection to improper voltage supply or settings, misuse, mishandling, accident, acts of agent. To obtain service, the purchaser MUST present an original sales receipt / proof of

purchase. Please contact us at www.victrola.com to request an RMA (Return Material Authorization) number to return products for service o

without an RMA number on the package will be refused and returned to sender. Upon receipt of the returning item and our full inspection (IT) may issue a repl of one that has equivalent value and features. To return an item, supply full name, return address, phone number, item purchased, receipt of purchase and reason for return to obtain RMA number.

All returns must be in the original packaging or reasonable substitute to prevent damage. Customer “Must” include full name, shipping address and telephone number insi ret Please include your check or money order in the amount of

• USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit)

• USD$10.00 for items $40.00 to $99.9 (Price Paid Per Unit)

• USD$16.00 for items $100.00 and up (Price Paid Per Unit)

• Shipping fees are non-refundable

to be payable to Innovative Technology Electronics LLC. (for handling and return shipping charges) (IT) will not be responsibl from a purchaser’s failure to Send all inquiries or RMA request via our website www.victrola.com/pages/technical-support.

t is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost

God or attempted repair by an unauthorized service

r replacement. Returns

acement to customer for the same item or

de of package. No

urn will be shipped back to a PO Box or APO address.

e for delays or unprocessed claims resulting

provide any / all of the necessary information.

Innovative Technology Electronics LLC. 1 Channel Drive, Port Washington, NY 11050 Toll free: 1-877-483-2497

Website for support: www.victrola.com/pages/technical-support

There are no express warrant REPAIR OR REPLACEMENT AS PROVIDED UND REMEDY OF THE CUSTOMER, (IT) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPL THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DUR Some states do not allow the exclusio limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

ies except as listed above.

ER THIS WARRANTY IS THE EXCLUSIVE

IED WARRANTY ON

ATION TO THE DURATION OF THIS WARRANTY.

n or limitation of incidental or cons equential damages, or
