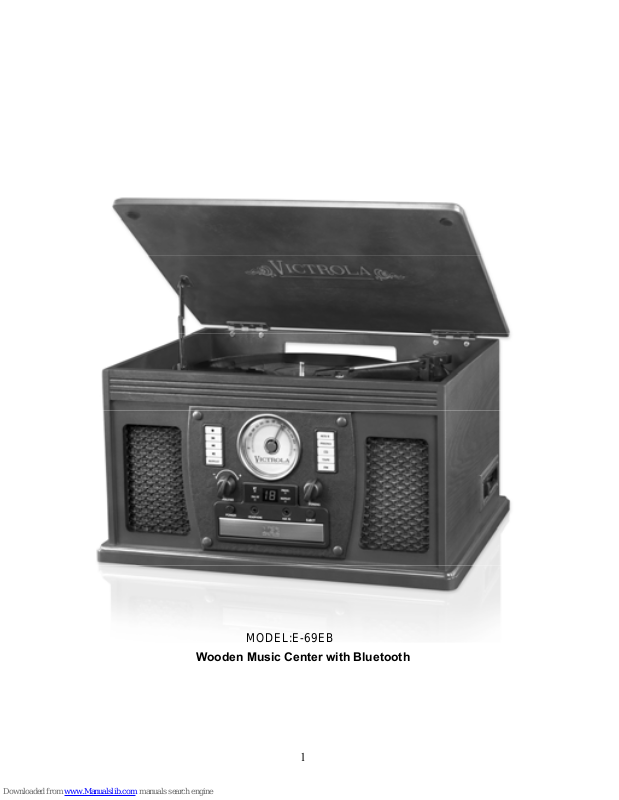

Victrola E-69EB User Manual

Wooden Music Center with Bluetooth

MODEL:E-69EB

Important Safety Instructions ......................................................................... 3

Product Overview ........................................................................................... 4

Setup / Basic Operation ................................................................................. 8

Listening to a Vinyl Record ............................................................................ 8

Listening to a CD ............................................................................................ 9

Listening to the FM Radio ............................................................................ 10

Listening to an External Audio Device (AUX Mode) .................................... 10

Listening to an External Audio Device (Bluetooth Mode) ............................ 10

Listening to a Cassette Tape ........................................................................ 11

Maintenance / Proper Handling ................................................................... 11

USB-to-PC Recording .................................................................................. 13

Specifications ............................................................................................... 53

Troubleshooting Guide ................................................................................. 54

FCC Statement ............................................................................................. 56

CALIFORNIA PROP 65 WARNING ............................................................. 58

..........................................................................................................................

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVERTISSEMENT:

RISQUE DE CHOC ÉLECTRIQUE – NE PAS OUVRIR.

- This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle

or other outlet unless the blades can be fully inserted to prevent blade exposure

WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to laser beam. PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

Important Safety Instructions

1. Read these instructions – All the safety and operating instructions should be read before this product

is operated.

2. Keep these instructions- The safety and operating instructions should be retained for future reference.

3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered

to.

4. Follow all instructions – All operating and use instructions should be followed.

5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for

example, in a wet basement or near a swimming pool, and the like.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.

-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the

presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no

user-serviceable parts inside. Refer servicing to qualified personnel.

-The exclamation point within and equilateral triangle is intended to alert the user to the presence of

important operating and maintenance instructions in the literature accompanying the appliance.

16.

This equipment is a Class

Ⅱ

or double insulated electrical appliance. It has been designed in such a way

that it does not require a safety connection to electrical earth.

17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

18. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The

apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.

19. The use of the equipment in moderate climate.

ACCESSORIES INCLUDED:

• RCA LINE OUT CABLE

• INSTRUCTION MANUAL

• WARRANTY (BACK OF MANUAL)

• 45 RPM ADAPTER

• USB CABLE

• AUDACITY SOFTWARE CD

Product Overview

Front View

1. STOP ( ) - Press to stop playback or cancel the program setting.

2&3. NEXT/PREVIOUS TRACK & FF/REWIND - ( or ).

4. PLAY/PAUSE ( ) - Press to start playback, press again to pause.

(Note: This button only works in CD and Bluetooth mode.)

5. “REPEAT” - Press to select the repeat mode.

(Note: This button only works in CD mode.)

6. “VOLUME” KNOB - Turn to adjust volume.

7. STEREO SPEAKERS

8. POWER () - Push to turn the unit on or off.

9. DISC TRAY

10. 3.5mm HEADPHONE JACK - Accepts headphones.

11. LCD DISPLAY

12. 3.5mm AUX IN JACK - Connect your external source to the AUX IN jack.

13. OPEN/CLOSE ( ) - In CD mode, press to open and close the disc tray.

14. RADIO TUNER KNOB - In FM mode, turn to tune in a station.

15. FM - Press to listen to the FM Radio function.

16. TAPE - Press to listen to a CASSETTE TAPE.

17. CD - Press to listen to CD.

18. PHONO - Press to listen in PHONO mode.

19. (AUX/

) - Press to listen in AUX or Bluetooth mode.

20. FM ST INDICATOR - Red light illuminates to indicate the station playing is in stereo.

21. BT INDICATOR - Blue light will flash when the unit is waiting to be paired. The Blue light will

stay lit when an external device is successfully paired to the unit.

22. TUNING DIAL POINTER

23. PROGRAM INDICATOR - Illuminates to indicate the program playback is set.

24. REPEAT INDICATOR - Red light will stay illuminated indicating all tracks are set to repeat.

Red light will flash when a single track is set to repeat.

(Note: This indicator only works in CD mode.)

Right Side View

25. CASSETTE FF & EJECT

Press halfway to fast forward, press all the way to end and eject the tape.

Rear View

26. FM wire antenna

While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.

27. USB socket

28. LINE OUT jacks

For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.

29. AC Power Cord

Connect the AC plug into a wall outlet. It’s strongly recommended that this product should be operated only from the type of power source indicated on the marking label.

Parts of the Turntable

A. Turntable

B. Safety Screw (for transport) Before using the unit, turn the screw clockwise using a coin or

screwdriver.

Important: When you transport the unit, turn the screw counterclockwise to secure the turntable. C. Speed Selector D. Tone Arm holder E. Tone Arm.

Before initial use, remove tie on the tone arm and lift the tone arm up.

F. Stylus G. 45 RPM adaptor

Setup / Basic Operation

Setup

1. Remove white protective needle cover by gently pulling towards front of unit.

2. Remove any packaging materials from the unit.

3. Connect the AC power cord

to a wall outlet.

Note:

-You’re strongly recommended that this product should be operated only from the type of power

source indicated on the marking label.

-To prevent interference, avoid bundling audio signal cables together with the AC power cord.

Basic Operation

1. Push the POWER button to turn the unit on.

2. Select the source by pressing the (AUX/ )/PHONO/CD/TAPE/FM button.

3. Rotate the VOLUME knob to adjust to the desired sound level.

Listening through RCA LINE OUT

For amplified device listening, first reduce the volume level to minimum. Insert the white and red plugs on the RCA cable into the unit, then insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.

Listening through Headphones (not included)

For private listening, first reduce the volume level to minimum. Insert your headphones’ plug into the 3.5mm jack, then adjust the volume up by turning the VOLUME knob.

Note: The speakers will automatically be deactivated while headphones are plugged in.

CONDENSATION WARNING: When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave the unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.

Listening to a Vinyl Record

1. Press the PHONO button.

2. Gently open the top cover.

Note: Be careful not to pinch your finger when opening/closing the top cover.

3. Place a vinyl record on the turntable. When playing a 45 RPM record, use the included adaptor.

4. Select the appropriate speed (4).

5. Remove the tone arm-rest holder to release the tone arm.

6. Move the tone arm gently to the edge of the record (or the starting point of a track). The turntable will begin to turn.

7. When the record reaches its end, tone arm will stop at the center of the record and you must lift and return the tone arm to the tone arm rest manually. Lock the tone arm-rest holder to protect the tone arm.

Important:

- Closing the top cover will help prevent dust from settling on the turntable.

- Always relock the tone arm clip before transporting the unit.

- Do not place anything on top of the turntable cover, especially while playing a record.

Listening to a CD

1. Press the CD button.

(Note: When no disc is set, “no” will appear on the display.)

2. Press the OPEN/CLOSE () button.

(Note: This button only works in CD mode.)

3. Place a disc on the tray with the printed label face up.

4. Press the OPEN/CLOSE button () to close the tray.

5. Press the PLAY/PAUSE button ( ) to begin playback.

(Note: The CD playback will start automatically.)

6. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume.

7. To skip tracks forward or backward, press the corresponding skip button ( or ). Pressing ( ) once will restart the current track. Pressing ( ) twice in succession will return to the beginning of the previous track.

8. To fast forward / rewind within a track, press and hold down the corresponding skip button until the desired position is reached.

9. To stop playback, press the STOP ( ) button.

Important:

- Never place more than one disc on the tray.

- The disc must be placed in the center of the disc tray. An incorrectly loaded disc can permanently

damage the tray door mechanism.

- Do not push the CD tray – always use the OPEN/CLOSE button.

- It takes a moment for the unit to load a disc, during which all buttons will be temporarily deactivated.

Repeat Playback

Each time the REPEAT button is pressed, the repeat mode will cycle through the following options:

REPEAT 1 (Repeat one track) The repeat indicator will flash and the current track will be played repeatedly. If you press the ( or ) button to select another track, the track you select will be played repeatedly.

REPEAT ALL (Repeat the entire CD) The repeat indicator will stay lit and the entire CD will be played repeatedly.

Notes:

- Repeat playback works with CD’s only.

Programmed Playback

Up to 20 tracks can be programmed to play in any desired order.

Notes:

- Programmed playback works with CD’s only.

1. Select “CD” mode, then load a CD.

2. While the CD is stopped, press and hold the REPEAT button.

3. “PROGRAM” indicator lights up and “01” blinks on the display.

4. Press ( or ) to select a track number.

5. Press the REPEAT button again to set the next program track, “02” appears and blinks.

Repeat steps 4 through 5 to program the remaining tracks.

6. When the selection of track numbers has been finished, press the PLAY button ( ) to start program

playback. (Note: When all 20 program tracks are set, press REPEAT button and “FI” will appear on the display)

7. To cancel the program mode, press the STOP ( ) until the program indicator doesn’t light.

To check the programmed order

In stop mode, press ( or ) repeatedly to show the track numbers that have been programmed.

To add a track to the end of the programmed order: In stop mode, press and hold the REPEAT button. Select a track number by pressing ( or ), then press the REPEAT button. The current track will be added to the end of the program.

Listening to the FM Radio

1. Press the FM button.

2. Tune to the desired station using the Radio Tuner Knob.

Note: In FM Mode, the red “FM ST” indicator lights up when the station reception is in tune.

Adjusting for Best Reception

FM broadcast: Extend and reposition the FM antenna.

Listening to an External Audio Device (AUX Mode)

In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player, Portable CD Player, etc.)

There is an AUX IN jack on the front of the unit. When connecting a device that has a headphone jack, use the cable with 3.5mm plugs on either end with the front AUX IN jack.

1. Plug one end of the AUX IN cable (not included) into the AUX IN jack.

2. Press the (AUX/ ) button to select AUX function.

3. Plug the other end of the cable into the headphone jack of the external audio source.

NOTE: All operations are only available on your external device.

Listening to an External Audio Device (BT Mode)

In BT (Bluetooth) mode, this unit can play music from external devices that have a built-in Bluetooth feature.

GETTING CONNECTED USING BLUETOOTH

1. Press the (AUX/ ) button twice to select Bluetooth function. The BT indicator will flash blue.

2. While the BT is activated, turn on the BT setting on your external device.

3. Your external device will begin to search for the Wooden Music Center.

NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft).

4. Wait for “Wooden Music Center” to appear on the paired devices list on your external device and

press “Wooden Music Center”.

In some instances, you will be asked for a password. Fill in “0000” then press “OK” on your external device.

5. A few seconds later when your Bluetooth connection is successful, the blue indicator will stay lit.

You can control music playback with the PLAY/PAUSE

( )

or the ( and ) buttons on the

apparatus.

Note: Stop / Fast Forward / Rewind are only available on your external device.

Listening to a Cassette Tape

1. Press the TAPE button.

2. Load an audio cassette tape into the unit (located on the right side of the unit). Playback will

automatically begin.

3. Press button halfway to Fast Forward the tape.

Press button lightly and playback will resume.

4. Press button completely down to end playback and eject tape.

Maintenance / Proper Handling

Compact Disc Handling

• Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded only on one side).

• To remove a disc from its storage case, press down on the center of the case and lift the disc upward, holding it carefully by its edges.

• To clean a disc, wipe the surface from the center hole outward towards the outer edge with a soft, dry cloth.

• Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to clean discs; they will irreparably damage the disc’s plastic surface.

• Discs should be returned to their cases after use to protect from dust and scratches.

• Do not expose discs to direct sunlight, high humidity, or high temperature for extended periods of

time.

• Printable CD-R and CD-RW discs are not recommended, as the label side may become sticky and damage the unit.

• Use a soft oil-based felt-tipped pen to write information on the label side. Never use a ball-point or hard-tipped pen, as doing so may damage the recorded side.

• Do not use irregularly shaped CDs (octagonal, heart shaped, business card size, etc), as they will damage the unit.

• Read all precautions supplied with any CD-R or CD-RW disc.

• Never handle a disc with dirty fingers.

• Never insert a disc that has a crack on the surface.

Handling Vinyl Records

• Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. Touching the record surface will cause your record’s quality to deteriorate.

• To clean a record, use a soft anti-static cloth to gently wipe the record surface.

• Keep records in their protective sleeves when not in use.

• Always store records upright on their edges.

• Avoid placing records in direct sunlight, close to a heat source (radiators, stoves, etc.), or in a

location subject to vibration, excessive dust, heat, cold or moisture.

General Care

• When removing the power plug from the wall outlet, always pull directly on the plug. Never pull the cord.

• To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.

• Do not attempt to clean the unit with chemical solvents as this might damage the finish.

• For cleaning, only use a clean, dry cloth.

• In order to shut off the power to this product completely, unplug the power cord from the wall outlet.

Be sure to unplug the unit if you do not intend to use it for an extended period of time.

How to Replace the Turntable Stylus

The stylus should last about 50 hours under normal use. However, it is recommenced that the stylus be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus may damage the record. The highest speed of 78 RPM records would wear out the stylus more quickly.

Removing the old stylus:

1. Set a screwdriver at the tip of the stylus and push downward (A).

2. Remove the stylus by pulling it simultaneously downward and forward.

Installing a new stylus:

1. Hold the front tip of the stylus and insert its rear edge (B) first.

2. Push the stylus upwards (C) until the tip locks into place.

Caution:

 Do not bend the stylus.  Do not touch the needle to avoid injury your hand.  Turn off the unit’s power before you replace the stylus.  Keep out of reach of children.

USB TO PC RECORDING

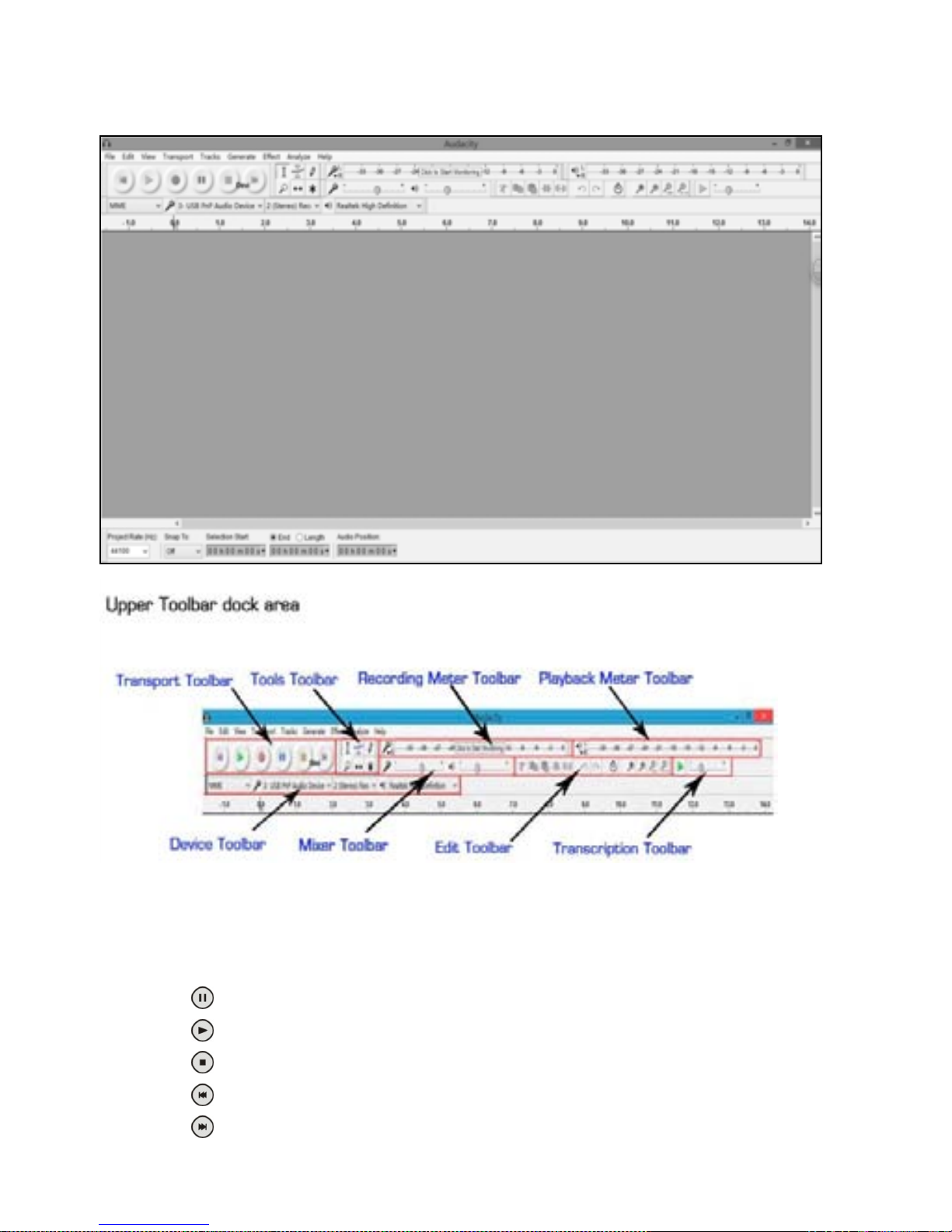

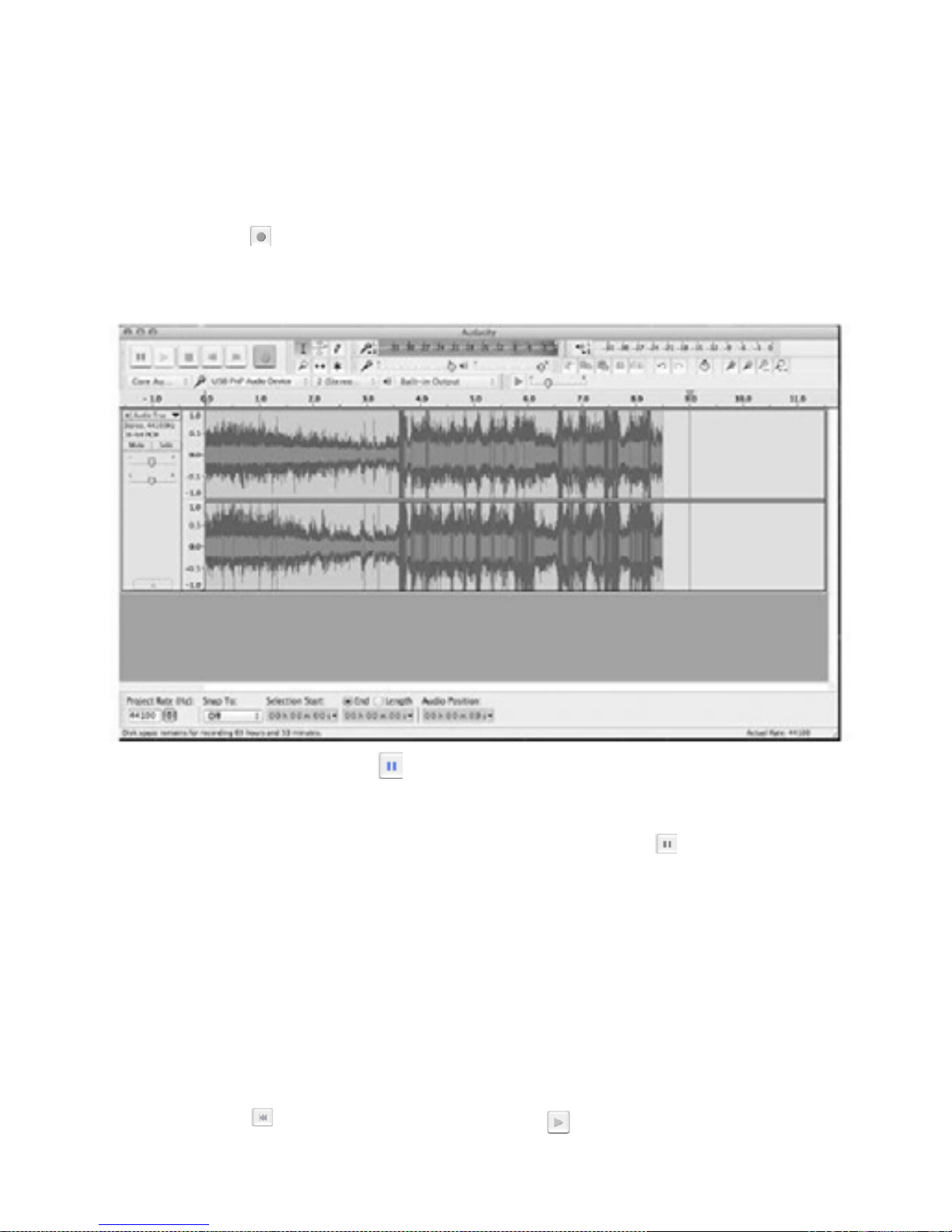

Audacity Software

The provided CD disc contains the following software: (1)Audacity_for_MAC---------For Mac (2)Audacity_for_WIN---------For Windows The software is compatible with Window XP, VISTA, 7 and 8, 10 requires appropriate drives and Mac.

NOTE:

- Read about Audacity on Windows 8, 7 and Vista. Windows 2000, NT, and 95 are not supported.

-Windows 10 is supported, but subject to all enabled devices having Windows 10-compatible drivers

designed for the device. This should be the case for the built-in sound device of a new computer that came with Windows 10. Please see our Windows 10 page for solutions if you encounter problems. We hope to improve our Windows 10 compatibility with older devices in a future release.

-A CPU that supports SSE2 is required (any CPU made after 2003 should support this). Please use

the legacy Audacity 2.0.6 version if your machine lacks SSE2 support.

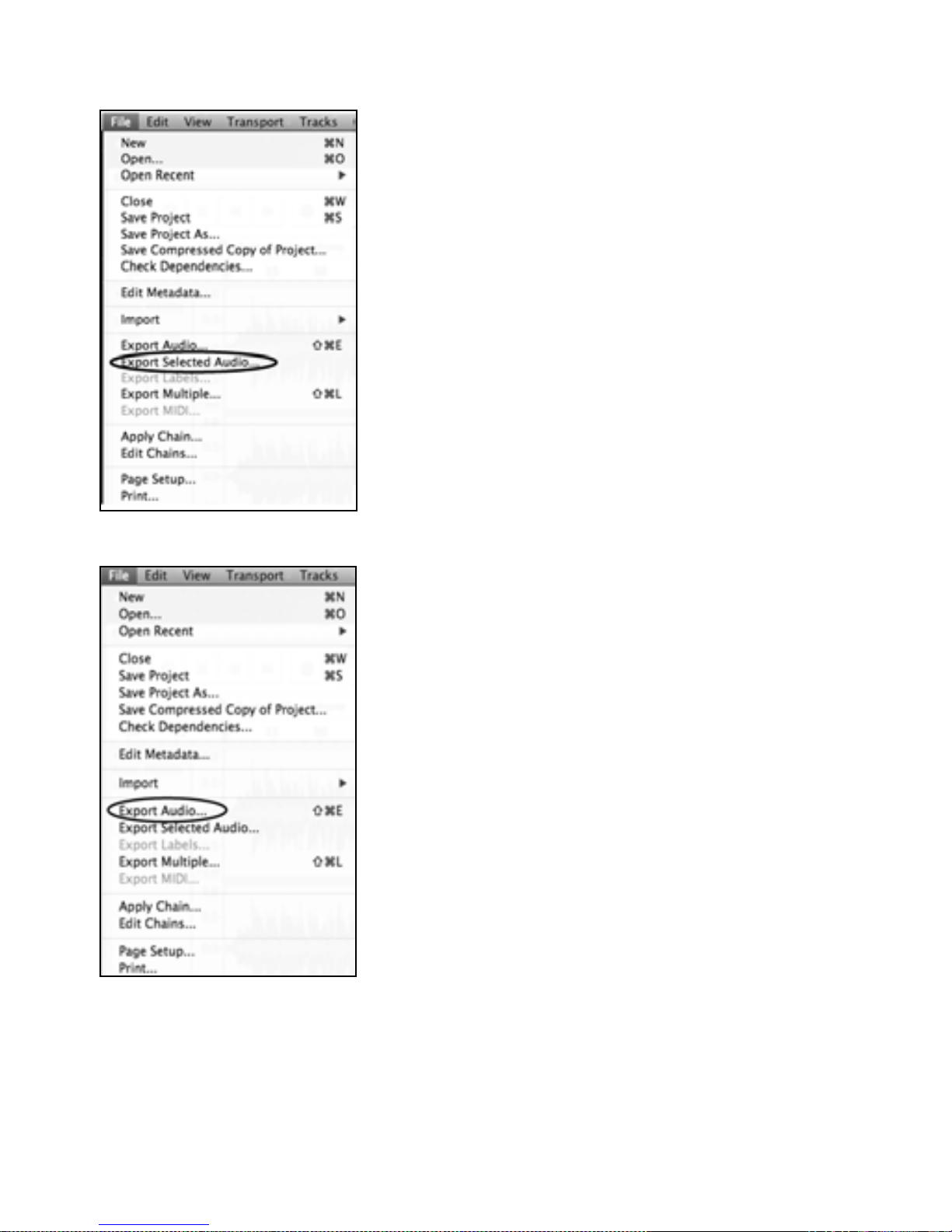

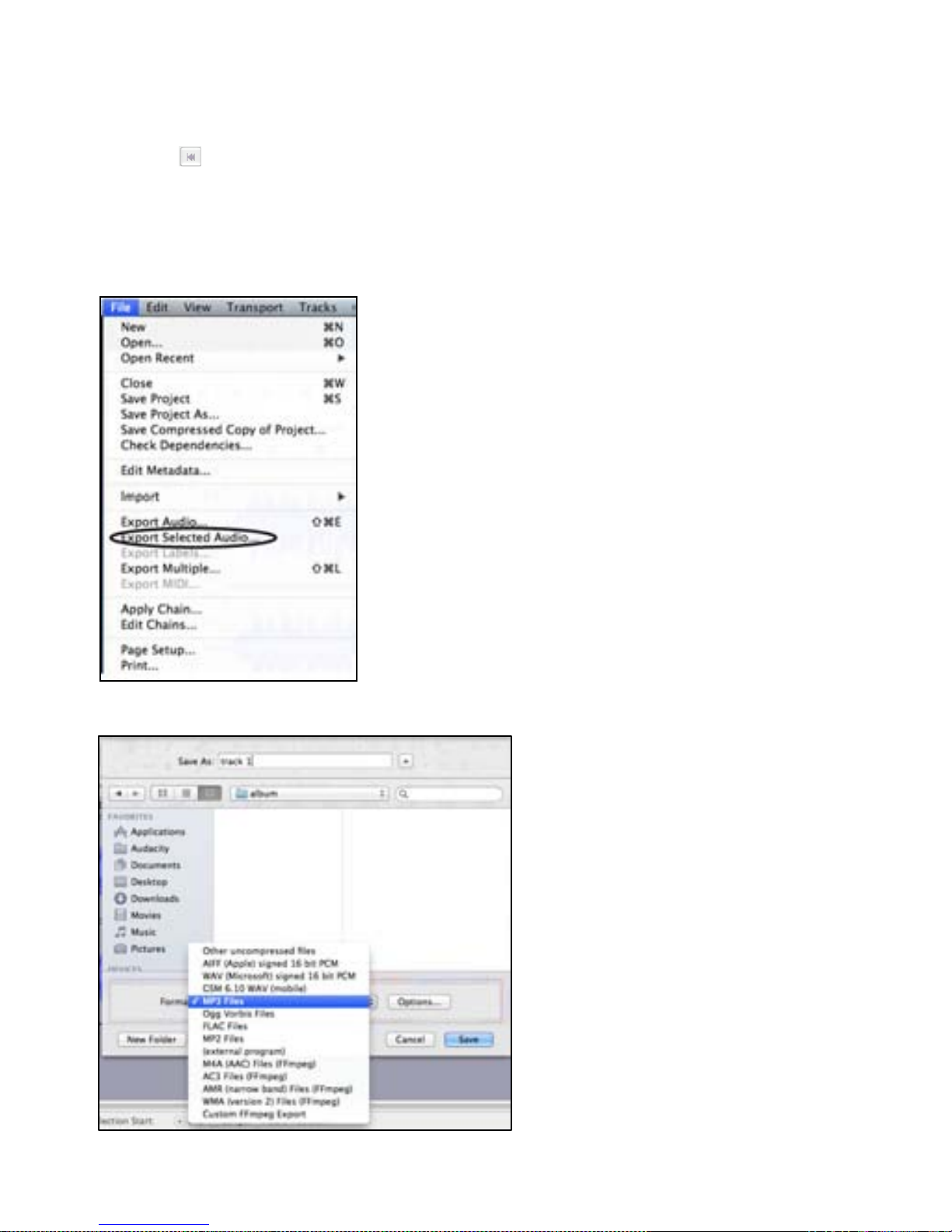

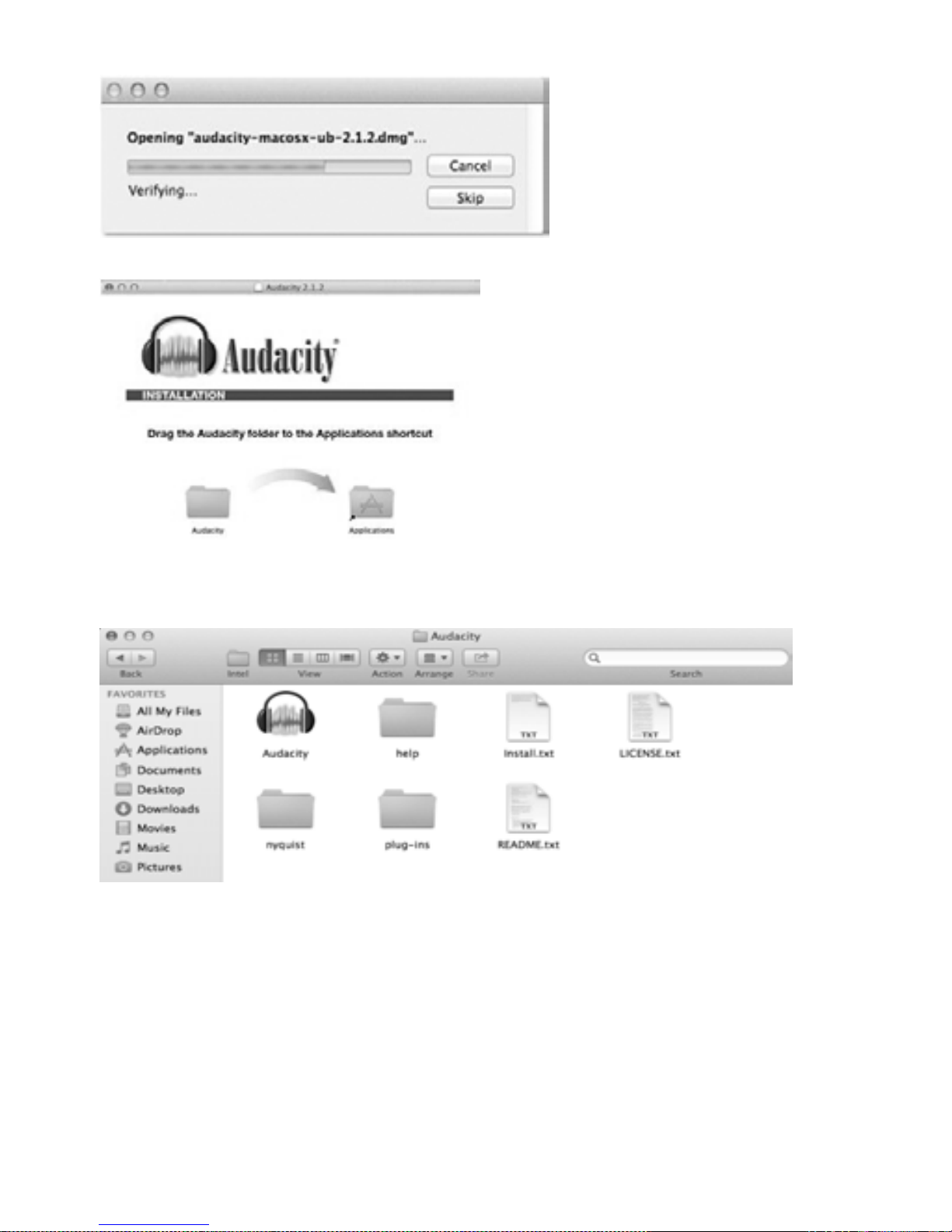

- Audacity for Mac is a Universal Binary for OS X 10. 6 and later. Audacity runs best with at least 1 GB

RAM and a 1 GHz processor (2 GB RAM/2 GHz on OS X 10.7 and later).

- For lengthy multi-track projects, we recommend a minimum of 2 GB RAM and 2 GHz processor (4 GB

RAM on OS X 10.7 and later).

- The 2.1.1 release was the final release for PPC Macs.

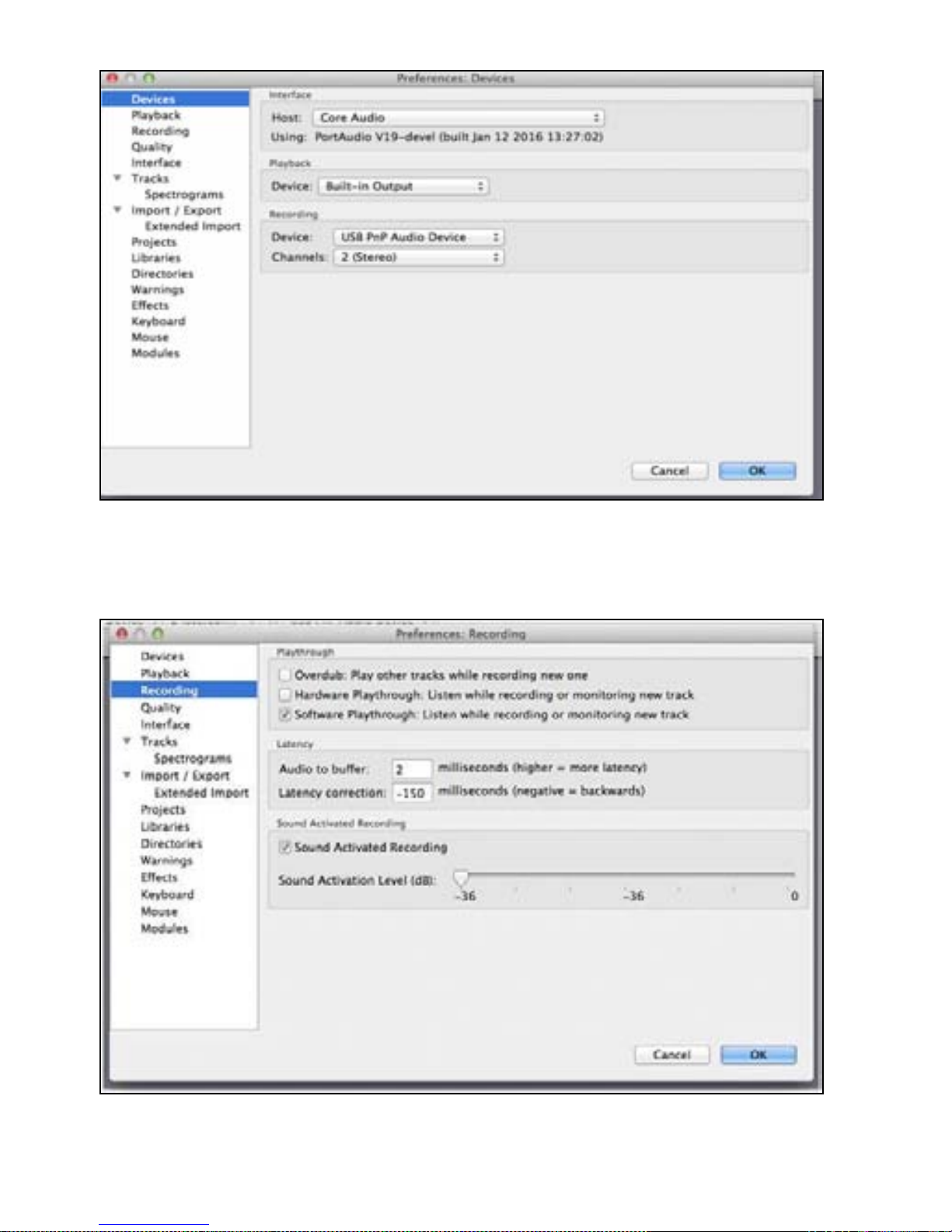

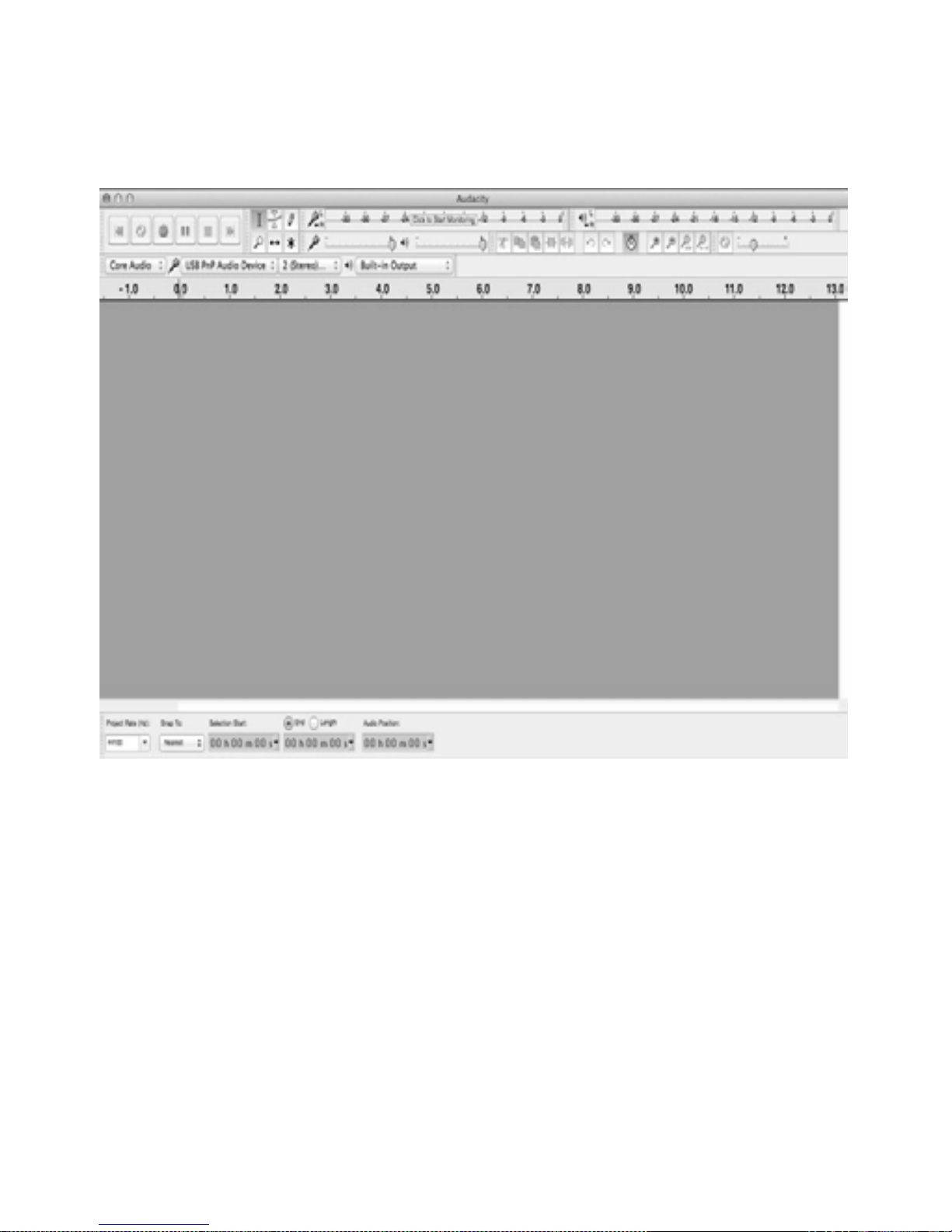

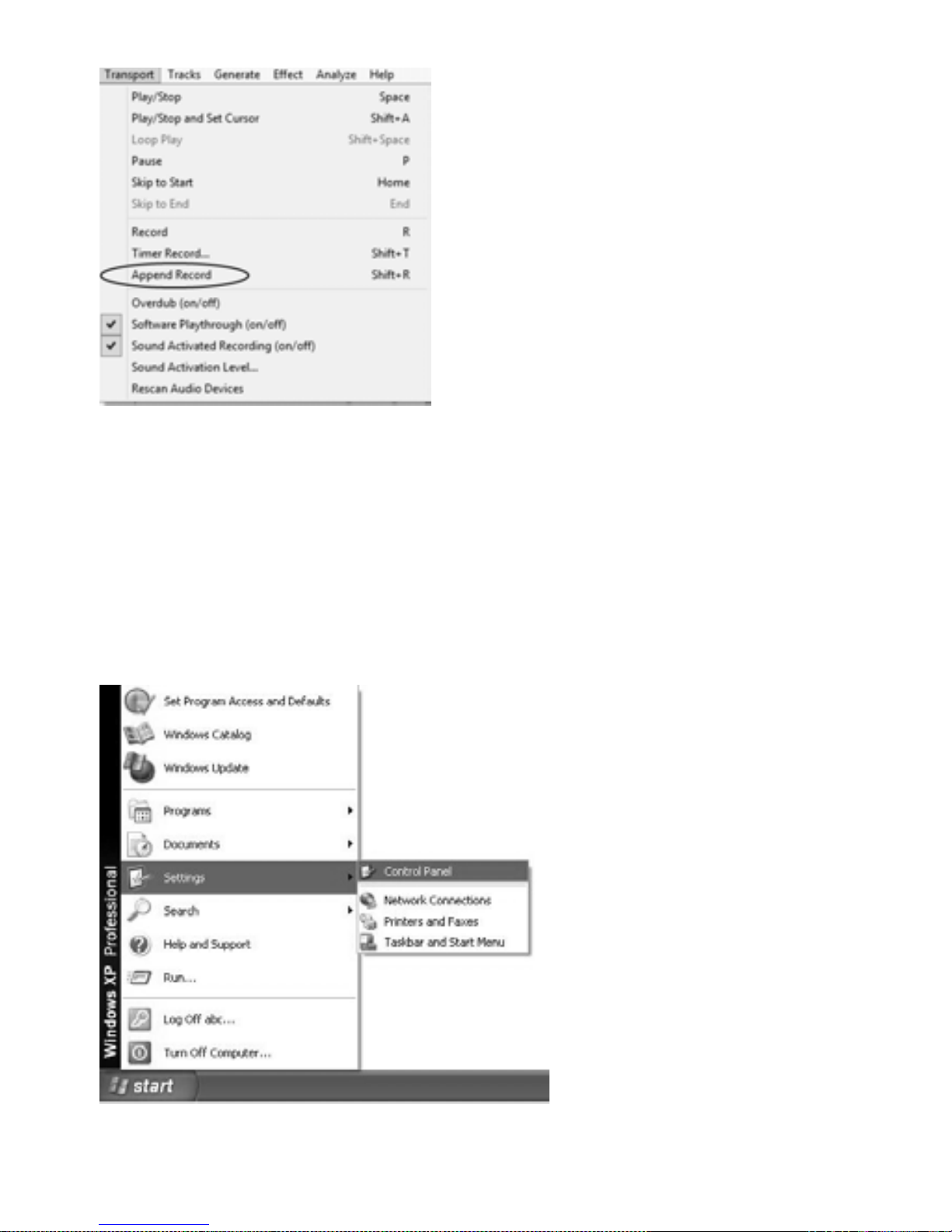

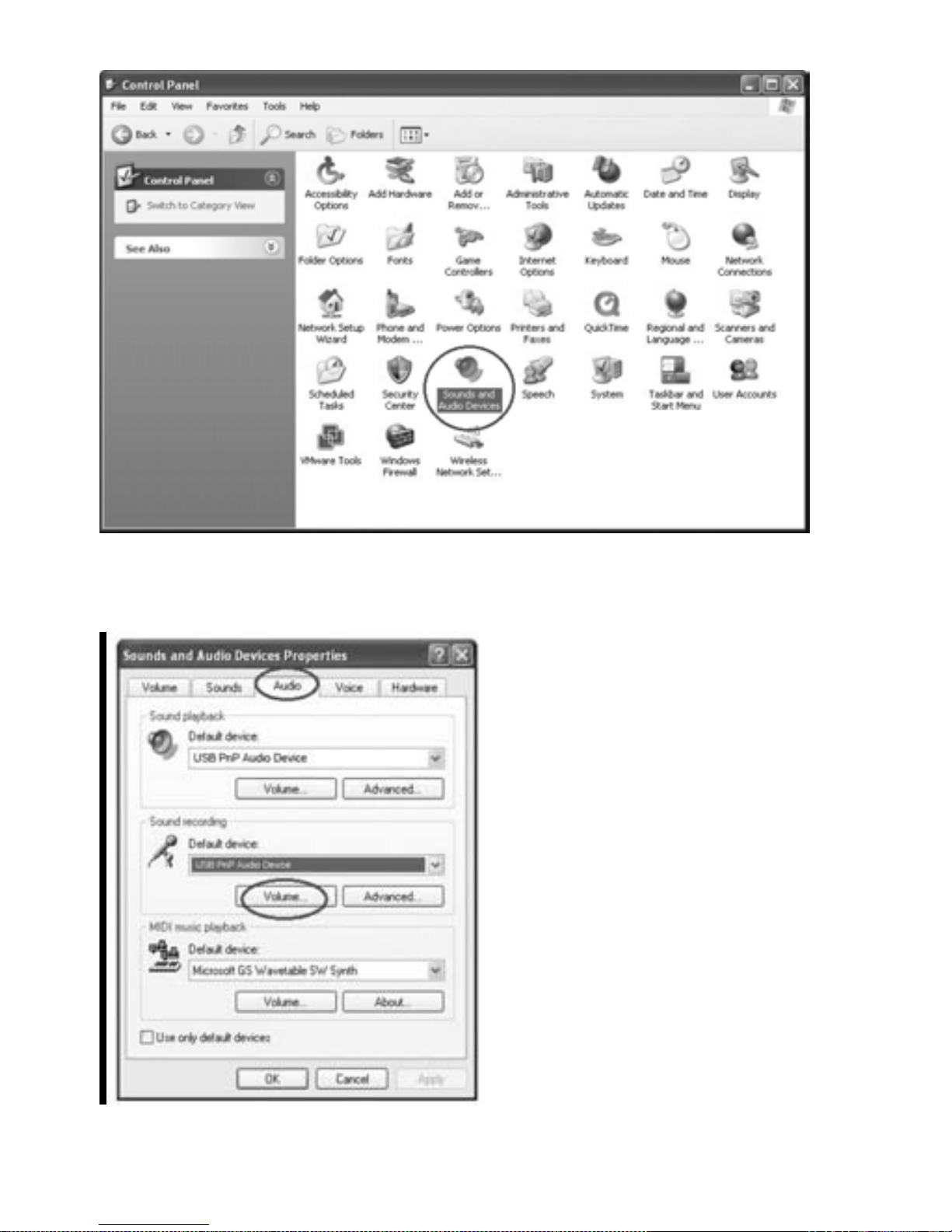

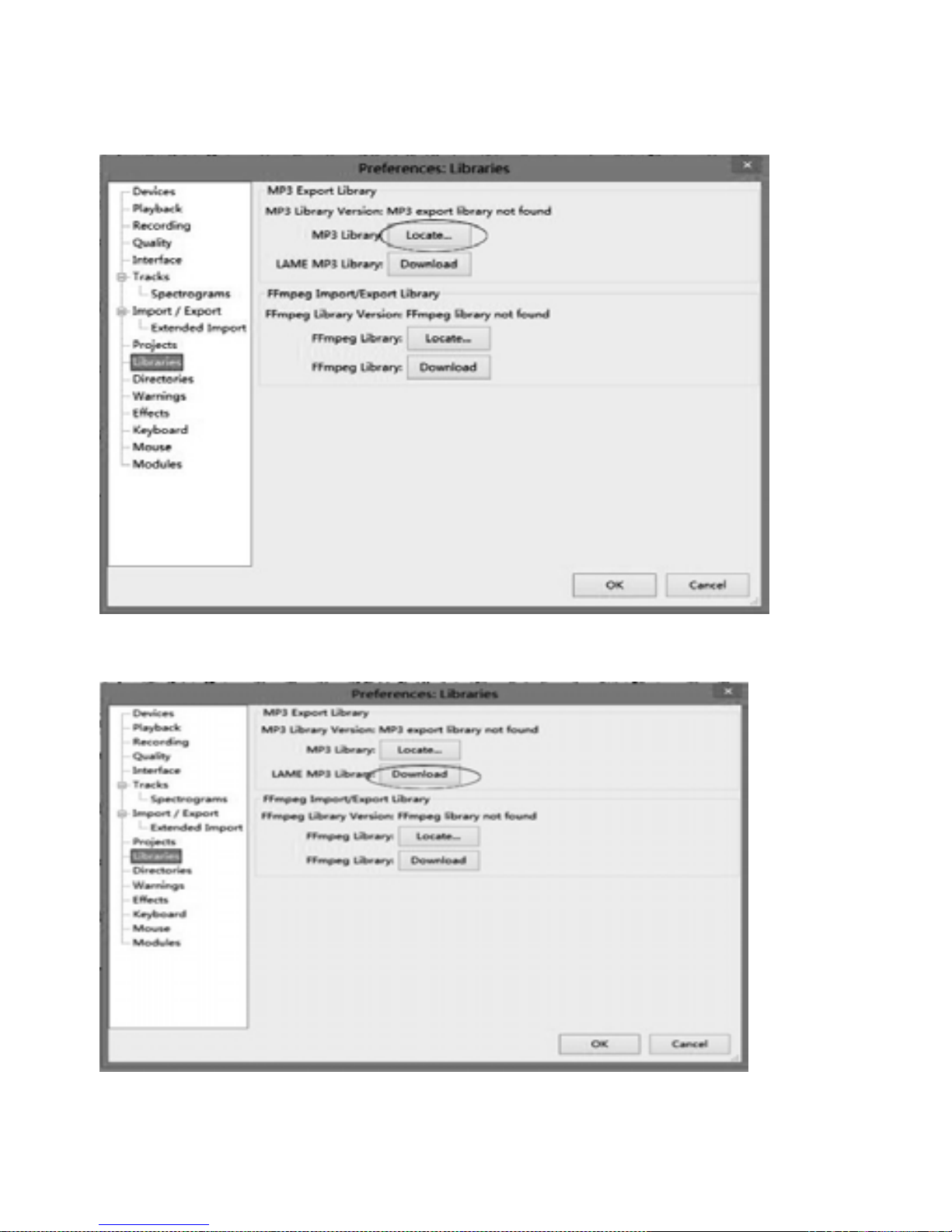

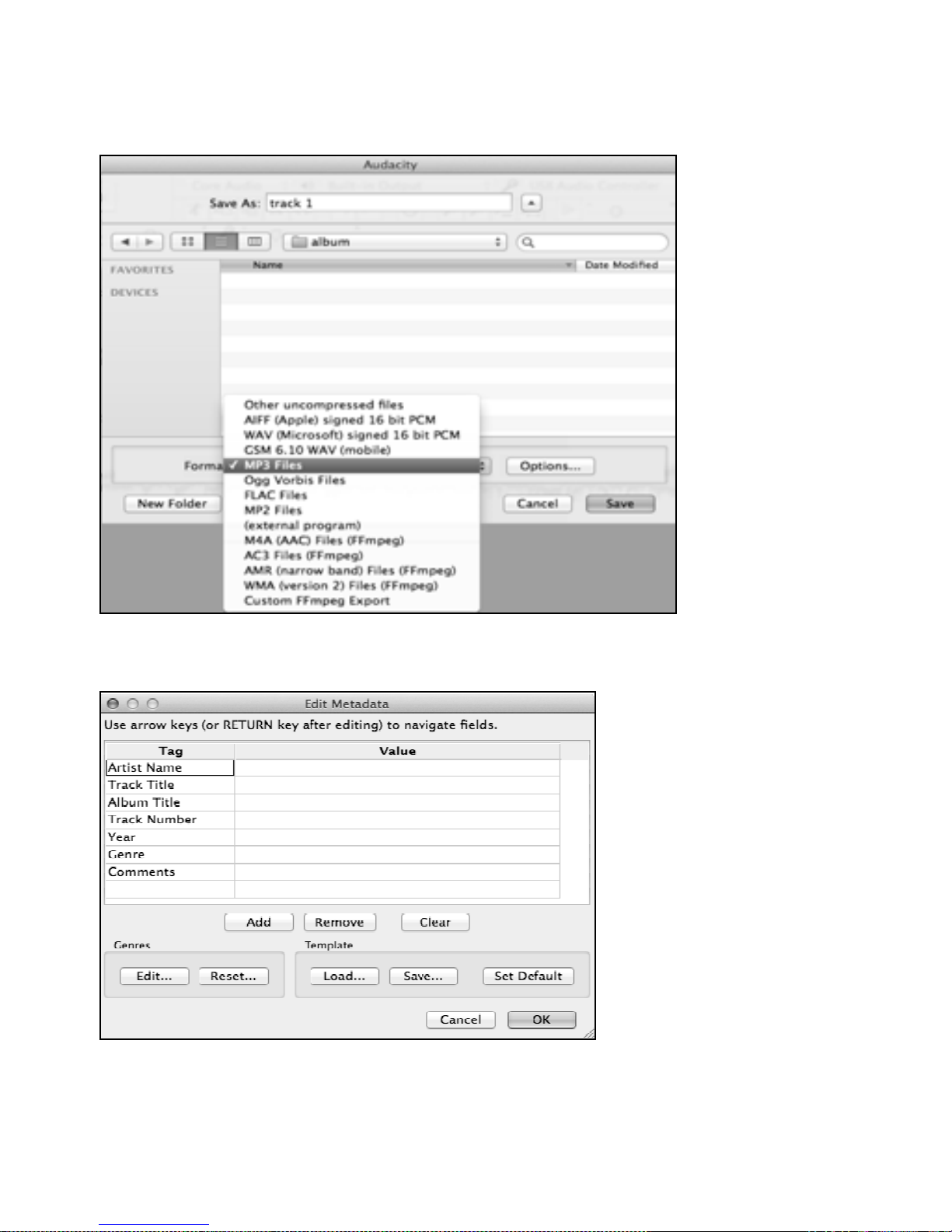

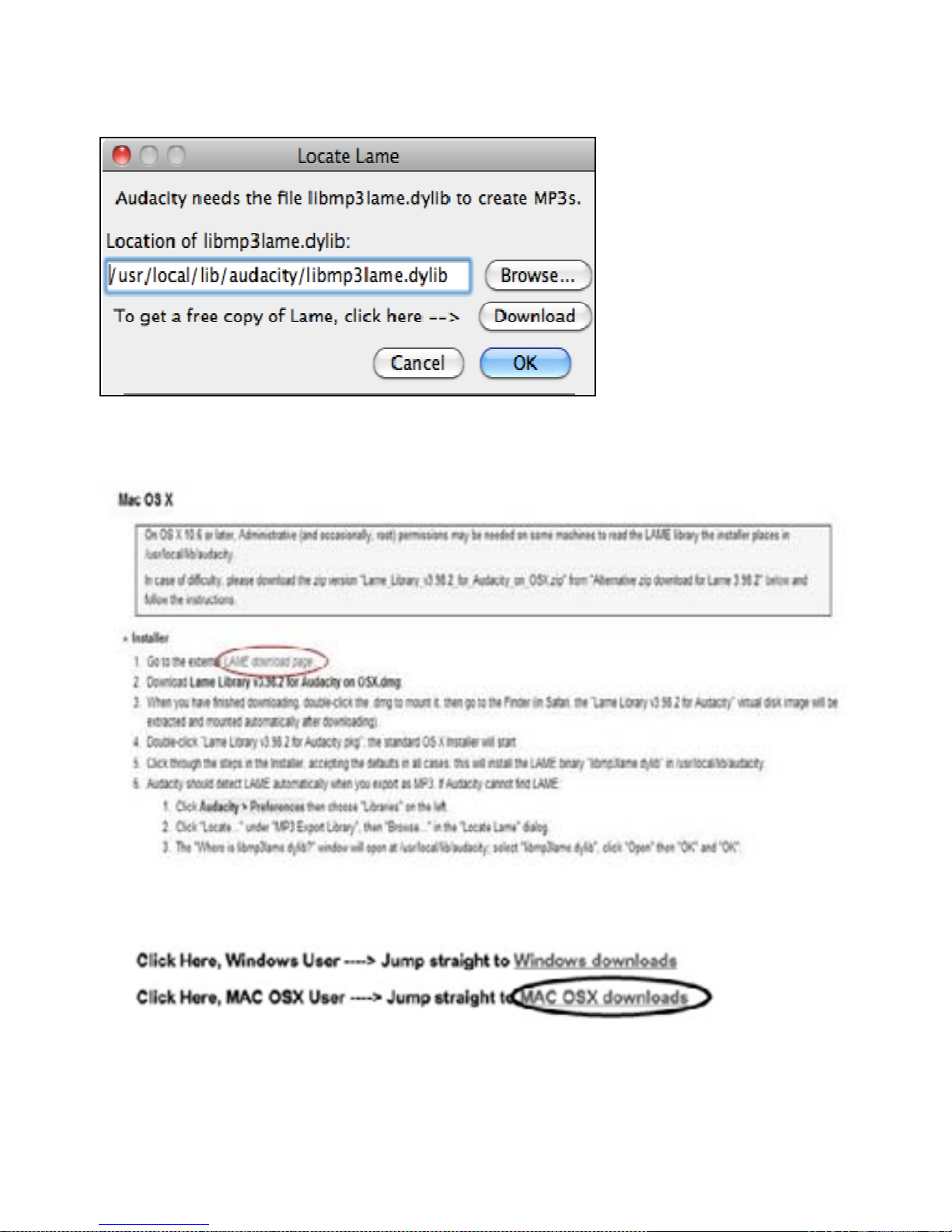

Because of the variation of different operation systems, some of the interface may not be the same as below.

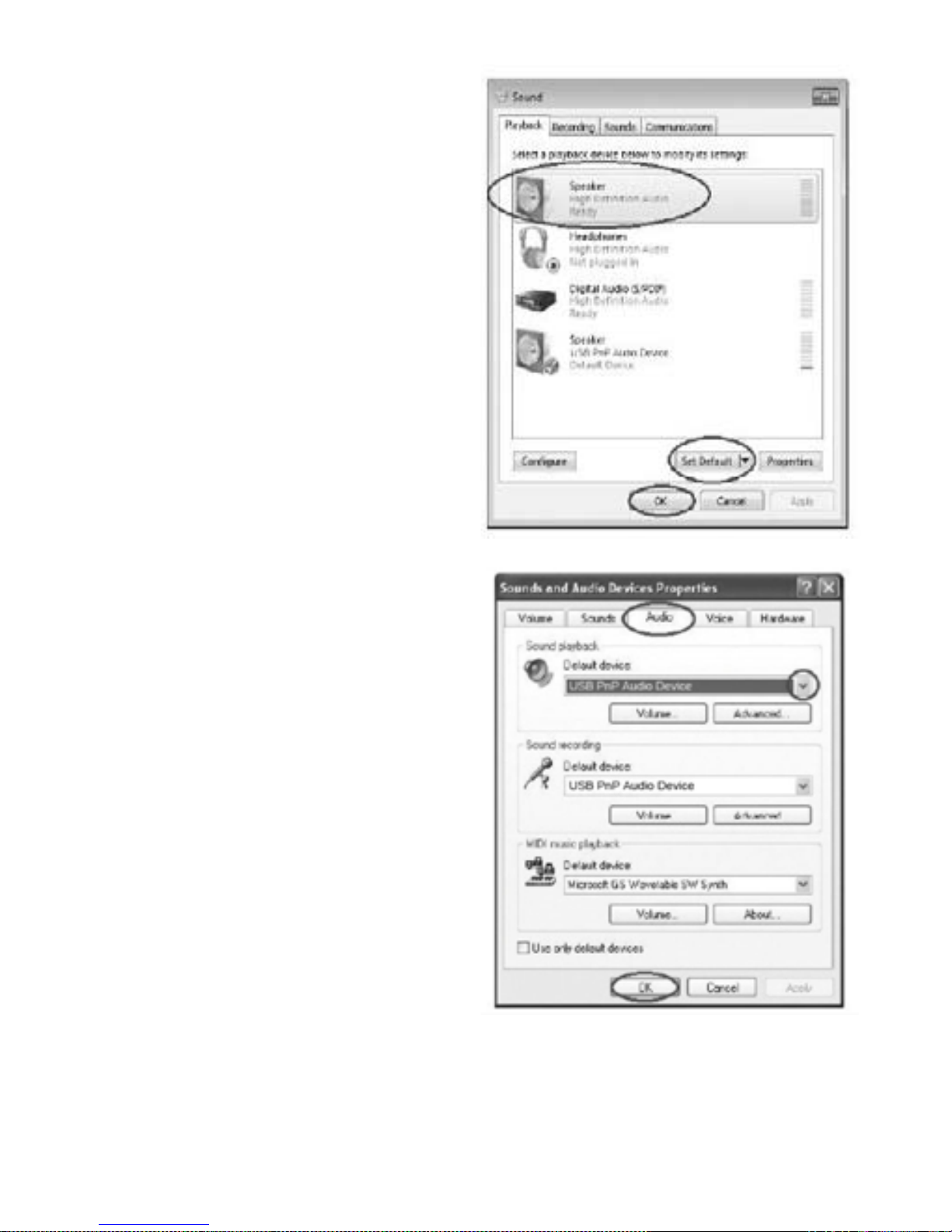

Audacity Installation and USB Connection

Connect one end of USB cable to the turntable and the other end into your computer. Then connect the AC power cord of the turntable.

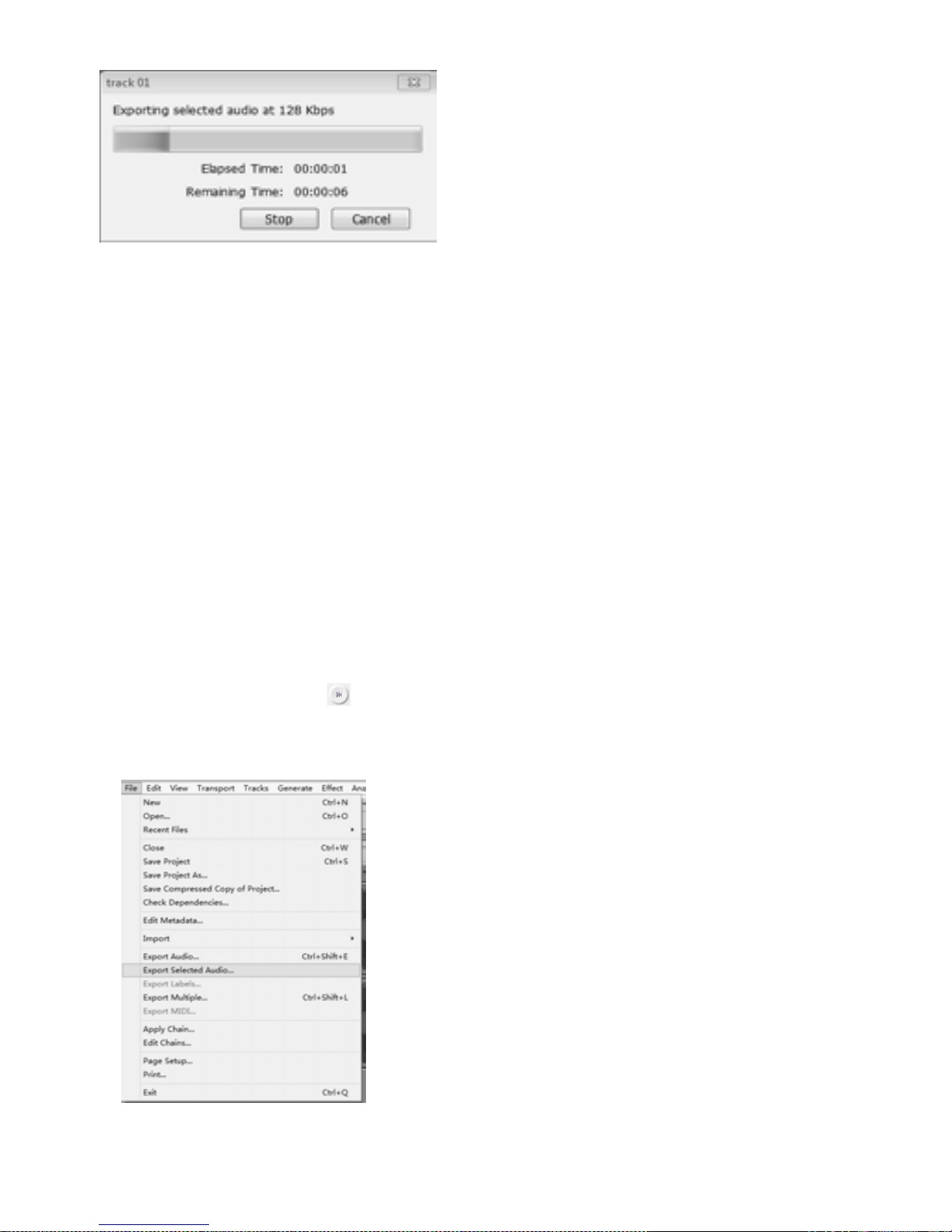

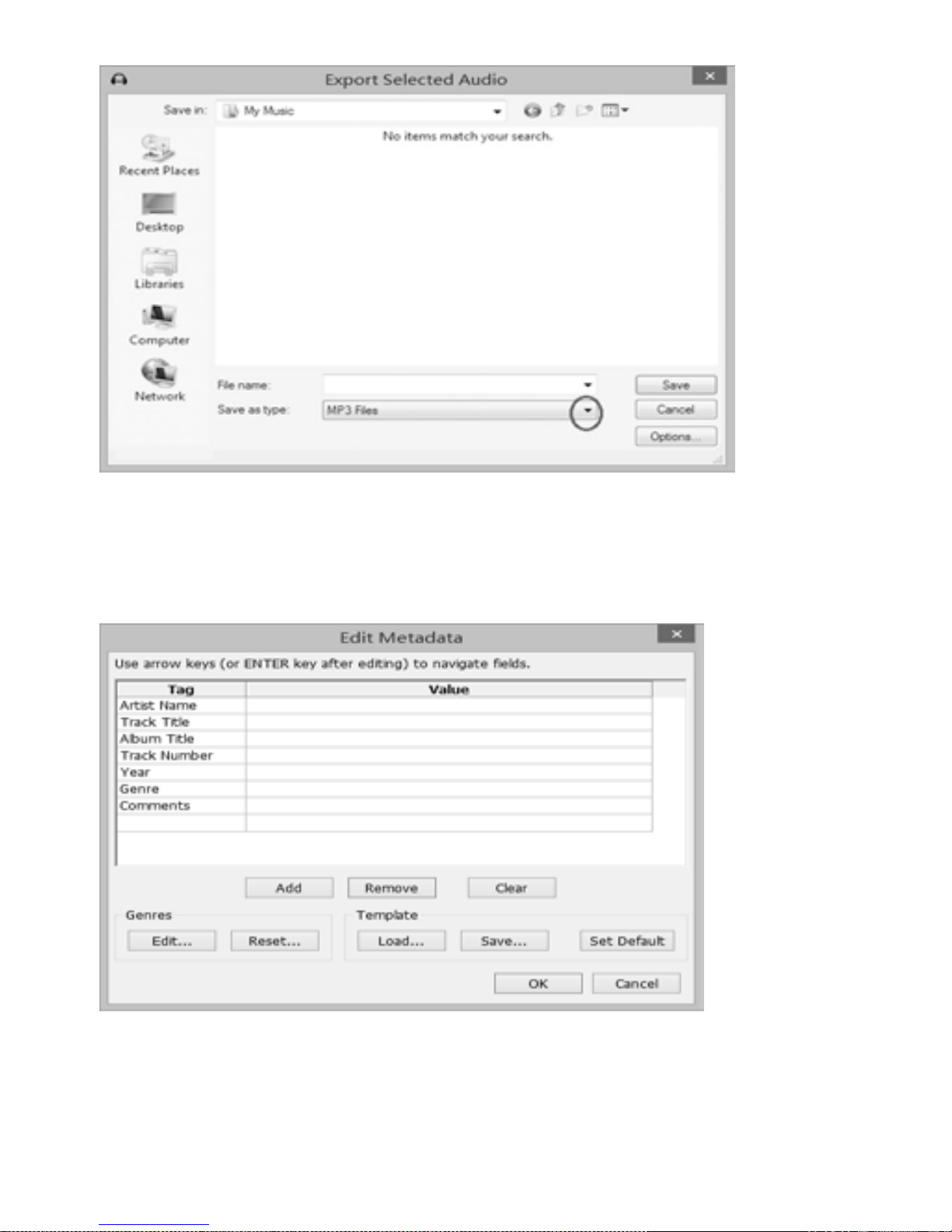

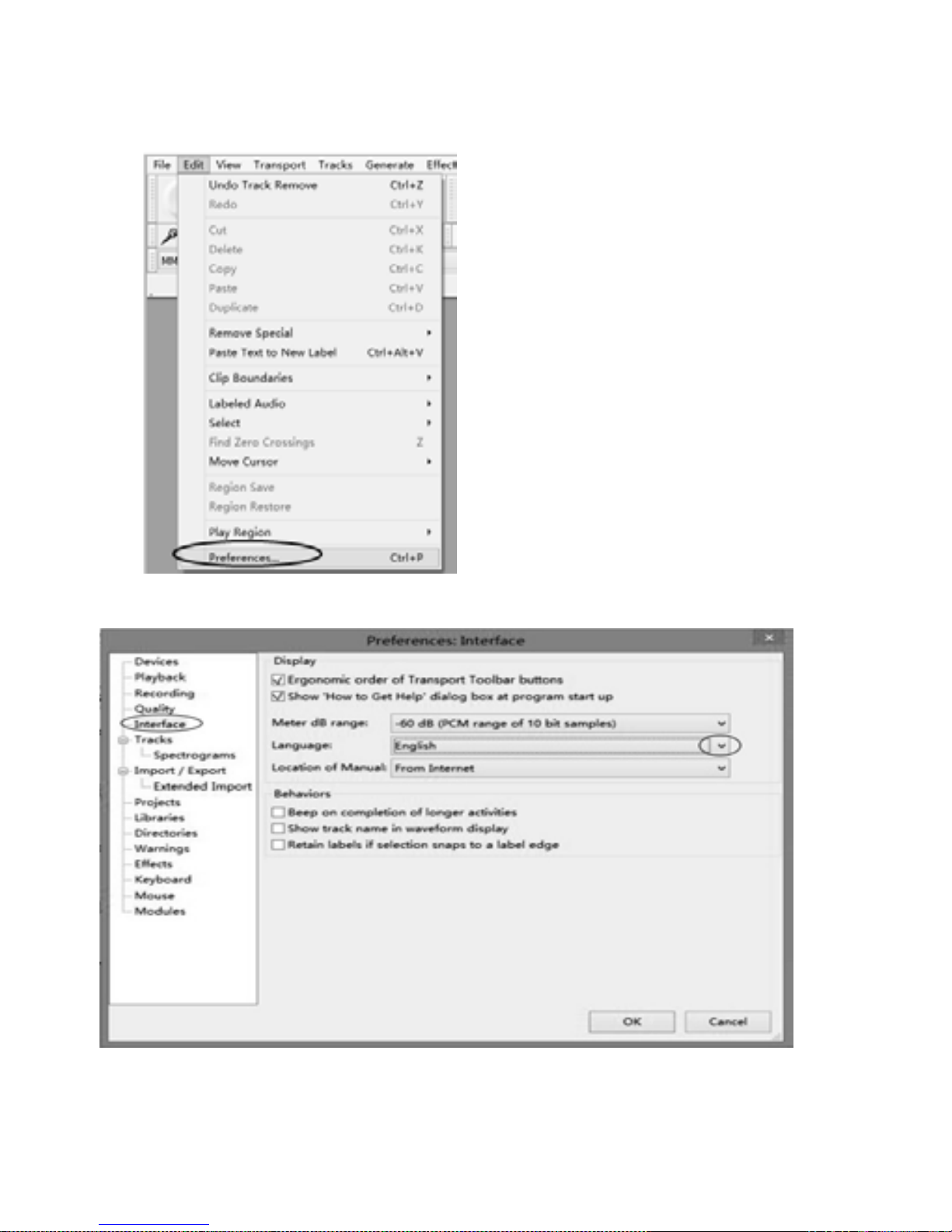

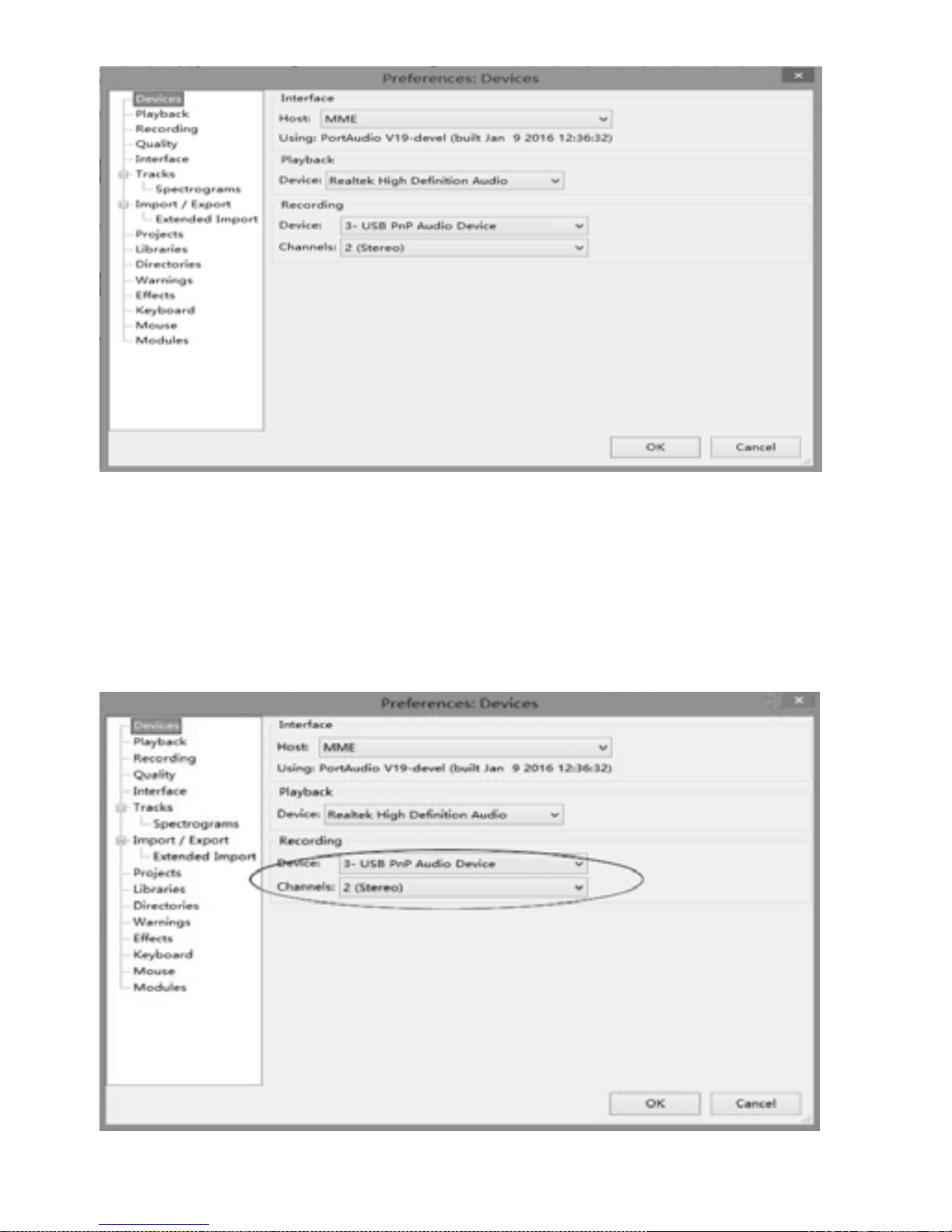

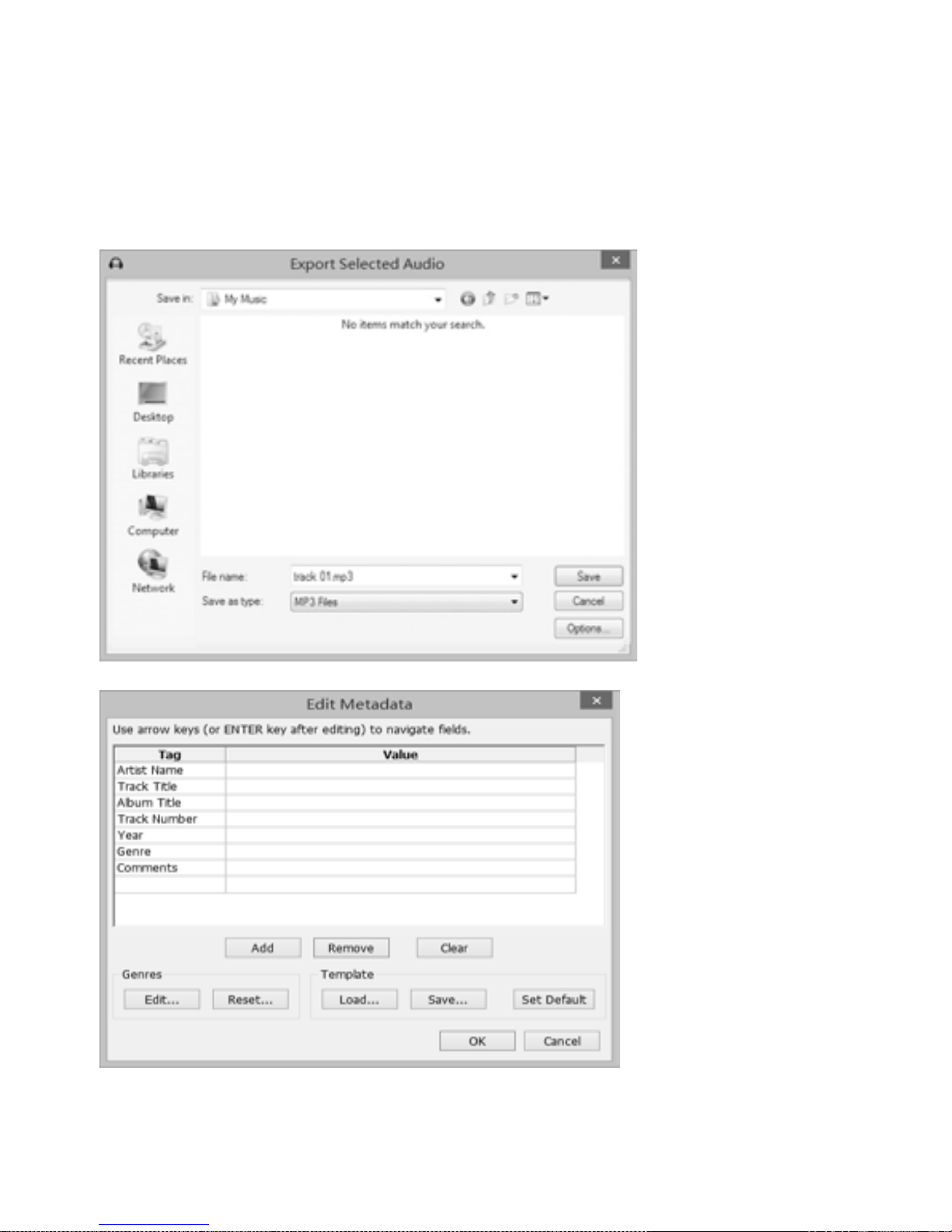

Audacity for Windows

Installing the Audacity Software

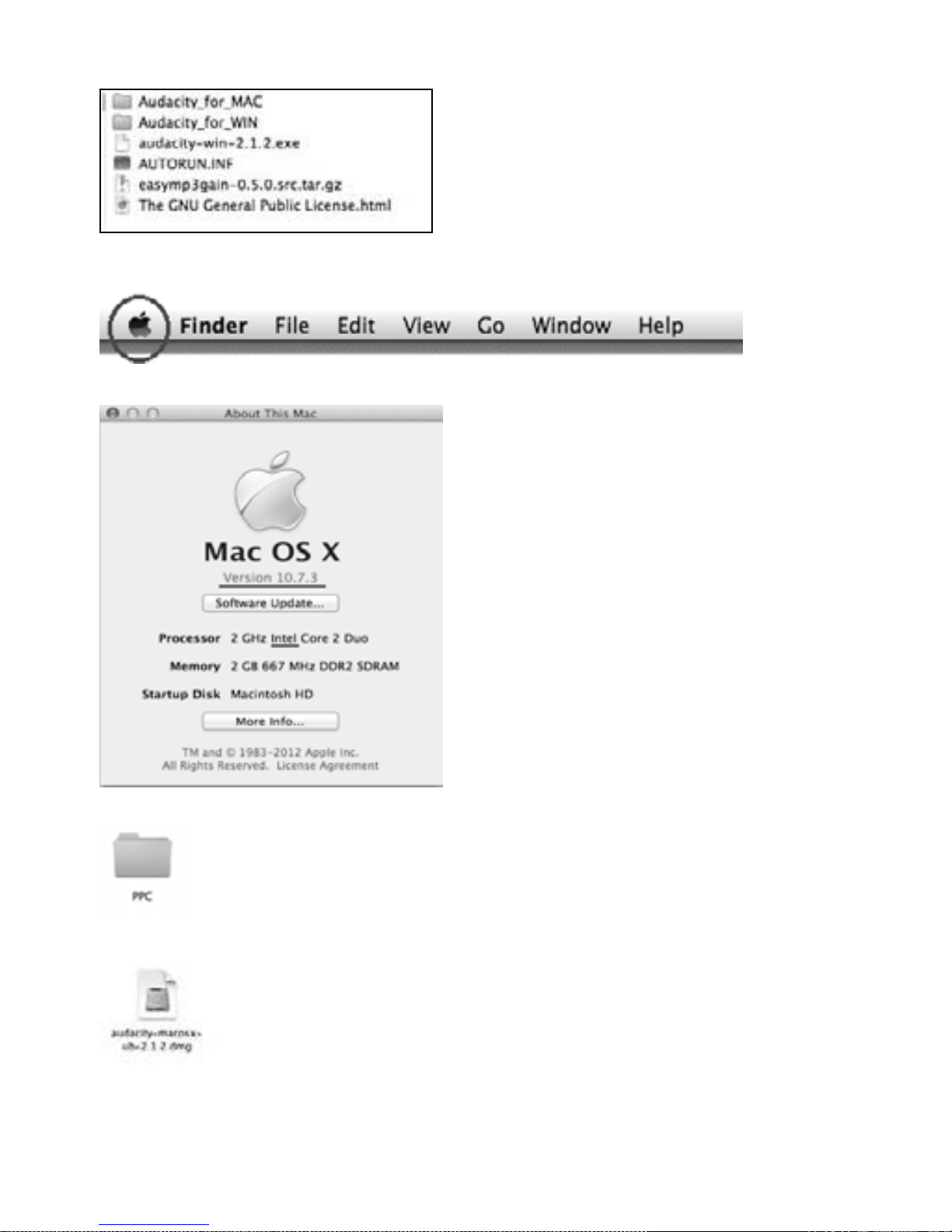

1. Please insert the Audacity software disk that comes with your unit. Go to My Computer and double

click the CD ROM Drive.

2. Double click the audacity-win-2.1.2 to install the audacity software.

3.Select the setup language first and click on OK to continue.

Note: The language choice in the Windows EXE Audacity installer only selects the language for the installer.

4.The Audacity Setup Wizard will appear. Click on Next to install the software.

5. Continue to click on the Next buttons.

6. Click on the Install button to start installation.

7. Click on Next to continue.

8. Click on Finish to complete installation.

9. You can now open the Audacity software and start recording your files.

Note：

1. Once you set up Audacity, you do not need to re-set it with each use.

2. The “Audacity-win-2.1.2.exe” (helpfile included) is available for Windows 8/ Windows 7/ Windows 10

requires appropriate drivers / Windows Vista/ Windows XP.

3. If you cannot run the exe document, please go to the website below and download the file from it

directly.

http://www.audacityteam.org/download/windows

4. Users upgrading to this release from Audacity 2.0.5 or earlier who had FFmpeg installed will see

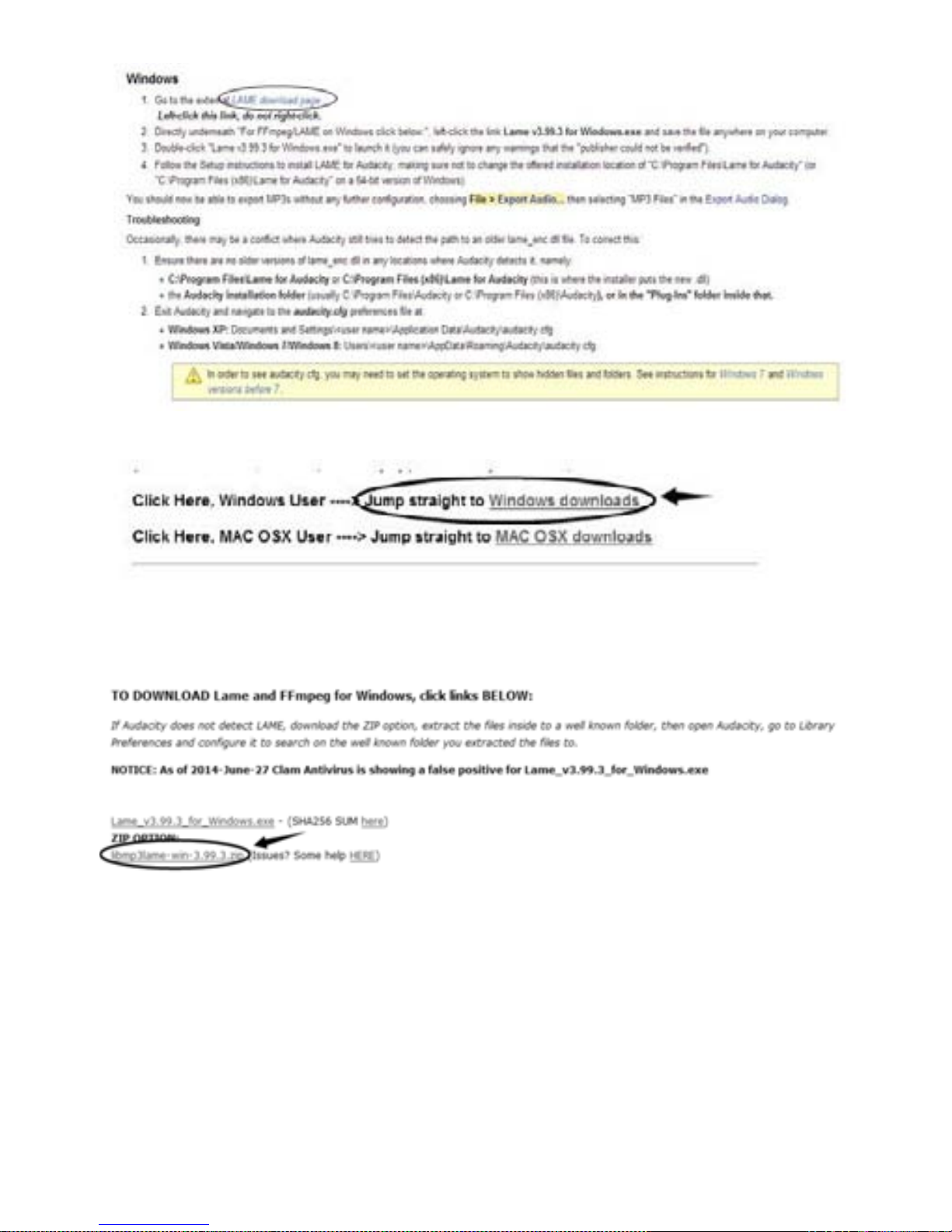

a notice that FFmpeg needs to be reconfigured. Please visit http://manual.audacityteam.org/o/man/faq_installation_and_plug_ins.html#ffdown for a link to the recommended 2.2.2 version of FFmpeg for Windows and Mac OS X, and for information for Linux.

5. The Windows installer for 2.0.x versions will replace legacy 1.2.x or any previous 2.0.x installation,

but install alongside legacy 1.3.x Beta versions. It is strongly recommended to uninstall previous Beta versions before installing current Audacity.

6. Audacity 2.1.2 requires the CPU to support the SSE2 instruction set which should be available on

any Intel hardware produced after 2001 and any AMD hardware produced after 2003. To check what SSE levels your CPU supports, you can install CPU-Z. If your hardware only supports SSE, you may download Audacity 2.0.6 from http://www.oldfoss.com/Audacity.html.

7. Users on Windows XP: You may see "Entry Point Not Found" when first launching Audacity after

installation. This error occurs if you are running less than the latest "Service Pack" of updates for your Windows XP system. Please see http://manual.audacityteam.org/o/man/faq_installation_and_plug_ins.html#entry_point for how to install the latest Service Pack and for advice about the potential security risks of running XP now that Microsoft no longer supports it.

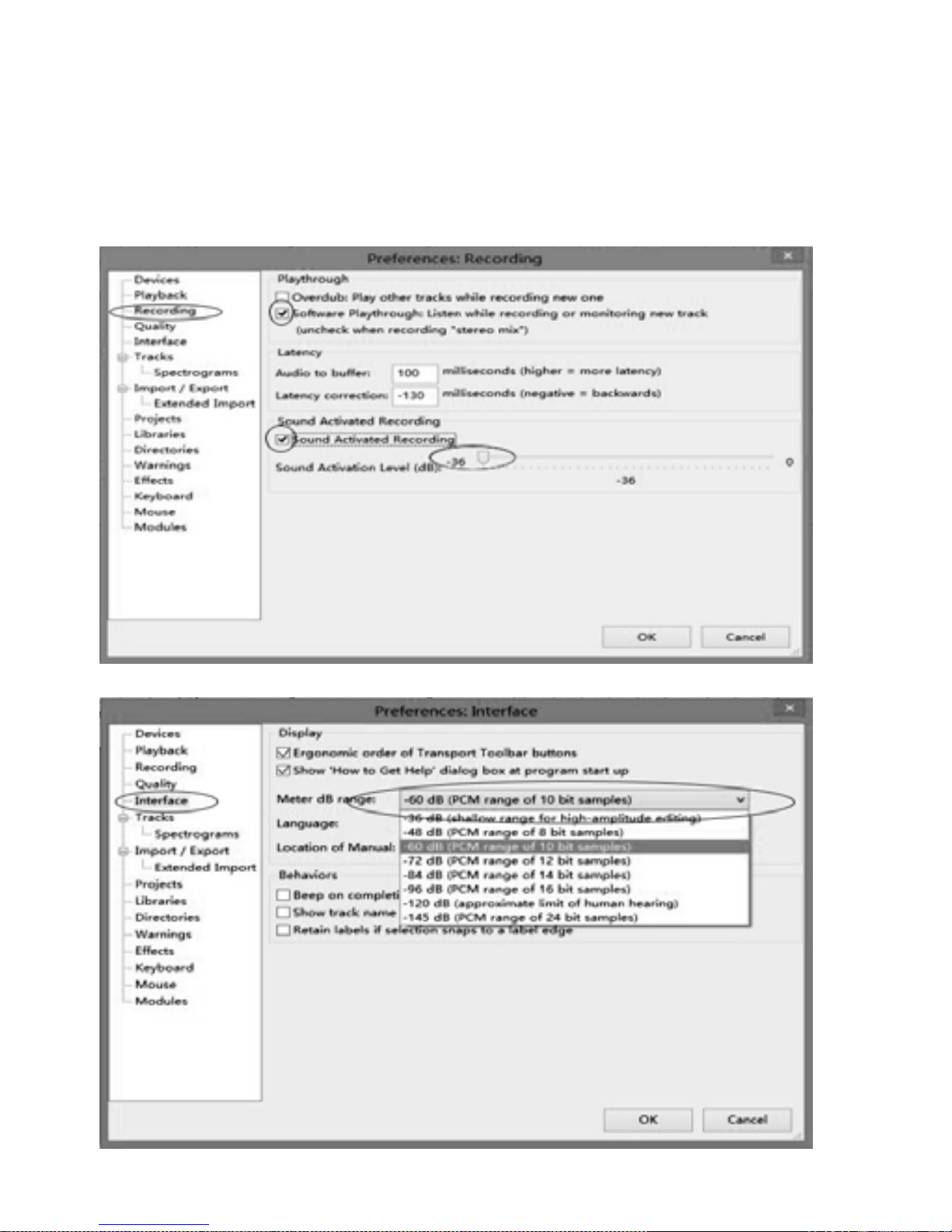

8. On first use of Audacity you need to confirm or cancel the Register Effects dialog for detected effects

before you can launch Audacity. (For additional information, please visit the website at http://manual.audacityteam.org/o/man/effects_preferences.html#register)

+ 39 hidden pages

Victrola E-69EB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
