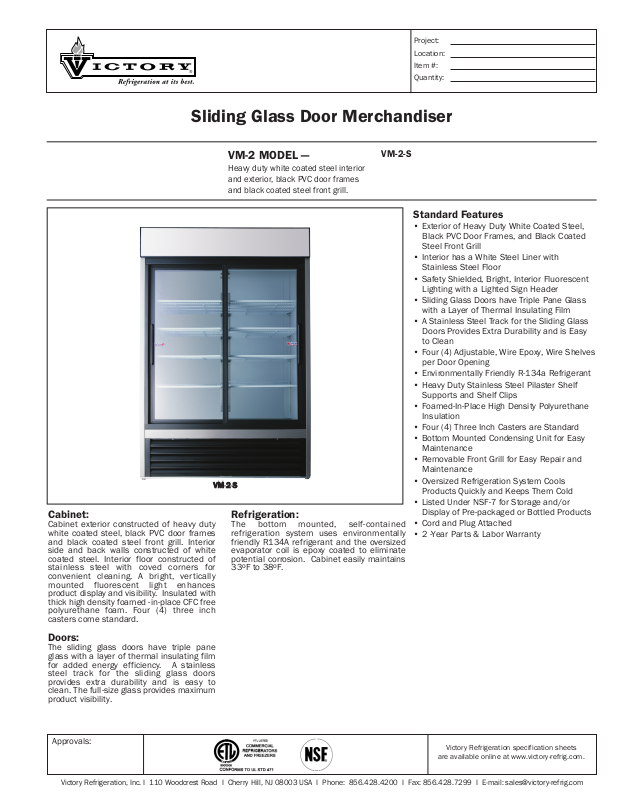

Victory Refrigeration VM-2S User Manual

Project:

Location:

Item #:

Quantity:

Sliding Glass Door Merchandiser

Cabinet:

Cabinet exterior constructed of heavy duty
white coated steel, black PVC door frames
and black coated steel front grill. Interior
side and back walls constructed of white
coated steel. Interior floor constructed of
stainless steel with coved corners for
convenient cleaning. A bright, vertically
mounted fluorescent light enhances
product display and visibility. Insulated with
thick high density foamed -in-place CFC free
polyurethane foam. Four (4) three inch
casters come standard.

VM-2 MODEL —

Heavy duty white coated steel interior
and exterior, black PVC door frames
and black coated steel front grill.

VM-22-SS

Refrigeration:

The bottom mounted, self-contained
refrigeration system uses environmentally
friendly R134A refrigerant and the oversized
evaporator coil is epoxy coated to eliminate
potential corrosion. Cabinet easily maintains

o

33

F to 38oF.

VM-2-S

Standard Features

• Exterior of Heavy Duty White Coated Steel,
Black PVC Door Frames, and Black Coated
Steel Front Grill

• Interior has a White Steel Liner with
Stainless Steel Floor

• Safety Shielded, Bright, Interior Fluorescent
Lighting with a Lighted Sign Header

• Sliding Glass Doors have Triple Pane Glass
with a Layer of Thermal Insulating Film

• A Stainless Steel Track for the Sliding Glass
Doors Provides Extra Durability and is Easy
to Clean

• Four (4) Adjustable, Wire Epoxy, Wire Shelves
per Door Opening

• Environmentally Friendly R-134a Refrigerant

• Heavy Duty Stainless Steel Pilaster Shelf
Supports and Shelf Clips

• Foamed-In-Place High Density Polyurethane
Insulation

• Four (4) Three Inch Casters are Standard

• Bottom Mounted Condensing Unit for Easy
Maintenance

• Removable Front Grill for Easy Repair and
Maintenance

• Oversized Refrigeration System Cools
Products Quickly and Keeps Them Cold

• Listed Under NSF-7 for Storage and/or
Display of Pre-packaged or Bottled Products

• Cord and Plug Attached

• 2 -Year Parts & Labor Warranty

Doors:

The sliding glass doors have triple pane
glass with a layer of thermal insulating film
for added energy efficiency. A stainless
steel track for the sliding glass doors
provides extra durability and is easy to
clean. The full-size glass provides maximum
product visibility.

Approvals:

Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: [phone] I Fax: [phone] I E-mail: [e-mail]

Victory Refrigeration specification sheets

are available online at www.victory-refrig.com.

Victory RRefrigeration, IInc. Glass DDoor MMerchandiser

CHARACTERISTICS TWO SECTION

Reach-In

1

Width, Overall 53
Depth, Overall 31
Height, Overall * 82

4

/

”

3

4

/

”

1

2

/

”
Depth, Open Door 90° N/A
Clear Door Opening, Width 20”
Clear Full Door Opening, Height 50”
Capacity Net (cubic feet) 48
No. of Full Doors 2
No. of Shelves 8
Shelf Area (square feet) 3

7

16

/

”
Cabinet Voltage 115/60/1
Feed Wires 2
Condensing Unit Voltage 115/60/1
Condensing Unit Size (HP)

1

2

/

Total Amperes 10.4
Plug, NEMA 5-15P

* Height includes 4" for caster

Crated dim. & wts.

Ht. Width Depth Cu. Ft. Lbs.

Two Section 83.5” 54.3” 32.3” 95 503

Dimensional tolerance ± 1/4” Metric dimensions (MM)

NOTE: If cabinet is located directly against
wall and/or under low ceiling, a minimum
clearance of 2” is required.

We reserve the right to change
specifications and product design
without notice. Such revisions do not
entitle the buyer to corresponding
changes, improvements, additions or
replacements for previously purchased
equipment.

Continuous product development may necessitate specification changes and design without notice.

Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
