Victory Refrigeration VF-2, VR-1, VR-2, VR-3, VR-2-G User Manual

Installation, Operation and Troubleshooting Instructions

Manual Part No. 50853202

Rev: 01

Print Date: 12/26/02

110 Woodcrest Road, Cherry Hill, NJ 08003

Phone: [phone] Fax: (856) 428 - 7299 Website: www.victory-refrig.com

E-Mail: [e-mail] ● [e-mail] ● [e-mail]

For Models: VR-1, VR-2, VR-3, VR-1-G, VR-2-G, VF-1, VF-2, VF-3

V-Series Reach-In Refrigerators & Freezers

RReeffrriiggeerraattiioonn aatt ii ttss bbeesstt

PARTOF AGA FOODSERVICE GROUP

Thank you for purchasing a Victory Refrigeration V-Series Refrigerator or Freezer! This
unit has passed our strict Quality Control Inspection and meets the high standards set
by Victory Refrigeration. You have made a quality investment that with proper
maintenance will give you years of service.

Please read the following installation and maintenance instructions before installing or
using your unit. If you have any questions, please call our Customer Service
Department at [phone].

IMPORTANT INFORMATION - PLEASE READ

●●

Please read these instructions carefully before installing or using. If recommended
procedures are not followed, warranty claims will be denied.

●●

Your Warranty Registration information is located on the next page of this manual. Please
complete the card and submit it to Victory Refrigeration within 10 days of installation.
Failure to properly register equipment can void the warranty.

●●

Victory Refrigeration reserves the right to change specifications and product design
without notice. Such revisions do not entitle the buyer to corresponding
changes, improvements, additions or replacements for previously purchased equipment.

●●

A detailed Owners Manual with a troubleshooting guide, parts lists and additional
information can be ordered from the factory or may be downloaded free from the website at
www.victory-refrig.com.

THANK YOU

Warranty

(Continental USA Only)

The Seller warrants to the original purchaser, equipment manufactured by Seller to be free from defects in material and
workmanship for which it is responsible. The Seller's obligation under this warranty shall be limited to replacing or
repairing at Seller's option, without charge, F.O.B. Sellers factory, any part found to be defective and any labor and
material expense incurred by Seller in repairing or replacing such part, such warranty to be limited to a period of one
year from date of purchase or thirteen months from date of shipment from Seller's factory, whichever is earlier, provided
terms of payment have been fully met. All labor shall be performed during regular working hours. Overtime premium
charges will be at Buyer's expense.

Proof of purchase must be supplied to Seller to validate warranty. This warranty is valid only if equipment is properly
installed, started-up and inspected by the dealer or authorized Victory Service agent.

Removal or alteration of the serial/data plate from any equipment shall be deemed to release Seller from all warranty
obligations or any other obligations, expressed or implied.

This warranty does not cover Thermostat or Defrost Timer calibration and/or adjustment, freight damage, normal
maintenance items outlined in Owner's Manual, adjustment of door mechanisms or replacement of light bulbs, fuses
or batteries.

Any repairs or replacement of defective parts shall be performed by Seller's authorized service personnel. Seller shall
not be responsible for any costs incurred if the work is performed by other than Seller's authorized service personnel.
Reimbursement claims for part(s) or labor service costs must be made in writing. Model, cabinet serial numbers and
installation location must be shown on the claim. A receipted bill from the servicing agency must accompany the claim,
together with full details of the service problems, diagnosis and work performed. Victory reserves sole discretion
whether further documentation on a claim is to be submitted.

Seller shall not be liable for consequential damages of any kind which occur during the course of installation of
equipment, or which result from the use or misuse by Buyer, its employees or others of the equipment supplied
hereunder, and Buyer's sole and exclusive remedy against Seller for any breach of the foregoing warranty or otherwise
shall be for the repair or replacement of the equipment or parts thereof affected by such breach.

The foregoing warranty shall be valid and binding upon Seller if and only if Buyer loads, operates and maintains the
equipment supplied hereunder in accordance with the instruction manual provided to Buyer. Seller does not guarantee
the process of manufacture by Buyer or the quality of product to be produced by the equipment supplied hereunder
and Seller shall not be liable for any prospective or lost product or profits of Buyer.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES WHATSOEVER. SPECIFICALLY THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY
OR OF FITNESS FOR A PARTICULAR PURPOSE.

The foregoing shall be Seller's sole and exclusive obligation and Buyer's sole and exclusive remedy for any action,
whether in breach of contract or negligence. In no event shall Seller be liable for a sum in excess of the purchase price
of the item.

ORIGINAL DATE OF INSTALLATION __________________________________________________________________

INSTALLATION COMPANY NAME ____________________________________________________________________

STREET_______________________________ CITY _____________________ STATE______ ZIP CODE___________

DISTRIBUTOR’S NAME_____________________________________________________________________________

STREET_______________________________ CITY _____________________ STATE______ ZIP CODE___________

You may register online at www.victory-refrig.com, fax this completed page to [phone], or copy and mail form below to Victory.

*NOTE: The following mail-in form or online registration must be filled out and forwarded to Victory by the installer or customer within 10 days

after start-up. Failure to do this will invalidate the warranties. Retain this information for your records.

110 WOODCREST ROAD
CHERRY HILL, NJ 08003-3648

TEL: [phone]

● FAX: [phone]

Cabinet Model No.______________________

Cabinet Serial No._________________

(Data plate information located inside cooler on
the upper left wall)

WARRANTIES NOT VALID UNLESS REGISTERED AT
FACTORY WITHIN 10 DAYS AFTER START-UP DATE.

Proper installation is the first step to operation. We recommend that your refrigerator or freezer be installed by
an authorized Victory Certified Installer.

Receiving Shipment

All units are performance tested and thoroughly inspected prior to shipment. Upon leaving the factory, all units are in
perfect condition. Upon receipt, examine the exterior of the shipment packaging for any signs of rough handling. If the
cabinet is damaged, it should be noted on the delivery slip or bill of lading and signed. Aclaim must be filed immediately
against the carrier indicating the extent and estimated cost of damage incurred.

Uncrating

T

ools Needed : 3/4” Box Wrench ●●Adjustable Wrench ●●Level

WARNING: Never lay your refrigerator or freezer down on either its back, front or sides. This allows compressor oil into
the refrigerant lines which can damage the compressor at start-up. If the unit is laid down, it must be set upright for a
minimum of 12 hours before starting the compressor . Failure to adhere to the above recommendation will void the warranty.

1. Split plastic wrap along one of the cardboard posts. Remove and discard all packaging material, tape and interior
components.

2. Move cabinet as close to final location as possible before removing skid.

3. Remove the shipping skid by tipping the cabinet forward. Remove the shipping bolts with 3/4” box wrench while

the cabinet is held in one direction. Repeat this procedure while the cabinet is held in the opposite direction.

4. Use extreme caution when removing the wooden skid, especially when the last bolt is removed. If not properly
blocked, the skid will fall to the floor.

Locating Your New Storage Refrigerator or Freezer

Consider the following when selecting a location for your refrigerator or freezer:

1. Clearance - There must be a minimum clearance of 10” between the top of the refrigerator or freezer and the ceiling.

2. Floor Load - The floor on which the cabinet will rest must be free of vibration and suitably strong enough to support

the combined weights of the cabinet plus the maximum product load.

3. Ventilation - The air cooled, self-contained refrigerator or freezer requires a sufficient amount of cool, clean air. Avoid
placing the refrigerator near heat generating equipment such as ovens, ranges, heaters, fryers, steam kettles, etc., and
out of direct sunlight. Avoid locating the self-contained refrigerator in an unheated room, or where the room
temperature may be below 55°F.

Installing Casters or Legs

Refrigerators and freezers are shipped with 1/2” single stud mounted legs or casters.

1. Casters / legs must be screwed by hand into the threaded holes located on the case bottom (*Note: Once the caster
cannot be turned, take a 3/4” box wrench and tighten the nut in between the mounting plate and wheel of the caster
until it is snug).

2. Tilt the cabinet in one direction approximately eight inches and block it securely with several pieces of 2 x 4 lumber or
other suitable material.

3. Screw in the two left or right casters /legs.

4. Repeat this procedure to install the other casters/legs.

Leveling

Cabinets must be leveled when installed. Failure to level your cabinet may result in doors not sealing, closing properly or
condensate water not draining properly.

Casters - Cabinets with casters can be leveled by placing large flat washers in between 1/2” stud and holes located

on the case bottom.

Legs - Rotate the foot of the leg with an adjustable wrench to achieve desired height for leveling.

1

INSTALLATION INSTRUCTIONS

Cabinet Cleaning

Prior to placing your new refrigerator and all shelves, pans and slides into operation, it is advisable that the interior be
washed thoroughly with a mild detergent and water solution. Rinse with clear water and a sanitizing solution. Allow cabinet
to air dry.

Installing Shelves

All cabinets with shelves are supplied with pilasters and shelf clip supports. Shelves are easily installed by inserting the
shelf support clips into the pilasters so they fit tightly. Align the shelf so the smaller fill wires run from front to rear and rest
the shelf on the clips.

Electric Supply
Wiring should be done by a qualified electrician in accordance with local electrical codes. A

separate ground wire must

be supplied for all installations. A properly wired refrigerator or freezer will assure proper operation. Electrical supply

requirements are on the cabinet serial/data plate. It is recommended that a direct, properly protected line of the proper
size wire be installed from the main supply to your refrigerator or freezer. To assure that the correct voltage is being
supplied, while the refrigerator or freezer is in operation take a voltage reading at the motor-compressor electrical
connections, or as close to the motor-compressor as possible.

All refrigerator or freezer electrical systems are internally grounded.

Temperature Control

Temperature control should be set to maintain a temperature of 38°F (3.3°C) to 40° F (4.4°C) for refrigerators, and 0°F
(-17°C) to -5°F (-20.5°C) for freezers.

Adjusting Dial Thermometer (if required)

Installing Replacement Door Gasket (if required)

Removing

Beginning at one corner, pry gasket loose from the retaining strip. Peel remainder of gasket from the door and discard.

Replacing

Before replacing, be sure the gasket and door are at room temperature. (If necessary, soak the gasket in
warmwater to make it more pliable.) Align new gasket frame on the door retainer strip. Starting at one corner,
press each corner of the gasket into the retainer strip. Once started, the gasket can be easily inserted around the entire
perimeter of the door by simply press rolling into place.

Installation Checklist

After the cabinet has been installed, leveled and cleaned as described, refer to the following checklist prior to start-up.

Check for proper electrical hook-up.
Check exposed refrigeration lineconnections for leaks. Make sure refrigeration lines are not dented, kinked or rubbing.
Check condenser fan for freedom to rotate without striking any stationary members.

Check that cabinet is level.

Product Load

After the refrigerator or freezer has been started and reaches the proper storage temperatures, food may be loaded. For
optimum energy efficiency, we recommend allowing a 1-1/2” clearance between the interior cabinet wall and product load.

2

Check the cabinet temperature by using an accurate hand held dial or digital thermometer
placed next to the thermometer sensing bulb (located in the upper right hand corner of your
cabinet). If the dial thermometer on the cabinet grill matches the test thermometer (±1°F)
do not adjust.

If it does not match, remove the dial thermometer lens with a small screwdriver. To adjust
the temperature needle, insert a small screwdriver in the slotted screw on the needle. Hold
the wide end of the needle to keep it from moving and turn the screw clockwise or
counterclockwise to adjust as needed. Release the needle and remove the screwdriver.
Verify new needle setting with the test thermometer. Replace the dial thermometer lens.

3

Cabinet Cleaning

Victory Refrigeration recommends periodic internal and exterior cleaning as outlined below.

Daily Exterior Cleaning

1. Clean surface with a sponge and cleaning solution. Use a non-abrasive cleaner that does not contain chlorine.

2. Polish with a soft cloth, wiping with the grain of the metal.

3. Once a week wipe with a film cutting agent to maintain shine.

Weekly Interior Cleaning

1. Remove all food, food related items and shelves.

2. Turn the unit off.

3. Remove loose food particles from interior floors, walls and ceiling.

4. Scrub all interior surfaces with warm detergent solution 100 °F - 120°F (38°C - 39°C) and a nylon bristled brush.

5. Rinse with clear water and allow to air dry.

6. Reinstall shelves.

7. Return power (electrical) to unit by resetting circuit breaker.

8. Return food to cabinet when temperature indicator reaches safety zone.

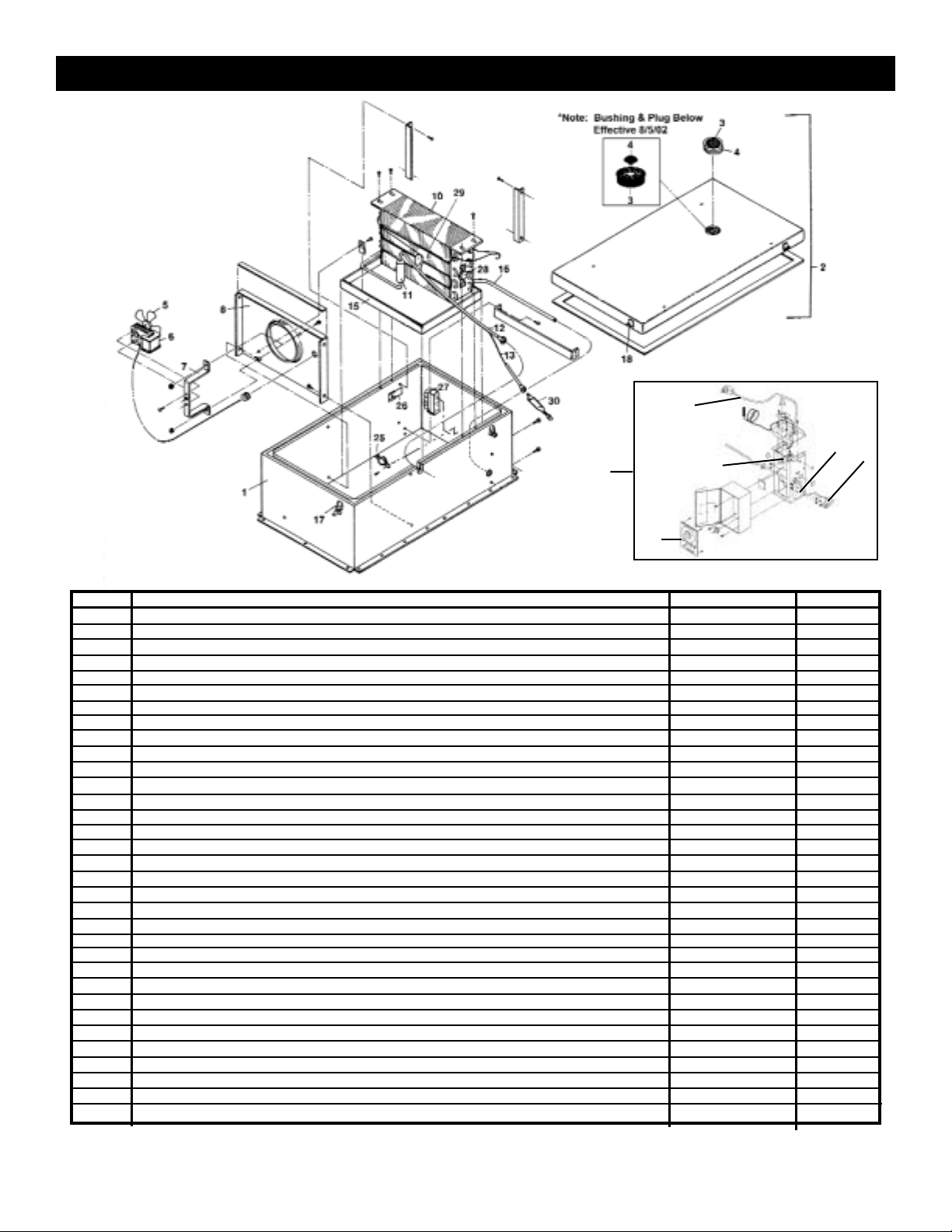

Condenser Maintenance

To keep your cabinet running efficiently, it is recommended that you clean the condenser once every three months.
However, once a month is recommended if the unit is located near cooking equipment which produces grease laden
vapors, i.e. fryers, grills, steam kettles, etc.

1. Disconnect power by switching circuit breaker to “OFF” position.

2. Remove the front grill by removing the two (2) screws on the inside of the grill at each end, then lift the panel up
and straight out.

3. Use a vacuum cleaner with proper brush attachment s to clean the condenser, motor-compressor and related parts.

4. In extreme cases of dust and grease buildup, the condenser fins may require blowing out with compressed air or
cleaning with a degreasing agent.

5. Turn circuit breaker to “ON” position.

WARNING: Failure to keep condenser clean may cause premature failure of motor-compressor which
will NOT be covered by warranty.

Lubrication

Unless otherwise specified, all Victory refrigerators are equipped with oilless type motors. The motor-compressor is a
sealed unit and is constantly lubricated when in operation. The condenser and the evaporator motors are equipped with
lifetime oiled bearings which never need to be oiled.

3

PERIODIC MAINTENANCE
