Blast Chiller Operator’s Manual
Reach-In Models: VBC-35, VBC-70, VBC-75 & VBC-100 Roll-In Models: VBC-175, VBC-220, VBC-350,VBC-480 & VBC-660
Manual Part No. 50850502
Rev: 00
Print Date: 11/5/04
RR ee ff rr ii gg ee rr aa tt ii oo nn aa tt ii tt ss bb ee ss tt
110 Woodcrest Road, Cherry Hill, NJ 08003
E-Mail: parts@victory-refrig.com order-entry@victory-refrig.com service@victory-refrig.com
PART OF AGA FOODSERVICE GROUP
Thank you for purchasing a Victory Refrigeration Reach-In or Roll-In Blast Chiller! This
unit has passed our strict Quality Control Inspection and meets the high standards set
by Victory Refrigeration. You have made a quality investment that with proper
maintenance will give you years of service.
Please read the following installation and maintenance instructions before installing or
using your unit. If you have any questions, please call our Customer Service
Department at (856) 428-4200.
IMPORTANT INFORMATION - PLEASE READ
Please read these instructions carefully before installing or using. If recommended
procedures are not followed, warranty claims will be denied.
Your Warranty Registration information is located on the next page of this manual. Please
complete the card and submit it to Victory Refrigeration within 10 days of installation.
Failure to properly register equipment can void the warranty.
Victory Refrigeration reserves the right to change specifications and product design
without notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased equipment.
A detailed Owners Manual with a troubleshooting guide, parts lists and additional
information can be ordered from the factory or may be downloaded free from the website
at www.victory-refrig.com.
THANK YOU
Warranty
(Continental USA Only)
The Seller warrants to the original purchaser, equipment manufactured by Seller to be free from defects in material and workmanship for which it is responsible. The Seller's obligation under this warranty shall be limited to replacing or repairing at Seller's option, without charge, F.O.B. Sellers factory, any part found to be defective and any labor and material expense incurred by Seller in repairing or replacing such part, such warranty to be limited to a period of one year from date of purchase or thirteen months from date of shipment from Seller's factory, whichever is earlier, provided terms of payment have been fully met. All labor shall be performed during regular working hours. Overtime premium charges will be at Buyer's expense.
Proof of purchase must be supplied to Seller to validate warranty. This warranty is valid only if equipment is properly installed, started-up and inspected by the dealer or authorized Victory Service agent.
Removal or alteration of the serial/data plate from any equipment shall be deemed to release Seller from all warranty obligations or any other obligations, expressed or implied.
This warranty does not cover Thermostat or Defrost Timer calibration and/or adjustment, freight damage, normal maintenance items outlined in Owner's Manual, adjustment of door mechanisms or replacement of light bulbs, fuses or batteries.
Any repairs or replacement of defective parts shall be performed by Seller's authorized service personnel. Seller shall not be responsible for any costs incurred if the work is performed by other than Seller's authorized service personnel. Reimbursement claims for part(s) or labor service costs must be made in writing. Model, cabinet serial numbers and installation location must be shown on the claim. A receipted bill from the servicing agency must accompany the claim, together with full details of the service problems, diagnosis and work performed. Victory reserves sole discretion whether further documentation on a claim is to be submitted.
Seller shall not be liable for consequential damages of any kind which occur during the course of installation of equipment, or which result from the use or misuse by Buyer, its employees or others of the equipment supplied hereunder, and Buyer's sole and exclusive remedy against Seller for any breach of the foregoing warranty or otherwise shall be for the repair or replacement of the equipment or parts thereof affected by such breach.
The foregoing warranty shall be valid and binding upon Seller if and only if Buyer loads, operates and maintains the equipment supplied hereunder in accordance with the instruction manual provided to Buyer. Seller does not guarantee the process of manufacture by Buyer or the quality of product to be produced by the equipment supplied hereunder and Seller shall not be liable for any prospective or lost product or profits of Buyer.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER. SPECIFICALLY THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
The foregoing shall be Seller's sole and exclusive obligation and Buyer's sole and exclusive remedy for any action, whether in breach of contract or negligence. In no event shall Seller be liable for a sum in excess of the purchase price of the item.
ORIGINAL DATE OF INSTALLATION __________________________________________________________________
INSTALLATION COMPANY NAME ____________________________________________________________________
STREET_______________________________ CITY _____________________ STATE ______ ZIP CODE___________
DISTRIBUTOR’S NAME_____________________________________________________________________________
STREET_______________________________ CITY _____________________ STATE ______ ZIP CODE___________
You may register online at www.victory-refrig.com, fax this completed page to (856) 428-7299, or copy and mail form below to Victory.
*NOTE: The following mail-in form or online registration must be filled out and forwarded to Victory by the installer or customer within 10 days
after start-up. Failure to do this will invalidate the warranties. Retain this information for your records.
110 WOODCREST ROAD CHERRY HILL, NJ 08003-3648
TEL: (856) 428-4200
FAX: (856) 428-7299
Cabinet Model No.
______________________
Cabinet Serial No._________________
(Data plate information located inside cooler on the upper left wall)
WARRANTIES NOT VALID UNLESS REGISTERED AT FACTORY WITHIN 10 DAYS AFTER START-UP DATE.
TABLE OF CONTENTS
Page 2 Receiving Shipment
Unpacking Installation Electrical Supply Start-Up
Main Control Breakers
Initial Start-Up Error Code & Checks
Page 3 Principals of Operation
Loading and Packing Food Storage Time Operation of Blast Chillers
Page 4 Operation of Blast Chillers (continued)
Defrost Roll In Blast Chillers with Storage Pod The Controls
Page 5 The Controls (continued)
Programming A Blast Chill Cycle Alarm and Warning Levels
Page 6 Alarm and Warning Levels (continued)
The Printer
Page 7 Printer Set Up
Logger Paper Installation Print Cartridge Removal & Installation
Page 8 Power Failure
Maintenance
Cleaning
Door Gasket
Condenser Cleaning
Page 9 Technical Service & Replacement Parts
Rules of Thumb
Page 10 Before Calling Service Guide (for Common Problems)

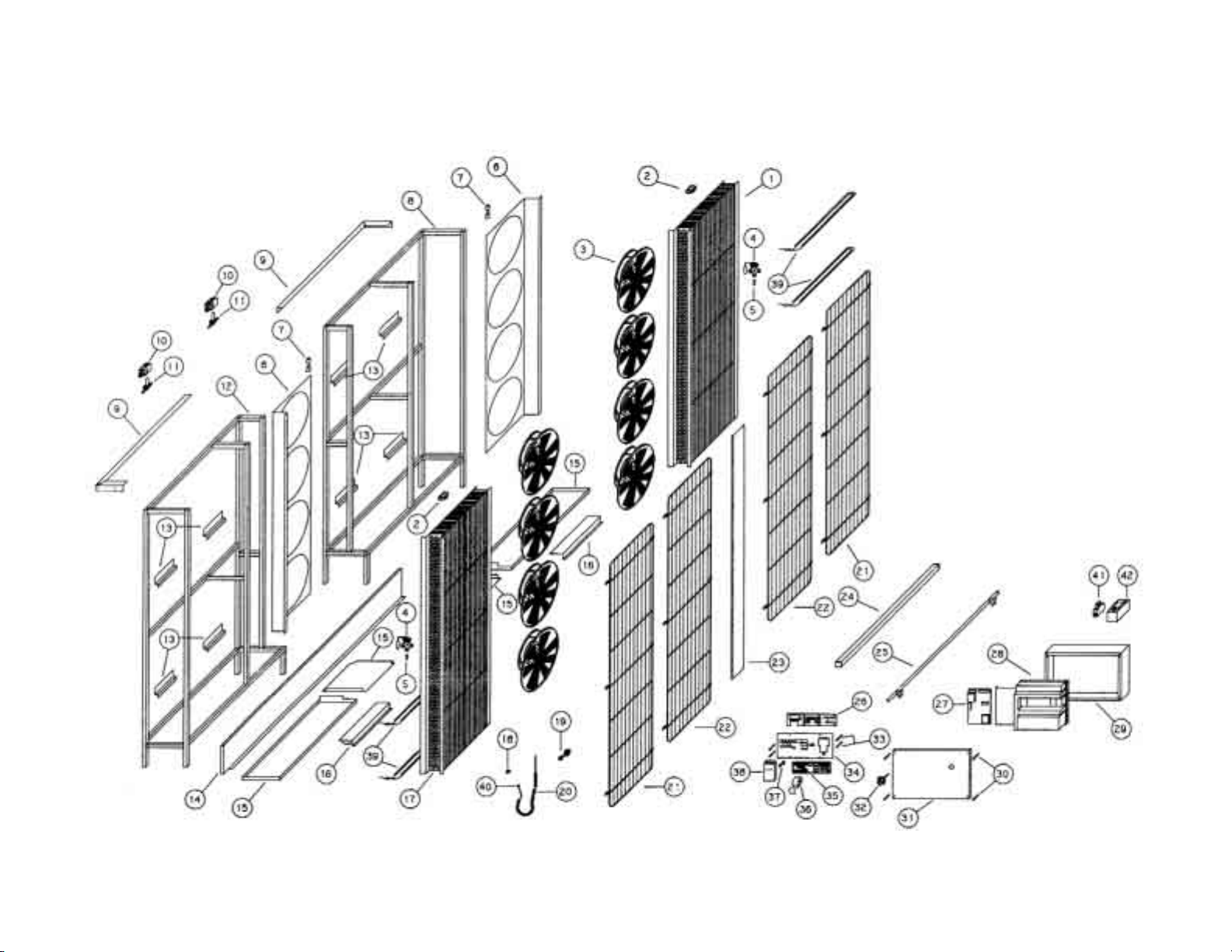

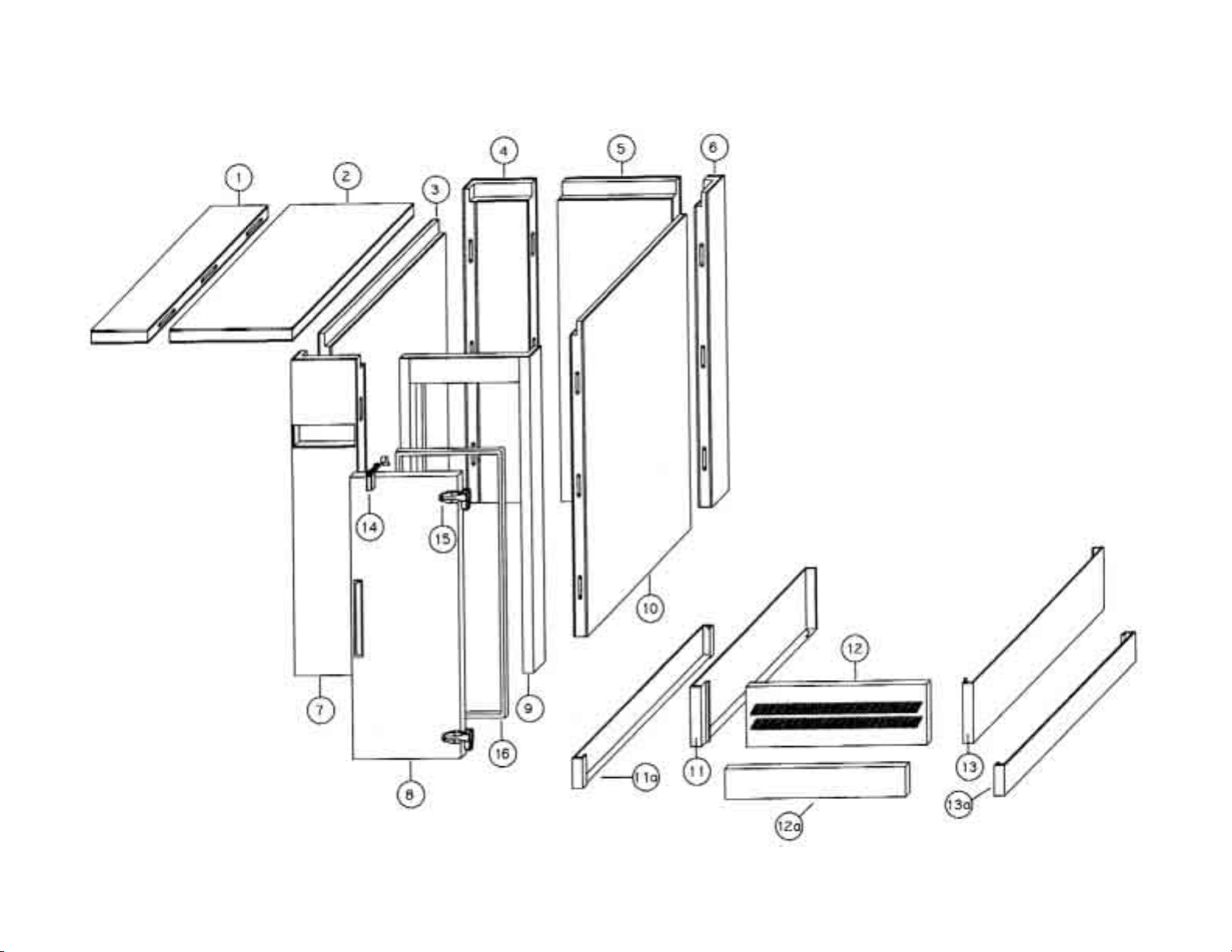

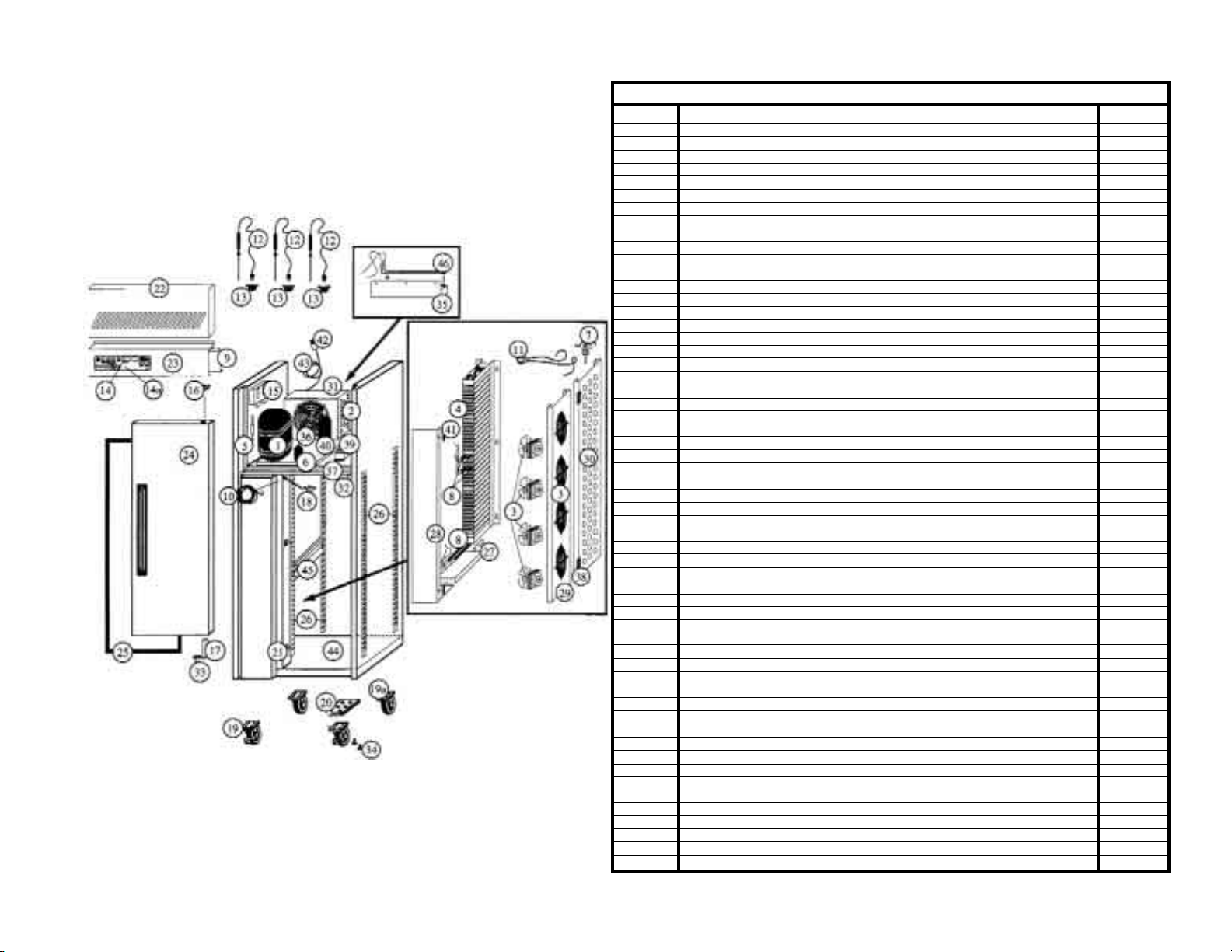

Pages 11- 27 Parts Lists

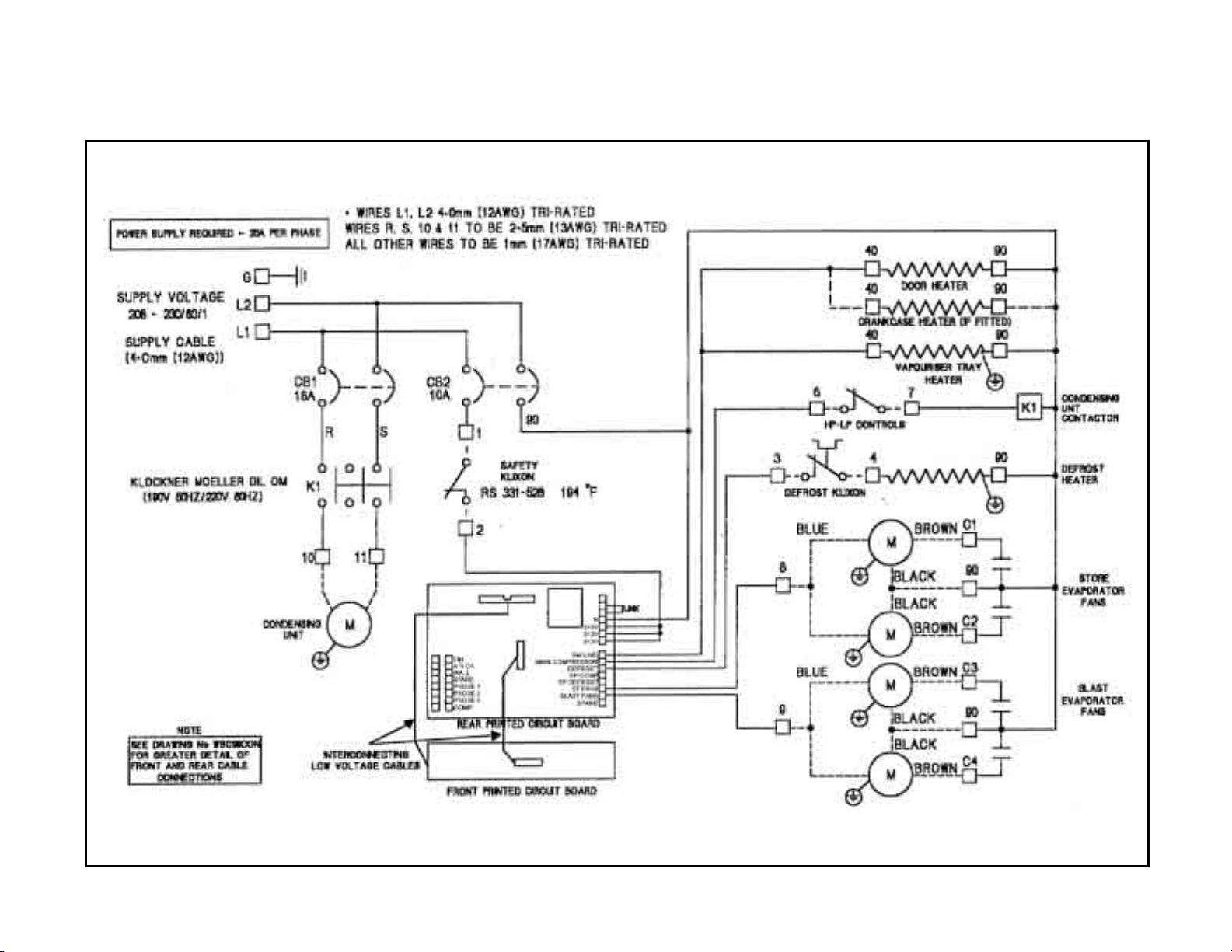

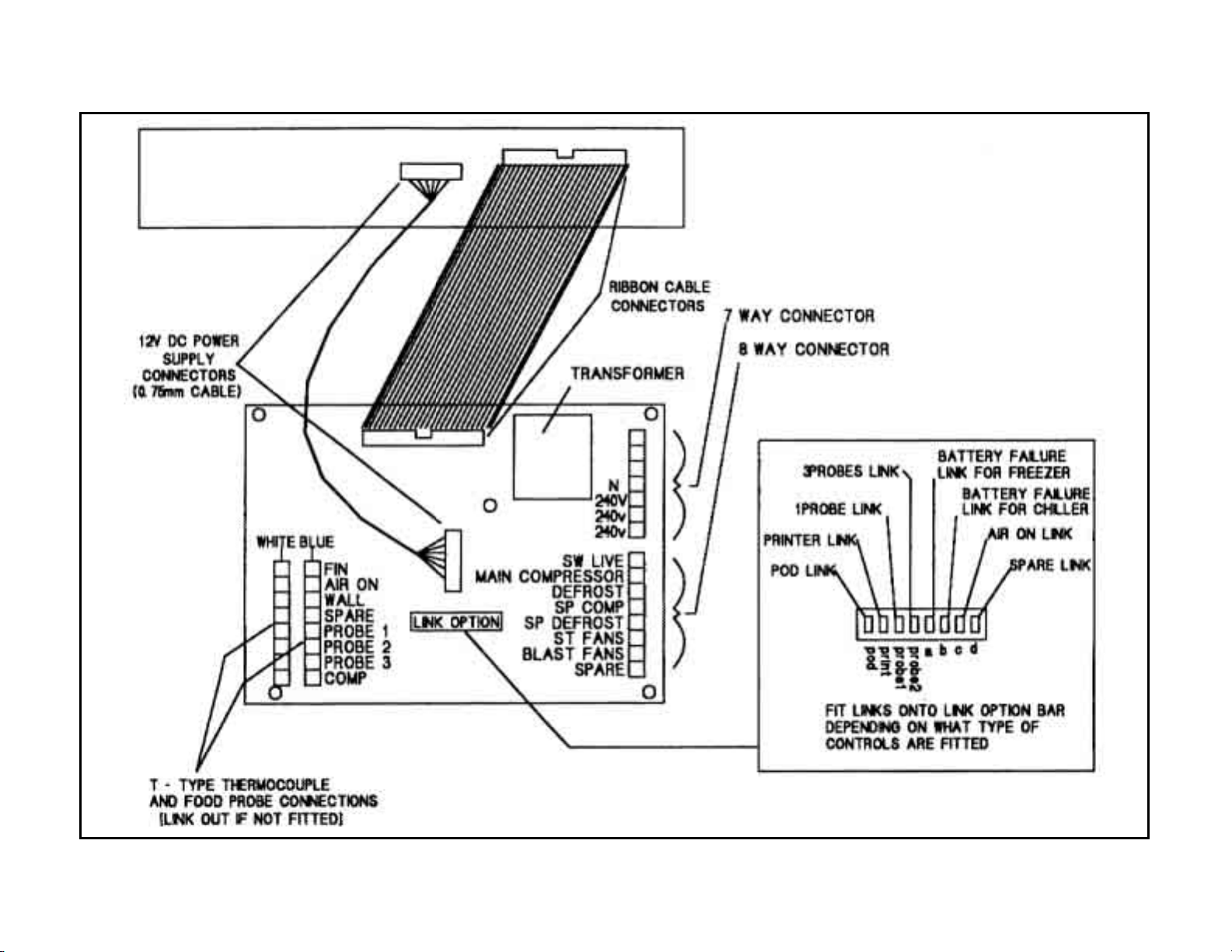

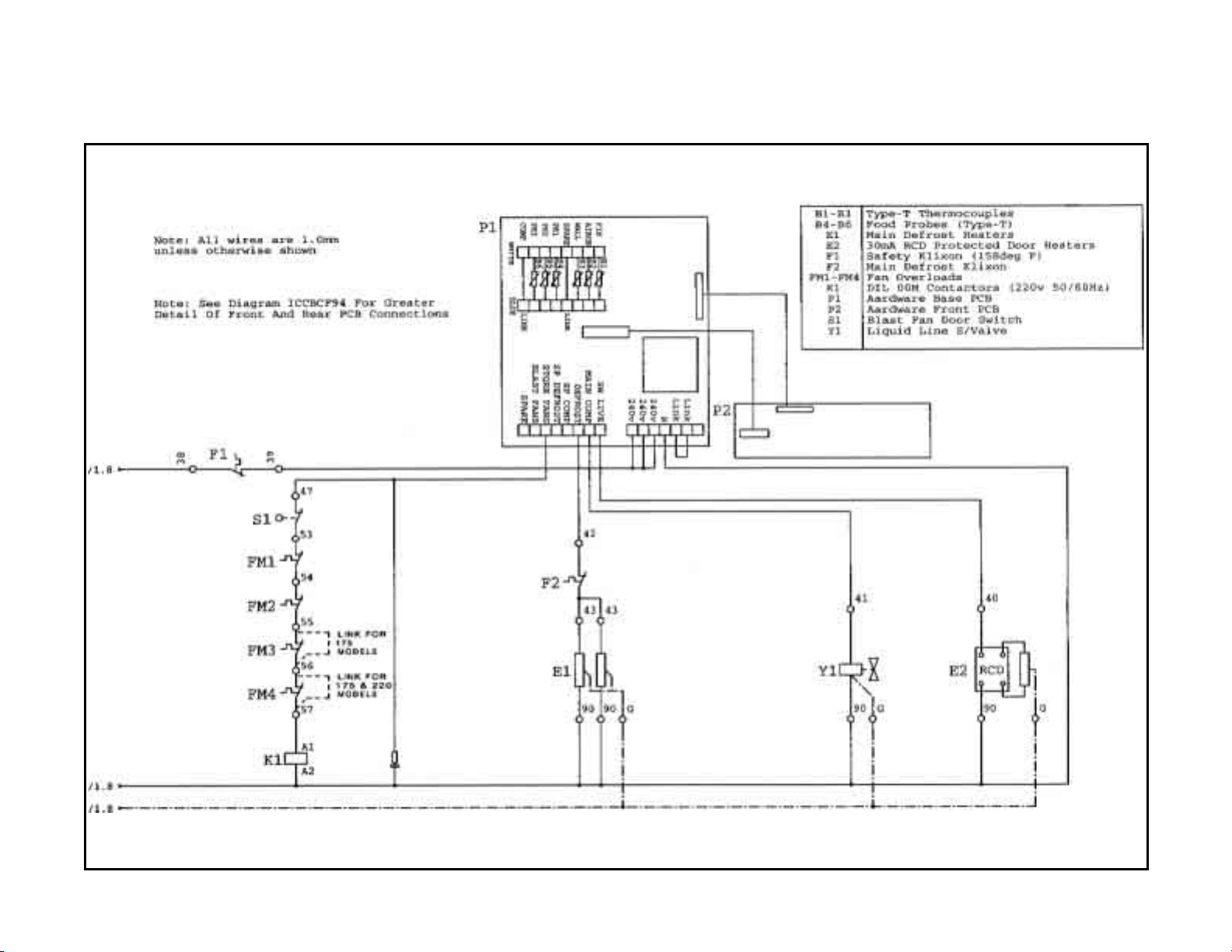

Pages 28- 40 Wiring Diagrams
Proper installation is the first step to operation. We recommend that your refrigerator or freezer be installed by an authorized Victory Certified Installer.
RECEIVING SHIPMENT
All units are performance tested and thoroughly inspected prior to shipment. Upon leaving the factory, all units are in perfect condition. Upon receipt, examine the exterior of the shipment packaging for any signs of rough handling. If the cabinet is damaged, it should be noted on the delivery slip or bill of lading and signed. A claim must be filed immediately against the carrier indicating the extent and estimated cost of damage incurred.
UNPACKING
Remove all external and interior packing and accessories. Ensure all packaging is disposed of safely.
INSTALLATION
The cabinet should stand level to ensure correct operation of self closing doors and proper drainage of condensate from the evaporator.
Models fitted with casters are non-adjustable, therefore a level platform/floor should be provided where the cabinet is to be located. On models fitted with adjustable legs leveling may be achieved by adjustment of the bottom section of the legs. For marine specification models with flanged feet for deck fixing and bulkhead fixings, installation should be carried out by a specialist marine company.
For top mounted refrigeration systems please ensure there is 20” [500mm] between the top of the cabinet and ceiling for service technician access and ventilation.
If the cabinet has been laid on its back or tipped, DO
NOT
switch on immediately. Leave the cabinet
in the upright position for at least 12 hours before switching on.
ELECTRICAL SUPPLY
Wiring should be done by a qualified electrician in accordance with local electrical codes. All models, with the exception of the VBC-100 and all Roll-In VBC’s, come fitted with a NEMA plug for safety and must be grounded. We recommend that if the plug or cable fail, contact Victory’s parts department for a replacement part.
The VBC-100 and Roll-In VBC’s are 3-phase and requires connection to a suitable supply.
START-UP
MAIN CONTROL BREAKERS
Should the equipment fail to run on initial connection, please check that all Main Control Breakers (MCBs) are in the "ON" position at the back of cabinet. (*Note: The "ON" position is confirmed by red indicators on the MCBs.)
INITIAL START-UP ERROR CODES & CHECKS
An “a7” error code (indicating a loss of power) with an audible alarm sound off will always occur during an initial start-up of a blast chill cabinet. Press the "CANCEL" button (red with✗symbol), the error code and audible alarm will discontinue.
A “Battery Failure Configuration Suspect” error message ticket will always print during an initial start-up. Do not be alarmed when the error message prints; it is only indicating that the back-up batteries that hold the cabinets data during a power failure is not fully charged. Full battery charge should be within 24 hours after start-up.
Check the time and date on the printed tickets. If the ticket has printed an incorrect time and date or the printer logger paper is not feeding properly, see page 7 for further instruction.
2
PRINCIPLES OF OPERATION
Victory blast chillers have been designed to quickly reduce the temperature of food in accordance with Department of Health guidelines on the chilling of cooked foods. All operators should be conversant with Department of Health publication, Chilled and Frozen Guidelines on Cook-Chill and Cook-Freeze Catering Systems.
Fast temperature reduction is not brought about by placing the food in a very cold cabinet like a deep freeze. This would only dry the food badly and take a very long time to reduce its temperature to the required level. The secret of fast temperature reduction is in delivering the correct blast of air and ensuring correct and unobstructed horizontal air flow inside the cabinet.
This is why Victory has the option of soft and hard facility on blast chill.
Exceptions: depending on the density types and sizes of the portions the chiller might not be capable of achieving the required guidelines, therefore, the load and/or depth of the food layers should be reduced. You may find it necessary to experiment with different amounts of food and loading methods in order to achieve the optimum performance with your blast chiller.
LOADING AND PACKING
Regulations state that product should be placed in the Blast Chiller within 30 minutes from completion of cooking. The packaging of food and the way in which it is loaded or placed within the apparatus can have a significant effect on the time within which the temperature can be reduced to the required level and the amount of food which can be processed in each chilling batch.
When blast chilling always use metal or foil containers which are good conductors. Plastic or polyurethane containers insulate the food from the cold air. When chilling unportioned food we recommend the use of the appropriate pan that is at least 2-1/2” [63.5mm] in depth. Likewise, placing lids or covers on food will also increase the chilling time but may be of some use when processing some delicate foods to avoid dehydration.
Always load your machine in such a way that it is possible for the cold air to contact all sides of the containers. Avoid stacking containers directly on top of one another as this will drastically extend the chilling time and take special care not to block the air ducts.
Always load the machine before selecting the blast cycle. Unless it is unavoidable do not open the door of the machine while the blast cycle is engaged.
In the case of roll-in rack models, bumper bars are fitted to the walls inside the machine. This assists in the correct positioning of the rack(s) so as to avoid blocking the air flow.
FOOD STORAGE TIME
Chilled foods can be stored for up to 5 days at between 32°F/0°C and 38°F/+3°C.
OPERATION OF BLAST CHILLERS
Your machine has been set-up at the factory and no further adjustments should be necessary.
Note: The control systems employed are micro-processor based and contain no user serviceable components. Instructions on setting up the control panel thermostats are available from the manufacturer. These should only be reset by a qualified service technician.
Normal Storage:
This is the storage temperature at which food can be held and the Blast Chiller automatically switches into this mode at the end of each cycle.
Storage Mode
On some chillers there is more than one fan installed these may not all operate during the storage mode giving a reduced air circulation within the chiller. All other models have one or more Aerofoil fans. The unit cycles on the store thermostat, the sensor of which is placed in the air.
3
Blast Chill Cycle:
All machines have the facility for the operator to use any of the 4 pre-programmed timed cycles and a probe control blast chilling cycle, with the option of soft or hard blast.
The probe controlled blast cycle functions via the food core probe supplied. The probe monitors the core temperature of the food and will not permit the blast cycle to stop until the default temperature (37°F\3°C) is reached. When controlling the cycle with the food probe make certain that the probe or probes are located in the product before the blast cycle is started.
Pressing the selections automatically adopt the previous settings on the first push. So the repeating of blast is just pushing buttons 1- 2- 3 & Blast .
Blast Chill Cycle (Hard or Soft):
During the blast chill hard cycle the air temperature inside the cabinet should go down to approximately 14°F (-10°C). This is for the timed chilling cycle only. During soft chill cycle the air temperature stays above
32°F (0°C ).
All blast chillers have 3 basic modes:
1. Normal storage: 34°F (1°C) to 37°F (3°C)
2. Blast Chill Hard: 14°F (-10°C)
3. Blast Chill Soft: 34°F (1°C)
DEFROST
At the end of each cycle, a defrost will automatically clear any ice from the evaporator ready for the next cycle.
During the operation in storage mode a defrost will be performed automatically at the factory preset intervals of 6 hours.
Furthermore, if a blast cycle is cancelled and the defrost thermostat is measuring 34°F (+1°C) or less, the machine will automatically proceed to defrost.
When the machine is in the defrost mode the ‘Cabinet Temp’ window of the control panel will displayDEF’. When the defrost cycle is finished the compressor will run for approximately 90 seconds before the fans cut in.
Following every defrost period there is a 3 minute period during which a blast cycle cannot be selected. This short interval is to allow defrost water to drip away from the evaporator.
The cabinet is now ready to start another cycle if desired. During the defrost operation it is safe to leave products inside the machine.
ROLL- IN BLAST CHILLERS WITH STORAGE POD
On roll-in chillers fitted with storage refrigeration pods, the roll-in blast chiller will function as a small cold storage room when the chiller is in store mode. A defrost will occur every six hours for 20 minutes.
When the blast facility is engaged, the storage pod will be disengaged and the main compressor and main evaporator fan will take over until the end of the blast cycle. Immediately following the blast cycle, a main defrost period will occur. When the defrost period is complete the main compressor will start up again, followed 1-2 minutes later by the main evaporator fan for a period of 10 minutes. After 10 minutes the blast chiller will revert to storage mode until the blast facility is once more engaged.
THE CONTROLS
The control panel enables the display of detailed information about the machine and its performance. If the machine is also fitted with a printer (standard on roll in machines, optional on reach in cabinets), detailed historical information can be printed out for immediate use or archived.
4
1. The ‘Cabinet Temp’ display window can be used:
To show the cabinet wall temperature.As a count up timer in probe blast.
2. The ‘Probe’ window can show:
Temperature during a blast cycle, (blank during store).During a blast if a food probe fails it will display ‘pf’ in its own window. At the end of a blast
cycle it will indicate alarm code in Probe 1 window.
3. For a timed blast, the green row of LEDs show the progress of the blast. Each LED indicates another 1/10 of the total blast time has started. When there is only approximately 50 seconds left to blast, the right hand LED will flash. For a probed blast, the green LEDs again show the blast progress, but this time each LED indicates 1/10 of the temperature excursion between the products starting temperature and the target end temperature. Cabinet temperature window also acts as a count up timer showing in minutes the duration of the probed blast.
PROGRAMMING A BLAST CHILL CYCLE:
1. Switch on the chiller at least half an hour before use.
2. Check that the chiller is operating at storage temperature.
3. Load the products to be chilled (see notes on loading).
4. By pressing button ‘1’ select the ‘Chill’ mode.
5. By pressing button ‘2’ select the desired type of blast, hard or soft.
6. By pressing button ‘3’ select the timer for the desired duration, or probed blast.
7. When you are content with your selected program press the ✓to start the blast cycle.
8. If you are not content with your selection press the ✗button to cancel your 1/2/3 selection.
As each selection is made, the indicator LED will illuminate to show what is chosen. Press ✓to accept, or ✗to cancel.
On completion of a cycle, there will be an audible alarm which will cancel automatically after 15 minutes or may be cancelled with the ✗button. ‘DEF’ will then be displayed in the ‘Cabinet Temp’ window of the control panel
and the chiller will then revert to a store mode appropriate to the blast just completed.
During the defrost operation the temperature in the chiller will not exceed 38°F (+3°C) and it is therefore safe to leave products in the chiller during the defrost cycle.
To save time for repeated identical blast operations, the blast selections are remembered, so when 1 2 3 are pressed the selections automatically adopt the previous settings on the first push. So the repeat a blast, just push 1 2 3 .
ALARM AND WARNING LEVELS
For the following alarm and warning conditions, an audible alarm will be activated and a warning ticket will be printed if the printer is fitted. A faulty sensor alarm will be initiated if a sensor fault condition is detected. If there is an alarm condition, probe 1 window will display an alarm number a0 to a7 during store (*see alarm table at the top of the next page), but will show the probe temperature during blast.
5
7-SEG DISPLAY
ALARM CONDITION
a0 Air on sensor failure a1 Wall sensor failure a2 Fin sensor failure a3 Food probe 1 failure a4 Food probe 2 failure a5 Food probe 3 failure a6 Spare a7 Power cut detected
Note: If a wall sensor fails it will also read -50.
For each probe only one audible alarm and alarm printout is allowed to be issued each day. This is to prevent excessive paper use and noise nuisance in the event of an intermittent probe failure. However, repeated probe failures are displayed on the probe display window, (top window in the case of 3 probe panels).
To cancel the audible alarm press the button. If the alarm condition still exists the display will continue to indicate there is a fault.
THERE IS NO RE-SET FACILITY.
THE PRINTER
If fitted and “ON”, the printer is activated after each blast cycle. The printer provides hard copy historical data of cabinet performance or warning tickets to archive or act upon.
The formats available are:
Midnight Ticket (if programmed)
At midnight a ticket is automatically printed for archiving in the morning. The midnight ticket provides the following information:
Time and date of printout and cabinet numberCabinet temperature at time of printoutA graph of cabinet temperature over the preceding 24 hours
Demand Ticket
A ticket may be requested from the control panel by holding the printer ‘On/Off’ button for 5 seconds. This ticket provides the same information as the midnight ticket except that up to seven days of historical data are printed.
Alarm or Warning Ticket
A ticket is automatically printed if any condition is detected by the micro controller which may need attention.
The print function may be terminated by pressing the printer ‘On/Off’ button.
Mains Power Failure Ticket
If mains power fails for more than 5 seconds a ticket is automatically printed which gives the time of power failure and the time at which power is restored.
Sensor Failure Ticket
If the controller detects that one of its sensors has failed then a warning ticket will be printed.
6
PRINTER SET UP
(CAUTION!!! : DO NOT CHANGE any other parameters when setting the date & time! If additional parameters are changed, there is a great possibility that the VBC Cabinet will not function properly and will void warranty!)
TIME
AND DATE SET UP
A. Enter the Engineering Switch Mode by doing the following:
1. Turn control panel "off" by pressing the "standby" button.
2. Press and hold the "1" button.
3. While continuing to hold the "1" button, press and release "standby" button.
B. Press the “2” or "3" button to step through the engineering settings. When the display shows
"ute", you have reached the time and date settings.
*Note: The setting functions (i.e. "ute","hr") are only displayed when the "3" button is depressed.
When the button is released, the actual setting value will appear and can then be set.
Minute (shown as "ute") ➨ Press "
" to increase or "✖" decrease minute
Hour (shown as "hr") ➨ Press "
" to increase or "✖" decrease hour
Day (shown as "day") ➨ Press "
" to increase or "✖" decrease day
Month (shown as "nth") ➨ Press "
" to increase or "✖" decrease month
Year (shown as "yr") ➨ Press "
" to increase or "✖" decrease year
*Note: When entering the year, there could be only one character displayed. Examples are below:
1 = the year 2001 2 = the year 2002 3 = the year 2003, etc.
C. When entry is complete, press "standby" once to exit the Engineering Switch Mode. Then press
"standby" again to turn on the cabinet.
D. Print demand ticket by holding printer "on/off" button for five (5) seconds. A printout will be
produced to confirm new information entered.
*Special Note: If there is information entered by error, wait approximately two (2) minutes before starting the process over.
LOGGER PAPER INSTALLATION
Logger paper should be installed as shown. It is best to tear the end of a new roll at a 90 degree angle for easy installation.
Once logger paper roll has been inserted into the printer, use the “feed” button on the control panel to automatically bring paper forward.
PRINT CARTRIDGE REMOVAL & INSTALLATION
Remove printer cover and logger paper.
Press the end of print cartridge that calls out "PUSH" & "EJECT".
Once cartridge is pressed at "PUSH" & "EJECT" end, simply
remove cartridge from the printer.
Place new cartridge by carefully putting at designated location.Turn
*Note: (1) If printer does not work, check the print cartridge and logger paper for proper installation. (2) Exposed print cartridge ribbon can dry out. Adjust to printable fresh ink by turning the wheel in the direction indicated by the arrow. Change out print cartridge with the spare provided if adjusting the ribbon does not work. (3) All blast chillers are shipped with a spare print cartridge and logger paper. Print cartridges and logger paper can be purchased from a local office supply store.
7
“Paper Installation”
“Print Cartridge Removed”
8
POWER FAILURE
A power cut does not cause the loss of any accumulated historical data and no re-programming is necessary. The controller’s battery is continually charged and provides emergency back up under normal power failure conditions.
MAINTENANCE
The cabinets are fully automatic in operation. Cleaning, loading printer paper, and changing out the print cartridge is the only maintenance required. Read the following topics.
CLEANING
Exterior: The exterior of the cabinet is stainless steel and if cared for correctly will keep its ‘as new’
finish for many years. Normal day to day cleaning should be carried out with a soft cloth and soapy water. Always wipe the cabinet vertically in the same direction as the grain in the stainless steel. Whilst stainless steel is a very strong and robust material, the stain smooth finish can be spoiled by wiping against the grain. Never use abrasive materials or cleaners, or chemical cleaners, as they can damage the surface and cause corrosion. Occasionally, the exterior should be polished with a good stainless steel polish to protect the surface.
Do not use abrasive cleaners, chemicals or scouring pads on the control panel. Clean the control panel only with a soft damp cloth. Avoid excess water on the control panel, and other areas where electrical components are fitted.
Interior: The racking can be removed for easy cleaning (see Fig 1). This should be done on a regular basis with warm water and a soft cloth, dry thoroughly afterwards. To remove the racking and shelf supports follow this procedure: First remove the shelves, then remove the shelf supports by grasping firmly in the center and lifting slightly. Turn the shelf support towards the interior of the cabinet by pushing it in the center as you twist the support through 90°. The shelf support will be released. (Note: the supports are designed to be anti-tilt and you may therefore experience some resistance at first which will be overcome with practice). When all shelves have been removed, remove the racking by lifting up and over the nylon retaining blocks.
Door Gasket
Clean the gasket weekly with warm soapy water and a soft cloth taking care not to damage it. DO NOT use a sharp knife to clean or scrape the gasket. Regularly check the gasket for any damage. Damage can be caused by striking the gasket with a sharp object such as the corner of a tray. Damaged gaskets do not seal correctly and can increase the amount of electricity consumed, seriously affecting the efficiency and performance of the cabinet.
Damaged gaskets are easily replaced. To fit a new gasket - simply pull out the old gasket and push the new gasket into the channel (gasket retainer) at the center and work along the gasket pushing it into the channel, continue in the same way on the other three sides, pushing the corners in last (see Fig 2).
Condenser Cleaning
The condenser, which is part of the refrigeration unit, is sited in the unit compartment and requires cleaning, approximately 4 times per year or when the LED indicates. To clean the condenser, disconnect main power supply before starting, then brush the fins vertically with a stiff brush, taking care not to damage the fins or push dirt or dust further in and vacuum away. Remember to
reconnect main power supply once finished.
Fig 1
Fig 2
Gasket
Retainer Channel
9
TECHNICAL SERVICE & REPLACEMENT PARTS
Victory Refrigeration strives to provide excellent customer service along with quality equipment. To help us better assist you, a serial number and/or model number must be provided when contacting the technical service or parts department. The data plate is located inside the reach-in cabinet on the right side wall. Roll-in blast chiller data plates are placed on the exterior of the back panel that supports the controller. All serial numbers are recorded and kept indefinitely.
RULES OF THUMB
Pre-chill the cabinet for thirty (30) minutes before you do first load (to remove interior residual heat).
Doubling the food thickness triples the pull-down time.
Don’t stack food and/or containers on top or alongside of each other.
Covering the food increases pull-down time by 10% - 30%.
Pull-down rate initially is about 2°F per minute and approaching final temperature is about 2 minutes per degree Fahrenheit.
Factors affecting blast chill pull-down times:
1. Entering food temperatures (the hotter the initial temperature, the longer the pull-down time).
2. Final food temperature (the colder the final temperature, the longer the pull-down time).
3. Food “thickness” (the greater the distance from geometric “core” center of food to it’s surface
pull-down time).
4. Food density (the greater the density, the longer the pull-down time).
5. Food thermal conductivity (the lower the conductivity, the longer the pull-down time).
6. Food specific heats (the higher the specific heat, the longer the pull-down time).
7. Container surface area (the smaller the surface area, the longer the pull-down time).
8. Container material (metals are conductors and render a shorter pull-down than plastics which
are insulators).
9. Covering material (metal preferred instead of plastic for reasons above).
10. Covering method-cover such as aluminum foil or a “stretch wrap film” placed in direct
contact with food eliminates the “dead air space” between the cover and the food. Since “dead air space” is an insulator, elimination of reduction of it shortens pull-down time.
11. “Delta T” is temperature difference between the food and the blast of air. The greater the “Delta T” the quicker the pull-down time.
12. Air velocity (the greater the air velocity across the food, the faster the pull-down time).
13. Amount (weight) of food put in as compared to rated capacity of machine. Exceeding the
capacity increases the pull-down time.
14. Mechanical problems (equipment not operating at full efficiency takes longer to pull down)
10
11
VBC PARTS LISTS
12
PARTS LIST FOR VICTORY BLAST CHILLER 35 (VBC-35)
Item No Description Part No.
1 Comp CAJ 4492Y R134A 52000101
1a Coil Condenser 3 x 11 x 21 52000201 1b Drier 1/4 x 3/16 Sweat R134A 52000301 1c Sight Glass 1/4 Sweat 52000401
2 Receiver 2.2L 52000501 3 Valve Expansion Body Ten 2 R134A 52000601 3 Valve Adapter Solder 1/4 52000701 3 Orifice No. 00 068-2090 52000801 4 Motor Condenser Fan 16 Watt 52000901 4 Blade Cond Fan 10In 27Dg Pitch 52001001
5 Plate Condenser Fan 52001101 6 Motor Evap Fan 315mm Axial 52001201 7 Guard Evap Fan Wire 50mm Deep 52001301 8 Plate Evaporator Fan 52001401
9 Upright Pilaster Racking 52001501
10 Probe Food 90 Degree Heavy Duty 52001603
10a Probe Socket Type T Flanged 52001701
11 Cover Unit Front Top Section 52001801
11a Cover Unit Front Bottom Section 52001901
12 Gasket Door 26-3/4 x 16-15/16 52002001 13 Plate Hinge R7 Opal Top 52002101
14 Hinge Door Spring Loaded 52002201 15 Door Standard VBC35 52002301
16 Coil Evaporator 4 x 13 x 17 52002401 17 Tray Drip 52002501
18 Heater Defrost 300W 3 Bend 52002601 19 Plug Nylon Door Hinge Top 52002701 20 Insert Nylon Pilaster Ladderack 52002801 21 Screw 6mm x 12 Pozi Pan Zinc 52002901 22 Label Polypanel W/O Printer 52003001 23 Panel Front No Printer 1Probe (123) 52003101 23 Board Back WBC II (123) 52003201 23 Logger Chip Full WBC II 52003301 23 Cable Ribbon Front To Back 1M 52003401 24 Leg, S/S 4IN Short Stud C/C Plate 52003501
25 Contactor 190V 50Hz/220V 60Hz 52003601 26 Screw 6mm x 25mm Zinc Pozi Pan 52003701
27 Slide Pan (Tray) S/S 276mm 52003801 28 Clip Latch Unit Cover Front 52003901
29 Clip Strike Unit Cover Front 52004001 30 Screw Set 8mm x 20mm Zinc 52004101 31 Cover Rear 52004201 32 Vaporizer Hot Gas 52004301 33 Plug 15 Amp 3 Pin 52004401 34 Cord Power Cable 3 Wire 14AWG 52004501
35 Insert Nylon Plstr Mtg Ladderack 52004601 36 Hinge Cabinet Piece 52004701
* Klixon 14T31 30210 L13C 9651 52004801 * Switch Thermal Heated 331-528 52004901
* Heater Wire 3M 240V 30 Watts 52005001 * Bracket Fan Motor 52005101 * Caster W/O Brake 52005201 * Caster W/ Brake 52005301
13
PARTS LIST FOR VICTORY BLAST CHILLER 70 (VBC-70)
Item No Description Part No.
1 CONDENSING UNIT CAJ 4511Y HR 52077901 2 EVAPORATOR FAN 16 WATT 208V 60Hz UL 52078001 3 DEFROST HEATER 300W 1BEND 52078101 4 EVAPORATOR 3" x 20" x 20" 52078201 5 EXPANSION VALVE BODY TEN2 R134A 52000601 5 3/8" SOLDER ADAPTOR 068-2060 52010901 5 ORIFICE NO.2 068-2096 52071701 6 KLIXON 14T31 30210 L13C 9651 52004801 7 GASKET, 22" x 24" [560mm X 622mm] 52078301
7a PLUG, TOP HINGE 52078401
8 HINGE:SPRING LOADED 52002201 8a SCREW 8 X 1/2 POZI PAN ZINC S/T 52078501 8b HINGE PLATE:R4 FLAT 52078601 8c HINGE PLATE:R7 CHROME 52078701
9 CASTERS:NEW 6" UNBRAKED 52005201 9a CASTERS:NEW 6" BRAKED 52011701 9b SCREW M6 X 25 POZI PAN ZINC T/T 52003701
0 AARDWARE FRONT PANEL C/W PRINTER 3 PROBE 52011401 10 AARDWARE BACKBOARD (*ATTACHED BEHIND FRONT PANEL) 52003201 10 MAIN CONTROL BOARD WITH CONTACTORS 52044601 10 LOGGER CHIP FULL (*180 VERSION 11) 52003301 11 DRIER 3/8", R134a 52010801 12 LABEL,BLAST CHILLER 3 PROBE WITH PRINTER 52011501 13 90° ANGLED FOOD PROBE 52001603 14 SWITCH THERMAL HEATED 331-528 52004901 15 SIGHT GLASS, 3/8" SWEAT 52010701 16 LP SWITCH, TYPE G60 T01 52078801 16 HP SWITCH, TYPE G63 T01 52078901 17 1/4" SCHRAEDER VALVE 52079001 18 PLUG 3 PIN USA 15 AMP 52004401
18a CABLE FOR USA LEAD 3 CORE 14AWG/2MM 52004501
19 VAPORIZER HEATER, 115W 3 BEND 52014301 19 VAPORIZER HEATER, 150W 3 BEND 52014302 20 LADDERACK BLOCKS TYPE 1 52079101
20a LADDERACK BLOCKS TYPE 2 52002801
21 EVAPORATOR FAN PLATE 52079201 22 DRIP TRAY 52079301 23 VAPORIZER TRAY 52079401 24 DOOR ASSEMBLY, COMPLETE 52079501 25 UNIT COVER 52079601 26 RACKING, LEFT OR RIGHT SIDE 52079701
14
PARTS LIST FOR VICTORY BLAST CHILLER 75 (VBC-75)
Item No Description Part No.
1 Comp 1-1/2 FH4518Y 208/60 52020101 2 Coil Condenser 4 x 17 x 17.5 52010201 3 Motor Evap Fan (4) 200mm Axial 52010301 3 Guard Evap Fan Flat 52010401 3 Capacitor 230V 60Hz 1.5UF 52020201 4 Coil Evaporator 5 x 45 x 16 52020301 5 Sight Glass 3/8 Sweat 52010701 6 Drier 3/8 Suitable For R134A 52010801 7 Valve Expansion Body Tes 2 R134A 52020401 7 Adapter Solder 3/8 068-2060 52010901 7 Valve Orifice No. 3 52011001 8 Heater Defrost 500W 1 Bend 52020501
9 Panel Control Cover Rear 52020601 10 Heater Wire 4.35 M 240V (57W) 52011301 11 Thermostat, Klixon 52004801 12 Probe Food 90 Degree Heavy Duty 52001603 13 Probe Socket Type T Flanged 52001701 14 Panel Front C/W Printer (123) 52011401 14 Board Back WBC II 52003201 14 Logger Chip Full 52003301 14 Cable Ribbon Front To Back IM 52003401
14a Polypanel W/ Printer 52011501
15 Control Pressure High/Low 52011601 16 Nylon Plug Door Hinge (Top) 52002701 17 Hinge, Spring Loaded Door 52002201 18 Switch, Thermal Heated 331-528 52004901 19 Caster 6" W/ Brake 52011701
19a Caster 6" W/O Brake 52011801
20 Plate Hinge L3 Opal/T2U Bottom 52011901 21 Insert Nylon Pilaster Ladderack 52002801 22 Cover Unit 52020701 23 Panel Control 52020801 24 Door Standard VBC75 52020901 25 Gasket 53-5/16 x 24-11/16 52021001 26 Upright Pilaster Ladderack 52021101 27 Tray Drip 52021201 28 Plate Baffle 52021301 29 Plate Evaporator Fan 52021401 30 Plate Evaporator Baffle 52021501 31 Plate Condenser Fan 52012901 32 Insert Door M4/T38 6x26 52013001 33 Screw M6x25 Pozi Countersunk 52013101 34 Screw 6mm x 25mm Zinc Pozi Pan 52003701 35 Vaporizer, Electric 52013201 36 Motor Condenser Fan 120 Watt 52013301 36 Capacitor 230V 60Hz 3.0UF 52013401 37 Panel Control Bottom 52013501 38 Cover Hinge Black Plastic 52013601 39 Contactor 190V 50Hz/220V 60Hz 52013701 40 Receiver 2.2L 52000501 41 Insert Nylon 316-F2/St38 M5X5 52013801 42 Cowl Condenser Fan 52021701 43 Slide Pan (Tray) 52021801 44 Control Panel Rear Cover 52021901 45 Thermocouple Type 'T' PTFE 2M 52022001 46 Vaporizer Heater 115W 3 Bend 52014301 46 Box Elec For Comp 833 TFH4524Z 52022101
15
PARTS LIST FOR VICTORY BLAST CHILLER 100 (VBC-100)
Item No Description Part No.
1 Comp 2HP TFH 4524 Z 208/60/3 52020101
2 Coil Condenser 4 x 17 x 17.5 52010201
3 Motor Evap Fan (4) 200mm Axial 52010301
3 Guard Evap Fan Flat 52010401
3 Capacitor 230V 60Hz 1.5UF 52020201
4 Coil Evaporator 5 x 45 x 16 52020301
5 Sight Glass 3/8 Sweat 52010701
6 Drier 3/8 Suitable For R134A 52010801
7 Valve Expansion Body Tes 2 R404A 52020401
7 Solder Adapter 3/8 068-2060 52010901
7 Orifice No. 3 52011001
8 Heater Defrost 500W 1 Bend 52020501
9 Shelf Garnet White Coated 52020601 10 Heater Wire 4.35 M 240V (57W) 52011301 11 Thermostat, Klixon 52004801 12 Probe Food 90 Degree Heavy Duty 52001603 13 Probe Socket Type T Flanged 52001701 14 Front Panel C/W Printer (123) 52011401 14 Board Back WBC II 52003201 14 Logger Chip Full 52003301 14 Cable Ribbon Front To Back IM 52003401
14a Polypanel W/ Printer 52011501
15 Control Pressure High/Low 52011601 16 Nylon Plug Door Hinge (Top) 52002701 17 Hinge, Spring Loaded Door 52002201 18 Switch, Thermal Heated 331-528 52004901 19 Caster 6" W/ Brake 52011701
19a Caster 6" W/O Brake 52011801
20 Plate Hinge L3 Opal/T2U Bottom 52011901 21 Insert Nylon Pilaster Ladderack 52002801 22 Cover Unit 52020701 23 Panel Control 52020801 24 Door Standard VBC75 52020901 25 Gasket 53-5/16 x 24-11/16 52021001 26 Upright Pilaster Ladderack 52021101 27 Tray Drip 52021201 28 Plate Baffle 52021301 29 Plate Evaporator Fan 52021401 30 Baffle Plate Evaporator 52021501 31 Plate Condenser Fan 52012901 32 Insert Door M4/T38 6x26 52013001 33 Screw M6x25 Pozi Countersunk 52013101 34 Screw 6mm x 25mm Zinc Pozi Pan 52003701 35 Vaporizer Electric 52013201 36 Motor Condenser Fan 120 Watt 52013301 36 Capacitor 230V 60Hz 3.0UF 52013401 37 Panel Control Bottom 52021601 38 Cover Hinge Black Plastic 52013601 39 Contactor 190V 50Hz/220V 60Hz 52013701 40 Receiver 3.3L 52021701 41 Nylon Insert 316-F2/St38 M5X5 52013801 42 Cowl Condenser Fan 52021801 43 Slide Pan (Tray) 52021901 44 Panel Control Cover Rear 52022001 45 Thermocouple Type 'T' PTFE 2M 52022101 46 Box Elec For Comp 833 TFH4524Z52001241 52022201 46 Vaporizer Heater 115W 3 Bend 52014301
16
Victory Blast Chillers 175, 220 & 350 (VBC-175, VBC-220 & VBC-350) Panels Parts
VBC-175, VBC-220 & VBC-350 Panels Parts List
Item # Part Description VBC-175 VBC-220 VBC-350
1 Panel Roof, Left 52040101 52040101 52040101 2 Panel Roof, Right 52040201 52040201 52040201 3 Panel Wall, Left Side 52040301 52040301 52040301
4 Panel Corner, Left Rear 52040401 52040401 52040401 5 Panel Wall, Rear 52040501 52040501 52040501 6 Panel, Coved Corner Right Rear 52040601 52040601 52040601 7 Panel Corner, Front Left 52040701 52040701 52040701 8 Door 52040801 52040801 52040801
9 Jam Corner, Coved 52040901 52040901 52040901 10 Panel Wall, Right Side 52041001 52041001 52041001 11 Upper End Panel (for Cabinet with “POD” Refrigeration System) 52041101 52041101 52041101
11a Upper End Panel (for Cabinet without “POD” Refrigeration System) 52041102 52041102 52041102
12 Grille, Front (for Cabinet with “POD” Refrigeration System) 52041201 52041201 52041201
12a Grille, Front (for Cabinet without “POD” Refrigeration System) 52041202 52041202 52041202
13 Upper End Panel (for Cabinet with “POD” Refrigeration System) 52041101 52041101 52041101
13a Upper End Panel (for Cabinet without “POD” Refrigeration System) 52041102 52041102 52041102
14 Latch, Door 52041301 52041301 52041301 15 Hinge, Door 52041401 52041401 52041401 16 Gasket, Door 52041501 52041501 52041501
17 18
Victory Blast Chillers 175, 220 & 350 (VBC-175, VBC-220 & VBC-350) Equipment Parts
19
VBC-175, VBC-220 & VBC-350 Equipment Parts List
Item # Part Description VBC-175 VBC-220 VBC-350
1 Bracket, Fan Guard 52041601 52041601 52041601 2 Plate, Fan 52041701 52050101 52060101 3 Angle, Roof 52041801 52041801 52041801
4 Valve, Solenoid EVR10 52041901 52041901 52041901 5 Valve, Coil Solenoid 60Hz 52042001 52042001 52042001 6 Blast Fans, HCGT-355J-MXNC 52042101 52042101 52042101 7 Switch, Fan Cut-Off ZC-055 52042201 52042201 52042201 8 Bracket, Frame Support 52042301 52042301 52042301 9 Frame, WBC R/H 52042401 52042401 52042401
10 Valve, Expansion (Power) 52042501 52042501 52042501
Valve, Expansion (Body) 52042601 52042601 52042601
11 Valve, Expansion Orifice 52042701 52050201 52060201
12 Coil, Evaporator (Dimensions: 6” x 66” x 19.5”) 52042801 52042801 52042801 13 Assembly, Drip Tray 52042901 52042901 52042901 14 Baffle, Drip Tray 52043001 50243001 52043001 15 Guard, Evaporator 52043101 52043101 52043101 16 Guard, Fan 52043201 52043201 52043201 17 Probe, 90 Degree Heavy Duty Food 52001603 52001603 52001603 18 Panel, Front C/W Print (123) 52011401 52011401 52011401 19 Board, WBC II Back 52003201 52003201 52003201 20 Screw, Control Panel 52043301 52043301 52043301 21 Fascia, Control Panel 52043401 52043401 52043401 22 Polypanel with Printer 52011501 52011501 52011501 23 Logger Paper 52043501 52043501 52043501 24 Cover, Printer 52043601 52043601 52043601 25 Latch 52043701 52043701 52043701
Striker 52043801 52043801 52043801
26 Switch, Isolator 52043901 52043901 52043901
Bar, Isolator 52044001 52044001 52044001
Handle, Isolator 52044101 52044101 52044101 27 Lid, Control Panel 52044201 52044201 52044201 28 Screw, Control Panel Lid 52044301 52044301 52044301 29 Contactor, Main Control Panel 52044401 52044401 52044401 30 Box, Control 52044501 52044501 52044501 31 Bumper, Cart Side 52044601 52044601 52044601 32 Bumper, Equipment Side 52044701 52044701 52044701 33 Plate, Bottom Blanking 52044801 52044801 52044801 34 Hinge, Fan Plate 52044901 52044901 52044901 35 Heater, Defrost (300 Watt, 1 Bend) 52045001 52045001 52045001 36 Grommet, Support 52045101 52045101 52045101 37 Grommet, Blind 52045201 52045201 52045201 38 Contactor, Cap and Bushing 52045301 52045301 52045301 39 Breaker, 30 Amp 2-Pole Circuit 52045401 52045401 52045401 40 Enclosure, 30 Amp 2-Pole Breaker 52045501 52045501 52045501
20
Victory Blast Chillers 175, 220 & 350 (VBC-175, VBC-220 & VBC-350) Storage “POD” Parts
VBC-175, VBC-220 & VBC-350 Storage “POD” Parts List
Item # Part Description VBC-175 VBC-220 VBC-350
1 Tray, Vaporizer 52045601 52045601 52045601 2 Heater, Vaporizer Tray 52045701 52045701 52045701
2a Klixon, Vaporizer Heater Tray 52045801 52045801 52045801
3 Unit, Condensing (Model: CAJ4461Y, 60Hz, R-134a) 52045901 52045901 52045901 4 Coil, Evaporator (Dimensions: 4” x 9” x 10”) 52046001 52046001 52046001 5 Valve, Expansion (Body) Ten 2 R-134a 52000601 52000601 52000601
Orifice, No. 1 68.2091 52046101 52046101 52046101 6 Chute, Air 52046201 52046201 52046201 7 Tray, “POD” Evaporator Drip 52046301 52046301 52046301 8 Motor, “POD” Fan 52046401 52046401 52046401 9 Plate, Fan 52046501 52046501 52046501
10 Bolt, M8 x 65 52046601 52046601 52046601 11 Lid, “POD” 52046701 52046701 52046701 12 Gasket, Tape Foam 52046801 52046801 52046801 13 “POD” 52046901 52046901 52046901 14 Liner, “POD” 52047001 52047001 52047001 15 Bushing, Bellmouth 52047101 52047101 52047101
21
22
Victory Blast Chillers 480 & 660 (VBC-480 & VBC-660) Panels Parts
VBC-480 & VBC-660 Panels Parts List
Item # Part Description VBC-480 VBC-660
1 Panel Roof, Left 52070101 52070101 2 Panel Roof, Right 52070201 52070201 3 Panel Wall, Left Side 52040301 52040301
4 Panel Wall, Left Side 52070301 52070301 5 Panel Corner, Left Rear 52040401 52040401 6 Panel Wall, Rear 52040501 52040501 7 Panel, Coved Corner Right Rear 52040601 52040601 8 Door 52040801 52040801
9 Jam Corner, Coved 52040901 52040901 10 Panel Wall, Right Side 52041001 52041001 11 Panel Wall, Right Side 52070401 52070401 12 Panel Corner, Front Left 52040701 52040701 13 Upper End Panel (for Cabinet with “POD” Refrigeration System) 52070501 52070501
13a Upper End Panel (for Cabinet without “POD” Refrigeration System) 52070502 52070502
14 Grille, Front (for Cabinet with “POD” Refrigeration System) 52041201 52041201
14a Grille, Front (for Cabinet without “POD” Refrigeration System) 52041202 52041202
15 Upper End Panel (for Cabinet with “POD” Refrigeration System) 52070501 52070501
15a Upper End Panel (for Cabinet without “POD” Refrigeration System) 52070502 52070502
16 Latch, Door 52041301 52041301 17 Hinge, Door 52041401 52041401 18 Gasket, Door 52041501 52041501
23
24
Victory Blast Chillers 480 & 660 (VBC-480 & VBC-660) Equipment Parts
25
VBC-480 & VBC-660 Equipment Parts List
Item # Part Description VBC-480 VBC-660
1 Coil, Evaporator (Dimensions: 6” x 66” x 19.5”) 52042802 52042802 2 Switch, Fan Cut-Off ZC-055 52042201 52042201 3 Fan, Blast HCGT-355J-MXNC 52042101 52042101
4 Valve, Expansion (Power) 52042501 52042501
Valve, Expansion (Body) 52042601 52042601 5 Valve, Expansion Orifice 52042701 52050201 6 Plate, Fan 52050101 52060101 7 Hinge, Fan Plate 52044901 52044901 8 Frame, WBC L/H 52042402 52042402 9 Angle, Roof 52070601 52070601
10 Valve, Coil Solenoid 60Hz 52042001 52042001 11 Valve, Solenoid EVR10 52041901 52041901 12 Frame, WBC L/H 52042401 52042401 13 Bracket, Frame Support 52042301 52042301 14 Plate, Bottom Blanking 52070701 52070701 15 Assembly, Drip Tray 52042901 52042901 16 Baffle, Drip Tray 52043001 52043001 17 Coil, Evaporator (Dimensions: 6” x 66” x 19.5”) 52042801 50242801 18 Grommet, Blind 52045201 52045201 19 Contactor, Cap and Bushing 52045301 52045301 20 Probe, 90 Degree Heavy Duty Food 52001603 52001603 21 Guard, Evaporator 52043101 52043101 22 Guard, Fan 52043201 52043201 23 Bracket, Fan Guard 52070801 52070801 24 Bumper, Equipment Side 52070901 52070901 25 Bumper, Cart Side 52071001 52071001 26 Panel, Front C/W Print (123) 52011402 52011402 27 Board, WBC II Back 52003202 52003202 28 Contactor, Main Control Panel 52071101 52071101 29 Box, Control 52071201 52071201 30 Screw, Control Panel Lid 52044301 52044301 31 Lid, Control Panel 52071301 52071301 32 Switch, Isolator 52043901 52043901
Bar, Isolator 52044001 52044001
Handle, Isolator 52044101 52044101
33 Screw, Control Panel 52043301 52043301 34 Fascia, Control Panel 52071401 52071401 35 Polypanel with Printer 52011502 52011502 36 Logger Paper 52043501 52043501 37 Latch 52043701 52043701
Striker 52043801 52043801
38 Cover, Printer 52071501 52071501 39 Heater, Defrost (300 Watt, 1 Bend) 52045001 52045001 40 Grommet, Support 52045101 52045101 41 Breaker, 30 Amp 2-Pole 52045401 52045401 42 Enclosure, 30 Amp 2-Pole Breaker 52045501 52045501
26
Victory Blast Chillers 480 & 660 (VBC-480 & VBC-660) Storage “POD” Parts
VBC-480 & VBC-660 Storage “POD” Parts List
Item # Part Description VBC-480 VBC-660
1 Tray, “POD” Evaporator Drip 52071501 52071501 2 Coil, Evaporator (Dimensions: 4” x 10” x 22”) 52071601 52071601 3 Valve, Expansion 068Z3385 52000601 52000601
Orifice No. 1 68.2092 52071701 52071701 4 Motor, “POD” Fan 52046401 52046401 5 Plate, Fan 52071801 52071801 6 Unit, Condensing (Model: CAJ4492YHR, 60Hz, R-134a) 52071901 52071901
Drier, 3/8” Sweat 52072001 52072001 7 Heater, Vaporizer Tray (300 Watt, 3 Bend) 52072101 52072101 8 Klixon, Tray Heater 52045801 52045801 9 Tray, Vaporizer 52072201 52072201
10 Bolt, M8 x 65 52046601 52046601 11 Lid, “POD” 52072301 52072301 12 Gasket, Tape Foam 52046801 52046801 13 “POD” 52072401 52072401 14 Liner, “POD” 52072501 52072501 15 Chute, Flush 2 Fan Air 52072601 52072601
27
28
CABLE CONNECTIONS & THERMOCOUPLES
29
VBC-35 (208-230V/60Hz/1Ph)
30
VBC-70 (208-230V/60Hz/1Ph)
31
VBC-75 (208-230V/60Hz/1Ph)
32
VBC-100 (208-230V/60Hz/3Ph)
33
VBC-175, 220 & 350 with “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 1of 2
34
VBC-175, 220 & 350 with “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 2 of 2
VBC-175, 220 & 350 without “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 1 of 2
35
VBC-175, 220 & 350 without “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 2 of 2
36
VBC-480 & 660 with “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 1 of 2
37
VBC-480 & 660 with “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 2 of 2
38
VBC-480 & 660 without “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 1 of 2
39
VBC-480 & 660 without “POD” Refrigeration System
(208-230V/60Hz/3Ph), Page 2 of 2
40
Victory Refrigeration Inc
110 Woodcrest Road
Cherry Hill, NJ 08003-3648
Tel: (856) 428-4200 Fax: (856) 428-7299
Web: www.victory-refrig.com
E-mail: service@ victory-refrig.com
or
parts@victory-refrig.com
Loading...
