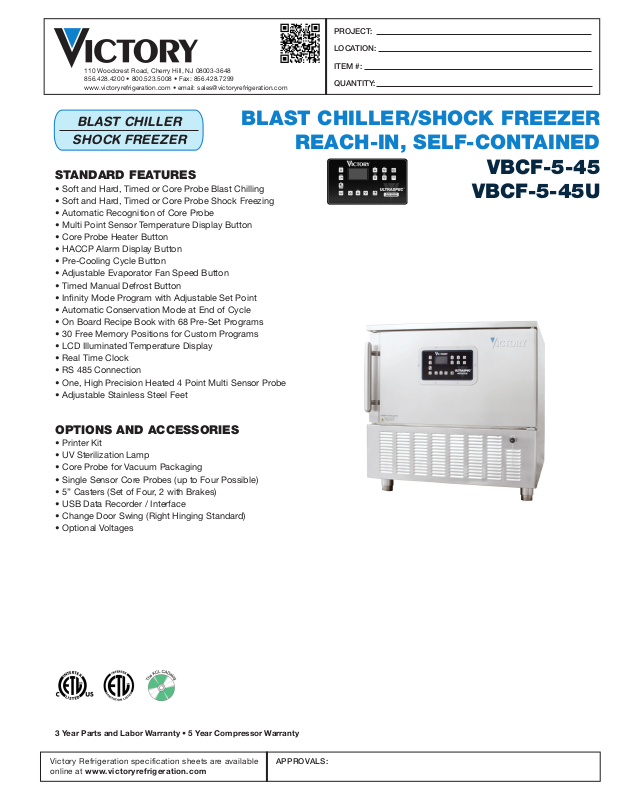

BLAST CHILLER

SHOCK FREEZER

BLAST CHILLER/SHOCK FREEZER

REACH-IN, SELF-CONTAINED

STANDARD FEATURES

• Soft and Hard, Timed or Core Probe Blast Chilling

• Soft and Hard, Timed or Core Probe Shock Freezing

• Automatic Recognition of Core Probe

• Multi Point Sensor Temperature Display Button

• Core Probe Heater Button

• HACCP Alarm Display Button

• Pre-Cooling Cycle Button

• Adjustable Evaporator Fan Speed Button

• Timed Manual Defrost Button

• Innity Mode Program with Adjustable Set Point

• Automatic Conservation Mode at End of Cycle

• On Board Recipe Book with 68 Pre-Set Programs

• 30 Free Memory Positions for Custom Programs

• LCD Illuminated Temperature Display

• Real Time Clock

• RS 485 Connection

• One, High Precision Heated 4 Point Multi Sensor Probe

• Adjustable Stainless Steel Feet

VBCF-5-45

VBCF-5-45U

OPTIONS AND ACCESSORIES

• Printer Kit

• UV Sterilization Lamp

• Core Probe for Vacuum Packaging

• Single Sensor Core Probes (up to Four Possible)

• 5” Casters (Set of Four, 2 with Brakes)

• USB Data Recorder / Interface

• Change Door Swing (Right Hinging Standard)

• Optional Voltages

3 Year Parts and Labor Warranty • 5 Year Compressor Warranty

Victory Refrigeration specification sheets are available APPROVALS:
online at www.victoryrefrigeration.com

VBCF CABINET CONSTRUCTION

AISI 30418/10 stainless steel construction on external sides, top, and interior. Die­formed interior floor has rounded corners and central drain for easy cleaning. High
density foamed in place CFC and HCFC free expanded polyurethane insulation (2.4”
thick). Anti-condensation perimeter heating around door opening. Non toxic epoxy
coated evaporator coil. One, heated, high precision 4 point multi-sensor core probe
and adjustable stainless steel legs are standard.

VBCF DOOR CONSTRUCTION

Ergonomic vertical door handle and door are made of AISI 304 18/10 stainless steel.
Snap in place magnetic gaskets Self closing doors with hold open stop at 100°.

VBCF REFRIGERATION SYSTEM

The self-contained refrigeration system uses R404A refrigerant and features a hermeti­cally sealed compressor with overload protection. An evaporator fitted with a high flow
rate fan insures maximum cooling efficiency. Indirect air flow assures highest product
quality. Manual defrosting with door open on a timed cycle.

VBCF INTERIOR STORAGE ARRANGEMENTS

Stainless steel wire guide rack allows for maximum air circulation and can be easily
removed without tools for cleaning. See specific model characteristics for pan capac­ity (number of pans and sizes). Pans not included. Spacing between pans is on 2.56”

centers.

VBCF ELECTRONIC CONTROL SYSTEM

Highly visible and ergonomically positioned (recessed inside the door) electronic control
with LCD display insures precise control of Blast Chilling (194° F to 37° F in 90 Minutes) or
Shock Freezing (194° F to 0° F in 240 Minutes) Cycles. One touch hard and soft auto­matic blast chilling or shock freezing cycles based either on core probe temperature or
timed cycle. Automatic recognition of the core probe and automatic conservation mode
at the end of a cycle. One touch display of HACCP Alarms (power failure, cycle time out
of HACCP required time, high temp, low temp) recorded in memory. The real time clock
provides date, time, and duration of HACCP alarms (power failure, cycle time out of HACCP
required time, high temp, low temp) recorded in memory. Will record up to 10 alarm events
before over writing the rst alarm and will keep the data for a minimum of 48 hours in case
of a power failure. On board program memory holds 99 total programs. Adjustable Evapora­tor Fan Speed button allows for regulation of the fan during the blast chilling or shock freez­ing cycle. Compressor protected by overload cut-out with automatic reset. Micro-switch
control cuts out the evaporator fan and compressor whenever the door is opened.

BLAST CHILLER/SHOCK FREEZER

REACH-IN, SELF-CONTAINED

VBCF-5-45UVBCF-5-45

CHARACTERISTICS

DIMENSIONAL DATA

Width, Overall (in.)
Depth, Overall (in.)
Height Overall (with legs, in.)
Depth, Door Open 90°
Clear Door Height (in.)
Clear Door Width (in.)
Internal Depth (in.)
Wall Thickness (in.)
Pan Capacity
Size of Pans
Centers Between Pans (in.)
Chilling Capacity in 90 min (lbs.)
Freezing Capacity in 240 min (lbs.)

ELECTRICAL DATA

Cabinet Voltage

NEMA Plug
Total Amperes (A*)
Horse Power (HP)

REFRIGERATION DATA

Refrigerant

BTUH

Climate Class

DIMENSIONS & WTS.

Crated H x W x D (in.)
Crated Weight (lbs.)
Uncrated Weight (lbs.)

NOISE LEVEL (dBA):

VBCF-5-45

31.1

27.6

33.5

57.1

15.0

26.4

16.3

2.4
5

12”x 20”x 2 1⁄2”

2.56
45
30

208-240/1/60
6-15P

6.1

1HP

R404A
3879
T

41 x 35 x 31
279

243

VBCF-5-45U

33.5

29.9

33.5

61.8

15.0

28.7

18.7

2.4
5

18” x 26” x 1”

2.56
45
30

208-240/1/60
6-15P

6.1

1HP

R404A
3879
T

41 x 37 x 33
307

253

<70 <70

We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.

Dimensional tolerances +/- 1/4 [in]

Dimensional tolerances +/- 6.25 mm

VBCF Evap. Temp -10

o

F, Ambient Temp. 90o F

Copyright February 2013

Printed in USA
