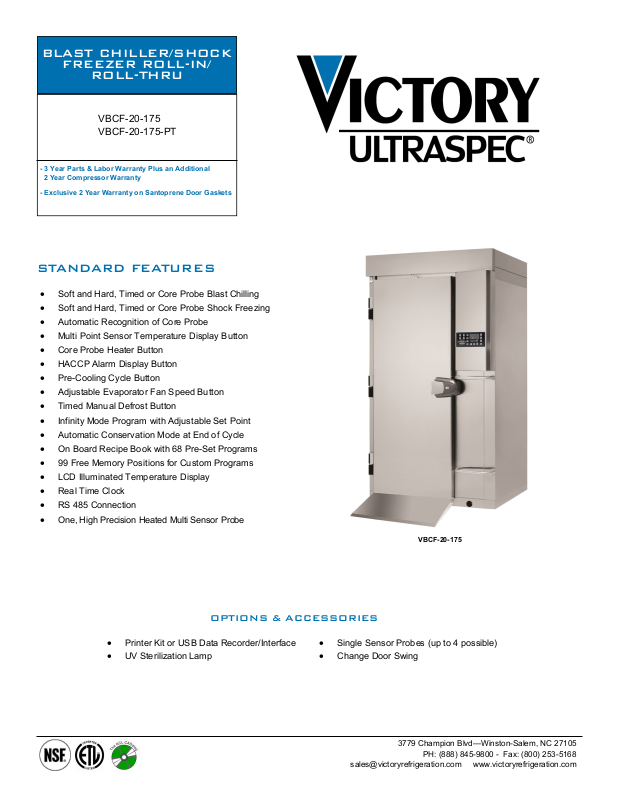

Victory-Raetone VBCF-20-175 User Manual

BLAST CHILLER/SHOCK

FREEZER ROLL-IN/

ROLL-THRU

VBCF-20-175
VBCF-20-175-PT

- 3 Year Parts & Labor Warranty Plus an Additional
2 Year Compressor Warranty

- Exclusive 2 Year Warranty on Santoprene Door Gaskets

STANDARD FEATURES

 Soft and Hard, Timed or Core Probe Blast Chilling

 Soft and Hard, Timed or Core Probe Shock Freezing
 Automatic Recognition of Core Probe

 Multi Point Sensor Temperature Display Button

 Core Probe Heater Button

 HACCP Alarm Display Button

 Pre-Cooling Cycle Button

 Adjustable Evaporator Fan Speed Button

 Timed Manual Defrost Button

 Infinity Mode Program with Adjustable Set Point

 Automatic Conservation Mode at End of Cycle

 On Board Recipe Book with 68 Pre-Set Programs

 99 Free Memory Positions for Custom Programs

 LCD Illuminated Temperature Display

 Real Time Clock

 RS 485 Connection

 One, High Precision Heated Multi Sensor Probe

OPTIONS & ACCESSORIES

 Printer Kit or USB Data Recorder/Interface
 UV Sterilization Lamp

VBCF-20-175

 Single Sensor Probes (up to 4 possible)
 Change Door Swing

3779 Champion Blvd—Winston-Salem, NC 27105

PH: [phone] - Fax: [phone]

[e-mail] www.victoryrefrigeration.com

VBCF CABINET CONSTRUCTION

AISI 30418/10 exterior and interior. Die-formed interior floor has
rounded corners and central drain for easy cleaning. High density
foamed in place CFC and HCFC free expanded polyurethane in­sulation (3.2” thick). Anti-condensation perimeter heating around
door opening. Nontoxic epoxy coated evaporator coil. Internal
bumpers and external guards protect the cabinet interior and the con­trol panel from mobile carts.

VBCF DOOR CONSTRUCTION

Ergonomic door handle, safety panic button and outside lock, and
rubber sweeper gasket.

VBCF REFRIGERATION SYSTEM

The self-contained refrigeration system uses R404A refrigerant.
Evaporator is fitted with high velocity fans for maximum cooling
efficiency. Indirect air flow assures highest product quality.

VBCF INTERIOR STORAGE ARRANGEMENTS

Accepts mobile carts— 26”W x 32”D x 74”H. For pan capacity, see
model characteristics chart.

VBCF ELECTRONIC CONTROL SYSTEM

Electronic control with LCD/color display insures precise control of Blast
Chilling (194° F to 37° F in 90 Minutes) or Shock Freezing (194° F to 0° F
in 240 Minutes) Cycles. One touch hard and soft automatic blast chilling
or shock freezing cycles based either on core probe temperature or timed
cycle. Automatic recognition of the core probe and automatic conserva­tion mode at the end of a cycle. One touch display of HACCP Alarms
(power failure, cycle time out of HACCP required time, high temp, low
temp) recorded in memory. The real time clock provides date, time, and
duration of HACCP alarms (power failure, cycle time out of HACCP re­quired time, high temp, low temp) recorded in memory. Will record up to
10 alarm events before over writing the first alarm and will keep the data
for a minimum of 48 hours in case of a power failure. On board program

memory holds 99 total programs. Adjustable Evaporator Fan Speed but-

ton allows for regulation of the fan during the blast chilling or shock freez­ing cycle. Compressor protected by overload cut-out with automatic reset.
Micro-switch control cuts out the evaporator fan and compressor whenev­er the door is opened.

CHARACTERISTICS VBCF-20-175 VBCF-20-175PT

Width, Overall (in.) 47.2 47.2

Depth, Overall (in.) 45.3 50.7

Height, Overall (with legs, in.) 87.8 87.8

Depth, Door Open 90° 74 74

Clear Door Height (in.) 75.6 75.6

Clear Door Width (in.) 26.4 26.4

Internal Depth (in.) 33.5 33.5

Wall Thickness (in.) 3.1 3.1

Sheet Pan Cart Capacity (18”X26”) 20 20

Steam Table Pan Cart Capacity (12”x20”) 20 20

Chilling Capacity in 90 min (lbs.) 175 175

Freezing Capacity in 240 min (lbs.) 115 115

Capacity Mobile Cart(s) 1 GN 1/1 1 GN 1/1

ELECTRICAL DATA

Cabinet Voltage 208-240/60/1 208-240/60/1

NEMA Plus N/A N/A

Total Amperes 2.5 2.5

REFRIGERATION DATA

Refrigerant R404A F404-A

Refrigerant Capacity (W*) 5970 5970

BTUH 22014 22014

Climate Class T T

CRATED DIMENSIONS

Crated H x W x D (in.) 91x51x58 91x51x58

Crated Weight (lbs.) 1019 1052

Uncrated Weight (lbs.) 704 726

VBCF Evap. Temp -10

o

F, Ambient Temp. 90o F

We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for
previously purchased equipment.

10/16
