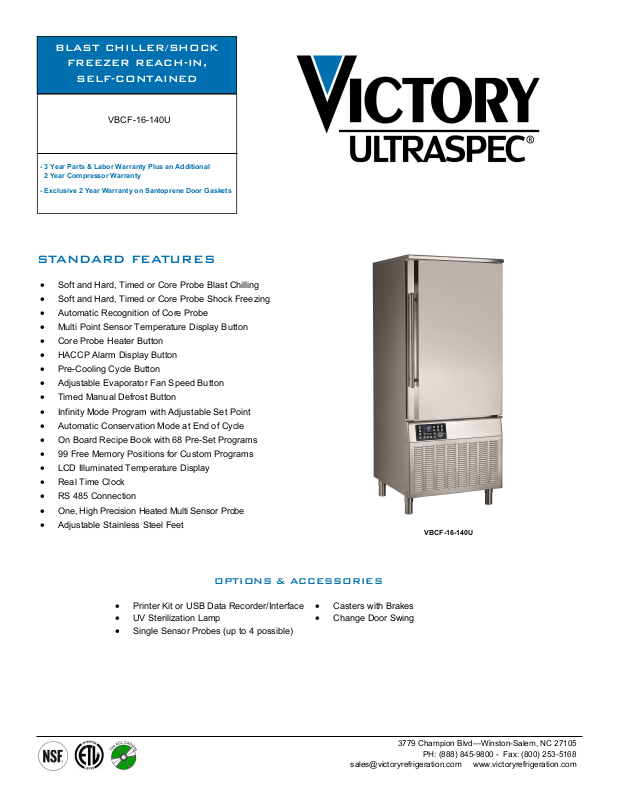

Victory-Raetone VBCF-16-140U User Manual

BLAST CHILLER/SHOCK

FREEZER REACH-IN,

SELF-CONTAINED

VBCF-16-140U

- 3 Year Parts & Labor Warranty Plus an Additional
2 Year Compressor Warranty

- Exclusive 2 Year Warranty on Santoprene Door Gaskets

STANDARD FEATURES

 Soft and Hard, Timed or Core Probe Blast Chilling

 Soft and Hard, Timed or Core Probe Shock Freezing
 Automatic Recognition of Core Probe

 Multi Point Sensor Temperature Display Button

 Core Probe Heater Button

 HACCP Alarm Display Button

 Pre-Cooling Cycle Button

 Adjustable Evaporator Fan Speed Button

 Timed Manual Defrost Button

 Infinity Mode Program with Adjustable Set Point

 Automatic Conservation Mode at End of Cycle

 On Board Recipe Book with 68 Pre-Set Programs

 99 Free Memory Positions for Custom Programs

 LCD Illuminated Temperature Display

 Real Time Clock

 RS 485 Connection

 One, High Precision Heated Multi Sensor Probe

 Adjustable Stainless Steel Feet

VBCF-16-140U

OPTIONS & ACCESSORIES

 Printer Kit or USB Data Recorder/Interface
 UV Sterilization Lamp
 Single Sensor Probes (up to 4 possible)

 Casters with Brakes
 Change Door Swing

3779 Champion Blvd—Winston-Salem, NC 27105

PH: [phone] - Fax: [phone]

[e-mail] www.victoryrefrigeration.com

FEATURING:

VBCF CABINET CONSTRUCTION

Stainless steel AISI 30418/10 exterior and interior. Die -formed interior

floor has rounded corners and central drain for easy cleaning. High
density foamed in place CFC and HCFC free expanded polyurethane
insulation (3.15” thick). Anti-condensation perimeter heating around
door opening. Non toxic epoxy coated evaporator coil. One, heated,
high precision multi-sensor core probe and adjustable stainless steel
legs are standard.

VBCF DOOR CONSTRUCTION

Ergonomic vertical door handle and stainless steel AISI 304 18/10 con­struction. Snap in place magnetic gaskets Self closing doors with hold open
stop at 100°.

VBCF REFRIGERATION SYSTEM

The self-contained refrigeration system uses R404A refrigerant and
features a hermeti-cally sealed compressor with overload protection.
An evaporator fitted with a high flow rate fan insures maximum cooling
efficiency. Indirect air flow assures highest product quality. Manual
defrosting with door open on a timed cycle.

VBCF INTERIOR STORAGE ARRANGEMENTS

Stainless steel wire guide rack allows for maximum air circulation and
can be easily removed without tools for cleaning. See specific model
characteristics for pan capacity (number of pans and sizes). Pans not
included. Spacing between pans is on 2.56” centers. Unit will hold 18”
x 26” or 12” x 20” pans.

VBCF ELECTRONIC CONTROL SYSTEM

Electronic control with LCD/color display insures precise control of Blast
Chilling (194° F to 37° F in 90 Minutes) or Shock Freezing (194° F to 0°
F in 240 Minutes) Cycles. One touch hard and soft auto-matic blast
chilling or shock freezing cycles based either on core probe temperature
or timed cycle. Automatic recognition of the core probe and automatic
conservation mode at the end of a cycle. One touch display of HACCP
Alarms (power failure, cycle time out of HACCP required time, high
temp, low temp) recorded in memory. The real time clock provides date,
time, and duration of HACCP alarms (power failure, cycle time out of
HACCP required time, high temp, low temp) recorded in memory. Will
record up to 10 alarm events before over writing the first alarm and will

keep the data for a minimum of 48 hours in case of a power failure. On

board program memory holds 99 total cycles (68 factory pre -set recipes,
up to 31 custom programs). Adjustable Evaporator Fan Speed button
allows for regulation of the fan during the blast chilling or shock freezing
cycle. Compressor protected by overload cut-out with automatic reset.
Micro-switch control cuts out the evaporator fan and compressor when­ever the door is opened.

CHARACTERISTICS VBCF-16-140U

Width, Overall (in.) 33.5

Depth, Overall (in.) 33.5

Height, Overall (with legs, in.) 76.8

Depth, Door Open 90° 65.4

Clear Door Height (in.) 43.7

Clear Door Width (in.) 28.7

Internal Depth (in.) 20.1

Wall Thickness (in.) 2.4

Sheet Pan Capacity 16

Size of Pans 18”x26”x1”

Centers Between Pans (in.) 2.56

Chilling Capacity in 90 min (lbs.) 140

Freezing Capacity in 240 min (lbs.) 100

ELECTRICAL DATA

Cabinet Voltage 208-240/60/3

NEMA Plus 15-20P

Total Amperes 13.2

Horse Power 2.3 HP

REFRIGERATION DATA

Refrigerant R404A

BTUH 9200

Climate Class T

CRATED DIMENSIONS

Crated H x W x D (in.) 85 x 37 x 36

Crated Weight (lbs.) 615

Uncrated Weight (lbs.) 518

VBCF Evap. Temp -10

o

F, Ambient Temp. 90o F

We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements
for previously purchased equipment. Dimensional tolerances +/ - 1⁄4”. Metric dimensions (MM)

10/16
