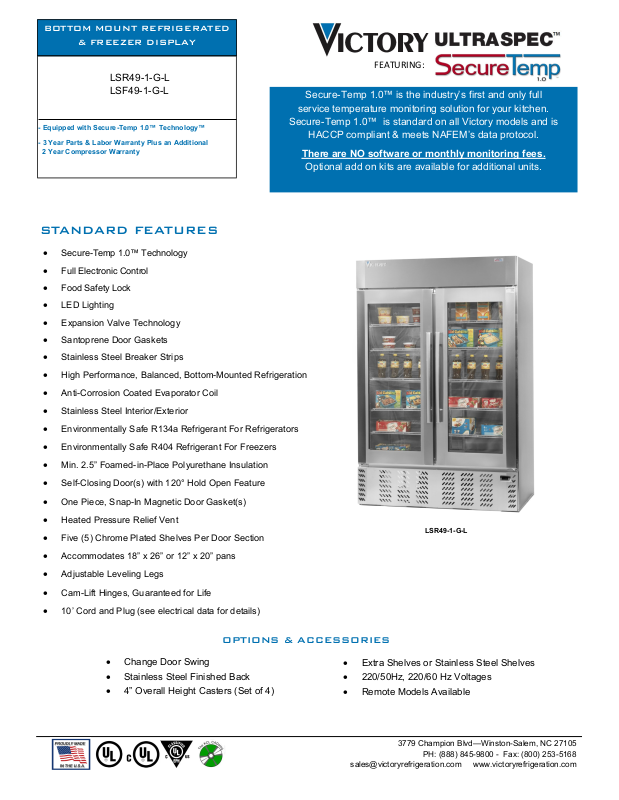

BOTTOM MOUNT REFRIGERATED

& FREEZER DISPLAY

LSR49-1-G-L
LSF49-1-G-L

- Equipped with Secure-Temp 1.0™ Technology™

- 3 Year Parts & Labor Warranty Plus an Additional
2 Year Compressor Warranty

STANDARD FEATURES

 Secure-Temp 1.0™ Technology

 Full Electronic Control

 Food Safety Lock

 LED Lighting

FEATURING:

Secure-Temp 1.0™ is the industry’s first and only full

service temperature monitoring solution for your kitchen.

Secure-Temp 1.0™ is standard on all Victory models and is

HACCP compliant & meets NAFEM’s data protocol.

There are NO software or monthly monitoring fees.

Optional add on kits are available for additional units.

 Expansion Valve Technology

 Santoprene Door Gaskets

 Stainless Steel Breaker Strips

 High Performance, Balanced, Bottom-Mounted Refrigeration

 Anti-Corrosion Coated Evaporator Coil

 Stainless Steel Interior/Exterior

 Environmentally Safe R134a Refrigerant For Refrigerators

 Environmentally Safe R404 Refrigerant For Freezers

 Min. 2.5” Foamed-in-Place Polyurethane Insulation

 Self-Closing Door(s) with 120° Hold Open Feature

 One Piece, Snap-In Magnetic Door Gasket(s)

 Heated Pressure Relief Vent

 Five (5) Chrome Plated Shelves Per Door Section

 Accommodates 18” x 26” or 12” x 20” pans

 Adjustable Leveling Legs

 Cam-Lift Hinges, Guaranteed for Life

 10’ Cord and Plug (see electrical data for details)

LSR49-1-G-L

OPTIONS & ACCESSORIES

 Change Door Swing

 Stainless Steel Finished Back

 4” Overall Height Casters (Set of 4)

 Extra Shelves or Stainless Steel Shelves

 220/50Hz, 220/60 Hz Voltages

 Remote Models Available

3779 Champion Blvd—Winston-Salem, NC 27105

PH: [phone] - Fax: [phone]

[e-mail] www.victoryrefrigeration.com

FEATURING:

LSR/LSF CABINET CONSTRUCTION

The cabinet front , grills and sides are constructed of polished stainless steel. The
inside walls and bottom are in anodized aluminum. A minimum of 2.5” polyure­thane foam insulation throughout (3.5” on the bottom) ensures energy efficiency.
The front grill is snap-on /snap-off allowing easy access for cleaning the conden­ser,

LSR/LSF ELECTROIC CONTROL

Electronic thermostat with manual defrost button provides a digital display of cabi­net temperatures, which includes status indicators and key pad for necessary
temperature adjustments.

LSR/LSF ELE CTRONIC C ONTROL WI TH FOOD SAFETY LOCK

Our exclusive Electronic Control with Food Safety Lock will lock the unit auto­matically when the power goes out. When the power is restored, if the power has
been out for over “X” minutes, the door will stay locked. The factory preset is 120
minutes. If the temperature has been over “Y” temperature value for “Z” minutes
the door will lock. The factory preset value for these parameters are 41° and 90
minutes for Refrigerators, and 32° and 60 minutes for Freezers. “X”, “Y” and “Z”
are programmable values. Additional standard features on the easy to use Elec-

tronic Control include SUPERCOOL Mode, Energy Saving Mode, an d multip le

audible and visual alarms (minimum temperature, maximum temperature, door
ajar, probe failure, clean con-denser and compressor protection). The three most
recent alarms are stored in memory. SUPERCOOL Mode runs the compressor
constantly for a pre-determined amount of time or until a lower set-point has
been reached. Energy Saving Mode activates automatically when there are no
door openings for a pre-determined period of time.

LSR/LSF REFRIGERATION SYSTEM

Self contained bottom mount refrigeration system. Expansion valve refrigerant
control on freezer

Provides quick temperature pull down and reduces compressor run time—
meaning reduced energy consumption. Includes automatic condensate disposal.
Refrigerators utilize ozone friendly R134a refrigerant. Freezers utilize ozone
friendly R404a refrigerant and its defrost system is fully automatic, time initiated
and temperature terminated operation.

LSR/LSF INTERIOR STORAGE ARRANGEMENTS

Each cabinet sections provided with five (5) chrome plated shelves. The shelves
are adjustable in one inch increments.

Freezer product temperatures from –10°F to –15°F.
Refrigerator product temperatures from 36°F to 38°F.

CHARACTERISTICS REFRIGERATOR FREEZER

DIMENSIONAL DATA

Width, Overall (in.) 52” 52”

Depth, Overall (inc. Handles) 33 5/8” 33 5/8”

Depth, Door(s) Open 90° 55 7/8” 55 7/8”

Height Overall (in.) 78” 78”

Capacity Net (cu ft) 49 49

No. Full Doors 2 2

No. of Shelves 5 5

ELECTRICAL DATA

Cabinet Voltage 115/60/1 115/60/1

Total Amperes 8.8 11.9

NOTE: Plug st yl e, voltage and fu ll load amp s may v ary dependi ng on

certain options selected such as optional voltages and compressor upgrades.

REFRIGERATION DATA

Condensing Unit Size 1/3 HP 3/4 HP

Refrigerant R-134A R-404A

CRATED WEIGHT

ONE SECTION 608LBS 651LBS

* Remote units use R-404A refrigerant standard and come with 6” legs

We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions
or replacements for previously purchased equipment. Dimensional tolerances +/- 1⁄4”. Metric dimensions (MM)

01/17
