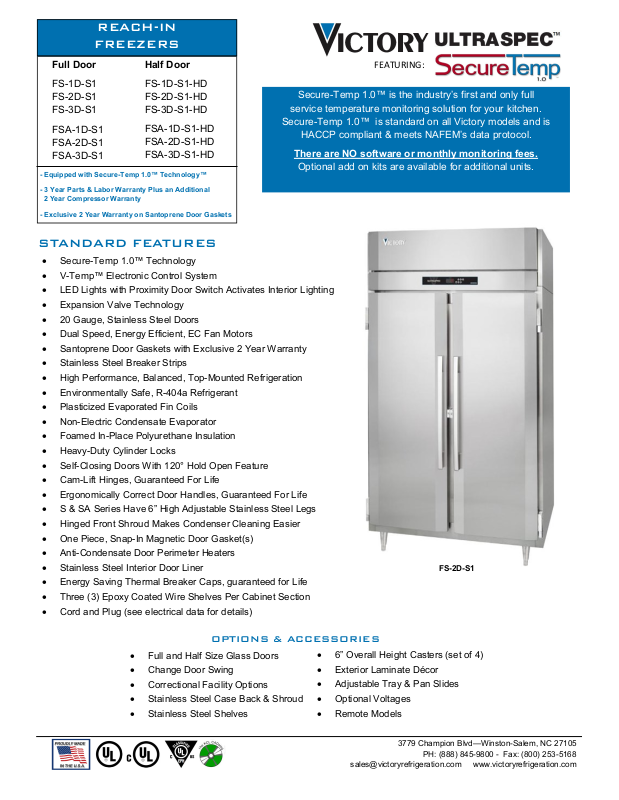

Victory-Raetone FS-1D-S1 User Manual

REACH-IN

FREEZERS

Full Door

FS-1D-S1
FS-2D-S1
FS-3D-S1

FSA-1D-S1
FSA-2D-S1
FSA-3D-S1

- Equipped with Secure-Temp 1.0™ Technology™

- 3 Year Parts & Labor Warranty Plus an Additional
2 Year Compressor Warranty

- Exclusive 2 Year Warranty on Santoprene Door Gaskets

Half Door

FS-1D-S1-HD
FS-2D-S1-HD
FS-3D-S1-HD

FSA-1D-S1-HD
FSA-2D-S1-HD
FSA-3D-S1-HD

Secure-Temp 1.0™ is the industry’s first and only full

service temperature monitoring solution for your kitchen.

Secure-Temp 1.0™ is standard on all Victory models and is

HACCP compliant & meets NAFEM’s data protocol.

There are NO software or monthly monitoring fees.

Optional add on kits are available for additional units.

STANDARD FEATURES

 Secure-Temp 1.0™ Technology
 V-Temp™ Electronic Control System
 LED Lights with Proximity Door Switch Activates Interior Lighting
 Expansion Valve Technology
 20 Gauge, Stainless Steel Doors
 Dual Speed, Energy Efficient, EC Fan Motors
 Santoprene Door Gaskets with Exclusive 2 Year Warranty
 Stainless Steel Breaker Strips
 High Performance, Balanced, Top-Mounted Refrigeration
 Environmentally Safe, R-404a Refrigerant
 Plasticized Evaporated Fin Coils

 Non-Electric Condensate Evaporator

 Foamed In-Place Polyurethane Insulation
 Heavy-Duty Cylinder Locks
 Self-Closing Doors With 120° Hold Open Feature
 Cam-Lift Hinges, Guaranteed For Life
 Ergonomically Correct Door Handles, Guaranteed For Life
 S & SA Series Have 6” High Adjustable Stainless Steel Legs
 Hinged Front Shroud Makes Condenser Cleaning Easier
 One Piece, Snap-In Magnetic Door Gasket(s)
 Anti-Condensate Door Perimeter Heaters
 Stainless Steel Interior Door Liner
 Energy Saving Thermal Breaker Caps, guaranteed for Life

 Three (3) Epoxy Coated Wire Shelves Per Cabinet Section

 Cord and Plug (see electrical data for details)

FEATURING:

FS-2D-S1

OPTIONS & ACCESSORIES

 Full and Half Size Glass Doors
 Change Door Swing
 Correctional Facility Options
 Stainless Steel Case Back & Shroud
 Stainless Steel Shelves

 6” Overall Height Casters (set of 4)
 Exterior Laminate Décor
 Adjustable Tray & Pan Slides
 Optional Voltages
 Remote Models

3779 Champion Blvd—Winston-Salem, NC 27105

PH: [phone] - Fax: [phone]

[e-mail] www.victoryrefrigeration.com

FEATURING:

CABINET CONSTRUCTION

The cabinet front and doors are constructed of heavy gauge, polished stainless steel to

maintain an attractive appearance after years of heavy use. Polyurethane foam insulation
throughout ensures the ultimate in energy efficiency. The front shroud lifts up for easy
access when cleaning the condenser unit.

DOOR CONSTRUCTION

The doors are heavy gauge, polished stainless steel with a stainless steel interior liner.
Each door is provided with a cylinder lock and ergonomically correct vertical handle. The
door hinges are self-closing and have a hold-open feature at 120° which facilitates product
loading. Proximity switches energize the recessed interior incandescent lighting when the
door is opened. Humidity control wires around the door jamb prevent condensation from
forming on the front of the cabinet in high humidity environments. The wires are concealed
by a high impact, non-conducting thermal breaker cap.

REFRIGERATION SYSTEM

All components of the high efficiency, air-cooled, self-contained refrigeration system are
mounted on top of the cabinet out of the food storage zone providing greater usable stor­age space. Environmentally friendly R-134a refrigerant is efficiently metered by an expan­sion valve providing a constant, safe operating temperature and quick “recovery” under the

most demanding conditions. The hermetically sealed systems are designed to operate at

38°F. Each cooling coil has plasticized fin coils to resist food acids and dual-speed EC fan
motor(s) for greater cooling capacity and efficiency. All condensate water is disposed of
automatically by the energy efficient, non-electric condensate evaporator.

INTERIOR STORAGE ARRANGEMENTS

Each cabinet section is provided with three heavy-duty, epoxy coated wire shelves. The
shelves are adjustable in one inch increments. A wide door opening allows for the use of a
variety of optional pan slide configurations including 18” x 26” and 12” x 20” pans.

V-TEMP™ CONTROL SYSTEM

The easy to use V-TEMP™ Control is standard. This durable, water resistant microproces­sor monitors and controls the entire temperature maintenance process. It includes an ON/
OFF switch, manual defrost, interior light switch, LED temperature indicator in °C or °F, a
HI/LO audio/visual temperature alarm, power supply interruption, door ajar and “clean
condenser” alarms. A manager’s “lock-out” feature is provided to safeguard predetermined
control settings. A HAACP Event Indicator/Memory feature announces and records up to
nine (9) alarm events. Unique to the V-TEMP™ are two standard modes of operation:

SUPERCOOL - Provides a lower “set-point” refrigeration condition for a set period of time

when food has just been loaded into the refrigerator and needs to be quickly brought back

down to a safe temperature.

ENERGY SAVING - The cabinet automatically reverts to the energy saving mode when

there are no door openings for four hours.

CHARACTERISTICS 1 Section 2 Section 3 Section

Net Capacity 21.5 46.5 70.1

Width, Overall (in.) 26 1/2” 52 1/8” 77 3/4”

Depth, Overall (inc. Handles) 35” 35” 35”

Depth, Door(s) Open 90° 56 3/4” 56 3/4” 56 3/4”

Clear Door Width (in.) 21 1/8” 21 1/8” 21 1/8”

Clear Half-Door Height (in.) 25 3/8” 25 3/8” 25 3/8”

Clear Full-Door Height (in.) 55 1/4 55 1/4” 55 1/4”

Height Overall (inc. 6” legs) 84 1/4” 84 1/4” 84 1/4”

No. Full/Half Doors 1F, 2H 2F, 4H 3 F, 6H

No. of Shelves 3 6 9

Shelf Area (sq. ft.) 15.4 33.2 50.1

ELECTRICAL DATA

Cabinet Voltage 115/60/1 115/60/1 115/60/1

Feed Wires 2 2 2

Condensing Unit Voltage 115/60/1 115/60/1 208-230/60/1

NEMA Plug 5-15P 5-20P NO

Total Amperes 8.5 12 12.9

NOTE: Plug style, vol tag e and full load amps may vary depend ing on cer tai n
options selected such as optional voltages and compressor upgrades.

REFRIGERATION DATA

Condensing Unit Size 1/3 HP 1/2 HP 3/4 HP

Refrigerant R-404a R-404a R-404a

CRATED DIMENSIONS Height Width Depth Cu. Ft. Lbs

One Section 84 1/2” 36” 43” 75.70 320

Two Section 84 1/2” 59 1/4” 43” 124.59 520

Three Section 84 1/2” 86 1/2” 43” 181.89 645

* Remote units use R-404A refrigerant standard and come with 6” legs

Note: In order to pro vide peak operating per fo rmanc e th e cabinet must have a

2 inch all around clearance and 12 inches above the top of the condensing unit. This
endures an adequate air supply and space for routine maintenance and/or service if
required.

We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements
for previously purchased equipment. Dimensional tolerances +/ - 1⁄4”. Metric dimensions (MM)

01/17
