Victory VF-2 User Manual

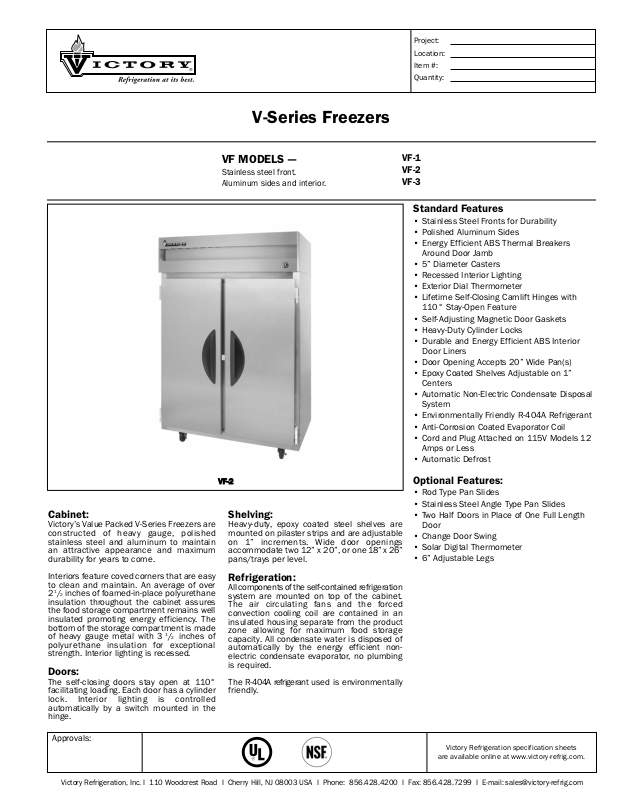

V-Series Freezers
Cabinet:
Victory’s Value Packed V-Series Freezers are
constructed of heavy gauge, polished
stainless steel and aluminum to maintain
an attractive appearance and maximum
durability for years to come.
Interiors feature coved corners that are easy
to clean and maintain. An average of over
2
1
/2inches of foamed-in-place polyurethane
insulation throughout the cabinet assures
the food storage compartment remains well
insulated promoting energy efficiency. The
bottom of the storage compartment is made
of heavy gauge metal with 3
1
/2inches of
polyurethane insulation for exceptional
strength. Interior lighting is recessed.
Doors:
The self-closing doors stay open at 110°
facilitating loading. Each door has a cylinder
lock. Interior lighting is controlled
automatically by a switch mounted in the
hinge.
Shelving:
Heavy-duty, epoxy coated steel shelves are
mounted on pilaster strips and are adjustable
on 1” increments. Wide door openings
accommodate two 12” x 20”, or one 18” x 26”
pans/trays per level.
Refrigeration:
All components of the self-contained refrigeration
system are mounted on top of the cabinet.
The air circulating fans and the forced
convection cooling coil are contained in an
insulated housing separate from the product
zone allowing for maximum food storage
capacity. All condensate water is disposed of
automatically by the energy efficient nonelectric condensate evaporator, no plumbing
is required.
The R-404A refrigerant used is environmentally
friendly.
Standard Features
• Stainless Steel Fronts for Durability
• Polished Aluminum Sides
• Energy Efficient ABS Thermal Breakers
Around Door Jamb
• 5” Diameter Casters
• Recessed Interior Lighting
• Exterior Dial Thermometer
• Lifetime Self-Closing Camlift Hinges with
110° Stay-Open Feature
• Self-Adjusting Magnetic Door Gaskets
• Heavy-Duty Cylinder Locks
• Durable and Energy Efficient ABS Interior
Door Liners
• Door Opening Accepts 20” Wide Pan(s)
• Epoxy Coated Shelves Adjustable on 1”
Centers
• Automatic Non-Electric Condensate Disposal
System
• Environmentally Friendly R-404A Refrigerant
• Anti-Corrosion Coated Evaporator Coil
• Cord and Plug Attached on 115V Models 12
Amps or Less
• Automatic Defrost
Optional Features:
• Rod Type Pan Slides
• Stainless Steel Angle Type Pan Slides
• Two Half Doors in Place of One Full Length
Door
• Change Door Swing
• Solar Digital Thermometer
• 6” Adjustable Legs
VF-2
Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: 856.428.4200 I Fax: 856.428.7299 I E-mail: sales@victory-refrig.com
Victory Refrigeration specification sheets
are available online at www.victory-refrig.com.
Approvals:
Project:
Location:
Item #:
Quantity:
VF-1
VF-2
VF-3
VF MODELS —
Stainless steel front.
Aluminum sides and interior.
CHARACTERISTICS ONE SECTION TWO SECTION THREE SECTION
Reach-In Reach-In Reach-In
Width, Overall 26
1
/
2
52
1
/
8
77
3
/
4
Depth, Overall (incl. handles) 33
1
/
4
33
1
/
4
34
1
/
2
Height, Overall (incl. adj. legs) 84 84 84
Depth, Open Door 90° 56
1
/
2
56
1
/
2
56
1
/
2
Clear Door Opening, Width 21
1
/
4
21
1
/
4
21
1
/
4
Clear Full Door Opening, Height 54 54 54
Clear Half Door Opening, Height 25
1
/
4
25
1
/
4
25
1
/
4
Capacity Net (cubic feet) 21.0 45.4 69.0
No. of Full Doors 1 2 3
No. of Half Doors 2 4 6
No. of Shelves 3 6 9
Shelf Area (square feet) 17.1 36.0 54.2
Cabinet Voltage 115/60/1 115/60/1 115/60/1
Feed Wires 2 2 3
Condensing Unit Voltage 115/60/1 115/60/1 208-230/60/1
Condensing Unit Size (HP)
1
/
3
1
/
2
3
/
4
Total Amperes 8.5 12.0 12.9
Plug, NEMA 5-15P 5-15P Hardwire
Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
Continuous product development may necessitate specification changes and design without notice.
Copyright June 2009
Printed in U.S.A. 063009
NOTE: If cabinet is located
directly against wall an all
around clearance of 2” is
required, and a minimum
clearance of 10” under
ceiling.
We reserve the right to
change specifications and
product design without
notice. Such revisions do
not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for previously
purchased equipment.
Crated dim. & wts.
Ht. Width Depth Cu. Ft. Lbs.
One Section 84 1/434 1/243 82.2 315
Two Section 84
1
/459 43 143.3 465
Three Section 84
1
/486 43 204.4 620
Dimensional tolerance ±
1
/4” Metric dimensions (MM)
Victory Refrigeration, Inc. V-Series Freezers
2.25
(57)
13.88 (352)
(152)
6.00
VF-1, VF-2, VF-3 SIDE VIEW
22.50
(571)
26.00
Electric
(660)
Connection
VF-1 TOP VIEW
26.50
(673)
33.25
(844)
31.00
(787)
33.25
(844)
56.00
(1422)
26.00
(660)
52.12
(1323)
47.75 (1212)
Electric
Connection
VF-2 TOP VIEW
52.12 (1323)
33.25
(844)
26.00
(660)
77.75(1974)
73.25 (1860)
Junction Box
VF-3 TOP VIEW
77.75 (1974)
33.25
(844)
84.00
(2133)
21.25
(539)
23.88 (606)
TYP. OPENING
TYP. DOOR
VF-1 FRONT VIEW
84.00
(2133)
21.25
(539)
TYP. OPENING
VF-2 FRONT VIEW
23.88
(606)
TYP. DOOR
84.00
(2133)
21.25
(539)
TYP. OPENING
VF-3 FRONT VIEW
23.88
(606)
TYP. DOOR
