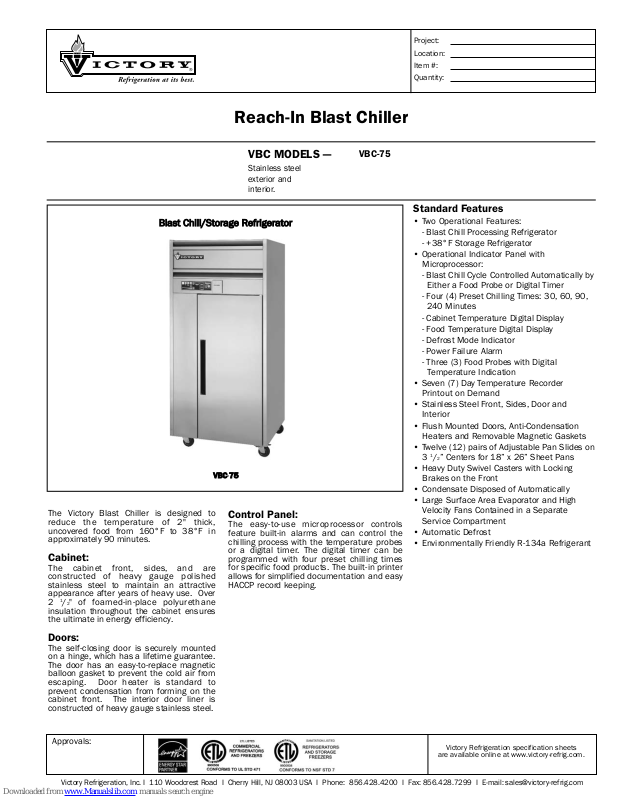

Victory VBC-75 Specifications
Blast Chill/Storage Refrigerator
Reach-In Blast Chiller
The Victory Blast Chiller is designed to
reduce the temperature of 2" thick,
uncovered food from 160°F to 38°F in
approximately 90 minutes.
Cabinet:
The cabinet front, sides, and are
constructed of heavy gauge polished
stainless steel to maintain an attractive
appearance after years of heavy use. Over
2
1
/2" of foamed-in-place polyurethane
insulation throughout the cabinet ensures
the ultimate in energy efficiency.
Doors:
The self-closing door is securely mounted
on a hinge, which has a lifetime guarantee.
The door has an easy-to-replace magnetic
balloon gasket to prevent the cold air from
escaping. Door heater is standard to
prevent condensation from forming on the
cabinet front. The interior door liner is
constructed of heavy gauge stainless steel.
Control Panel:
The easy-to-use microprocessor controls
feature built-in alarms and can control the
chilling process with the temperature probes
or a digital timer. The digital timer can be
programmed with four preset chilling times
for specific food products. The built-in printer
allows for simplified documentation and easy
HACCP record keeping.
Standard Features
• Two Operational Features:
- Blast Chill Processing Refrigerator
- +38°F Storage Refrigerator
• Operational Indicator Panel with
Microprocessor:
- Blast Chill Cycle Controlled Automatically by
Either a Food Probe or Digital Timer
- Four (4) Preset Chilling Times: 30, 60, 90,
240 Minutes
- Cabinet Temperature Digital Display
- Food Temperature Digital Display
- Defrost Mode Indicator
- Power Failure Alarm
- Three (3) Food Probes with Digital
Temperature Indication
• Seven (7) Day Temperature Recorder
Printout on Demand
• Stainless Steel Front, Sides, Door and
Interior
• Flush Mounted Doors, Anti-Condensation
Heaters and Removable Magnetic Gaskets
• Twelve (12) pairs of Adjustable Pan Slides on
3
1
/2” Centers for 18” x 26” Sheet Pans
• Heavy Duty Swivel Casters with Locking
Brakes on the Front
• Condensate Disposed of Automatically
• Large Surface Area Evaporator and High
Velocity Fans Contained in a Separate
Service Compartment
• Automatic Defrost
• Environmentally Friendly R-134a Refrigerant
VBC MODELS —
Stainless steel
exterior and
interior.
VBC-75
VBC-775
Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: 856.428.4200 I Fax: 856.428.7299 I E-mail: sales@victory-refrig.com
Victory Refrigeration specification sheets
are available online at www.victory-refrig.com.
Approvals:
Project:
Location:
Item #:
Quantity:
Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
Continuous product development may necessitate specification changes and design without notice.
Victory Refrigeration, Inc. Reach-IIn Blast Chiller
Dimensional tolerance ± 1/4” Metric dimensions (MM)
REFRIGERATION DATA
Refrigerant Compressor BTUH*
VBC-75 R-134a 1 1/2H.P. 9211
*BTUH @ 90°F. Ambient, +14°F. Evaporator
Copyright January 2004
Printed in U.S.A. 010451
PART OF AGA FOODSERVICE GROUP
Crated dim. & wts.
Ht. Width Depth Lbs
VBC-75 86 42 42 559
CHARACTERISTICS VBC-75
Capacity (lbs./90 mins.) 75
Width, Overall 35
1
/
2
Depth, Overall 36
Depth, Door Open 90º 58
1
/
4
Height (incl. casters) 77
1
/
2
Clear Door Width 18
1
/
4
Clear Door Height 48
1
/
2
No. of Tray Slides 12 pairs
Cabinet Voltage 208/60/1
Feed Wires (with Ground) 2
Total Amperes 15
10 Ft. Cord Installed, (No Plug)
NOTE: If cabinet is located directly against
wall and/or under low ceiling, a minimum
clearance of 2” is required.
We reserve the right to change
specifications and product design
without notice. Such revisions do not
entitle the buyer to corresponding
changes, improvements, additions or
replacements for previously purchased
equipment.
36.00 (915)
32.00 (815)
25.00 (633)
26.88 (683)
26.00 x 18.00
(660 x 457)
PANS
3.00 (75)3.00 (75) 9.00 (230)
72.00 (1830)
77.50 (1970)
8.88 (225)
ELECTRICS
35.50 (903)
TOP VIEW
POWER SOURCE
CABLE EXIT
20.5 (523)
54.25 (1379)
POWER SOURCE
CABLE EXIT
18.75 (475)
48.50 (1230)
1.25 (30)
7.50
(192)
FRONT VIEW SIDE VIEW
