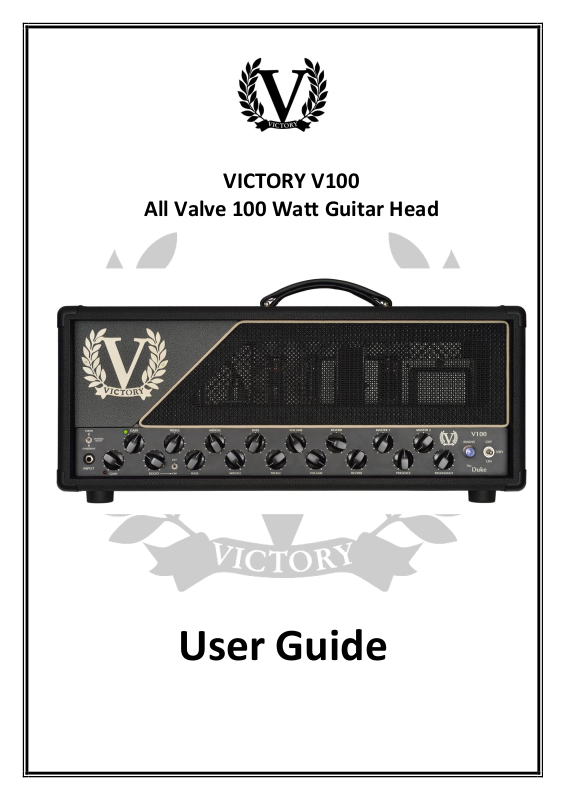

Victory V100 User Guide

VICTORY V100

All Valve 100 Watt Guitar Head

User Guide

Thank you, and congratulations on acquiring a Victory Amplification V100. This amp is proudly designed
and built by our committed team of engineers and craftsmen in the UK.
We value simplicity in operation, flexibility in use and absolutely no compromise in tone. Our aim is

simple: to create amplifiers that inspire you ever onwards in your playing and never let you down.

SAFETY FIRST
We want you to enjoy your amplifier to the best of its potential. So please…

Before you go any further, take a moment to read these SAFETY INSTRUCTIONS

• Read these guidelines & keep them

• Follow all instructions & guidelines

• Do not use this amplifier near water or any other liquid

• Do not block any openings

• Do not attempt to clean the amplifier with any fluids: use only a dry cloth

Do not attempt to modify or service this product yourself

•

Removing covers could mean you are exposed to dangerous voltages that may result in severe injury or

•

death

• Refer all servicing to qualified service personnel

• Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:
(a) When the power-supply cord or plug is damaged;
(b) If liquid has been spilled, or objects have fallen into the product;
(c) If the product has been exposed to rain or water;
(d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions. Improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation;
(e) If the product has been dropped or damaged in any way;
(f) When the product exhibits a distinct change in performance - this indicates a need for service.

Replacement Parts: When replacement parts are required, be sure the service technician uses

•

replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.

What’s included:
Your new Victory V100 comes with the following:
3 x Latching Footswitches for Channel 1/2 & Boost, Master Volume & Reverb, FX Loop 1 & FX Loop 2
A mains lead for your country
A heavy duty dust cover
This User Guide

FRONT PANEL

Input
Plug your guitar in here!

Channel switch
The V100 has two channels that you can switch between using this front-panel toggle, or a remote

footswitch plugged into the Channel/Boost footswitch socket.

Clean channel
The clean channel is indicated by a green LED channel indicator next to the gain control.

Clean Gain
This adjusts the input sensitivity. Use low settings for maximum clean headroom and higher settings
when you want to introduce more natural valve overdrive to your tone.
Balancing your input gain level with your master volume level is crucial in delivering the tone and feel
that works best for you.

Clean Treble
Controls the high frequency content of your sound in the clean channel and is also a powerful tone
shaper when it comes to overdrive character.

Clean Middle
Controls the midrange frequencies in your sound in the clean channel. Run the middle control higher to

help cut through a band mix, or generally fatten and ‘widen’ your sound. Run it lower for a lighter, less
‘in-your-face’ kind of sound.

Clean Bass
Controls the low frequency content of your sound in the clean channel. Higher levels of bass can be good
at low volumes, but take care when running the amp louder – you may find you need to reduce the bass
control. As with all the EQ pots, adjust to taste!

Clean Volume
Each channel has its own volume control, as well as the extra dual master volumes. Use this one to
balance the volume level of the clean channel to taste when switching between channels and modes.

Clean Reverb
The V100 features independent reverb controls for each channel. Adjust to taste for the clean channel.
The reverb is also footswitchable on/off.

Overdrive channel
The overdrive channel is indicated by a red LED channel indicator next to the gain control.
