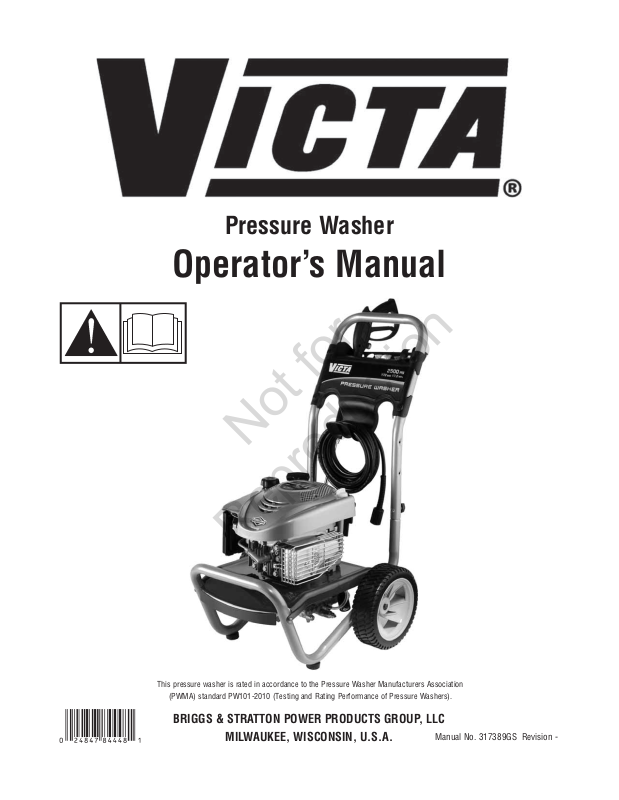

Page 1
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
MILWAUKEE, WISCONSIN, U.S.A.
Manual No. 317389GS Revision -
Pressure Washer
Operator’s Manual
This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association
(PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).
Not for
Reproduction
Page 2
2 www.victa.com.au
Thank you for purchasing this quality-built Victa® pressure washer. We are pleased that you’ve placed your confidence in the
Victa brand. When operated and maintained according to the instructions in this manual, your Victa pressure washer will
provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with pressure washers and
how to avoid them. This product is designed and intended only for cleaning of surfaces that can withstand high-pressure water
spray and is not intended for any other purpose. It is important that you read and understand these instructions thoroughly
before attempting to start or operate this equipment. Save these original instructions for future reference.
This pressure washer requires final assembly before use. Refer to the Assembly section of this manual for instructions on
final assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to find Victa support and service for your pressure washer. There are many authorized service
dealers who provide quality service. You can also contact Victa Customer Service by phone at 1800 356 632, or on the Internet
at www.victa.com.au or BRIGGSandSTRATTON.COM.
Pressure Washer
Model Number
Revision
Serial Number
Engine
Model Number
Type Number
Code Number
Date Purchased
Copyright © 2012. Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. All rights reserved.
VICTA® is a registered trademark of Victa Limited.
Not for
Reproduction
Page 3
Table of Contents
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Equipment Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpack Pressure Washer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

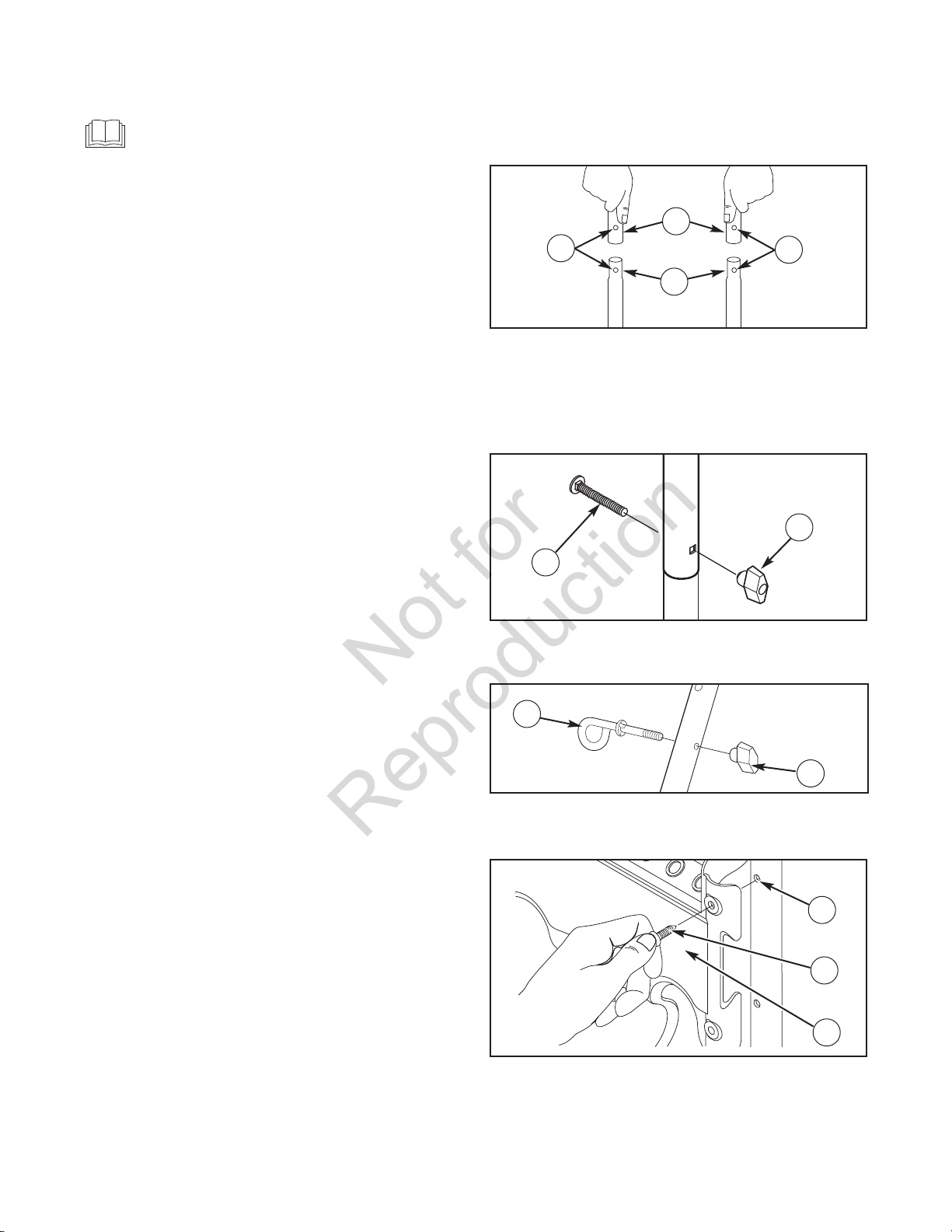

Attach Handle and Accessory Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Add Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Add Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lubricate O-Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect Hose and Water Supply to Pump. . . . . . . . . . . . . . . . . . . . . . . . . 10
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pressure Washer Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Start Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
How to Stop Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Use Accessory Tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to Use Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Applying Detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure Washer Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning Detergent Siphoning Tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Automatic Cool Down System (Thermal Relief). . . . . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pressure Washer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After Each Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warranties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pressure Washer Owner Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Common Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3
Not for
Reproduction
Page 4
Operator Safety
Equipment Description
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
This pressure washer operates at 172 BAR (2,500 PSI) at a
flow rate of 7.57 l (2.0 gallons) per minute. This high quality
residential system features 25.4 cm (10 in) wheels, axial cam
pump with stainless steel pistons, automatic cool down
system, detergent siphoning system, quick connect spray
tips, heavy duty 7.62 m (25 ft) hose, and more.
Every effort has been made to ensure that the information in
this manual is both accurate and current. However, the
manufacturer reserves the right to change, alter or otherwise
improve the pressure washer and this documentation at any
time without prior notice.
Important Safety Information
The manufacturer cannot possibly anticipate every possible
circumstance that might involve a hazard. The warnings in
this manual, and the tags and decals affixed to the unit are,
therefore, not all-inclusive. If you use a procedure, work
method or operating technique that the manufacturer does
not specifically recommend, you must satisfy yourself that it
is safe for you and others. You must also make sure that the
procedure, work method or operating technique that you
choose does not render the pressure washer unsafe.

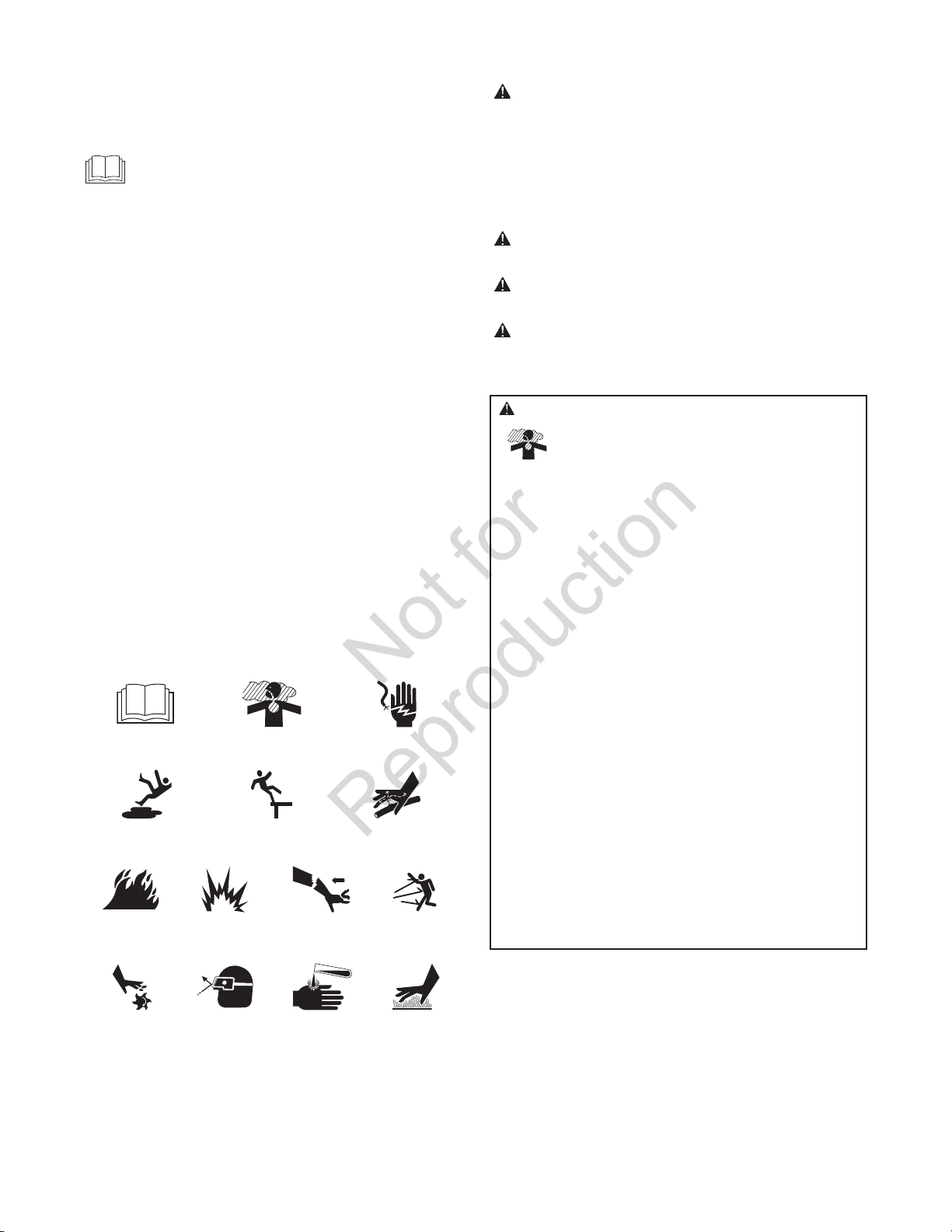

Safety Symbols and Meanings
The safety alert symbol indicates a potential personal
injury hazard. A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to designate a
degree or level of hazard seriousness. A safety symbol may
be used to represent the type of hazard. The signal word
NOTICE is used to address practices not related to personal
injury.
DANGER indicates a hazard which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, could
result in minor or moderate injury.
NOTICE address practices not related to personal injury.
4 www.victa.com.au
Fire
Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Slippery Surface
Fall
Kickback
Flying Objects
Fluid Injection
Operator’s Manual
Chemical Burn
Projectile
WARNING POISONOUS GAS HAZARD. Engine
exhaust contains carbon monoxide, a poisonous
gas that could kill you in minutes. You CANNOT
smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed to carbon
monoxide gas.
Some chemicals or detergents could be harmful if inhaled
or ingested, resulting in death, serious injury, nausea,
fainting or poisoning.

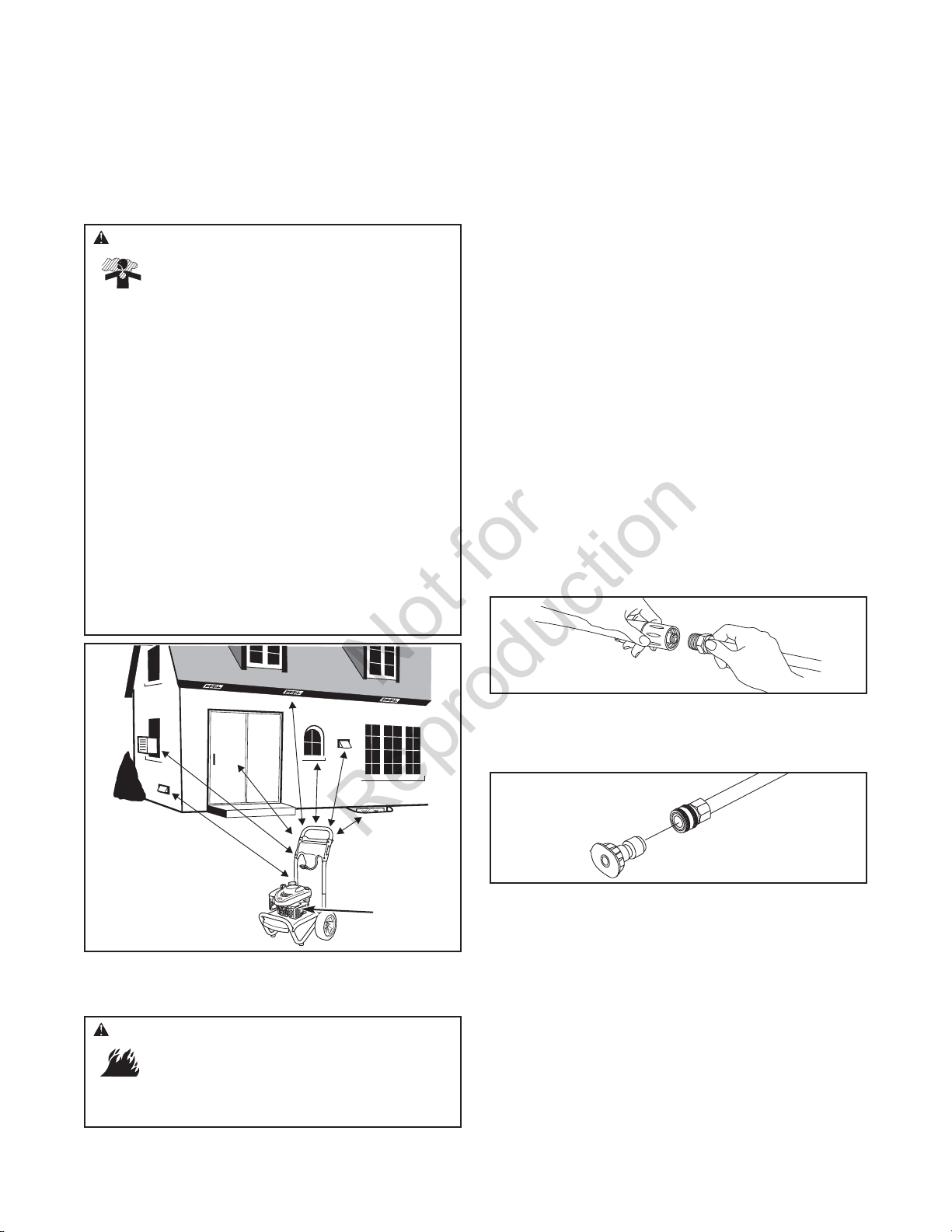

• Operate this product ONLY outside far away from windows,
doors and vents to reduce the risk of carbon monoxide gas
from accumulating and potentially being drawn towards
occupied spaces.
• Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions. Smoke alarms cannot detect
carbon monoxide gas.
• DO NOT run this product inside homes, garages, basements,
crawlspaces, sheds, or other partially-enclosed spaces even if
using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can
linger for hours, even after this product has shut off.
• ALWAYS place this product downwind and point the engine
exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this product,
shut it off and get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled when using chemicals.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful
vapors when using chemicals.
Not for
Reproduction
Page 5
5
WARNING Fuel and its vapors are extremely flammable
and explosive which could cause burns,
fire or explosion resulting in death,
serious injury and/or property damage.
WHEN ADDING OR DRAINING FUEL
• Turn pressure washer engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or
leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building, carport,
porch, mobile equipment, marine applications, or enclosure.
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING, MOVING OR REPAIRING EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other ignition
source because they could ignite fuel vapors.
WARNING Risk of electrocution.
Contact with power source could cause electric
shock or burn resulting in death or serious injury.
• NEVER spray near power source.
WARNING Use of pressure washer could create puddles
and slippery surfaces causing you to fall
resulting in death or serious injury.
Kickback from spray gun could cause
you to fall resulting in death or serious injury.
• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Starter cord kickback (rapid retraction) will
pull hand and arm toward engine faster than you
can let go which could cause broken bones,
fractures, bruises, or sprains resulting in serious
injury.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction, press red button and squeeze
spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Chemical Burn Hazard.
Chemicals could cause burns resulting in death,
serious injury, and/or property damage.
• DO NOT use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/ soaps. Follow all
manufacturers instructions.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death,
serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft) of clearance on all sides of pressure
washer including overhead.
• Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
Not for
Reproduction
Page 6
NOTICE High pressure spray could damage fragile items
including glass.
• DO NOT point spray gun at glass when using red (0°) spray tip.
• NEVER aim spray gun at plants.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• If you have questions about intended use, ask dealer or contact
qualified service center.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of
the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided
on unit.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used with
parts that DO NOT comply with minimum specifications, user
assumes all risks and liabilities.
6 www.victa.com.au
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• If cut by fluid, call physician immediately. DO NOT treat as a
simple cut.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Unintentional sparking could cause fire or
electric shock resulting in death or
serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING Starter and other rotating parts could
entangle hands, hair, clothing, or accessories
resulting in serious injury.
• NEVER operate pressure washer without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that could be
caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
CAUTION
Excessively high operating speeds could
result in minor injury and/or pressure washer damage.
Excessively low speeds impose a heavy load.
• DO NOT tamper with governor spring, links or other parts to
increase engine speed. Pressure washer supplies correct rated
pressure and flow when running at governed speed.
• DO NOT modify pressure washer in any way.
WARNING Risk of eye or bodily injury.
Spray could splash back or propel
objects resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with AS/NZS 1337 (ANSI Z87.1 equivalent)
when using or in vicinity of this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
• Always wear protective clothing such as a long-sleeved shirt,
long pants and close-toed shoes.
• NEVER operate pressure washer when barefoot or wearing
sandals or shorts.
Not for
Reproduction
Page 7
Assembly
Read entire operator’s manual before you attempt
to assemble or operate your new pressure washer.
Your pressure washer requires some assembly and is ready
for use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your pressure
washer, please call the pressure washer helpline at
1800 356 632. If calling for assistance, please have the
model, revision, and serial number from the identification
label available.
Unpack Pressure Washer
1. Remove the parts bag, accessories, and inserts
included with pressure washer.
2. Open carton completely by cutting each corner from
top to bottom.
3. Ensure you have all included items prior to assembly.
Items in the carton include:
• Main Unit
• Handle
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Plastic Accessory Tray
• Parts Bag (which includes the following):
• Operator’s Manual
• Maintenance Kit
• Garden Hose Adapter
• Bag containing 4 Multi–Colored Spray Tips
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolts (2)
• Rope Guide (1)
• Plastic Knobs (3)
• Tree Clips (4)
To prepare your pressure washer for operation, you will
need to perform these tasks:
1. Attach handle and accessory tray to main unit.
2. Add oil to engine crankcase.
3. Add fuel to fuel tank.
4. Connect high pressure hose to spray gun and pump.
5. Connect water supply to pump.
6. Attach nozzle extension to spray gun.
7. Select/attach quick connect spray tip to nozzle
extension.
Attach Handle and Accessory Tray
1. Place handle (A) onto handle supports (B) connected to
main unit. Make sure holes (C) in handle align with
holes (C) on handle supports.
NOTICE It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
2. Insert carriage bolts (D) through holes from back of
unit and attach a plastic knob (E) from front of unit.
Tighten by hand.
3. Attach rope guide (F) through handle with plastic knob
(G). Tighten by hand. Route engine recoil rope through
guide.
4. Place accessory tray (H) over holes (J) on handle
(viewing from front of unit). Push the tree clips (K) into
the holes until they sit flat against the accessory tray.
5. Insert multi–colored spray tips and other supplied
accessories in spaces provided in accessory tray. See
How to Use Accessory Tray.
7
D
E
H
K
J
F
G
A
B
C
C
Not for
Reproduction
Page 8

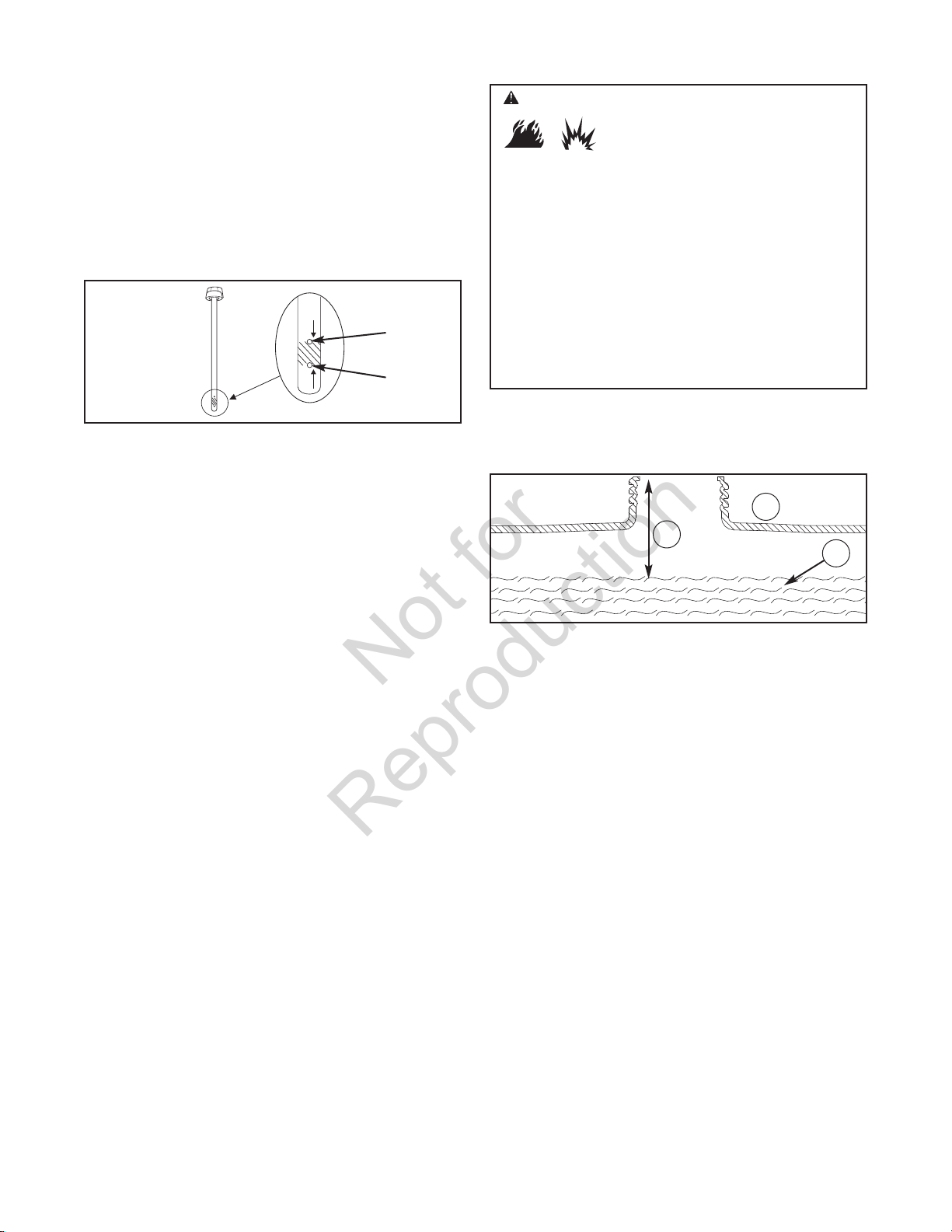

Add Engine Oil
1. Place pressure washer on a flat, level surface.
2. Clean area around oil fill and remove yellow oil fill
cap/ dipstick.
3. Using oil funnel (optional), slowly pour engine oil into
oil fill opening. Pause to permit oil to settle.
4. Fill to FULL mark (top hole) on dipstick.
NOTICE Wipe dipstick clean each time oil level is checked.
DO NOT overfill.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• DO NOT attempt to crank or start the engine before it has been
properly serviced with the recommended oil. This could result in
an engine failure.
5. Replace oil fill cap/ dipstick and fully tighten.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). For high
altitude use, see High Altitude.
• Gasoline with up to 10% ethanol (gasohol) or up to
15% MTBE (methyl tertiary butyl ether) is acceptable.
NOTICE Avoid pressure washer damage.
Failure to follow Operator’s Manual for fuel
recommendations voids warranty.
• DO NOT use unapproved gasoline such as E85.
• DO NOT mix oil in gasoline.
• DO NOT modify engine to run on alternate fuels.
To protect the fuel system from gum formation, mix in a fuel
stabilizer when adding fuel. See Storage. All fuel is not the
same. If you experience starting or performance problems
after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operate on gasoline. The
emission control system for this engine is EM (Engine
Modifications).
1. Clean area around fuel fill cap, remove cap.
2. Slowly add regular unleaded fuel (A) to fuel tank (B). Be
careful not to overfill. Allow about 4 cm (1.5 in) (C) of
tank space for fuel expansion.
3. Install fuel cap and let any spilled fuel evaporate before
starting engine.
High Altitude
At altitudes over 1524 m (5,000 ft), a minimum 85 octane /
85 AKI (89 RON) gasoline is acceptable. To remain
emissions compliant, high altitude adjustment is required.
Operation without this adjustment will cause decreased
performance, increased fuel consumption, and increased
emissions. See an Authorized Briggs & Stratton dealer for
high altitude adjustment information. Operation of the engine
at altitudes below 762 m (2,500 ft) with the high altitude kit
is not recommended.
8 www.victa.com.au
WARNING Fuel and its vapors are extremely flammable
and explosive which could cause burns,
fire or explosion resulting in death, serious
injury and/or property damage.
WHEN ADDING FUEL
• Turn pressure washer engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or
leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
Full
Add
C
B
A
Not for
Reproduction
Page 9
Lubricate O-Rings
Lubrication of o-rings is extremely important for installation
and operation. The use of a lubricant (petroleum or synthetic
grease) during assembly helps seat o-rings properly and
provides an improved seal. It also helps protect the o-ring
from damage by abrasion, pinching or cutting and extends
the life of the o-ring.

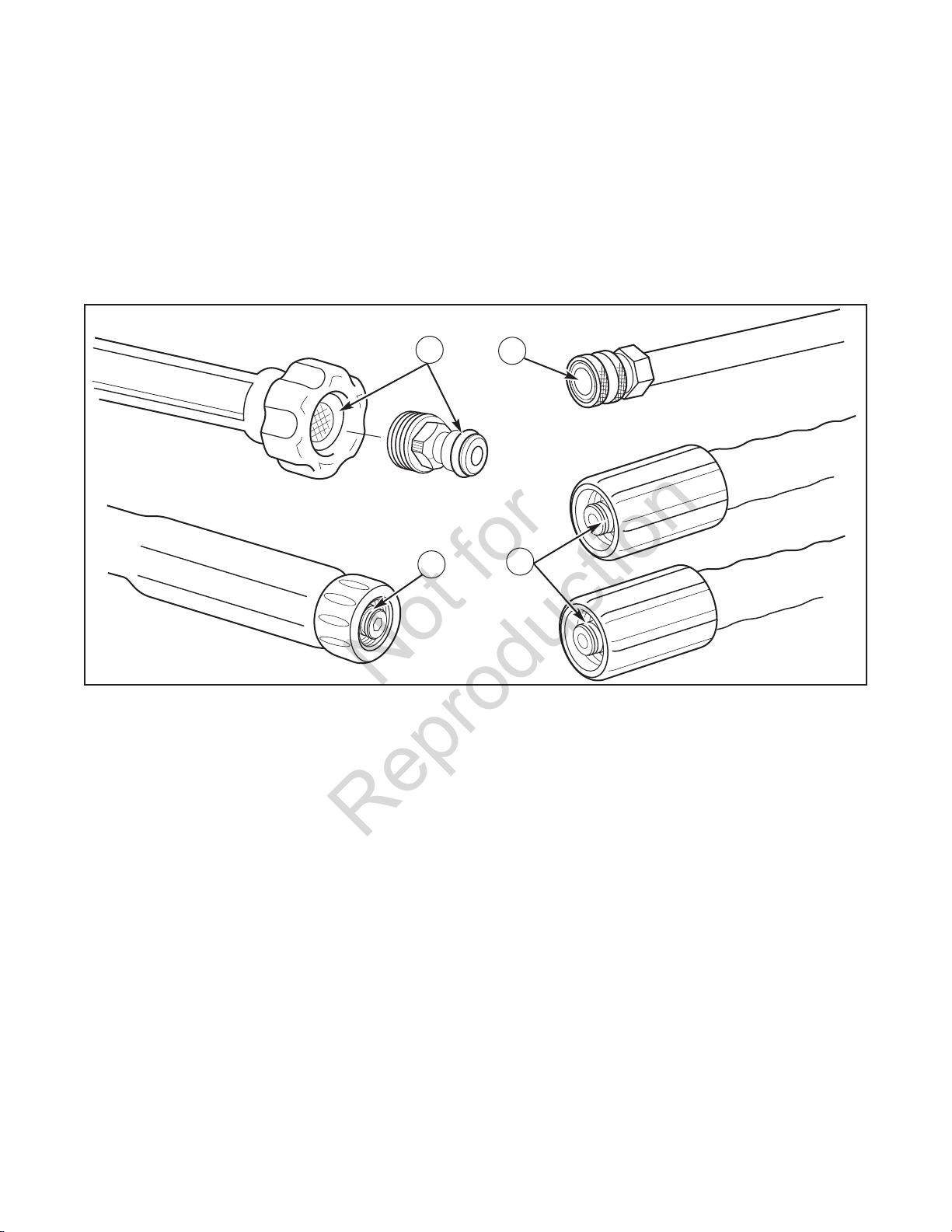

NOTICE ALWAYS apply a small amount of lubricant on
o-rings prior to assembling the garden hose to the pump (A),
high pressure hose (B), spray gun (C), and nozzle
extension (D).
Lubricate all connections shown below, following these
instructions:
1. Inspect and clean connecting surfaces prior to
lubrication and assembly.
2. Use lubricants sparingly during assembly; a light film is
all that is required.
3. Use a small brush or cotton swab to apply grease
directly to o-rings where they are not accessible (QC
fitting, M22 fitting).
9
D
A
C
B
Not for
Reproduction
Page 10
10 www.victa.com.au

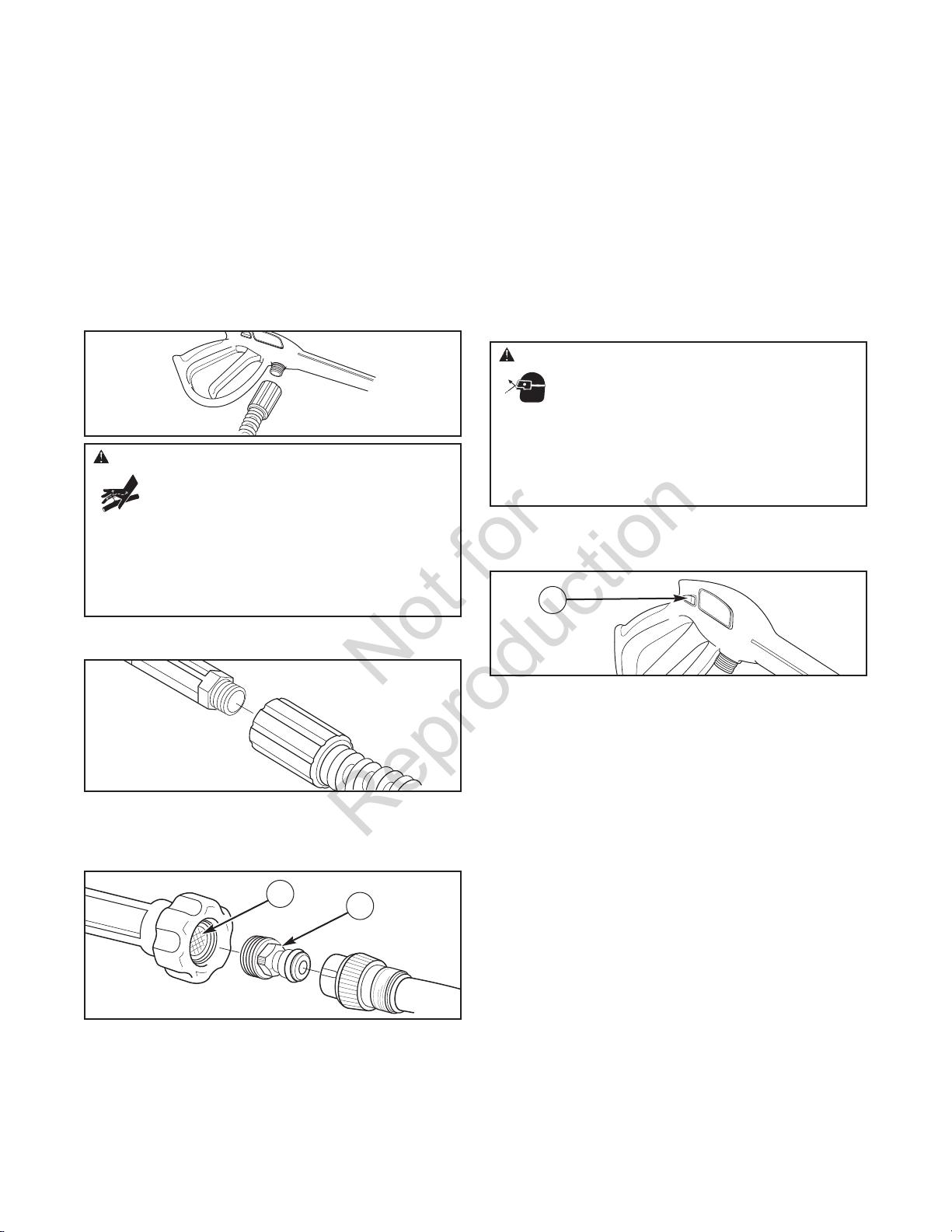

Connect Hose and Water Supply to Pump
NOTICE DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
NOTICE Remove and discard the shipping caps from the
pump’s high pressure outlet and water inlet before attaching
hoses.
1. Uncoil high pressure hose and attach one end of hose
to base of spray gun. Tighten by hand.
2. Attach other end of high pressure hose to high
pressure outlet on pump. Tighten by hand.
3. Before connecting garden hose to water inlet, inspect
inlet screen (A). Clean screen if it contains debris or
have it replaced if damaged. DO NOT run pressure
washer if inlet screen is damaged.
4. Attach garden hose adapter (B) to water inlet. Tighten
by hand.
5. Run water through your garden hose for 30 seconds to
clean out any debris.
NOTICE DO NOT siphon standing water for the water
supply. Use ONLY cold water (less than 38°C (100°F)).
NOTICE Using a One Way Valve (vacuum breaker or check
valve) at pump inlet could cause pump or inlet connector
damage.
• There MUST be at least 3 m (10 ft) of unrestricted garden hose
between the pressure washer inlet and any device, such as a
vacuum breaker or check valve.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
6. Connect garden hose (not to exceed 15.24 m (50 ft) in
length) to water inlet. Pull back on collar of quick
connect, slide fitting onto water inlet and let go of
collar. Pull on garden hose to be sure of a tight
connection.
7. Turn ON the water, press red button (C) on the gun and
squeeze the trigger to purge the pump system of air and
impurities.
Checklist Before Starting Engine
Review the unit’s assembly to ensure you have performed all
of the following.
1. Be sure to read Operator Safety and How to Start Your
Pressure Washer sections before using pressure
washer.
2. Make sure handle is in place and secure.
3. Check that oil has been added to proper level in the
engine crankcase.
4. Add proper fuel to fuel tank.
5. Check for properly tightened hose connections.
6. Check to make sure there are no kinks, cuts, or damage
to high pressure hose.
7. Provide a proper water supply at an adequate flow.
A
C
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Risk of eye injury.
Spray could splash back or propel objects
resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with AS/NZS 1337 (ANSI Z87.1 equivalent)
when using or in vicinity of this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
B
Not for
Reproduction
Page 11
11

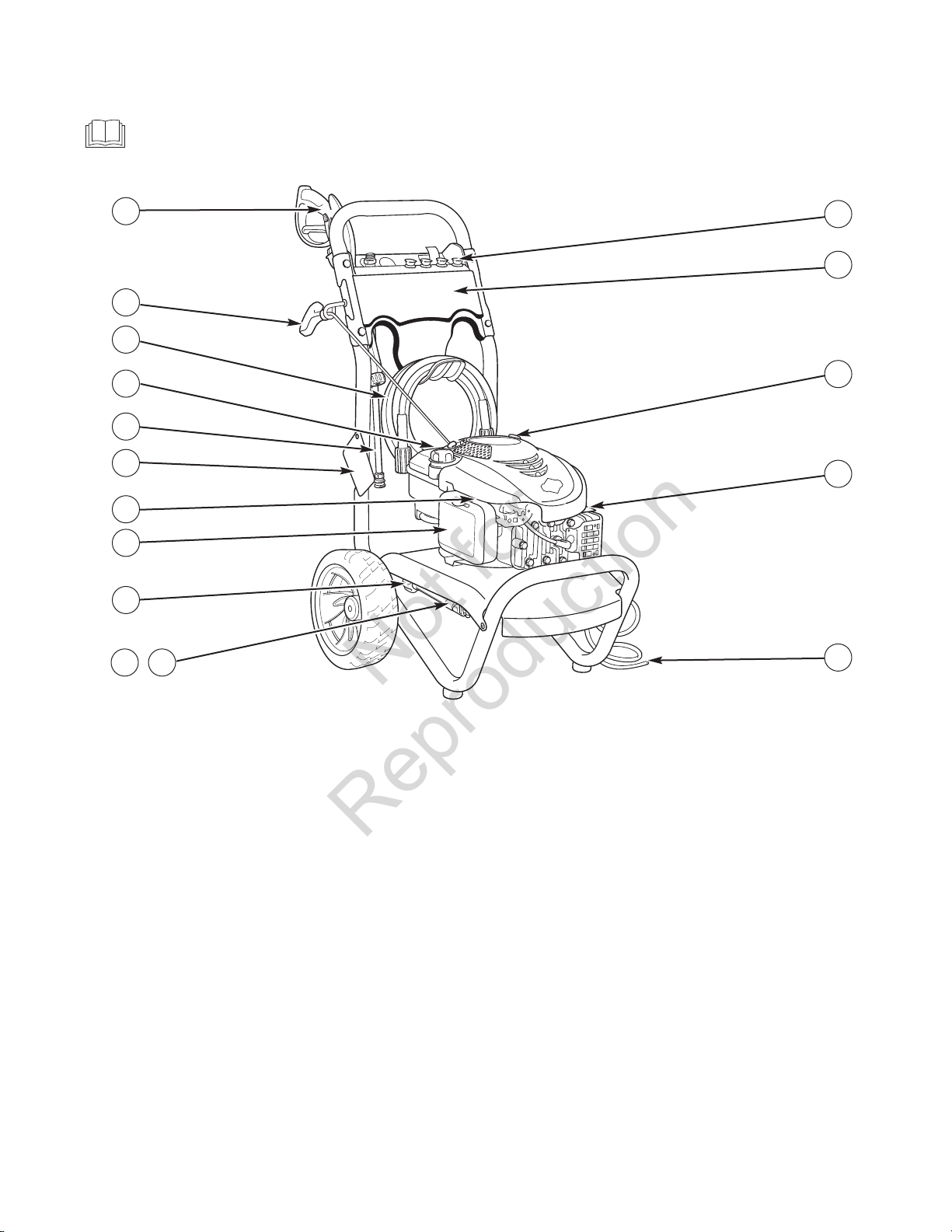

Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger
lock.
B - Recoil Starter — Used for starting the engine manually.
C - High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
D - Fuel Tank — Fill tank with regular unleaded fuel. Always
leave room for fuel expansion.
E - Nozzle Extension with Quick Connect — Allows you to
switch between four different spray tips.
F - Warning/Operating Instructions Tag — Identifies hazards
and proper procedure to start/stop pressure washer.
G - Throttle Lever — Sets engine in starting mode for recoil
starter and stops a running engine.
H - Air Filter — Protects engine by filtering dust and debris
out of intake air.
J - Water Inlet — Connection for garden hose.
K - Pump — Develops high pressure.
L - Automatic Cool Down System — Cycles water through
pump when water reaches 51°C-68°C (125°-155°F).
Warm water will discharge from pump onto ground. This
system prevents internal pump damage.
M - Detergent Siphoning Tube — Use to siphon pressure
washer safe detergent into the low pressure stream.
N - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
P - Oil Fill/ Dipstick — Check, fill and drain oil here.
R - Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
S - Spray Tips — Soap, 0°, 25° and 40°: for various high
pressure cleaning applications.
Items Not Shown:
High Pressure Outlet — Connection for high pressure hose.
Identification Label (near rear of base plate) — Provides
model and serial number of pressure washer. Please have
these readily available if calling for assistance.
F
E
A
M
B
D
G
R
N
P
C
L
,
K
H
J
S
Not for
Reproduction
Page 12
12 www.victa.com.au
Operation
If you have any problems operating your pressure washer,
please call the pressure washer helpline at 1800 356 632.
Pressure Washer Location
Carbon Monoxide Poisoning
Risk of Fire Clearances
How to Start Your Pressure Washer
To start your pressure washer for the first time, follow these
instructions step-by-step. This starting information also
applies if you have let the pressure washer sit idle for at least
a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
11.35 l (3.0 gallons) per minute and no less than
1.38 BAR (20 PSI) at pressure washer end of garden
hose. DO NOT siphon supply water.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See Assembly section.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure washer
pump.
NOTICE DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
5. Turn ON water, point gun in a safe direction, press red
button and squeeze trigger to purge pump system of air
and impurities.
6. Attach nozzle extension to spray gun. Tighten by hand.
7. Choose spray tip you want to use, pull back on collar of
nozzle extension, insert spray tip and release collar. Tug
on spray tip to make sure it is securely in place. See
How to Use Spray Tips.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage fuel tank
causing a fire, resulting in death, serious injury
and/or property damage.
• Keep at least 1.5 m (5 ft) clearance on all sides of pressure
washer including overhead.
WARNING POISONOUS GAS HAZARD. Engine
exhaust contains carbon monoxide, a poisonous
gas that could kill you in minutes. You CANNOT
smell it, see it, or taste it. Even if you do not
smell exhaust fumes, you could still be exposed to carbon
monoxide gas.
• Operate this product ONLY outside far away from windows,
doors and vents to reduce the risk of carbon monoxide gas
from accumulating and potentially being drawn towards
occupied spaces.
• Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions. Smoke alarms cannot detect
carbon monoxide gas.
• DO NOT run this product inside homes, garages, basements,
crawlspaces, sheds, or other partially-enclosed spaces even if
using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can
linger for hours, even after this product has shut off.
• ALWAYS place this product downwind and point the engine
exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this product,
shut it off and get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.
Exhaust Port
Pointed away from
occupied spaces
Not for
Reproduction
Page 13
13

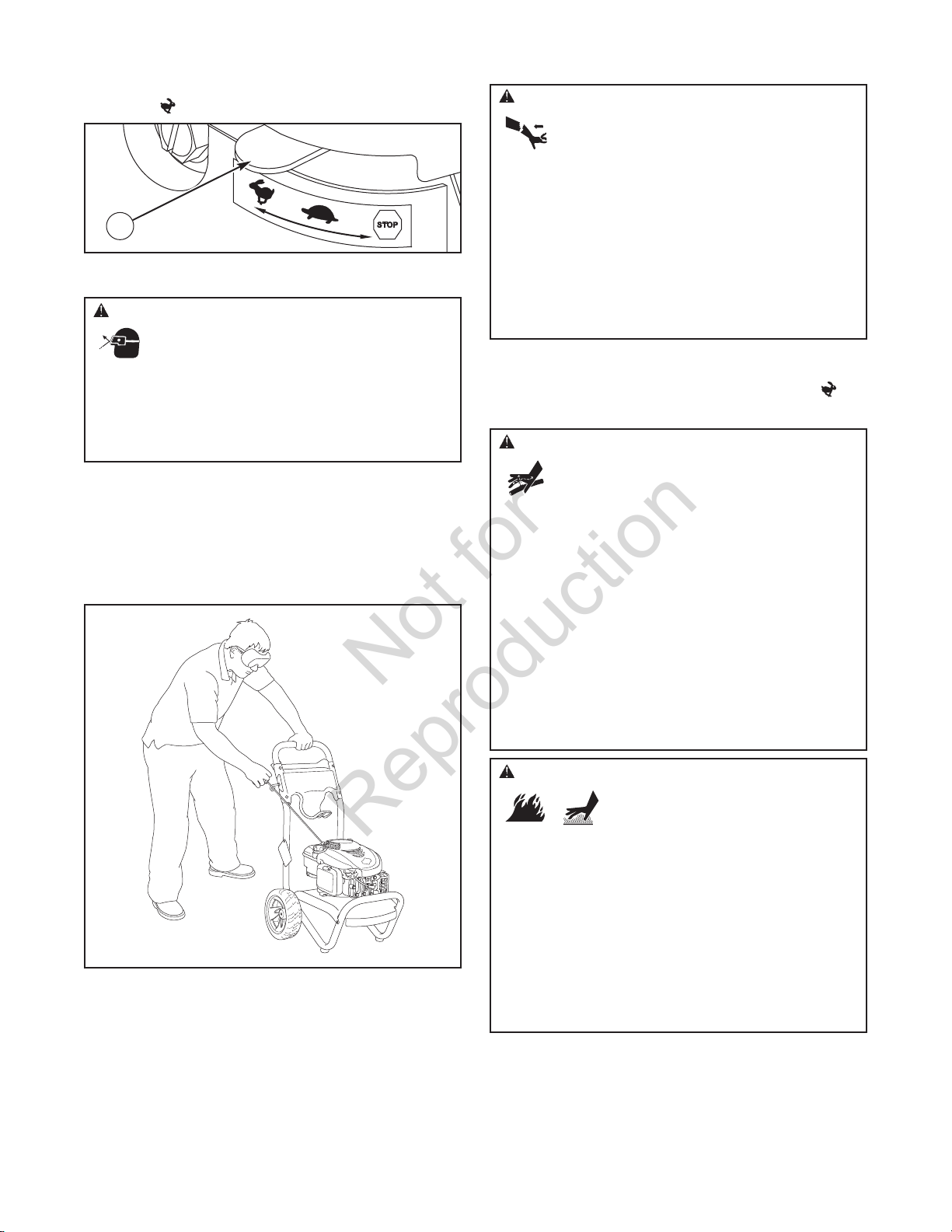

8. Move throttle lever (A) to the Fast position, shown as a
rabbit .
NOTICE Before starting the pressure washer, be sure you
are wearing adequate safety goggles as described below.
NOTICE This unit is equipped with a ReadyStart® engine. A
ReadyStart® engine means there is no priming or choking
required.
9. When starting engine, position yourself as
recommended and grasp starter grip handle and pull
slowly until you feel some resistance. Then pull rapidly
to start engine.
10. Return starter grip handle slowly. DO NOT let rope
“snap back” against starter.
NOTICE Always keep the throttle lever in the “Fast”
position when operating the pressure washer.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• DO NOT allow CHILDREN to operate pressure washer.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death,
serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft) of clearance on all sides of pressure
washer including overhead.
• Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
WARNING Starter cord kickback (rapid retraction) will
pull hand and arm toward engine faster than you
can let go which could cause broken bones,
fractures, bruises, or sprains resulting in serious
injury.
• NEVER pull starter cord without first relieving spray gun
pressure.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction, press red button and squeeze
spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Risk of eye injury.
Spray could splash back or propel objects
resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with AS/NZS 1337 (ANSI Z87.1 equivalent)
when using or in vicinity of this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
A
Not for
Reproduction
Page 14
14 www.victa.com.au
How to Stop Your Pressure Washer
1. Release spray gun trigger and let engine idle for two
minutes.
2. Move throttle to SLOW position, then STOP
position.
3. ALWAYS point gun in a safe direction, press red button
and squeeze spray gun trigger to release retained high
water pressure.

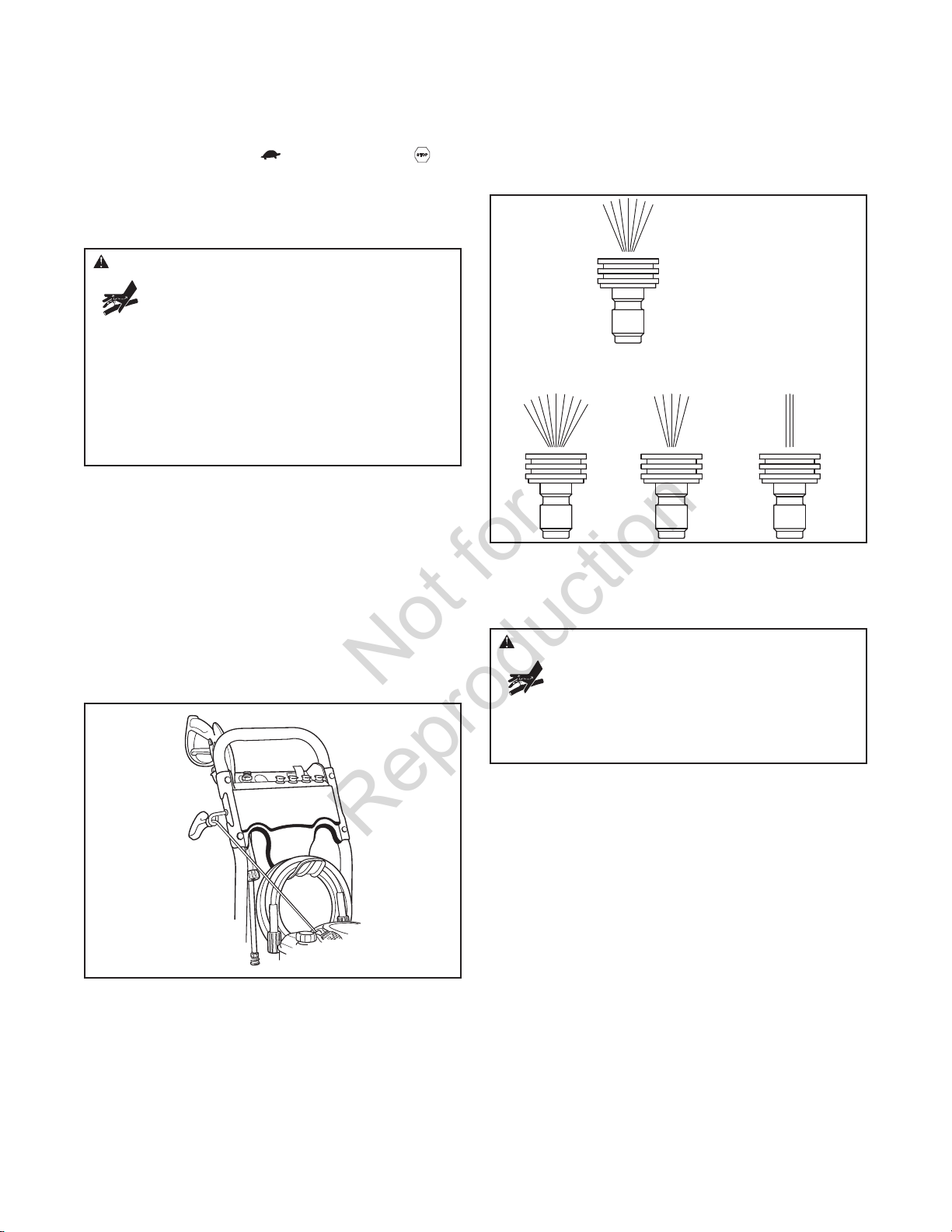

How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun, nozzle extension and spray tips. There
is also a hook at the front of the accessory tray to hold your
high pressure hose.
NOTICE The extra hole in the tray is for storing a utility brush.
The extra clip in the tray is for storing a turbo nozzle. The
brush and turbo nozzle are NOT included with your pressure
washer. You can buy these items as optional accessories.
1. Place nozzle extension through hole on accessory tray,
as shown.
2. Place spray gun through hole on accessory tray on
right side of unit.
3. Insert multi–colored spray tips in spaces provided in
accessory tray.
4. Hang high pressure hose on hook attached to
accessory tray on front of tray, as shown.
How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between four different quick connect spray tips. Spray
tips can be changed while pressure washer is running once
spray gun trigger lock is engaged. The spray tips vary the
spray pattern as shown.
Follow these instructions to change spray tips:
1. Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in holder provided on the
accessory tray.
2. Select desired spray tip:
• For stubborn or hard to reach surface such as
second story surfaces, paint removal, oil stains, rust
removal or other stubborn substances (tar, gum,
grease, wax, etc.), select red maximum 0° spray tip.
• For most all purpose cleaning such as home siding,
brick patios, wood decks, driveways and sidewalks,
garage floors, etc., select green general 25° spray tip.
• For gentle cleaning of cars/trucks, boats, RV’s,
patio furniture, lawn equipment, etc., select white
gentle 40° spray tip.
• For applying project specific detergents to help
break down stubborn dirt and grime on a variety of
surfaces, select black soap spray tip.
3. Pull back on collar, insert new spray tip and release collar.
Tug on spray tip to make sure it is securely in place.
Usage Tips
• For most effective cleaning, keep spray tip from 20 to
61 cm (8 to 24 in) away from cleaning surface.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER exchange spray tips without the trigger lock being
engaged on the spray gun.
• DO NOT twist spray tips while spraying.
40°
White
25°
Green
0°
Red
Low Pressure
Black
Use to apply
detergent
High Pressure
Not for
Reproduction
Page 15
15
• If you get spray tip too close, especially using a high
pressure spray tip, you may damage surface being
cleaned.
• DO NOT get closer than 15 cm (6 in) when cleaning tires.
Cleaning and Applying Detergent
To apply detergent, follow these steps:
1. Review use of spray tips.
2. Prepare detergent solution as required by job.
3. Place small end of detergent siphoning tube into
detergent container.
NOTICE Make sure end of tube is fully submerged in
detergent while applying detergent.
NOTICE Contact with the hot muffler could damage
detergent siphoning tube.
• When inserting the siphon into a detergent solution bottle, route
the tube so as to keep it from inadvertently contacting the hot
muffler.
4. Make sure black soap spray tip is installed.
NOTICE Detergent cannot be applied with the high pressure
spray tips (white, green or red).
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
NOTICE You must attach all hoses before you start the
engine.
• Starting the engine without all the hoses connected and without
the water turned ON could damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
6. Start engine following instructions How to Start Your
Pressure Washer.
7. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes.
8. Allow detergent to "soak in" for 3-5 minutes before
washing and rinsing. Reapply as needed to prevent
surface from drying. DO NOT allow detergent to dry on
(prevents streaking).
NOTICE You must flush the detergent siphoning system
after each use by placing end of tube into a bucket of clean
water, then run the pressure washer in low pressure for 1-2
minutes.
Pressure Washer Rinsing
For Rinsing:
1. Remove black soap spray tip from nozzle extension.
2. Select and install desired high pressure spray tip
following instructions How to Use Spray Tips.
3. Keep spray gun a safe distance from area you plan to
spray.
4. Apply a high pressure spray to a small area and then
check surface for damage. If no damage is found, you
can assume it is okay to continue rinsing.
5. Start at top of area to be rinsed, working down with same
overlapping strokes as you used for cleaning.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must flush it
with clean water before stopping the engine.
1. Place detergent siphoning tube in a bucket full of clean
water.
2. Remove high pressure spray tip from nozzle extension.
3. Select and install black soap spray tip following
instructions How to Use Spray Tips.
4. Flush for 1-2 minutes.
5. Shut off engine following instructions How to Stop
Pressure Washer and turn off water supply.
6. ALWAYS point gun in a safe direction, press red button
and squeeze spray gun trigger to release retained high
water pressure.
Automatic Cool Down System (Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures above
52°C (125°F). The system engages to cool the pump by
discharging the warm water onto the ground.
WARNING Kickback from spray gun could cause you
to fall resulting in death or serious injury.
• Operate pressure washer from a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
WARNING Chemical Burn Hazard.
Chemicals could cause burns resulting in death,
serious injury, and/or property damage.
• DO NOT use caustic liquid with pressure washer.
• Use ONLY pressure washer safe detergents/ soaps. Follow all
manufacturers instructions.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
Not for
Reproduction
Page 16
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever occurs
first. More frequent service is required when operating in
adverse conditions noted below.
1
Clean if clogged. Replace if perforated or torn.
2
Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance and
extend the life of the pressure washer. See any qualified
dealer for service.
The pressure washer’s warranty does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual,
including proper storage as detailed in Winter Storage and
Long Term Storage.
NOTICE Should you have questions about replacing
components on your pressure washer, please call
1800 356 632 for assistance.
Some adjustments will need to be made periodically to
properly maintain your pressure washer.
All service and adjustments should be made at least once
each season. Follow the requirements in the Maintenance
Schedule chart above.
NOTICE Once a year you should clean or replace the spark
plug, clean or replace the air filter, and check the spray gun
and nozzle extension assembly for wear. A new spark plug
and clean air filter assure proper fuel-air mixture and help
your engine run better and last longer.
Pump Oil
DO NOT attempt any oil maintenance on this pump. The
pump is pre-lubricated and sealed from the factory, requiring
no additional maintenance for the life of the pump.
Before Each Use
1. Check engine oil level.
2. Clean debris.
3. Check water inlet screen for damage.
4. Check high pressure hose for leaks.
5. Check detergent siphoning tube for damage.
6. Check spray gun and nozzle extension assembly for
leaks.
7. Rinse out garden hose to flush out debris.
Pressure Washer Maintenance
Clean Debris
Daily or before use, clean accumulated debris from pressure
washer. Keep linkage, spring and controls clean. Keep area
around and behind muffler free from any combustible debris.
Inspect cooling air slots and openings on the pressure
washer. These openings must be kept clean and
unobstructed.
Pressure washer parts should be kept clean to reduce the
risk of overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of pressure washer could
damage it and shorten its life.
• DO NOT insert any objects through cooling slots.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
Check and Clean Inlet Screen
Examine the screen on the pump’s water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
16 www.victa.com.au
First 5 Hours
• Change engine oil
Every 8 Hours or Daily
• Check/ clean water inlet screen
1
• Check high pressure hose
• Check detergent siphoning tube
• Check spray gun and assembly for leaks
• Clean debris
• Check engine oil level
Every 25 Hours or Yearly
• Service engine air cleaner
2
Every 50 Hours or Yearly
• Change engine oil
2
• Inspect muffler and spark arrester
Every 100 Hours or Yearly
• Service spark plug
• Clean cooling system
2
Not for
Reproduction
Page 17

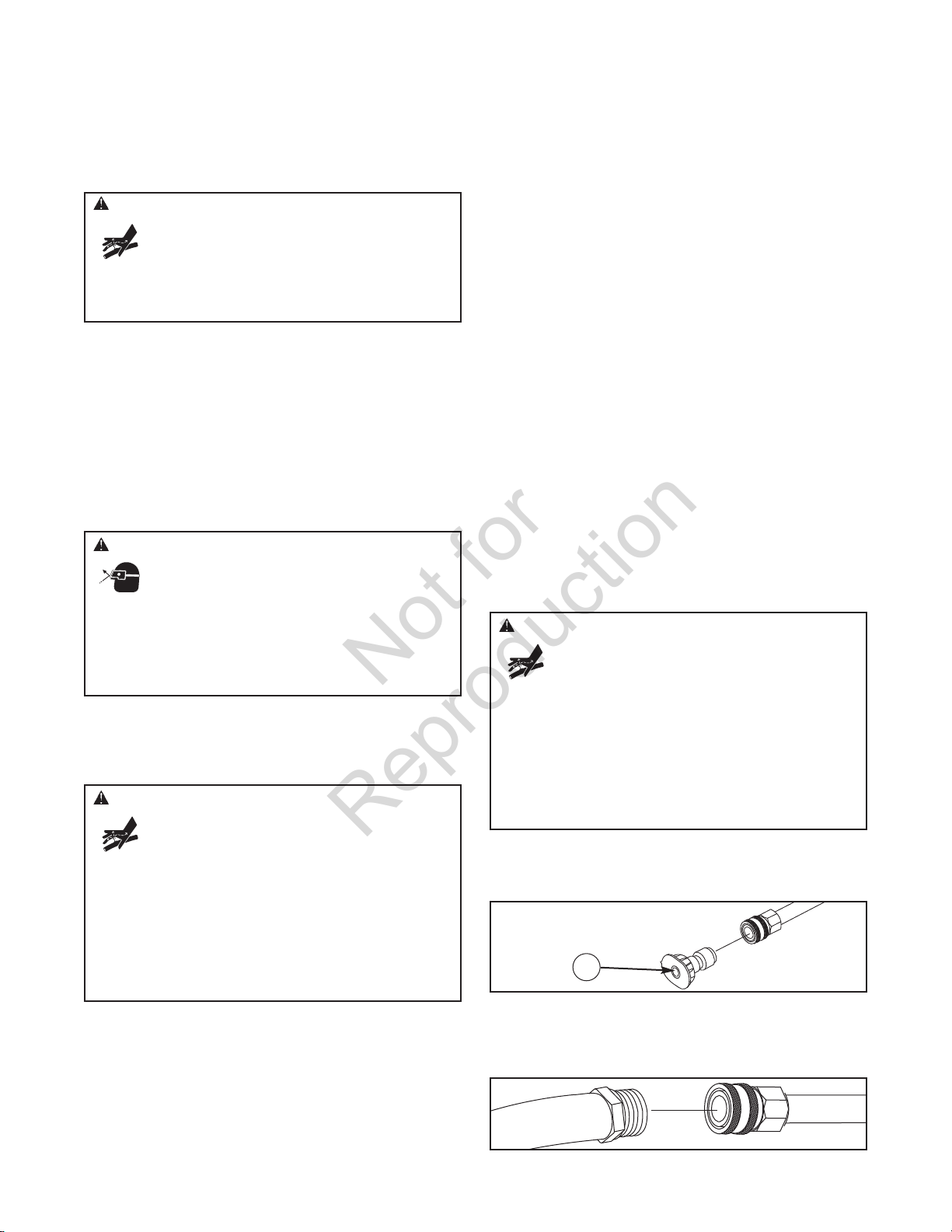

17
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before using it.
Check for cuts, leaks, abrasions or bulging of cover, damage
or movement of couplings. If any of these conditions exist,
replace the hose immediately.
Check Detergent Siphoning Tube
Examine detergent tube and clean if clogged. The tube
should fit tightly on the barbed fitting. Examine the tube for
leaks or tears. Replace tube if damaged.
Detergent Siphoning Check Ball
Occasionally check ball in detergent siphoning system may
become stuck from storage, dried soap, or minerals in water.
The check ball can be freed by performing the following:
NOTICE Before performing this procedure, be sure you are
wearing safety goggles as described below.
1. Shut off engine and turn off water supply.
2. ALWAYS point spray gun in a safe direction, press red
button and squeeze spray gun trigger to release
retained high water pressure.
3. Remove detergent siphoning hose from barbed fitting
on pump.
4. Using a firm, blunt object 2 mm (7/64 in) in diameter or
smaller, by at least 2.5 cm (1 in) long, such as an Allen
wrench, slowly insert the object into the barbed fitting until
you meet resistance. This resistance is the check ball.
5. Slowly push down until you feel the ball move slightly,
push no more than 3 cm (1/8 in). Slight pressure may
be required to free the ball.
6. Repeat steps 4 and 5 if necessary.
7. Reinstall detergent siphoning hose onto barb fitting.
8. Treat with PumpSaver as described in Protecting the
Pump during storage to prevent reoccurrence.
Check Spray Gun
Examine the hose connection to the spray gun and make
sure it is secure. Test the trigger by pressing the red button
and making sure the trigger “springs back” into place when
you release it. You should not be able to press the trigger
without pressing the red button. Replace spray gun
immediately if it fails any of these tests.
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure. The
principal cause of excessive pump pressure is a spray tip
clogged or restricted with foreign materials, such as dirt, etc.
To correct the problem, immediately clean the spray tip
following these instructions:
1. Shut off engine and turn off water supply.
2. ALWAYS point spray gun in a safe direction, press red
button and squeeze spray gun trigger to release
retained high water pressure.
3. Remove spray tip from end of nozzle extension.
4. Use a small paper clip to free any foreign material
clogging or restricting spray tip (A).
5. Remove nozzle extension from spray gun.
6. Using a garden hose, remove additional debris by back
flushing water through nozzle extension. Back flush
between 30 to 60 seconds.
A
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST equal or exceed maximum
pressure rating of unit.
WARNING Risk of eye injury.
Spray could splash back or propel objects
resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with AS/NZS 1337 (ANSI Z87.1 equivalent)
when using or in vicinity of this equipment.
• NEVER substitute safety glasses or dry-condition goggles for
indirect vented safety goggles.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
Not for
Reproduction
Page 18

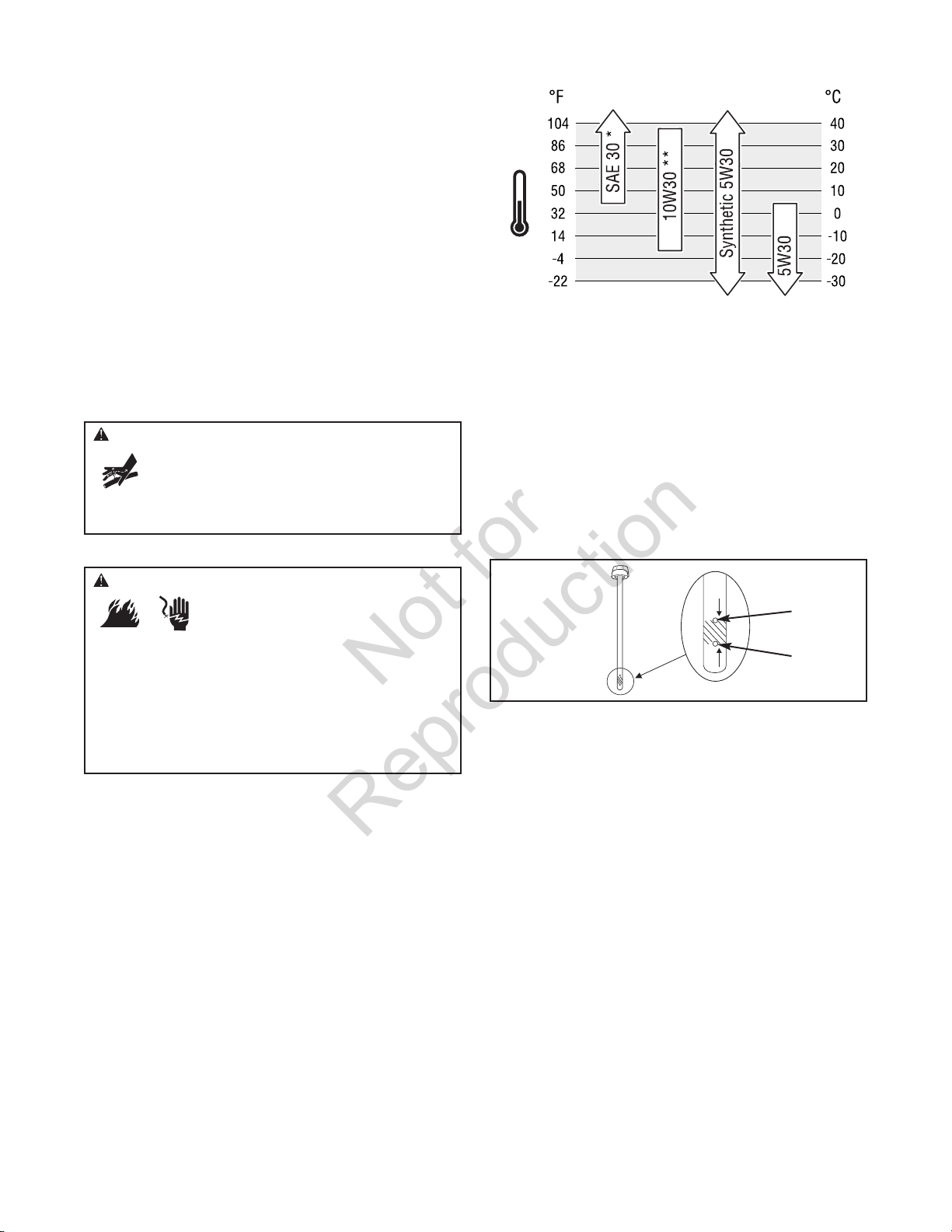

18 www.victa.com.au
7. Reinstall spray tip into nozzle extension.
8. Reconnect nozzle extension to spray gun.
9. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Turn on water.
10. Start engine following instructions How to Start Your
Pressure Washer.
11. Test pressure washer by operating with each quick
connect spray tip.
O-Ring Maintenance
Purchase an O-Ring/ Maintenance Kit, model 196002GS, by
contacting the nearest authorized service center. It is not
included with the pressure washer. This kit includes
replacement o-rings, rubber washer and water inlet filter.
Refer to the instruction sheet provided in the kit to service
your unit’s o-rings.
Engine Maintenance
Oil
Oil Recommendations
We recommend the use of Briggs & Stratton Warranty
Certified oils for best performance. Other high-quality
detergent oils are acceptable if classified for service SF, SG,
SH, SJ or higher. DO NOT use special additives.
Outdoor temperatures determine the proper oil viscosity for
the engine. Use the chart to select the best viscosity for the
outdoor temperature range expected.
* Below 4°C (40°F) the use of SAE 30 will result in hard starting.
** Above 27°C (80°F) the use of 10W30 may cause increased oil
consumption. Check oil level more frequently.
Checking Oil Level
Oil level should be checked prior to each use or at least
every 8 hours of operation. Keep oil level maintained.
1. Make sure pressure washer is on a level surface.
2. Remove oil dipstick and wipe dipstick with clean cloth.
Replace and tighten dipstick. Remove and check oil
level.
3. Verify oil is at FULL mark (top hole) on dipstick.
Replace and tighten dipstick.
Adding Engine Oil
1. Make sure pressure washer is on a level surface.
2. Check oil level as described in Checking Oil Level.
3. If needed, slowly pour oil into oil fill opening to the
FULL mark (top hole) on dipstick. DO NOT overfill.
NOTICE Overfilling with oil could cause the engine to not
start, or hard starting.
• DO NOT overfill.
• If over the FULL mark on dipstick, drain oil to reduce oil level to
FULL mark on dipstick.
4. Replace and tighten dipstick.
Full
Add
WARNING Unintentional sparking could cause fire or
electric shock resulting in death or
serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE
WASHER
• Disconnect the spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
Not for
Reproduction
Page 19

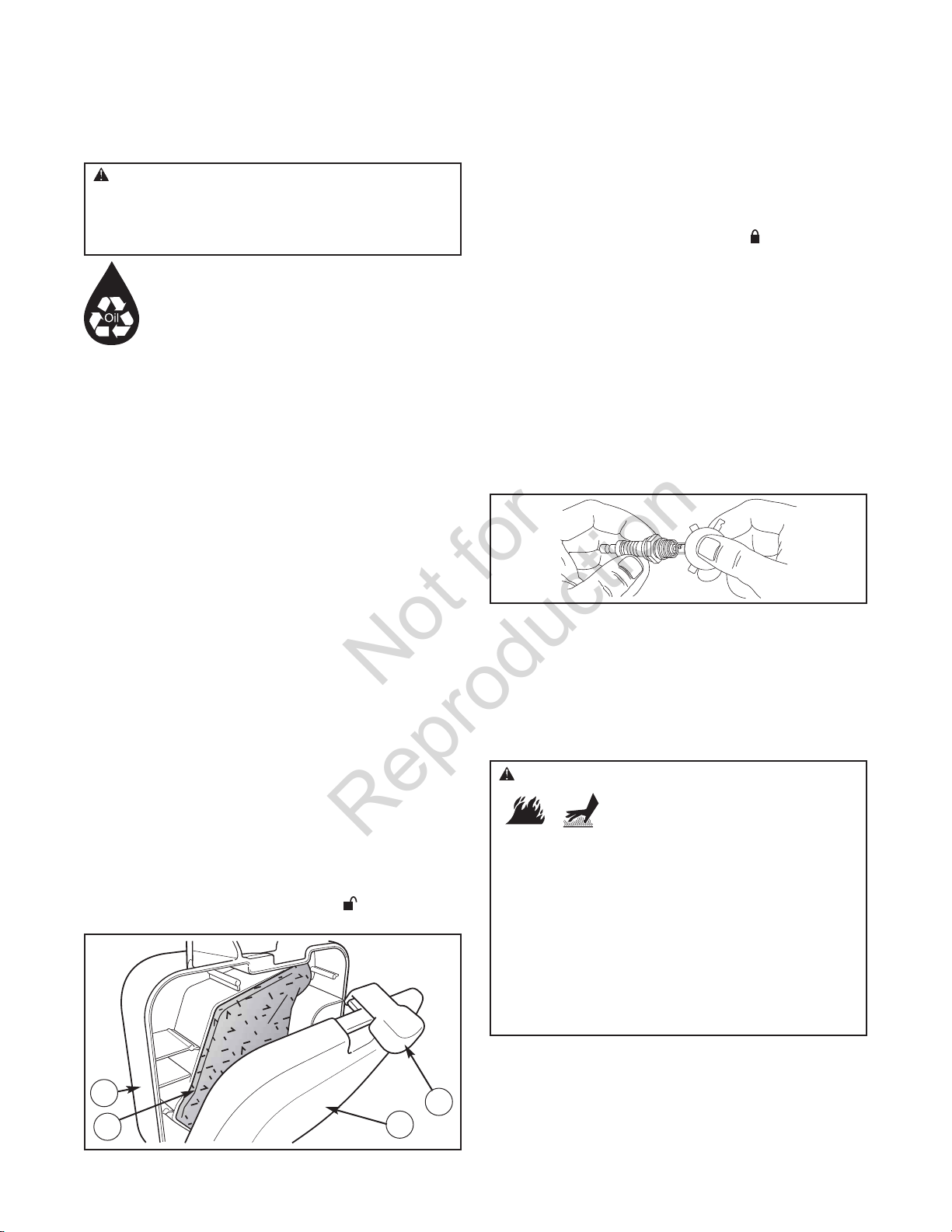

19
Changing Engine Oil
If you are using your pressure washer under extremely dirty
or dusty conditions, or in extremely hot weather, change the
oil more often.
KEEP OUT OF REACH OF CHILDREN. DON’T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
Change oil while engine is still warm from running, as
follows:
1. Drain fuel tank by running pressure washer until fuel
tank is empty.
2. Disconnect spark plug wire and keep it away from
spark plug.
3. Clean area around oil fill, remove oil fill cap/ dipstick.
Wipe dipstick clean.
4. Tip your pressure washer to drain oil from oil fill into a
suitable container making sure you tip your unit away
from spark plug. When crankcase is empty, return
pressure washer to upright position.
5. Slowly pour recommended oil (about 0.6 lt (20 oz.))
into oil fill opening. Pause to permit oil to settle. Fill to
FULL mark (top hole) on dipstick.
6. Wipe dipstick clean each time oil level is checked. DO
NOT overfill.
7. Replace and tighten dipstick.
8. Wipe up any remaining oil.
9. Reconnect spark plug wire to spark plug.
Service Air Cleaner
Your engine will not run properly and may be damaged if
you run it with a dirty air cleaner. Service more often if
operating under dirty or dusty conditions.
To service the air cleaner, follow these steps:
1. Slide air cleaner lever (A) to unlock ( ) position and
tilt cover (B) down.
2. Carefully remove air cleaner to prevent debris from
falling into carburetor.
3. Wash foam air cleaner (C) in liquid detergent and
water. Squeeze dry in a clean cloth.
4. SATURATE foam air cleaner in engine oil and squeeze
in a clean cloth to remove excess oil.
5. Reinstall clean or new foam air cleaner in base (D).
6. Tilt cover up and slide lever to lock ( ) position.
Service Spark Plug
Changing the spark plug will help your engine to start easier
and run better.
1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. Replace spark plug if electrodes are pitted, burned or
porcelain is cracked. Use the recommended
replacement plug. See Specifications.
4. Check electrode gap with wire feeler gauge and reset
spark plug gap to recommended gap if necessary (see
Specifications).
5. Install spark plug and tighten firmly.
Inspect Muffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or other damage.
Remove the spark arrester, if equipped, and inspect for
damage or carbon blockage. If replacement parts are
required, make sure to use only original equipment
replacement parts.
CAUTION Avoid prolonged or repeated skin contact
with used motor oil.
• Used motor oil has been shown to cause skin cancer in certain
laboratory animals.
• Thoroughly wash exposed areas with soap and water.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death,
serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft) of clearance on all sides of pressure
washer including overhead.
• Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
D
C
B
A
Not for
Reproduction
Page 20

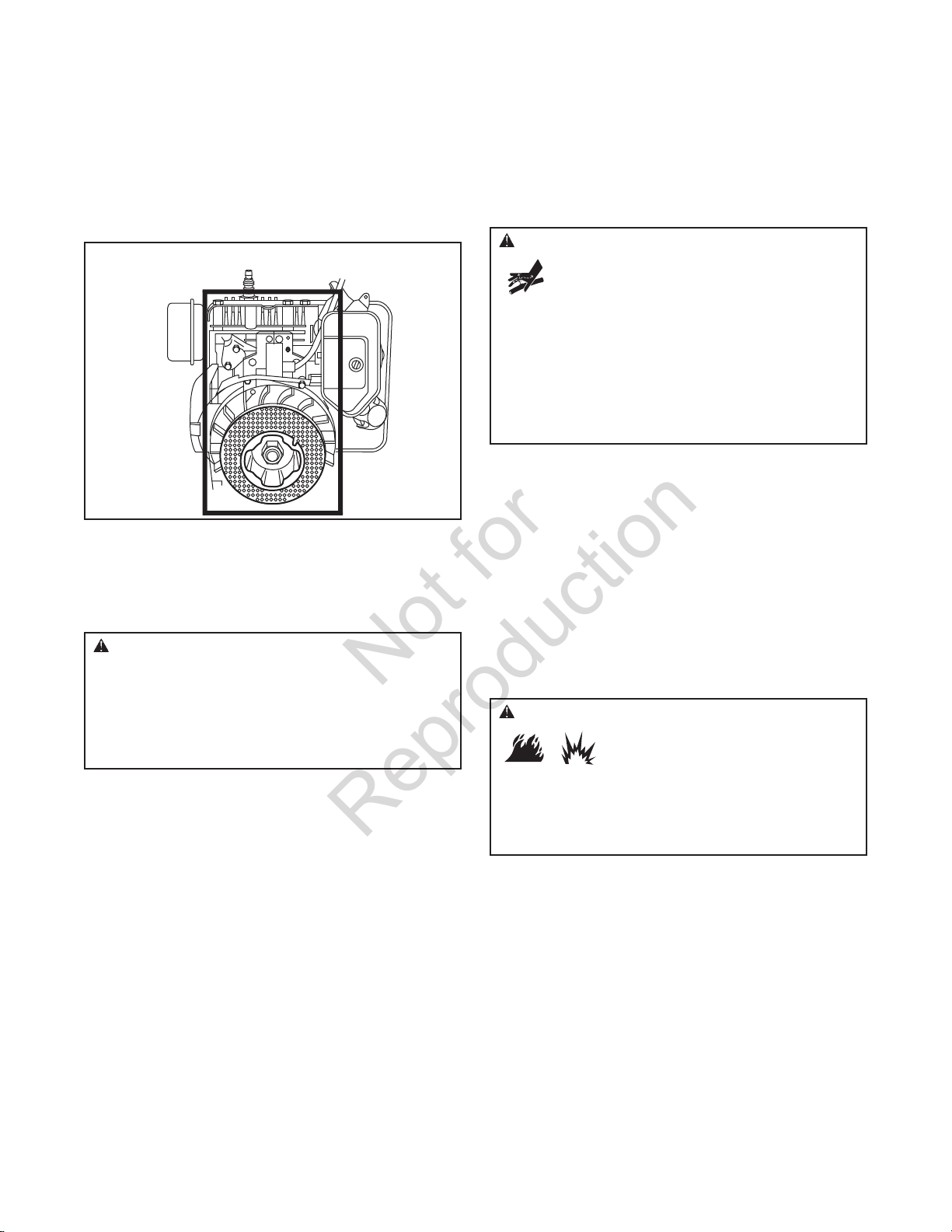

20 www.victa.com.au
Air Cooling System
Over time debris may accumulate in cylinder cooling fins and
cannot be observed without partial engine disassembly. For
this reason, we recommend you have a qualified service
dealer clean the cooling system per recommended intervals
(see Maintenance Schedule in beginning of Maintenance
section). Equally important is to keep top of engine free from
debris. See Clean Debris.
Carburetor Adjustment
The carburetor on this engine is low emission. It is equipped
with a non-adjustable idle mixture valve. Top speed has been
set at the factory. If adjustment is required, see an
authorized service dealer.
After Each Use
Water should not remain in the unit for long periods of time.
Sediments or minerals can deposit on pump parts and freeze
pump action. Follow these procedures after every use:
1. Shut off engine, turn off water supply, point gun in a
safe direction, press red button and squeeze trigger to
relieve trapped pressure, and let engine cool.
2. Disconnect hose from spray gun and high pressure
outlet on pump. Drain water from hose, spray gun, and
nozzle extension. Use a rag to wipe off the hose.
3. Place the spray gun and nozzle extension in the
accessory tray. Hang high pressure hose on hook
attached to accessory tray.
4. Empty pump of all pumped liquids by pulling recoil
handle about six times. This should remove most liquid
in pump.
5. Store unit in a clean, dry area.
6. If storing for more than 30 days, see Long Term
Storage on next page.
Keep areas within heavy line clear of debris.
CAUTION
Excessively high operating speeds could
result in minor injury and/or pressure washer damage.
Excessively low speeds impose a heavy load.
• DO NOT tamper with governor spring, links or other parts to
increase engine speed. Pressure washer supplies correct rated
pressure and flow when running at governed speed.
• DO NOT modify pressure washer in any way.
WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button
and squeeze spray gun trigger to release high pressure, every
time you stop engine.
WARNING Fuel and its vapors are extremely flammable
and explosive which could cause burns,
fire or explosion resulting in death,
serious injury and/or property damage.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other ignition
source because they could ignite fuel vapors.
Not for
Reproduction
Page 21
21
Winter Storage
NOTICE You must protect your unit from freezing
temperatures.
• Failure to do so will permanently damage your pump and render
your unit inoperable.
• Freeze damage is not covered under warranty.
To protect the unit from freezing temperatures:
1. Follow steps 1-4 in the previous section After Each Use.
2. Use pump saver, Model 6039, to treat pump. This
minimizes freeze damage and lubricates pistons and
seals.
3. If pump saver is not available, connect a 1 m (3 ft)
section of garden hose to water inlet adapter. Pour
RV-antifreeze (antifreeze without alcohol) into hose.
Pull recoil handle twice. Disconnect 1 m (3 ft) hose.
4. Store unit in a clean, dry area.
Long Term Storage
If you do not plan to use the pressure washer for more than
30 days, you must prepare the engine and pump for long
term storage.
Protect Fuel System
Fuel Additive:
Fuel can become stale when stored over 30 days. Stale fuel
causes acid and gum deposits to form in the fuel system or
on essential carburetor parts. To keep fuel fresh, use Briggs
& Stratton® Advanced Formula Fuel Treatment & Stabilizer,
available wherever Briggs & Stratton genuine service parts
are sold.
For engines equipped with a FRESH START® fuel cap, use
Briggs & Stratton FRESH START® available in a drip
concentrate cartridge.
There is no need to drain gasoline from the engine if a fuel
stabilizer is added according to instructions. Run the engine
for 2 minutes to circulate the stabilizer throughout the fuel
system before storage.
If gasoline in the engine has not been treated with a fuel
stabilizer, it must be drained into an approved container. Run
the engine until it stops from lack of fuel. The use of a fuel
stabilizer in the storage container is recommended to
maintain freshness.
Change Engine Oil
While engine is still warm, drain oil from crankcase. Refill
with recommended grade. See Changing Engine Oil in Engine
Maintenance.
Protecting the Pump
To protect the pump from damage caused by mineral
deposits or freezing, use PumpSaver, Model 6039, to treat
pump. This prevents freeze damage and lubricates pistons
and seals.
NOTICE PumpSaver is available as an optional accessory. It
is not included with the pressure washer. Contact the nearest
authorized service center to purchase PumpSaver, Model
6039.
NOTICE You must protect your unit from freezing
temperatures.
• Failure to do so will permanently damage your pump and render
your unit inoperable.
• Freeze damage is not covered under warranty.
To use PumpSaver, make sure the pressure washer is turned
off and disconnected from supply water. Read and follow all
instructions and warnings given on the PumpSaver
container.
Other Storage Tips
1. DO NOT store fuel from one season to another unless it
has been treated as described in Protect Fuel System.
2. Replace fuel container if it starts to rust. Rust and/or
dirt in fuel can cause problems if it’s used with this
unit.
3. Cover unit with a suitable protective cover that does not
retain moisture.
4. Store unit in a clean and dry area.
WARNING Storage covers could cause a fire
resulting in death, serious injury and/or property
damage.
• DO NOT place a storage cover over a hot pressure washer.
• Let equipment cool for a sufficient time before placing the cover
on the equipment.
Not for
Reproduction
Page 22
22 www.victa.com.au
Troubleshooting
Problem Cause Correction
Pump has following problems:
failure to produce pressure, erratic
pressure, chattering, loss of
pressure, low water volume.
1. Low pressure spray tip installed.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose screen.
6. Water supply is over 100°F.
7. High pressure hose is blocked or
leaks.
8. Spray gun leaks.
9. Spray tip is obstructed.
10. Pump is faulty.
1. Replace with high pressure spray tip.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose screen.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace spray gun.
9. Clean spray tip.
10. Contact local service facility.
Detergent fails to mix with spray.
1. Detergent siphoning tube is not
submerged.
2. Detergent siphoning tube is
clogged or cracked.
3. High pressure spray tip installed.
4. Check ball stuck in detergent
siphoning system.
1. Insert detergent siphoning tube into
detergent.
2. Clean or replace detergent siphoning
tube.
3. Replace with low pressure spray tip.
4. Unstick check ball as described in
Detergent Siphoning Check Ball.
Engine runs good at no-load but
"bogs" when load is added.
Engine speed is too slow. Move throttle control to FAST position. If
engine still "bogs down", contact local
service facility.
Engine will not start; shuts down
during operation or starts and runs
rough.
1. Low oil level.
2. Dirty air cleaner.
3. Out of fuel.
4. Stale fuel.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in fuel.
8. Excessively rich fuel mixture.
1. Fill crankcase to proper level.
2. Clean or replace air cleaner.
3. Fill fuel tank.
4. Drain fuel tank; fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain fuel tank; fill with fresh fuel.
8. Contact local service facility.
Engine lacks power. Dirty air filter. Replace air filter.
Not for
Reproduction
Page 23
23
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC PRESSURE WASHER OWNER WARRANTY POLICY
LIMITED WARRANTY
Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material
or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This
warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer
in our dealer locator map at BRIGGSandSTRATTON.com. The purchaser must contact the Authorized Service Dealer, and then make the product
available to the Authorized Service Dealer for inspection and testing.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one
year from purchase, or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages
are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and
some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not
apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.**
2 years
90 days
Consumer Use
Commercial Use
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in
our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing to [email protected],
Briggs & Stratton Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170.
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated above.
“Consumer use" means personal residential household use by a retail consumer. “Commercial use" means all other uses, including use for commercial,
income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for purposes of
this warranty.
NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR PROOF OF PURCHASE
RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING
DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.
ABOUT YOUR WARRANTY
We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty
repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply if
equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the
warranty is void if the manufacturing date or the serial number on the pressure washer or engine has been removed or the equipment has been altered or
modified. During the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be
defective under normal use and service. This warranty will not cover the following repairs and equipment:
• Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment.
• Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or
alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in our judgment,
to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as air filters, adjustments, fuel system
cleaning and obstruction (due to chemical, lime, dirt, and so forth).
• Other Exclusions: This warranty excludes wear items such as quick couplers, seals, o-rings, pumps that have been run without water supplied or
damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration.
Accessory parts, such as guns, hoses, nozzle extensions (wands), and nozzles, are excluded from the product warranty. This warranty excludes used,
reconditioned, and demonstration equipment and failures due to acts of God and other force majeure events beyond the manufacturers control.
198203E, Rev. D, 04/17/2012
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
MILWAUKEE, WI, USA
Effective April 1, 2012; replaces all undated Warranties and all Warranties dated before April 1, 2012.
WARRANTY PERIOD
Not for
Reproduction
Page 24
24 www.victa.com.au
Pressure Washer
Power Ratings: The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of
Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been
obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Net power values are taken with exhaust and air cleaner installed whereas gross power values
are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which
engines are placed, the gas engine may not develop the rated gross power when used in a given piece of power equipment. This
difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner, exhaust,
charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity,
altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an
engine of higher rated power for this Series engine.
* This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101-
2010 (Testing and Rating Performance of Pressure Washers).
Product Specifications
Outlet Pressure . . . . . . . . . . . . . . . . .172 BAR (2,500 PSI)*
Flow Rate . . . . . . . . . . . . . . . . . . . .7.5 liters/min (2.0 GPM)
Water Supply Temperature . . . . . . . . . . .38ºC (100ºF) MAX
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190 cc
Spark Plug Gap . . . . . . . . . . . . . . . . . . .0.76 mm (0.030 in.)
Fuel Capacity . . . . . . . . . . . . . . . . . . . . .2.84 Liters (3.0 Qt.)
Oil Capacity . . . . . . . . . . . . . . . . . . . .0.6 Liters (20 Ounces)
Common Service Parts
PumpSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6039
O-Ring Maintenance Kit . . . . . . . . . . . . . . . . . . . .196002GS
Water Inlet Screen . . . . . . . . . . . . . . . . . . . . . . . . .B2384GS
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .797301
Resistor Spark Plug . . . . . . . . . . . . . . . . . . .802592 o 5095
Long Life Platinum Spark Plug . . . . . . . . . . . . . . . . . . .5062
Engine Oil Bottle . . . . . . . . . . . . . . . . . . .100005 or 100028
Fuel Stabilizer . . . . . . . . . . . . . . . . . . . . . . .100002 or 5041
Spark Arrester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .398067
1800 356 632
Briggs & Stratton Power Products Group, LLC
P.O. Box 702
Milwaukee, Wisconsin, 53201-0702 U.S.A.
Not for
Reproduction
Loading...
