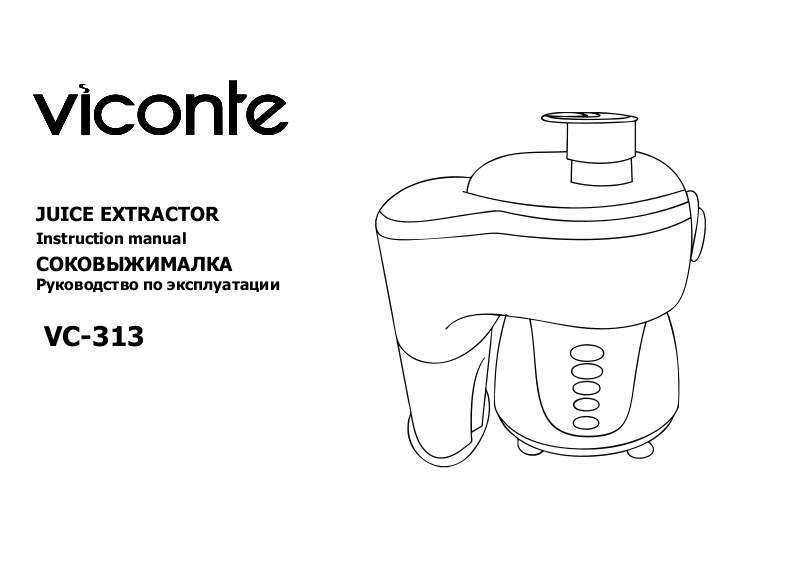

VICONTE VC-313 User Manual [ru]

JUICE EXTRACTOR

Instruction manual

СОКОВЫЖИМАЛКА

Руководство по эксплуатации

VC-313

DESCRIPTION

1. Juice jug (300 ml)

2. Upper body / Pulp container (800 ml)

3. Protective cover

4. Feeding funnel

5. Pusher

6. Hopper plate

7. Cover lock

8. Pulse button

9. Speed control

10. Motor unit

4

3

2

1

5

6

7

8

9

10

SAFETY RECOMMENDATION

Before using this appliance please read these instruction manual carefully.

• The appliance is for household use only.

• Before connecting the appliance check that voltage indicated on the rating label corresponds the mains voltage in your home.

• Do not disassemble the juice extractor when it is plugged to the power supply.

• Do not immerse the appliance in water or any other liquid.

• Close supervision is necessary when any appliance is operated near children.

• Do not leave the appliance switched on when you do not use it.

• The appliance must always be unplugged when it is not in use and before cleaning.

• Do not operate this appliance with damaged cord or plug, or if any malfunctions happened.

• Do not allow cord to hang over the edge of table, or touch hot surfaces.

• Do not place the appliance near gas or electric store or a heated oven.

• Avoid contacting with moving parts.

• The blades are very sharp, handle them with care.

• Always make sure the safety locks are correctly clamped down before switching on. The unit is designed to shut off automatically if

locks are not fastened securely in place.

• Do not push products into the appliance by ngers while it is in operation. If food becomes lodged in feeder tube, use pusher to
push it down. If this doesn’t work, turn the motor off, unplug unit, then disassemble juice extractor to remove remaining food.

• Do not run juice extractor continuously for longer than 4 minutes. Turn off switch and let it rest for at least 2 minutes to cool down
the motor, otherwise the motor may be damaged.

• Do not overload appliance.

BEFORE USING FOR THE FIRST TIME

• After unpacking the unit and before any use, make sure the mechanical parts of the unit and all its attachments are not damaged.

• Wash the parts of the appliance, especially those that will come into contact with the fruit.

• Assemble the unit before adding fruit or vegetables.

STARTING UP

• This appliance is equipped with a safety system. If the cover is not correctly in place or the locks are unfastened, the appliance will

not function.

• Before plugging unit into power source, make sure the switch is off and the securing clamps are safety locked.

• Wash fruits and vegetables well. Cut fruits into small pieces so they can t into the feeding funnel, remove pits.

• Switch on the appliance and choose desired speed.

• Pulse mode “M” – for short time of work. The appliance will run until the speed control is kept in “M” position.

• Insert the prepared fruits into the feeding funnel and gently push the plunger down.

• The motor must always be running after fruit or vegetables were fed into the appliance.

• When residue or juice cups are full, push the button “0” and empty the containers before continuing to process.

• After using switch off the appliance, push button “0” and unplug the unit.

• Do not run juicer continuously for longer than 2 minutes. Turn off switch and let it rest for at least 2 minutes to cool down the mo-

tor, and to clean clear the lid and the up body. If not motor may become damaged.

CAUTION:

• The juice extractor cannot process bananas, peaches, apricots, mangos, papayas, etc. because no juice can be squeezed from
those fruits.

• The juice extractor cannot process coconut or other hard items because they may damage the motor and lter.

• Peels must be removed from citrus fruits, remove pits from cherries, prune, etc. before feeding them into the funnel.
