Vicon VM-6215LED User Manual

User Guide

XX204-50-00

Tel: [phone] Fax: [phone] Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.

Document Number: 8009-8204-50-00

LED Monitor

Vicon Industries Inc.

www.vicon-security.com

Issued: 313

Copyright © 2013 Vicon Industries Inc. All rights reserved.

Important Safeguards – Indoor Use

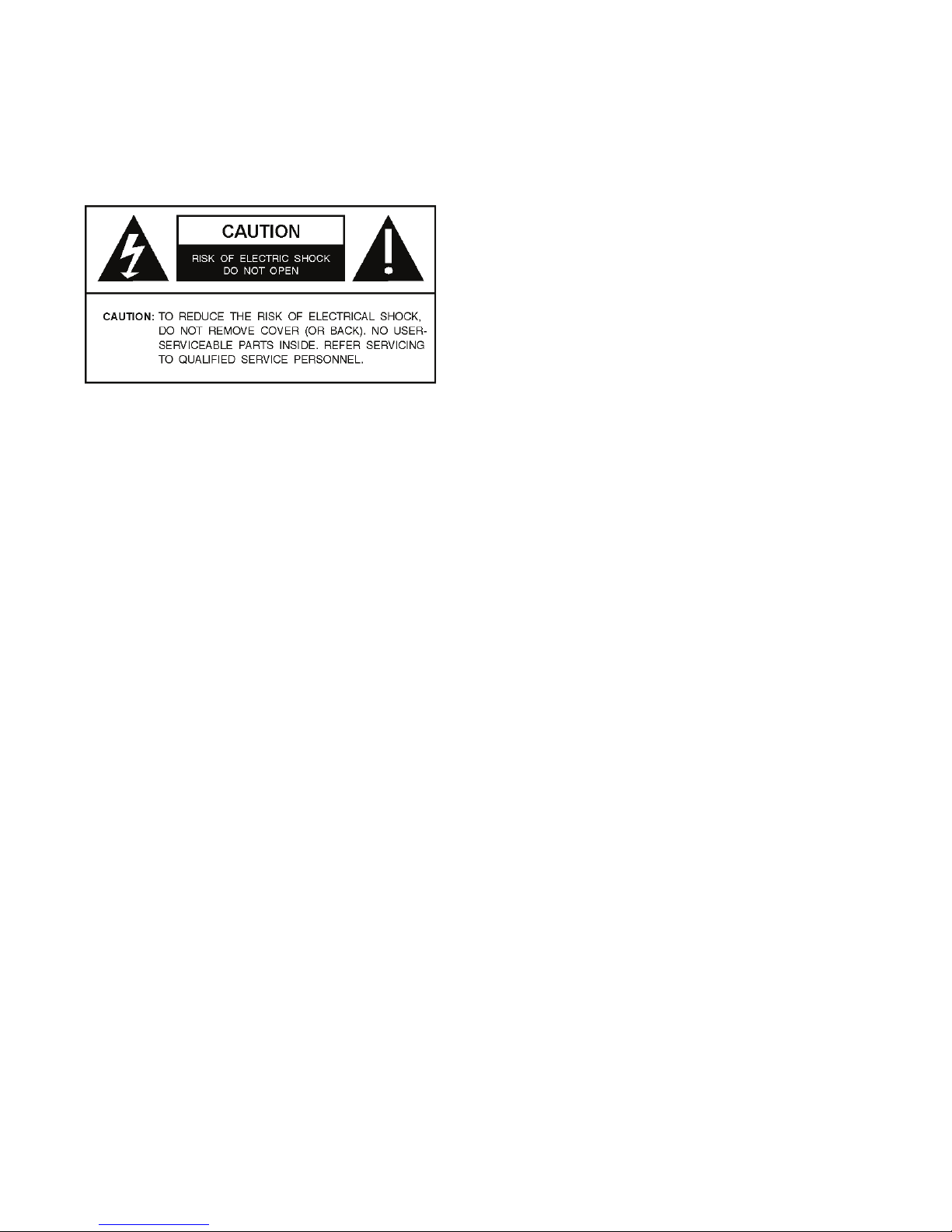

GRAPHIC SYMBOL EXPLANATION

The lightening bolt symbol alerts the user to the presence of

dangerous voltage that may present the risk of electric shock.

The exclamation point symbol alerts the user to the presence of

important operating and maintenance instructions.

WARNING

To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.

1. Read Instructions - Read all safety and operating instructions

before the product is operated.

2. Retain Instructions - Retain all safety and operating

instructions for future reference.

3. Heed Warnings - Pay attention to all product warnings.

4. Follow Instructions - Follow all operating instructions.

5. Installation and Wiring - The equipment and all devices

connected to it shall be installed and wired in accordance with the

National Electrical Code, ANSI/NFPA 70.

6. Cleaning - (Do not use caustic, abrasive or aerosol

cleaners)

a) For units that CAN BE DISCONNECTED from the power

source, use a damp cloth for cleaning.

units that CANNOT BE DISCONNECTED from the

b)

For

power source, use a damp cloth for cleaning and do not
allow moisture or liquids to enter vents.

7. Attachments - Use only UL Listed Vicon recommended

attachments to prevent unit damage and personal injury.

8. Water and Moisture - Use only products designed for outdoor

environments where they will be exposed to water or moisture.

9. Accessories - Do not place the unit on an unstable surface to

avoid falling. Use only UL Listed Vicon recommended mounting

accessories.

10. Ventilation - Do not block ventilating slots and openings as

they ensure reliable operation. Do not place the unit near a heat

source or into an enclosure unless recommended by Vicon.

11. Grounding - Only products equipped wit

grounded plug should be inserted into a grounded power outlet.

Contact an electrician to replace an obsolete outlet. Do not force

a plug into a non-grounded outlet.

12. Power Cord Protection - Power supply cords should not be

routed in trafficked areas or in tight spaces where they will be

pinched or used to bear weight. Allow some slack in the cord

where it enters the unit.

h a 3-prong

13. Lightning - Disconnect the product from its power source and

cable system when possible to prevent damage due to lightning

and power-line surges.

14. Power Lines - Do not locate outside cables over power or

utility lines where they can fall and make direct contact. Contact

with power lines can be fatal.

15. Overloading - Do not overload wall outlets and extension

cords to prevent risk of fire and electric shock.

. Object and Liquid Entry - Never probe through, or spill liquid

16

into, enclosure openings to prevent risk of fire or electric shock.

17. Servicing - Refer all servicing to qualified service personnel.

18. Damage Requiring Service - Obtain service when:

a) The power-supply cord or plug is damaged.

b) Objects have fallen or liquid has been spilled into the

product.

c) The product is not designed for outdoor use and has been

exposed to water or moisture.

d) The product does not operate per the operating instructions.

Perform Vicon recommended adjustments, modifications
and troubleshooting only to avoid unit damage and personal
injury.

e) The product has been dropped.

f) The product shows a significant change in performance.

19. Replacement Parts - Use only Vicon specified replacement

parts or an approved equivalent to prevent unit damage and

injury.

20. Safety Check - Request safety checks to be performe

following repair or maintenance to verify proper operation.

21. ESD Precaution - Take all normal electrostatic discharge

precautions to avoid component damage during installation and

operation.

22. For 230 VAC Devices Only - When the disconnect device is

not incorporated in the equipment or when the plug on the power

supply is intended to serve as the disconnect device, follow the

guidelines below:

a) For permanently connected 230 VAC units, a readily

accessible disconnect device must be incorporated into the

site wiring.

b) For 230 VAC units with a plug, the outlet must be installed

near the unit and be easily accessible.

23. For Devices Requiring a Separate Power Supply – All

devices requiring a separate power supply shall be powered by a

UL Listed, Class 2 Po

24. Lithium Batteries Only:

wer Supply.

WARNING

Fire and burn hazard. Do not recharge, disassemble,
heat above 212°F or incinerate. Keep battery out of
reach of children and in original package until ready
to use. Dispose of used batteries promptly.

Risk of explosion if battery is replaced by incorrect
type. Dispose of used batteries according to the
instructions.

d

Important Safeguards – Indoor Use
(Cont)

25. For Rack-Mounted Units Only – The following precautions

apply to all rack-mounted units.

a) Elevated Operating Ambient - If installed in a closed or multi-

unit rack assembly, the operating ambient temperature of the

rack environment may be greater than room ambient.

Therefore, consideration should be given to installing the

equipment in an environment compatible with the maximum

ambient temperature (Tma) specified by the manufacturer.

b) Reduced Air Flow - Installation of the equipment in a rack

should be such that the amount of air flow required for safe

operation of the equipment is not compromised.

c) Mechanical Loading - Mounting of the equipment in the rack

should be such that a hazardous condition is not achieved

due to uneven mechanical loading.

d) Circuit Overloading - Consideration should be given to the

connection of

effect that overloading of the circuits might have on

overcurrent protection and supply wiring. Appropriate

consideration of equipment nameplate ratings should be

used when addressing this concern.

e) Reliable Earthing - Reliable earthing of rack-mounted

equipment should be maintained. Particular attention should

be given to supply connections other than direct connections

to the branch circuit (e.g. use of power strips).

the equipment to the supply circuit and the

FCC Notice

Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart

B for a Class A digital device.

WARNING

This equipment generates and uses radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference
to radio and television reception. It has been type tested and found to comply with the limits for a
Class A computing device in accordance with the specification in subpart B of part 15 of the FCC
rules, which are designed to provide reasonable protection against such interference in a
commercial installation. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio and television reception,
which can be determined by turning equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:

• Reorient the receiving antenna.

• Relocate the equipment with respect to the receiver.

• Relocate the equipment away from the receiver.

• Plug the equipment into a different electrical outlet so that the equipment

and receiver are on different branch circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for
additional suggestions.

The user may find the following booklet prepared by the Federal Communications Commission
helpful:

“Interference Handbook, Bulletin CIB-2”

This booklet is available from the U.S. Government Printing Office, Superintendent of Documents,
Mailstop SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.

Warning: Power must be removed from this unit before removing circuit modules or cables.

Caution: This unit contains circuit cards with integrated circuit devices that can be damaged

by static discharge. Take all necessary precautions to prevent static discharge.

Installation …….. ………………………………………………………………………….. 7

Connecting with external equipment ……………….…………………………………… 8

Remote functions ………..………………………………………………………………… 9

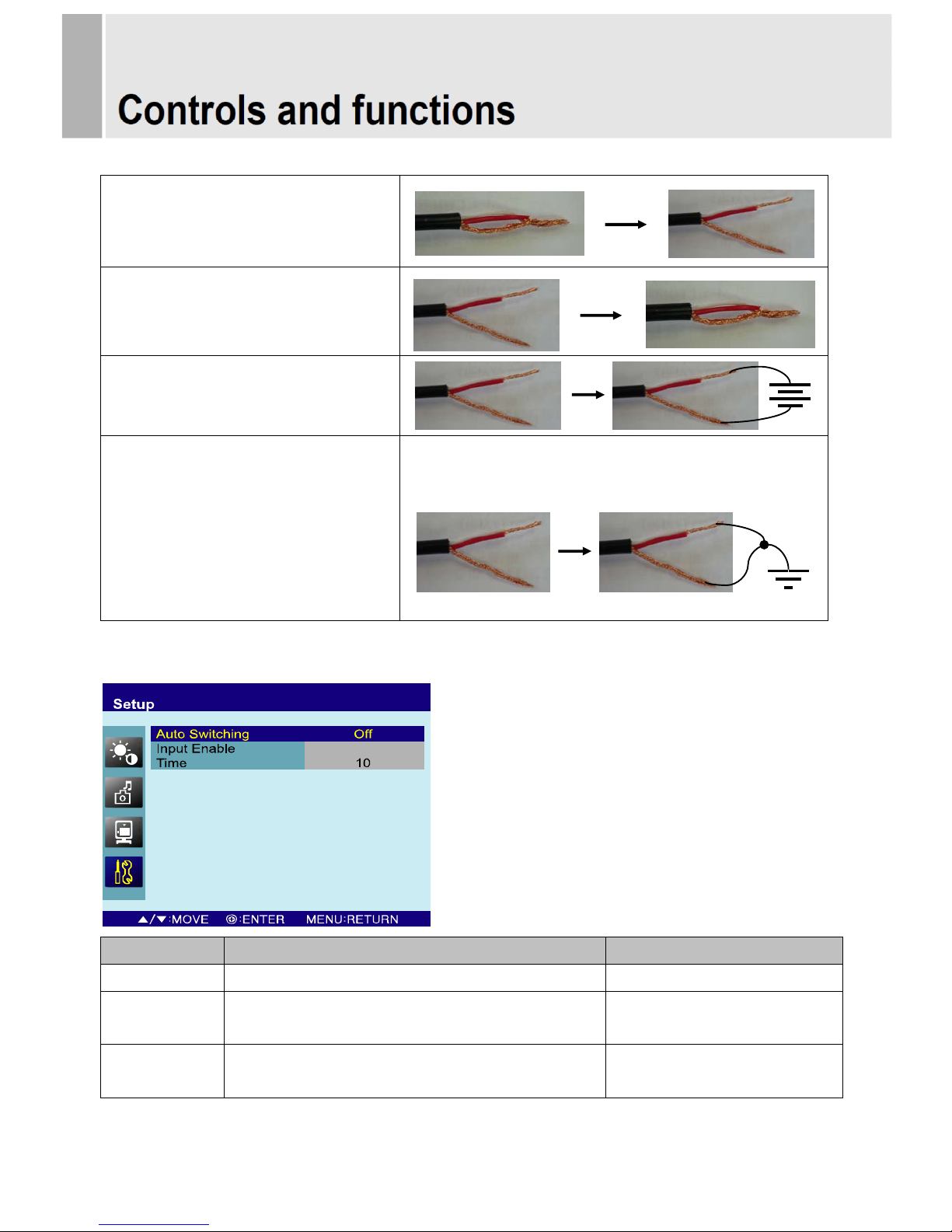

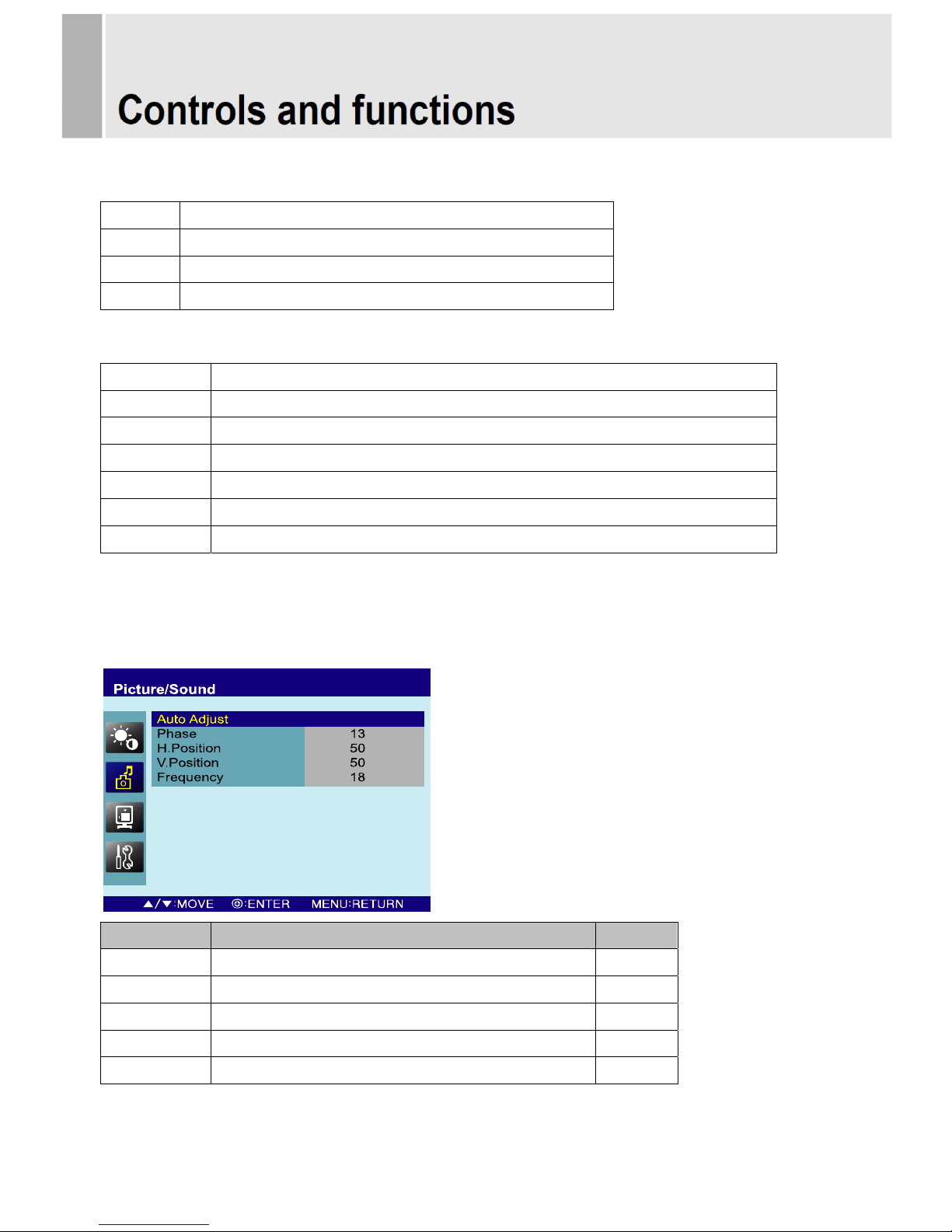

Controls and functions …………………………………………………………………….. 10 ~ 17

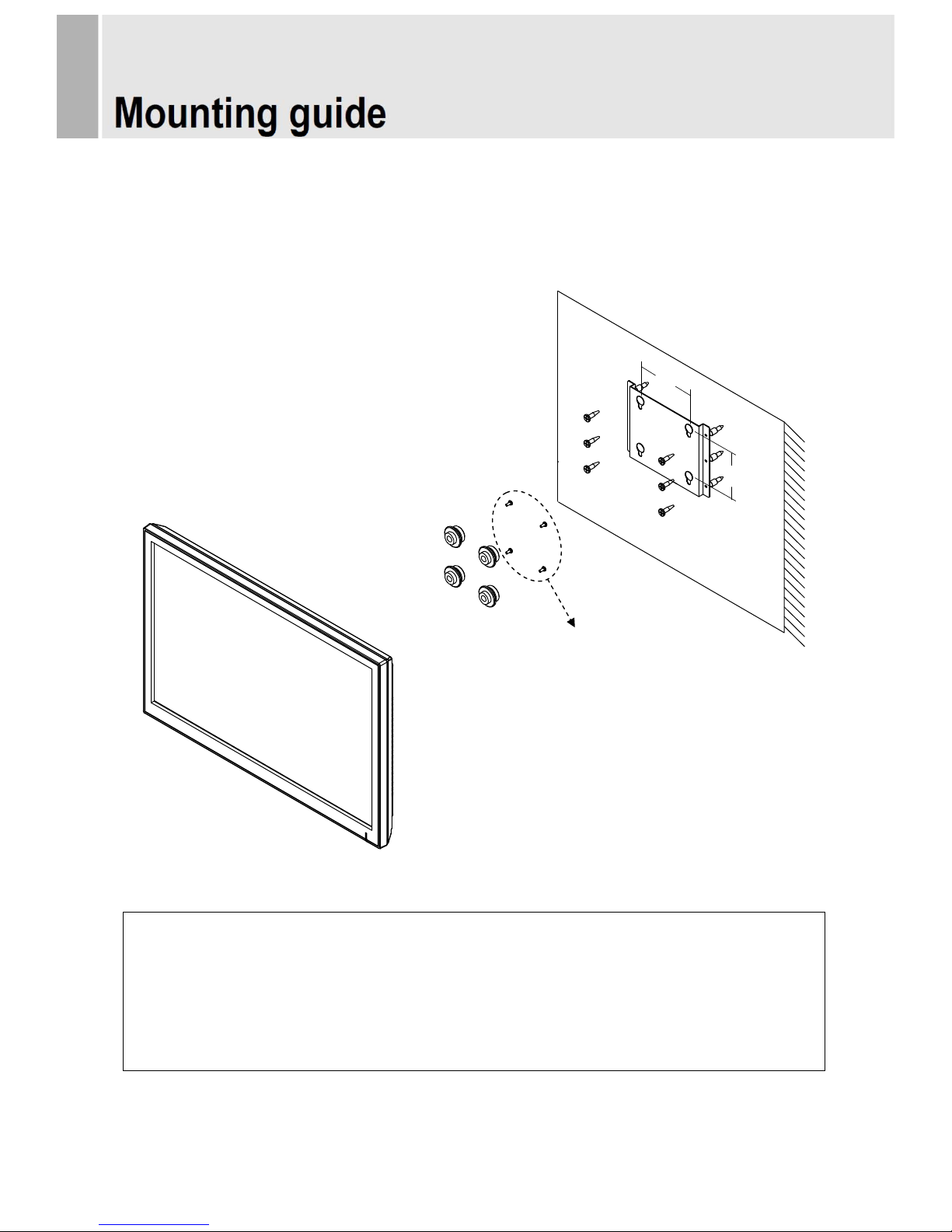

Mounting guide …………………………………………………………………………….. 18

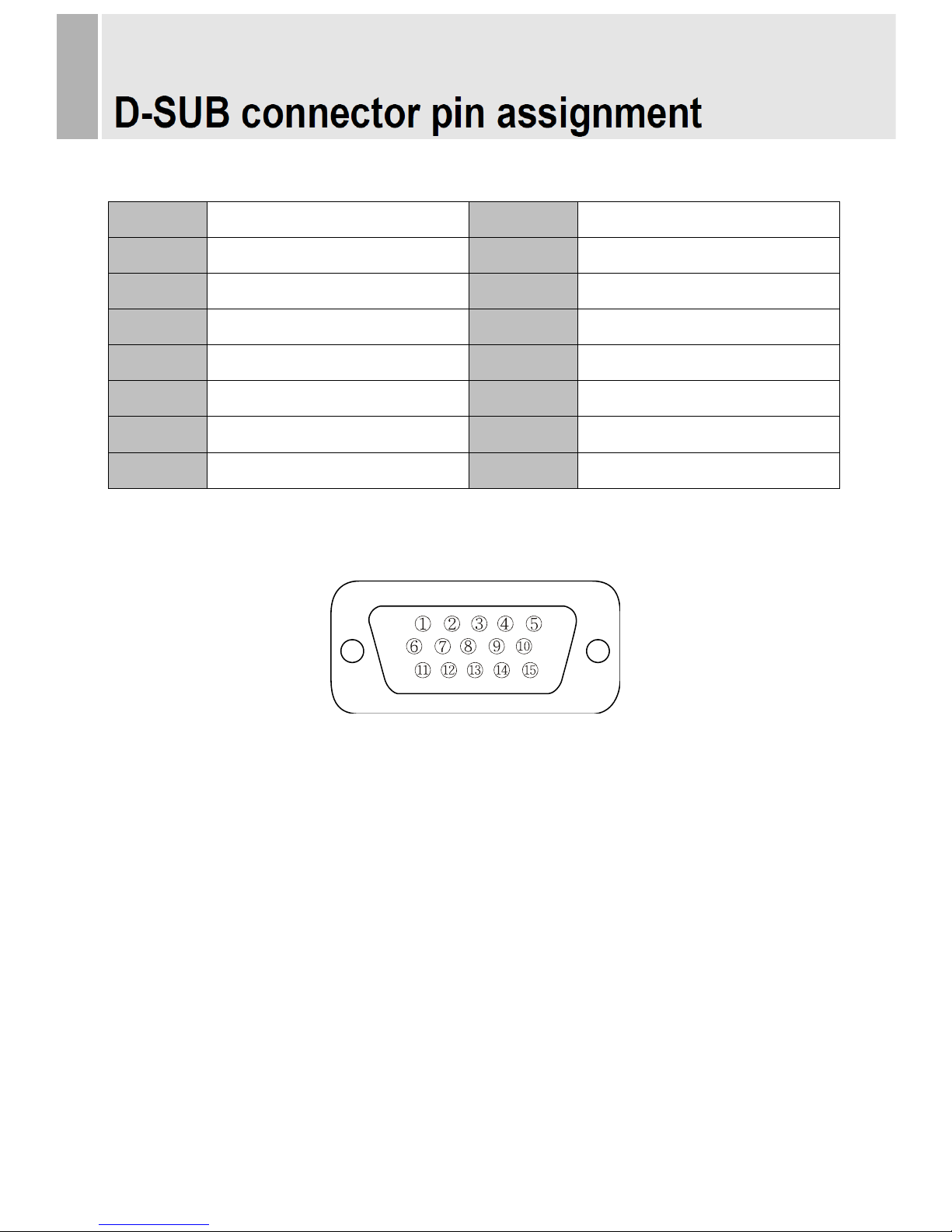

D-SUB connector pin assignment ……………..………………………………………… 19

Power management ………..……………………………………………………………… 20

Specifications ………….…………………………………………………………………… 21

Troubleshooting guide …………….…………………………………………………......... 22

- 6 -

This Monitor was

Manufactured by ISO 9001

Certified Factory

Before setting up the monitor, ensure that the power to the monitor and other attached

devices are turned off.

※ Notice: Stand & Screws are optional

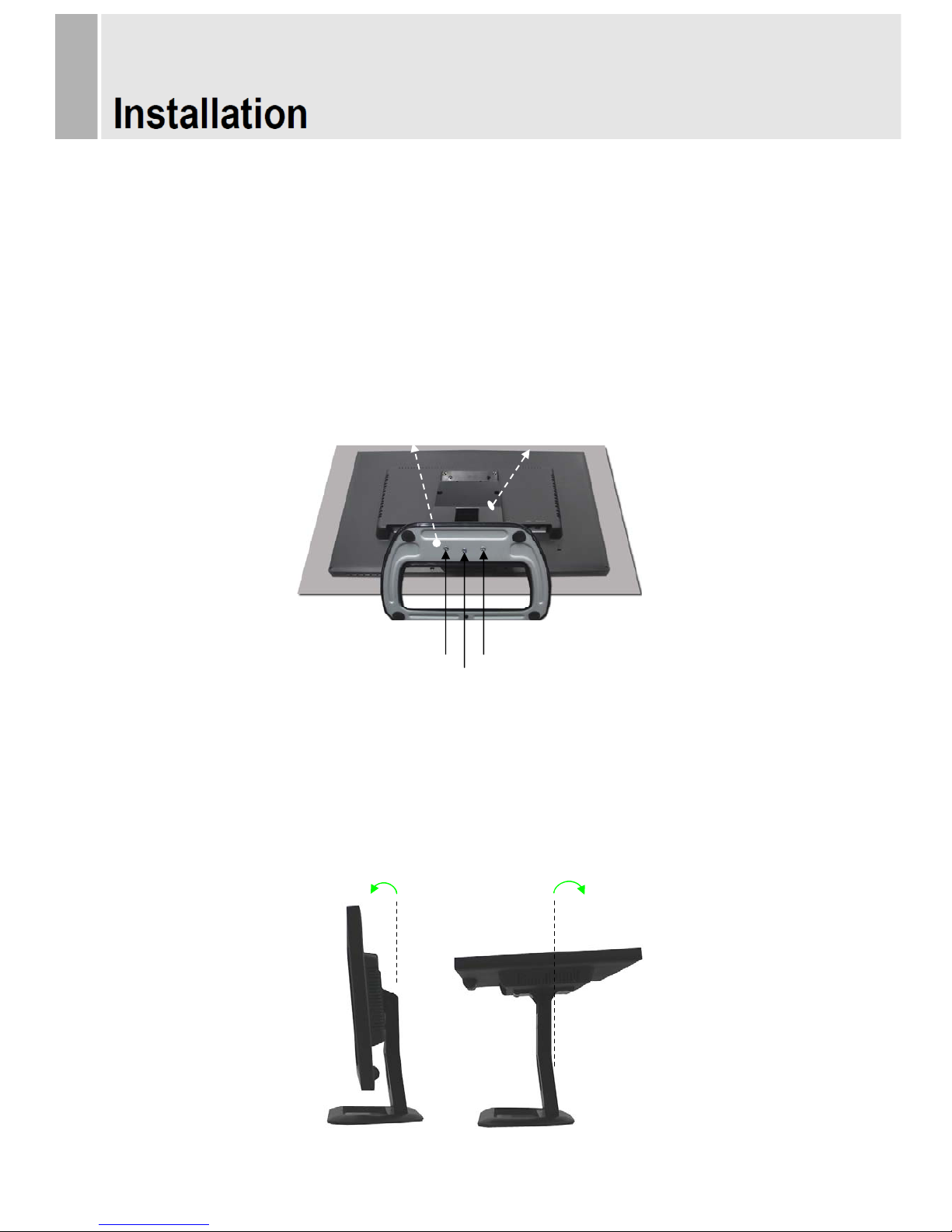

A. Connecting the stand

1. Place the monitor with its front facing downward on a soft cloth.

2. Assemble the Stand Base into the Stand Body in the correct direction using the included

screws in the accessory box.

3. Once assembled take the monitor up carefully and face the front side.

B. Positioning your display

Adjust the position of the panel in various ways for maximum comfort. (Tilt Range: -3°~75°)

- 7 -

Stand Base

Stand Body

FS4x10 screws

75˚

-3˚

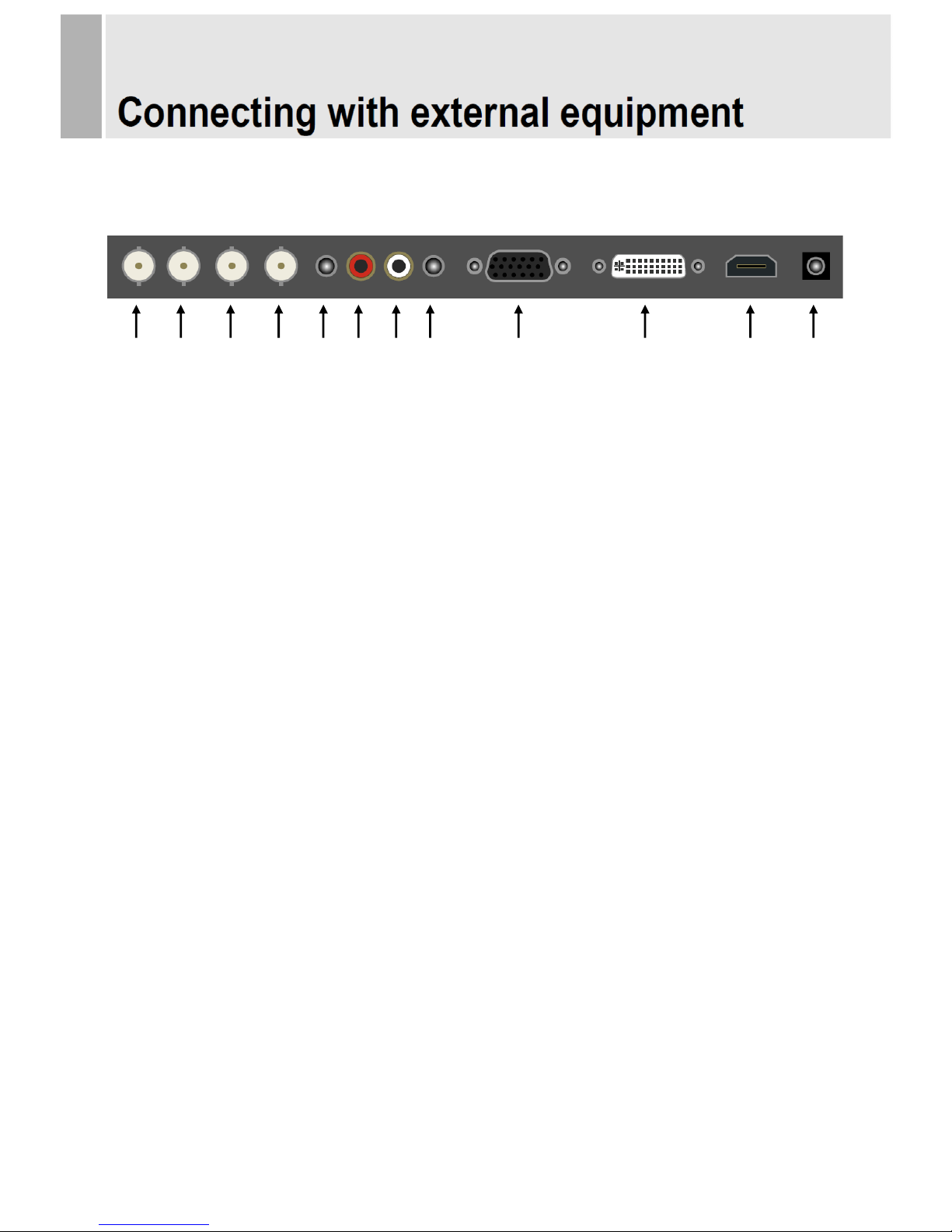

Rear Connection

1. AV2 OUT.

2. AV2 IN.

3. AV1 OUT.

4. AV1 IN.

5. TRIGGER IN.

6 & 7. AUDIO R & L (AV1 & AV2).

8. PC STEREO IN (VGA & DVI).

9. VGA.

10. DVI.

11. HDMI.

12. DC 12V.

- 8 -

2 3 4 5 6 7 8

9

10 11

1 12

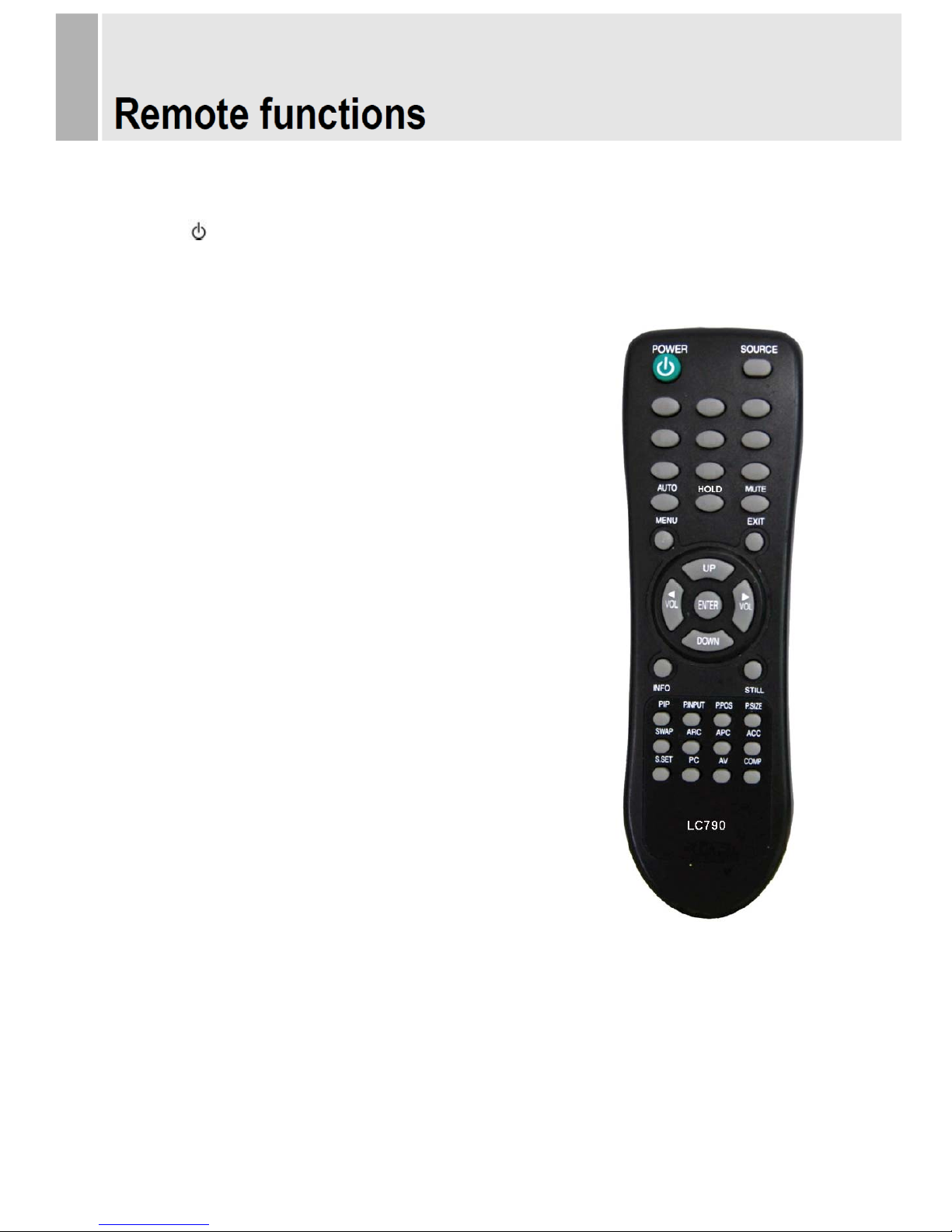

Remote Controller(Optional)

1. POWER( )

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

2. SOURCE

Selects an input source.

3. AUTO

Auto geometry adjustment in the RGB-PC source.

4. HOLD

Stops the Trigger & Auto switching functions.

5. MUTE

Mutes the sound.

6. MENU

Activates and exits the On Screen Display.

7. EXIT

Exits the On Screen Display.

8. VOL(◀ & ▶)

Increases or decreases the level of audio volume.

9. UP/DOWN

Moves upwards or downwards in the OSD menu.

10. ENTER

Enters an OSD submenu or accepts your selection.

11. INFO

Displays the information about input source.

12. STILL

Pauses the picture.

13. PIP (Picture In Picture)

Activates the PIP mode.

14. P.INPUT

Changes the source of sub-picture in the PIP mode.

15. P.POS

Changes the position of sub-picture in the PIP mode.

16. P.SIZE

Changes the sizes of sub and main pictures in the PIP mode.

17. SWAP

Alternates between sub and main pictures in the PIP mode.

18. ARC (Aspect Ratio Control)

Selects a screen ratio.

19. APC (Auto Picture Control)

Selects a picture mode.

20. ACC (Auto Color Control)

Selects a color mode.

21. S.SET

Selects the source of sound between main and sub pictures in the PIP mode.

22. PC

Selects PC mode(PC, DVI & HDMI).

23. AV

Selects AV mode(AV1 & AV2).

24. COMP

Selects Component mode(Unavailable).

- 9 -

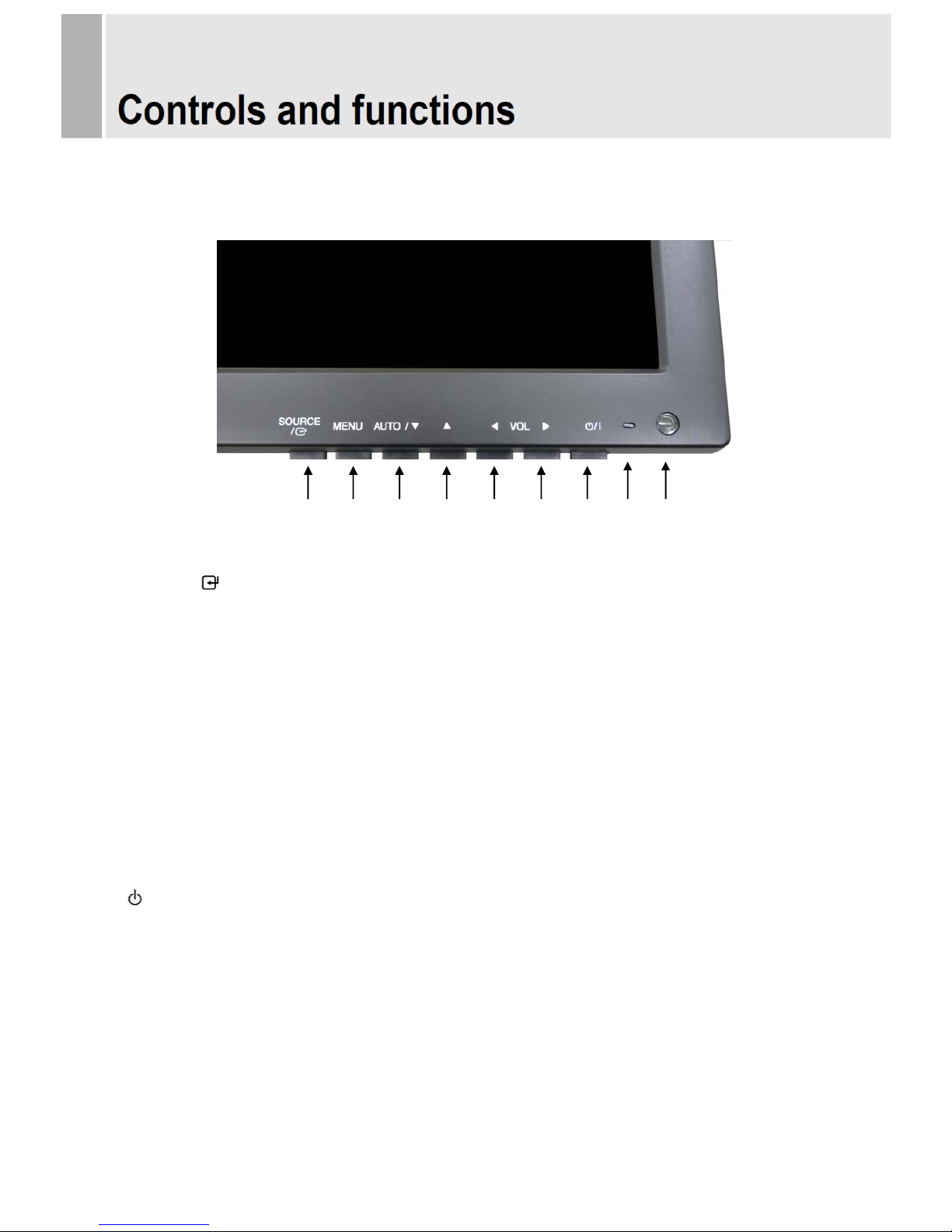

Bottom Key Control

1. SOURCE/

Selects an input source.

Enters a submenu or accepts your selection in the OSD menu.

2. MENU

Activates or exits the OSD.

Moves previous menu or status in the OSD.

3 & 4. AUTO/▼ & ▲

Moves another option in the OSD.

The AUTO/▼ button is auto adjustment function in the VGA input.
The up(▲) button is HOLD function and stop the Trigger & Auto switching functions.

5 & 6. ◀ VOL ▶

Adjust the volume or menu settings.

7. / I

Turns the power on or off. There will be a few seconds delay before the display appears.

8. LED

Turned on: blue color.

Turned off: red color.

9. IR Sensor

Remote controller sensor.

- 10 -

2 8

1 4

3 5 7 6

9

OSD Menu Description

All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.

(On Screen Display)

To adjust the OSD screen:

1. Press the Menu button to enter the OSD menu.

2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted.

3. Press the ▶ button to enter the submenu for adjusting items.

4. Change the value you wish to adjust by using the ◀/▶ buttons.

5. Press the ◀ button to exit the submenu for adjusting items.

6. Press the Menu button to exit the OSD menu.

A. Custom

Option Function Value

Brightness Adjusts brightness of the screen. 0 ~ 100

Contrast Adjusts intensity of the image. 0 ~ 100

Color

1)

Adjusts color of the picture. 0 ~ 100

Tint

1) 2)

Adjusts tint of the picture. 0 ~ 100

Sharpness

1)

Adjusts sharpness of the picture. 0 ~ 100

1) Unavailable in RGB-PC, DVI and HDMI.

2) Unavailable in PAL system.

- 11 -

B. Picture/Sound

Option Function Value

Picture Mode Sets picture mode. See table below

Color Tone Sets color tone. See table below

Mute Mutes speaker sound. Off or On

Volume Adjust the level of audio volume. 0 ~ 100

Size Display picture size. See table below

NR

1)

Reduces noise of the picture. On or Off

3D Comb

1)

Activates the 3D comb filter. On or Off

PC

2)

See table below.

1) Unavailable in RGB-PC, DVI and HDMI.

2) Only available in RGB-PC.

Picture Mode

Custom Applies user selected values.(Brightness, Contrast, Color, Tint and Sharpness)

Dynamic Provides enhanced contrast and sharpness.

Standard Provides standard contrast and sharpness.

Movie Is recommended for viewing film-based content.

Mild Reduces contras and sharpness.

- 12 -

Color Tone

Cool Gives the white color a bluish tint.

Normal Gives the white color a neutral tint.

Warm Gives the white color a reddish tint.

User To manually adjust the color tones(Red, Green, and Blue).

Size

4:3 Sets the image size to 4:3

Panorama

1)

Sets the image to panorama

Zoom1

1)

Expands the image size about two times to upward and downward

Zoom2

1)

Expands the image size about one and half times to upward and downward

Wide Sets the image size to wide

Under

2)

Adjusts the image size to display resolution without overscan

1:1

1)

Adjusts the image size to input resolution with overscan

1) Unavailable in RGB PC, DVI and HDMI.

2) Unavailable in RGB PC.

PC

Option Function Value

Auto Adjust Auto geometry adjustment.

Phase Adjusts the number of horizontal picture elements. 0 ~ 100

H-Position Adjusts the horizontally picture position. 0 ~ 100

V-Position Adjusts the vertically picture position. 0 ~ 100

Frequency Adjusts the vertical noise of screen image. 0 ~ 100

- 13 -

C. PIP

Option Function Value

PIP Activates the PIP feature. Off or On

Input Source Selects the input source for the PIP area. See table below

PIP Mode

Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3,

and full screen side by side.

PIP, PBP1 or PBP2

PIP Size Selects the size of PIP screen. Size1, Size2 or Size3

Position

Selects the position of PIP screen. Right of Bottom, Left of

Bottom, Left of Top and Right of Top.

RB, LB, LT or RT

Swap Alternates between the main and sub picture

Sound Select Selects the sound source from either the Main or PIP Main or Sub

Input Source

Main Sub

Available

combination

AV1 or AV2 AV1 or AV2

AV1 or AV2 RGB-PC, DVI or HDMI

RGB-PC, DVI or HDMI AV1 or AV2

Unavailable

combination

RGB-PC, DVI or HDMI RGB-PC, DVI or HDMI

- 14 -

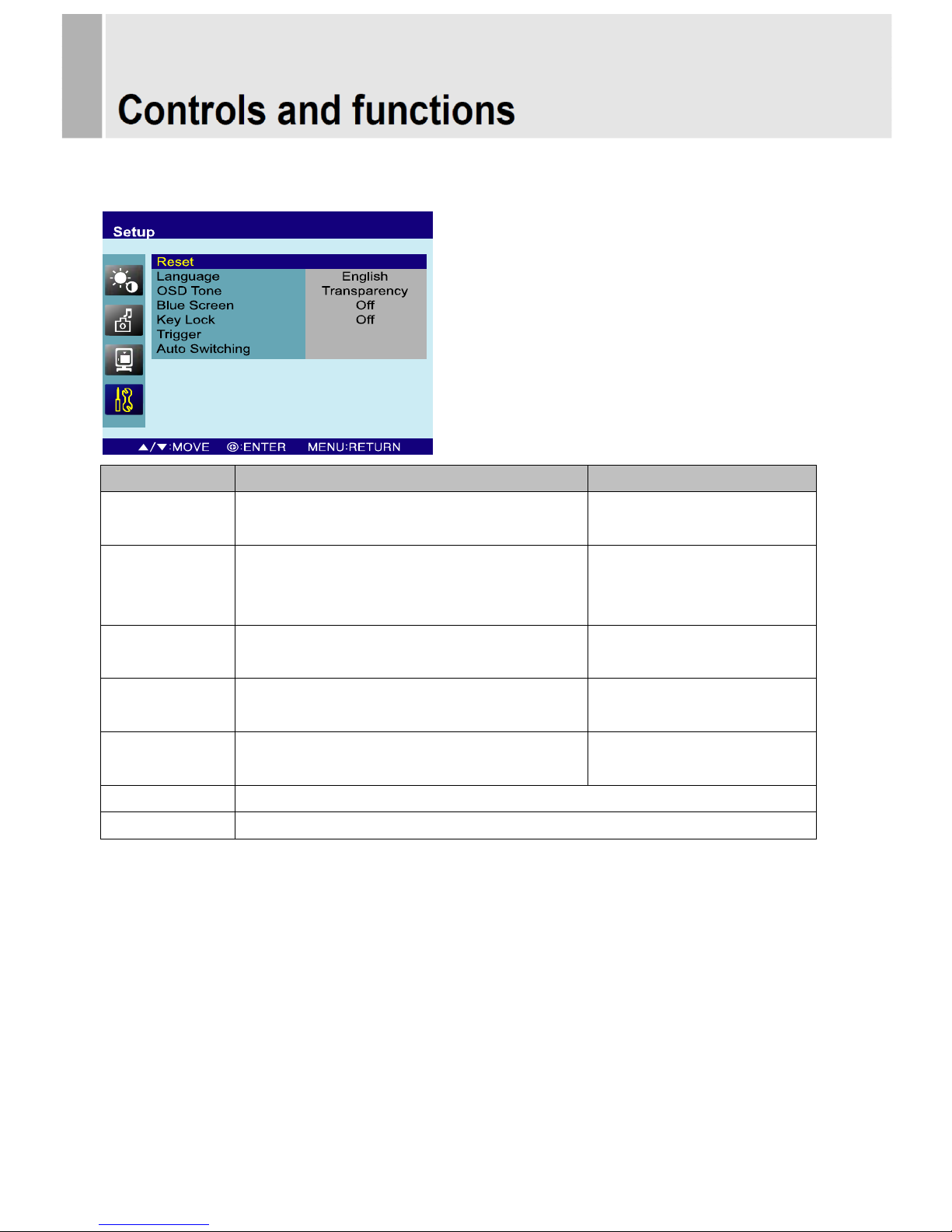

D. Setup

Option Function Value

Reset

Resets the monitor settings to the factory

default.

Language Sets the language of the OSD menu.

English, French, Deutsch,

Italian, Spanish, Portuguese

or Nederland

OSD Tone

Changes background of monitor menus.

(e.g. input source & information)

Transparency or On

Blue Screen

Displays a blue screen if the monitor receives

no signal.

Off or On

Key Lock

1)

Locks all buttons of the monitor.

Note: Use remote controller to unlock.

Off or On

Trigger See table below

Auto Switching See table below

1) How to unlock

① On the front key: Press the MENU and ▲button at the same time over 3 seconds.

② On the Remote Controller: The Remote Controller operates well because the Key Lock function is

only allowed for the front key of this product.

- 15 -

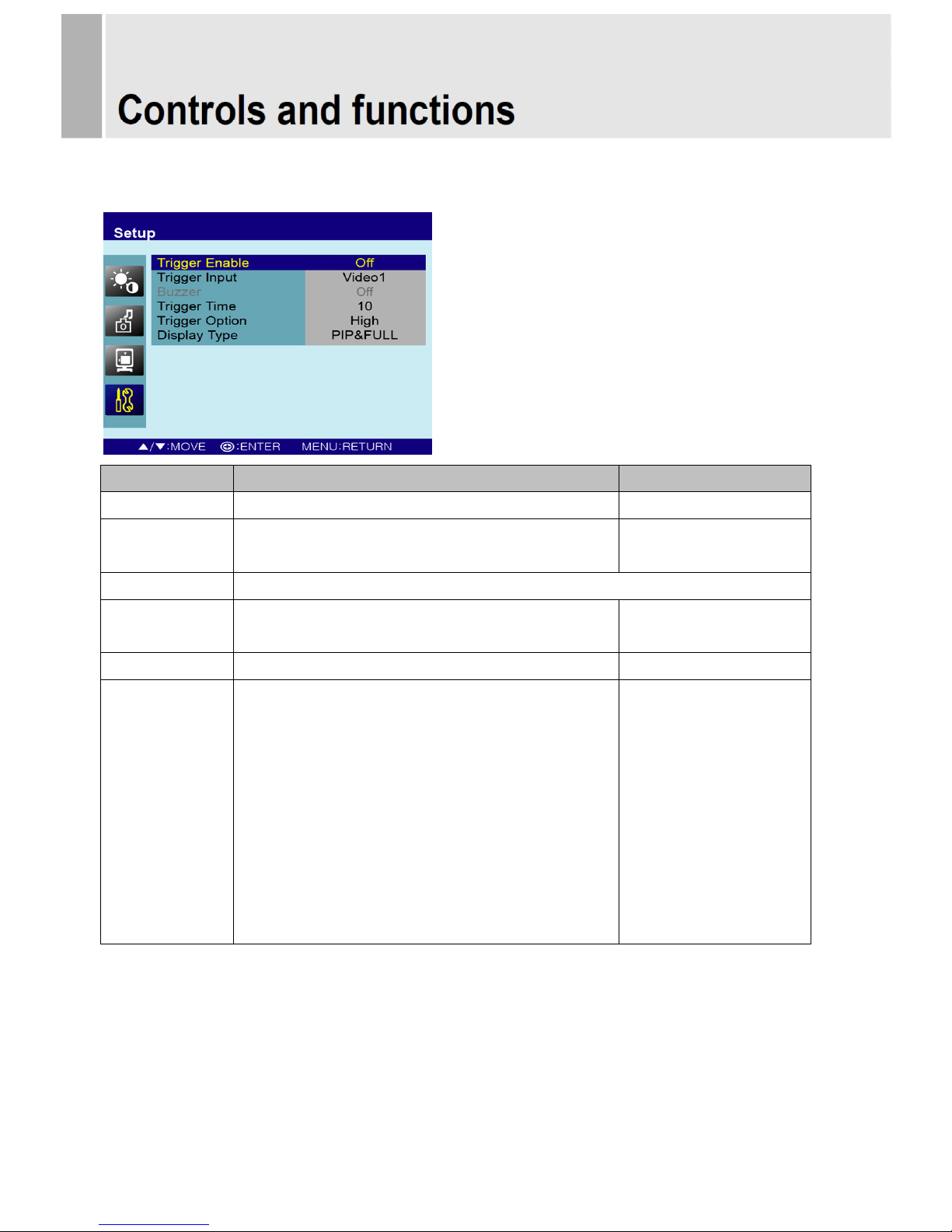

Trigger

Option Function Value

Trigger Enable Activates the trigger feature. Off or On

Trigger Input Selects the input source for the Trigger.

AV1, AV2, RGB-PC, DVI

or HDMI

Buzzer Not Operation.

Trigger Time

Selects the amount of time, in seconds,

that the monitor displays the trigger Input image.

3 ~ 100

Trigger Option Selects the type of physical trigger input. See table below.

Display Type

Selects the mode in which the monitor displays

the Trigger Input. The monitor takes one of the

following actions:

- PIP & FULL: Displays the Trigger Input in the PIP

of the current video input source.

Note: The main video source must support the

Trigger Input source as a PIP option. See section

“Input Source” in “C. PIP”.

- FULL: Switches the display to show the Trigger

Input in the full screen.

PIP & FULL or FULL

- 16 -

N/C(Normally Closed):

The Trigger function is activated when

the trigger cable is opened.

N/O(Normally Opened):

The Trigger function is activated when

the trigger cable is closed.

High:

The Trigger function is activated when

the trigger signal is DC 2~5[V].

Low:

The Trigger function is activated when

the trigger signal is DC 0~0.6[V].

Note: In this case, trigger port has high

status electrically, so the trigger cable

has to have ground(or earth) status to

be activated.

Auto Switching

Option Function Value

Auto Switching Activates the Auto Switching feature. Off or On

Input Enable

Opens another menu and you can select the input

sources to include in the Auto Switching cycle.

AV1, AV2, RGB-PC, DVI and

HDMI

Time

Selects the amount of time, in seconds, that the

monitor displays each selected input source.

3 ~ 100

- 17 -

Wall mounting (Optional)

The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not

included in the delivery).

※ Attention!

You must use four M4x10 screws to assemble this monitor and the wall mount bracket.

※ WARNING!

If user use longer than M4x10 it may cause the damage on the unit. Please follow

instructed bolt size & length.

- 18 -

100

100

M4x10 screws

▶ Pin Assignments

Pin 1 RED VIDEO 9

2 GREEN VIDEO 10 SIGNAL CABLE DETECT

3 BLUE VIDEO 11 GROUND

4 GROUND 12 SDA(for DDC)

5 GROUND 13 H-SYNC.(or H+V SYNC.)

6 RED GROUND 14 V-SYNC.

7 GREEN GROUND 15 SCL(for DDC)

8 BLUE GROUND

D-SUB

▶ Accessories

1. Power cord.

2. Power adaptor

3. User manual.

4. VGA(RGB-PC) cable.

5. Stand base & FS4x10 screws 3EA.

6. Trigger cable (Optional)

7. Stereo cable (Optional)

8. Remote controller (Optional)

9. Batteries (Optional)

10. Wall mount (Optional)

- 19 -

Power Consumption

Mode

Power Consumption

18.5” 21.5”

Turned On

< 17.16W < 21.6W

Turned Off

< 1W

LED Indicator

The power management feature of the monitor is comprised of two stages:

Turned on(blue) and turned off(red).

Mode LED Monitor Operation

Turned On

Blue Normal Operation

Turned Off

Red Not Operation

- 20 -

21.5”

LCD

Type

Type

21.5˝ Diagonal AM-TFT (Active-Matrix)

Pixel pitch(mm)

0.24825(H) x 0.24825(V)

Brightness

250cd/ m² (Typical)

Contrast ratio

1000:1 (Typical)

Viewing angle

170°/160°(H/V)

Response time

5ms (Typ., on/off)

Resolution (H x V)

1920X1080@60Hz

Frequency

Horizontal: 31~80kHz,

Vertical: 56~75Hz

Input Signal

VIDEO (2ch input 1.0Vp-p, 75Ω terminated, 2ch loop-through out)

HDMI (High Definition Multimedia Interface)

DVI (Digital Video Interface)

VGA (RGB-PC)

PC Stereo In.

AV(composite) Sound R & L

Active Display

Area (H x V)

476.64mm x 268.11mm

Packing Dimensions

(W x H x D)

580mm x 440mm x 145mm (22.83” x 17.32” x 5.71”)

Weight

Net: 5.36Kg (11.82 lbs)

Gross: 7.16Kg (15.79 lbs)

Electrical Ratings

12V 2.1A (100-240V~, 50/60Hz)

▶▶ NOTE: Technical specifications are subject to change without notice.

- 21 -

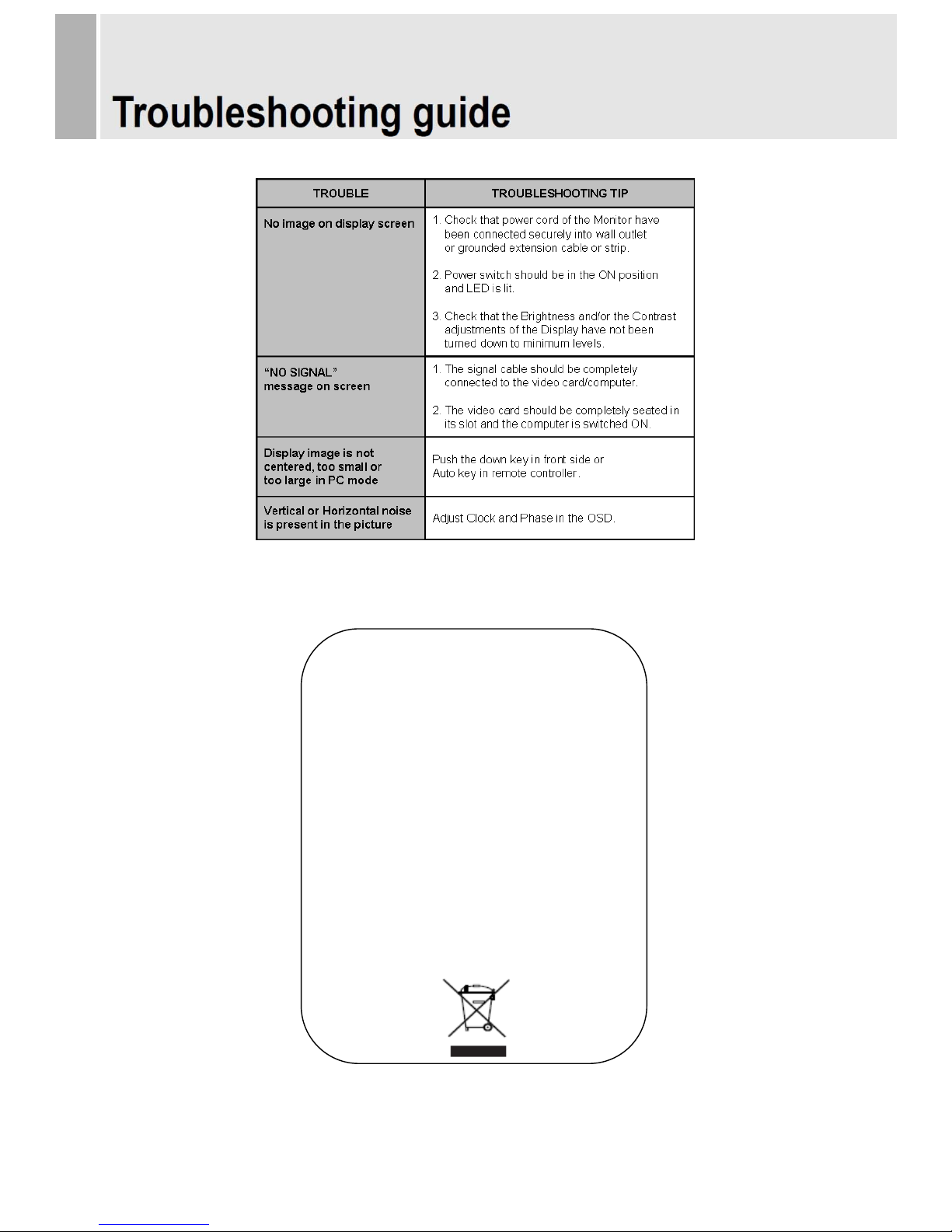

WEEE Symbols

- 22 -

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other
European countries with separate collection systems)

This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life. To
prevent possible harm to the environment or human
health from uncontrolled waste disposal, please
separate this from other types of wastes and
recycle it responsibly to promote the sustainable
reuse of material resources. Household users should
contact either the retailer where they purchased this
product, or their local government office, for details of
where and how they can take this item for
environmentally safe recycling. Business users
should contact their supplier and check the terms
and conditions of the purchase contract. This product
should not be mixed with other commercial wastes
for disposal.

Shipping Instructions

Use the following procedure when returning a unit to the factory:

1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below.
Record the name of the Vicon employee who issued the R.A.

Vicon Industries Inc.
131 Heartland Boulevard
Edgewood, NY 11717
Phone: [phone]; Toll-Free: 1-800-645-9116; Fax: [phone]

For service or returns from countries in Europe, contact:

Vicon Industries (U.K.) Ltd
Brunel Way
Fareham, PO15 5TX
United Kingdom
Phone: [phone]; Fax: [phone]

2. Att

3. Pack the unit carefully. Use the original shipping carton or it

4. Mark the R.A. number on the outside of the carton on the shipping label.

ach a sheet of paper to the unit with the following information:

a. Name and address of the company returning the unit

b. Name of the Vicon employee who issued the R.A.

c. R. A. number

d. Brief description of the installation

e. Complete description of the problem and circumstances under which it occurs

f. Unit’s original date of purchase, if still under warranty

s equivalent for maximum

protection.

Vicon Standard Equipment Warranty

Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and
workmanship under Normal Use from the date of original retail purchase for a period of three years, with the
following exceptions:

1. Monitors, all models: One year from date of original retail purchase.

2. Uninterruptible Power Supplies: Two years from date of original retail purchase.

3. VDR-700 Recorder Series: One year from date of original retail purchase.

4. V5616MUX: One year from date of original retail purchase.

5. Arecont Cameras: One year from date of original retail purchase.

6. FMC series fiber-optic media converters and associated accessories: Lifetime warranty.

7. For PTZ cameras, “Normal Use” excludes prolonged use of lens and pan-and-tilt motors, gear

heads, and gears due to continuous use of “autopan” or “tour” modes of operation. Such
continuous operation is outside the scope of this warranty.

8. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of

original retail purchase.

Date of retail purchase is the date original end-user takes possession of the equipment, or, at the sole
discretion of the Company, the date the equipment first becomes operational by the original end-user.

The sole remedy under this Warranty is that defective equipment be repaired or (at the Company’s option)
replaced, at Company repair centers, provided the equipment has been authorized for return by the
Company, and the return shipment is prepaid in accorda nc e with policy.

The Company will not be obligated to repair or replace equipment showing abuse or damage, or to parts
which in the judgment of the Company are not defective, or any equipment which may have been tampered
with, altered, misused, or been subject to unauthorized repair.

Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not
warrant that such software shall be error (bug) free. Software support via telephone, if provided at
no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves
the right to make changes to its software in any of its products at any time and without notice.

This Warranty is in lieu of all other conditions and warranties express or implied as to the Goods ,
including any warranty of merchantability or fitness and the remedy specified in this Warranty is in
lieu of all other remedies available to the Purchaser.

No one is authorized to assume any liability on behalf of the Company, or impose any obligations on it in
connection with the sale of any Goods, other than that which is specified above. In no event will the
Company be liable for indirect, special, incidental, consequential, or other damages, whether arising from
interrupted equipment operation, loss of data, replacement of equipment or software, costs or repairs
undertaken by the Purchaser, or other causes.

This warranty applies to all sales made by the Company or its dealers and shall be governed by the laws of
New York State without regard to its conflict of laws principles. This Warranty shall be enforceable against
the Company only in the courts located in the State of New York.

The form of this Warranty is effective May 4, 2012.

THE TERMS OF THIS WARRANTY APPLY ONLY TO SALES MADE WHILE THIS WARRANTY IS IN
EFFECT. THIS WARRANTY SHALL BE OF NO EFFECT IF AT THE TIME OF SALE A DIFFERENT
WARRANTY IS POSTED ON THE COMPANY’S WEBSITE, WWW.VICON-SECURITY.COM. IN THAT
EVENT, THE TERMS OF THE POSTED WARRANTY SHALL APPLY EXCLUSIVELY.

Vicon Part Number: 8006-9010-03-10 Rev 0512

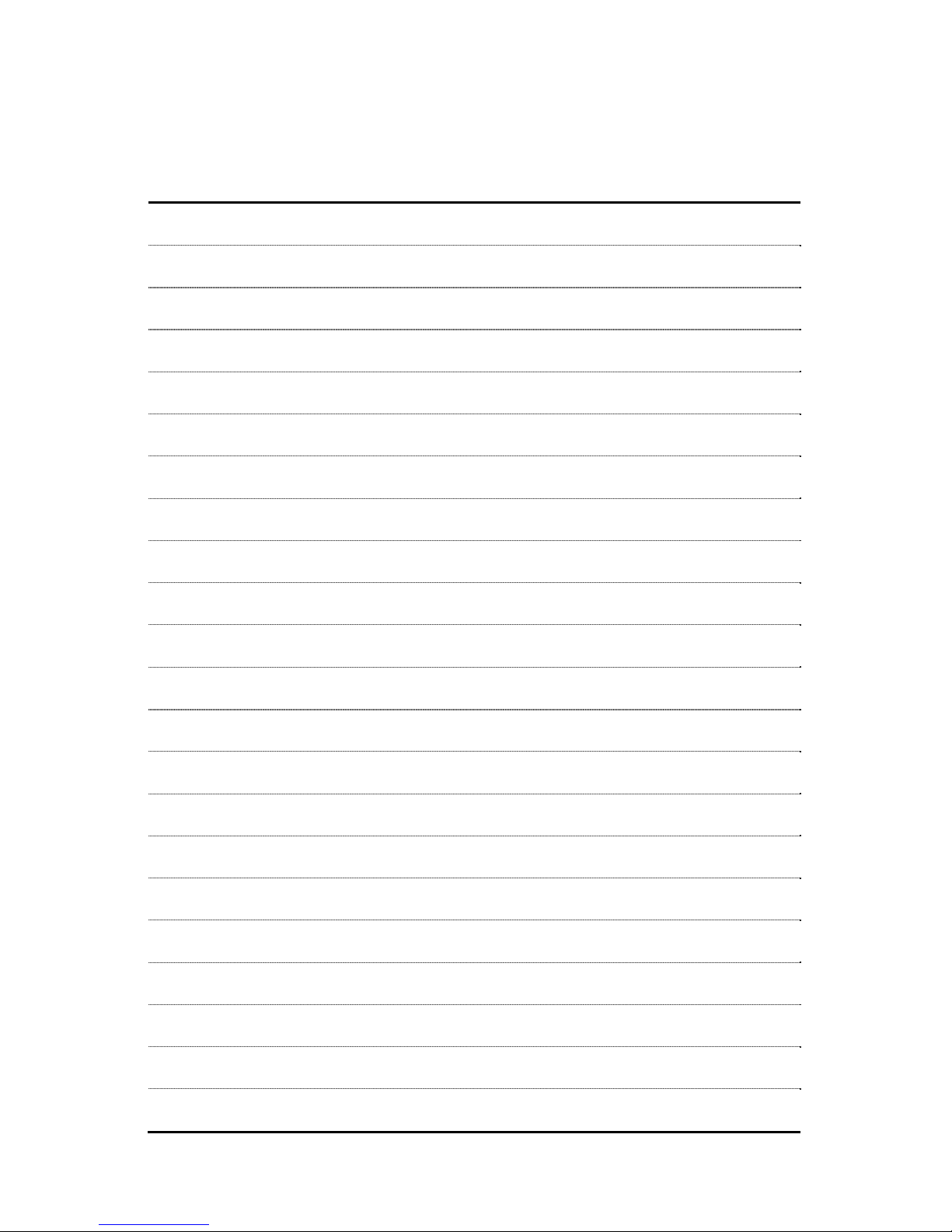

MEMO

MEMO

Vicon Industries Inc.

For office locations, visit the website:

www.vicon-security.com
