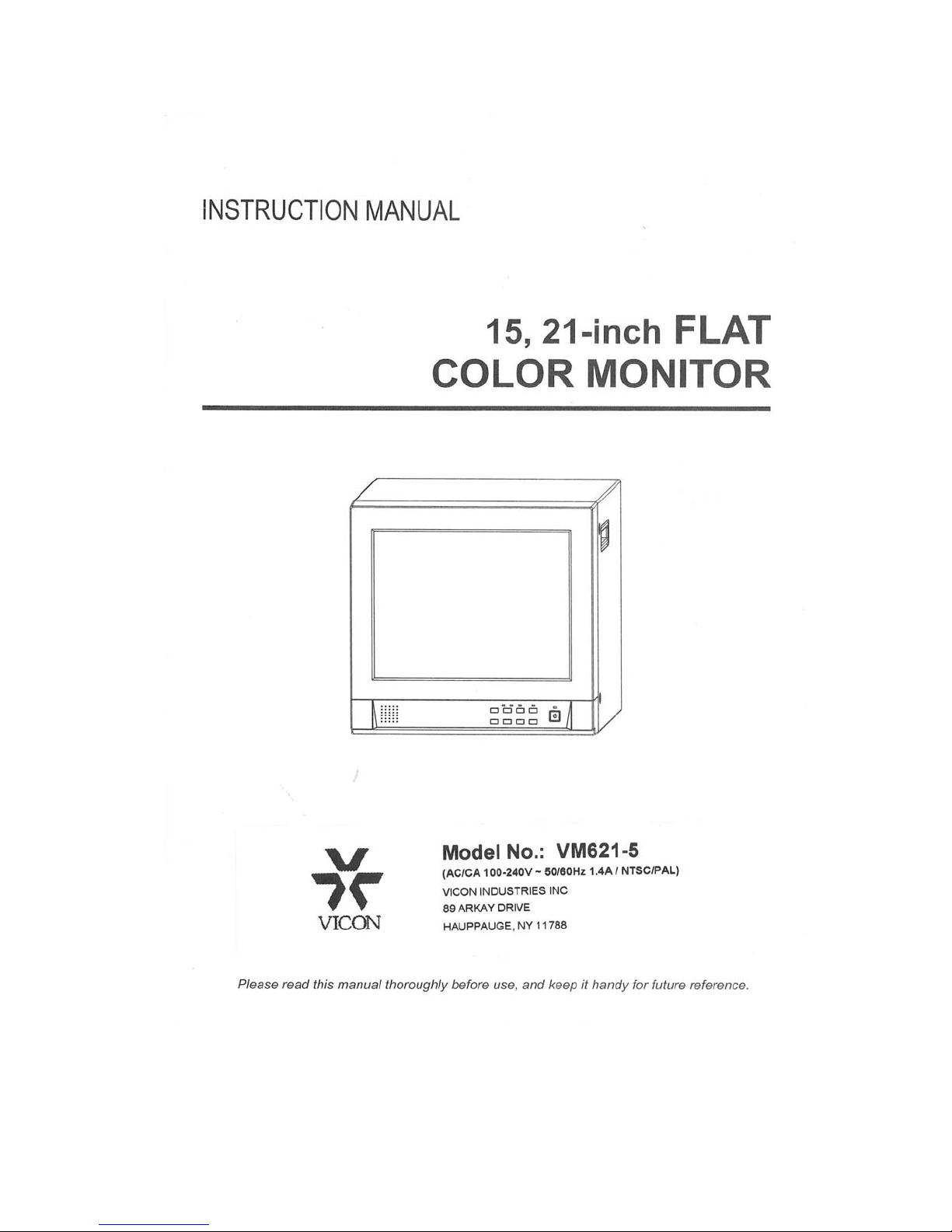

Vicon part number 8009-8146-00-00
WARNING:
Explanation of Graphical Symbols
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by the qualified
personnel before operating it any further.
Unplug the unit from the wall outlet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.
Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials(curtains, draperies)
that may block the ventilation holes.
Do not install the unit in an extremely hot or humid
place or in a place subject to excessive dust or
mechanical vibration.
The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzine as they might
damage the finish of the unit.
Retain the original carton and packing materials for
safe transport of this unit in the future.
Safety ----------------------------------------- Installation -----------------------------------
Cleaning --------------------------------------
Precautions
- 2 -
- 3 -
FCC COMPLIANCE STATEMENT
FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND
TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE
DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES,
AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED
AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY
CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE
REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
CAUTION : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
NORME NMB-003 DU CANADA.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CE COMPLIANCE STATEMENT
- 4 -
1.
2.
3.
4.
5.
6.
6A.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
IMPORTANT SAFEGUARDS
READ INSTRUCTIONS -- All the safety and operating
instructions should be read before the appliance is operated.
RETAIN INSTRUCTIONS -- The safety and operating
instructions should be retained for future reference.
CLEANING -- Unplug video monitor or equipment from the
wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
ATTACHMENTS -- Do not use attachments not
recommended by the video monitor or equipment
manufacturer as they may result in the risk of fire, electric
shock or injury to persons.
WATER AND MOISTURE -- Do not use video monitor or
equipment near water -- for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool, or the like.
ACCESSORIES -- Do not place video monitor or equipment
on an unstable cart, stand or table. The video monitor or
equipment may fall, causing serious injury to a child or adult,
and serious damage to the equipment. Wall or shelf
mounting should follow the manufacturer's instructions, and
should use a mounting kit approved by the manufacturer.
Video monitor or equipment and cart
combinations should be moved with
care. Quick stops, excessive force,
and uneven surfaces may cause the
equipment and cart combination to overturn.
VENTILATION -- Slots and openings in the cabinet and the
back or bottom are provided for ventilation, and to ensure
reliable operation of the video monitor or equipment and to
protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked
by placing the video monitor or equipment on a bed, sofa,
rug, or other similar surface. Video monitor or equipment
should never be placed near or over a radiator or heat
register. Video monitor or equipment receiver should not be
placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
POWER SOURCES -- Video monitor or equipment should
be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power
supplied to your home, consult your video monitor or
equipment dealer or local power company. For video monitor
or equipment designed to operate from battery power refer to
the operating instructions.
GROUNDING OR POLARIZATION -- This video monitor
may be equipped with a polarized alternating - current line
plug (a plug having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
Alternate Warnings - This video monitor is equipped with a
three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the safety
purpose of the grounding-type plug.
POWER CORDS -- Do not allow anything to rest on the
power cord. Do not locate video monitor or equipment where
the cord will be abused by persons walking on it.
HEED WARNINGS -- Follow all instructions marked on the
video monitor or equipment.
LIGHTNING -- For added protection for video monitor or
equipment during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the video product due to
lightning and power-line surges.
OVERLOADING --Do not overload wall outlets and
extension cords as this can result in a risk of fire or electric
shock.
OBJECT AND LIQUID ENTRY -- Never push objects of any
kind into video monitor or equipment through openings as
they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock. Never spill liquid of
any kind on the product.
SERVICING -- Do not attempt to service video monitor or
equipment yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
DAMAGE REQUIRING SERVICE -- Unplug video monitor or
equipment from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
A. When the power-supply cord or the plug has been
damaged.
B. If liquid has spilled, or objects have fallen into the video
product.
C. If the video product has been exposed to rain or water.
D. If the video product does not operate normally by
following the operating instructions, adjust only those
controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician
to restore the video product to its normal operation.
E. If the video product has been dropped, or the cabinet
damaged.
F. When the video product exhibits a distinct change in
performance -- this indicates a need for service.
REPLACEMENT PARTS -- When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or that have
the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other
hazards.
SAFETY CHECK -- Upon completion of any service or
repairs to this video product, ask the service technician to
perform safety checks to determine that the video product is
in proper operating condition.
FIELD INSTALLATION -- This installation should be made by
a qualified service person and should conform to all local
codes.
MONITOR SETTINGS / CONTROLS
- 5 -
1. GENERAL
This section defines the procedures for making adjustments to the monitor.
This section is provided to assist the installer and operator in maintaining an
optimum picture on the monitor. In order to prevent overheating, ensure that
the ventilation openings in the monitor are not covered.
2. MONITOR SETTINGS / CONTROLS
The following controls and indicators are located on the monitor.
See Figure1. for control locations.
A
B C D E
F
G
H

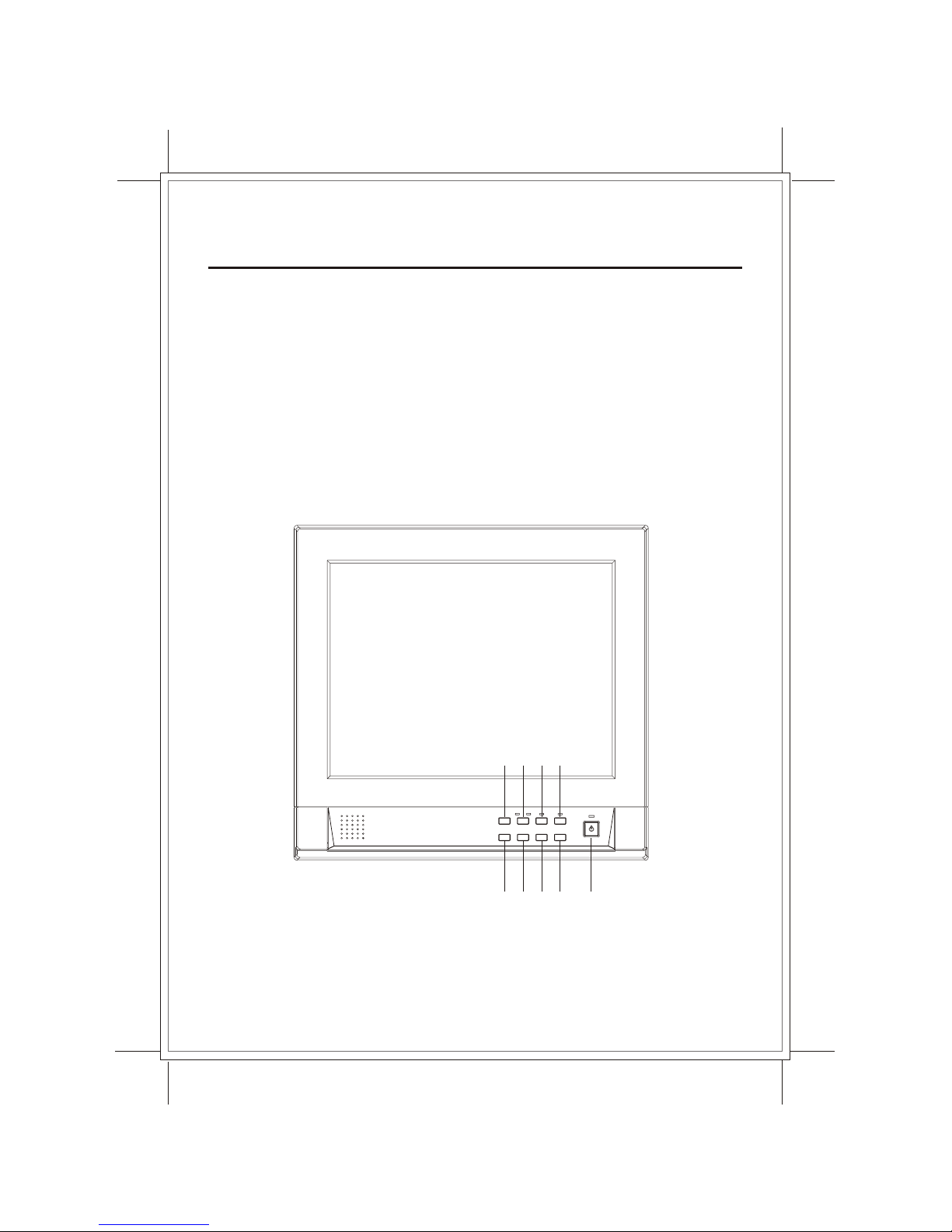

FIGURE 1. MONITOR CONTROL LOCATIONS
I
- 6 -
A. OSD MENU IN/OUT CONTROL
This control is used to enter and exit the OSD CONTROL MENU.
The user controlled OSD DATA is saved when the user exits the OSD MENU
or there is no user control for 40 seconds.
OSD MENU OPTIONS :
Volume : This control is used to control the sound volume for the
monitor.
Contrast : This control adjusts the contrast of the screen image.
Brightness : This control is used to adjust the brightness of the screen
image.
Sharpness : This control adjusts the sharpness of the screen image.
Color : This control is used to adjust the overall color intensity of the
screen image.
Tint : This control is used to adjust the color. For the best result, use
this switch to change screen color until skin color is natural.
H-Position : This control adjusts the horizontal position of the image on
the monitor screen.
V-Position : This control adjusts the vertical position of the image on the
monitor screen.
English : This control allows you to choose the desired language for all
displayed words on the monitor. Language selections are :
English, French, German, Italian, Spanish and POLSKI
NEXT PAGE
AFC is used to adjust for the skew distortion of a video from s recorder.
(or other equipment)
SYSTEM : AUTO / PAL B / PAL M / PAL N / NTSC C / NTSC 44 / NTSC M
FILTER SEL : COMB 1H / COMB 3H
PEAKING (2.5 MHz / 3.2 MHz)
PRESET
B. CURSOR DOWN CONTROL
This control is used to move the OSD CONTROL CURSOR down the menu
to select the desired monitor adjustment. See Figure 2.
C. CURSOR UP CONTROL
This control is used to move up the OSD CONTROL CURSOR.
D. ADJUSTMENT DOWN CONTROL
This control is used to decrease the selected MENU adjustment.
E. ADJUSTMENT UP CONTROL
This control is used to increase the selected MENU adjustment.
F. VIDEO INPUT SELECTION CONTROL
This control selects the video and audio input signals.
To change the input signal, press this button.
G. VIDEO Y/C INPUT SELECTION CONTROL
This control selects the VIDEO Y/C
To change the Input Y/C signal. Press this button
H. UNDERSCAN CONTROL
This control selects the underscan display size. To alternate the video
display size between overscan and underscan, press this button (the LED
light will be lit). The underscan option reduces the picture size so that the
entire image is displayed on the screen.
I. POWER
ON/OFF switch. Pressing this button turns the monitor on and the LED of
power indicator is lit.
Note : When in PAL input mode, there is no TINT menu.
VOLUME
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
H POSITION
V POSITION
ENGLISH
NEXT PAGE
OSD
Control
Cursor
FIGURE 2. ON-SCREEN MENU DISPLAY
- 7 -
: 00
: 27
: 20
: 24
: 24
: --: 27
: 33
3. MONITOR CONNECTIONS
The following connections are located on the monitor (see Figure3. for
connection locations) :
VIDEO A
POWER
INININ OUTOUT
VIDEO B
VIDEO LINE AUDIO LINE
OUTIN
OUT
A
OUTIN
B

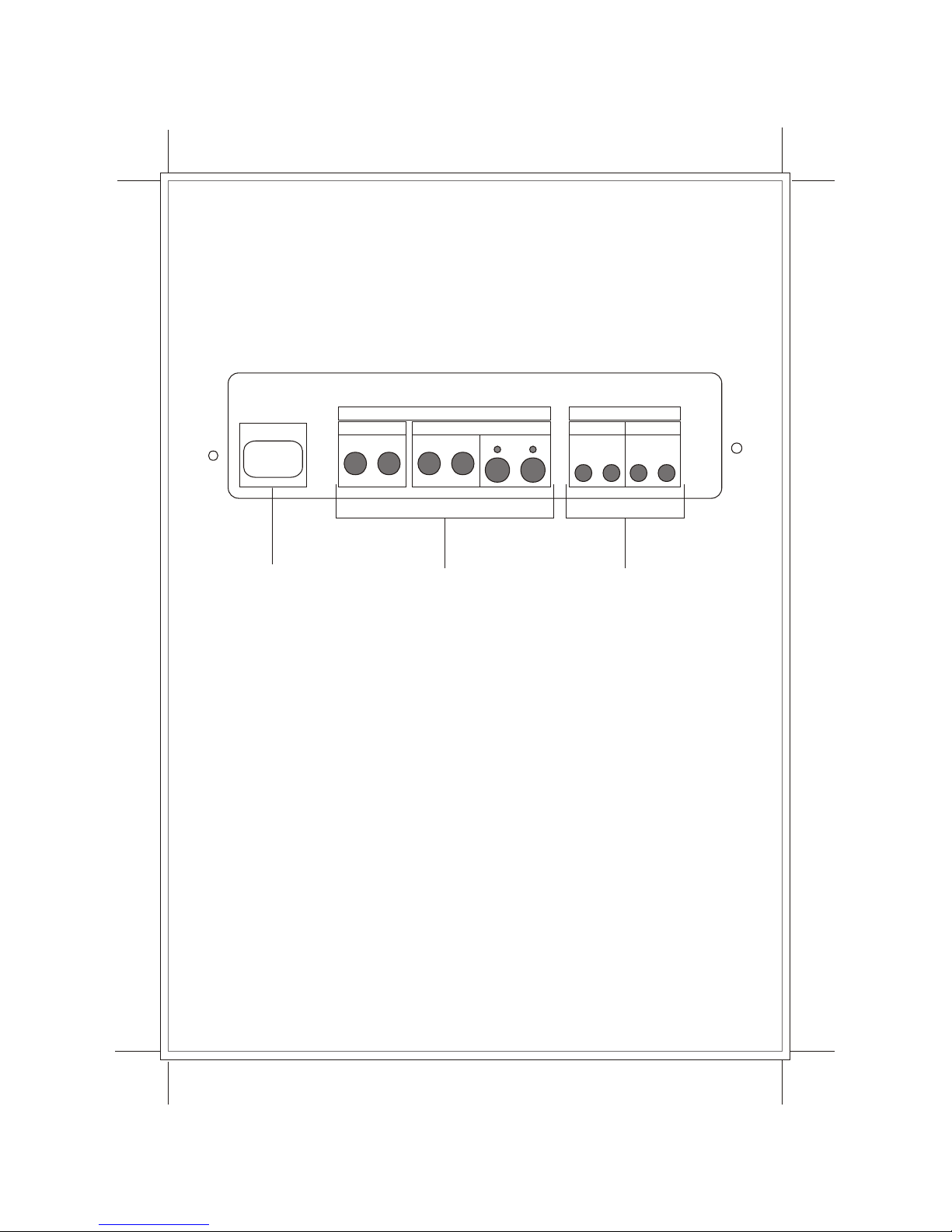

FIGURE 3. MONITOR CONNECTION LOCATIONS
A B
C
Y/C VIDEO
A. AC IN
The supplied power cord should be plugged into this port.
120 Volt alternating current (ac) 60Hz grounding outlet or 230 Volt ac 50Hz
can be used. The monitor is auto-switching and will automatically adjust to
either power input.
B. VIDEO LINE - Input/output terminals for the video signal
There are four BNC connectors for the composite video A/B inputs and
outputs. Video A is a composite input/output terminal. Video B has two
connection options including composite and an option for S-VHS input/output
terminals. All video connectors are auto-terminating.
There are two MINI DIN type connectors for the S-VHS input and output.
The monitor will then toggle between Video A and Video B.
- 8 -

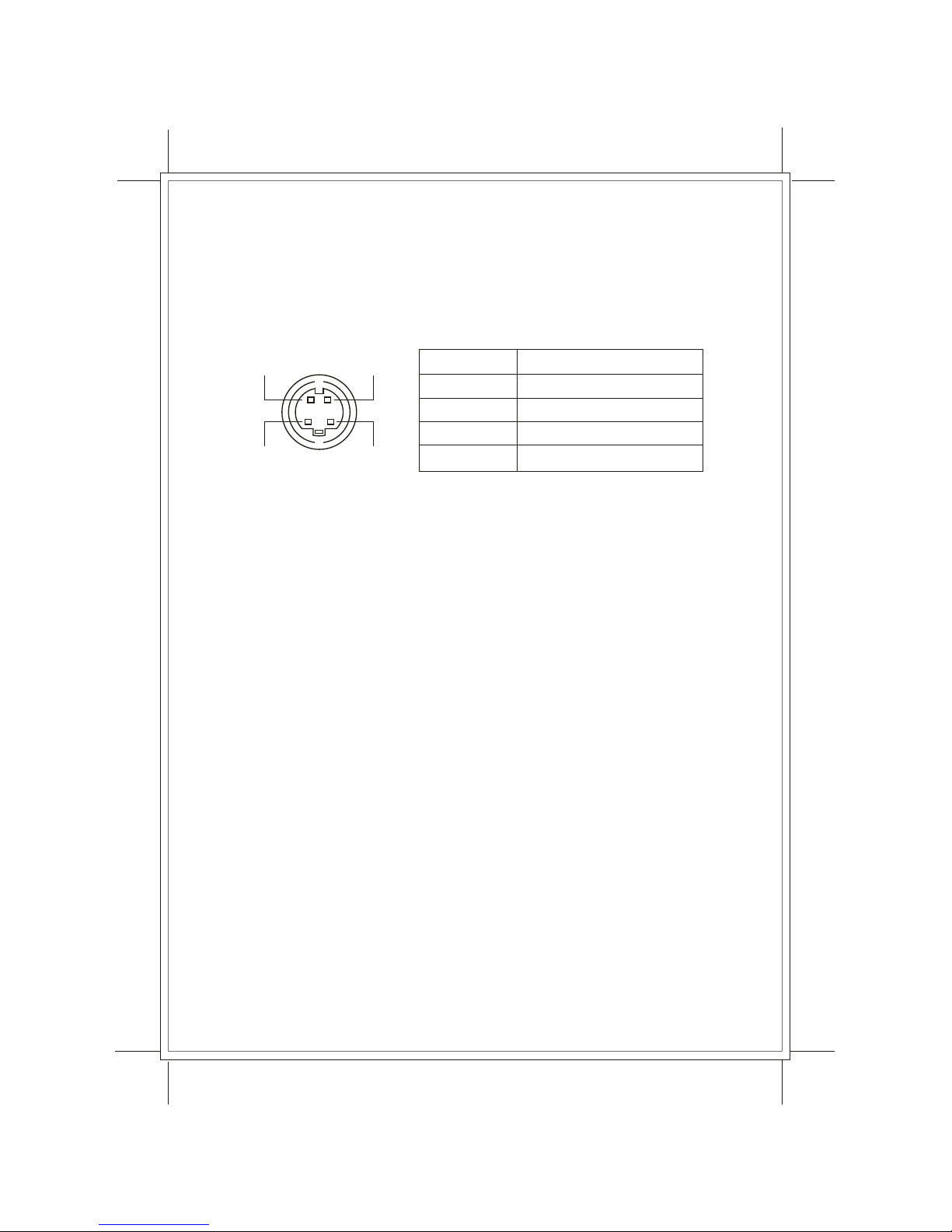

S-VHS PIN DESCRIPTION (Separated Y/C signal IN/OUT)
PIN No.
1
2
3
4
DESCRIPTION
GND
GND
Y Signal IN or OUT
C Signal IN or OUT
4
2 1
3
Note : The impedance is automatically set to 75 ohm by the input of a signal
on the input connector while operating in a single connection mode.
However, if a cable is connected to the output connector, the
connection is placed into the open status by the multiple connection
and high impedance automatically selected.
Caution : Do not leave an unused cable connected to the monitor.
If a single cable is used then it must be connected to the input
connector for the 75 ohm auto-termination selector to function
properly.
C. AUDIO LINE
Input/output terminals for the audio signal.
A and B must be selected with Video A and Video B respectively.
Note : The monitor will automatically determine NTSC and PAL video inputs.
- 9 -

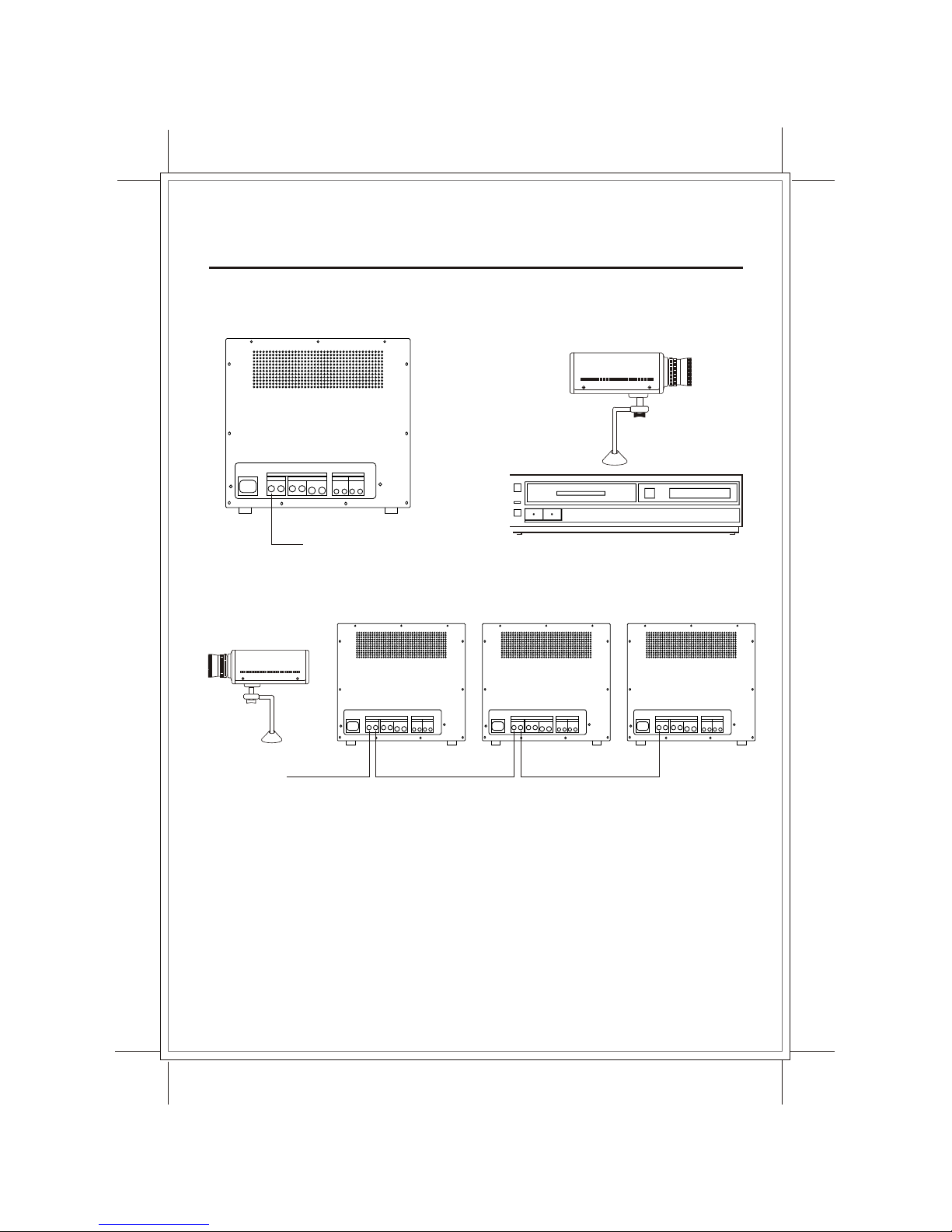

Up to 3 monitors can be connected using the loop-through feature of this unit.
When this monitor is connected to additional monitors, the same picture can be
obtained on all the connected monitors.
VCR
SINGLE CONNECTION
Video camera
from Video output
MULTIPLE CONNECTION
Video camera
from Video output
CONNECTION
- 10 -
PICTURE TUBE
RESOLUTION
SCAN SYSTEM
SCANNING FREQUENCY
VIDEO IN/OUT
AUDIO IN/OUT
CONNECTOR
ACTIVE DISPLAY AREA
LINEARITY
15" Flat Tube
PHOSPHOR : P22
DOT PITCH : In-line, 0.6mm Stripe
o
DEFLECTION : 90 angle
HORIZONTAL : 500 TV lines (average)
NTSC / PAL automatic selectable
HORIZONTAL : 15.75KHz (NTSC)
15.625KHz (PAL)
VERTICAL : 60 Hz (NTSC) / 50 Hz (PAL)
VIDEO A/B :
NTSC/PAL composite video : 1.0 Vp-p
75 / HI-Z auto terminating
Y/C :
S-VHS Y signal = 1 V , C signal = 0.285 V
75 / HI-Z auto terminating
300 mVrms / 1.5W
VIDEO A/B IN/OUT :
BNC Connector x 4, AUTO TERMINATION
Y/C IN/OUT :
MINI DIN 4-PIN Connector x 2, AUTO TERMINATION
AUDIO IN/OUT :
RCA phone connector x 4
7% Overscan 3% Underscan switchable
HORIZONTAL : 10% max
VERTICAL : 10% max
- 11 -
POWER REQUIREMENT
AMBIENT TEMPERATURE
DIMENSIONS(W x H x D)
WEIGHT
AC 100 - 240V, 50Hz/60Hz, 1.4A (UNIVERSAL POWER)
oo o
0 C ~ +40 C (32~104 F)
362.2 x 352 x 382 mm
15Kg
GENERAL SPECIFICATION : Color 15inch Monitor
PICTURE TUBE
RESOLUTION
SCAN SYSTEM
SCANNING FREQUENCY
VIDEO IN/OUT
AUDIO IN/OUT
CONNECTOR
ACTIVE DISPLAY AREA
LINEARITY
21" Flat Tube
PHOSPHOR : P22
DOT PITCH : In-line, 0.74mm Stripe
o
DEFLECTION : 90 angle
HORIZONTAL : 500TV lines (average)
NTSC / PAL automatic selectable
HORIZONTAL : 15.75KHz (NTSC)
15.625KHz (PAL)
VERTICAL : 60 Hz (NTSC) / 50 Hz (PAL)
VIDEO A/B :
NTSC/PAL composite video : 1.0 Vp-p
75 / HI-Z auto terminating
Y/C :
S-VHS Y signal = 1 V , C signal = 0.285 V
75 / HI-Z auto terminating
300 mVrms / 1.5W
VIDEO A/B IN/OUT :
BNC Connector x 4, AUTO TERMINATION
Y/C IN/OUT :
MINI DIN 4-PIN Connector x 2, AUTO TERMINATION
AUDIO IN/OUT :
RCA phone connector x 4
7% Overscan 3% Underscan switchable
HORIZONTAL : 10% max
VERTICAL : 10% max
- 12 -
POWER REQUIREMENT
AMBIENT TEMPERATURE
DIMENSIONS (W x H x D)
WEIGHT
AC 100 - 240V, 50Hz/60Hz, 1.4A (UNIVERSAL POWER)
oo o
0 C ~ +40 C (32 ~ 104 F)
490 x 450 x 478.2 mm
27.5 Kg
GENERAL SPECIFICATION : Color 21inch Monitor
15, 21-inch FLAT
COLOR MONITOR
50301624B
Loading...
