Quick User Guide Network Camera
Warning before installation
-Power off the Network camera if it is found to be smoking or smells unusual.
-Keep the Network camera away from water. If the Network camera gets wet, power
off immediately.
-Do not place the Network camera near heat sources, such as a television or oven.
-Refer to your product datasheet/specification for the operating temperature.
-Keep the Network camera away from direct sunlight.
-Do not place the Network camera in high humidity environments.
-Do not place the Network camera on unsteady surfaces.
-Do not touch the Network camera when there is lightning present.
-Do not disassemble the Network camera.
-Do not drop the Network camera.
-Do not insert any object, such as a screwdriver, in to the Network camera.
For other safety and regulation information, refer to “User’s manual.”
1. Check Contents
No.
Item
Description
1
Network Camera
V992D-N4
2
Software CD
User’s manual, Utility software
3
Quick User Guide
This document
4
Accessories
Silica gel
Template for installation
Video monitor cable
Tapping Screw M4x30: 3 pcs
Anchor: 3 pcs
Screw M4x8: 4 pcs
Surface Mount Bracket
L-Wrench (T20)
Focus Adjust Ring
Anti-reflection collar (rubber)

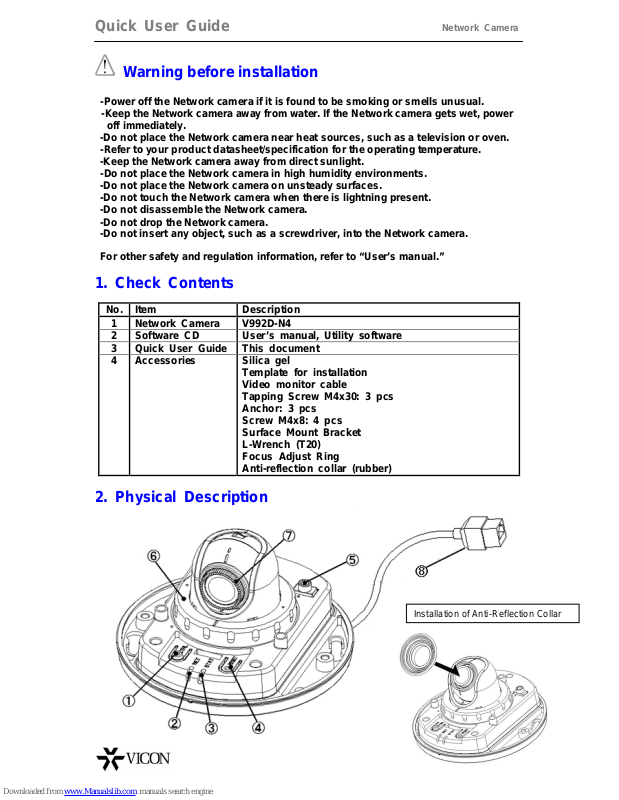

2. Physical Description
Installation of Anti-Reflection Collar
Quick User Guide Network Camera
①Control Button
-Change Video output format NTSC/PAL (toggle)
-Factory Default (hold steadily for more than 10 seconds)
②Network LED
③Status LED
④Reset Button
⑤Video output for service monitor
⑥Lock nut
⑦Focus adjustment
⑧Network (RJ-45 PoE required)
3. Making Connection
Connect Ethernet cable to make a connection to the PoE hub.
The camera supports PoE only.
4. Assign IP Address
The default setting of the camera is set to “DHCP” and “UPnP” function is
set to ON. If you have a DHCP server on your network and UPnP function is
enabled on your PC you can find the network camera in “My network”.
If a DHCP server is not available on your network, assign IP address by
the following process.
Execute Multi Upgrade Tool (from the Installation CD). It will search cameras on
the network automatically.
1) After the list of detected devices appears, select the camera you are trying to
configure.
Quick User Guide Network Camera
2) Select the Network type as Static or DHCP. If Static is selected, enter all of the
network information for your camera.
3) Select the “Change IP Address” button. The message “Do you want to change IP
address?” will display; select “Yes” from the pop-up window.
4) Check the Type as Static or DHCP from the list.
Then double click the camera in the list; Internet Explorer® will open
automatically.
Quick User Guide Network Camera

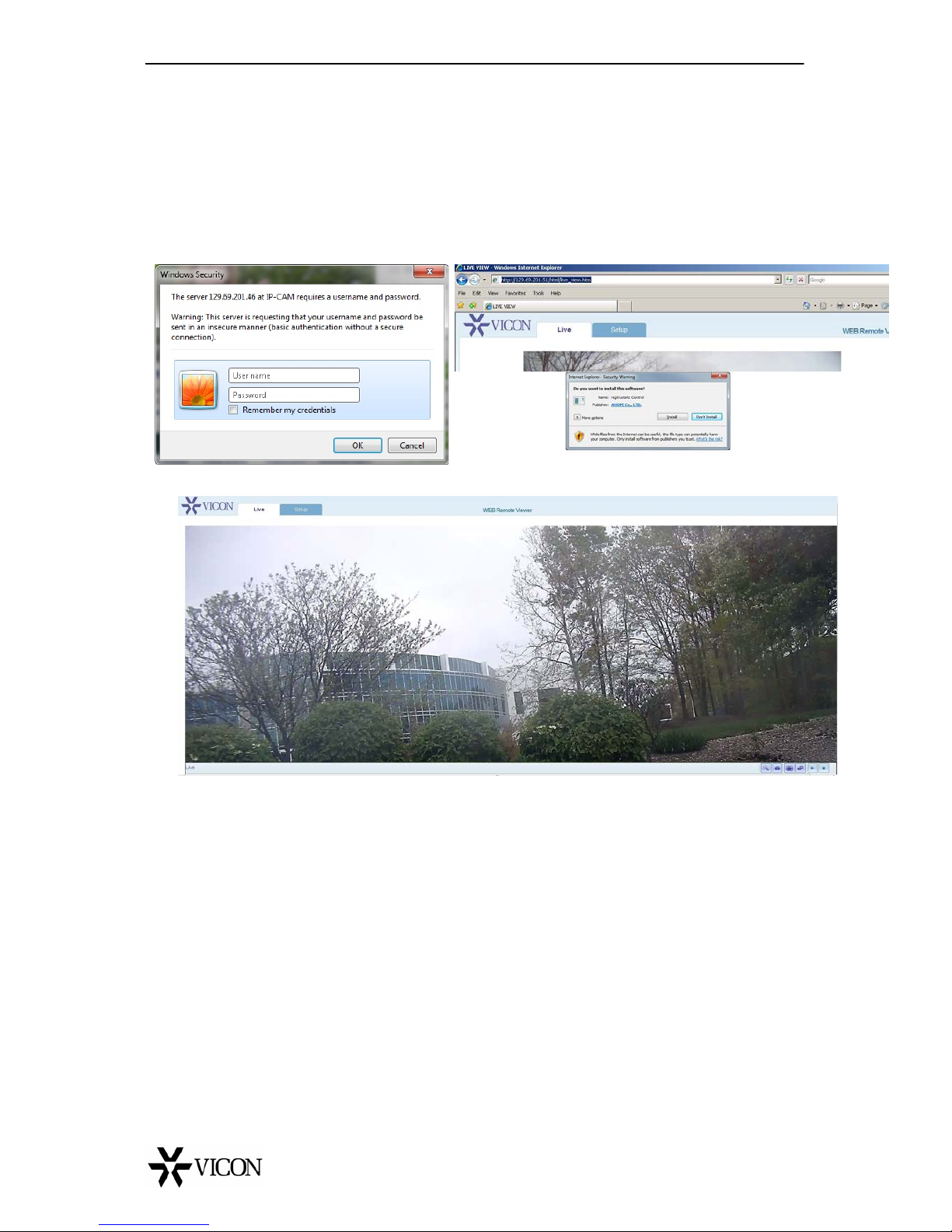

5. Web Browser Connection
Note: The Network camera supports Internet Explorer 7 or above.
Please check version of your browser and update it if necessary.
When you first access the camera you need to download and install an
Active X control from the camera to display a Live View image.
Default User and Password are set to “ADMIN” and “1234”. Please type in
the user ID and password to connect the network camera.
Note: By Default the cameras come with “Installation Mode” set to “ON” to
enable Analog output. Additionally, all installation setup must be done prior
to the camera being used with a VMS, including ViconNet; the VMS forces
the Installation Mode to OFF. You must turn Installation Mode to Off to use
720p or 1080p streaming.
For further information on setup, refer to User’s manual on the software CD.
