www.vicon-security.com
XX286-20-00

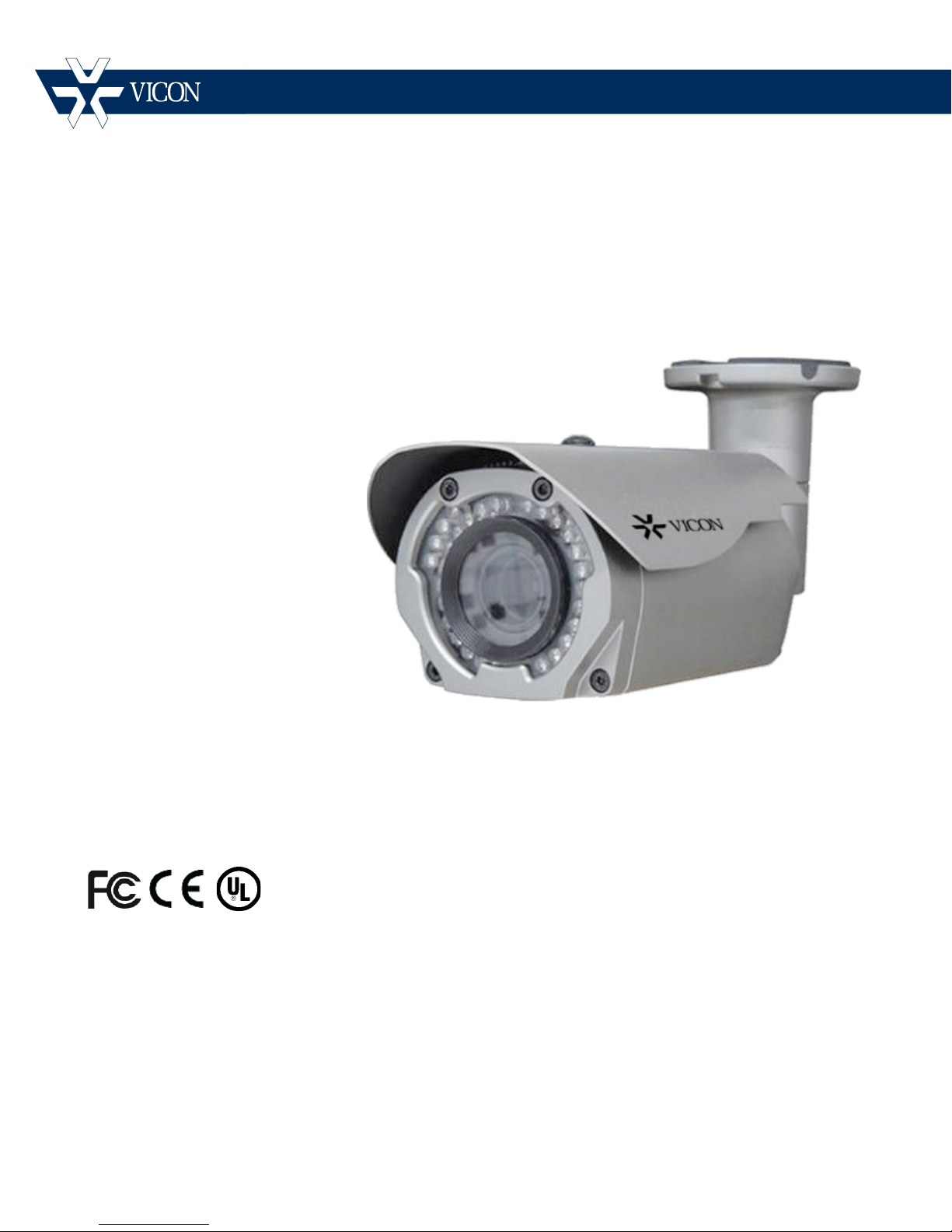

V920B-A Series
Bullet Cameras
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Document Number: 8009-8286-20-00
Product specications subject to change without notice.
Issued: 1216
Copyright © 2016 Vicon Industries Inc. All rights reserved.
Quick Guide
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER
OPENINGS ON THE EQUIPMENT.
CAUTION

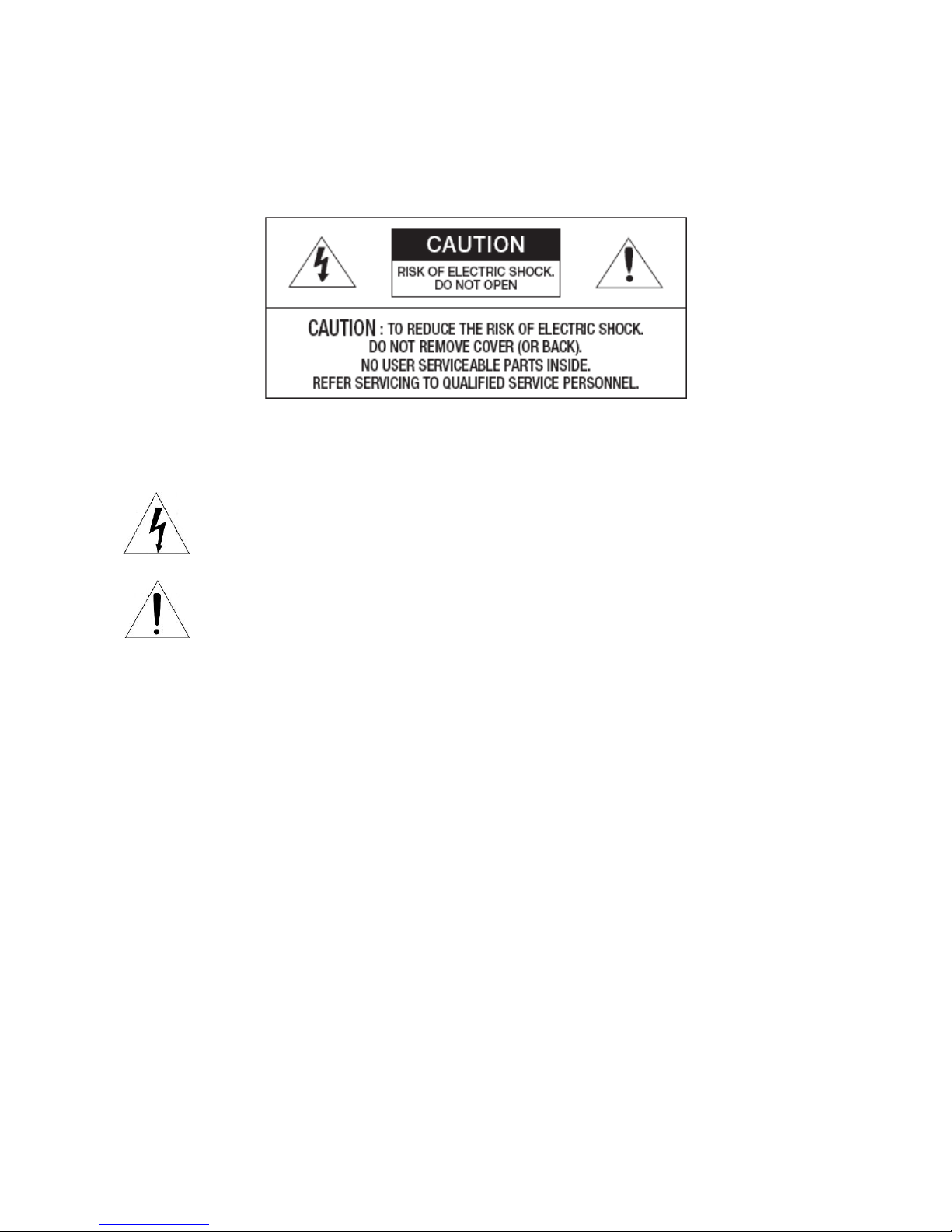

EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product‟s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
2
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user‟s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer‟s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY
SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.
4
1 Introduction
The network camera supports the network service for a sensor image with progressive scan, which can be
monitored on a real-time screen regardless of distances and locations.
By using its dedicated program, many users are able to have an access to the network camera at once or a
single user can monitor various network cameras at the same time.
It also enables users to play, store and retrieve a monitoring image by using a PC.
All the settings and real-time monitoring screens are also provided through an access to the web.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time, full frame rate
Motion JPEG and H.264 video streams.
1.1 Components
This system comes with the following components;
* Network Camera……………………………………………………. 1
* Sun shield ..……………….……………………………………….... 1
* Installation Guide/CD .………………………………………...... 1
* Template Sheet …………………………………………….…...... 1
* Accessory Kit………………………………………………………..…1
- Mount Screw(PH4x30mm) ………………………..………….. 3
- Plastic Anchor(M4 Type, L=30m) …………………………… 3
- L-Wrench(3mm type) ………………………………………….…1
- Sun shield Screw(M5x8mm/Sus) …………………….………1
- Washer Plate(Urethan/Black) ……………………….……….. 1
Note 1. Check your package to make sure that you received the complete system, including all
components listed above.
Note 2. Adapter for DC12V is not supplied.
5
2 Installation
For the operation of the Network Camera, it is necessary to connect a network cable for data transmission,
power connection from supplied power adapter. Depending on operation methods, it is possible to connect
an alarm cable additionally. For its fixation on different locations, please consult with an installer.

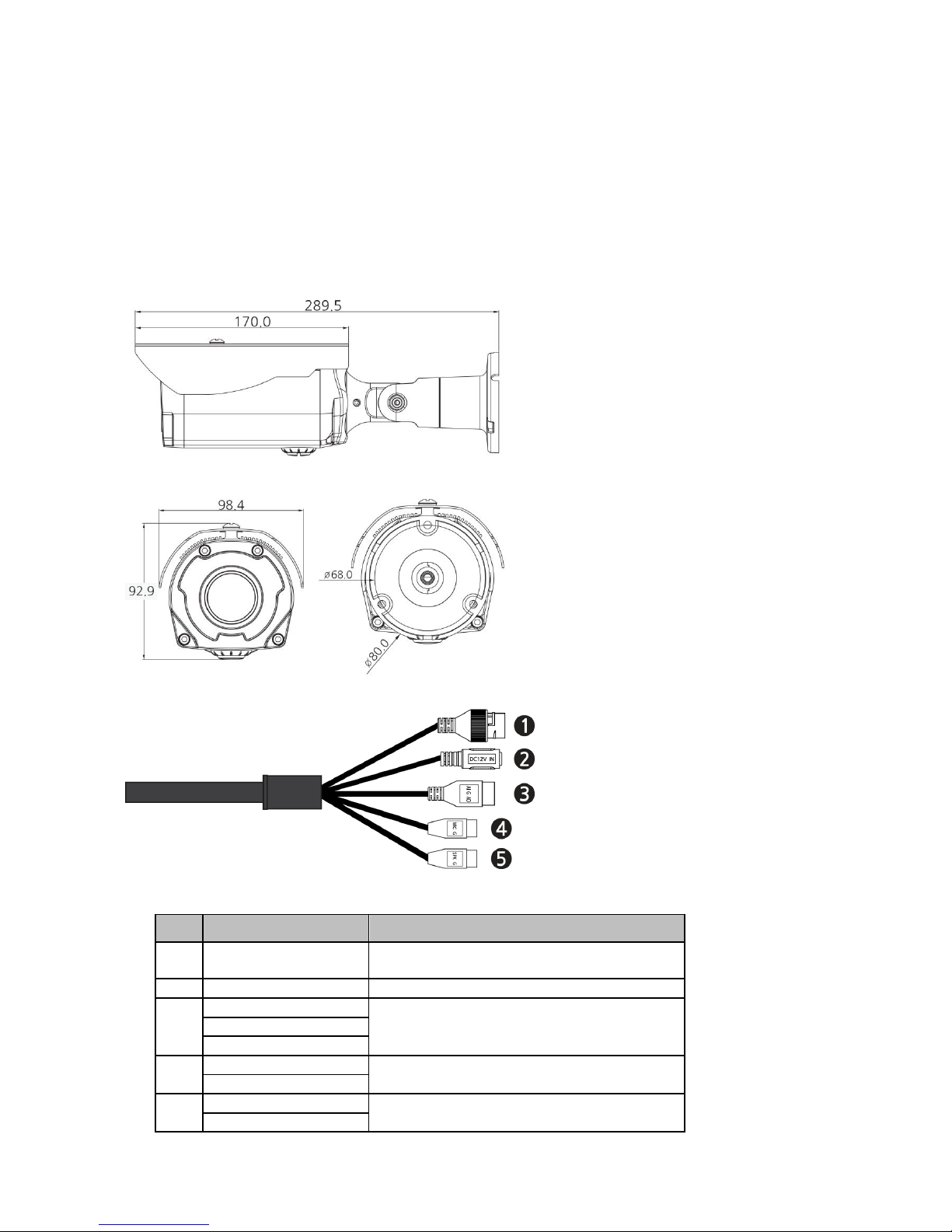

2.1 Overview
Dimension
Dimension Unit : mm
Extension Cable
No.
Item
Description
1
RJ-45
Ethernet, RJ-45 port compatible with
10/100Mbps PoE Modular Jack
2
DC Jack
Main Power, DC12V Input
3
AI (alarm In)
Alarm input and output, 3pin terminal
G (GND)
AO (Alarm Out)
4
MIC (Audio In)
Audio line input, 2pin terminal
G (GND)
5
SPK (Audio Out)
Audio line output, 2pin terminal
G (GND)
6

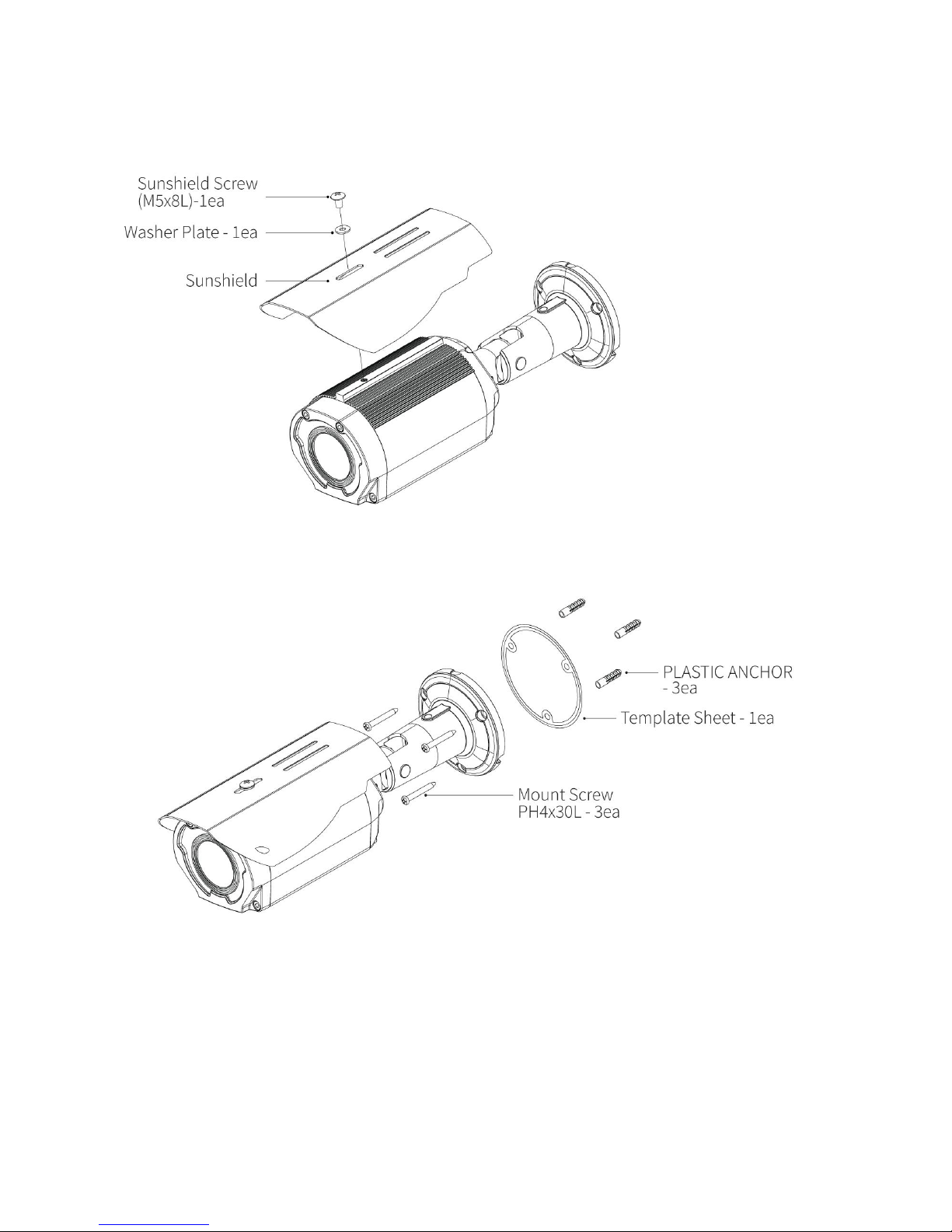

Installing Sunshield
To mount the Sunshieldbullet camera, fix the base of the camera with the three screws provided in the
accessory kit.
Installing Camera
To mount the bullet camera, fix the base of the camera with the three screws provided in the accessory kit.
7
2.2 Connections

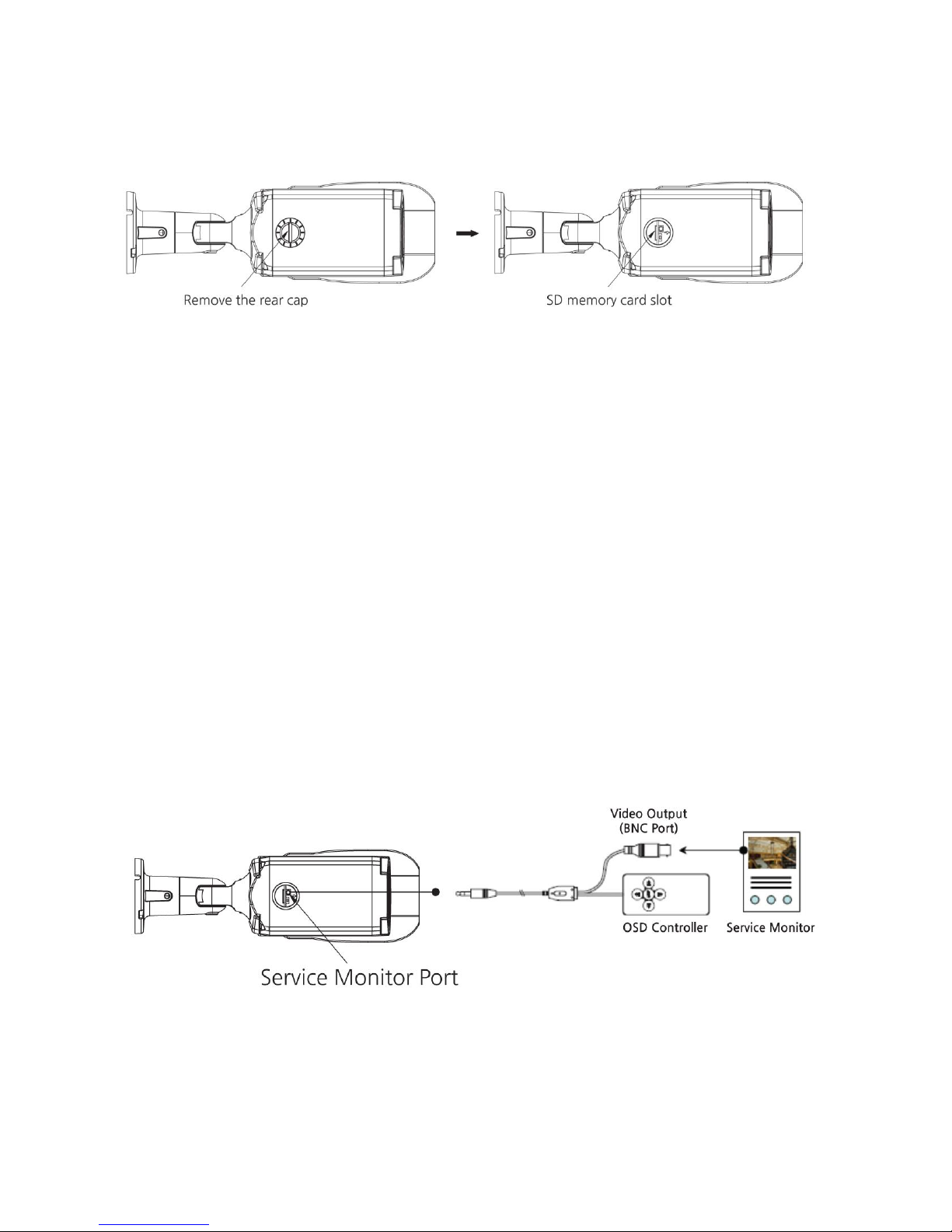

Micro SD memory slot
Remove the rear cap of the camera to insert the SD memory card.
Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is
used for directly connection to PC, while a direct cable is used for connection to a hub.
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
Connecting Alarms
AI(Alarm In): You can use external devices to signal the network camera to react on events. Mechanical or
electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.
G(Ground): Connect the ground side of the alarm input and/or alarm output to the G (Ground)connector.
AO(Alarm Out): The network camera can activate external devices such as buzzers or lights.
Connect the device to the AO (Alarm Out) and G (Ground) connectors.
Connecting the Power
Connect the power of 12 VDC for the network camera. Connect the positive(+) pole to the „+‟ position and
the negative (-) pole to the „-‟ position for the DC power.
– Be careful not to reverse the polarity when connecting the power cable.
– A router featuring PoE (Power over Ethernet) can also be used to supply power to the camera.
– For the power specifications, refer to the Appendix, Product Specification.
– If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.
Connecting Audio
Connect Speaker to Audio line output and external Mic to Audio input line.
Connecting Service Monitor Port(V921B, V922B only)
Service monitor output port is located on the board of the camera.
8

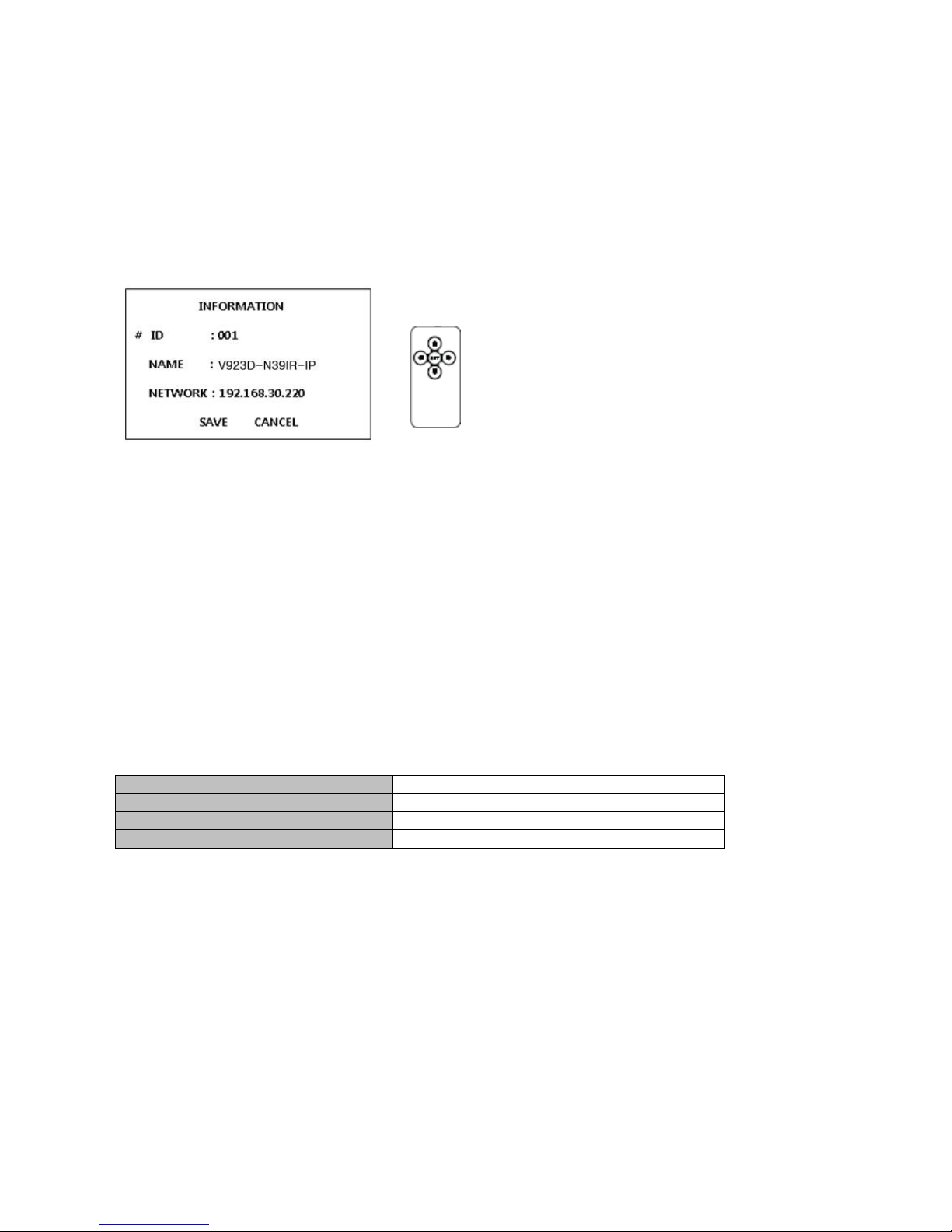

▶ ID & IP assignment
To make changes in the OSD menu, the optional OSD controller (V920D-OSD) can be used to set Camera
Title and IP Address.
Connect the OSD Controller to the Service Monitor port of the network camera.
Connect Service Monitor and the Video Output port of the OSD Controller.
Press the SET button on the controller to access the Main Menu.
Change camera ID and IP address as needed. Additionally, the Name (or title) of the camera can be
changed. Use the ↑↓←→ buttons on the controller to change the parameters.
Select SAVE or CANCEL to exit the Main Menu.
The Video Output can also be used for easy zoom and focus control when adjusting the lens. Video Output is
restricted to 704x480 (576) resolution.
▶ Zoom & Focus Control (motorized lens versions only)
The camera enters Zoom and Focus control mode when the OSD Controller is connected to the Service
Monitor port.
- Zoom Control: ↑ (Zoom In), ↓ (Zoom Out)
- Focus Control: ← (Focus Near), → (Focus Far)
- Smart Focus: Press and hold the SET button for 2 or more seconds.
The camera readjusts focus automatically.
Note: The optional OSD Controller can be purchased separately.
Heater
The heater comes preinstalled in the camera dome.
Power Supply
PoE
Power Consumption
3 Watt
Heater On
at 59°F (15°C)
Heater Off
at 77°F (25°C)
9
2.3 Network Connection and IP assignment
The network camera is designed for use on an Ethernet network and requires an IP address for access. Most
networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the
factory default, your camera is set to obtain the IP address automatically via DHCP server. If your network
does not have a DHCP server the network camera will use 192.168.1.100 as the default IP address.
If DHCP is enabled and the product cannot be accessed, run the “Smart Manager” utility on the CD to search
and allocate an IP address to your products, or reset the product to the factory default settings and then
perform the installation again.

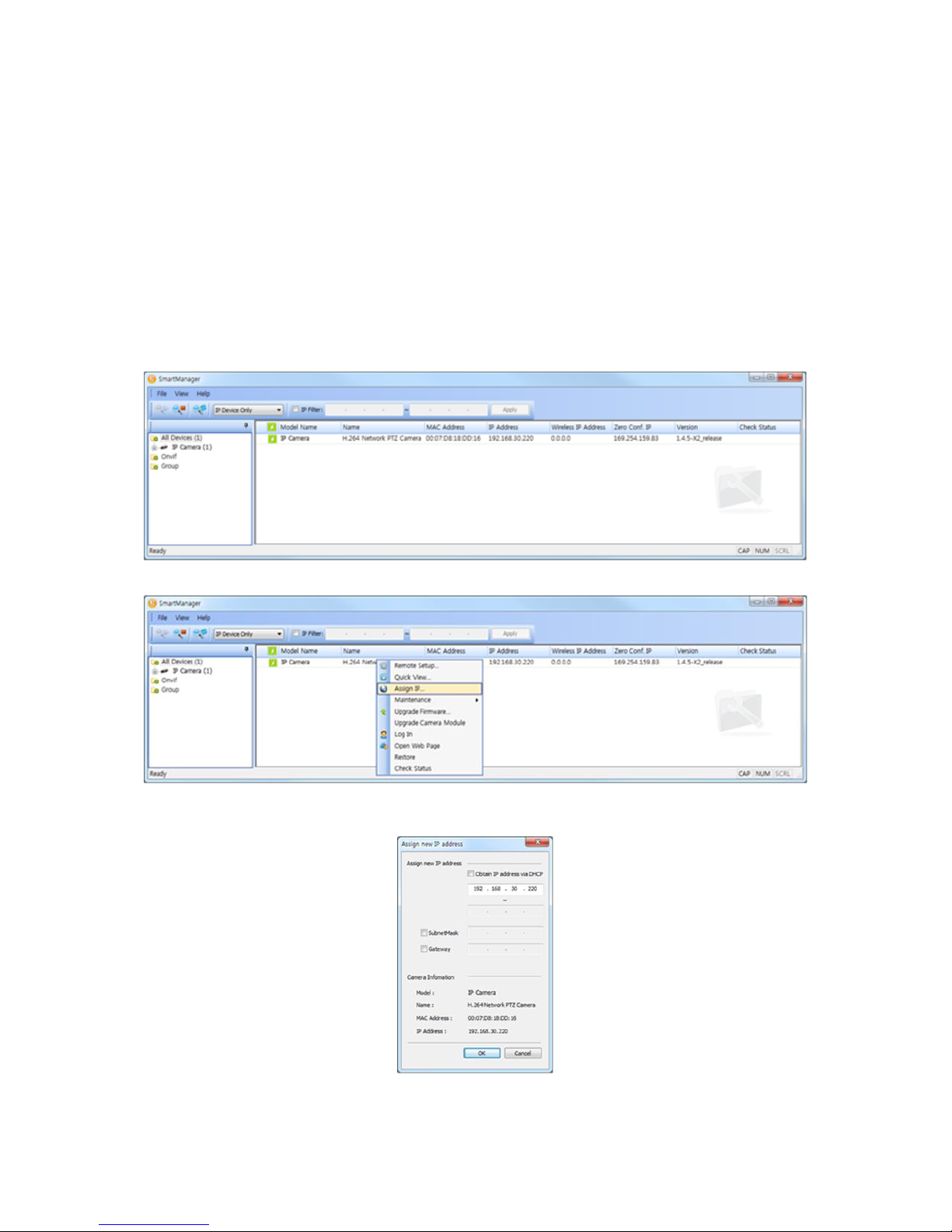

1. Connect the network camera to the network and power up.
2. Start SmartManager utility (Start>All Programs>SmartManager>SmartManager); the main window
displays. After a short while any network devices connected to the network will be displayed in the
list.
3. Select the camera on the list and click right button of the mouse. The pop-up menu below displays.
4. Select Assign IP. The Assign IP window displays. Enter the required IP address.
Note: For more information, refer to the SmartManger User‟s Manual.
10
3 Operation
The network camera can be used with Windows® operating system and browsers. The recommended
browsers are Internet Explorer® , Safari® , Firefox® , Opera® and Google® Chrome® with Windows.
Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls.
Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but the
functionality is the same or similar.

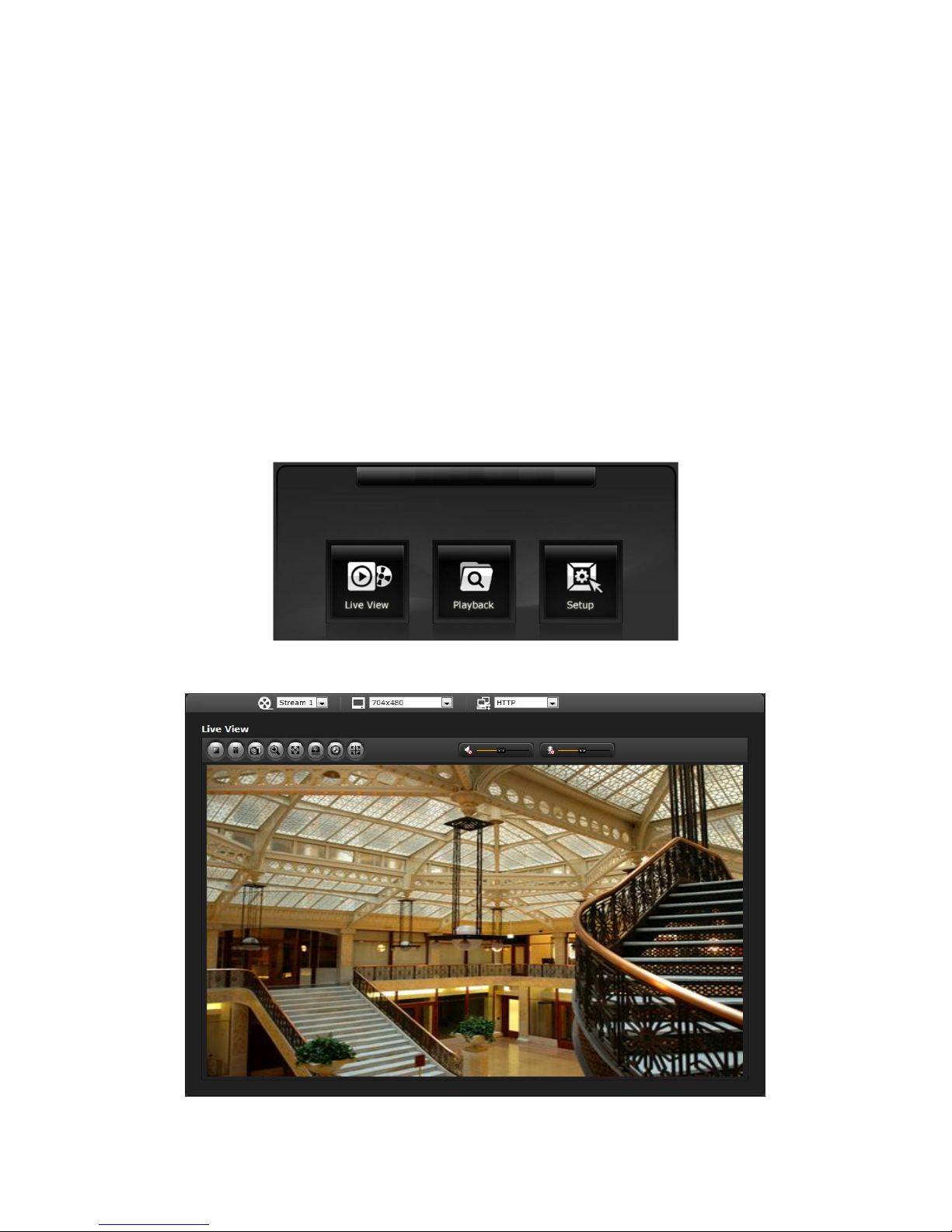

3.1 Access from a Browser
1. Start a browser (i.e., Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address field of the
browser.
3. A starting page displays. Click Live View, Playback or Setup to select corresponding web page.
5. Click Live View for the network camera‟s Live View page to appear in the browser.
11
3.2 Access from the Internet
Once connected, the network camera is accessible on your local network (LAN). To access the network
camera from the Internet you must configure your broadband router to allow incoming data traffic to the
network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure
the router to allow access to the network camera. This is enabled from Setup > System > Network > NAT.
For more information, refer to section “3.5.6 System>Network>NAT” of this manual.

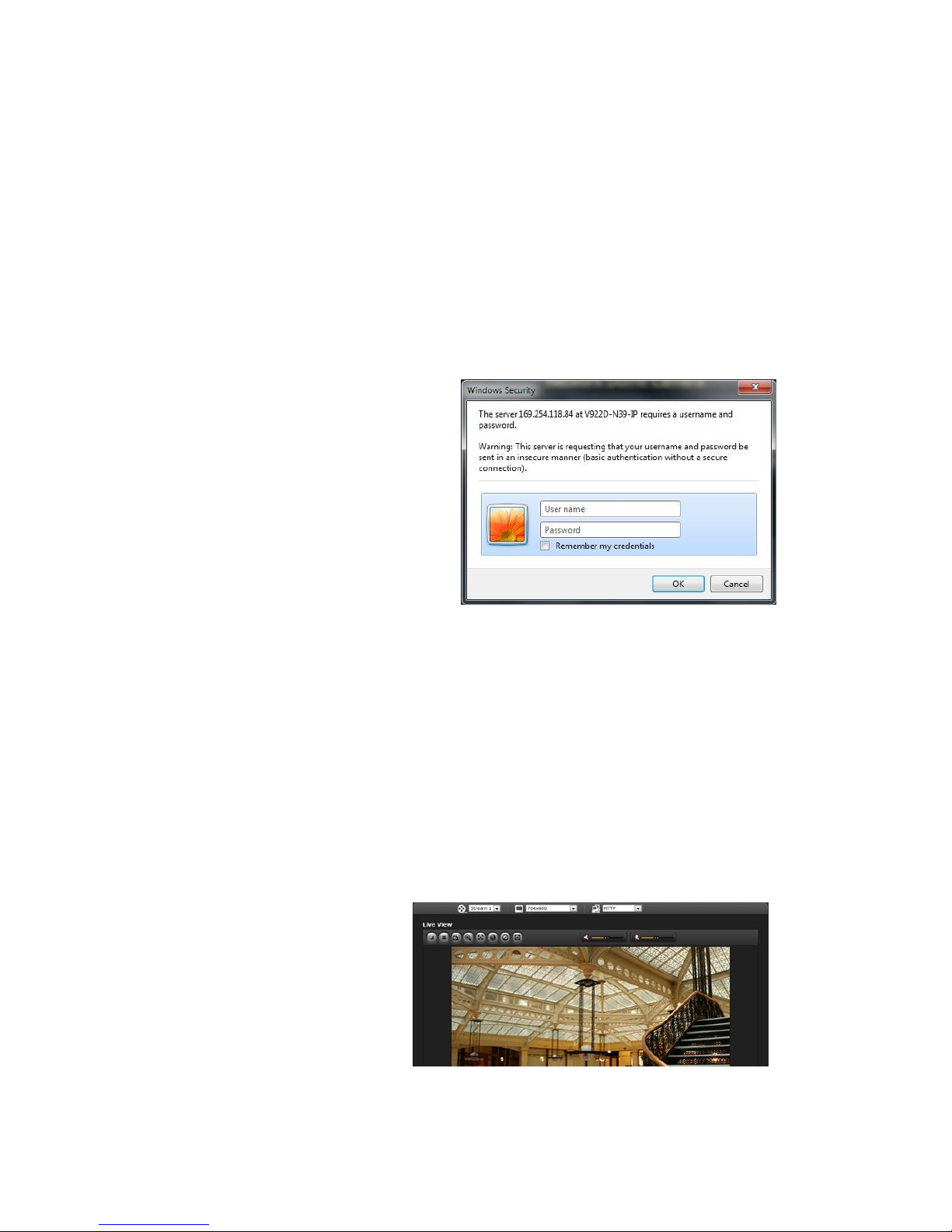

3.3 Setting the Admin Password Over a Secure Connection
To gain access to the camera, the password for
the default administrator user must be set. This
is done in the “Admin Password” dialog, which
is displayed when the network camera is
accessed for setup the first time. Enter your
admin name and password, set by the
administrator.
Note: The default administrator username is
“ADMIN” and password is “1234”. If the
password is lost, the network camera must be
reset to the factory default settings. See section
“3.8 Resetting to the Factory Default Settings”
for more details.
To prevent network eavesdropping when setting the admin password, it can be done via an encrypted
HTTPS connection, which requires an HTTPS certificate (see note below).
To set the password via a standard HTTP connection, enter it directly in the first dialog shown below. To set
the password via an encrypted HTTPS connection, see “3.5.6 System > Security > HTTPS”.
Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between web
browsers and servers. The HTTPS certificate controls the encrypted exchange of information.
3.4 Live View Page
The Live View page provides seven
screen modes: (2048x1536),
(1920x1080), 1280x1024, 1280x720,
704x480 (576), 640x480, 352x240
(288), and 320x240. Select the most
suitable mode in accordance with
your PC specifications and monitoring
purposes.
12

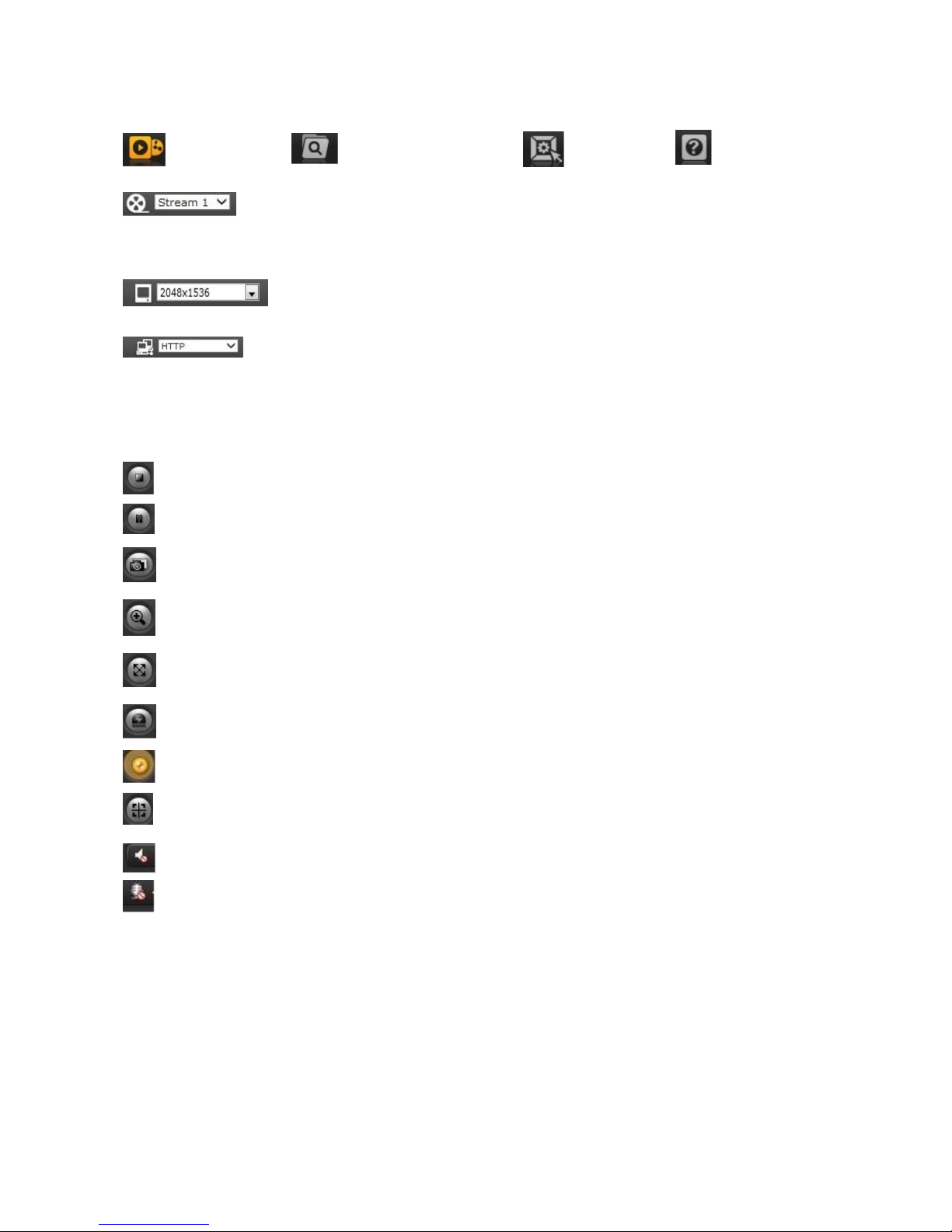

1) General controls
Live View Page Search & Playback Page Setup Page Help page
The video drop-down list allows the selection of a customized or pre-programmed video
stream on the Live View page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, see section “3.5.1 Basic Configuration > Video &
Image” of this manual.
The resolution drop-down list allows the selection of the most suitable video
resolutions to be displayed on Live View page.
The protocol drop-down list allows the selection of the combination of protocols and
methods to use depending on your viewing requirements and on the properties of the
network.
2) Control toolbar
The live viewer toolbar is available on the web browser page only. It displays the following buttons:
The Stop button stops the video stream being played. Pressing the key again toggles the
start and stop. The Start button connects to the network camera or start playing a video stream.
The Pause button temporarily stops (pauses) the video stream being played.
The Snapshot button takes a picture (snapshot) of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for the video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other windows will be
visible. Press the 'Esc' button on the computer keyboard to cancel full screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the event.
The Remote Focus button enables users to adjust focus and zoom remotely via network
(motorized lens models only).
The Fine Focus (one push focus) button readjusts focus automatically to set the focus to
the optimum position (motorized lens models only).
Use the Speaker icon scale to control the volume of the speakers.
Use the Microphone icon scale to control the volume of the microphone.
13
3) Video Streams
The network camera provides several image and video stream formats. Your requirements and the
properties of your network will determine the type you use.
The Live View page of the network camera provides access to H.264, MPEG-4 and Motion JPEG video
streams and to the list of available video streams. Other applications and clients can also access these video
streams/images directly, without going via the Live View page.

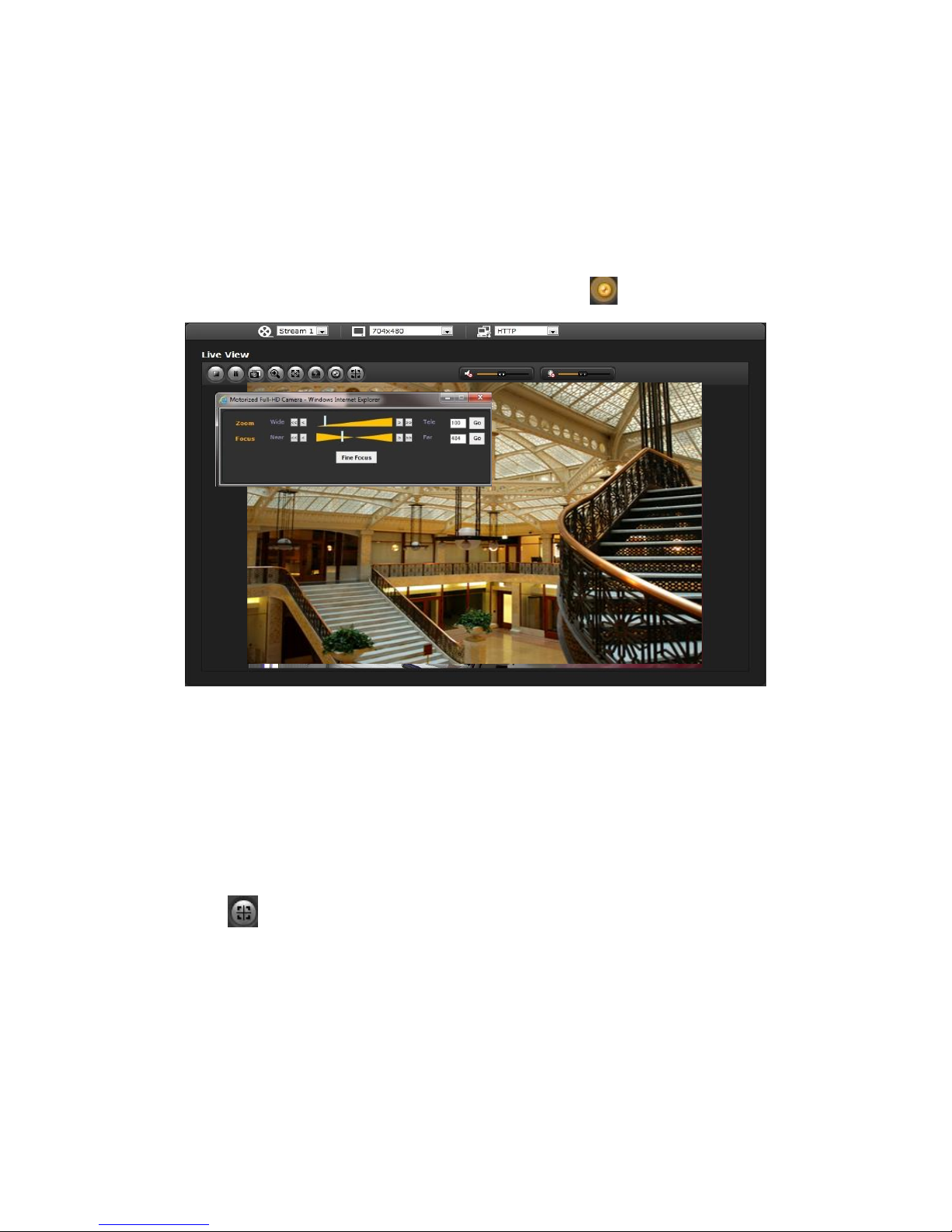

4) Focus and Zoom Control (motorized lens models only)
You can control Zoom and Focus from the Live View screen. Press the button on the left top in the
Live View screen to activate the Zoom and Focus control panel.
• Adjusting Zoom:
Click “<” button to zoom out and click “>” button to zoom in. The focus is moved slightly after adjusting
zoom; adjust the focus again, as necessary.
• Adjusting Focus:
Click “>” button for far focus and click “<” button to near focus.
• Fine Focus:
Click “Fine Focus” to fine tune and readjust focus automatically.
Note: Click the button in the Live View screen to set the focus to the optimum position.
3.5 Network Camera Setup
This section describes how to configure the network camera and is intended for product Administrators, who
have unrestricted access to all the Setup tools, and Operators, who have access to the settings for Basic,
Live View, Video & Image, Audio, Event, and System Configuration.
The network camera is configured by clicking Setup in the top right-hand corner of the Live View page. Click
on this page to access the online help that explains the setup tools.
14
When accessing the network camera for the first time, the “Admin
Password” dialog appears. Enter your admin name and password,
set by the administrator.
Note: If the password is lost, the network camera must be reset
to the factory default settings. See section “3.8 Resetting to the
Factory Default Settings”. The default administrator username is
“ADMIN” and password is “1234”.

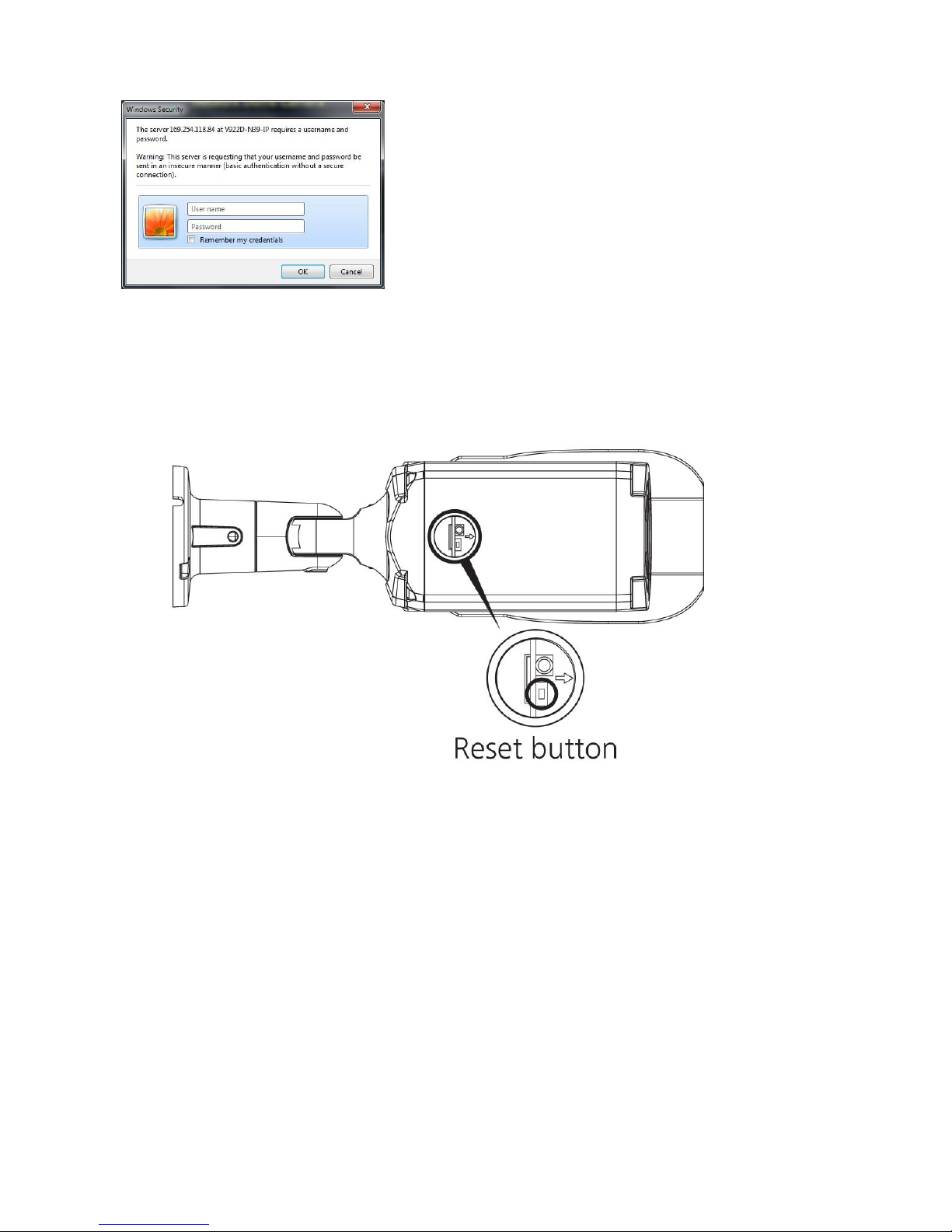

3.6 Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User Manual) or use the
Reset button on the network camera inside the bottom cap.
• Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings using the Reset
button.
1. Switch off the network camera by disconnecting the power adapter.
2. Open the cap.
3. Press and hold the Reset button with a straightened paperclip while reconnecting the power.
4. Keep the Reset button pressed until the Status indicator blink.
5. Release the Reset button.
6. When the Power Indicator changes to Green (may take up to 40 seconds), the process is complete and
the network video camera has been reset.
7. The network camera resets to factory defaults and restarts after completing the factory reset.
8. Close the bottom cap tightly to ensure waterproof.
CAUTION: When performing a Factory Reset, you will lose any settings that have been saved. (Default IP
192.168.1.100)
System Requirement for Web Browser
Operating System: Microsoft® Windows® 98, Microsoft Windows ME, Microsoft Windows 2000, Microsoft
Windows XP, or Microsoft Windows Vista® , Windows 7, Windows 8.1 and Windows 10
CPU: Intel® Core™ 2 Duo 2GHz or higher, 1 GB RAM or more, 10 GB free disk or higher
VGA: AGP, Video RAM 32 MB or higher (1024x768, 24 bpp or higher)
15
For ofce locations, visit the website: www.vicon-security.com
VICON INDUSTRIES INC.
Loading...
