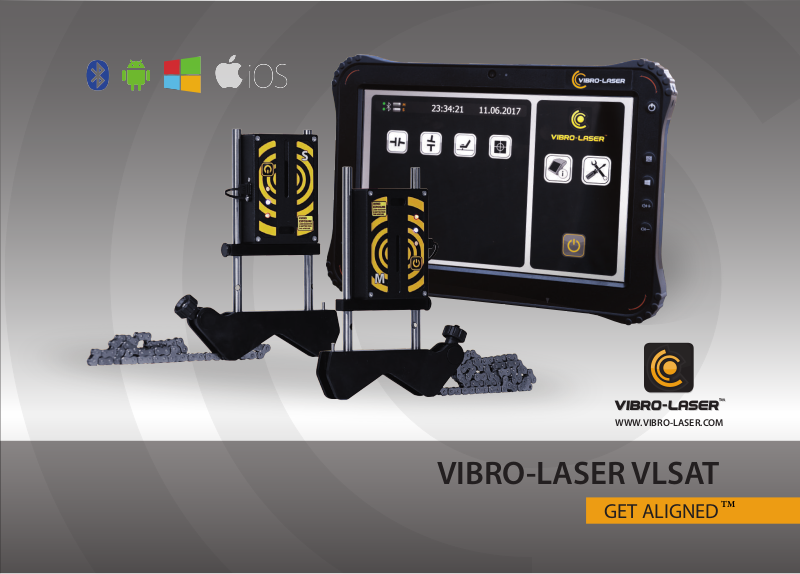

VIBRO-LASER VLSAT
TM
GET ALIGNED
Page 2
VIBRO-LASER VLSAT
GET ALIGNED
We are pleased to present the newest innovation in wireless portable laser shaft alignment technology, the VLSAT.
VLSAT is available for Microsoft Windows®, Android® tablets and iOS® for iPad®.
The ONLY 3 Operating System Laser Shaft Alignment System in the world, VLSAT is available on Microsoft Windows®, Android® and iOS®
for iPad®. You have a choice with VIBRO-LASER. Select your display tablet option from those we offer, or bring your own device that
meets or exceeds our minimum requirements. VLSAT is ergonomically designed for the most rugged environments. This product offers an
absolutely innovative, step-by-step, responsive interface with 3D-animations and wide touch screen which simplifies the alignment process
and reduces the time it takes to complete each alignment.
TM
The unbeatable functionality, and the undeniable performance capabilities of VLSAT systems allow you to complete precise alignments for
your rotating assets every time. Rugged, Repeatable, and Relentlessly Reliable your VIBRO-LASER VLSAT system will prove to be an
invaluable asset in your reliability toolkit.
Page 3
VIBRO-LASER VLSAT
SENSOR UNITS
GET ALIGNED
The VLSAT sensor units use the latest digital, and Bluetooth® data processing technology. Eliminating pre-alignment and minimizing setup
time is intrinsically engineered into the VLSAT through the utilization of our exclusive 30mm CCD-detectors. This provides you with exact
and stable measurement results and enables the system to be more interference-immune from the external factors (stray light, vibration,
thermal growth etc.). Thanks to the compact and durable aluminum case of the sensor units, you can work in the most confinedand harsh
environments..
Degree of protection
IP65
Operating time
20 Hours
Operating
temperature:
14° F to 140° F
(-10° C to +60° C)
60 mm 32 mm
90 mm
Measurement distance
Up to 10m
90 mm
TM
Detector type
Digital CCD detector
30mm
Page 4
VIBRO-LASER VLSAT
GET ALIGNED

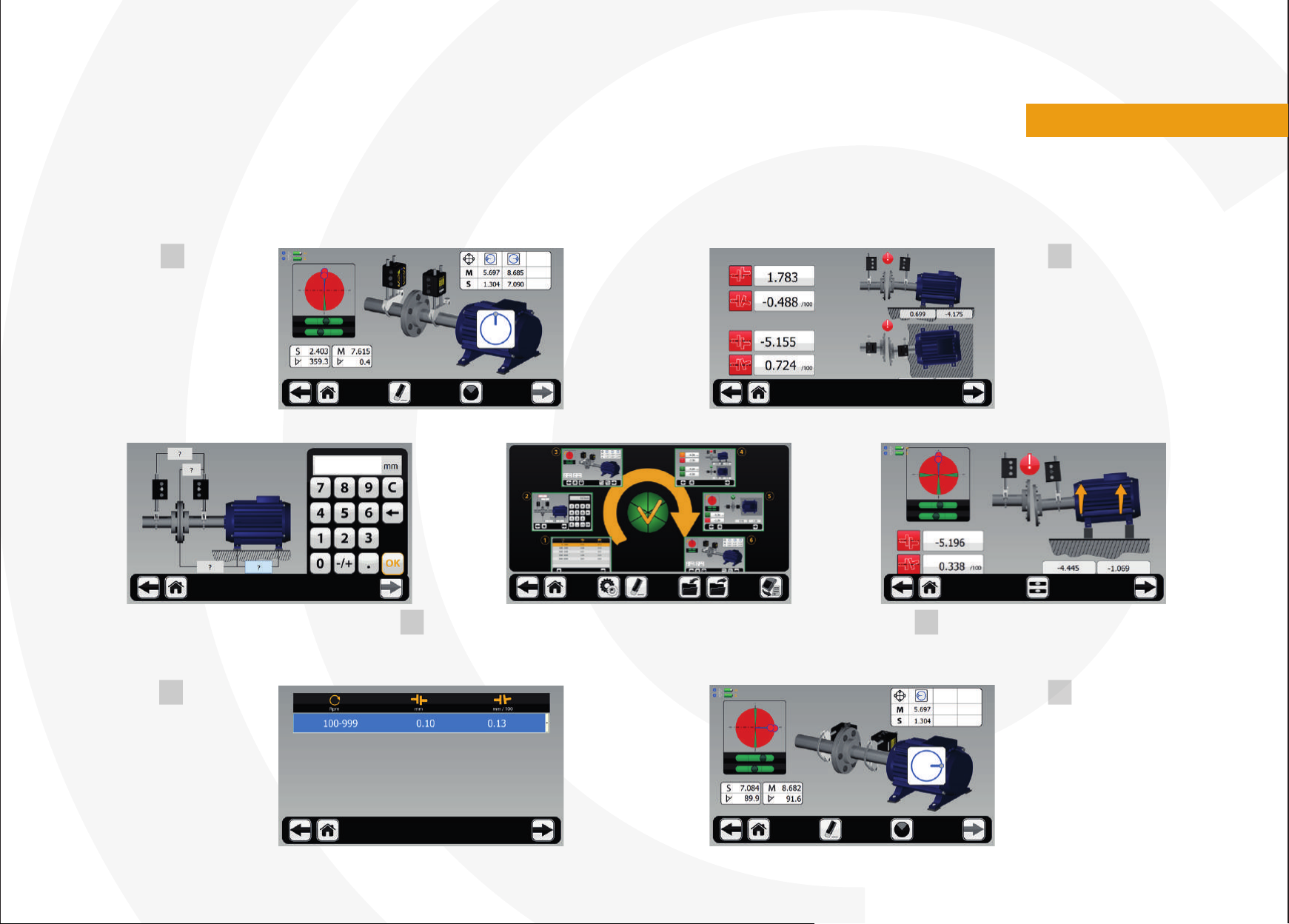

STEP BY STEP - ALIGNMENT
This product offers an absolutely innovative, step-by-step, responsive interface with 3D-animations and wide touch screen which simplifies
the alignment process, and reduces the alignment times.
Step 3
Make the measurements in any three
points
(MINIMUM 40 DEGREE SWEEP)
Step 4
Measurement results
are displayed with the
color indication:
Red - value out of
tolerance
TM
Step 1
Insert the tolerance
(CUSTOM TOLERANCES AVAILABLE)
Step 2
Insert the dimensions
Following the Alignment Pursuit Process
Indicator, step by step
Step 5
Our live movements & virtual levels guide
you to a precision alignment
VERIFY & REPORT
Carry out the verification measurements &
generate your PDF
report
Page 5
VIBRO-LASER VLSAT
FEATURES
GET ALIGNED
The only 3 operating system shaft alignment product on the market VLSAT, from VIBRO-LASER oers robust, repeatable, and relentlessly
reliable features that give customers the choice in operating system combined with the most eective and accurate shaft alignment for the
price.
HORIZONTAL SHAFT ALIGNMENT
This type of measurement requires rotating the
shaft with the M and S units in any three points
(3-6-9-12 o’clock).
VERTICAL ALIGNMENT
Vertical shaft alignment is carried out by moving
the machine ange/coupling until the axes are
coaxial enough to stay in the assigned limits.
THERMAL EXPANSION CORRECTION
Easily and accurately compensate for thermal
growth using the VLSAT thermal growth
correction module.
ENVIRONMENTAL CORRECTION
Unique technology that reduces the efffects of
high vibration and competing light sources on
precision alignment.
TM
SOFT FOOT
Before any alignment soft foot should be
addressed.
CUT ANGLE
If 180 degree rotation of the shaft is impossible.
The minimal rotation required is 40 degrees.
The more rotation, the better and more precise the
alignment.
SENSOR UNIT READINGS
The display shows data received directly from the
sensor units (position of the laser beam on the
sensor and inclinometer).
SAVING DATA AND REPORT CREATION
Start a new alignment, redo a previously
completed alignment, or save at any step in the
alignment process and go back to finish anytime.
Print reports to PDF, email them, or upload them to
your CMMS.
Page 6
ACCESSORIES

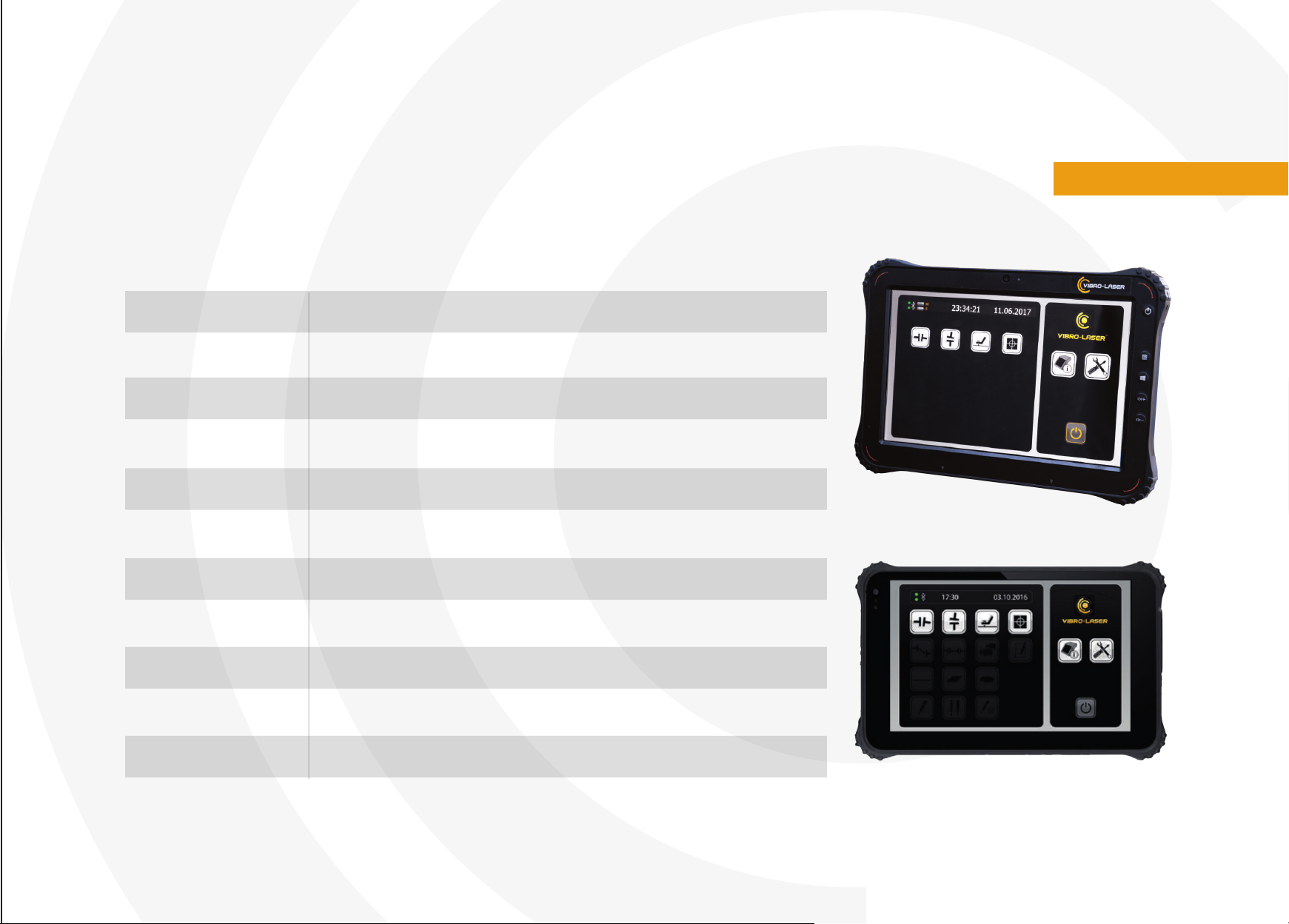

TABLET 8 INCH AND 10 INCH
OS Windows, Android, or iOS - Bring Your Own Device Available
Sealing IP 65 or IP67 / Depending on Tablet/OS
Weight 250g – 1.03kg / Depending on Tablet/OS
Dimensions Depends on Model
Display Color TFT/LCD with back light
VIBRO-LASER VLSAT
TM
GET ALIGNED
Display size 8’’ to 10’’ diagonal widescreen
Display resolution 1280-800 up to 2048×1536 / Depending on Model/OS
Operating Temp -14° F to +140° F (-20° C to +60° C) / Depending on Model
Battery Life 8-15 hours depending on Model/OS
Storage Drive SSD 32GB+
Camera Front & Rear Facing Cameras
TABLET 10 INCH
TABLET 8 INCH
Page 7
ACCESSORIES
VIBRO-LASER VLSAT
TM
GET ALIGNED

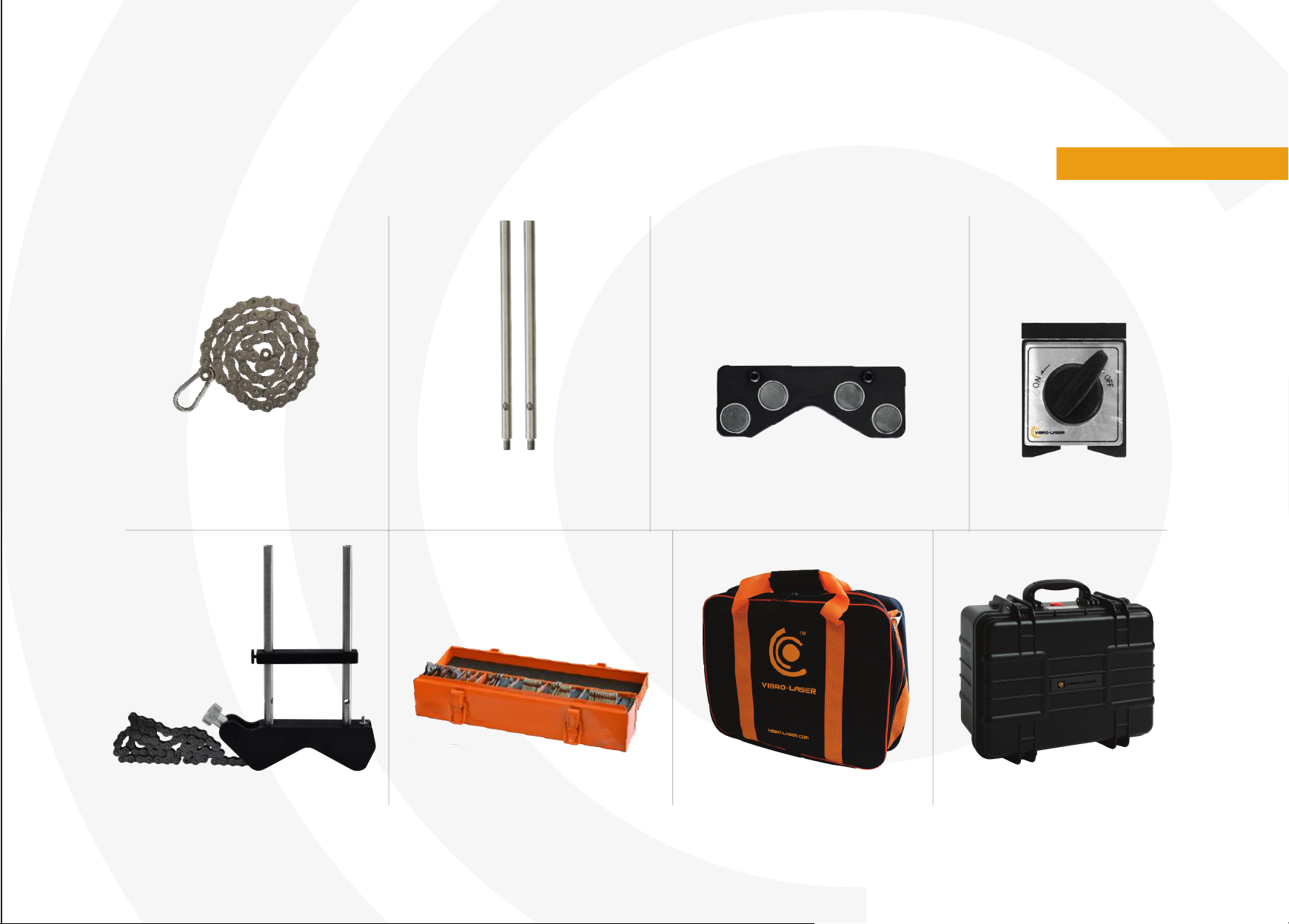

Chain with lock - Chrome
plated steel, 500 mm / 19.7 inch
V-bracket complete
Rods - Stainless
steel, 60 mm / 6.3
inch
Shims
Magnetic bracket Magnetic base
Carrying bag
Carrying case with insert
Page 8

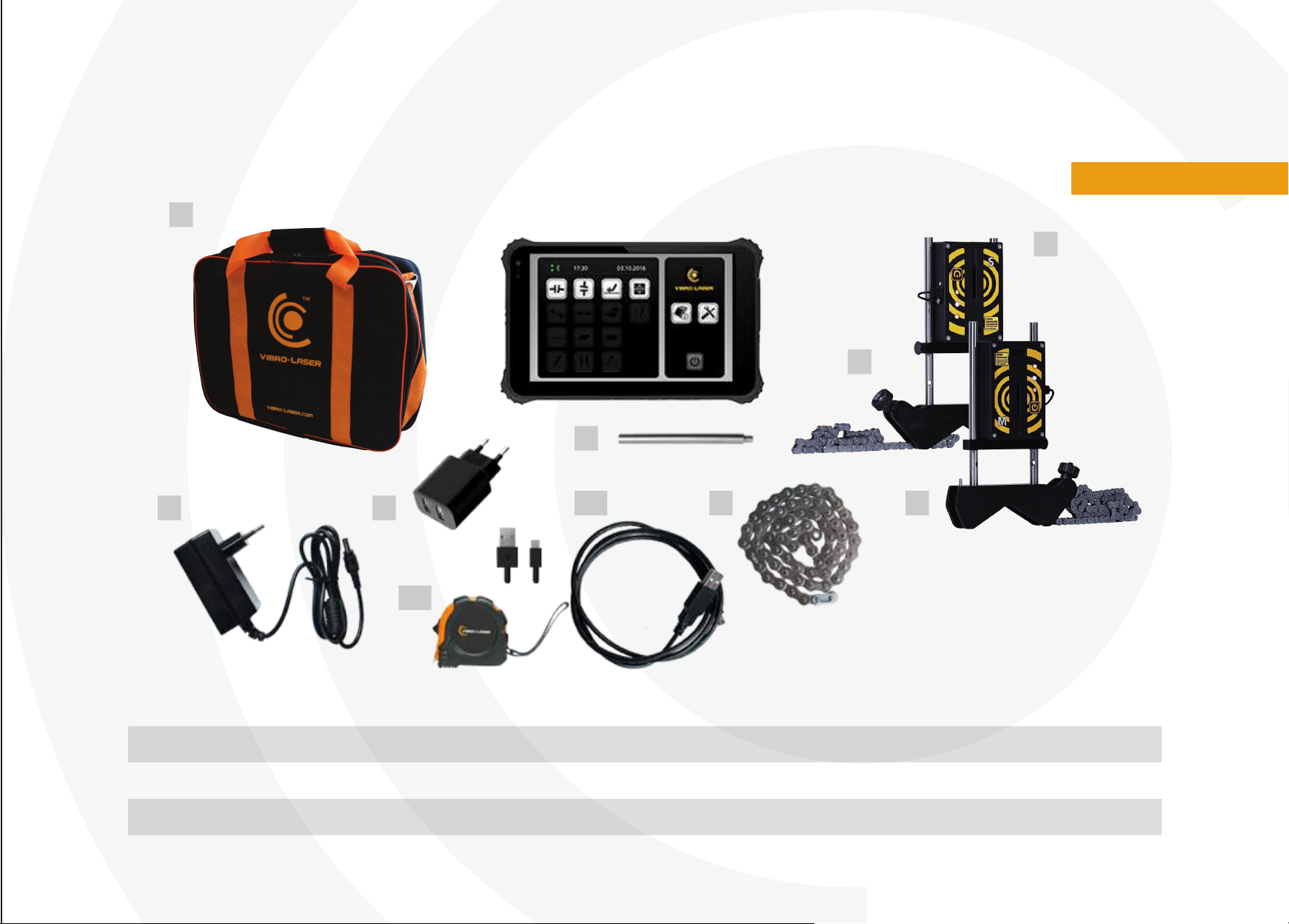

COMPLETE SET
5
VIBRO-LASER VLSAT
TM
GET ALIGNED
2
4
9
7 8
1. Display unit (1pcs IF INCLUDED);
2. Sensor unit S (1pcs);
3. Sensor unit M (1pcs);
11
4. Complete v-bracket (2pcs);
5. Carring bag (1pcs);
6. Chain with lock (2pcs);
10
7. Display unit adapter (1pcs);
8. Sensor units adapter (1pcs);
9. Turn key (1pcs);
35
10. USB cable (2pcs);
11. Tape measure (1pcs);
