Page 1

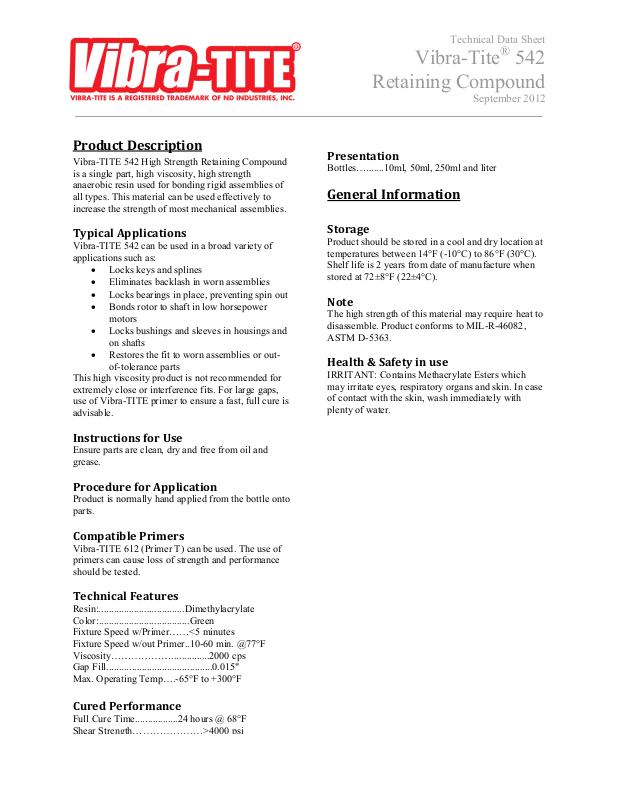

Technical Data Sheet
Vibra-Tite® 542
Retaining Compound
September 2012
Product Description
Vibra-TITE 542 High Strength Retaining Compound
is a single part, high viscosity, high strength
anaerobic resin used for bonding rigid assemblies of
all types. This material can be used effectively to
increase the strength of most mechanical assemblies.
Typical Applications
Vibra-TITE 542 can be used in a broad variety of
applications such as:
Locks keys and splines
Eliminates backlash in worn assemblies
Locks bearings in place, preventing spin out
Bonds rotor to shaft in low horsepower
motors
Locks bushings and sleeves in housings and
on shafts
Restores the fit to worn assemblies or out-
of-tolerance parts
This high viscosity product is not recommended for
extremely close or interference fits. For large gaps,
use of Vibra-TITE primer to ensure a fast, full cure is
advisable.
Instructions for Use
Ensure parts are clean, dry and free from oil and
grease.
Procedure for Application
Product is normally hand applied from the bottle onto
parts.
Compatible Primers
Vibra-TITE 612 (Primer T) can be used. The use of
primers can cause loss of strength and performance
should be tested.
Technical Features
Resin:..................................Dimethylacrylate
Color:....................................Green
Fixture Speed w/Primer……<5 minutes
Fixture Speed w/out Primer..10-60 min. @77°F
Viscosity………………...............2000 cps
Gap Fill..........................................0.015"
Max. Operating Temp….-65°F to +300°F
Cured Performance
Full Cure Time.................24 hours @ 68°F
Shear Strength…………………>4000 psi
Presentation
Bottles….......10ml, 50ml, 250ml and liter
General Information
Storage
Product should be stored in a cool and dry location at
temperatures between 14°F (-10°C) to 86°F (30°C).
Shelf life is 2 years from date of manufacture when
stored at 72±8°F (22±4°C).
Note
The high strength of this material may require heat to
disassemble. Product conforms to MIL-R-46082,
ASTM D-5363.
Health & Safety in use
IRRITANT: Contains Methacrylate Esters which
may irritate eyes, respiratory organs and skin. In case
of contact with the skin, wash immediately with
plenty of water.
